♻VOLKSWAGEN TRANSPORTER T5 BATTERY CABLE 7H0971158L 04-09♻

#102

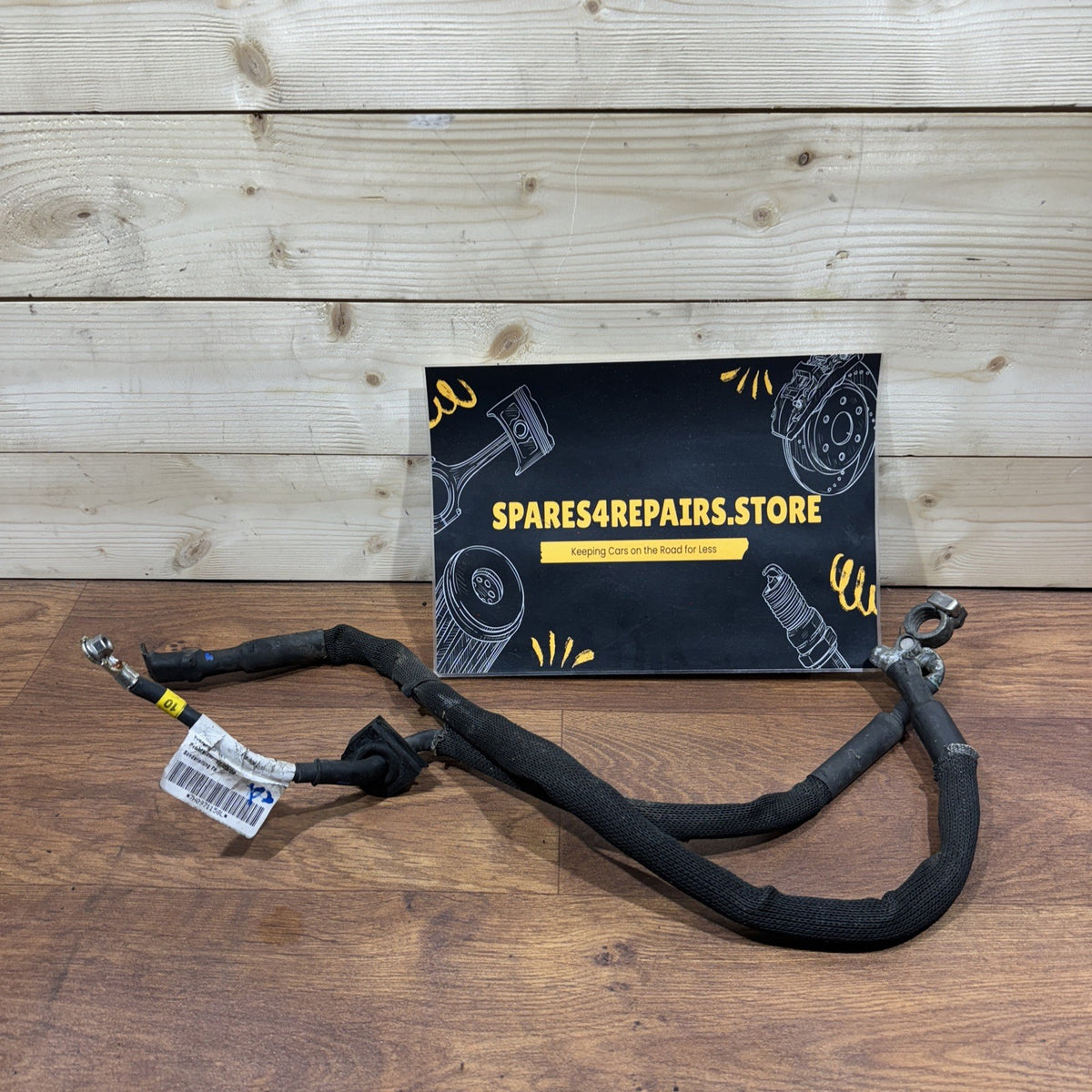

Genuine used Volkswagen Transporter T5 Positive Battery Cable / Battery Wiring Harness, part number 7H0971158L, suitable for selected 2004–2009 T5 models.

This heavy-duty electrical cable forms part of the vehicle’s main battery power distribution system, providing a high-current electrical connection from the battery positive supply to the vehicle’s starting and electrical power circuits.

Part Details

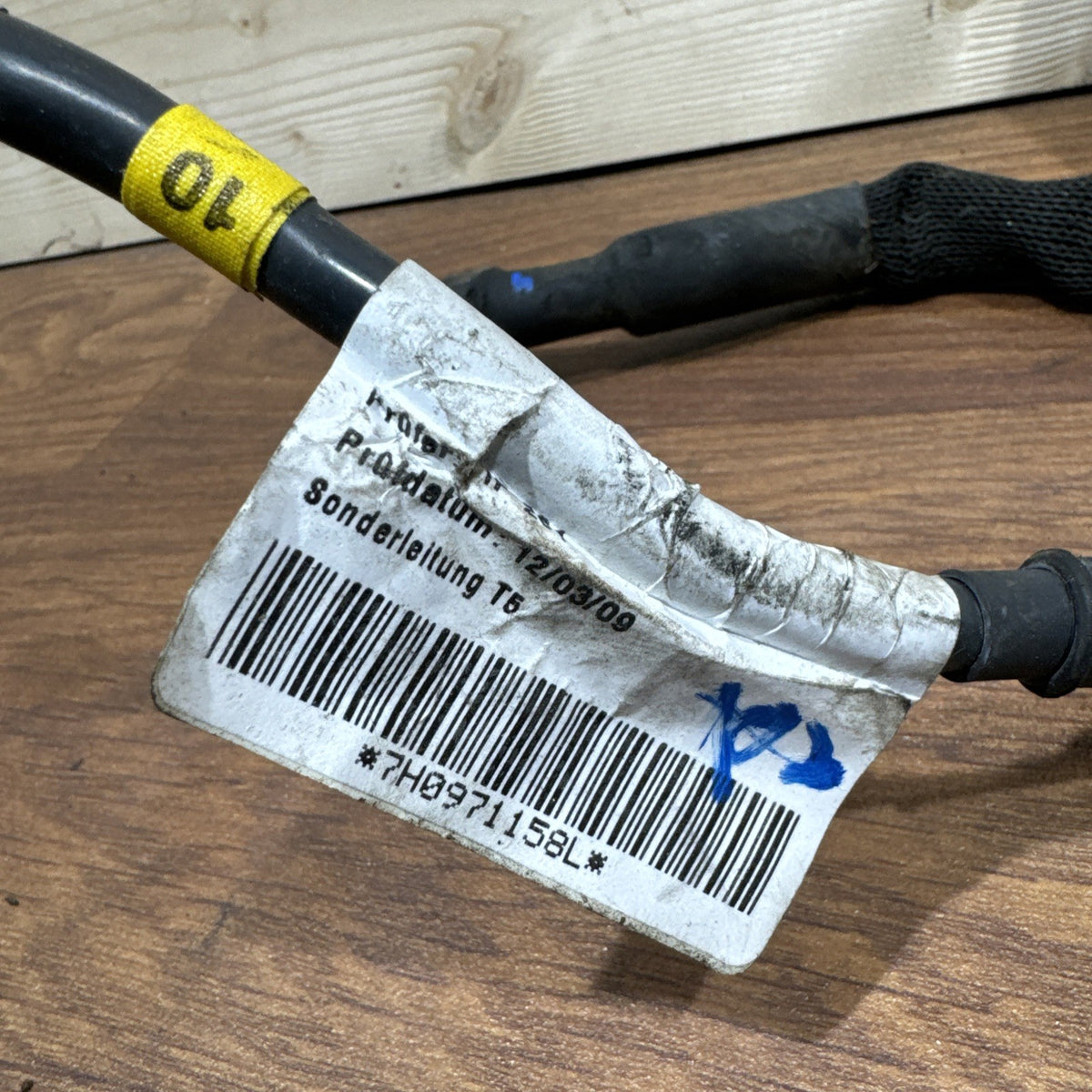

Part Number: 7H0971158L

VW OE Number: 7H0 971 158 L

Part Type: Positive Battery Cable / Battery Wiring Harness / Power Cable

System: Battery / Starting / Main Electrical Supply

Position: Battery / Engine Bay Electrical System

Polarity/Application: Positive (+) Battery Supply

Manufacturer: Volkswagen / Genuine VAG

Condition: Used Genuine Part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2004–2009

* Volkswagen Caravelle T5

* Volkswagen Multivan T5

* Volkswagen California T5

* Transporter Panel Van

* Transporter Kombi

* Transporter Shuttle

* Selected Camper applications

* Selected chassis/platform variants

Genuine parts catalogue information confirms 7H0971158L across Transporter/Caravelle and Camper T5 applications, including model years 2004, 2005, 2006, 2007, 2008 and 2009.

Engine Compatibility

The cable is documented across different T5 engine configurations rather than being restricted to a single engine.

Known donor/catalogue applications include diesel models such as:

* 1.9 TDI

* 2.5 TDI

An exact AXD 2.5 TDI T5 donor application is also documented for 7H0 971 158 L.

Because battery cable configurations can vary according to engine, electrical equipment and production specification, buyers should match the OE number and cable layout rather than purchasing solely by engine capacity.

Technical Information

The positive battery cable is a high-current component within the T5 electrical system.

Its primary purpose is to distribute electrical power from the battery positive terminal to the appropriate high-current circuits and electrical distribution points.

The battery supply is essential for systems including:

* Starter motor circuit

* Vehicle electrical distribution

* Engine management electronics

* Charging system

* Fuse/distribution circuits

* Auxiliary electrical equipment where applicable

Because the starter requires very high current during engine cranking, the battery cable uses a substantially heavier conductor than normal vehicle wiring.

Battery & Charging System Information

The battery cable operates as part of a larger electrical system involving components such as:

* Vehicle battery

* Positive battery terminal

* Negative battery/earth cable

* Starter motor

* Alternator

* Main fuse/distribution system

* Engine/body earth connections

* Associated battery wiring

A poor connection anywhere in the high-current circuit can produce symptoms that may incorrectly appear to be caused by a weak battery or faulty starter motor.

Common Symptoms / Reasons for Replacement

Replacement may be required because of:

* Corroded battery terminal connection

* Damaged cable insulation

* Broken cable

* Heat damage

* Burnt electrical connections

* Corroded cable terminals

* Loose terminal connection

* Excessive electrical resistance

* Accident or engine-bay damage

* Previous incorrect electrical repair

* Damaged connector or mounting points

Possible Symptoms of a Faulty Battery Cable

A damaged or high-resistance battery cable can potentially cause:

* Slow engine cranking

* Intermittent starting

* Starter motor failing to operate

* Clicking when attempting to start

* Electrical power interruption

* Excessive voltage drop

* Hot cable or terminal connections

* Intermittent electrical faults

* Battery appearing discharged despite being serviceable

These symptoms can also result from the battery, starter, alternator, earth connections or other electrical faults.

Important Diagnostic Information

Before replacing the battery cable, check:

* Battery condition and state of charge

* Positive battery terminal

* Negative battery terminal

* Main earth/ground connections

* Starter motor connections

* Alternator connections

* Main fuse/distribution connections

* Cable terminals for corrosion

* Cable insulation for heat damage

* Voltage drop during engine cranking

A voltage-drop test across the high-current cables can help identify excessive resistance within the starting circuit.

Installation

Important: Disconnect the battery before carrying out electrical work.

When installing:

* Follow the original factory cable routing

* Ensure terminals and contact surfaces are clean

* Secure all electrical connections correctly

* Ensure the cable cannot contact moving components

* Keep wiring away from excessive heat

* Refit all original retaining clips and brackets

* Inspect the cable for trapping or tension before reconnecting the battery

High-current battery connections must be secure to prevent excessive resistance and overheating.

Programming / Coding

No programming or coding is normally required for the battery cable itself.

However, disconnecting the vehicle battery can cause certain vehicle systems to lose stored settings or require basic reinitialisation depending on vehicle equipment.

OE / Revision Information

Main OE Number:

7H0971158L

7H0 971 158 L

Genuine VW catalogue information also references earlier related numbers:

7H0971158H

7H0971158J

These are associated OE references within the battery wiring family.

Do not assume that every revision is interchangeable without checking the complete cable configuration.

Important Compatibility Note

Volkswagen used different battery cables and wiring configurations according to engine, production date and vehicle electrical specification.

Before purchasing, please compare:

OE Number: 7H0971158L / 7H0 971 158 L

Cable length and routing

Battery terminal connection

Electrical terminal ends

Number of cable branches

Connector configuration

Mounting/retaining points

Original cable design

For the most reliable compatibility check, match 7H0971158L directly against the number and design of the original cable fitted to the vehicle.

Condition

Used genuine Volkswagen part.

As a used engine-bay electrical component, the item may show normal cosmetic marks, dirt, staining, surface oxidation and signs of previous installation.

Please inspect the supplied photographs carefully, particularly the electrical terminals, connectors, cable insulation and mounting points.

An ideal genuine replacement for a corroded, damaged, burnt or high-resistance Volkswagen Transporter T5 positive battery cable / battery wiring harness.
