0 130 002 634 Bmw 3 Series E92 Front Right Seat Adjustment Drive Control Motor

#20

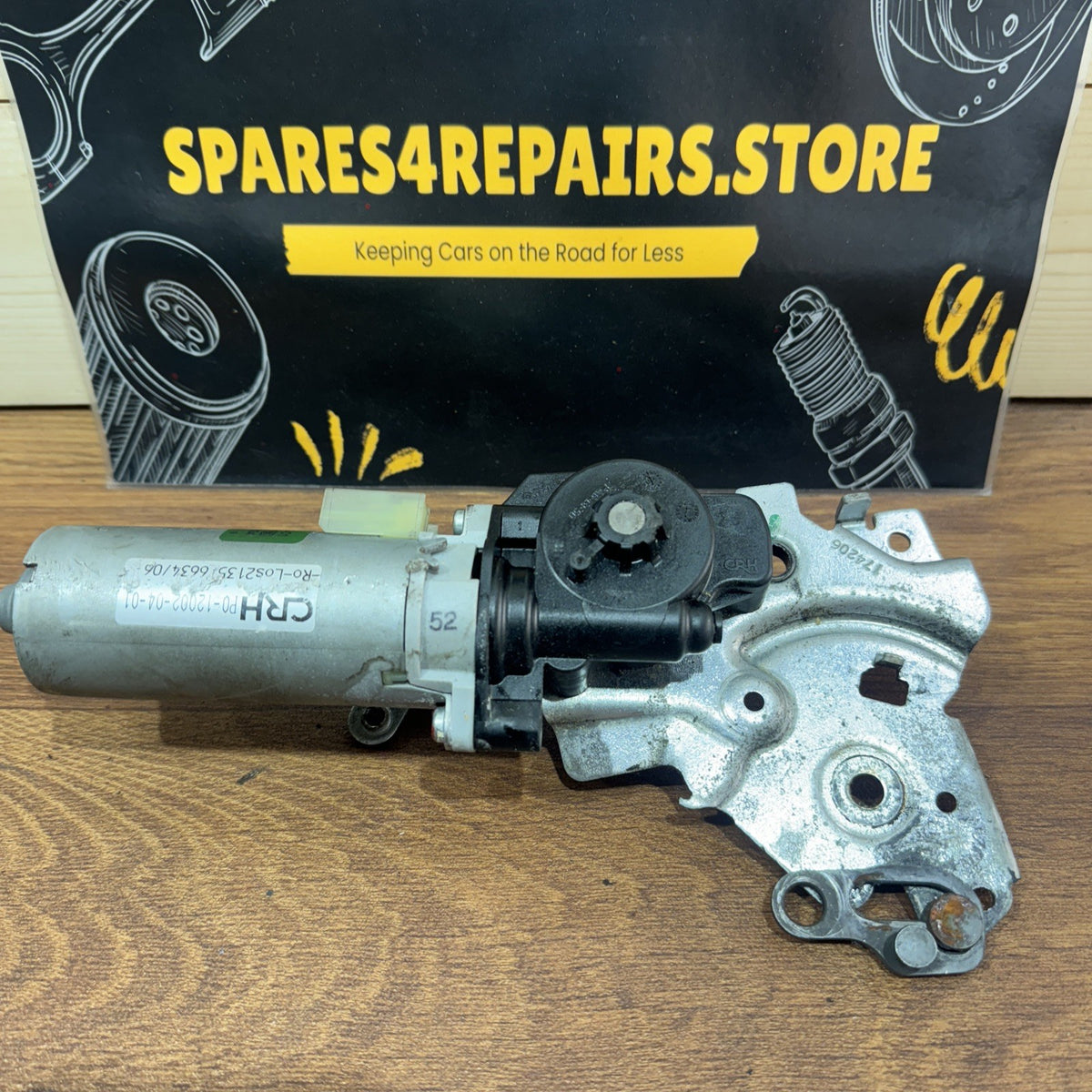

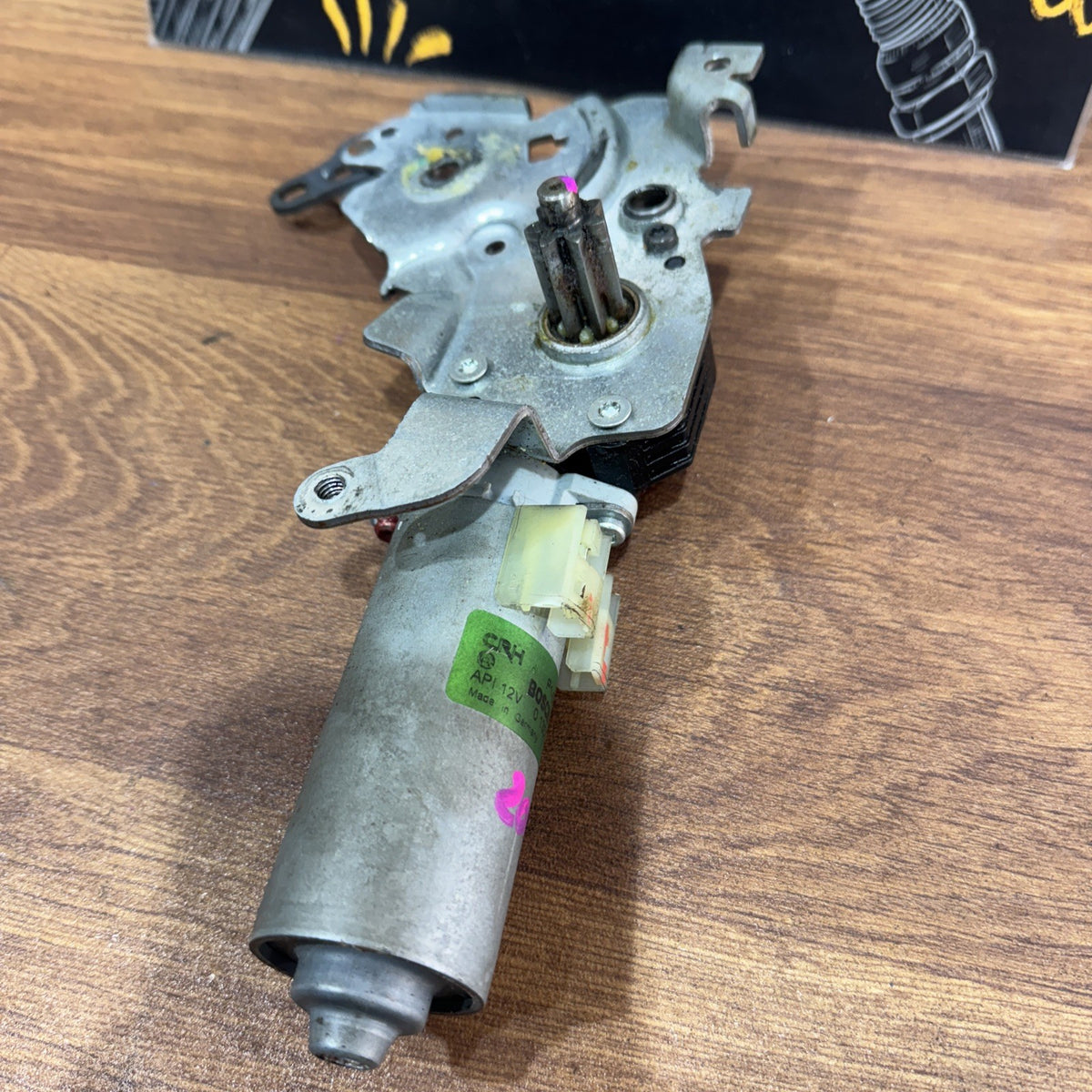

Genuine BMW 3 Series E92 Front Right O/S Electric Seat Adjustment Drive Motor – 0 130 002 634

Genuine BMW/OEM used front right electric seat adjustment drive motor, suitable for selected BMW 3 Series E92 Coupé models equipped with electrically adjustable front seats.

This motor forms part of the powered seat adjustment mechanism and provides the mechanical drive required to move the relevant section of the seat when operated through the electric seat controls.

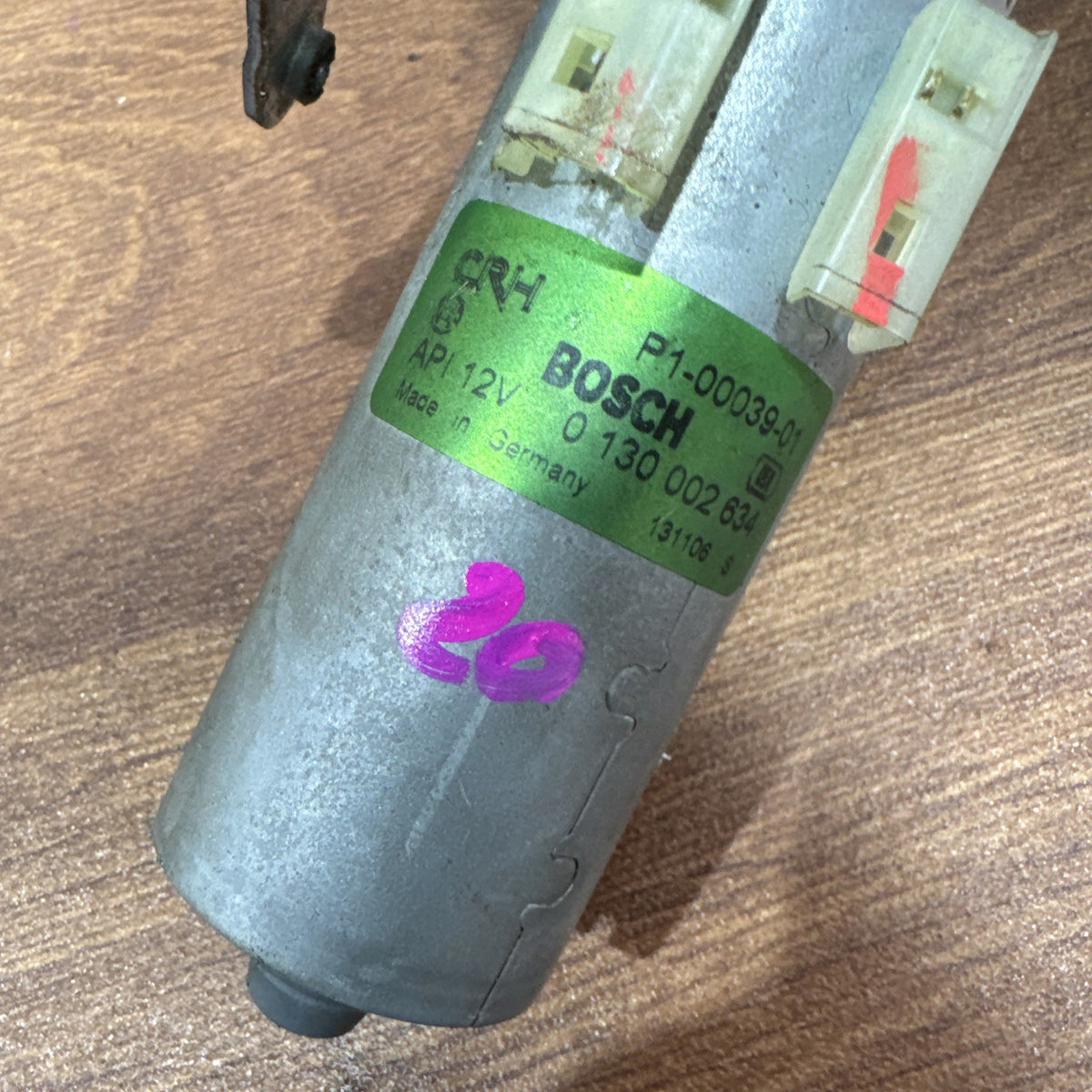

Part Number: 0 130 002 634

Compact Number: 0130002634

Additional Reference: P0-12002-04

Part Type: Electric Seat Adjustment Drive Motor

Position: Front Right Seat

Vehicle Side: Right / O/S

Application: Electric Front Seat Adjustment

Operating Voltage: 12V

Hall Sensor: Yes

Rotation: Left / Right

Vehicle: BMW 3 Series E92 Coupé

Condition: Used Genuine/OEM Part

COMPATIBILITY

Direct fitment records confirm 0130002634 / 0 130 002 634 as a:

BMW 3 Series E92 – Front Right Seat Adjustment Drive Motor

Suitable for selected BMW E92 Coupé models equipped with the corresponding electrically adjustable front seat system.

Potential E92 applications include selected:

• BMW 318i E92

• BMW 320i / 320d E92

• BMW 325i / 325d E92

• BMW 330i / 330d E92

• BMW 335i / 335d E92

• Other E92 variants with the matching electric seat mechanism

Engine size does not determine compatibility. Fitment is primarily dependent on the seat type, electric adjustment configuration, motor position and seat mechanism.

RIGHT-HAND / O/S POSITION

This unit is identified as a:

Front Right / O/S Seat Adjustment Motor

On a UK right-hand-drive BMW E92, the front-right seat is normally the:

Driver’s Seat / O/S Front

However, when checking compatibility, buyers should use the physical right-hand seat position and motor identification number rather than relying solely on driver/passenger terminology.

TECHNICAL INFORMATION

The 0 130 002 634 is a 12V DC electric motor designed to provide controlled mechanical drive within an electric seat adjustment system.

Published technical specifications for this motor include:

Nominal Voltage: 12V

Nominal Power: 20W

Nominal Current: 4.6A

Nominal Speed: Approx. 3820 RPM

Nominal Torque: Approx. 0.05 Nm

Hall Sensor: Yes

Direction of Rotation: Left / Right

The integrated Hall sensor can provide positional/movement feedback required by applicable electric seat control systems.

ELECTRIC SEAT SYSTEM INFORMATION

BMW electric seats use multiple motors to control different seat movements.

Depending on its exact mounting position within the seat assembly, an electric adjustment motor can operate functions associated with:

• Forward / backward movement

• Seat height adjustment

• Seat base angle / tilt

• Backrest adjustment

• Other powered seat positioning functions

The motor works together with components including:

• Seat adjustment switches

• Seat control module / ECU where fitted

• Seat wiring loom

• Mechanical drive system

• Gearbox / spindle mechanism

• Seat rails and adjustment frame

IMPORTANT: An E92 electric seat can contain several similar-looking adjustment motors.

Therefore, 0 130 002 634 / 0130002634 should be matched directly with the original motor whenever possible.

PART NUMBER INFORMATION

Primary identification:

0 130 002 634

Compact reference:

0130002634

Additional documented reference:

P0-12002-04

Direct E92 used-part records identify 0130002634 as the OE/OEM reference and 0 130 002 634 as an interchangeable formatting of the same motor number.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• One electric seat adjustment function not working

• Seat no longer moving forward or backward

• Seat height / tilt adjustment failure

• Intermittent electric seat movement

• Motor operating slowly

• Motor completely inoperative

• Abnormal noise from the motor

• Internal electric motor failure

• Damaged electrical connector

• Motor damaged during seat repair

• Replacement during electric seat mechanism refurbishment

IMPORTANT DIAGNOSTIC INFORMATION

A non-moving electric seat does not automatically mean the motor itself has failed.

Before replacement, inspect:

• Seat adjustment switch

• Seat control module / ECU

• Seat wiring loom

• Electrical connector

• Power and ground supply

• Fuses

• Mechanical drive cables / spindle

• Seat rails

• Adjustment gearbox

• Relevant diagnostic fault codes

If the motor can be heard operating but the seat does not move, the mechanical drive mechanism, gearbox, cable or spindle should also be inspected.

If other electric seat movements work normally but one individual adjustment has stopped operating, the corresponding motor and drive mechanism are particularly relevant areas to investigate.

INSTALLATION

The motor is installed within the front-right electric seat frame / adjustment mechanism.

Depending on its exact position, installation may require:

• Removal or repositioning of the front seat

• Removal of seat trim

• Access to the underside of the seat

• Disconnection of the motor electrical connector

• Removal of associated drive components

• Correct alignment of the replacement motor and drive mechanism

After installation, the seat should be operated through its complete appropriate movement range to confirm smooth operation.

SRS / SAFETY INFORMATION

BMW front seats can contain electrical components associated with:

• Side airbags

• Seat belt pretensioners

• Occupancy detection

• Seat position electronics

• SRS restraint system

The correct BMW repair procedure should therefore be followed when disconnecting or removing the front seat.

Care should also be taken not to switch the ignition on with SRS components disconnected, as this may result in stored restraint-system fault codes.

PROGRAMMING / CODING

Programming Required: Normally No

Coding Required: Normally No

A like-for-like replacement of the individual 0 130 002 634 electric motor normally does not require vehicle coding.

Where applicable, the seat control system should be checked after installation to ensure the motor and position feedback operate correctly.

IMPORTANT COMPATIBILITY NOTE

Please match:

0 130 002 634

0130002634

Additional reference:

P0-12002-04

Also compare:

• Front right / O/S seat position

• Motor casing and design

• Electrical connector

• Connector pin configuration

• Mounting points

• Drive connection

• Seat type

• Motor position within the seat

• Listing photographs

Do not purchase solely because the vehicle is a BMW E92.

Several electric motors can be fitted within the same E92 seat assembly and can perform different adjustment functions.

Matching 0130002634 / 0 130 002 634 and the physical motor configuration with the original unit provides the strongest basis for correct compatibility.

CONDITION

Used Genuine/OEM BMW Seat Adjustment Motor.

Normal cosmetic marks and signs of previous installation may be present.

Please inspect all listing photographs carefully for the exact motor, connector, drive connection, identification numbers and overall condition.

Ideal genuine/OEM replacement for repairing the front right electric seat adjustment system on a compatible BMW 3 Series E92 Coupé.
