2004-2016 LAND ROVER DISCOVERY 3 4 TOOL KIT & BAG ETC KBK500160

#loc23

Genuine Land Rover Discovery 3 & Discovery 4 Tool Kit & Roll Bag – KBK500160 – 2004-2016

Genuine Land Rover/JLR used vehicle tool kit with original roll-out storage bag, suitable for selected Land Rover Discovery 3 and Discovery 4 L319 models.

This is the factory-style emergency/roadside tool storage kit supplied with compatible vehicles. The exact tools and accessories included are as shown in the listing photographs.

Part Number: KBK500160

Land Rover OE Number: KBK500160

Part Type: Vehicle Tool Kit / Tool Roll / Tool Storage Bag

Application: Emergency / Wheel Change / Roadside Tools

Bag Type: Roll-Out Tool Bag

Vehicle Platform: Discovery 3 & Discovery 4 – L319

Manufacturer: Land Rover / JLR

Condition: Used Genuine Land Rover Parts

Contents: Everything shown in the listing photographs

COMPATIBILITY

Land Rover Discovery 3 – L319

• 2004-2009

• Selected 7-seat models

• TDV6 applications

• Vehicles with corresponding factory tool-kit specification

• Four-corner air-suspension applications documented for KBK500160

Land Rover Discovery 4 – L319

• 2010-2016

• From VIN AA000001

• Selected 7-seat models

• TDV6 applications

• Vehicles with corresponding factory tool-kit specification

• Four-corner air-suspension applications documented for KBK500160

Land Rover parts specialists specifically catalogue:

KBK500160 – Tool Bag / Roll Out Type – 7 Seat – TDV6

for:

Discovery 3

Discovery 4 from VIN AA000001

The same genuine KBK500160 tool roll is also independently catalogued for both Discovery 3 and Discovery 4.

2004-2016 APPLICATION

The complete used KBK500160 tool kit and bag is commonly documented across:

Discovery 3 – 2004-2009

and:

Discovery 4 – 2010-2016

providing the commonly advertised overall range of:

2004-2016

A direct UK dismantler record also identifies a genuine:

“Discovery 3 4 Tool Kit in a Bag KBK500160 Land Rover 2004 to 2016”

with the contents supplied as pictured.

IMPORTANT KBK500160 PART NUMBER INFORMATION

The genuine Land Rover number:

KBK500160

primarily identifies the:

TOOL ROLL / TOOL STORAGE BAG

Land Rover parts catalogues specifically describe it as:

Tool Roll Bag – Empty

or:

Tool Bag – Roll Out Type

Therefore, KBK500160 should not be interpreted as a single OE number for every individual tool contained inside the bag.

Individual tools can carry their own separate Land Rover part numbers.

For a used complete kit, however, KBK500160 is a useful and commonly used identification/search number for the tool kit and bag assembly.

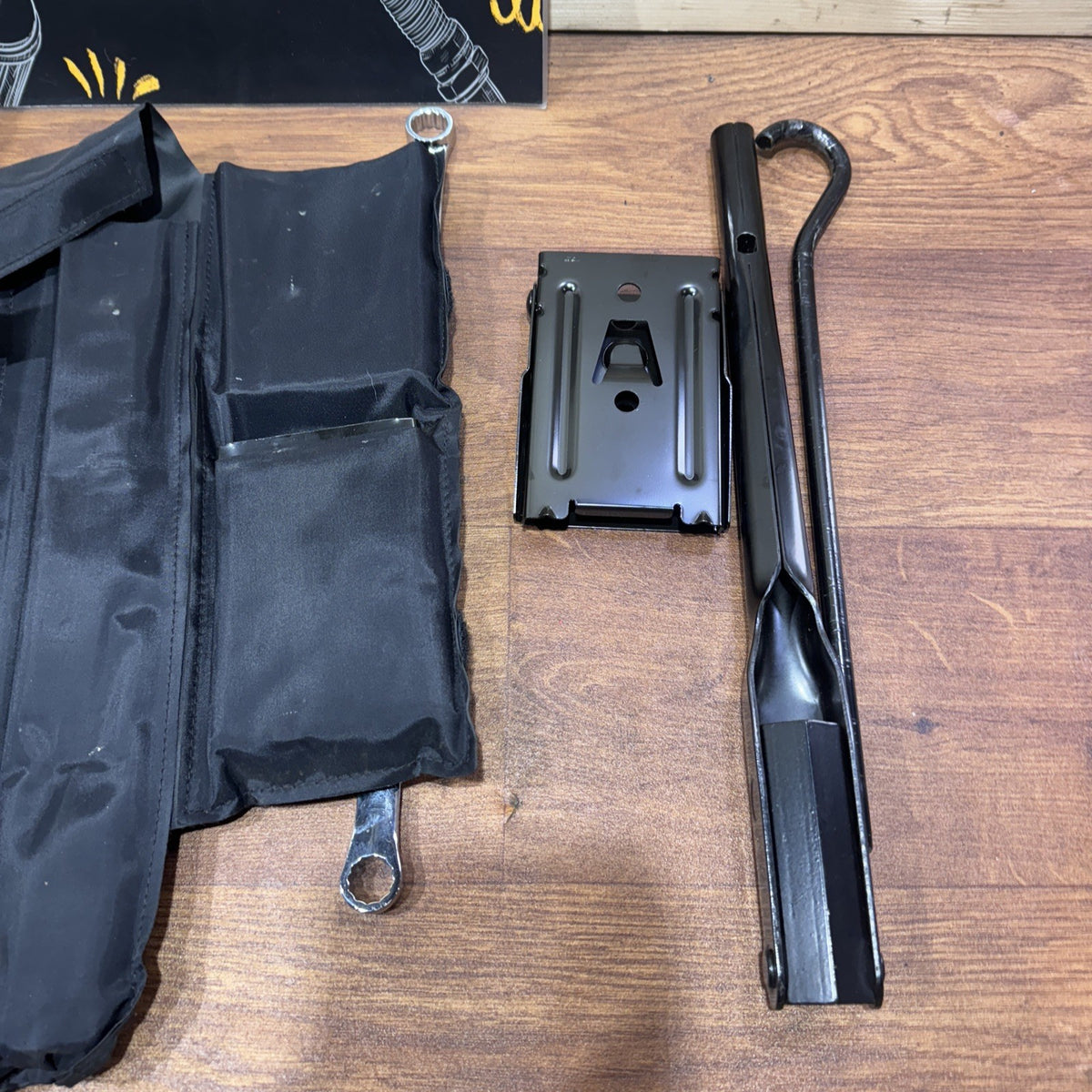

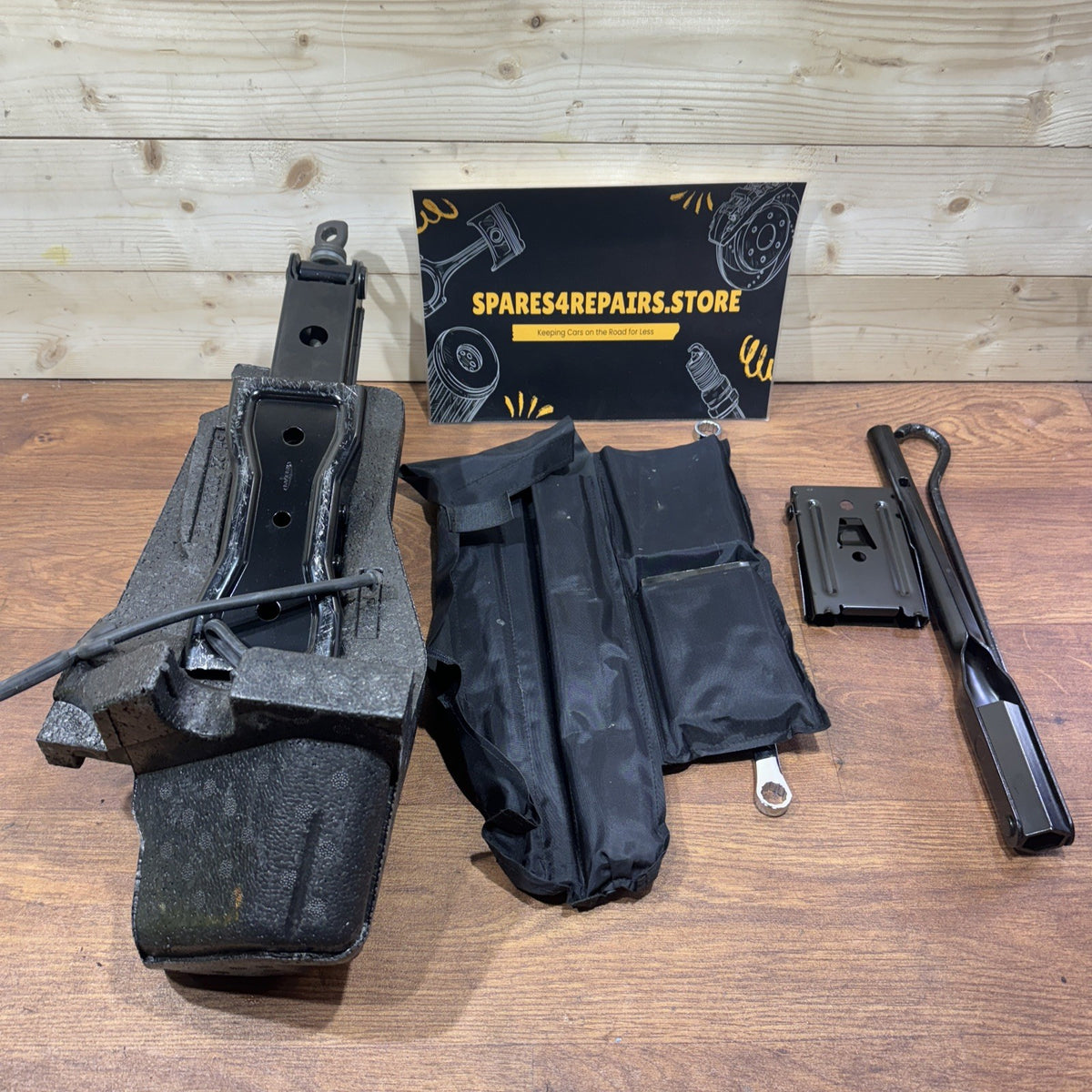

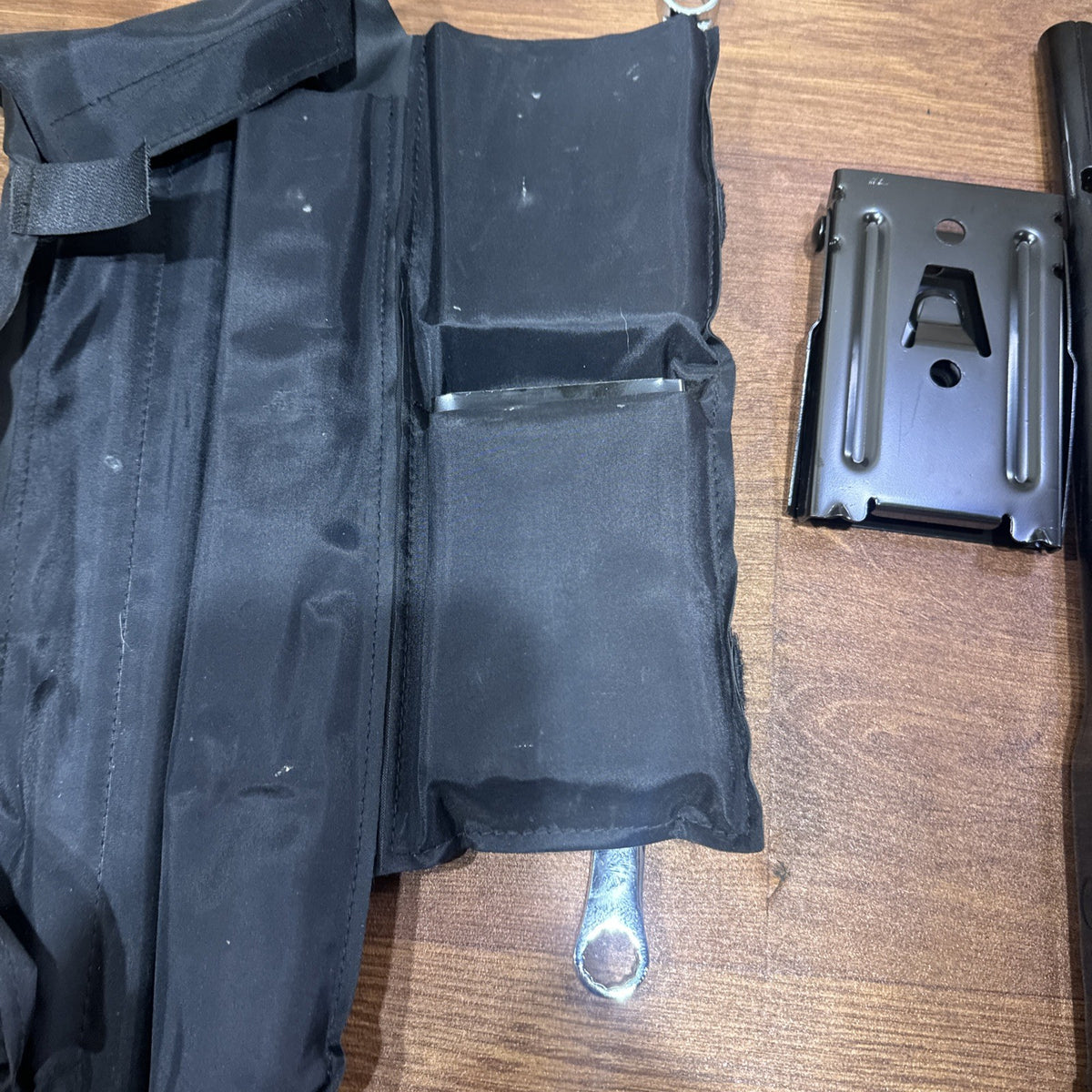

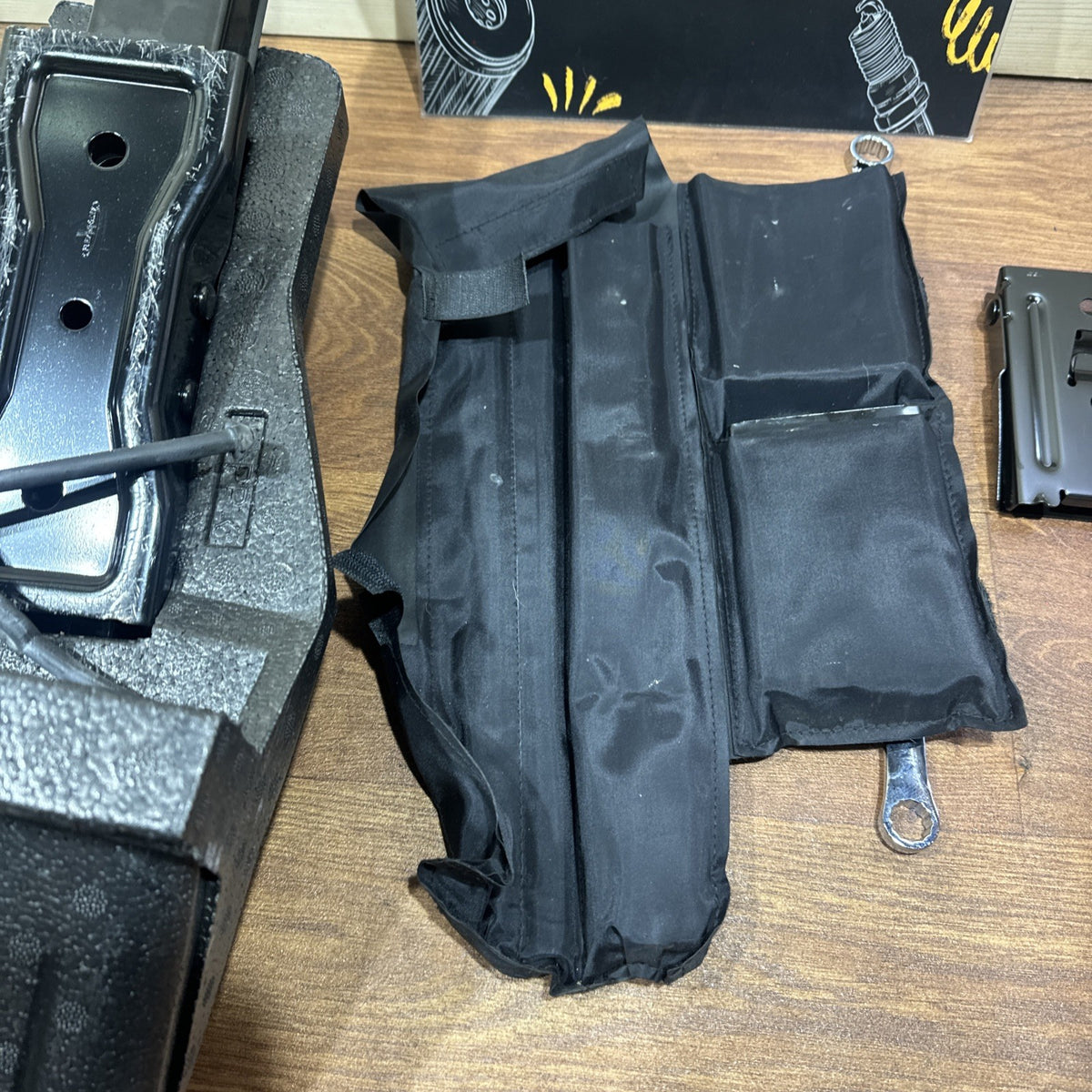

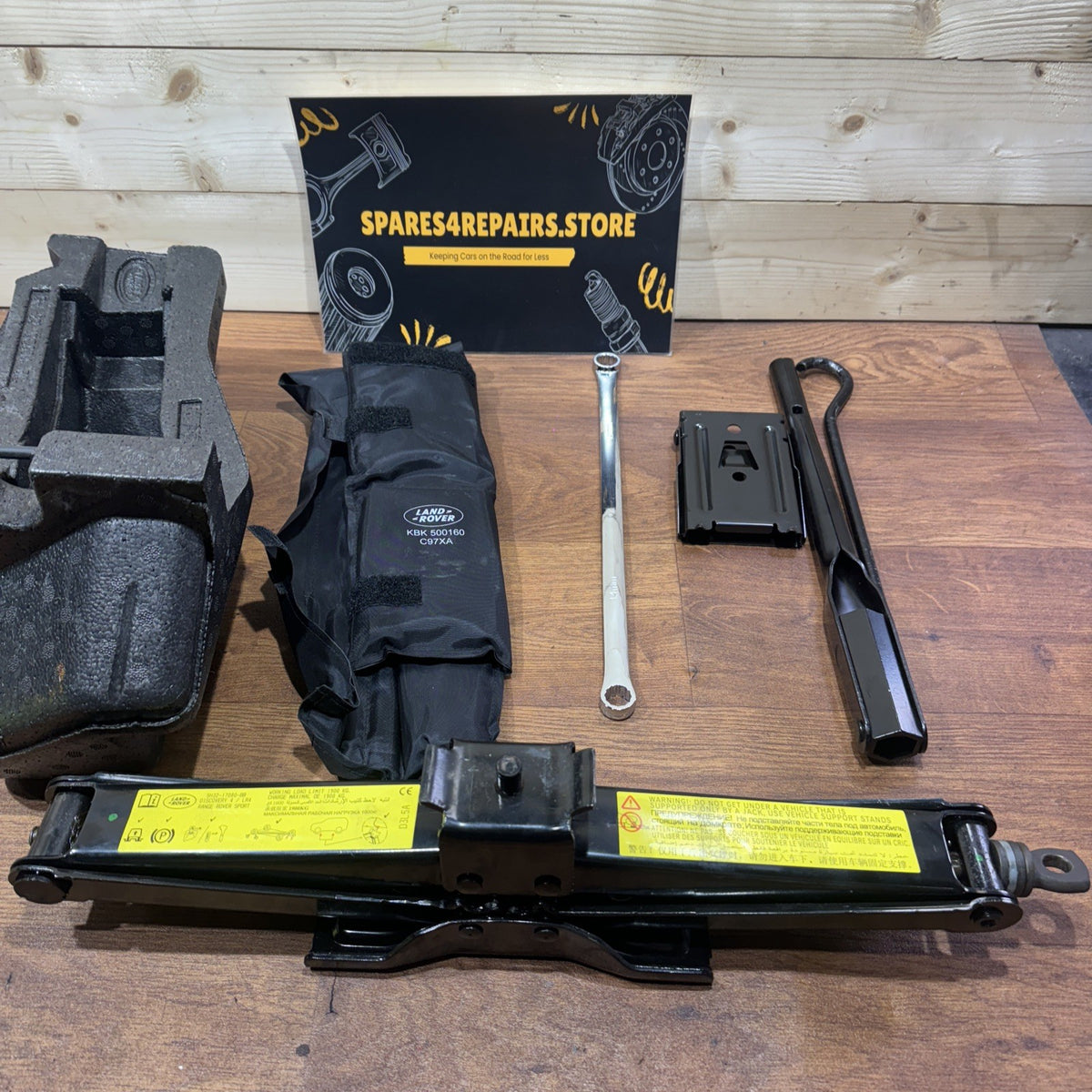

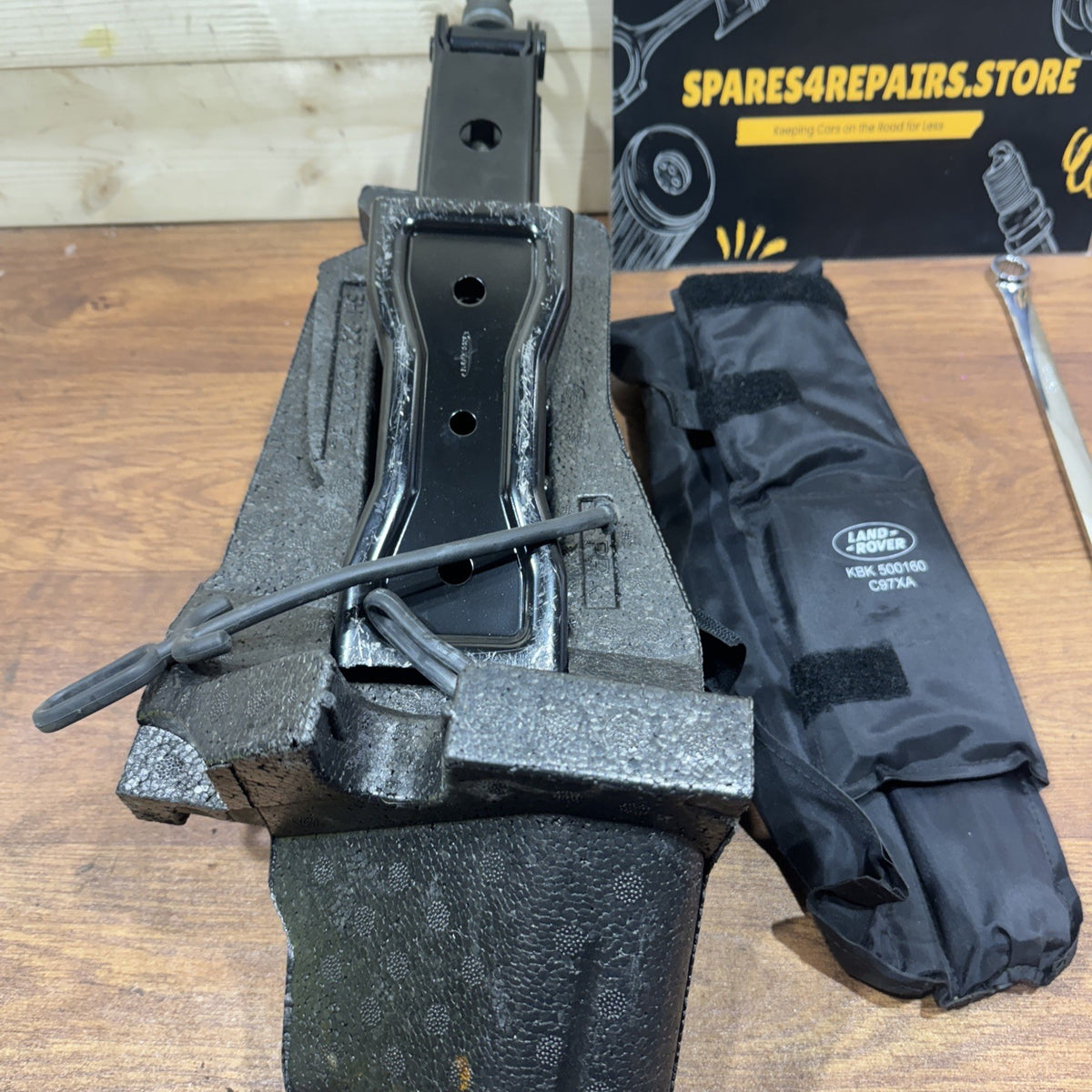

TOOL KIT CONTENTS

This listing is for the:

Genuine Land Rover Tool Bag + Tools / Accessories Shown in the Photographs

Depending on vehicle specification and what remains with the used kit, the factory tool equipment can include items associated with:

• Wheel changing

• Jack operation

• Wheel-nut removal

• Emergency roadside use

• Wheel chocking

• Tool storage

Only the tools and accessories physically shown in the listing photographs are included.

This is important because used Discovery tool kits are frequently incomplete or assembled from different donor vehicles.

RELATED FACTORY TOOL COMPONENTS

Separate genuine Land Rover components associated with the Discovery 3/4 wheel-change tool system include:

KBK500160 – Tool Roll / Storage Bag

KBC500010 – Tool Kit Retaining Strap

Later reference associated with LR081514

ANR5449 – Wheel Chock

Earlier reference ANR5293

LR044643 – Jack Handle

Supersedes KAH000091 / KAH000092 / KAH000093

KAH500012 – Jack Handle

Earlier reference KAH500011

LR031653 – Vehicle Lifting Jack

Supersession chain includes KAJ500120 / KAJ500121 / KAJ500122 / LR022601 / LR031653

The exact equipment supplied with your listing should be determined exclusively from the photographs.

TECHNICAL INFORMATION

The KBK500160 roll-out bag is designed to organise and retain the factory roadside tools in a compact package.

The roll-style design allows the tools to be:

• Stored securely together

• Protected from moving around the luggage area

• Kept organised

• Easily accessed when required

• Rolled up for compact storage

• Carried together when performing a roadside wheel change

The bag is shaped around the factory tool arrangement rather than being a generic aftermarket tool bag.

7-SEAT VEHICLE INFORMATION

Land Rover parts data specifically associates KBK500160 with:

7-SEAT

Discovery applications.

An OEM Land Rover parts source also describes KBK500160 as a “Tool Roll” for vehicles “with 3rd row seat.”

This makes the seven-seat/third-row configuration an important compatibility point.

AIR SUSPENSION APPLICATION

Specialist Land Rover catalogue data describes KBK500160 as suitable for:

7-Seater TDV6 models with 4-corner air suspension

This corresponds with the common Discovery 3 and Discovery 4 L319 specification.

Because tool equipment can differ according to vehicle specification, buyers should compare the kit with the original equipment intended for their vehicle.

DISCOVERY 3 APPLICATION

For the Discovery 3 / LR3 L319, KBK500160 is directly catalogued as a genuine tool roll.

Common application:

Land Rover Discovery 3 L319

2004-2009

7-seat models

TDV6

Four-corner air suspension

The tool kit was designed to be stored within the vehicle and accessed when required for roadside/wheel-change operations.

DISCOVERY 4 APPLICATION

For the Discovery 4 / LR4 L319, Land Rover specialist data specifies:

Discovery 4 – From VIN AA000001

This corresponds to the introduction of the Discovery 4 for the 2010 model year.

Used genuine KBK500160 kits are widely documented through the end of the Discovery 4/LR4 generation in 2016.

COMMON REASONS FOR REPLACEMENT

A replacement tool kit or bag may be required because:

• Original tool kit is missing

• Tools were removed by a previous owner

• Original bag has been lost

• Tool roll is torn or damaged

• Vehicle was purchased without roadside tools

• Jack tools are incomplete

• Wheel-change equipment is missing

• Restoring a vehicle to original factory specification

• Completing an incomplete Discovery 3/4 tool kit

• Replacing damaged or heavily worn original tools

Used genuine equipment is particularly useful for owners wanting to restore the vehicle’s original factory tool provision.

TOOL KIT CHECKS

Before purchase, compare the listing photographs carefully.

Check:

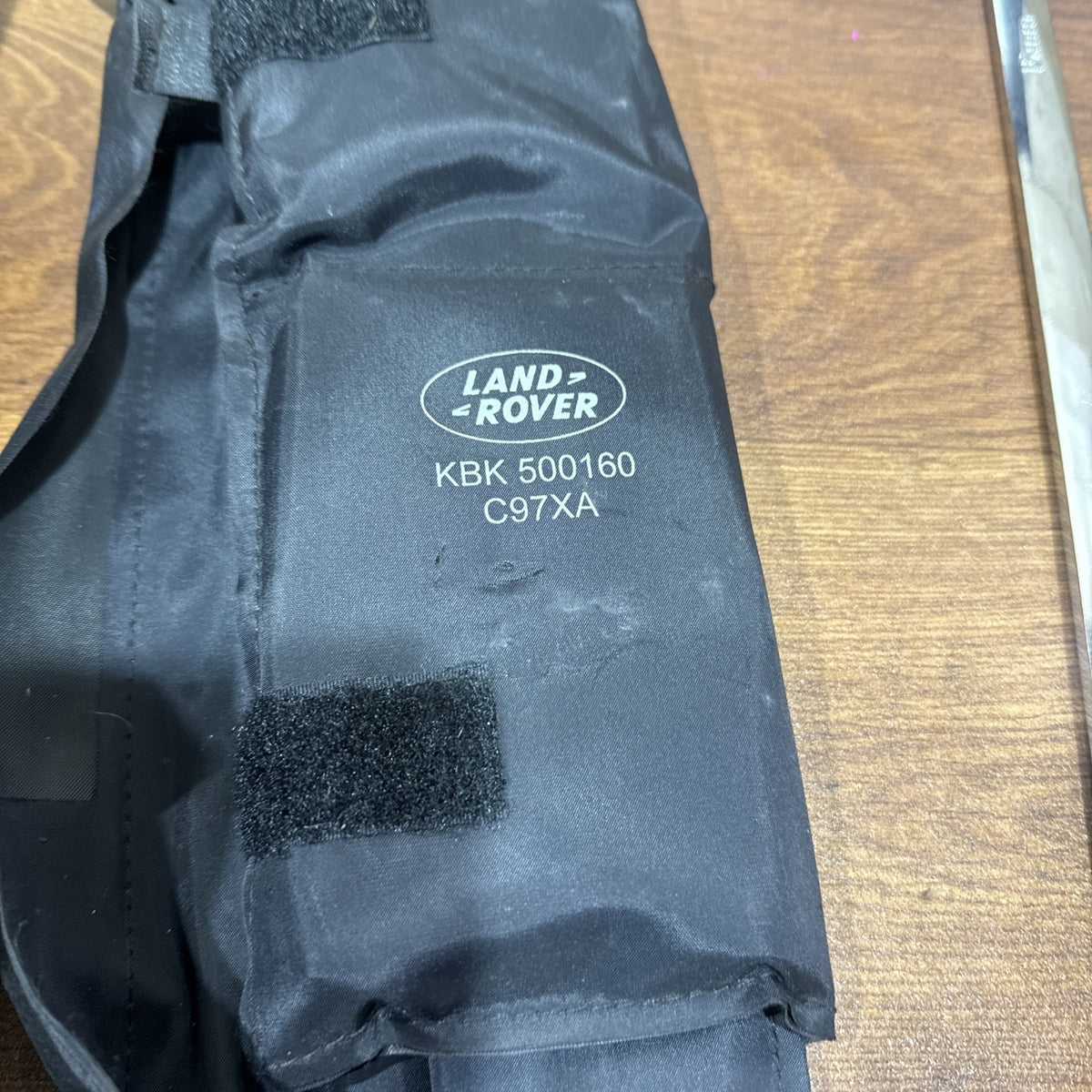

• KBK500160 marking where visible

• Tool bag condition

• Included tools

• Jack handle components where included

• Wheel wrench where included

• Wheel chock where included

• Retaining straps

• Tool condition

• Corrosion

• Bent or damaged tools

• Missing components

The buyer should assume that only photographed components are included.

PART NUMBER INFORMATION

Primary Land Rover OE number:

KBK500160

Description:

Tool Roll / Roll-Out Tool Bag

Application:

Discovery 3 / Discovery 4

The number is strongly documented across genuine Land Rover and specialist parts catalogues.

Other tool-kit components carry their own separate OE numbers, so KBK500160 should not be used as the identification number for the jack, wheel wrench or every individual tool.

RELATED / LATER REFERENCES

Some North American parts data cross-references the KBK500160 tool-kit/bag family with numbers including:

KBK500180

KBK500181

KBK500182

KBK500242

KBK500243

LR044648

LR072422

These should be treated as related specification/revision references rather than guaranteed universal interchange.

Vehicle configuration should be checked before substituting a different number.

ENGINE COMPATIBILITY

Land Rover specialist catalogue data specifically associates KBK500160 with TDV6 7-seat applications.

This can include Discovery 3/4 diesel configurations such as:

• 2.7 TDV6

• 3.0 TDV6

• 3.0 SDV6 depending on year and vehicle specification

However, North American LR4 records also document KBK500160 tool-kit/bag applications on selected:

• 5.0 V8 petrol

• 3.0 V6 Supercharged petrol

Therefore the bag itself should not be treated as strictly engine-specific worldwide.

Vehicle specification and original tool arrangement are more important compatibility checks.

INSTALLATION / STORAGE

No specialist installation is normally required.

Before storing the kit in the vehicle:

• Check all tools are secure

• Roll the bag correctly

• Secure the tool roll

• Ensure loose tools cannot move around the luggage compartment

• Confirm any retaining strap is correctly fitted

• Check that the storage area closes correctly

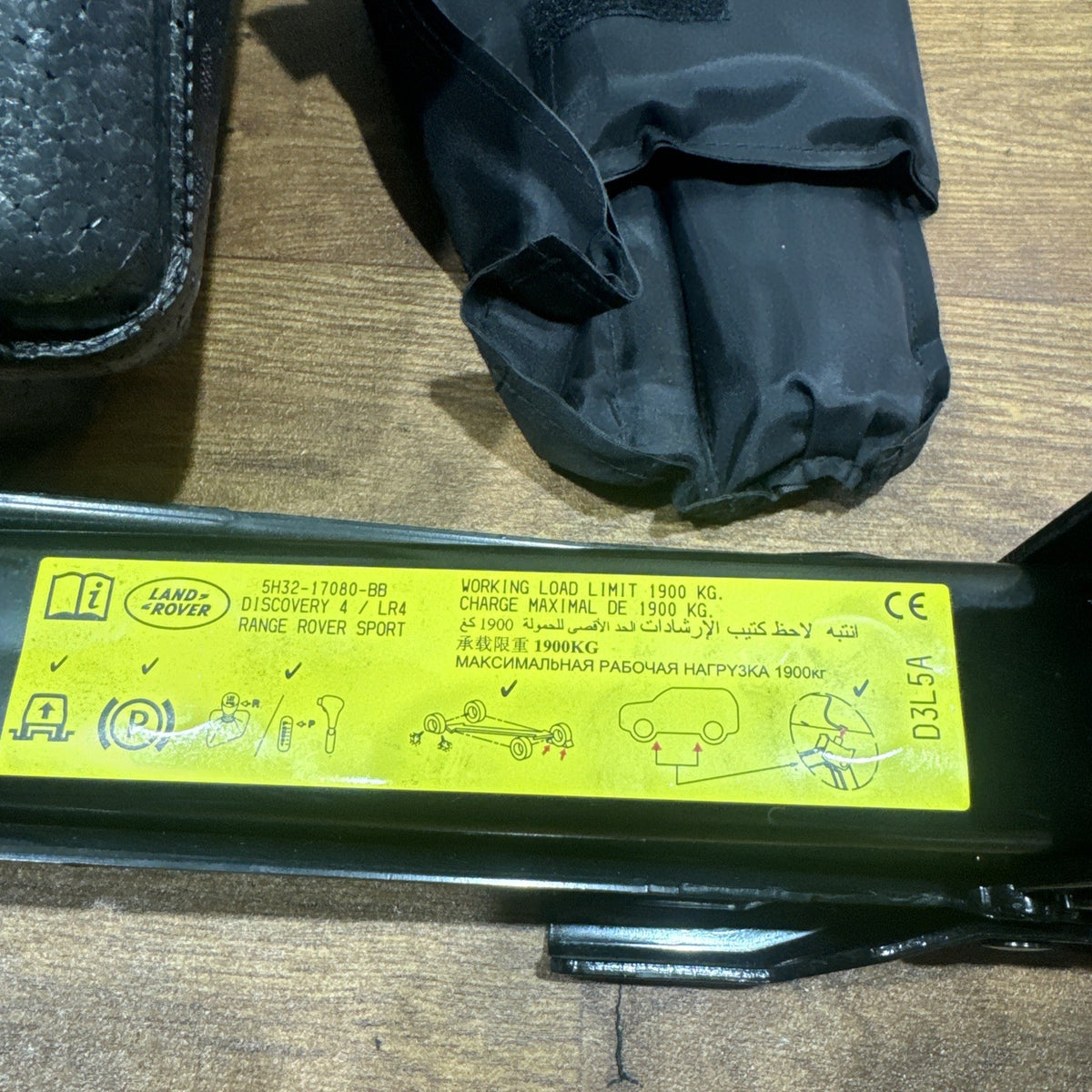

If the kit includes a vehicle jack or wheel-changing equipment, inspect those components carefully before relying on them for roadside use.

PROGRAMMING / CODING

Programming Required: No

Coding Required: No

This is mechanical roadside/tool storage equipment and requires no electronic programming or vehicle configuration.

IMPORTANT SAFETY INFORMATION

If this used kit contains equipment intended for lifting or supporting the vehicle, inspect it carefully before use.

Never work underneath a vehicle supported only by its emergency wheel-change jack.

When changing a wheel:

• Park on firm, level ground where possible

• Apply the parking brake

• Follow the Land Rover owner’s handbook procedure

• Use the correct jacking point

• Use the correct wheel-changing equipment

• Keep occupants away from the vehicle while it is raised

• Never exceed the equipment’s intended use

Any bent, cracked, heavily corroded or otherwise damaged lifting equipment should not be used.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

KBK500160

Also check:

• Discovery 3 or Discovery 4 L319

• Vehicle production year

• 5-seat / 7-seat specification

• Third-row seat configuration

• Suspension specification

• Original tool-kit arrangement

• Bag design

• Tools required for your vehicle

• Individual tools included

• Listing photographs

Please note: KBK500160 identifies the genuine tool roll/bag. The exact contents of this used kit are those shown in the listing photographs.

Do not assume additional tools, jack components or accessories are included unless they are clearly pictured or stated in the listing.

CONDITION

Used Genuine Land Rover / JLR Tool Kit & Storage Bag.

Normal signs of previous use and storage may be present, including:

• Cosmetic marks

• Dirt/dust

• Surface wear

• Light corrosion on metal tools

• Wear to the fabric/tool roll

Please inspect all listing photographs carefully for the exact tools included, KBK500160 bag, condition and completeness of the kit.

Ideal genuine Land Rover replacement tool kit and roll-out storage bag for a compatible Discovery 3 or Discovery 4 L319, particularly useful for replacing a missing or incomplete original vehicle tool kit.
