2009-2015 Volkswagen Transporter Passenger Barn Door Bottom Hinge 7H0827153

#20

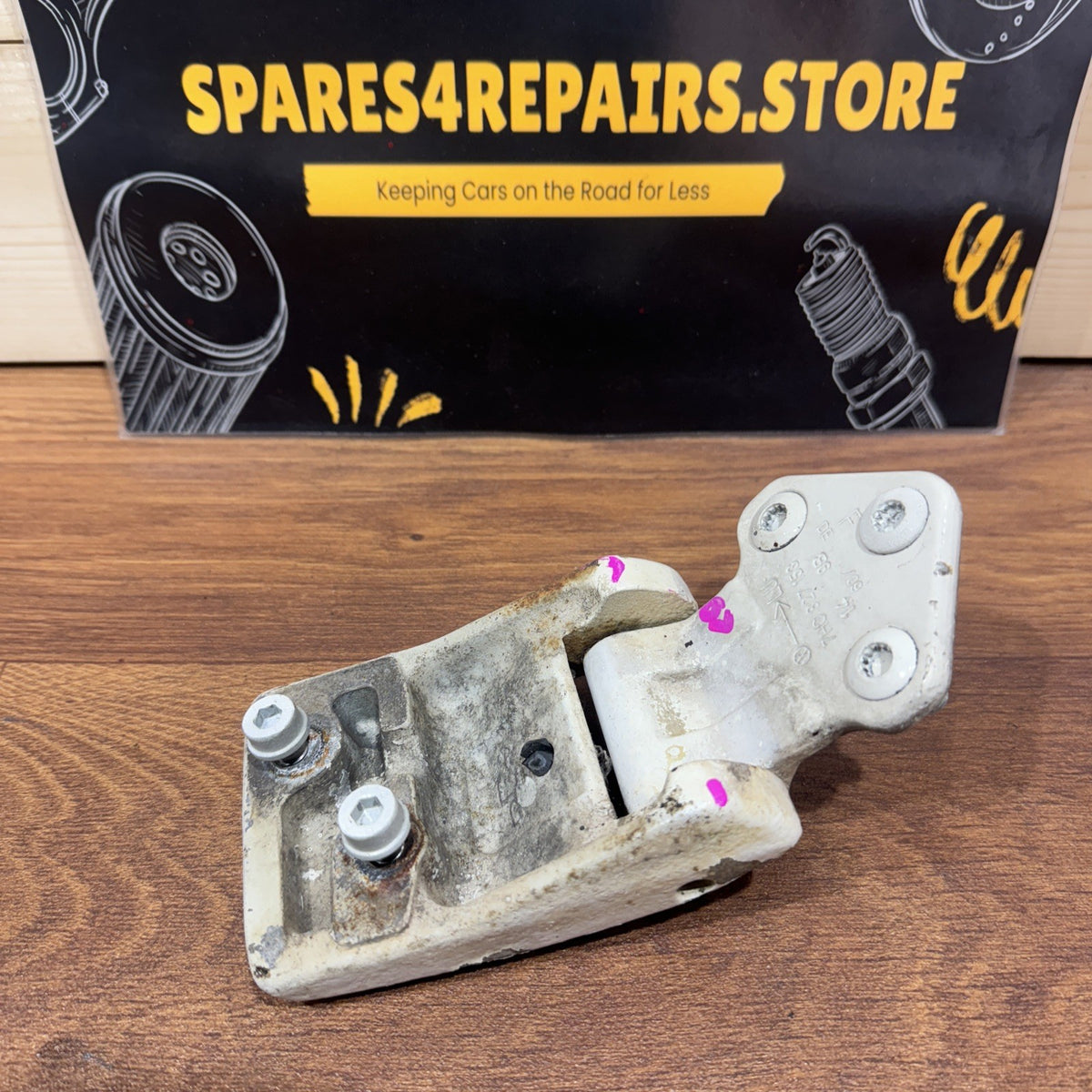

Genuine VW Transporter T5 T5.1 Passenger N/S Rear Barn Door Bottom Lower Hinge – 7H0827153

Genuine Volkswagen used left-hand lower rear barn door hinge, suitable for selected VW Transporter T5 and T5.1 models equipped with twin rear barn / wing doors.

This is the bottom hinge for the left-hand rear door and provides the main lower pivot and support point allowing the barn door to open and close correctly.

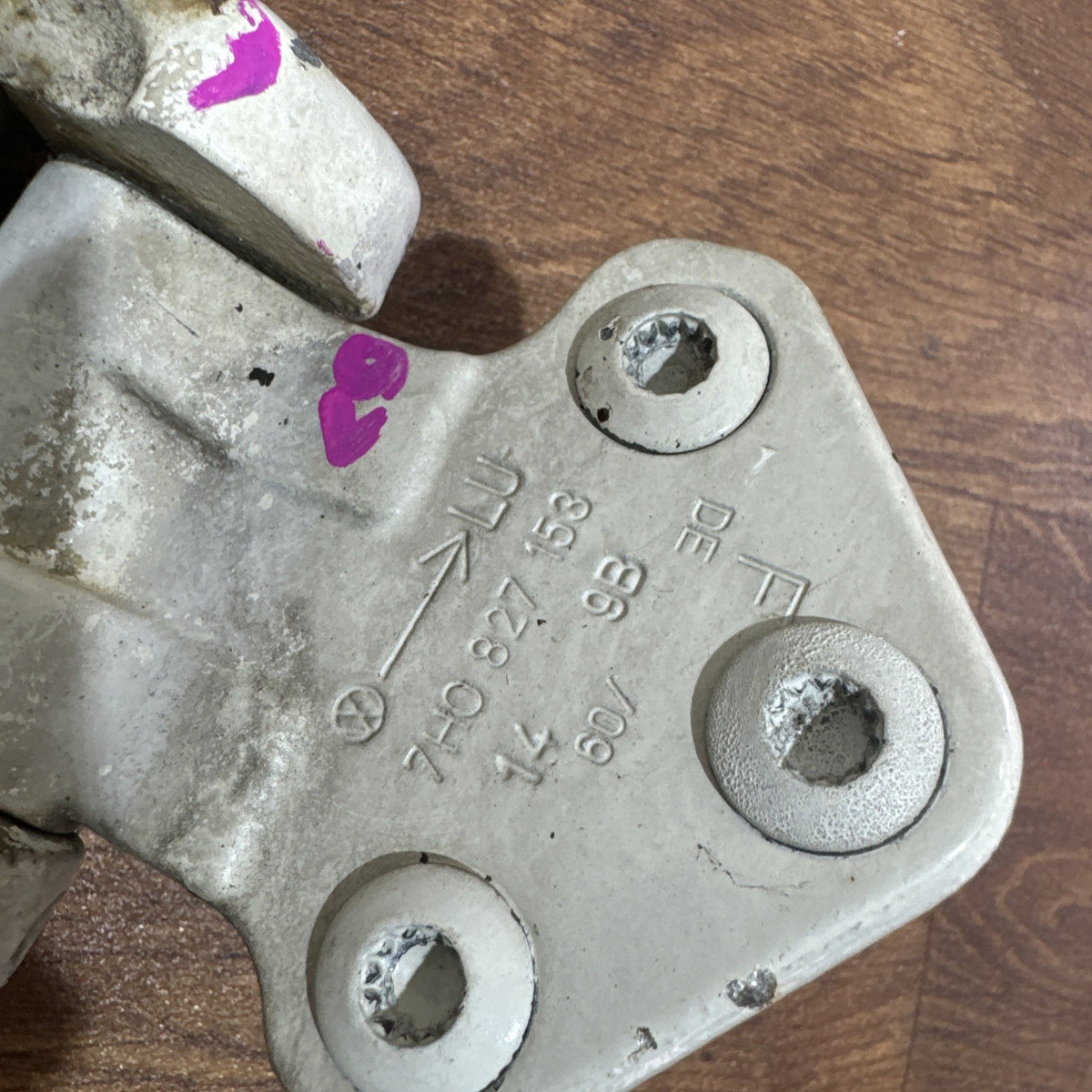

Part Number: 7H0827153

VW OE Number: 7H0 827 153

Part Type: Rear Barn Door Lower Hinge / Bottom Hinge

Position: Rear Left Lower

Vehicle Side: N/S / Passenger Side – UK RHD

Door Type: Twin Rear Barn Doors / Wing Doors

Manufacturer: Volkswagen / VAG

Condition: Used Genuine Volkswagen Part

COMPATIBILITY

Suitable for selected:

Volkswagen Transporter T5 – 2003-2009

• T5 Panel Van

• Transporter T26 / T28 / T30 / T32 depending on body configuration

• Short Wheelbase – where corresponding barn doors are fitted

• Long Wheelbase – where corresponding barn doors are fitted

• Petrol and diesel applications

• 1.9 TDI applications

• 2.5 TDI applications

• Other engine variants – engine size does not determine hinge compatibility

Volkswagen Transporter T5.1 – 2010-2015

• Facelift Transporter

• Panel Van

• T26 / T28 / T30 / T32 applications depending on specification

• Short and Long Wheelbase applications where corresponding twin rear doors are fitted

• 2.0 TDI applications confirmed

• Multiple engine outputs

Used-parts records directly document 7H0827153 on T5.1 2009-2015 vehicles, including a 2.0 TDI CAAC application. (eBay UK)

T5 / T5.1 YEAR INFORMATION

Although your application is 2009-2015, the 7H0827153 family was used earlier in T5 production as well.

Direct used-part examples identify 7H0827153 as the:

VW Transporter T5 Rear Left / Passenger-Side Lower Barn Door Hinge

on vehicles from both the original T5 and facelift T5.1 generations.

PART NUMBER / REVISION INFORMATION

Original reference:

7H0827153

7H0 827 153

Later VW revision numbers in the same hinge family include:

7H0827153B

7H0827153D

7H0827153F

VW parts information identifies 7H0827153F as the left lower door hinge, with 7H0827153B and 7H0827153D shown as associated earlier OE numbers. (oemVWshop)

Revision letters should still be checked against the vehicle and original hinge before ordering.

POSITION INFORMATION

This hinge is:

Rear Left

Lower / Bottom

N/S – Nearside

Passenger Side on UK RHD Transporters

It is designed for the left-hand rear barn / wing door.

The upper and opposite-side hinges are separate components and should not be confused with this part.

TECHNICAL INFORMATION

The 7H0827153 lower hinge forms part of the Transporter’s rear twin-door mounting system.

Its functions include:

• Supporting the lower section of the rear barn door

• Providing a strong pivot point for door movement

• Allowing the rear door to swing open and closed

• Maintaining correct rear-door alignment

• Supporting the weight of the door together with the upper hinge

• Helping maintain correct positioning against the rear-door seals

• Allowing the door latch to align correctly with its corresponding catch

Because the rear barn doors are relatively large and heavy, correct hinge condition is important for proper door alignment.

REAR BARN DOOR SYSTEM INFORMATION

The rear barn-door assembly uses several separate components including:

• Upper rear door hinge

• Lower rear door hinge – 7H0827153

• Rear door check strap / opening limiter

• Upper and lower door latches

• Door lock mechanism

• Door catches / striker plates

• Interior and exterior handles

• Door seals

• Wiring loom where applicable

Wear or damage to one component can affect the operation and alignment of the complete door.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• Rear door dropping or sagging

• Excessive hinge movement

• Worn hinge pivot

• Door difficult to open or close

• Rear door sitting out of alignment

• Door requiring lifting to close

• Door latch not correctly aligning

• Hinge bent following an impact

• Corrosion

• Damaged mounting points

• Accident damage

• Replacement rear door requiring the correct hinge

IMPORTANT DIAGNOSTIC INFORMATION

If the rear barn door is sagging or difficult to close, inspect both:

Upper Hinge

and

Lower Hinge

Also check:

• Rear door shell around the hinge mounting points

• Hinge mounting bolts

• Door check strap

• Upper and lower latch mechanisms

• Striker / catch alignment

• Door seals

• Body-side hinge mounting area

A poorly closing rear door is not always caused solely by the lower hinge.

INSTALLATION

Correct door support is important when replacing this hinge.

The rear barn door should be securely supported before removing the original hinge because the door’s weight is shared between the upper and lower mounting points.

During installation:

• Support the rear door correctly

• Inspect mounting points for corrosion or damage

• Check mounting hardware

• Install the replacement hinge

• Align the rear door correctly

• Check door gaps

• Check seal contact

• Confirm upper and lower latch alignment

• Test the door through its complete opening range

• Confirm smooth closing and locking operation

Professional installation is recommended if rear-door alignment is required.

PROGRAMMING / CODING

Programming Required: No

Coding Required: No

Diagnostic Adaptation Required: No

This is a mechanical body component.

IMPORTANT COMPATIBILITY NOTE

Please match:

7H0827153

7H0 827 153

Also compare:

• Rear left / N/S position

• Lower / bottom hinge position

• Barn / wing-door configuration

• Hinge shape

• Mounting-hole arrangement

• Existing hinge revision

• Vehicle production date

• Listing photographs

This listing is for a rear barn / wing-door hinge.

It should not be confused with the hinges used for a single-piece lift-up tailgate, as the two rear-door systems use different hinge arrangements.

CONDITION

Used Genuine Volkswagen Part.

As a used exterior mechanical component, normal signs of previous installation may be present, including:

• Cosmetic marks

• Scratches

• Paint wear

• Road dirt

• Light surface corrosion

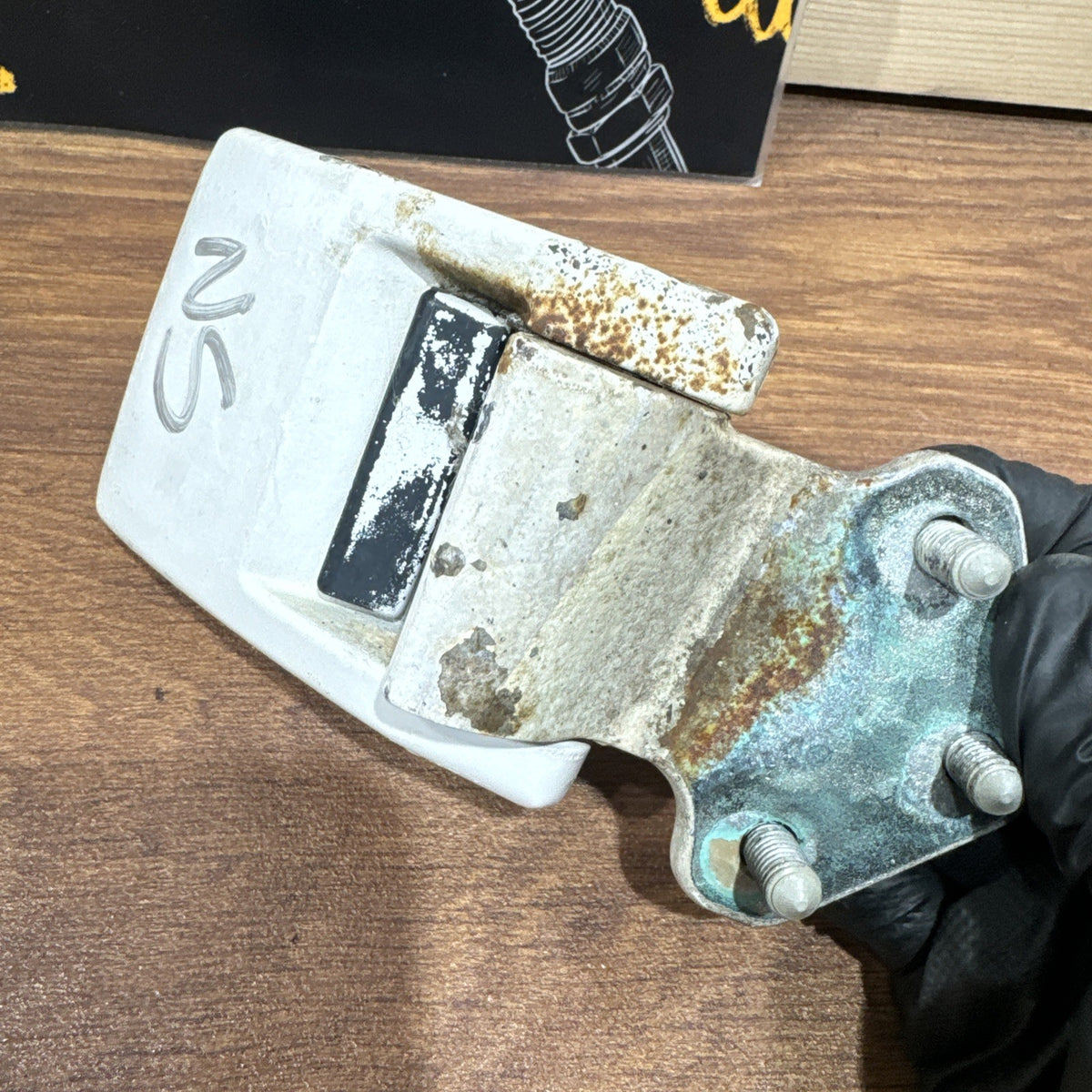

Please inspect all listing photographs carefully for the exact condition, colour, pivot, mounting points and components included in the sale.

Ideal genuine VW replacement passenger-side N/S rear barn door bottom / lower hinge for a compatible Volkswagen Transporter T5 or T5.1 with twin rear barn doors.
