2010-2013 Land Rover Discovery 4 Passenger 3rd Row Seat Belt Stak 608076500A

#20

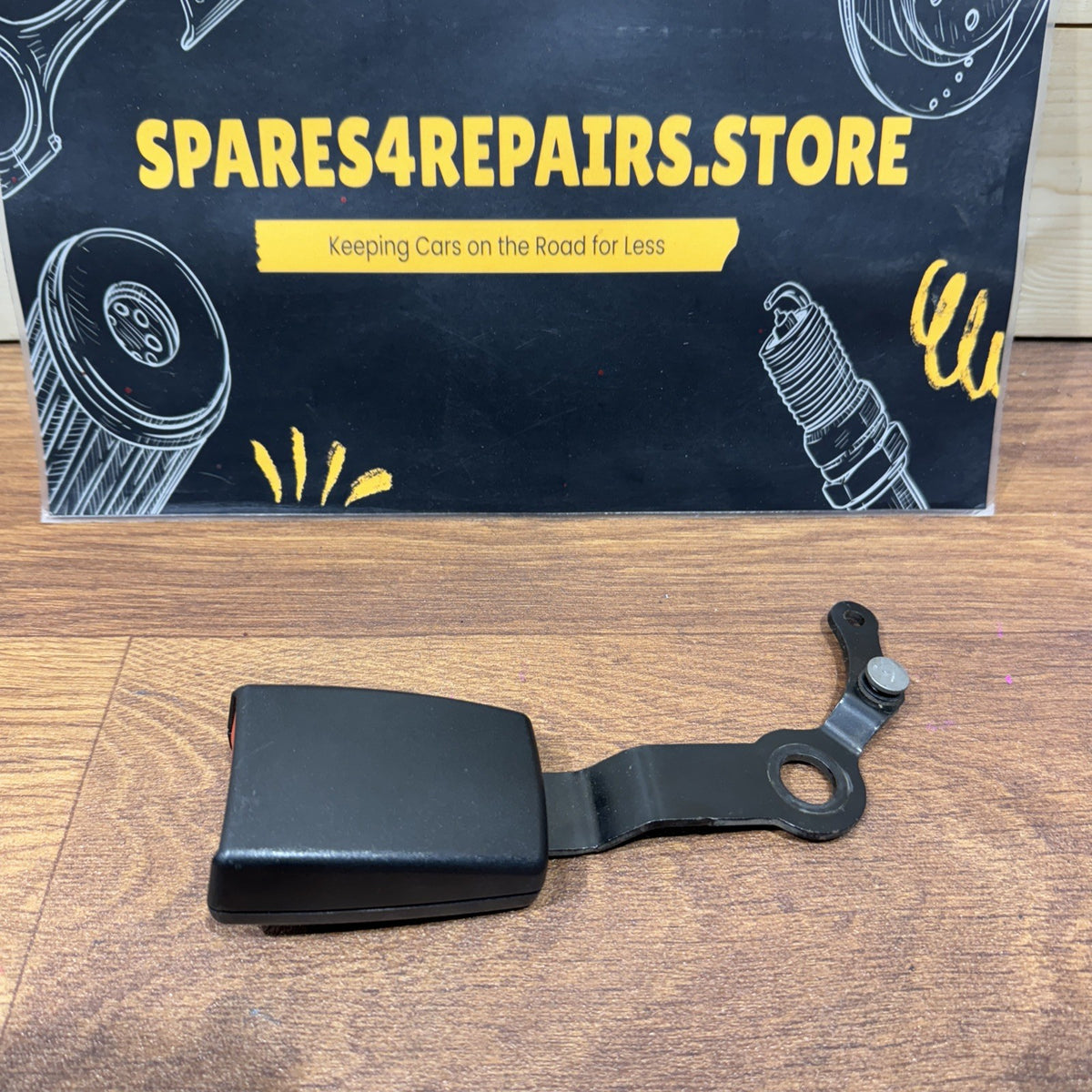

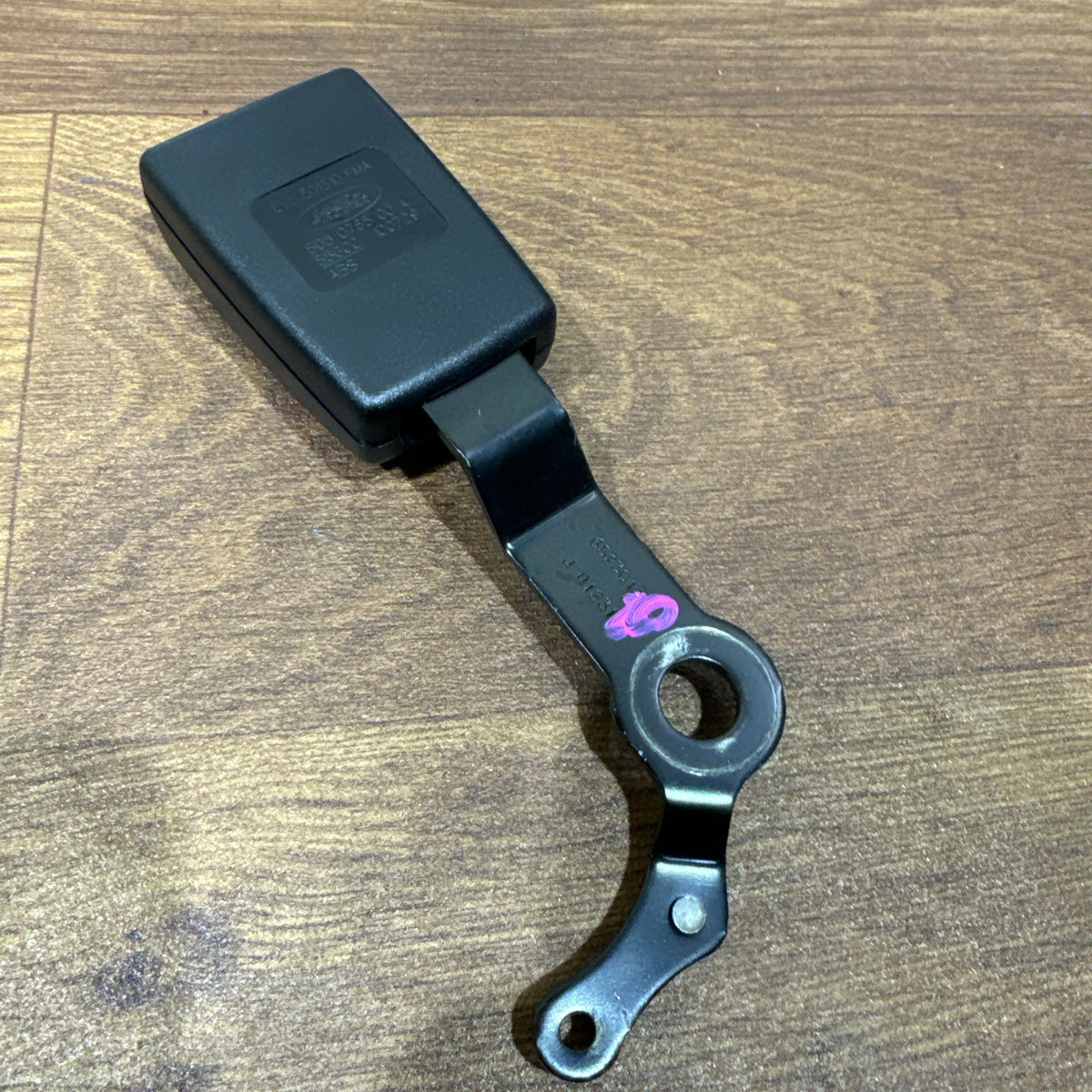

Genuine Land Rover Discovery 4 L319 3rd Row Left N/S Seat Belt Stalk Buckle – 608076500A – 2010-2013

Genuine Land Rover/JLR used third-row left-hand seat belt buckle / stalk / clasp assembly, suitable for selected Land Rover Discovery 4 L319 7-seat models from 2010-2013.

This buckle is fitted to the left-hand third-row / rearmost passenger seat. On a UK right-hand-drive Discovery 4 this corresponds to the N/S / nearside / passenger-side third-row seating position.

Part Marking: 608076500A

Land Rover OE / Service Number: LR009315 – verified LH third-row buckle application

Additional OE Reference: AM6H22-60036-DA8PMA

Part Type: Seat Belt Stalk / Buckle / Clasp / Receiver

Position: Third Row / Row 3 / Rearmost Seat

Vehicle Side: Left / LH / N/S – Passenger Side on UK RHD vehicles

Seat Configuration: 7 Seat

Vehicle Platform: Discovery 4 L319

Donor Application: 2010 Land Rover Discovery 4 L319

Manufacturer: Land Rover / JLR

Condition: Used Genuine Land Rover Safety Component

COMPATIBILITY

Land Rover Discovery 4 – L319 / LR4

Verified application:

• Discovery 4 L319 – 2010-2013

• Broader Discovery 4 application documented through 2016 for LR009315

• 7-seat models

• Third-row / rearmost seating

• Left-hand third-row seat

• UK RHD: N/S / passenger side

• Petrol and diesel models where the corresponding 7-seat configuration is fitted

The Land Rover service number LR009315 is specifically catalogued as:

Seat Belt Buckle – 3rd Row Seat – Left Hand – 7 Seater Models

This provides strong confirmation of the LH/N/S third-row application.

IMPORTANT LEFT / RIGHT IDENTIFICATION

This item is for the:

THIRD ROW

LEFT-HAND SEAT

N/S / NEARSIDE

PASSENGER SIDE – UK RHD

Verified Land Rover third-row buckle references are:

LR009315 = LEFT / LH / N/S Third Row

LR009314 = RIGHT / RH / O/S Third Row

Therefore, for your passenger-side third-row buckle, LR009315 is the relevant Land Rover service reference.

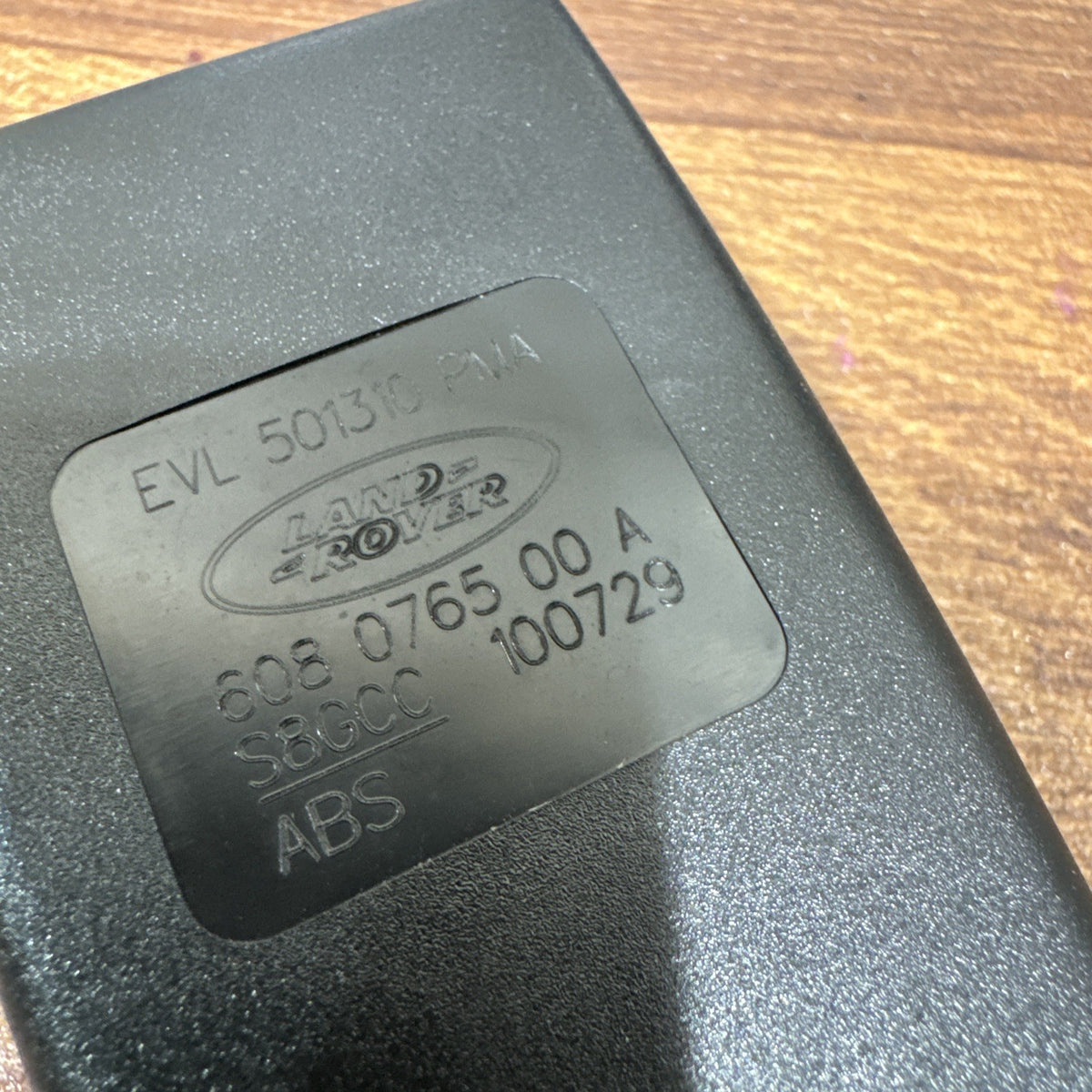

608076500A PART MARKING INFORMATION

Your component is marked:

608076500A

At present, this number does not appear to be the primary Land Rover service/OE ordering number in the indexed JLR parts information I could verify.

It may be:

• Supplier/manufacturer identification

• Internal component number

• Production number

• Buckle mechanism number

• Engineering/manufacturing reference

For listing purposes, I recommend retaining 608076500A because buyers may search the number printed on their original component.

However, it should not be advertised as the Land Rover OE number without additional confirmation.

The verified Land Rover service reference for the LH third-row buckle is LR009315.

TECHNICAL INFORMATION

This component is the seat belt buckle receiver / stalk for the left-hand third-row passenger.

The buckle receives and locks the metal tongue from the corresponding third-row seat belt.

Its functions include:

• Securing the seat belt tongue

• Maintaining positive belt engagement

• Allowing the passenger to release the belt using the buckle button

• Providing the correct buckle position beside the third-row seat

• Working with the corresponding third-row seat belt/retractor

• Maintaining the intended restraint geometry for the passenger

Because the buckle forms part of the vehicle’s occupant restraint system, correct operation and condition are essential.

THIRD-ROW RESTRAINT SYSTEM INFORMATION

The Discovery 4 7-seat configuration uses dedicated restraint components for the two folding third-row seats.

These include:

• LH third-row seat belt/retractor

• RH third-row seat belt/retractor

• LH third-row buckle/stalk – LR009315

• RH third-row buckle/stalk – LR009314

• Third-row folding seats

• Seat mounting components

• Associated guides and trim

The third-row buckles are different components from the buckles used for the second-row seats.

2ND ROW VS 3RD ROW

This buckle is specifically for the:

THIRD ROW / REARMOST SEATING

It should not be confused with the Discovery 4’s second-row buckles.

For comparison, separate Land Rover references are documented for the second row, including:

LR009305 – Second Row LH Outer Buckle

LR009291 – Second Row RH Outer Buckle

LR009308 – Second Row Centre Buckle

The third-row LH buckle is separately catalogued as:

LR009315

This is important when sourcing a replacement because several Discovery 4 seat-belt buckles can look similar in photographs.

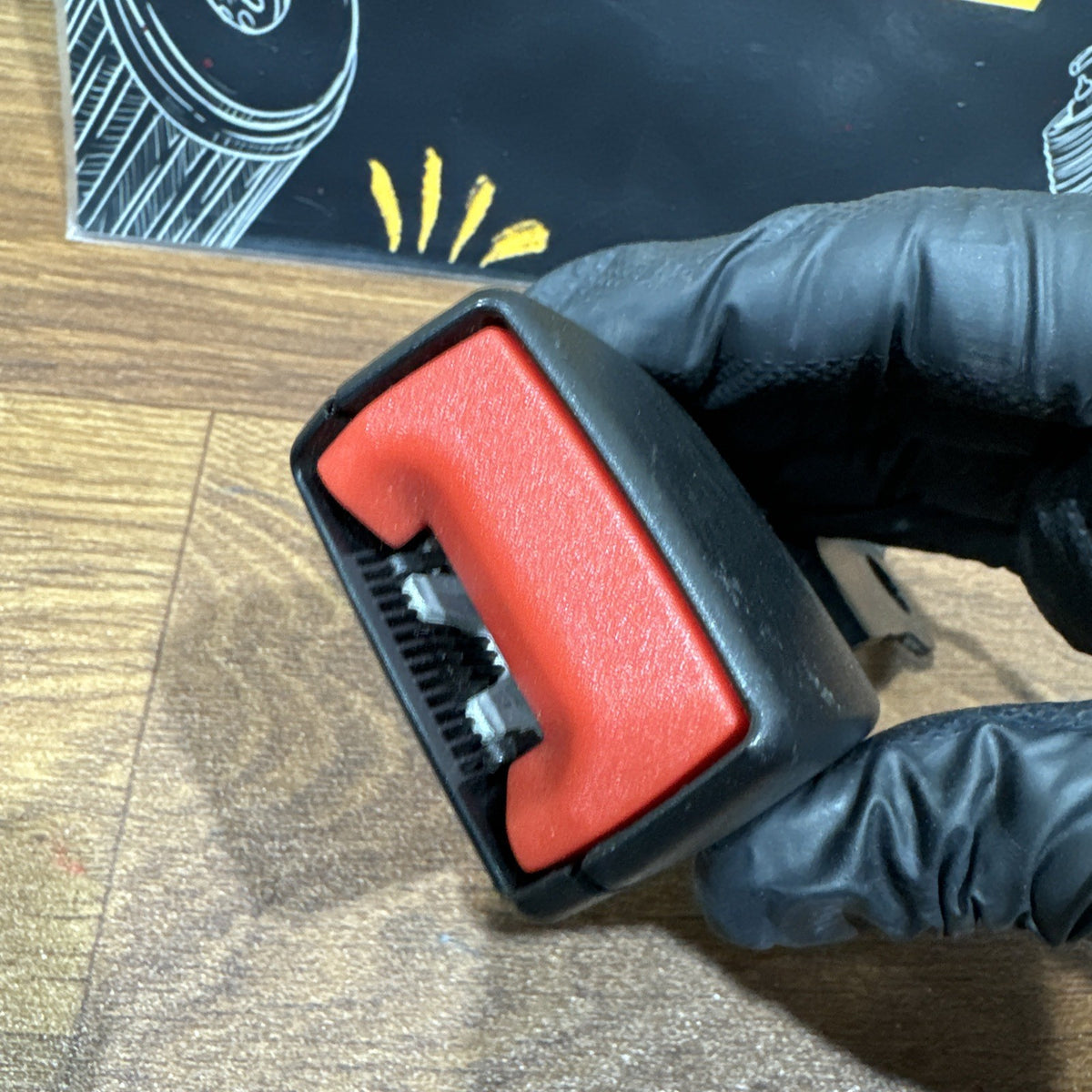

SEAT BELT BUCKLE OPERATION

When the corresponding seat-belt tongue is inserted into the buckle, the internal mechanism should engage positively and retain the tongue securely.

The buckle should:

• Accept the correct belt tongue smoothly

• Produce positive engagement

• Hold the tongue securely

• Release only when the release button is intentionally pressed

• Return correctly after release

• Remain securely mounted to the vehicle/seat structure

Any buckle that fails to latch or release correctly should not be used.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• Seat belt will not latch

• Belt tongue will not enter the buckle correctly

• Buckle will not lock

• Belt releases unexpectedly

• Release button sticking

• Release button damaged

• Internal buckle mechanism jammed

• Foreign objects/debris inside the buckle

• Damaged stalk

• Bent mounting bracket

• Cracked plastic casing

• Corrosion

• Water contamination

• Accident damage

• Missing buckle after third-row seat/interior removal

IMPORTANT SAFETY / DIAGNOSTIC INFORMATION

Seat belt buckles are safety-critical restraint components.

Before installation, inspect:

• Buckle casing

• Release button

• Internal latch operation

• Stalk condition

• Mounting point

• Mounting bracket

• Corrosion

• Cracks or deformation

• Water contamination

• Evidence of previous accident loading

The corresponding seat-belt tongue should engage positively and remain securely locked until the release button is intentionally pressed.

Do not use a buckle with uncertain locking operation.

ACCIDENT / RESTRAINT INFORMATION

Seat-belt components can experience substantial loads during a collision.

A buckle or mounting component may suffer damage that is not immediately obvious from external appearance.

A restraint component known to have been subjected to significant accident loading should not simply be reused based on appearance alone.

Follow the appropriate Land Rover workshop guidance regarding inspection and replacement of restraint-system components following an accident.

PART NUMBER / REFERENCE INFORMATION

Component Marking:

608076500A

Verified Land Rover LH Third-Row Buckle Reference:

LR009315

Additional documented reference:

AM6H22-60036-DA8PMA

The opposite-side third-row buckle is:

LR009314 – RH / Right-Hand Third Row

Because 608076500A has not been independently verified as a Land Rover service number, buyers should primarily compare the physical buckle, mounting arrangement and vehicle application.

2010-2013 DISCOVERY 4 APPLICATION

For your item:

Vehicle: Land Rover Discovery 4

Platform: L319

Years: 2010-2013

Configuration: 7 Seat

Position: Third Row / Row 3

Side: Left / LH / N/S

UK Position: Passenger Side

Part Type: Seat Belt Stalk / Buckle / Clasp

Part Marking: 608076500A

Relevant Land Rover Reference: LR009315

This is the correct position description for the passenger-side third-row buckle on a UK RHD Discovery 4.

ENGINE COMPATIBILITY

This component is not engine-specific.

It can be suitable for compatible Discovery 4 L319 7-seat models equipped with engines such as:

• 2.7 TDV6

• 3.0 TDV6

• 3.0 SDV6

• Petrol engines offered in other markets

Compatibility is determined primarily by:

• Vehicle generation

• Production year/VIN

• 7-seat configuration

• Third-row position

• LH/RH side

• Buckle type

• Seat-belt tongue design

• Mounting arrangement

INSTALLATION

Installation should be performed according to the appropriate Land Rover workshop procedure.

Before and during installation:

• Confirm LH / N/S third-row position

• Compare with the original buckle

• Compare the mounting arrangement

• Compare buckle opening and tongue design

• Inspect the stalk

• Inspect the mounting bracket

• Secure the buckle correctly

• Tighten restraint-system fasteners to Land Rover specifications

• Insert the corresponding seat-belt tongue

• Confirm positive engagement

• Pull firmly to confirm secure locking

• Operate the release button

• Confirm smooth release

• Repeat the locking test several times

Correct installation is essential because this component forms part of the vehicle’s passenger restraint system.

PROGRAMMING / CODING

Programming Required: No

Coding Required: No

This third-row seat belt buckle/stalk is primarily a mechanical restraint component and does not normally require programming or coding after replacement.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

608076500A

and where applicable:

LR009315

Also compare:

• Third-row / Row 3 application

• Left / LH / N/S side

• 7-seat vehicle configuration

• Vehicle model/year

• Buckle shape

• Buckle opening

• Release-button design

• Seat-belt tongue design

• Stalk length

• Mounting bracket

• Mounting-hole arrangement

• Listing photographs

Do not rely solely on “Discovery 4 rear seat belt buckle” when ordering.

The Discovery 4 uses different buckles for the second and third rows, as well as separate LH and RH third-row components.

For the safest replacement, compare the complete buckle/stalk directly with the original component.

CONDITION

Used Genuine Land Rover / JLR Safety Component.

Normal cosmetic marks and signs of previous installation may be present.

Please inspect all listing photographs carefully for the buckle casing, release button, stalk, mounting point, 608076500A marking and overall condition.

As this is a safety-critical restraint component, correct operation and suitability should be confirmed before installation.

Ideal genuine Land Rover replacement third-row left LH/N/S passenger-side seat belt stalk / buckle / clasp for a compatible Discovery 4 L319 7-seat model.
