Genuine Land Rover Discovery 4 L319 3rd Row Rear Right O/S Seat Belt – 4H22-N611B69-ABW – 2010-2016

Genuine Land Rover/JLR used third-row rear right-hand seat belt and inertia reel/retractor assembly, suitable for selected Land Rover Discovery 4 L319 7-seat models.

This seat belt is fitted to the third-row / rearmost right-hand seating position. On a UK right-hand-drive Discovery 4, this corresponds to the O/S / offside / driver-side third-row passenger position.

Part Number: 4H22-N611B69-ABW

Alternative Number Format: 4H22N611B69ABW

Land Rover OE References: LR009311 / LR016455

Additional Cross-Reference: EVL501230PMA

Part Type: Seat Belt / Safety Belt / Inertia Reel & Retractor Assembly

Position: Third Row / Rearmost Seating Area

Vehicle Side: Right / RH / O/S – Driver Side on UK RHD vehicles

Application: 7-Seat Vehicle / Third-Row Passenger Restraint

Vehicle Platform: Discovery 4 L319

Manufacturer: Land Rover / JLR

Condition: Used Genuine Land Rover Safety Component

COMPATIBILITY

Land Rover Discovery 4 – L319 / LR4

Verified applications include:

• Discovery 4 / LR4 – 2010-2016

• 2010-2013 directly within your stated application range

• 7-seat vehicle configuration

• Third-row / rearmost seating position

• Rear Right-Hand Side

• UK RHD: O/S / driver side

• Petrol and diesel applications where the corresponding 7-seat configuration is fitted

The exact engineering number:

4H22-N611B69-ABW

is directly documented as a:

Rear Right 3rd Row Seat Belt / Retractor

for the Discovery 4 / LR4.

A direct Discovery 4 L319 donor record also identifies 4H22N611B69ABW as a rear-right third-row seat belt reel on a 2013 Discovery 4 3.0 SDV6.

ADDITIONAL DISCOVERY 3 COMPATIBILITY

The same seat-belt assembly is also documented for selected:

Land Rover Discovery 3 / LR3 – L319

• 2007-2009

• 7-seat configurations

• Third-row seating

• Rear Right-Hand position

This gives a documented application range across:

Discovery 3 / LR3 – 2007-2009

and:

Discovery 4 / LR4 – 2010-2016

Vehicle specification, production date, belt colour and mounting arrangement should still be compared before purchase.

IMPORTANT POSITION INFORMATION

This part is for the:

THIRD ROW

REARMOST SEATING POSITION

RIGHT-HAND SIDE

For UK right-hand-drive vehicles:

RH = Right Hand

O/S = Offside

Driver Side

Therefore the recommended UK description is:

Discovery 4 3rd Row Rear Right O/S Seat Belt

This should not be confused with the second-row right-hand seat belt.

The Discovery 4 uses different belt/retractor assemblies for its second- and third-row seating positions.

B68 / B69 IDENTIFICATION

The third-row seat-belt engineering numbers are particularly important:

4H22-N611B68-ABW – Third Row LEFT

4H22-N611B69-ABW – Third Row RIGHT

Therefore your:

4H22-N611B69-ABW

is the RIGHT-HAND third-row assembly.

This distinction is important because some online dismantler databases incorrectly assign left/right positions to these numbers.

TECHNICAL INFORMATION

The 4H22-N611B69-ABW is an original Land Rover three-point passenger restraint assembly designed for the Discovery’s folding third-row seating system.

The assembly incorporates the seat-belt webbing and inertia-reel/retractor mechanism.

Its functions include:

• Providing occupant restraint for the third-row passenger

• Allowing normal passenger movement

• Automatically retracting excess belt webbing

• Maintaining correct webbing positioning

• Locking during sudden vehicle deceleration

• Locking when the webbing is pulled rapidly

• Working with the corresponding third-row buckle

• Mounting correctly to the factory body points

• Maintaining the intended restraint geometry around the passenger

The assembly is position-specific and should be replaced with the correct equivalent belt.

THIRD-ROW RESTRAINT SYSTEM INFORMATION

The Discovery 4 7-seat configuration uses dedicated restraint equipment for the folding third-row seats.

The system includes components such as:

• RH third-row seat belt/retractor – 4H22-N611B69-ABW

• LH third-row seat belt/retractor

• Third-row seat belt buckles

• Belt guides

• Upper and lower mounting points

• Folding third-row seats

• Associated luggage-area interior trim

These components are designed around the specific seating and body geometry of the Discovery 4.

A second-row seat belt should not be substituted for a third-row belt simply because the components look similar.

INERTIA REEL OPERATION

During normal use, the inertia reel allows the passenger to pull the belt out smoothly and move naturally while seated.

The reel automatically retracts excess webbing when the passenger moves closer to the seat.

During sudden movement or rapid deceleration, the mechanism locks the webbing to help restrain the occupant.

This can occur during:

• Emergency braking

• Sudden manoeuvres

• Rapid vehicle deceleration

• Collision

Correct retractor operation is essential to the seat belt’s safety function.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• Seat belt not retracting

• Slow belt retraction

• Belt remaining loose

• Seat belt permanently locked

• Belt will not pull out

• Intermittent retractor jamming

• Frayed webbing

• Cut or damaged webbing

• Damaged stitching

• Damaged belt guide

• Damaged inertia reel

• Bent mounting bracket

• Corrosion

• Water contamination

• Previous accident damage

• Damage during interior removal or repair

Third-row belts can also become trapped or damaged around the folding seats or luggage-area trim.

IMPORTANT SAFETY / DIAGNOSTIC INFORMATION

A seat belt is a safety-critical restraint component.

Before installation, carefully inspect:

• Complete length of the webbing

• Stitching

• Retractor operation

• Inertia locking operation

• Mounting brackets

• Mounting holes

• Belt guides

• Buckle tongue

• Plastic trim components

• Corrosion

• Water contamination

• Signs of excessive loading

• Evidence of previous accident damage

The belt should extend smoothly, retract correctly and lock appropriately when subjected to sudden movement.

ACCIDENT / RESTRAINT INFORMATION

Seat-belt assemblies can be subjected to extremely high loads during a collision.

A belt that has experienced significant accident loading may have internal or structural damage even when it appears visually acceptable.

Do not reuse a seat belt known to have been subjected to significant collision loading unless its suitability has been established according to the appropriate Land Rover repair procedure.

Safety-related components should always be inspected carefully before installation.

PART NUMBER INFORMATION

Primary engineering number:

4H22-N611B69-ABW

Alternative formatting:

4H22N611B69ABW

Documented compatible/OE references include:

EVL501230PMA

LR009311

LR016455

The exact 4H22N611B69ABW number is specifically documented as the:

Rear Right / Third-Row Seat Belt Retractor

for the Land Rover LR3 / LR4 platform.

OE NUMBER / SUPERSESSION INFORMATION

The following numbers are associated with this right-hand third-row seat belt application:

EVL501230PMA

LR009311

LR016455

Later replacement references can exist depending on production date and market.

For a used replacement, the strongest method of identification remains matching:

4H22-N611B69-ABW

directly with the original assembly.

ENGINE COMPATIBILITY

This seat-belt assembly is not engine-specific.

Documented Discovery 4 applications include vehicles equipped with engines such as:

• 2.7 TDV6 depending on production/market

• 3.0 TDV6

• 3.0 SDV6

• 5.0 V8 petrol – LR4 market

• 3.0 supercharged petrol – later LR4 market

A direct donor record confirms 4H22N611B69ABW on a:

Discovery IV L319 3.0 SDV6 4x4

2993cc

256 HP / 188 kW

However, engine type does not determine seat-belt compatibility.

The important factors are the vehicle generation, production date, 7-seat configuration, seating position and exact belt/retractor number.

2010-2013 DISCOVERY 4 APPLICATION

For your application:

Vehicle: Land Rover Discovery 4

Platform: L319

Years: 2010-2013

Configuration: 7 Seat

Position: Third Row / Rearmost

Side: Right / RH / O/S

Part: Seat Belt & Inertia Reel / Retractor

Engineering Number: 4H22-N611B69-ABW

This is a correctly documented application for the exact engineering number.

INSTALLATION

Installation should be carried out according to the appropriate Land Rover workshop procedure.

During installation:

• Confirm the replacement is RH / right-hand

• Confirm it is for the third row

• Compare it directly with the original belt

• Inspect the complete webbing

• Check the inertia reel

• Inspect mounting brackets

• Confirm mounting-hole positions

• Ensure the webbing is not twisted

• Install all restraint mounting bolts correctly

• Tighten fasteners to Land Rover specifications

• Check smooth belt extension

• Confirm full retraction

• Test the inertia-reel locking function

• Check engagement with the correct seat-belt buckle

• Refit luggage-area/interior trim correctly

Because this is a safety-critical restraint component, correct installation is essential.

PROGRAMMING / CODING

Programming Required: No

Coding Required: No

This third-row seat belt/retractor assembly is a mechanical restraint component and does not normally require electronic programming or coding following installation.

Any existing SRS/restraint warning should still be correctly diagnosed rather than assuming replacement of this belt will clear an unrelated fault.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

4H22-N611B69-ABW

4H22N611B69ABW

LR009311

LR016455

EVL501230PMA

Also check:

• Third-row / rearmost position

• Right / RH / O/S side

• 7-seat configuration

• Vehicle model

• Vehicle production year

• Original engineering number

• Belt/webbing colour

• Belt routing

• Retractor design

• Mounting brackets

• Mounting-hole positions

• Buckle tongue design

• Listing photographs

Do not rely solely on “Discovery 4 rear seat belt” when ordering.

The Discovery 4 uses different assemblies for the second row, third row, left side and right side.

For the safest replacement, match 4H22-N611B69-ABW directly with the original third-row right-hand seat belt assembly.

CONDITION

Used Genuine Land Rover / JLR Safety Component.

Normal cosmetic marks and signs of previous installation may be present.

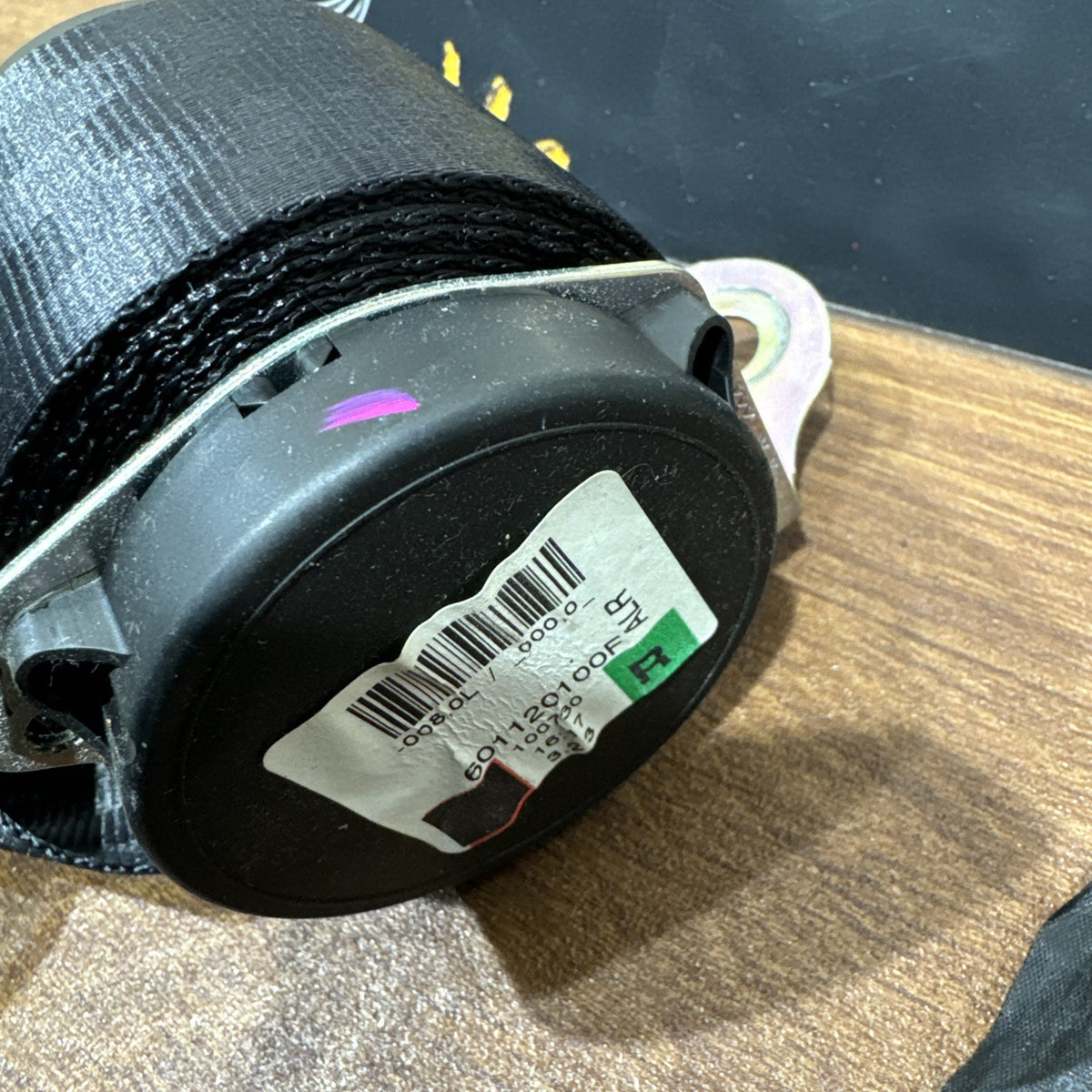

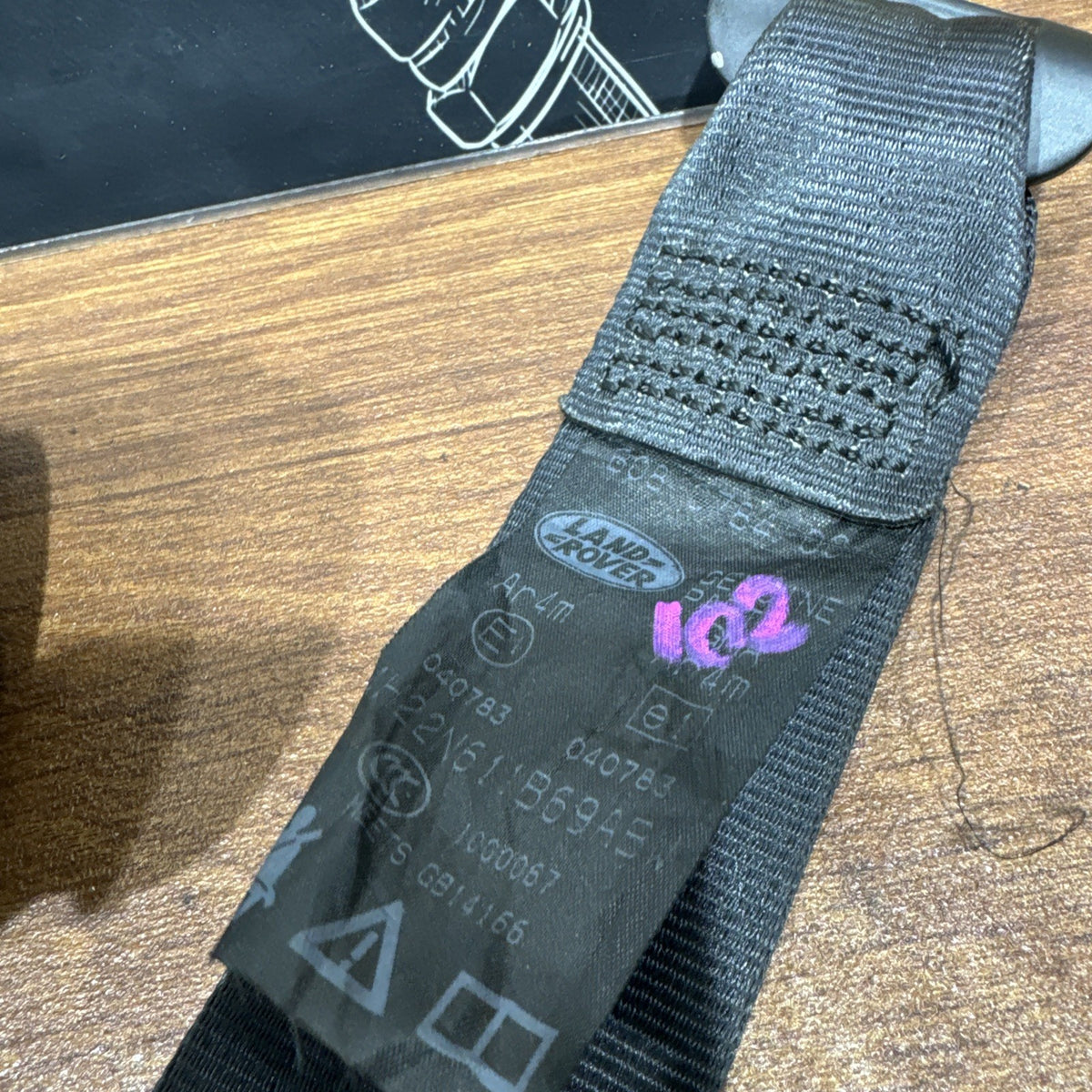

Please inspect all listing photographs carefully for the exact 4H22-N611B69-ABW identification, webbing condition, retractor mechanism, mounting brackets, buckle tongue and overall condition.

As this is a safety-critical restraint component, condition and suitability should be confirmed before installation.

Ideal genuine Land Rover replacement third-row rear right RH/O/S seat belt and inertia reel assembly for a compatible Discovery 4 L319 7-seat model.
