2010 LAND ROVER DISCOVERY 4 2nd Middle Row OS SEAT Wiring Harness AH2214A578AA

Low stock! Only 1 left
£20.00
£20.00
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

#7

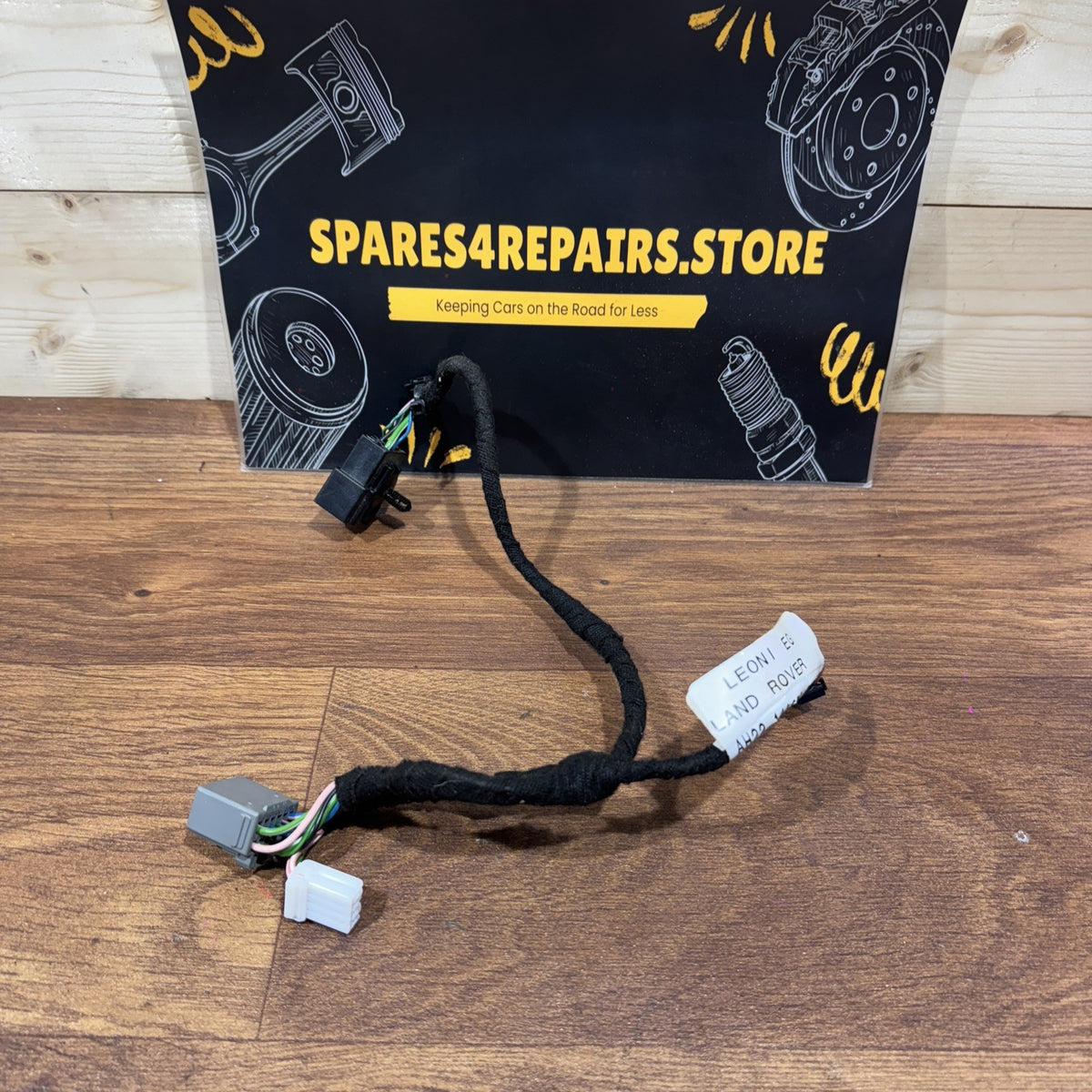

GENUINE LAND ROVER DISCOVERY 4 L319 2ND ROW RIGHT O/S SEAT WIRING HARNESS – AH22-14A578-AA


Genuine used Land Rover seat wiring harness removed from a 2010 Land Rover Discovery 4 L319. This loom is fitted to the second / middle row right-hand (O/S) seat area and provides the electrical connections required for the equipment fitted to the seat.

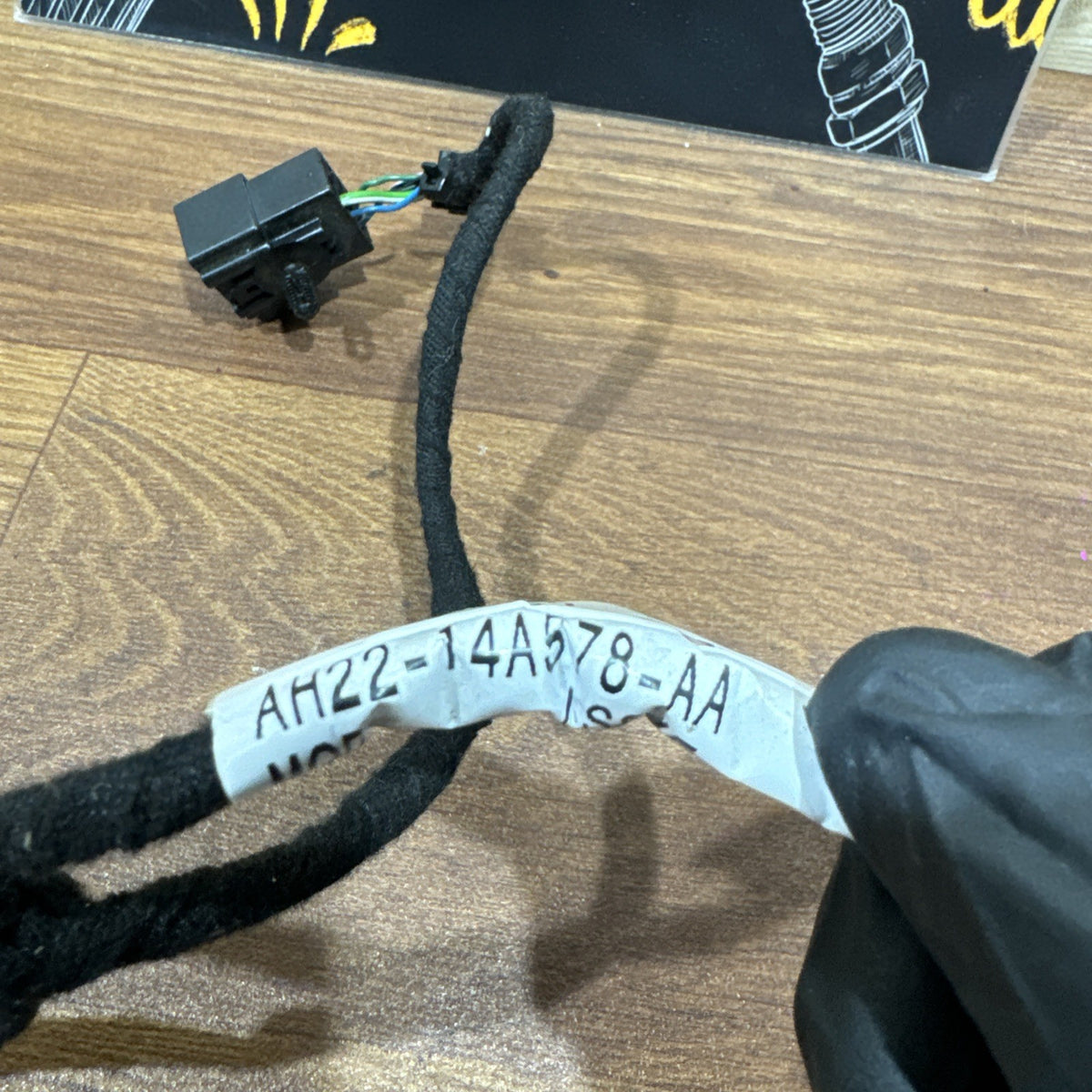

Part Number: AH22-14A578-AA

Engineering Number: AH2214A578AA

Part Type: Seat Wiring Harness / Wiring Loom

Position: 2nd / Middle Row

Vehicle Side: Right / O/S (UK Driver Side)

Application: Rear / Middle Row Seat Electrical System

Manufacturer: Genuine Land Rover OEM

Condition: Used


Compatibility


Verified applications for engineering number AH22-14A578-AA include:


Land Rover Discovery 4 / LR4 (L319)


* 2010

* 2011

* 2012

* 2013


The exact AH22-14A578-AA harness is catalogued as a seat wiring harness for 2010–2013 Land Rover LR4 / Discovery 4 applications. (Wolf Auto Parts)


Donor Vehicle Reference:

Land Rover Discovery 4 L319

Year: 2010

Engine: 3.0L TDV6 Diesel

RHD UK Vehicle

Location: 2nd / Middle Row Right O/S Seat


Technical Information


The seat wiring harness forms the electrical connection between the vehicle body wiring and electrical equipment incorporated into the second-row seat.


Depending on the vehicle’s original specification, the loom may carry connections associated with:


* Seat heating equipment

* Seat heater control components

* Seat-mounted electrical connectors

* Power and earth circuits

* Relevant seat sensors or switches


Equipment varies between Discovery 4 specifications, so the connector arrangement and AH22-14A578-AA number should be matched before purchase.


Seat Electrical System Information


Discovery 4 models were supplied with different seating and electrical configurations. Wiring looms can therefore differ according to:


* Heated or non-heated rear seats

* Seat position

* Vehicle specification

* Model year

* Connector configuration

* Installed seat equipment


A visually similar Discovery 4 seat loom is not necessarily interchangeable.


Common Reasons for Replacement


This harness may require replacement due to:


* Broken or damaged wiring

* Damaged electrical connectors

* Corroded terminals

* Wiring damaged during seat removal

* Intermittent heated-seat operation

* Open or short circuit within the seat wiring

* Replacement or rebuilding of the second-row seat


Important Diagnostic Information


Before replacing the harness, check:


* Connector pins for corrosion or damage

* Wiring for cuts, crushing or previous repairs

* Power and earth supply

* Seat heater components where fitted

* Associated connectors and control components


Electrical faults should ideally be confirmed with suitable diagnostic equipment and wiring diagrams before replacing components.


Installation


Designed to fit into the original seat wiring arrangement using the factory connectors and routing points.


Correct routing is important to prevent the loom becoming trapped, stretched or damaged by movement of the seat.


Programming / Coding


The wiring harness itself does not normally require programming or coding.


Any connected control modules or electrical equipment should be checked separately according to vehicle specification.


Important Compatibility Note

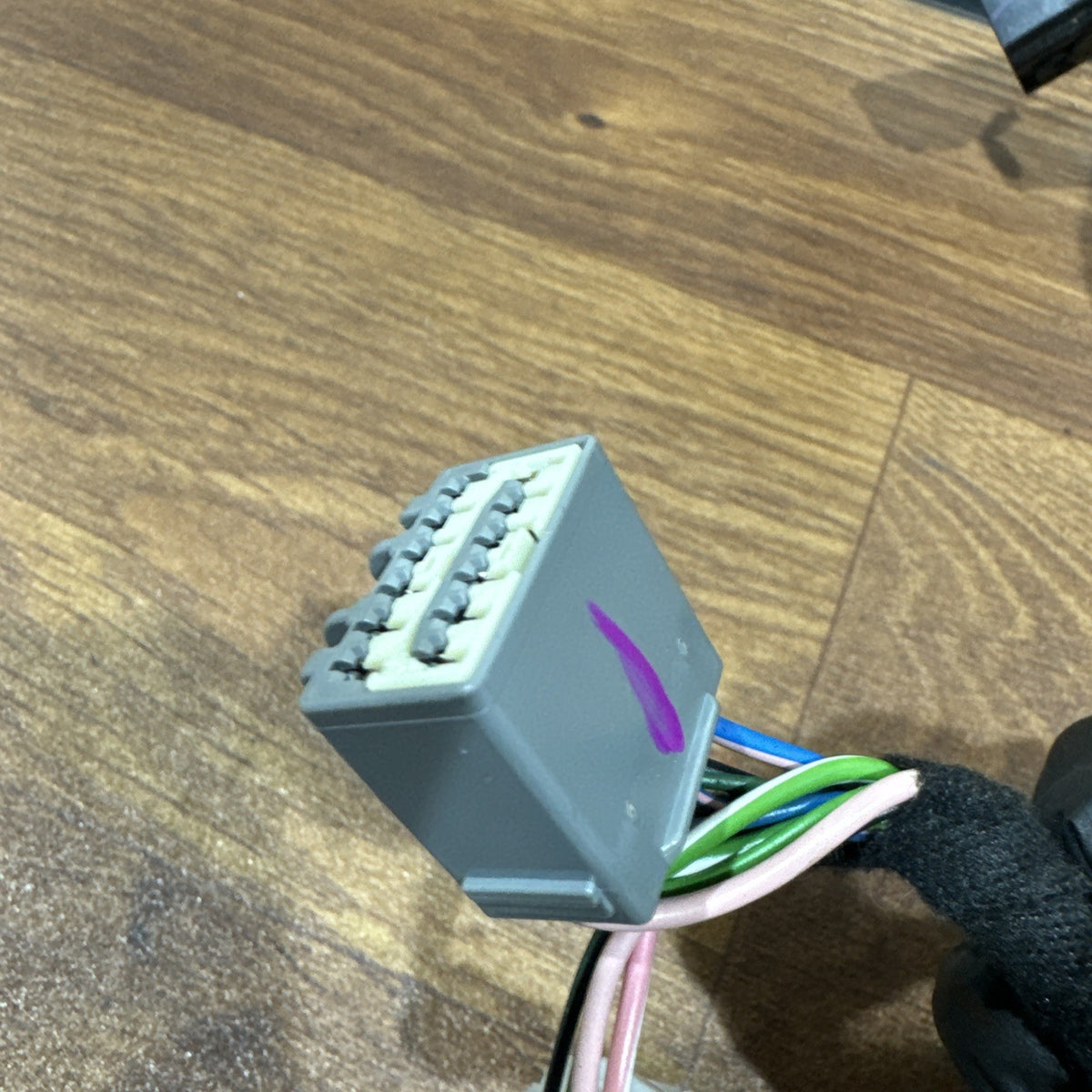

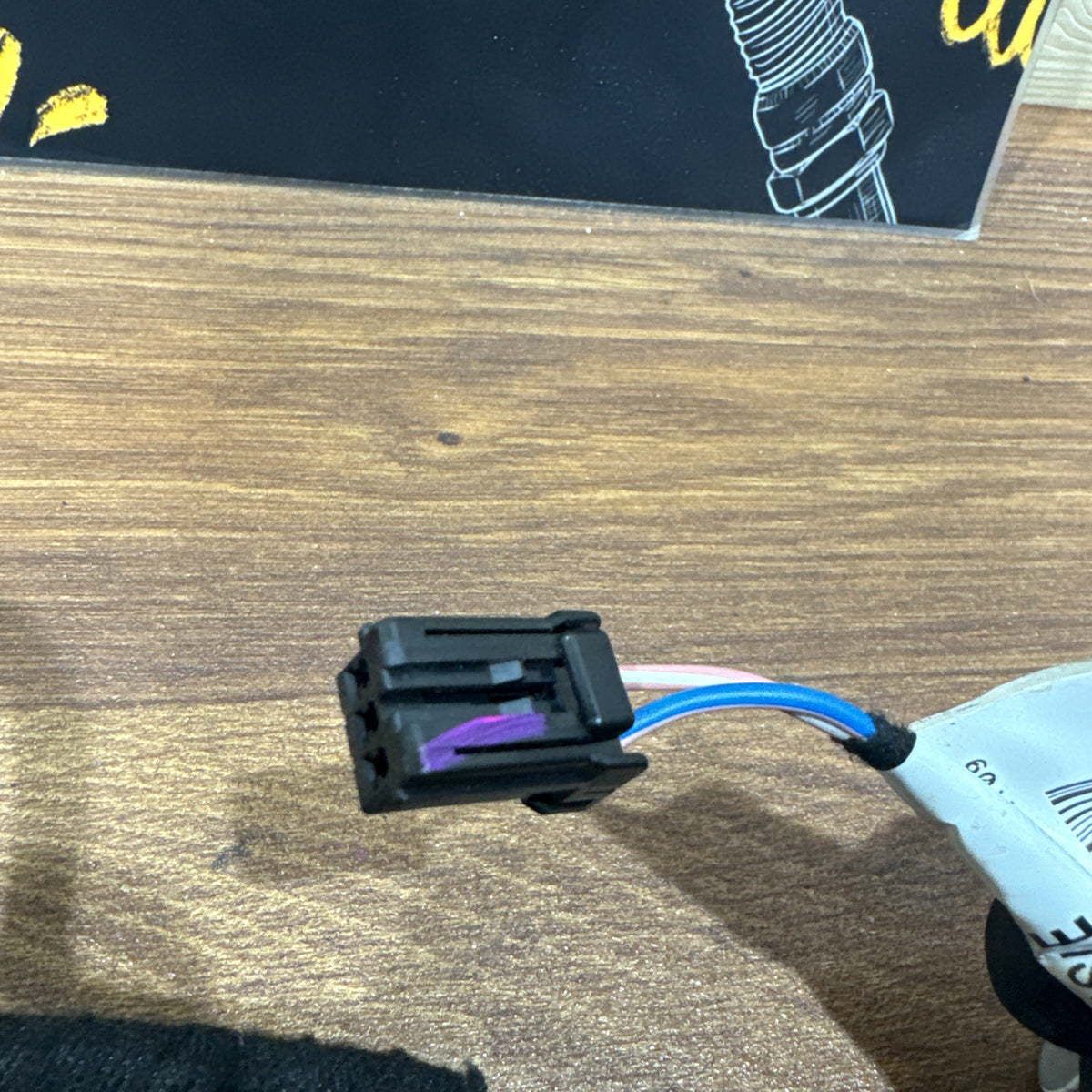

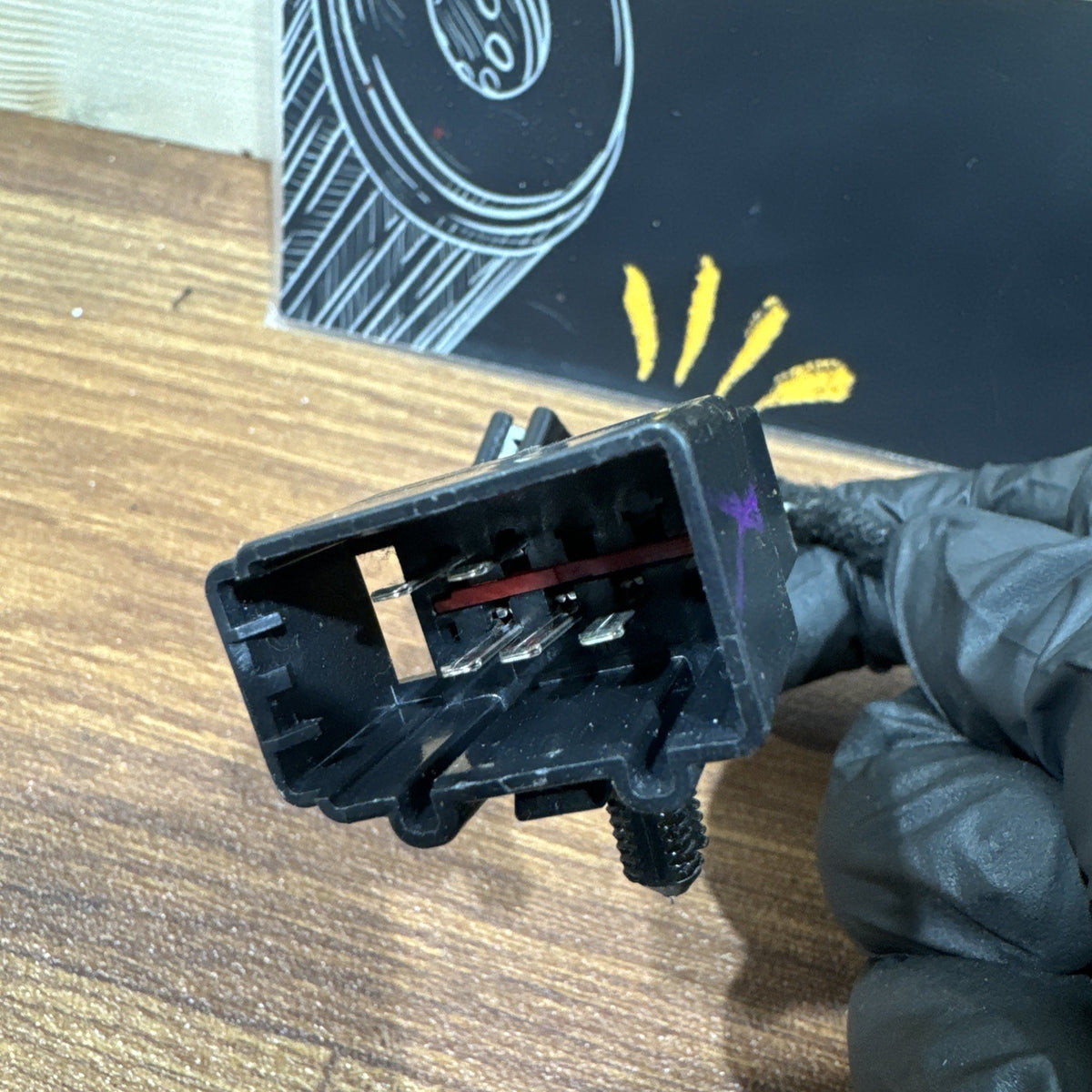

Please match part number AH22-14A578-AA and compare all plugs, connectors and wiring layout with your original part before ordering.


Land Rover used different seat wiring configurations depending on model year and equipment level. Compatibility should therefore be confirmed primarily by the engineering/OE number and connector configuration rather than vehicle model alone.


Condition


Genuine used Land Rover OEM part.


May show normal cosmetic signs of previous installation and use. Please inspect the supplied photographs carefully for connector condition, wiring layout and overall condition.


Genuine Land Rover Discovery 4 L319 replacement seat wiring harness – ideal for repairing or replacing the original 2nd-row right O/S seat loom.

Fitment Type: Direct Replacement

Manufacturer Part Number: AH2214A578AA, AH2 214 A57 8AA, AH2 214 A578AA

Vintage Part: No

Tested: Tested, Cleaned and Inspected

Placement on Vehicle: Rear

Compatible Part Numbers: LR015880

Brand: Land Rover

Interchange Part Number: LR015880

Sku Number: 608104

OE/OEM Part Number: AH2214A578AA, AH2 214 A57 8AA, AH2 214 A578AA

Manufacturer Warranty: 30 Day

Universal Fitment: No

Country of Origin: US

Performance Part: No
