2010 LAND ROVER DISCOVERY 4 DOOR SPEAKER 5H22-18808-FA

#76

Genuine Land Rover Discovery 4 L319 Door Speaker – 5H22-18808-FA / XQM000400 – 2010

Genuine Land Rover/JLR used door audio speaker, suitable for selected Land Rover Discovery 4 L319 models equipped with the corresponding factory audio system.

This is an original factory-fit speaker designed to work with the Land Rover audio system, original wiring connector and factory mounting arrangement.

Part Number: 5H22-18808-FA

Alternative Number Format: 5H2218808FA

Cross-Reference / OE Number: XQM000400

Part Type: Door Speaker / Audio Speaker

System: Factory Audio / Infotainment System

Position: Door – exact position should be matched to the original installation

Vehicle Side: Suitable applications documented on both Left and Right sides

Donor Application: 2010 Land Rover Discovery 4 L319

Manufacturer: Land Rover / JLR

Condition: Used Genuine Land Rover Part

COMPATIBILITY

Land Rover Discovery 4 – L319

Directly documented applications include:

• Discovery 4 L319

• 2009-2018 vehicle generation

• 2010 model directly confirmed

• 3.0 TDV6 – 306DT directly confirmed

• RHD applications documented

• 5-door SUV

• Factory Land Rover audio-system applications

The exact 5H22-18808-FA speaker has been documented on a Discovery IV L319 3.0 TD 4x4 with:

Engine Code: 306DT / TDV6

Power: 180 kW / 245 HP

Body: 5 Door

Drive: 4WD

Steering: Right-Hand Drive

This provides strong direct compatibility evidence for a 2010 Discovery 4 L319 3.0 TDV6.

DISCOVERY 4 DOOR POSITION INFORMATION

The 5H22-18808-FA speaker is documented in more than one installation position.

Confirmed used-part records include:

• Rear Left Door Speaker

• Rear Right Door Speaker

• Discovery 4 rear speaker applications

Therefore, the speaker itself should not automatically be advertised as exclusively N/S or O/S unless the physical mounting arrangement on your particular speaker confirms a specific position.

For UK RHD terminology:

N/S = Left / Passenger Side

O/S = Right / Driver Side

If your speaker came from a specific door, that position can be included in the listing title, but buyers should still compare the part number, connector and mounting arrangement.

ADDITIONAL JLR APPLICATIONS

The 5H22-18808-FA / 5H2218808FA speaker is also documented across several other JLR vehicles.

Applications include selected:

Range Rover Sport – L320

• Front door applications documented

• Left and right applications

• Approximately 2007-2013 depending on audio specification

Range Rover – L322

• Selected door-speaker applications

• 2010-era vehicles directly documented

• Centre/dash applications are also documented on some audio configurations

Range Rover Evoque – L538

• Selected front and rear door applications

• Left and right installation documented

This demonstrates that 5H22-18808-FA was used widely within JLR audio systems, but the installation position and audio-system specification can vary considerably between models.

TECHNICAL INFORMATION

The 5H22-18808-FA is an original equipment loudspeaker designed for integration with the factory Land Rover audio system.

Its functions include:

• Reproducing audio from the factory sound system

• Music playback

• Radio audio reproduction

• Navigation/audio prompts where applicable

• Telephone/hands-free audio depending on vehicle system

• Working with other speakers within the factory multi-speaker arrangement

• Maintaining the intended factory sound balance

The speaker receives the amplified audio signal from the vehicle’s factory audio system and converts the electrical signal into sound through its voice coil and diaphragm assembly.

FACTORY AUDIO SYSTEM INFORMATION

Depending on specification, a Discovery 4 can use a multi-speaker factory audio system consisting of:

• Door speakers

• Tweeters

• Mid-range speakers

• Centre speaker depending on specification

• Subwoofer/bass speaker depending on specification

• Factory amplifier

• Radio / infotainment head unit

• Associated audio wiring

Because different factory audio packages were offered, the presence of a Discovery 4 badge alone does not guarantee that every speaker is interchangeable.

The original speaker number should be checked.

SPEAKER POSITION / INTERCHANGE INFORMATION

The same 5H22-18808-FA engineering number appears in several physical positions across JLR vehicles.

For Discovery applications, both:

Rear Left

and

Rear Right

door installations are directly documented.

Other JLR vehicles also show the speaker being used in front-door and other audio-system positions.

This indicates that 5H22-18808-FA is fundamentally identified by its speaker specification and mounting arrangement rather than simply by one fixed vehicle side.

Always compare the original unit before ordering.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• No sound from one door

• Distorted audio

• Crackling sound

• Buzzing or rattling

• Reduced volume

• Intermittent sound

• Speaker cutting in and out

• Damaged speaker cone

• Damaged suspension/surround

• Failed voice coil

• Electrical open-circuit fault

• Water or moisture damage

• Damaged electrical connector

• Physical damage during door repairs

A damaged speaker can noticeably reduce the overall quality of the Discovery 4 factory sound system.

IMPORTANT DIAGNOSTIC INFORMATION

No sound from a particular door does not automatically mean the speaker itself has failed.

Before replacement, check:

• Speaker wiring

• Door wiring loom

• Electrical connector

• Wiring between the door and body

• Factory amplifier

• Audio-system configuration

• Head unit / infotainment system

• Speaker output from the amplifier

• Corrosion or moisture around the connector

• Diagnostic fault codes where applicable

Where possible, the speaker can also be tested separately to confirm whether the fault is within the speaker or elsewhere in the vehicle audio system.

SPEAKER CONDITION CHECKS

When inspecting a used speaker, check:

• Speaker cone condition

• Surround condition

• Voice-coil operation

• Magnet condition

• Electrical terminals

• Connector condition

• Plastic mounting frame

• Mounting holes

• Signs of moisture

• Corrosion

• Distortion when operating

A speaker can look visually undamaged but still suffer from a damaged voice coil or internal electrical failure.

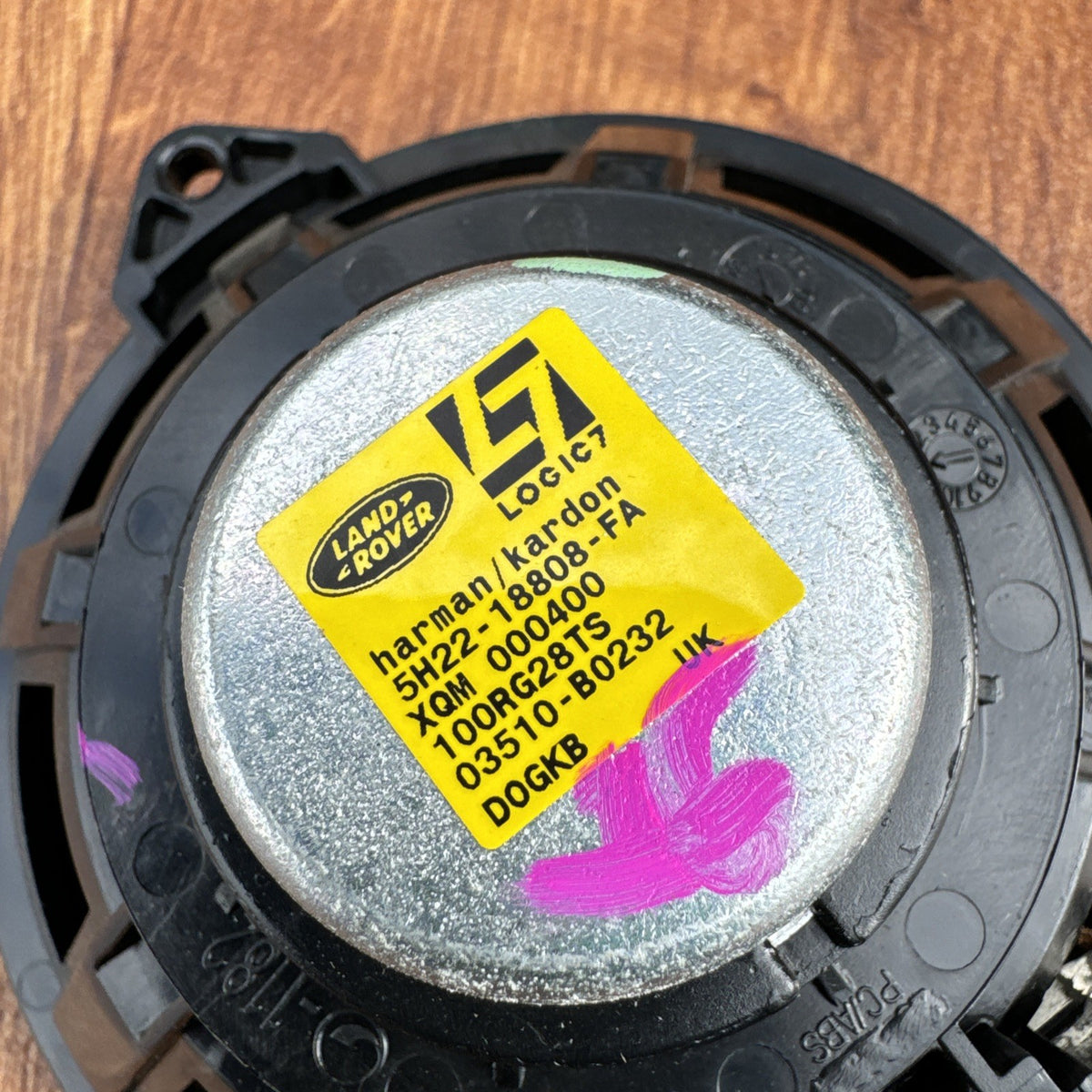

PART NUMBER INFORMATION

Primary engineering number:

5H22-18808-FA

Alternative formatting:

5H2218808FA

Cross-reference appearing in parts data:

XQM000400

The 5H22-18808-FA number is directly documented on Discovery 4 L319 speakers and should be the primary number used when comparing the replacement.

ADDITIONAL CROSS-MODEL INFORMATION

The same number is documented on:

Discovery 4 L319

Range Rover Sport L320

Range Rover L322

Range Rover Evoque L538

However, this does not mean every vehicle using these platforms uses this speaker.

Compatibility depends on:

• Factory audio package

• Speaker position

• Model year

• Electrical connector

• Speaker specification

• Mounting arrangement

Always match the physical speaker and identification number.

INSTALLATION

Installation normally requires removal of the relevant interior door trim panel.

During installation:

• Switch off the vehicle electrical system

• Remove the door trim carefully

• Disconnect the original speaker connector

• Inspect wiring and connector condition

• Check for moisture inside the door

• Compare the replacement speaker with the original

• Confirm mounting points

• Connect the replacement speaker

• Secure the speaker correctly

• Test audio operation before fully refitting the trim

• Reinstall the door panel correctly

Care should be taken not to damage door clips, wiring or moisture barriers during removal.

PROGRAMMING / CODING

Programming Required: No

A genuine like-for-like 5H22-18808-FA speaker is a passive audio component and does not normally require programming or coding after installation.

Once correctly connected to a compatible factory audio system, it should operate from the existing amplifier/audio output.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

5H22-18808-FA

5H2218808FA

XQM000400

Also check:

• Vehicle model

• Vehicle year

• Factory audio-system specification

• Original speaker number

• Speaker size

• Electrical connector

• Connector pin arrangement

• Mounting frame

• Mounting-hole positions

• Speaker installation position

• Listing photographs

Do not rely solely on “Discovery 4” when ordering.

Different speaker and audio-system configurations were fitted depending on vehicle specification.

For a 2010 Land Rover Discovery 4 L319, matching 5H22-18808-FA directly with the original speaker provides the safest basis for compatibility.

CONDITION

Used Genuine Land Rover / JLR Speaker.

Normal cosmetic marks, dust and signs of previous installation may be present.

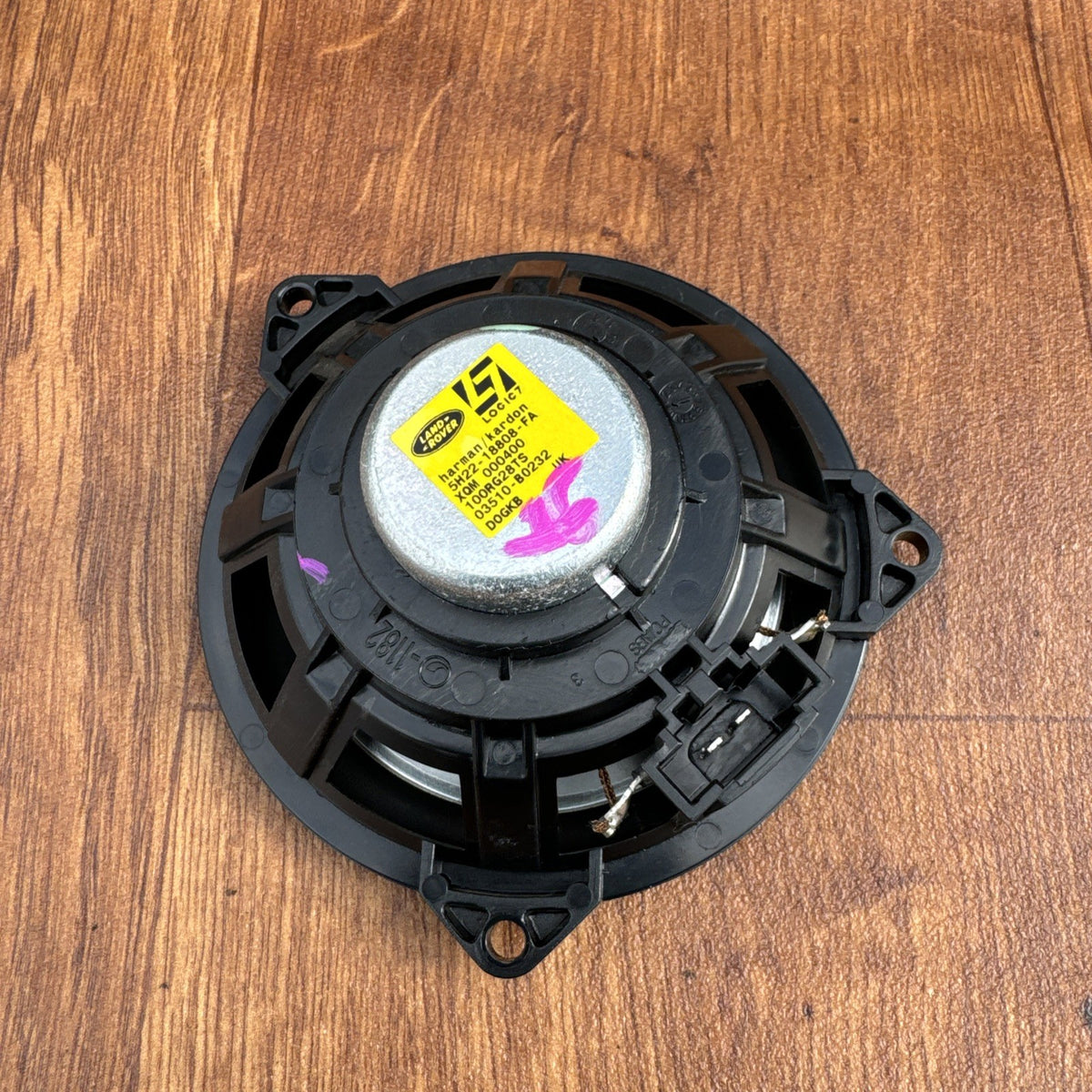

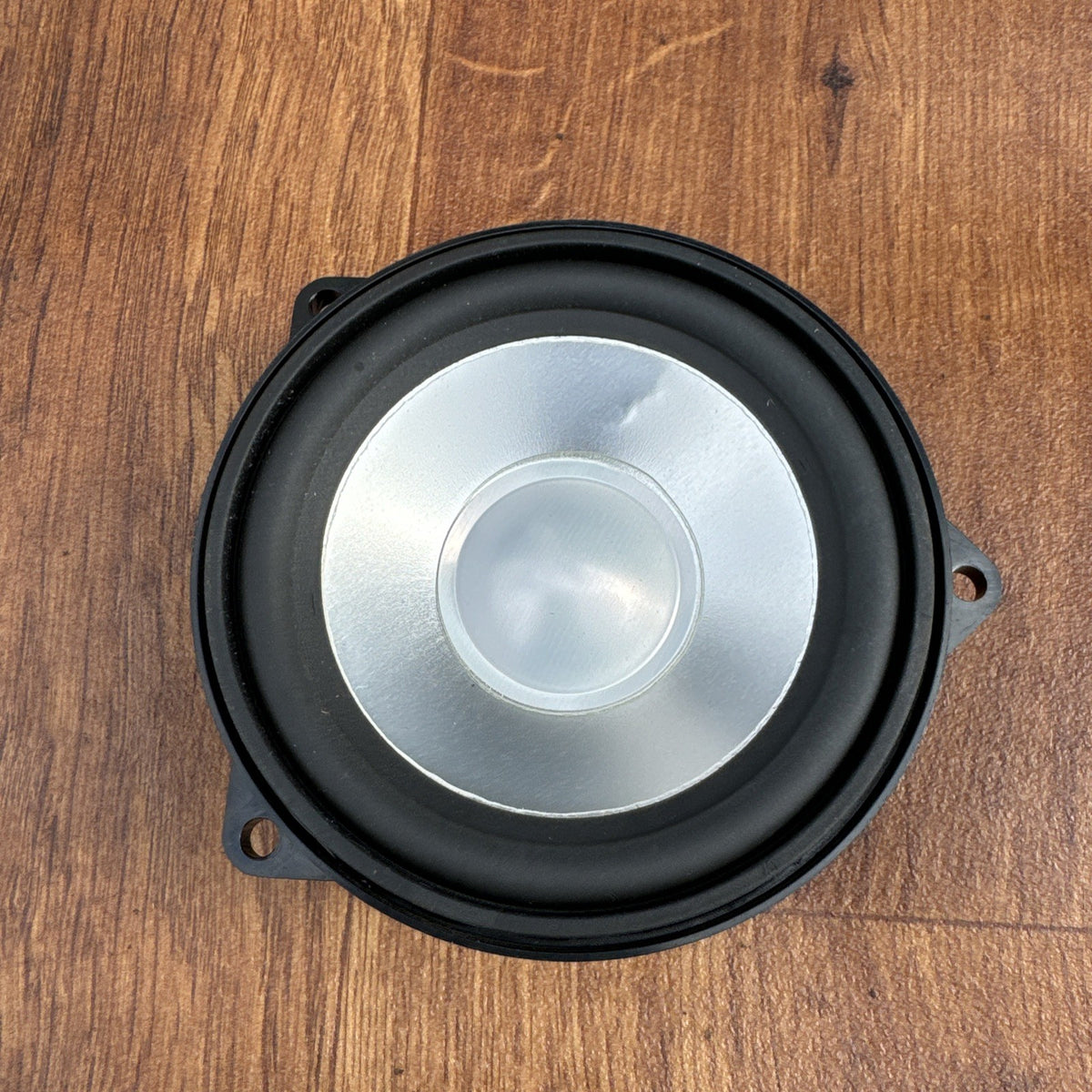

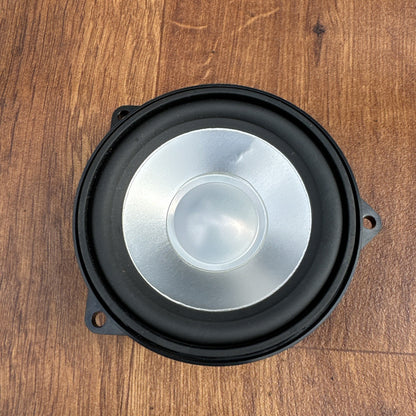

Please inspect all listing photographs carefully for the exact 5H22-18808-FA identification, speaker cone, connector, mounting frame, mounting points and overall condition.

Ideal genuine Land Rover replacement door audio speaker for a compatible Discovery 4 L319 factory sound system.
