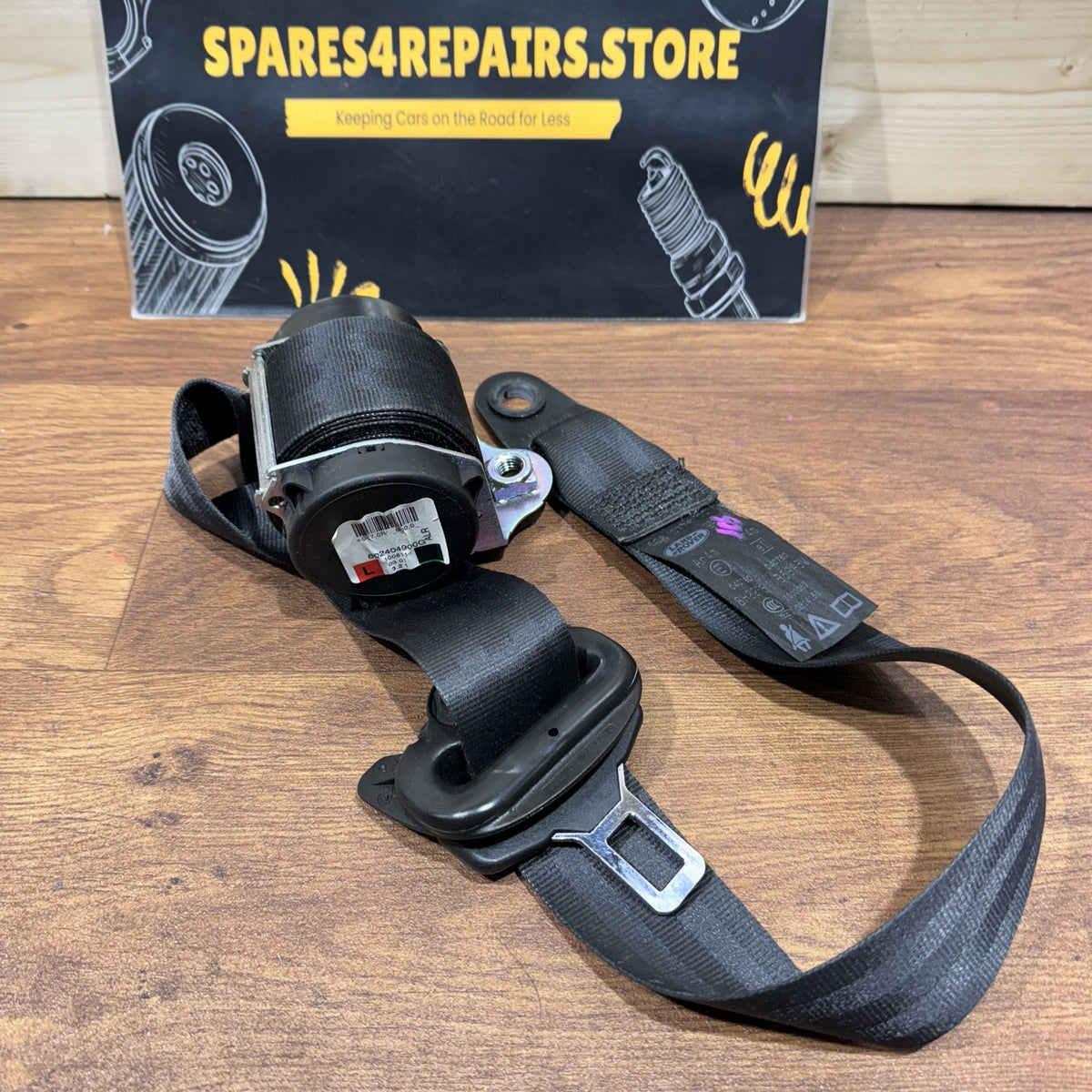

Genuine Land Rover Discovery 4 L319 2nd Row Rear Left N/S Seat Belt – 8H22-F611B69-ABW – 2010

Genuine Land Rover/JLR used second-row rear left seat belt and inertia reel/retractor assembly, suitable for selected Land Rover Discovery 4 L319 models.

This is the factory safety restraint assembly fitted to the left-hand outer seating position of the second-row rear bench. On a UK right-hand-drive Discovery 4, this corresponds to the N/S / nearside / passenger-side rear seat.

Part Number: 8H22-F611B69-ABW

Alternative Number Format: 8H22F611B69ABW

Part Type: Seat Belt / Safety Belt / Inertia Reel & Retractor Assembly

Position: Second Row – Rear Left Outer Seat

Vehicle Side: LH / N/S – Passenger Side on UK RHD vehicles

Application: Second-Row Passenger Restraint System

Vehicle Platform: Discovery 4 L319

Donor Application: 2010 Land Rover Discovery 4 L319

Manufacturer: Land Rover / JLR

Condition: Used Genuine Land Rover Safety Component

COMPATIBILITY

Land Rover Discovery 4 – L319 / LR4

Directly documented applications include:

• Discovery 4 L319 – 2010

• Discovery 4 / LR4 generation applications

• Second-row rear seating

• Rear Left-Hand outer position

• UK RHD: N/S / passenger-side rear

• 5-door SUV

• 5-seat and 7-seat vehicles where this corresponding second-row belt is fitted

• Petrol and diesel models depending on vehicle specification

The exact:

8H22-F611B69-ABW

is directly documented as a Land Rover Discovery 4 L319 Rear Left N/S Seat Belt.

A separate used-part listing specifically identifies:

2010 Land Rover Discovery 4 L319 Left Rear 2nd / Second Row Seat Belt – 8H22F611B69

making your 2010 Discovery 4 application directly supported.

SECOND-ROW POSITION INFORMATION

This seat belt fits the:

SECOND ROW

REAR LEFT OUTER SEAT

LH / LEFT-HAND SIDE

For a UK right-hand-drive Discovery 4:

LH = Left Hand

N/S = Nearside

Passenger Side

Therefore the recommended UK description is:

Discovery 4 2nd Row Rear Left N/S Passenger Seat Belt

It should not be confused with:

• Front passenger seat belt

• Front driver seat belt

• Second-row right O/S seat belt

• Rear centre seat belt

• Third-row left seat belt

• Third-row right seat belt

• Seat belt buckle/stalk

2ND ROW VS 3RD ROW INFORMATION

This distinction is particularly important on a 7-seat Discovery 4.

The vehicle uses different restraint assemblies for the:

Second Row

and

Third Row / Rearmost Seats

Your:

8H22-F611B69-ABW

is documented as the second-row rear-left seat belt assembly.

It should therefore not be confused with the separate 4H22-N611Bxx engineering-number family used for third-row/rearmost seat belt applications.

TECHNICAL INFORMATION

The 8H22-F611B69-ABW is an original Land Rover three-point passenger restraint assembly designed around the Discovery 4’s second-row seating and body mounting geometry.

The assembly incorporates:

• Seat-belt webbing

• Inertia reel/retractor mechanism

• Belt guide arrangement

• Buckle tongue

• Factory mounting brackets

• Internal locking mechanism

Its primary functions include:

• Restraining the second-row passenger during sudden deceleration or collision

• Allowing normal passenger movement during everyday driving

• Automatically retracting excess webbing

• Maintaining appropriate belt positioning

• Locking during sudden vehicle deceleration

• Locking when the belt is extended rapidly

• Working with the corresponding second-row seat belt buckle

• Using the factory Land Rover mounting points

SECOND-ROW RESTRAINT SYSTEM INFORMATION

The Discovery 4 second-row restraint system uses several separate components, including:

• LH second-row seat belt/retractor – 8H22-F611B69-ABW

• RH second-row seat belt/retractor

• Rear centre restraint components

• LH and RH seat belt buckles

• Belt guides

• Upper and lower anchor points

• Second-row seat structure

• Associated interior trim

The left and right assemblies are position-specific and should be installed in their intended locations.

INERTIA REEL OPERATION

During normal driving, the inertia reel allows the passenger to extend the belt smoothly and move naturally while seated.

When the passenger moves back towards the seat, the reel automatically retracts excess webbing.

During sufficiently rapid movement or vehicle deceleration, the internal mechanism locks the reel and restricts further extension.

This helps restrain the passenger during:

• Emergency braking

• Sudden manoeuvres

• Rapid deceleration

• Vehicle impact

Correct operation of the retractor is therefore essential to the seat belt’s safety function.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• Seat belt failing to retract

• Slow or weak retraction

• Belt remaining loose after use

• Inertia reel permanently locked

• Belt will not extend

• Intermittent retractor jamming

• Frayed webbing

• Cuts or tears in the belt

• Damaged stitching

• Contaminated webbing

• Damaged belt guide

• Damaged buckle tongue

• Bent mounting bracket

• Internal retractor failure

• Corrosion

• Water damage

• Previous accident loading

• Physical damage during interior repairs

IMPORTANT SAFETY / DIAGNOSTIC INFORMATION

A seat belt is a safety-critical restraint component.

Before installing any used seat belt, carefully inspect:

• Complete length of the webbing

• Webbing edges

• Stitching

• Retractor operation

• Locking mechanism

• Mounting brackets

• Mounting holes

• Belt guides

• Buckle tongue

• Plastic components

• Corrosion

• Water or chemical contamination

• Evidence of previous accident loading

The belt should extend smoothly, retract correctly and lock appropriately when subjected to sudden movement.

ACCIDENT / RESTRAINT SYSTEM INFORMATION

Seat belts can experience very high loads during a collision.

Internal damage may not always be visually obvious after an accident.

A restraint assembly known to have experienced significant collision loading should not simply be reused based only on external appearance.

Land Rover workshop procedures regarding inspection and replacement of restraint components following an accident should be followed.

PART NUMBER INFORMATION

Primary engineering number:

8H22-F611B69-ABW

Alternative formatting:

8H22F611B69ABW

Shortened markings/listing formats may appear as:

8H22-F611B69

8H22F611B69

The full 8H22-F611B69-ABW engineering number provides the safest identification when comparing replacement parts.

LEFT / RIGHT IDENTIFICATION

For this second-row seat belt family:

8H22-F611B69-ABW = Rear LEFT / LH / N/S

The corresponding right-hand second-row assembly is found under the related 8H22-F611B68 engineering-number family.

Therefore:

B69 = LEFT / N/S – Second Row

B68 = RIGHT / O/S – Second Row

Always confirm the complete suffix and physical mounting arrangement before ordering.

ENGINE / VEHICLE INFORMATION

This seat-belt assembly is a body safety component and is not engine-specific.

It can therefore be applicable to compatible Discovery 4 vehicles equipped with engines such as:

• 2.7 TDV6

• 3.0 TDV6

• 3.0 SDV6

• Petrol engines offered in other markets

A direct used-part listing documents this exact belt from a:

2010 Land Rover Discovery 4 L319

3.0 TD Diesel

However, engine size should not be used as the primary compatibility check.

The important factors are:

• Vehicle generation

• Production date

• Second-row seating position

• Left/right side

• Belt specification

• Engineering number

• Mounting arrangement

2010 DISCOVERY 4 APPLICATION

For your donor/application:

Vehicle: Land Rover Discovery 4

Platform: L319

Year: 2010

Position: Second Row / Rear Left Outer Seat

UK Side: N/S / Passenger Side

Part: Seat Belt & Inertia Reel / Retractor

Engineering Number: 8H22-F611B69-ABW

This exact application is directly documented.

INSTALLATION

Installation should be carried out according to the appropriate Land Rover workshop procedure.

During installation:

• Confirm the replacement is rear left / N/S

• Confirm it is the second-row assembly

• Compare the replacement directly with the original

• Inspect the complete belt webbing

• Check the retractor mechanism

• Inspect mounting brackets

• Confirm mounting-hole positions

• Ensure the webbing is not twisted

• Install all restraint-system fasteners correctly

• Tighten fasteners to Land Rover specifications

• Check smooth belt extension

• Confirm complete retraction

• Check inertia-reel locking operation

• Confirm correct engagement with the corresponding buckle

• Refit surrounding trim correctly

Because this is a safety-critical restraint component, correct professional installation is recommended.

PROGRAMMING / CODING

Programming Required: No

Coding Required: No

The 8H22-F611B69-ABW second-row seat belt/retractor assembly is primarily a mechanical restraint component and does not normally require vehicle programming or coding after installation.

Any existing SRS/restraint warning should still be correctly diagnosed rather than assuming that replacing the seat belt will resolve an unrelated system fault.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

8H22-F611B69-ABW

8H22F611B69ABW

Also check:

• Second-row position

• Rear Left / LH / N/S

• Vehicle model

• Vehicle production year

• Original engineering number

• Full suffix letters

• Webbing colour

• Belt length and routing

• Retractor design

• Mounting brackets

• Mounting-hole positions

• Buckle tongue design

• Listing photographs

Do not rely solely on “Discovery 4 rear seat belt” when ordering.

The Discovery 4 uses different restraint assemblies for the front, second row and third row, as well as different left- and right-hand components.

For the safest replacement, match 8H22-F611B69-ABW directly with the original second-row rear-left seat belt assembly.

CONDITION

Used Genuine Land Rover / JLR Safety Component.

Normal cosmetic marks and signs of previous installation may be present.

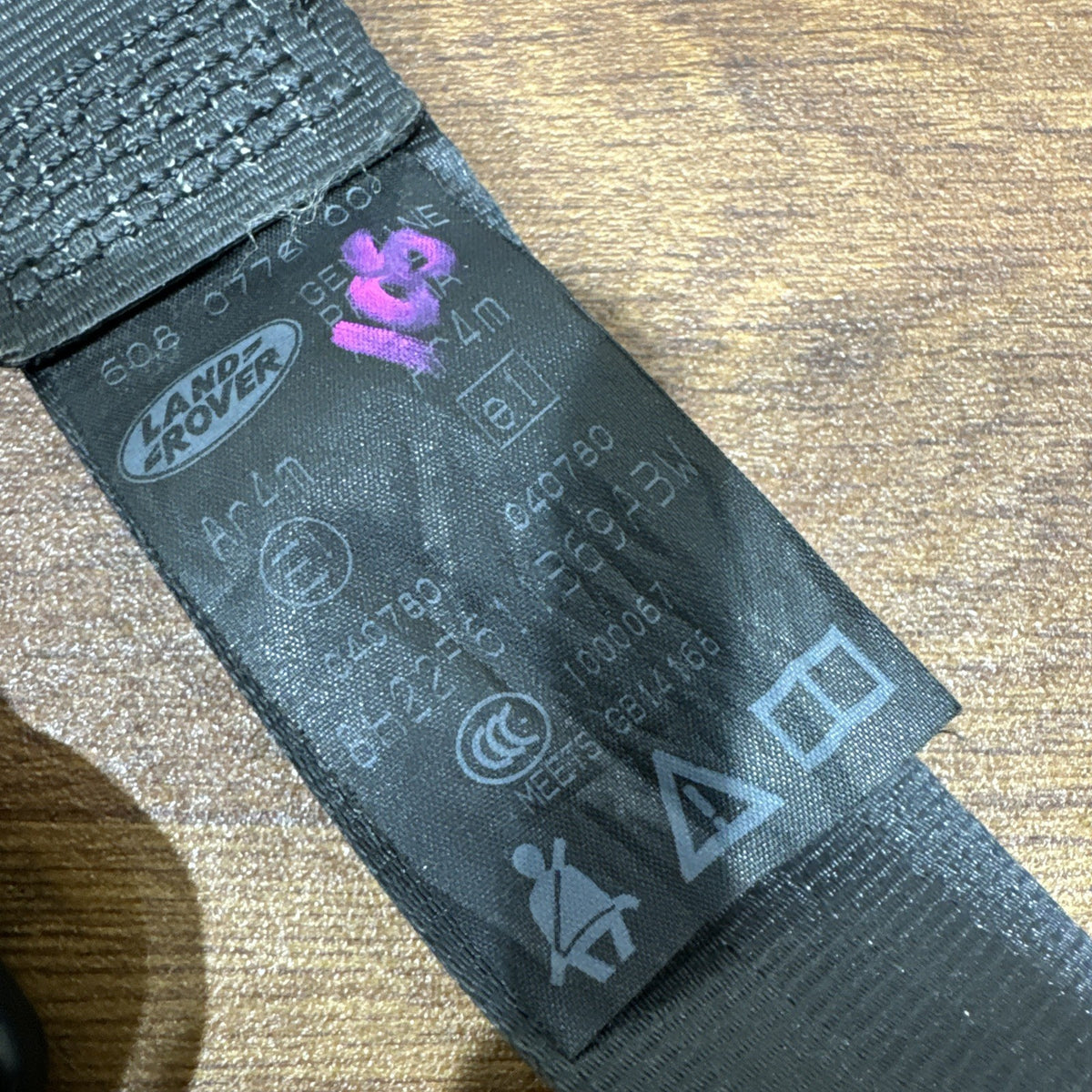

Please inspect all listing photographs carefully for the exact 8H22-F611B69-ABW identification, webbing condition, stitching, inertia reel, mounting brackets, buckle tongue and overall condition.

As this is a safety-critical restraint component, condition and suitability should be confirmed before installation.

Ideal genuine Land Rover replacement second-row rear left N/S passenger-side seat belt and inertia reel assembly for a compatible Discovery 4 L319.
