2010 LAND ROVER DISCOVERY 4 OFFSIDE REAR WINDOW MOTOR 09-16 AH22 14B554 AA

#72

♻️ GENUINE LAND ROVER DISCOVERY 4 L319 REAR RIGHT O/S ELECTRIC WINDOW MOTOR – AH22-14B554-AA / LR016352

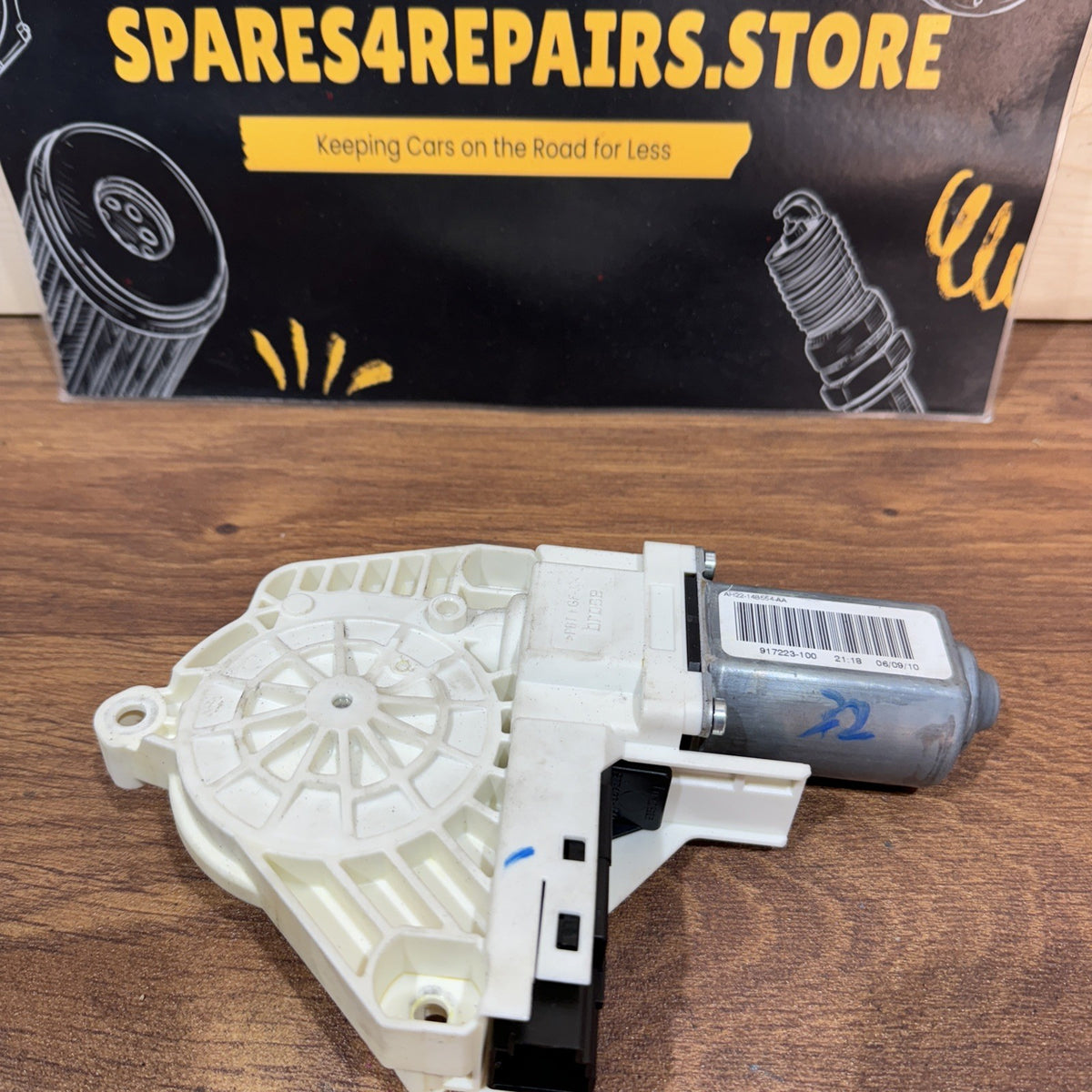

Genuine used Land Rover Discovery 4 L319 rear right electric window motor, removed from a 2010 Discovery 4.

This motor operates the electric window regulator fitted inside the rear right / O/S door – driver’s side rear on UK RHD vehicles.

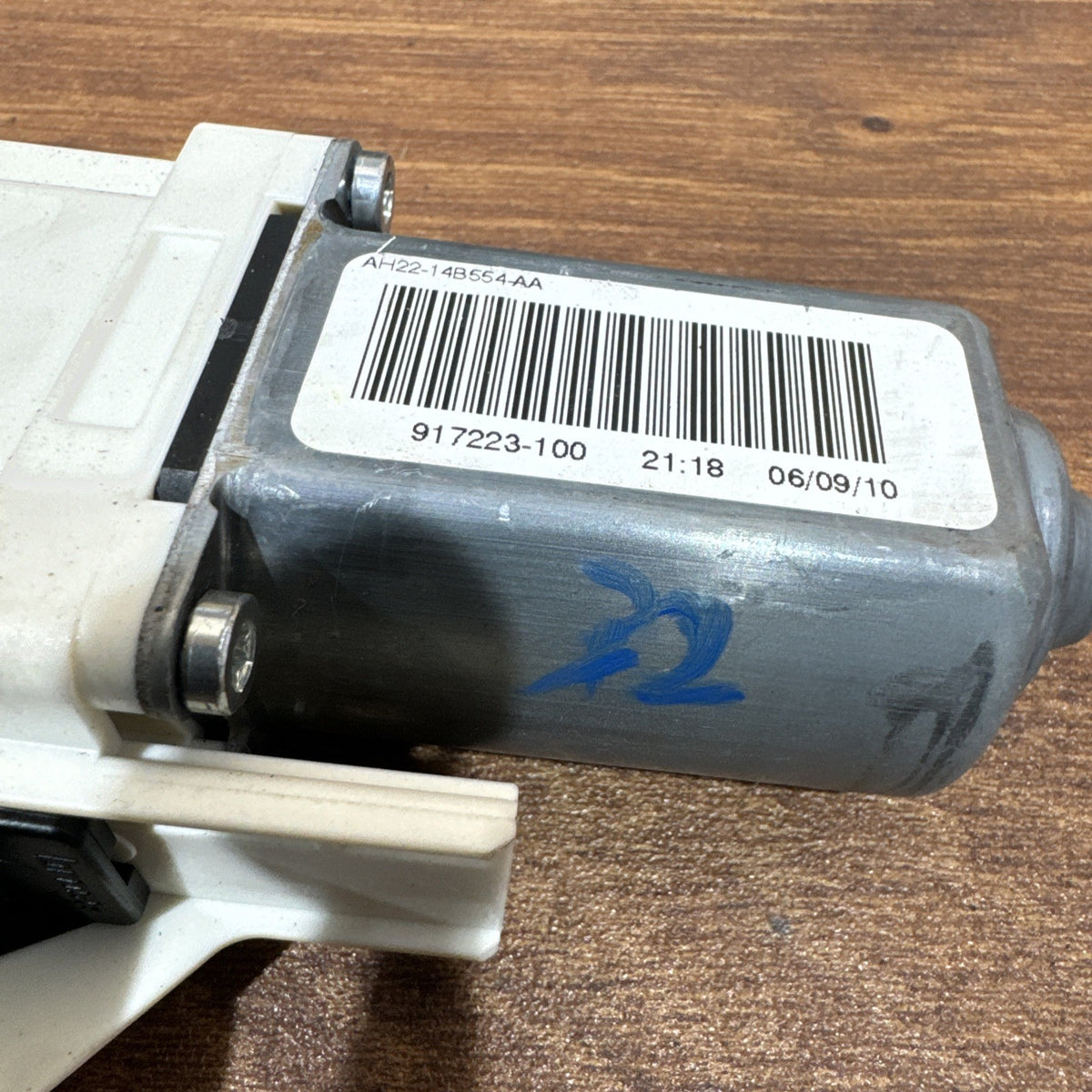

Engineering Part Number: AH22-14B554-AA

Alternative Format: AH2214B554AA

OE / Service Reference: LR016352

Additional Reference: 917223-100 / 917223100

Part Type: Electric Window Regulator Motor

Position: Rear Right Door

Vehicle Side: O/S / Right

UK RHD Position: Driver Side Rear

Donor Vehicle: 2010 Land Rover Discovery 4 L319

Engine Reference: 3.0 TDV6 / 306DT donor applications confirmed

Operating Mode: Electric

Condition: Genuine Used

Compatibility

Confirmed applications include:

• Land Rover Discovery 4 / Discovery IV L319

• 2009–2016 applications using the matching rear-right motor/regulator specification

• 2010 Discovery 4 3.0 TDV6 – 306DT

• 2.7 TDV6 applications where the same motor is fitted

• 3.0 TDV6 / SDV6 applications

• Rear right / O/S door

The exact AH22-14B554-AA motor is documented on a 2010 RHD Discovery 4 L319 3.0 diesel, positioned at the rear right door.

Known OE / Cross References

Known references associated with this rear-right window motor include:

• AH22-14B554-AA

• AH2214B554AA

• LR016352

• 917223-100

• 917223100

The motor is also documented together with rear-right regulator references including AH22-27000-AA / AH22-27000-AB on applicable vehicles.

Additional Applications

The same AH22-14B554-AA motor is also documented on selected:

• Range Rover Sport L320

• Discovery 3 / LR3 applications using the matching window mechanism

However, fitment should be confirmed by matching the original motor number, connector and regulator arrangement.

Technical Information

The electric window motor provides the drive required to raise and lower the rear door glass.

It operates together with:

• Rear window regulator

• Window control switch

• Driver’s master window controls

• Door wiring loom

• Electrical connector

• Window glass and guides

When the window switch is operated, the motor drives the regulator mechanism to move the glass up or down.

Electric Window System Information

The motor and regulator are separate parts of the same window-lifting system.

A non-working window can be caused by:

• Failed window motor

• Damaged regulator mechanism

• Broken regulator cable

• Faulty window switch

• Damaged door wiring

• Electrical connector fault

• Mechanical resistance in the window guides

Correct diagnosis is recommended before replacing the motor.

Common Symptoms / Reasons for Replacement

• Rear window completely inoperative

• Window operates intermittently

• Window moves very slowly

• Motor makes unusual noises

• Window only operates in one direction

• Motor runs but window does not move

• Internal motor failure

• Electrical connector damaged

• Motor damaged following regulator failure

• Replacement required after rear-door repair

Important Diagnostic Information

Before replacing the motor, check:

• Rear window switch

• Driver’s master window switch

• Window isolator function

• Door wiring loom

• Electrical connector

• Window regulator

• Regulator cables

• Window glass guides

• Relevant fuses / electrical supply

If the motor can be heard running but the glass does not move correctly, the window regulator mechanism may be faulty rather than the motor.

Installation

The motor mounts to the rear-door window regulator assembly.

Installation normally requires removal of the rear interior door card and access to the regulator mechanism.

During installation:

• Compare the replacement motor with the original

• Match AH22-14B554-AA

• Check the electrical connector

• Inspect the regulator before fitting

• Ensure mounting bolts are correctly secured

• Make sure the glass moves freely in its guides

• Reconnect the door wiring securely

Programming / Initialisation

No conventional ECU programming is normally required for a like-for-like window motor replacement.

However, after replacement or electrical disconnection, the electric window one-touch / anti-trap function may require reinitialisation.

If automatic window operation does not function correctly after installation, carry out the appropriate Land Rover window reset/initialisation procedure.

Important Compatibility Note

⚠️ Please match the complete part number before purchasing.

Confirm:

• AH22-14B554-AA / AH2214B554AA

• LR016352 where applicable

• 917223-100 where applicable

• Rear right / O/S position

• Electrical connector and pin arrangement

• Motor mounting points

• Regulator interface

• Listing photographs

The Discovery 4 uses different components for left/right and front/rear window positions.

Do not purchase solely by vehicle model and year. Matching the original motor number is strongly recommended.

Condition

Genuine used Land Rover electric window motor.

May show normal signs of previous use, removal and storage, including light marks or cosmetic wear.

Please inspect all listing photographs carefully for the exact connector, mounting points and overall condition.

♻️ Genuine 2010 Land Rover Discovery 4 L319 rear right O/S electric window motor AH22-14B554-AA / LR016352 – ideal replacement for a diagnosed faulty original window motor.
