2010 LAND ROVER DISCOVERY 4 RADIO PLAYER CONTROL PANEL OEM AH22-18C858-BF

#73

GENUINE LAND ROVER DISCOVERY 4 L319 RADIO / MULTIMEDIA CONTROL PANEL WITH CLOCK – AH22-18C858-BF

Genuine used Land Rover centre dashboard radio, stereo and multimedia control panel, removed from a 2010 Land Rover Discovery 4 L319.

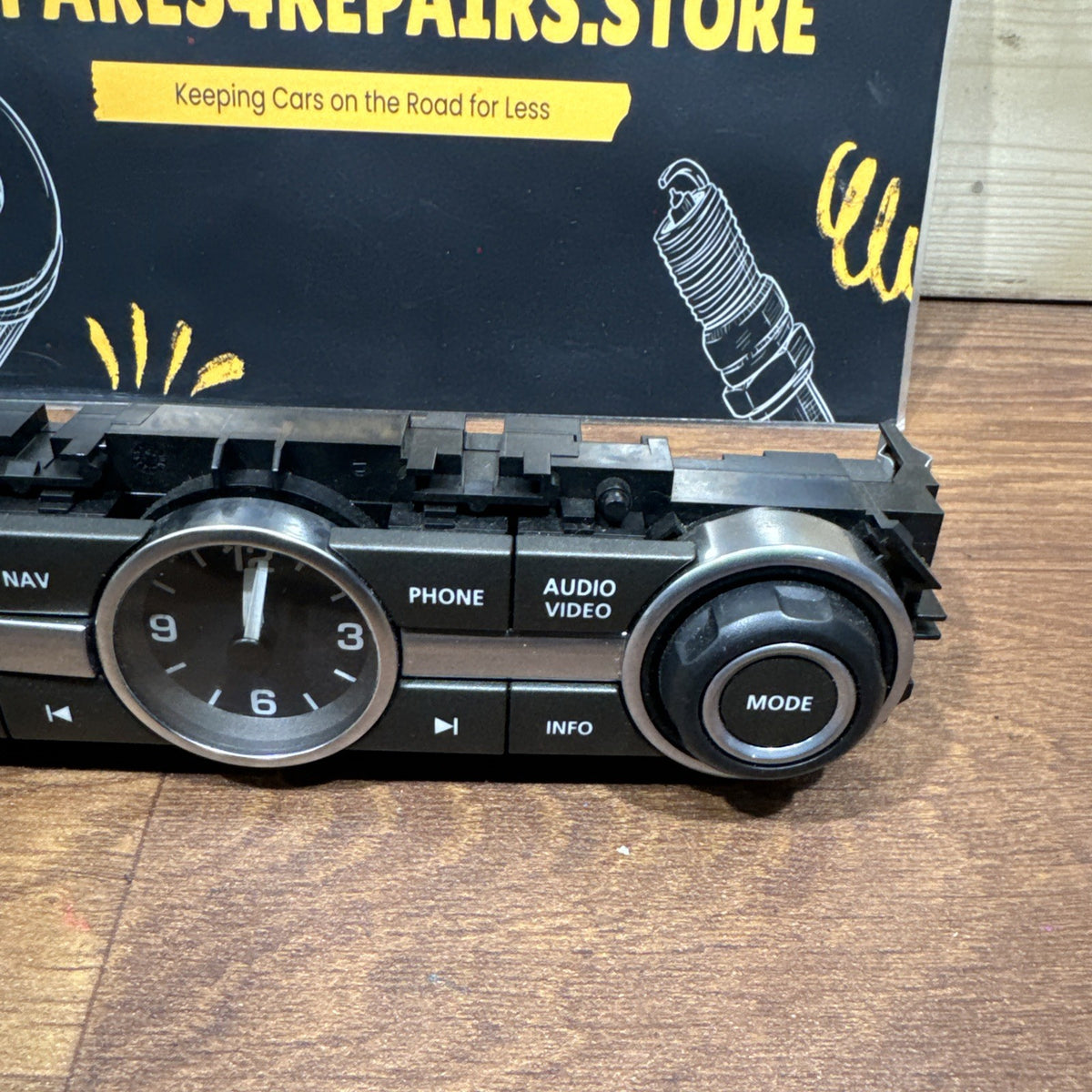

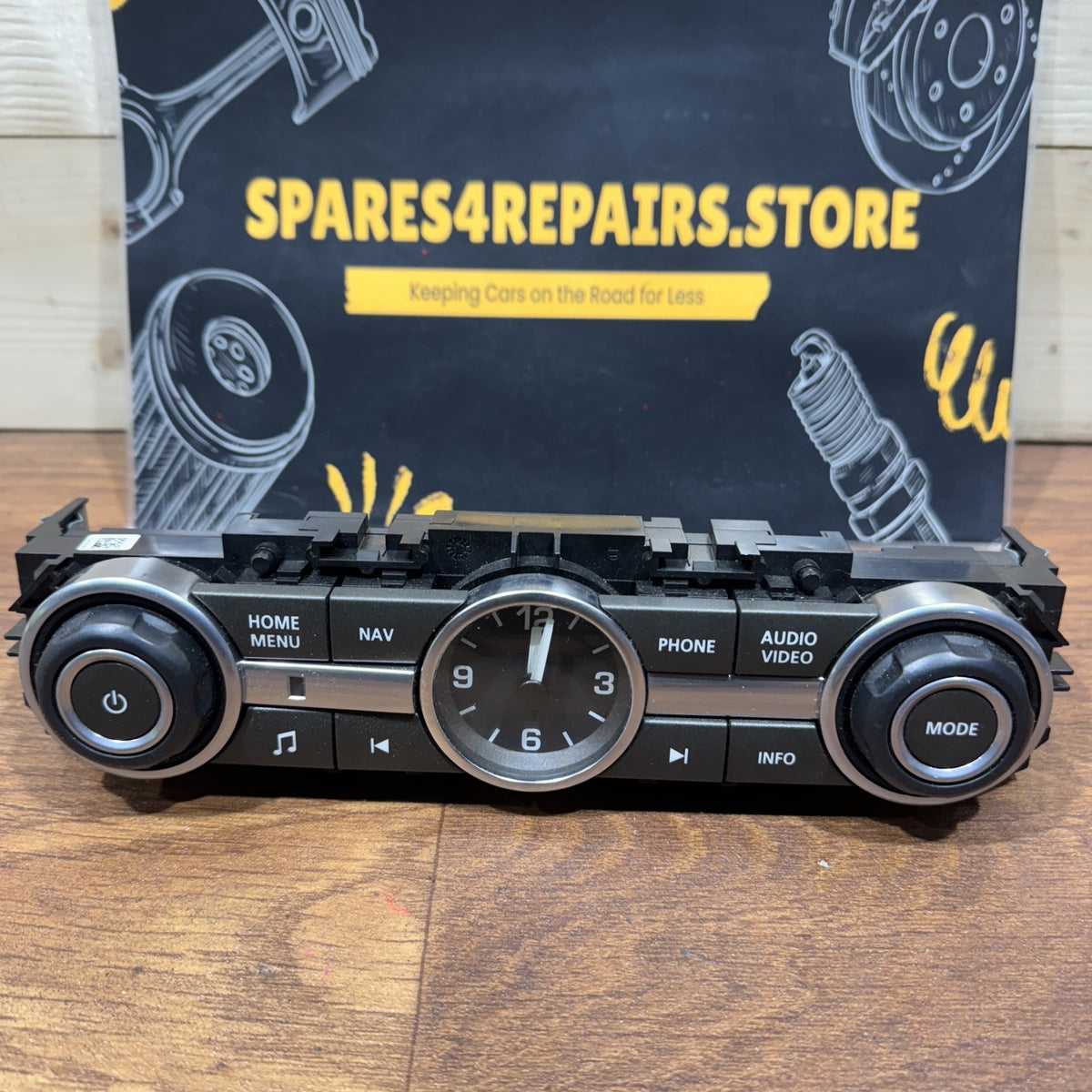

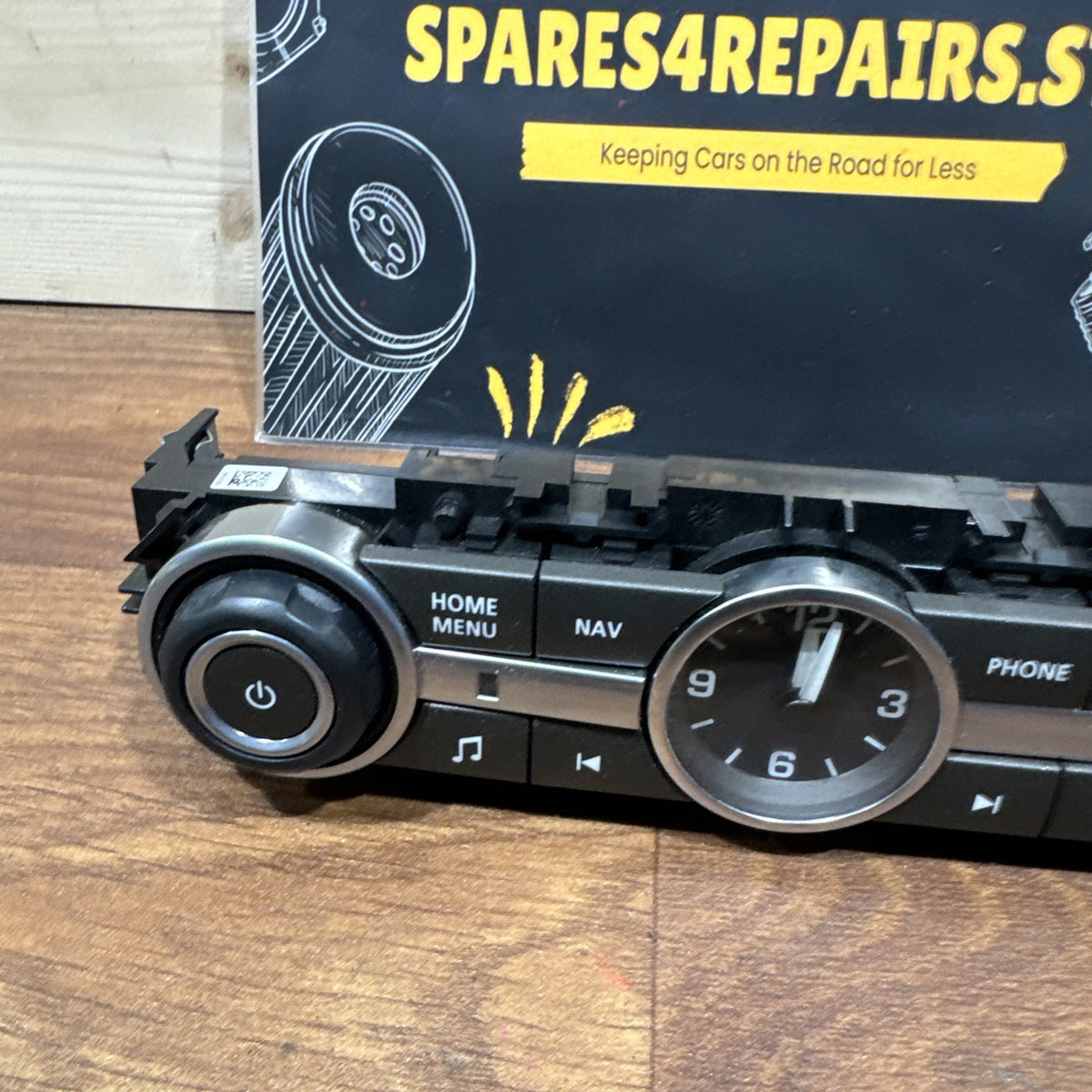

This is the factory control interface for the vehicle’s original audio and infotainment system and incorporates the central analogue clock and multimedia/radio control buttons.

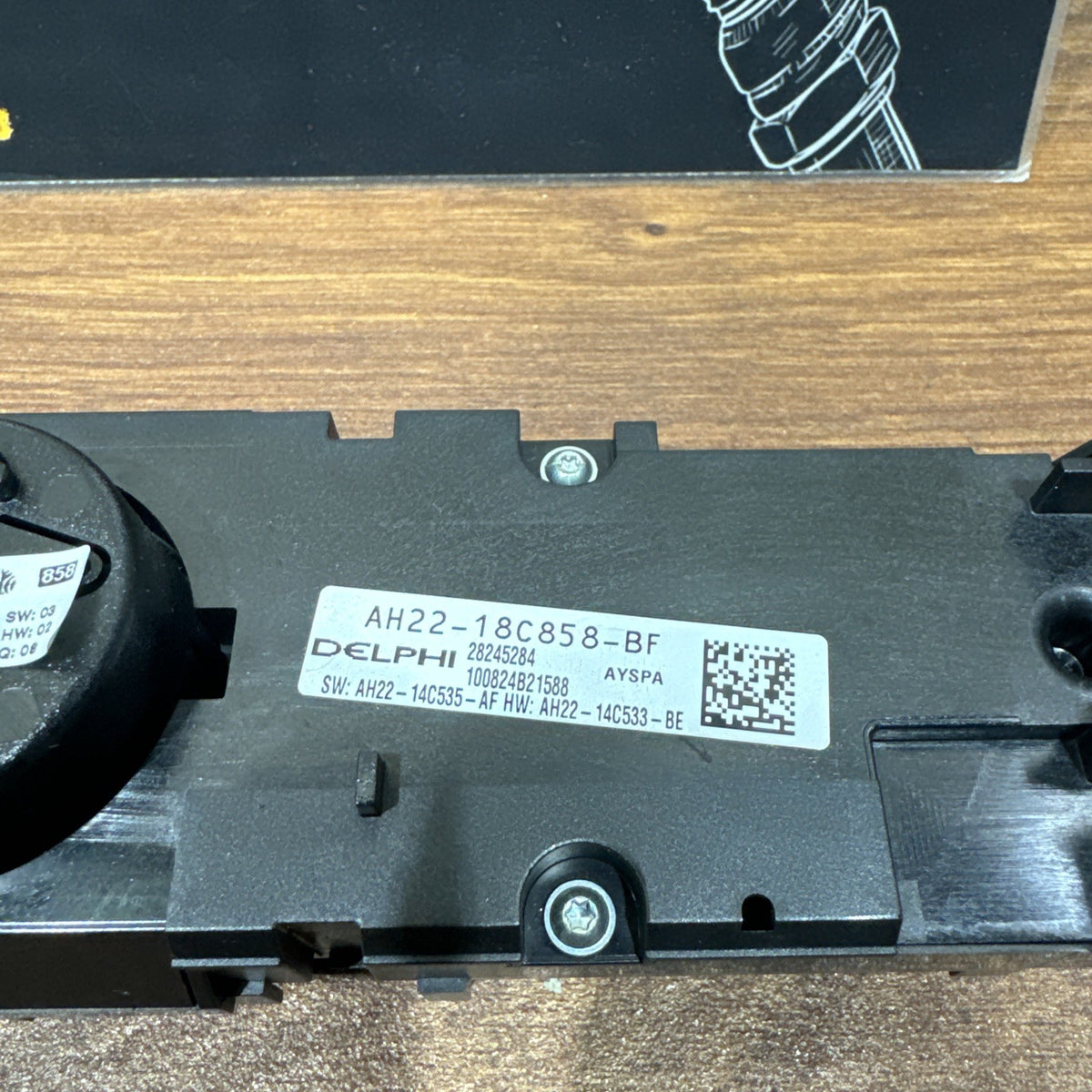

Part Number: AH22-18C858-BF

Alternative Number: AH2218C858BF

OE / Cross References: LR014325 / LR019561 / LR020188 / LR029583

Part Type: Radio / Stereo / Multimedia Control Panel

Position: Centre Dashboard / Centre Console

System/Application: Factory Audio & Infotainment System

Manufacturer: Land Rover Genuine OE

Donor Vehicle: 2010 Land Rover Discovery 4 L319

Condition: Used Genuine OEM Part

COMPATIBILITY

Land Rover Discovery 4 / LR4 – L319

Confirmed application includes:

* 2009–2012 Discovery 4 L319 with the corresponding factory multimedia system

* 2010 Discovery 4 L319

* 2.7 TDV6 models where correctly equipped

* 3.0 TDV6 / SDV6 models where correctly equipped

* Petrol variants using the same multimedia configuration

The exact AH22-18C858-BF number is documented specifically as a Discovery 4 L319 multimedia control panel and as a 2009–2012 Discovery 4 radio/stereo control panel with clock.

Later 2013–2016 Discovery 4 / LR4 vehicles can have related/interchange versions, but compatibility becomes equipment-dependent. Some interchange data states that 2014–2016 applications require a particular 17-speaker audio configuration.

For this reason, matching the original part number and button layout is strongly recommended.

POSSIBLE RANGE ROVER SPORT APPLICATION

AH22-18C858-BF also appears in interchange data for selected:

Range Rover Sport L320

* Approximately 2010–2013

* Vehicles equipped with the corresponding factory audio/navigation system

Because equipment specifications differ considerably, Range Rover Sport fitment should only be advertised where the original unit and control configuration match.

TECHNICAL INFORMATION

This panel forms part of the factory Land Rover infotainment system and provides the physical controls for multimedia functions.

Depending on vehicle equipment, functions can include:

* Radio controls

* Audio source selection

* CD / multimedia controls

* Menu navigation

* Telephone controls

* Audio settings

* Volume adjustment

* Station / track selection

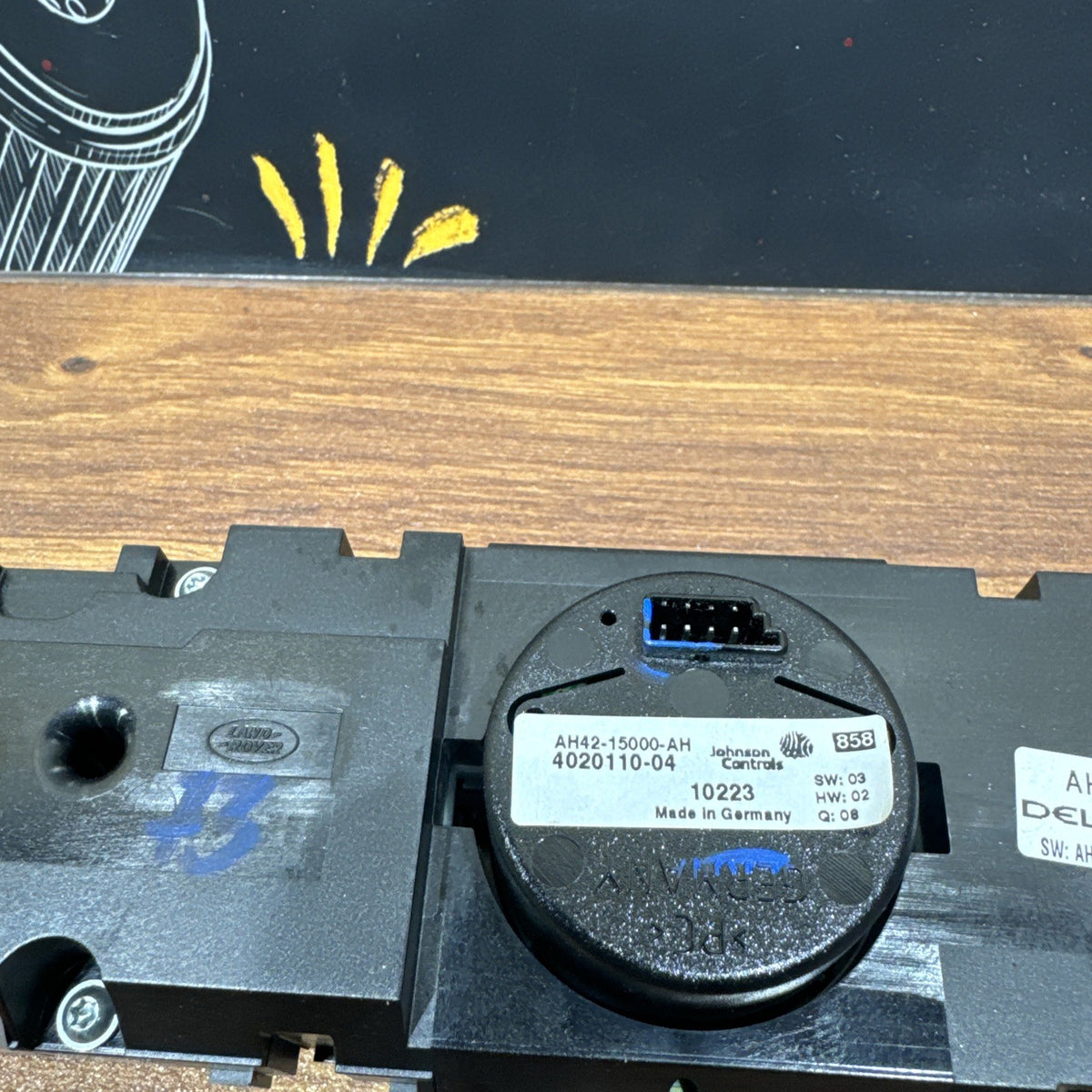

* Central analogue clock

* Navigation-related controls on suitably equipped vehicles

The exact available functions depend on the vehicle’s original infotainment specification.

INFOTAINMENT SYSTEM INFORMATION

The control panel works together with other modules within the Discovery 4 multimedia system.

Depending on specification, the complete system can incorporate:

* Audio head unit

* Amplifier

* Navigation system

* Multimedia display

* Bluetooth / telephone module

* DAB radio module

* USB / auxiliary audio interface

* Steering-wheel audio controls

* MOST fibre-optic network components

Therefore, a fault with the radio or infotainment system does not automatically indicate a defective control panel.

PART NUMBER / VERSION INFORMATION

Known numbers associated with this control-panel family include:

* AH22-18C858-BF

* AH2218C858BF

* AH22-18C858-AF

* CH22-18C858-BB

* CH2218C858BB

* LR014325

* LR019561

* LR020188

* LR029583

These numbers should not automatically be treated as direct plug-and-play replacements.

Button configuration, vehicle equipment and infotainment specification must be checked before purchasing.

COMMON REASONS FOR REPLACEMENT

Typical reasons for replacing the multimedia control panel include:

* Radio buttons not responding

* Volume control malfunction

* Multimedia controls not operating

* Worn or damaged buttons

* Clock failure

* Illumination failure

* Intermittent control operation

* Internal electronic fault

* Physical or cosmetic damage

* Liquid damage to the centre console

* Faulty rotary controls

IMPORTANT DIAGNOSTIC INFORMATION

Before replacing the panel for an audio or multimedia fault, check:

* Relevant fuses

* Battery voltage

* Electrical connectors

* Wiring

* Audio head unit

* Amplifier

* Multimedia display

* MOST fibre-optic network where applicable

* Other infotainment modules

* Vehicle diagnostic fault codes

A complete loss of audio can originate elsewhere in the infotainment system rather than from this control panel.

INSTALLATION

Designed to install into the original centre-dashboard location using the factory mounting points and electrical connections.

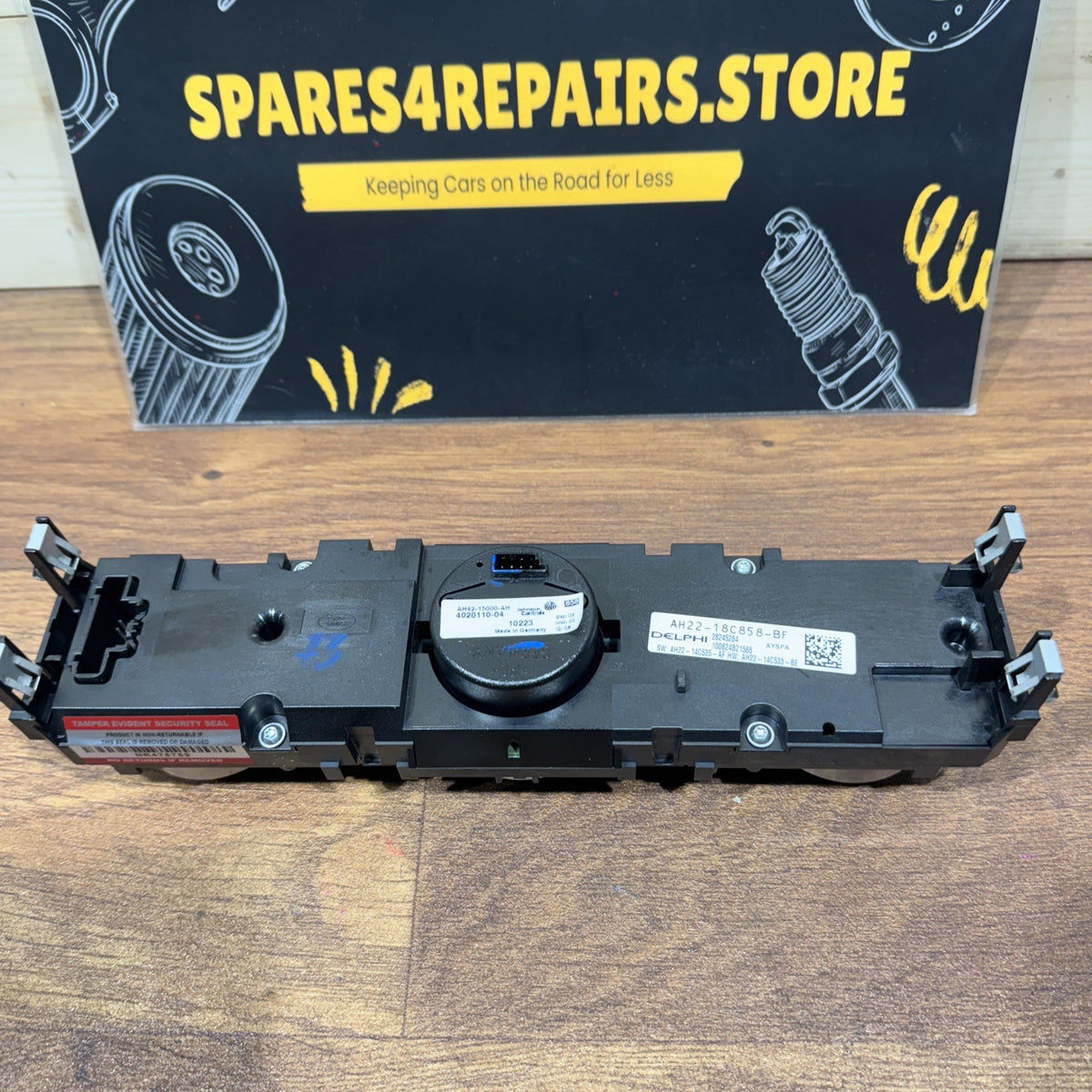

Carefully compare the rear connectors, button layout and part number with your existing unit before installation.

PROGRAMMING / CODING

Programming requirements can depend on the replacement unit and vehicle’s infotainment configuration.

Some interchange information for this control-panel family indicates that replacement units may require vehicle-specific configuration/programming, particularly when the donor and recipient vehicles have different equipment specifications.

For the best chance of straightforward replacement, use an identical AH22-18C858-BF unit with the same button configuration.

IMPORTANT COMPATIBILITY NOTE

Please match AH22-18C858-BF / AH2218C858BF with the number on your original control panel before purchasing.

Do not rely solely on vehicle year, engine size or Discovery 4 model designation.

Please compare:

* Exact part number

* Button layout

* Radio/audio specification

* Navigation equipment

* Surround-view camera equipment

* Speaker/audio-system specification

* Rear electrical connectors

* Physical mounting points

Available interchange information specifically indicates that this version is intended for vehicles without the Surround View Camera system, and later 2014–2016 LR4 applications can depend on the fitted audio system. (Go-Parts)

CONDITION

Genuine used Land Rover OEM part.

Removed from a 2010 Land Rover Discovery 4 L319.

As a used interior component, there may be normal cosmetic marks, scratches or button wear from previous use. Please inspect the listing photographs carefully for the exact cosmetic condition, button layout, connectors and mounting points.

Ideal genuine OEM replacement for a faulty or damaged Land Rover Discovery 4 L319 factory radio / stereo / multimedia control panel.
