Discovery 4 Heater Control Panel BH22-19E900-FA Land Rover 2009 to 2016

#73

GENUINE LAND ROVER DISCOVERY 4 L319 HEATER / A/C CLIMATE CONTROL PANEL – BH22-19E900-FA

Genuine used Land Rover heater, air-conditioning and climate control panel, fitted to the centre dashboard of selected Discovery 4 / LR4 L319 vehicles.

This is the factory HVAC control interface used to operate the vehicle’s heating, ventilation and air-conditioning functions.

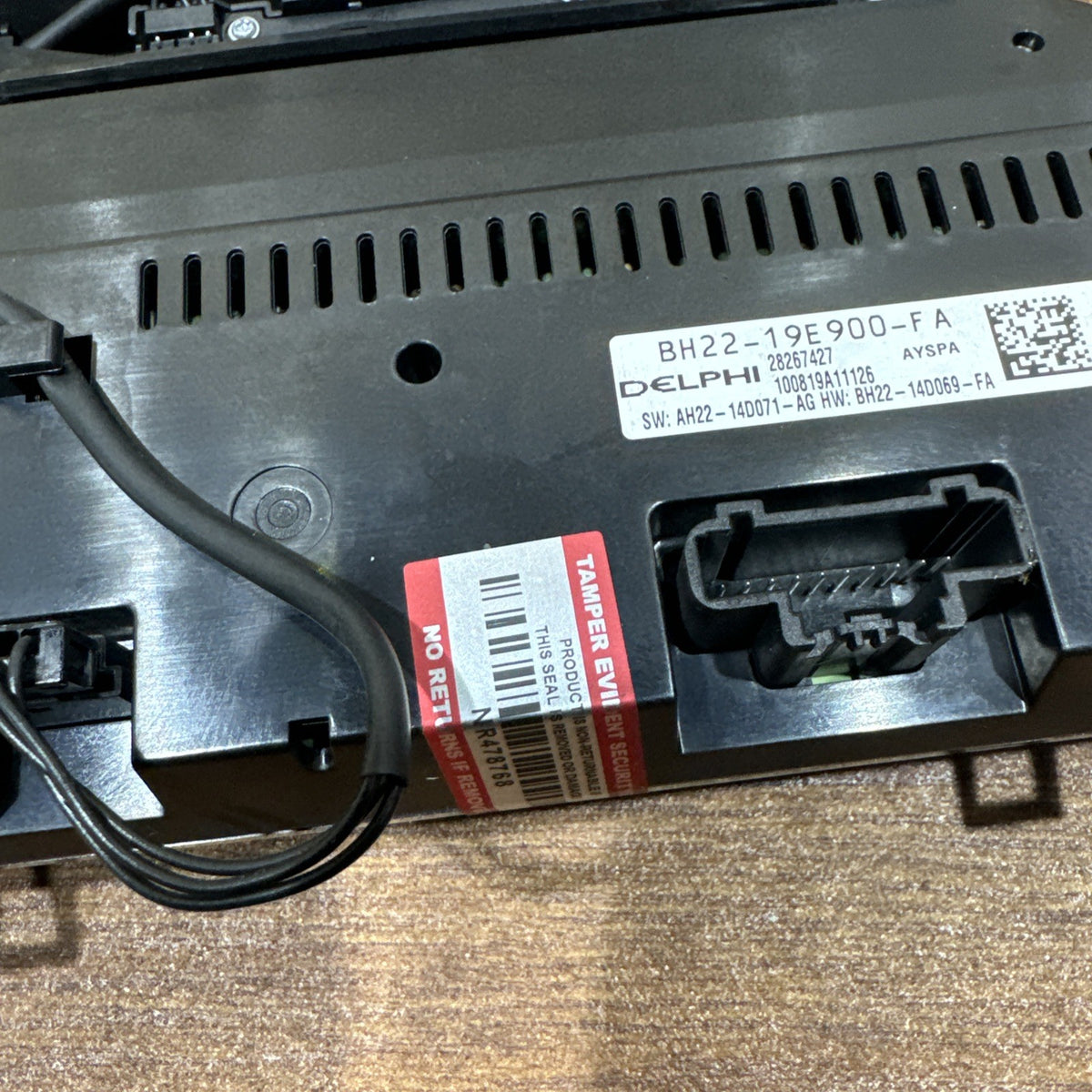

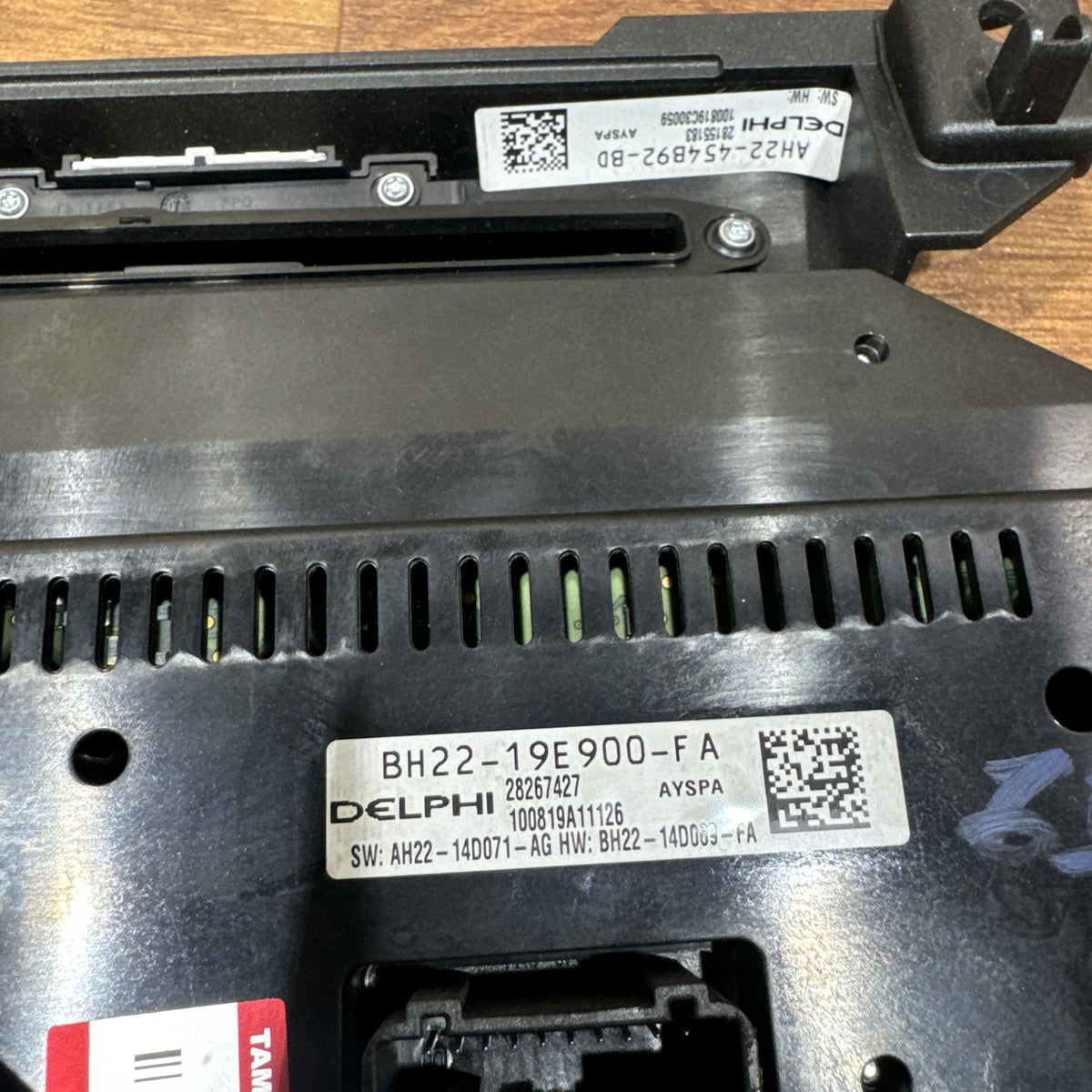

Part Number: BH22-19E900-FA

Alternative Number: BH2219E900FA

Part Type: Heater / A/C / Climate Control Panel

System: HVAC – Heating, Ventilation & Air Conditioning

Position: Centre Dashboard / Centre Console

Manufacturer: Land Rover Genuine OE

Vehicle Platform: L319

Condition: Used genuine OEM part

COMPATIBILITY

Land Rover Discovery 4 / LR4 (L319)

Suitable for selected Discovery 4 vehicles from the 2009–2016 production generation, subject to the vehicle’s HVAC specification and matching original part number.

Confirmed applications include Discovery 4 L319 vehicles using:

* 2.7 TDV6 diesel – 276DT

* 3.0 TDV6 diesel – 306DT

* 3.0 SDV6 diesel – 306DT

* Selected petrol-engined Discovery 4 / LR4 versions where fitted with the same HVAC configuration

BH22-19E900-FA is specifically documented as a Discovery 4 heater / air-conditioning control panel and is also found on individual 2011 and later Discovery 4 vehicles.

ADDITIONAL APPLICATION

The same BH22-19E900-FA number is also documented on selected:

Range Rover Sport L320

* Facelift L320

* Approximately 2009–2013 applications

* Including selected 3.0 TDV6 / 306DT vehicles

Fitment on Range Rover Sport should only be assumed where the original control panel carries the matching BH22-19E900-FA number and has the same equipment/button configuration.

TECHNICAL INFORMATION

The climate control panel is the driver’s interface for the vehicle’s HVAC system.

Depending on the vehicle specification, controls can include:

* Cabin temperature adjustment

* Automatic climate operation

* Air-conditioning activation

* Heater blower speed

* Windscreen demisting / defrost

* Air distribution

* Air recirculation

* Heated seat controls where equipped

* Heated windscreen functions where equipped

* Additional HVAC-related functions according to vehicle specification

The panel communicates with the vehicle’s climate-control electronics rather than simply acting as a set of conventional mechanical heater switches.

HVAC SYSTEM / SPECIFICATION INFORMATION

Land Rover used multiple versions of the 19E900 climate control panel.

Different panels can vary according to vehicle equipment, including:

* Heated front seats

* Heated windscreen

* Rear climate control

* Front parking assistance integration

* Pollution / air-quality sensor equipment

* HVAC specification

* Model year and electrical configuration

For this reason, two panels that look very similar externally are not automatically interchangeable.

COMMON REASONS FOR REPLACEMENT

Typical reasons for replacing the climate control panel include:

* Buttons not responding

* Temperature controls not operating correctly

* Fan controls not responding

* A/C controls malfunctioning

* Display or illumination failure

* Intermittent operation

* Damaged or worn buttons

* Sticky / deteriorated control surfaces

* Physical damage to the panel

* Internal electronic failure

IMPORTANT DIAGNOSTIC INFORMATION

A heater or air-conditioning fault does not necessarily mean the control panel itself has failed.

Before replacement, it is advisable to check:

* HVAC-related fuses

* Electrical supply and earth connections

* Wiring and connectors

* Blower motor and blower controller

* Temperature / flap actuators

* Relevant HVAC sensors

* Air-conditioning system

* Vehicle diagnostic fault codes

Proper diagnosis can prevent replacement of a correctly functioning control panel.

INSTALLATION

Designed to fit into the original centre dashboard location using the factory mounting arrangement and electrical connectors.

The replacement unit should be compared carefully with the original before installation.

PROGRAMMING / CODING

Programming requirements can depend on the vehicle specification and replacement unit.

Where the replacement panel has the same exact part number and matching equipment configuration, installation may be straightforward; however, diagnostic configuration may be necessary if there are differences in vehicle equipment or module configuration.

IMPORTANT COMPATIBILITY NOTE

Please match the part number BH22-19E900-FA / BH2219E900FA with your original unit before purchasing.

Do not rely solely on the 2009–2016 model-year range.

Please also compare:

* Button layout

* Heated seat controls

* Heated windscreen controls

* A/C / climate-control specification

* Rear climate equipment

* Electrical connectors

* Other equipment-specific buttons

The safest replacement is a unit carrying the exact BH22-19E900-FA number and matching the original panel’s button and equipment configuration.

CONDITION

Genuine used Land Rover OEM part.

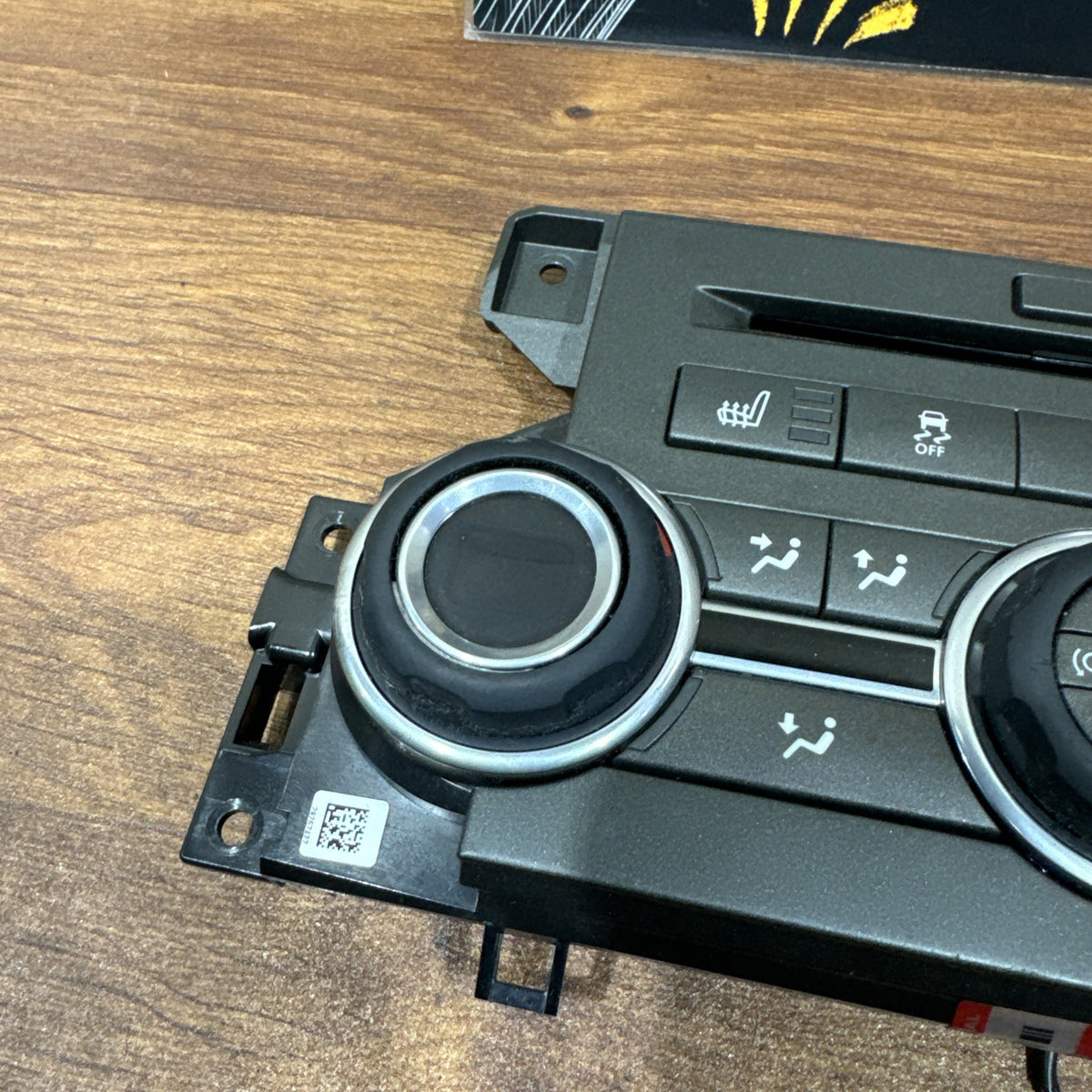

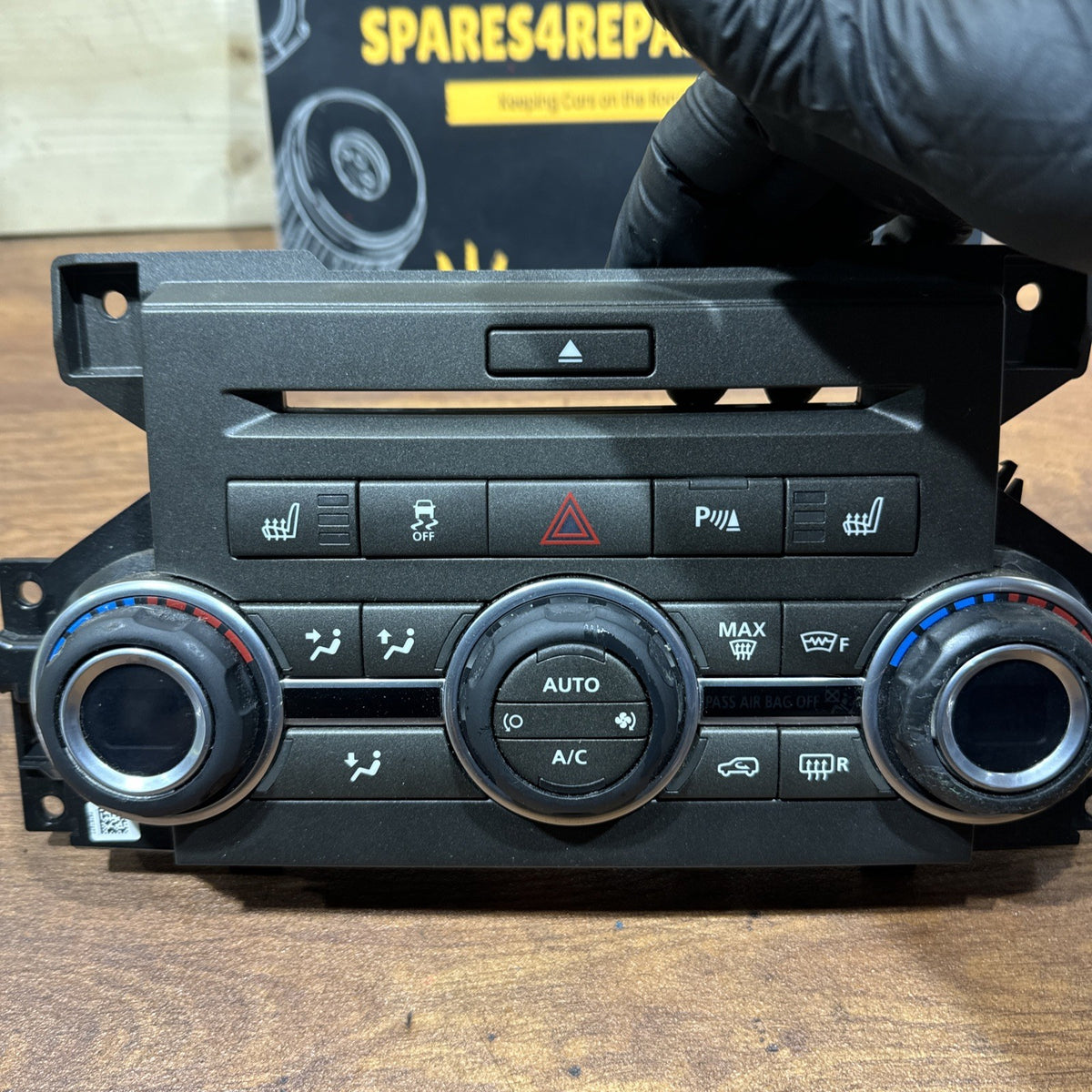

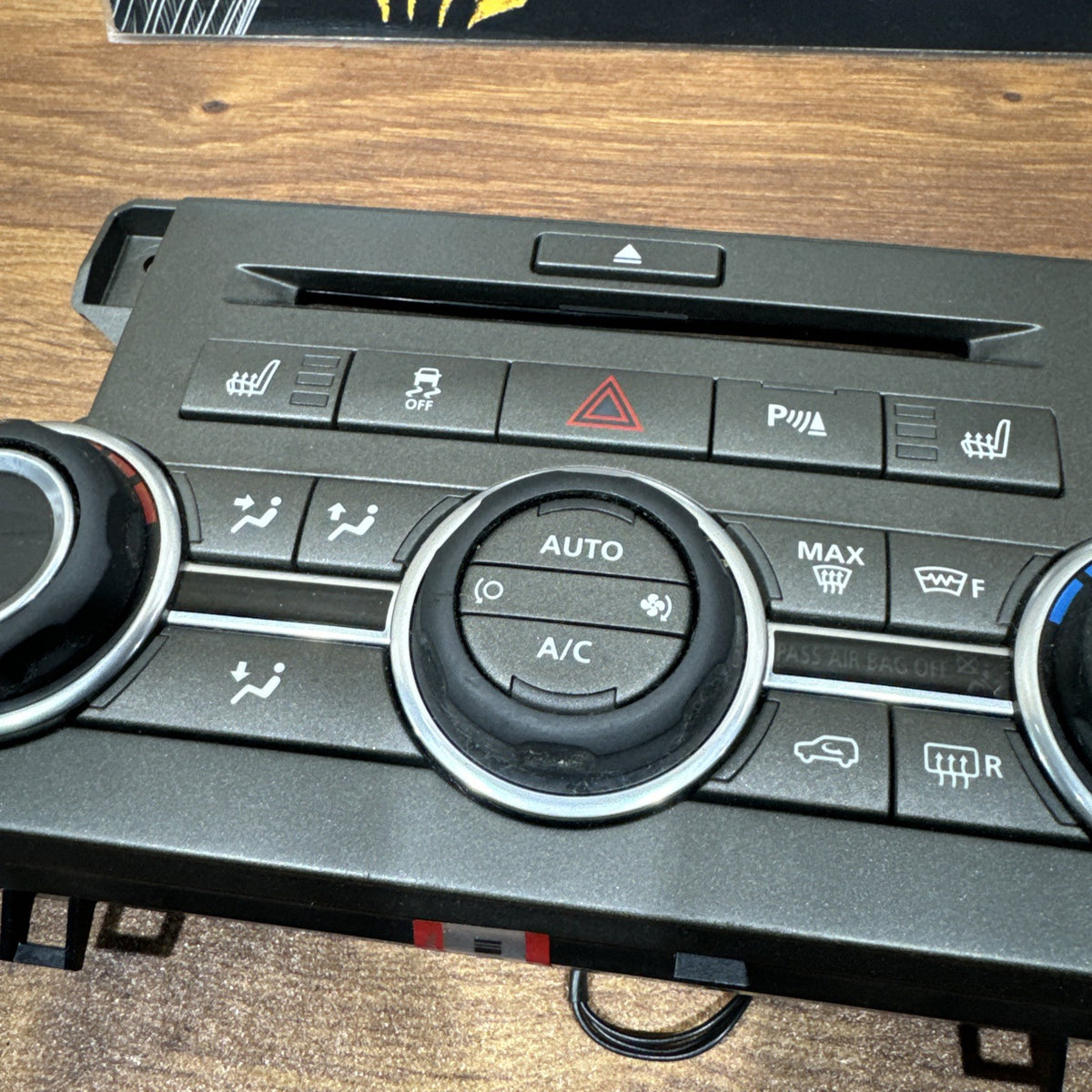

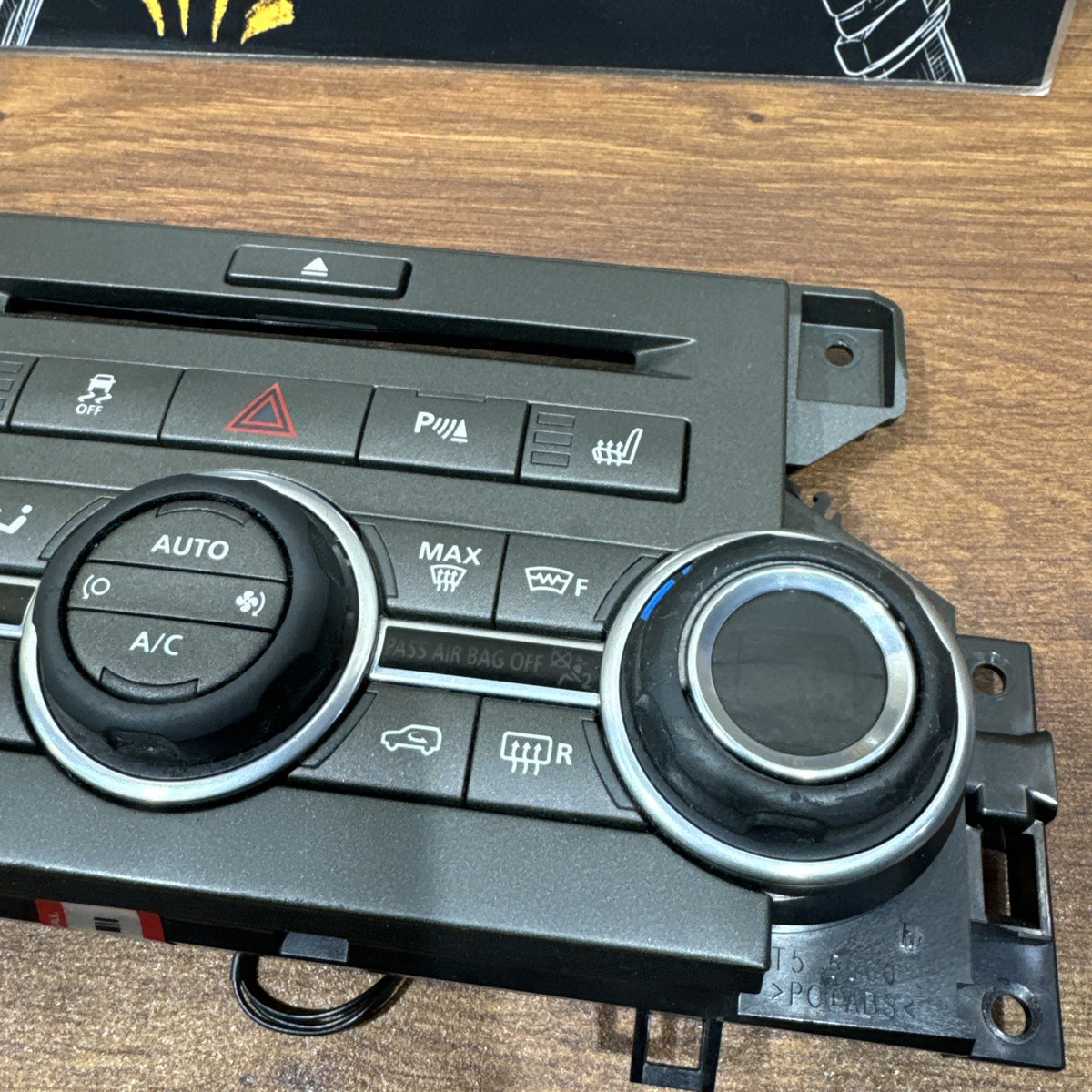

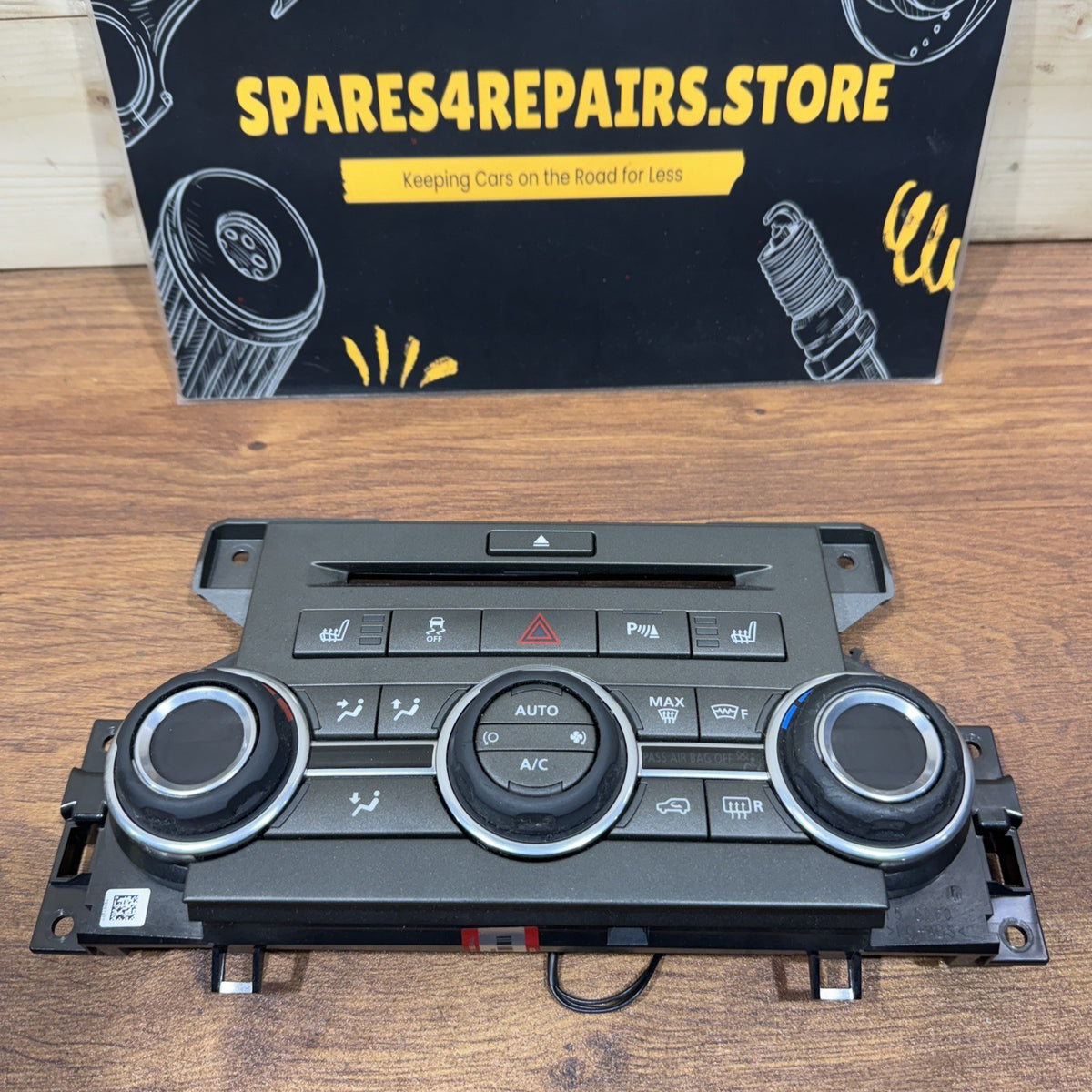

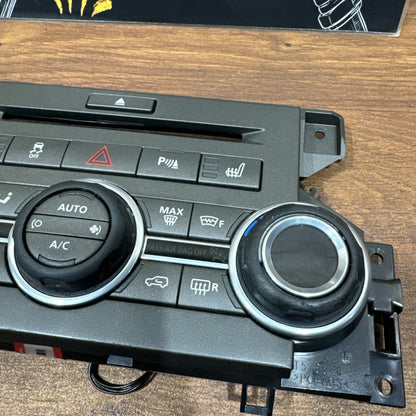

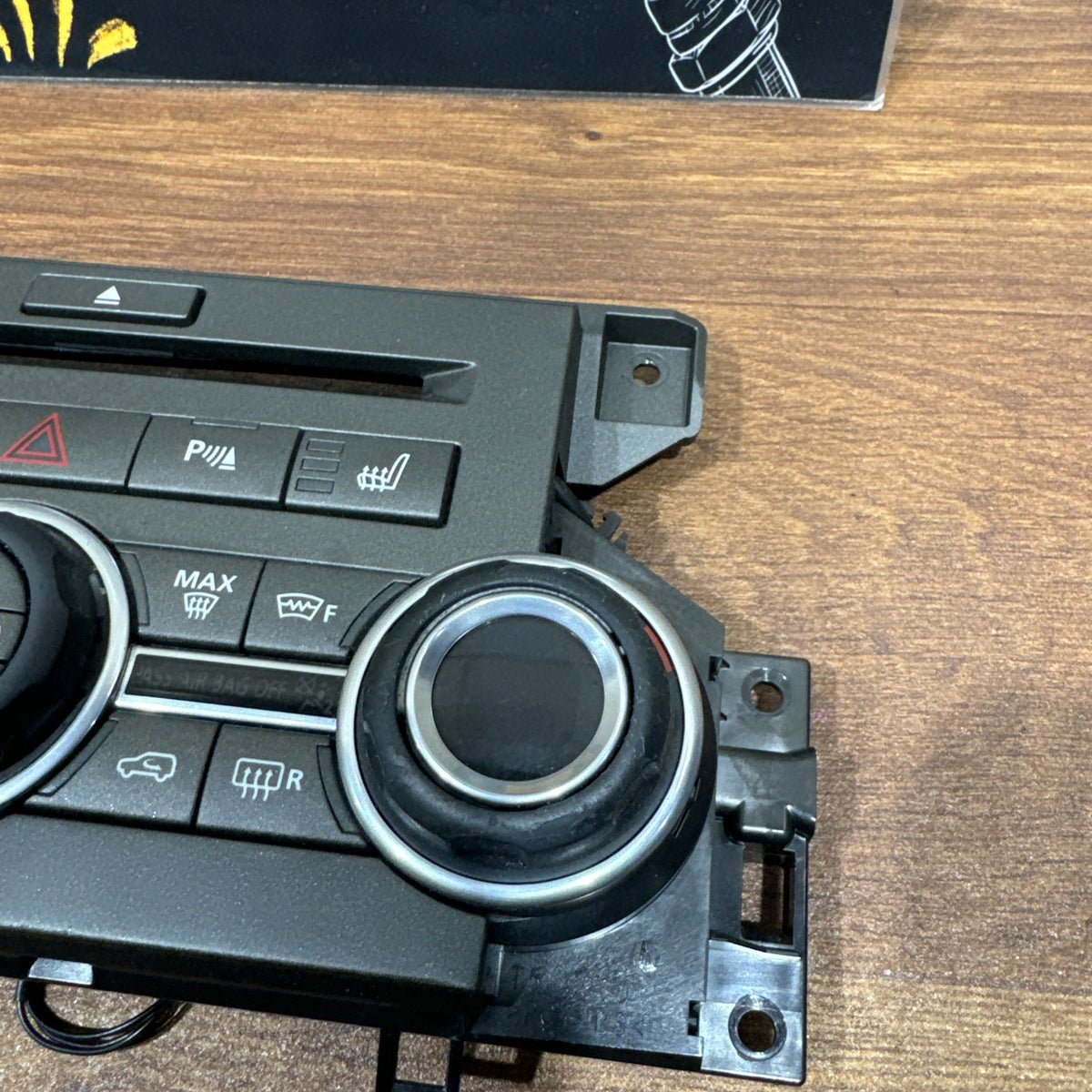

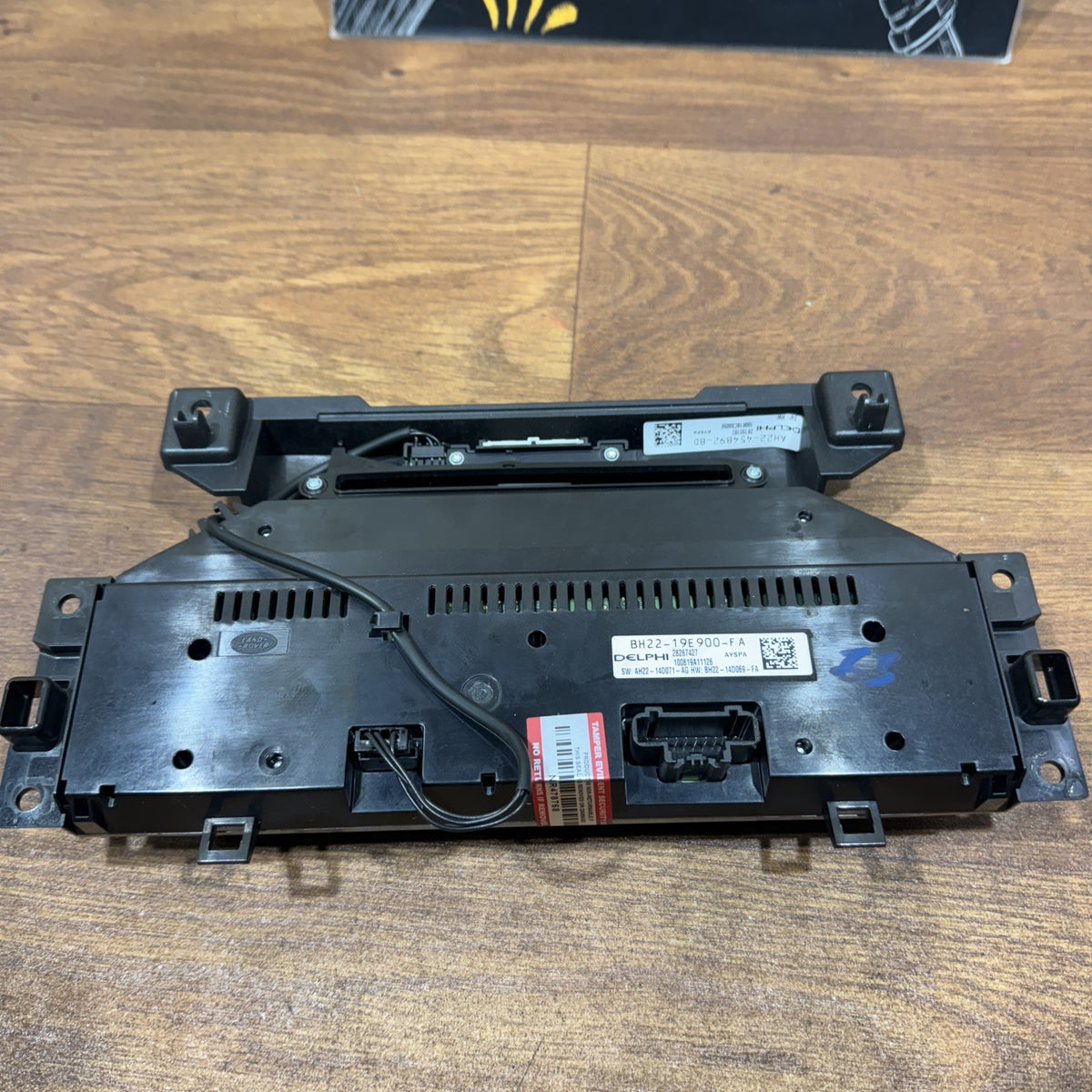

As a used interior component, the panel may have normal cosmetic marks, light scratches or signs of previous use. Please inspect the listing photographs carefully for the exact condition, button layout, connectors and mounting points.

Ideal genuine OEM replacement for a faulty or damaged Land Rover Discovery 4 L319 heater / air-conditioning climate control panel.
