♻️ GENUINE LAND ROVER DISCOVERY 4 L319 REAR VIEW REVERSING PARKING CAMERA – AH22-19H422-AD


Genuine used Land Rover Discovery 4 L319 rear-view / reverse parking camera, designed for vehicles equipped with the factory reversing-camera system.


The camera provides a rear-facing image on the vehicle’s multimedia display when reverse gear is selected, assisting the driver when reversing and manoeuvring.


Engineering Part Number: AH22-19H422-AD

Alternative Format: AH2219H422AD

OE / Cross-Reference Numbers: LR016317 / LR021941 / LR023365 / LR031813 / LR043493

Related Engineering Numbers: AH22-19H422-AB / AH22-19H422-AE / AH22-19H422-AF

Part Type: Rear View / Reverse Parking Camera

Position: Rear / Tailgate

System: Parking Aid / Visual Assistance System

Manufacturer: Land Rover Genuine OE

Condition: Genuine Used


Compatibility


Confirmed applications include:


• Land Rover Discovery 4 L319 – 2009–2016

• Land Rover LR4 L319 – 2010–2016 in applicable markets

• 2.7 TDV6 models where factory reversing camera is fitted

• 3.0 TDV6 / SDV6 models where factory reversing camera is fitted

• Petrol models where the same factory camera system and connector are fitted


The exact AH22-19H422-AD engineering number is specifically documented as a 2009–2016 Discovery 4 rear-view parking / reversing camera. (Gentlemen Of Salvage)


OE / Superseded Numbers


Known references within this camera family include:


• LR016317

• LR021941

• LR023365

• LR031813

• LR043493

• AH22-19H422-AB

• AH22-19H422-AD

• AH22-19H422-AE

• AH22-19H422-AF


These numbers are documented together as alternative or superseded references for Discovery 4 L319 rear-view cameras. (LR Parts)


For example, AH22-19H422-AE is specifically cross-referenced with LR023365 and AH2219H422AD. (GlobalParts)


Technical Information


The rear-view camera forms part of the Discovery 4 factory parking and visual-assistance system.


When reverse gear is selected, the camera provides a live view of the area behind the vehicle through the compatible factory multimedia display.


The system is designed to assist with:


• Reversing

• Parking manoeuvres

• Viewing low obstacles behind the vehicle

• Positioning the vehicle in restricted spaces

• Supplementing the rear parking sensors where fitted


Reversing Camera System Information


The camera operates together with other vehicle components, which can include:


• Rear-view camera

• Camera wiring loom

• Multimedia / navigation display

• Vehicle information and entertainment electronics

• Reverse-gear signal

• Parking Aid Control Module

• Front and rear parking sensors where fitted


The camera and ultrasonic parking sensors perform different functions, so a fault in one system does not necessarily indicate a fault in the other.


Common Symptoms / Reasons for Replacement


• No rear camera image when reverse is selected

• Black screen

• Intermittent camera image

• Distorted or poor-quality picture

• Camera image cutting in and out

• Moisture inside camera

• Corrosion around electrical connections

• Damaged camera lens

• Damaged electrical connector

• Camera damaged during tailgate repair

• Original camera missing


Important Diagnostic Information


Before replacing the camera, check:


• Camera electrical connector

• Tailgate wiring loom

• Wiring continuity

• Multimedia display operation

• Camera power supply

• Relevant vehicle fault codes

• Camera lens for contamination or moisture


A blank reversing-camera display does not automatically mean that the camera itself has failed.


Wiring, connectors and other parts of the vehicle’s visual-assistance system should also be inspected.


Installation


The camera is designed to mount in the original factory rear/tailgate camera location.


During installation:


• Match the replacement camera to the original

• Check the electrical connector carefully

• Inspect wiring for corrosion or damage

• Ensure the camera is securely mounted

• Ensure the lens is clean and correctly positioned

• Protect electrical connections against moisture


Correct positioning is important for obtaining the intended rear-view image.


Programming / Coding


A straightforward like-for-like camera replacement may not require conventional ECU programming when the vehicle is already factory-equipped with the reversing-camera system.


However, vehicle configuration, diagnostics or camera/system calibration may be required in some circumstances, particularly if different camera revisions or other components within the system have been changed.


For the simplest replacement, matching the original engineering number is recommended.


Important Compatibility Note


⚠️ Please match the complete part number and electrical connection before ordering.


Confirm:


• AH22-19H422-AD / AH2219H422AD

• OE / superseded number where applicable

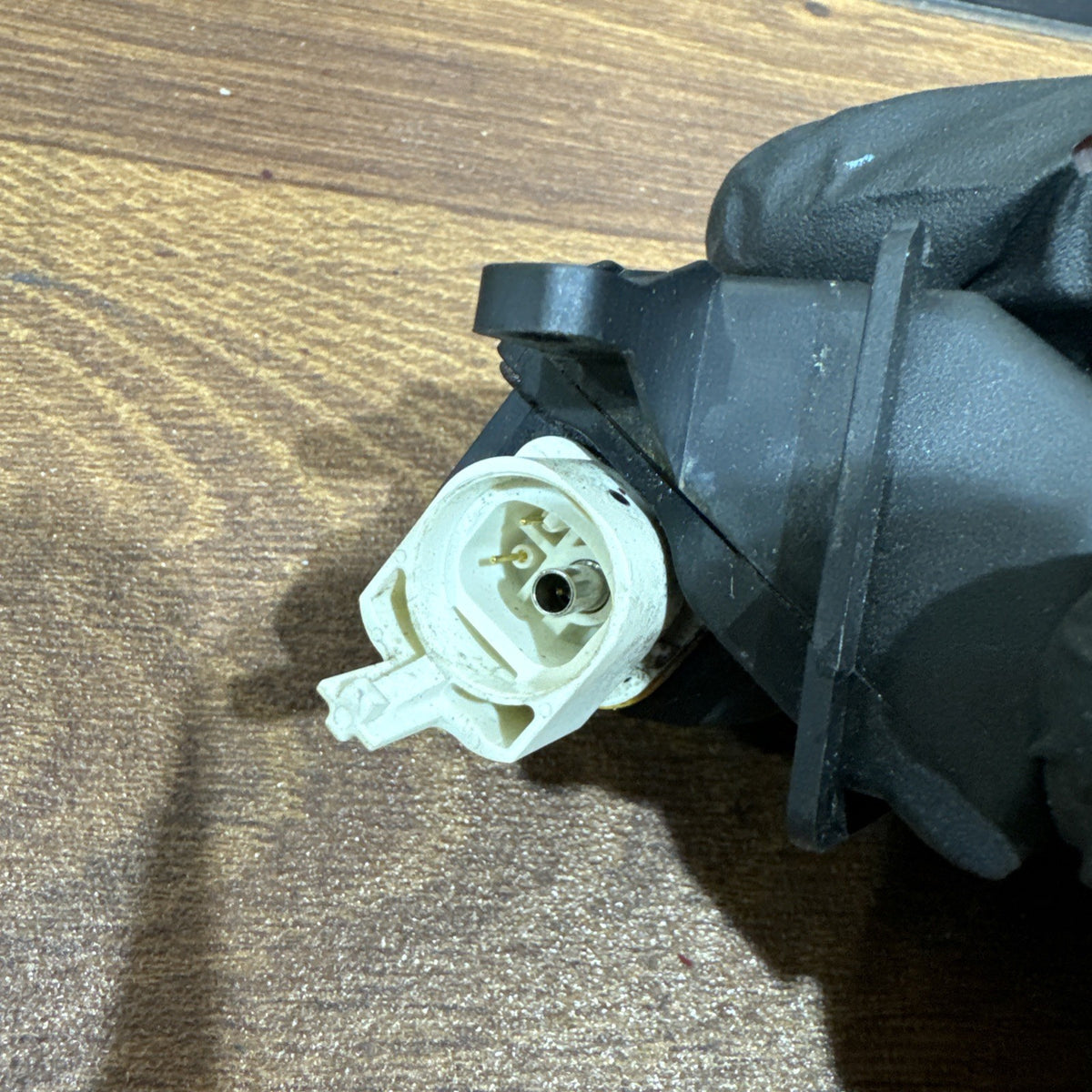

• Electrical connector

• Number of pins

• Camera housing

• Mounting arrangement

• Factory reversing-camera equipment

• Listing photographs


Although several AH22-19H422 revisions and LR service numbers are cross-referenced, matching the original camera and connector remains the safest compatibility check.


Do not purchase solely by vehicle model and year.


Condition


Genuine used Land Rover OE part.


May show normal signs of previous use, removal and storage, including light marks or cosmetic wear.

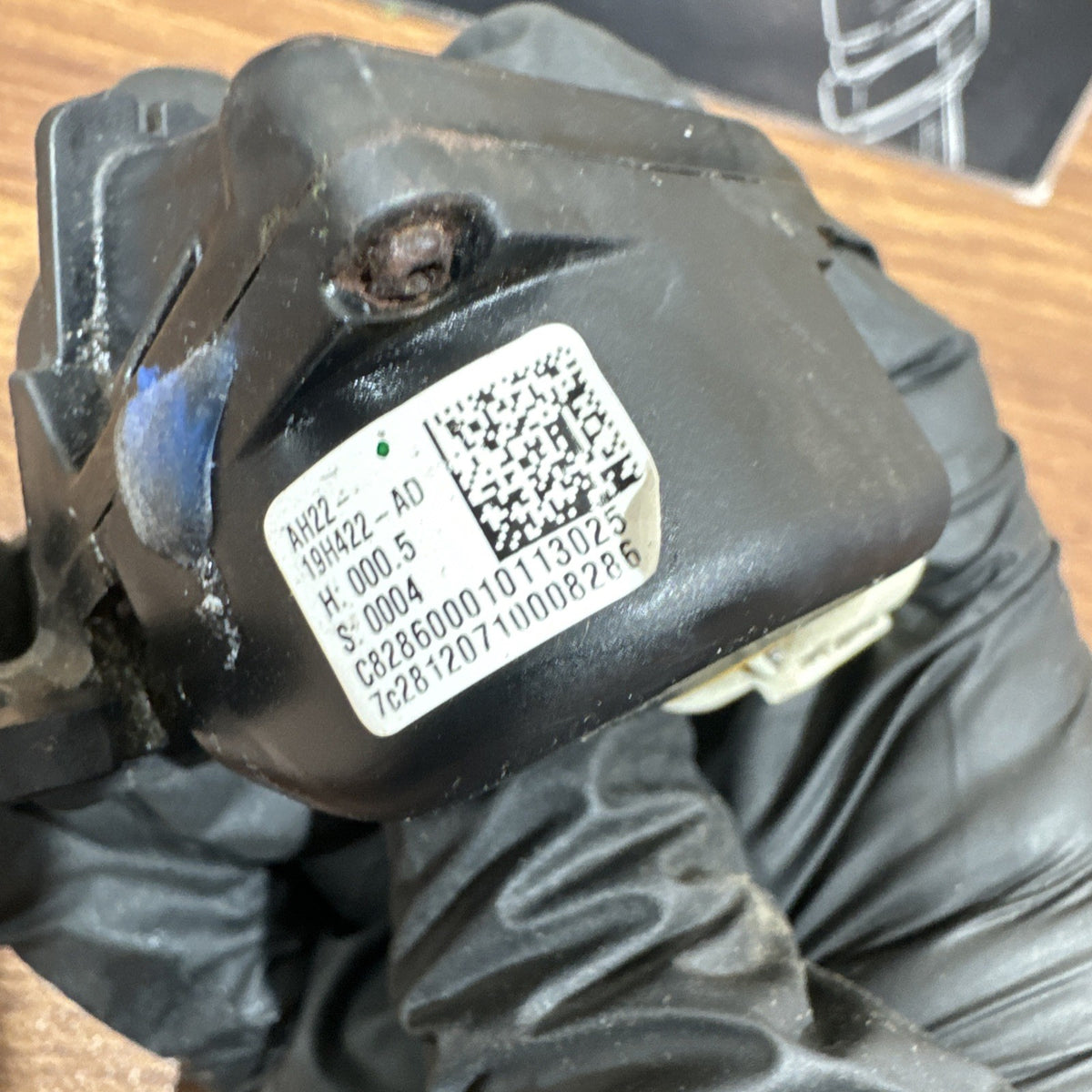

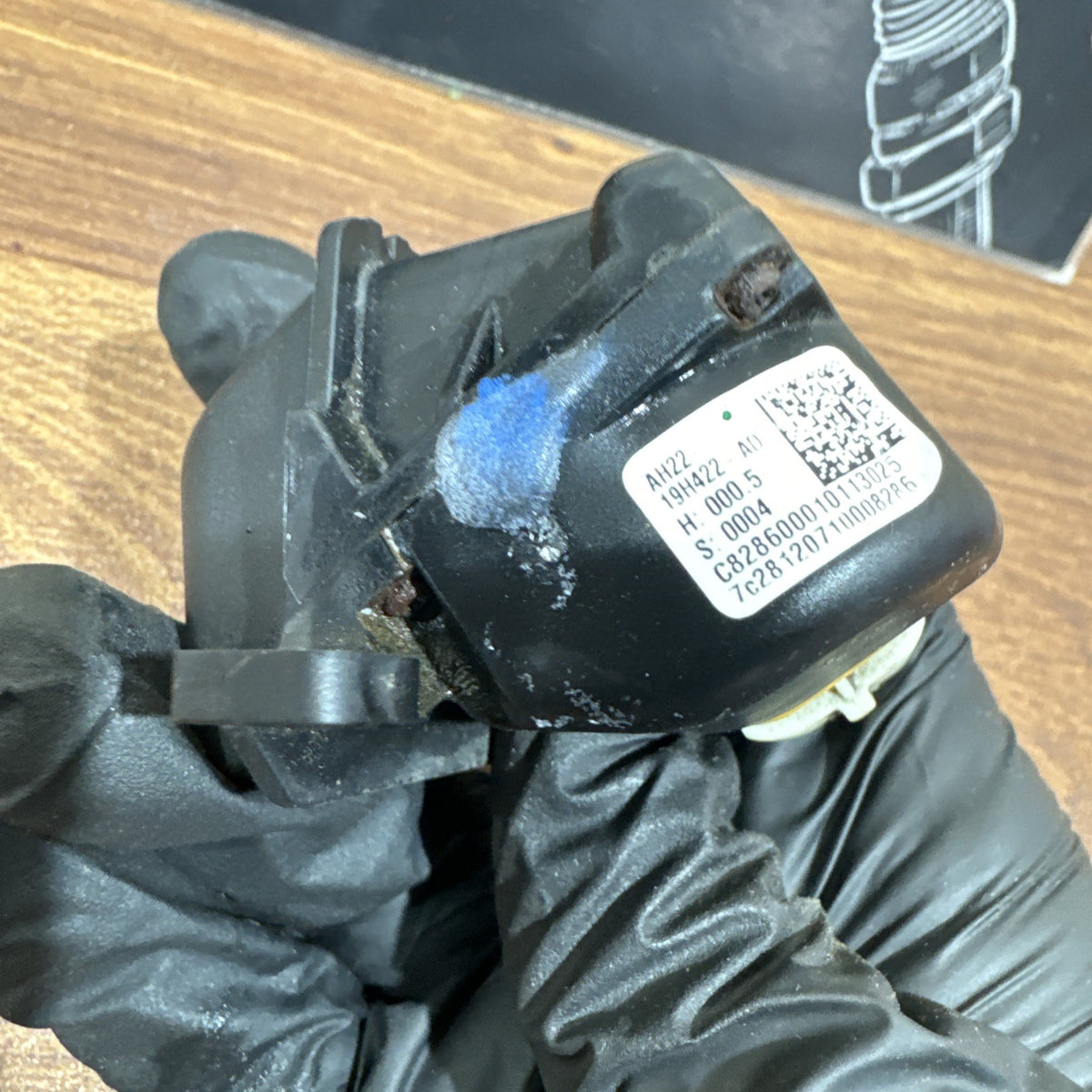

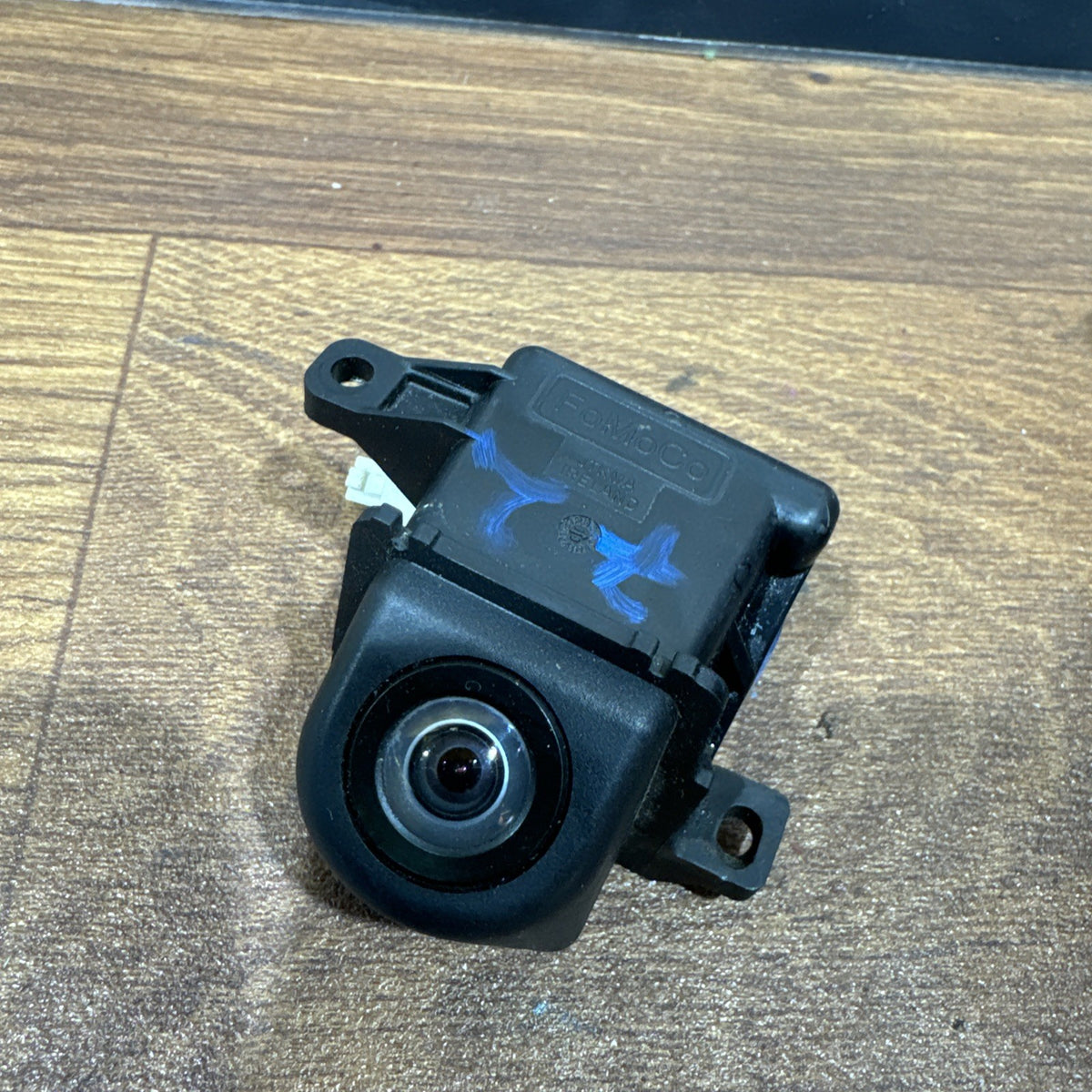

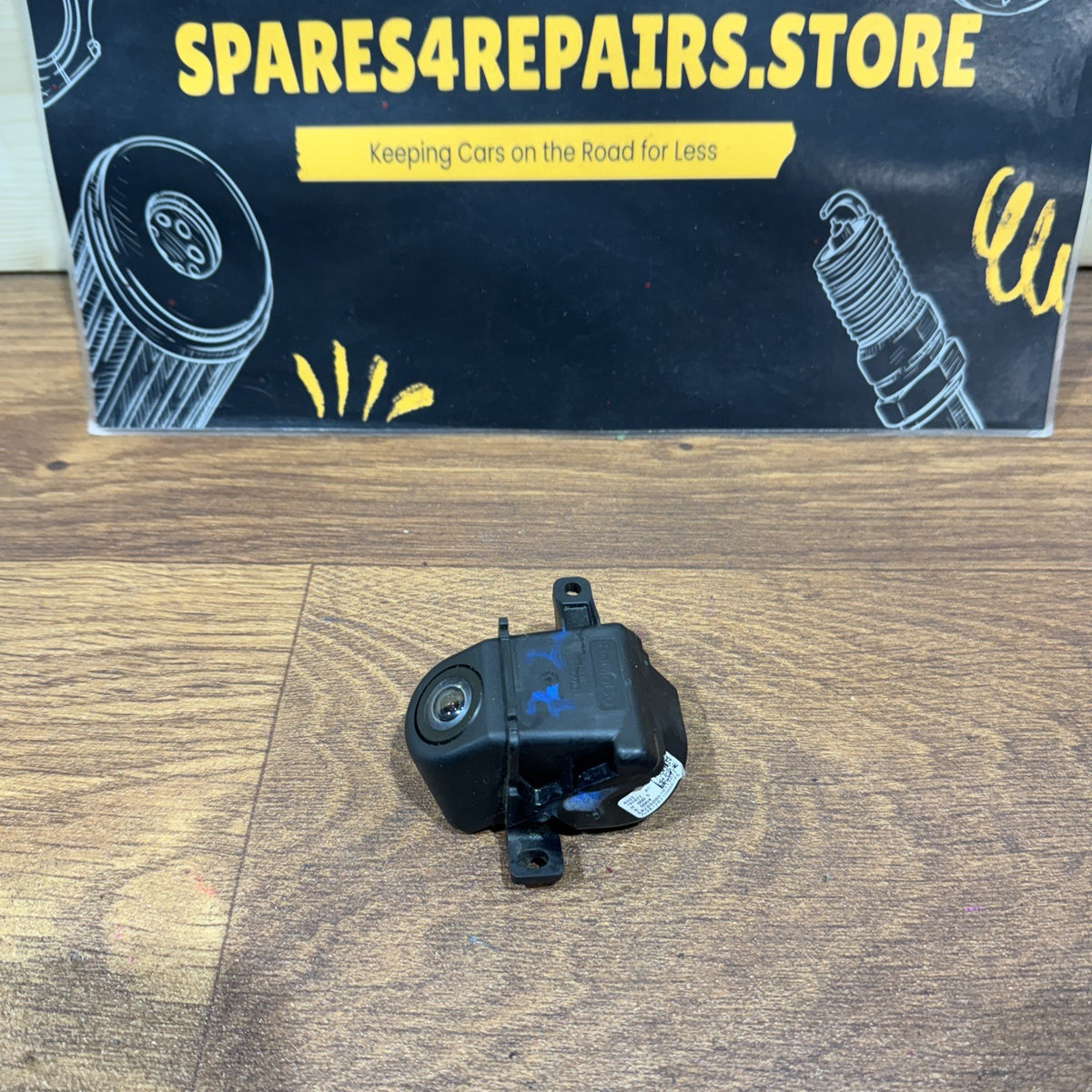

Please inspect all listing photographs carefully for the condition of the camera lens, housing, connector and mounting points.


♻️ Genuine Land Rover Discovery 4 L319 rear-view reversing parking camera AH22-19H422-AD – confirmed 2009–2016 application and ideal replacement for a damaged or faulty original factory camera.

Brand: Land Rover

Placement on Vehicle: Rear

Type: Parking Camera

Items Included: Camera
