Ford Fiesta 2009 Hood bonnet Hinge right 8a6116800ad, 8a61-16800-a

#85

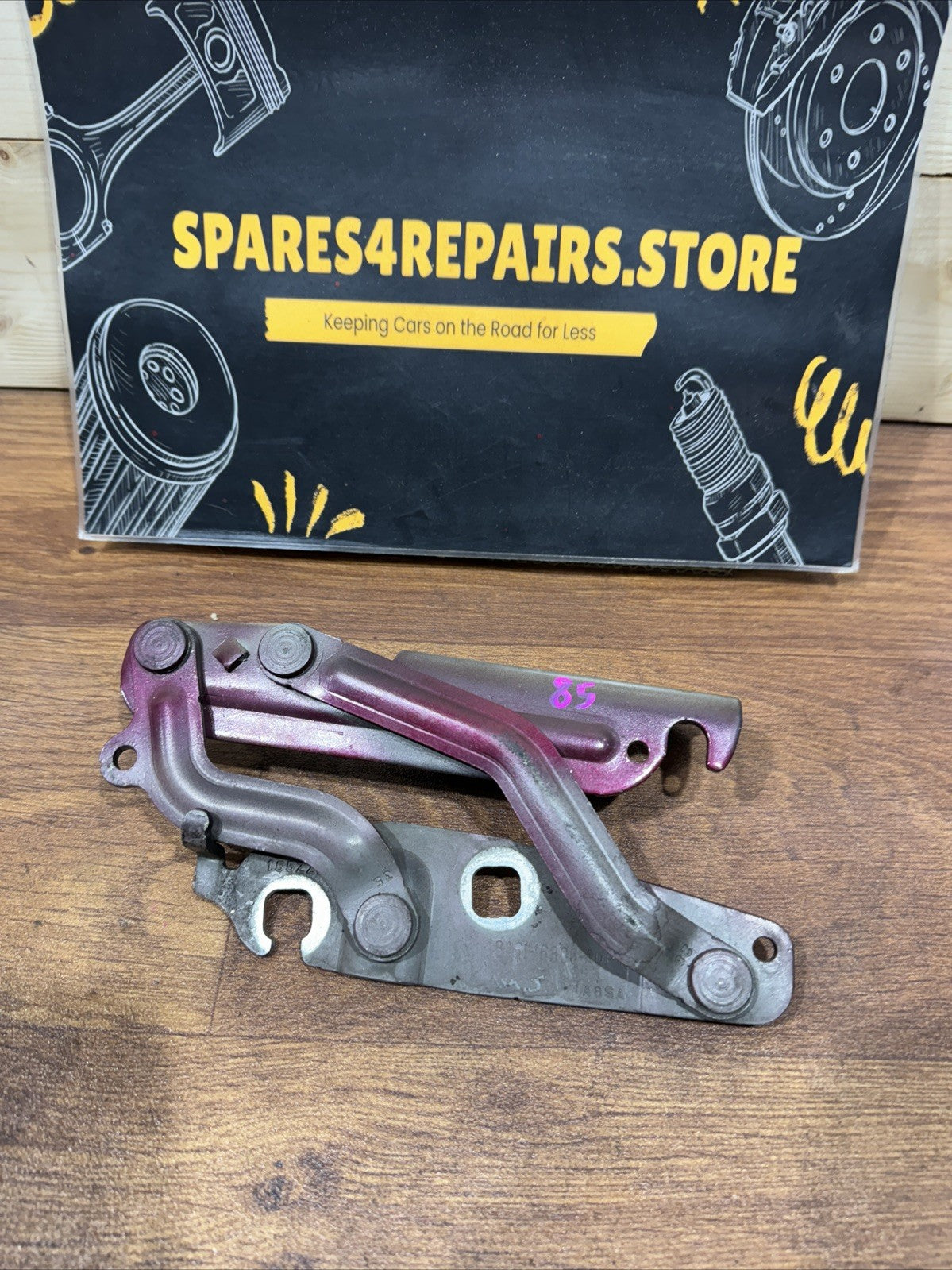

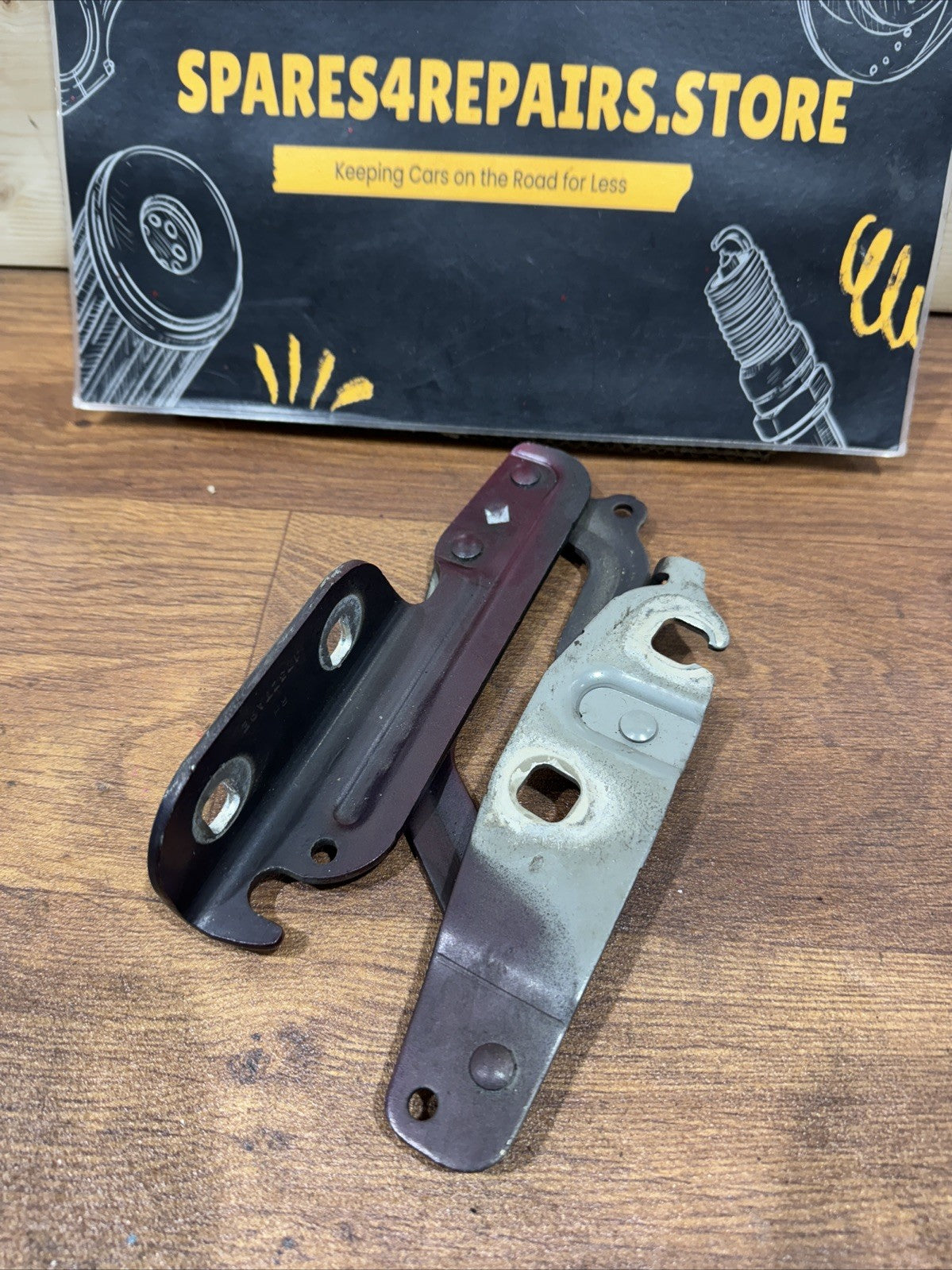

Genuine used Ford Fiesta front right O/S driver’s-side bonnet hinge, part number 8A61-16800-AD / 8A6116800AD, suitable for selected Fiesta Mk7 models.

This factory bonnet hinge forms the mechanical pivot between the vehicle body and bonnet, allowing the bonnet to open and close while maintaining its correct position and alignment with the surrounding front body panels.

Part Number: 8A61-16800-AD

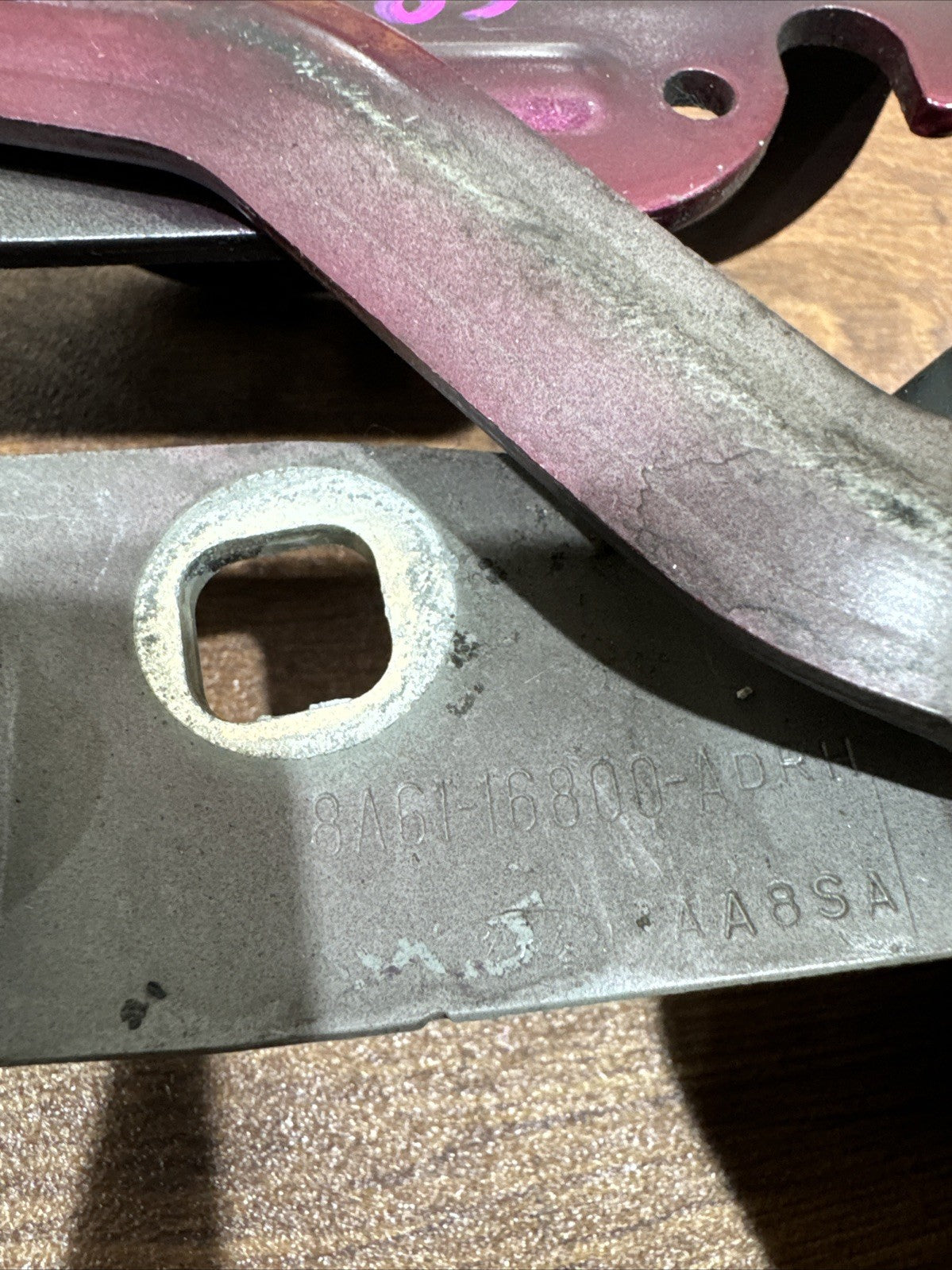

Stamped Number: 8A6116800AD

Ford OE / Service Number: 1673015

Part Type: Bonnet Hinge / Hood Hinge

Position: Front Right

UK Vehicle Side: O/S – Driver’s Side

Vehicle Configuration: Suitable for matching RHD vehicles

Manufacturer: Ford

Material: Steel

Condition: Genuine used part

Compatibility

Suitable for selected:

* Ford Fiesta Mk7

* Ford Fiesta VI / B299 / CB1 depending on market designation

* 3-door Hatchback

* 5-door Hatchback

* Selected Fiesta Van applications where the same bonnet arrangement is fitted

Known application starts from approximately 2008, including 2009 models.

The same 8A61-16800-AD / 1673015 right-hand hinge is also documented on later pre-facelift and facelift Fiesta applications.

Compatibility is primarily determined by the body/bonnet design rather than engine size.

It can therefore be found across vehicles fitted with different petrol and diesel engines.

Important Side Information

This part is:

RIGHT-HAND BONNET HINGE

For a UK right-hand-drive Fiesta:

Right / O/S = Driver’s Side

Matching opposite-side hinge:

8A61-16801-AD / 1673016

= LEFT-HAND bonnet hinge

Please check the required side before ordering.

OE Number Information

Ford engineering number:

8A61-16800-AD

Alternative formatting:

8A6116800AD

Ford service/OE reference:

1673015

These references identify the right-hand bonnet hinge.

Technical Information

The bonnet is attached to the vehicle body through a pair of hinges positioned at the rear corners of the bonnet.

Each hinge provides a controlled pivot point that allows the bonnet to:

* Open smoothly

* Close correctly

* Maintain alignment

* Sit at the correct height

* Maintain consistent panel gaps

* Align correctly with the bonnet latch

* Remain positioned relative to the wings and scuttle area

Because the bonnet uses separate left and right hinges, both sides must be correctly aligned.

Common Reasons for Replacement

Typical reasons for replacing a bonnet hinge include:

* Accident damage

* Front-end impact

* Bent hinge

* Twisted hinge

* Bonnet sitting too high or low

* Uneven bonnet panel gaps

* Bonnet contacting the wing

* Bonnet difficult to open

* Bonnet difficult to close

* Excessive hinge movement

* Corrosion

* Damaged mounting points

* Previous incorrect adjustment

Even relatively minor front-end damage can distort a bonnet hinge enough to affect panel alignment.

Bonnet Alignment Information

A damaged or incorrectly positioned hinge can cause:

* Uneven bonnet-to-wing gaps

* Bonnet sitting higher on one side

* Bonnet sitting too far forward or backwards

* Difficulty engaging the bonnet latch

* Bonnet rubbing against surrounding panels

* Increased wind noise

* Poor overall panel alignment

Correct hinge positioning is therefore important for both appearance and safe bonnet operation.

Important Diagnostic Information

If the bonnet is incorrectly aligned, do not automatically assume the hinge is the only damaged component.

Also inspect:

* Opposite bonnet hinge

* Bonnet panel

* Bonnet mounting points

* Front wings

* Bonnet latch

* Bonnet striker

* Slam panel

* Body mounting points

* Bonnet stops/buffers

Following accident damage, surrounding structural mounting points should be checked before fitting a replacement hinge.

Hinge Inspection

Before installation, inspect the replacement hinge for:

* Bending

* Twisting

* Cracks

* Excessive corrosion

* Damaged mounting holes

* Excessive pivot play

* Impact damage

* Distorted mounting surfaces

The hinge should pivot correctly without abnormal looseness or binding.

Installation

Before removing the original hinge, it can be useful to mark its position relative to the bonnet/body where appropriate.

During installation:

* Support the bonnet securely

* Compare the replacement hinge with the original

* Check the correct right-hand position

* Install mounting bolts correctly

* Initially position the hinge close to the original alignment

* Check bonnet movement before final adjustment

The bonnet may require adjustment after hinge replacement.

Bonnet Adjustment

After installation, check:

* Left and right panel gaps

* Bonnet height

* Bonnet-to-wing alignment

* Rear bonnet/scuttle clearance

* Front bonnet alignment

* Bonnet latch engagement

Adjust gradually where required.

Avoid fully tightening the hinge in an incorrect position and then forcing the bonnet into alignment.

Important Bonnet Latch Check

After hinge replacement, ensure the bonnet latch and striker align correctly.

Before normal road use:

* Confirm the bonnet closes correctly

* Confirm the primary latch engages

* Confirm the secondary safety catch operates

* Confirm the bonnet releases correctly from inside the vehicle

* Check that the bonnet cannot lift unexpectedly

A bonnet that is incorrectly aligned with the latch should be adjusted before the vehicle is driven.

Programming / Coding

No programming or coding is required.

This is a purely mechanical body component.

Important Compatibility Note

Please compare before ordering:

* 8A61-16800-AD

* 8A6116800AD

* Ford OE 1673015

* Right-hand position

* Hinge shape

* Mounting-hole positions

* Pivot design

* Bonnet/body mounting arrangement

* Vehicle model year

* Original component

Do not confuse with:

8A61-16801-AD / 1673016 – LEFT bonnet hinge

Engine size is generally not relevant to bonnet-hinge compatibility.

Matching 8A61-16800-AD / 1673015 directly against the original right-hand hinge is strongly recommended.

Condition

Genuine Ford used bonnet hinge.

As a used exterior/body component, normal signs of previous use may include:

* Surface marks

* Scratches

* Dirt

* Paint marks

* Minor paint chips

* Light surface corrosion

* General installation/removal marks

Please inspect all listing photographs carefully, particularly the:

* Pivot point

* Mounting holes

* Mounting surfaces

* Hinge arms

* Overall shape

* OE/stamped number

The colour/paint finish may not match the buyer’s vehicle and refinishing may be required.

Mounting bolts are included only if clearly shown in the listing photographs.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a bent, damaged, corroded or accident-damaged Ford Fiesta right O/S driver’s-side bonnet hinge, provided 8A61-16800-AD / 8A6116800AD / 1673015 matches the original component.
