Ford S-Max Galaxy 2010 - 2015 2.0 Diesel Crossmember Support Bar 7G9N-R10684-AD

Low stock! Only 1 left
£32.00
£32.00
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

#20

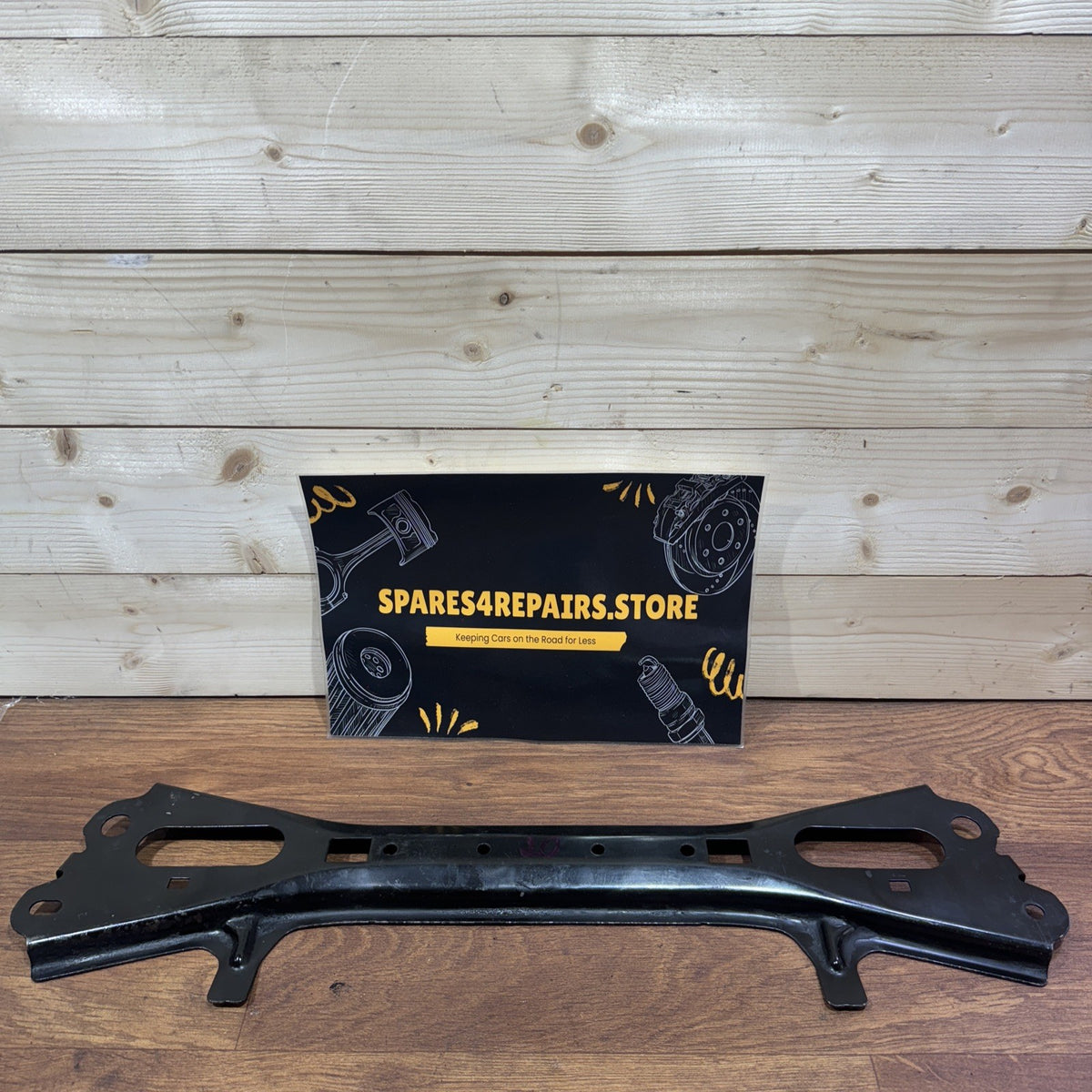

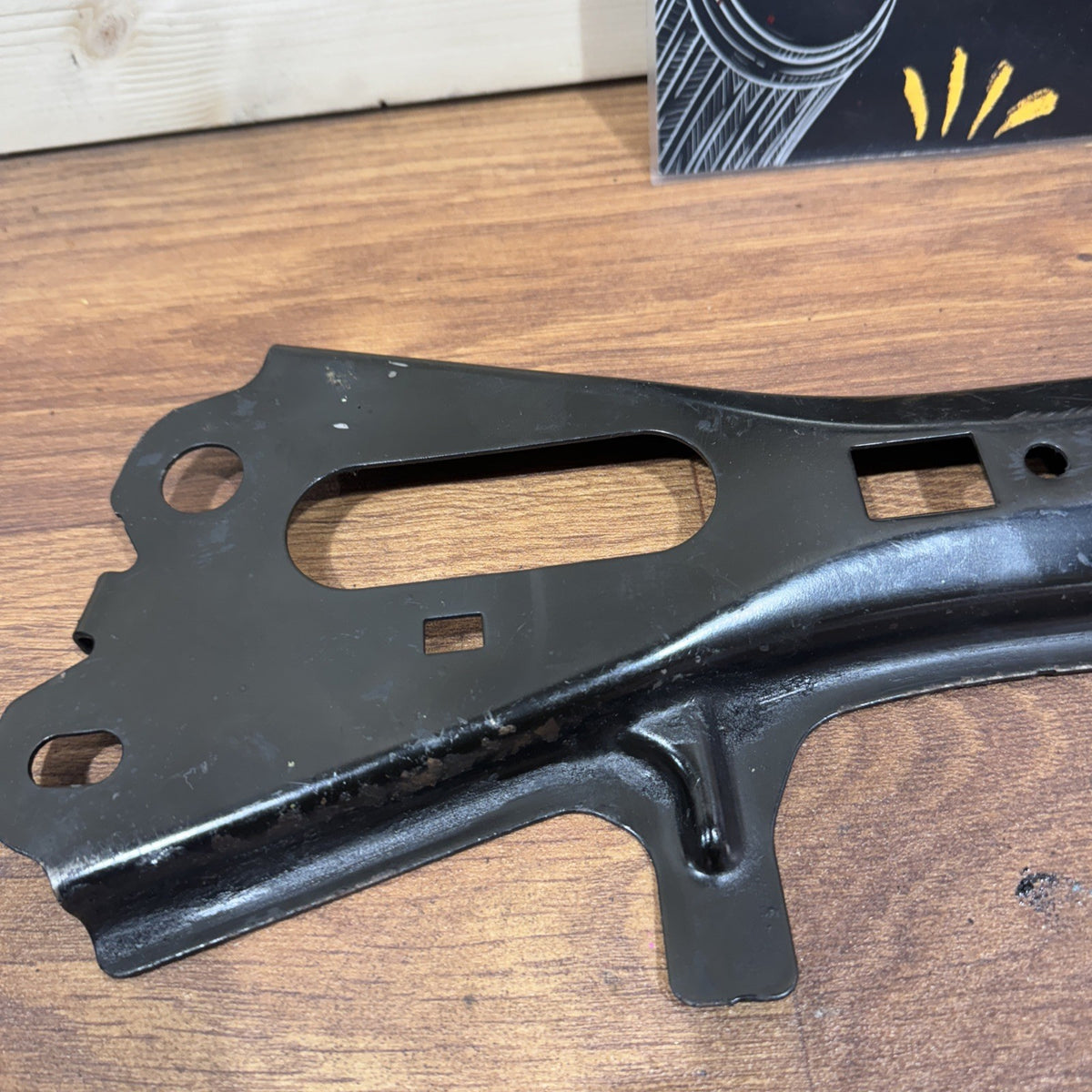

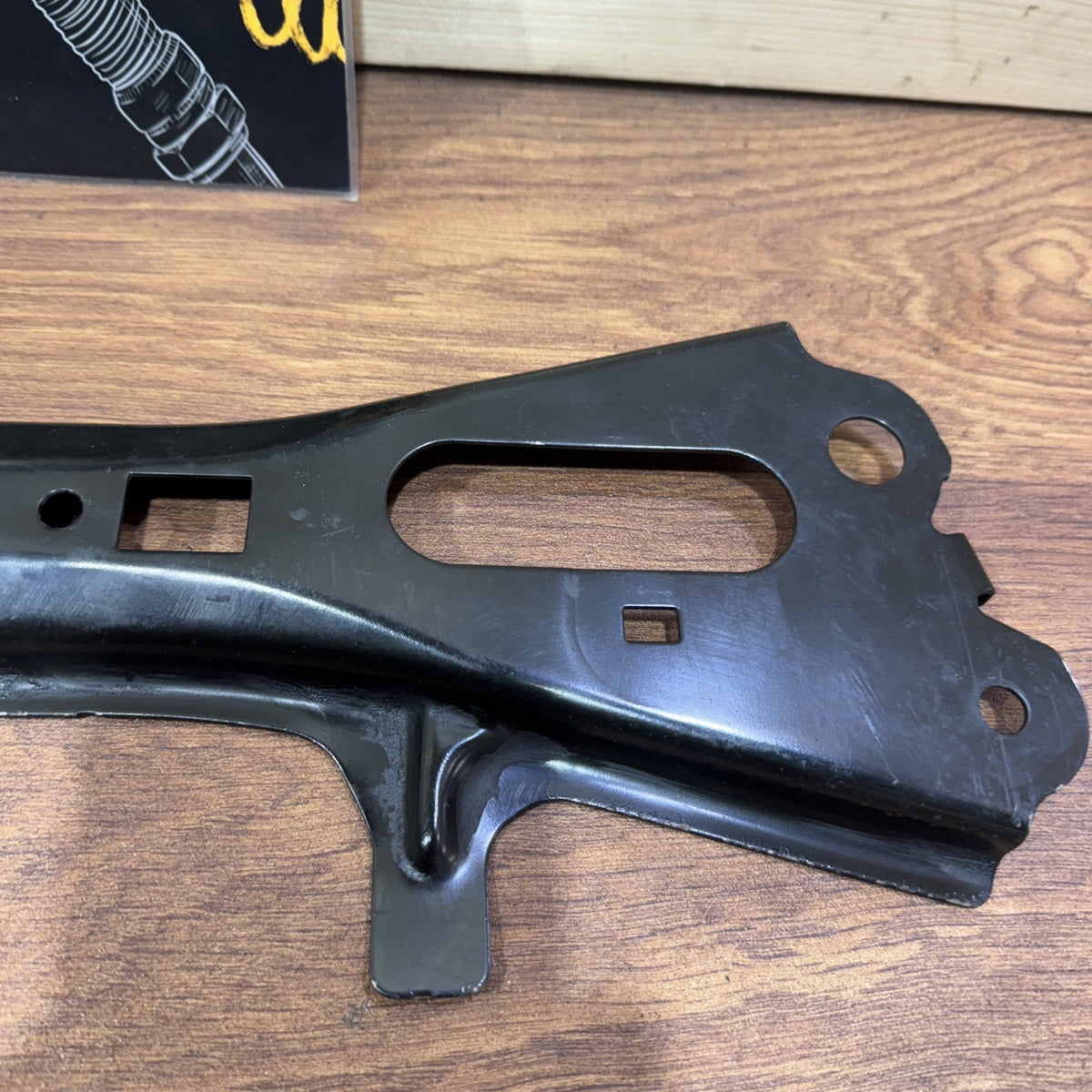

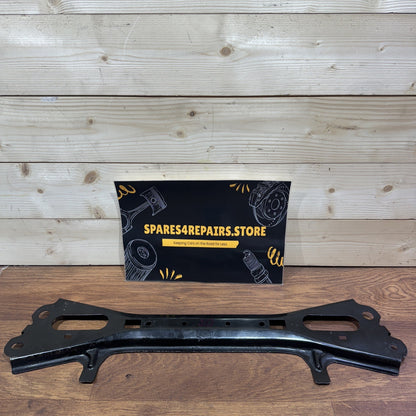

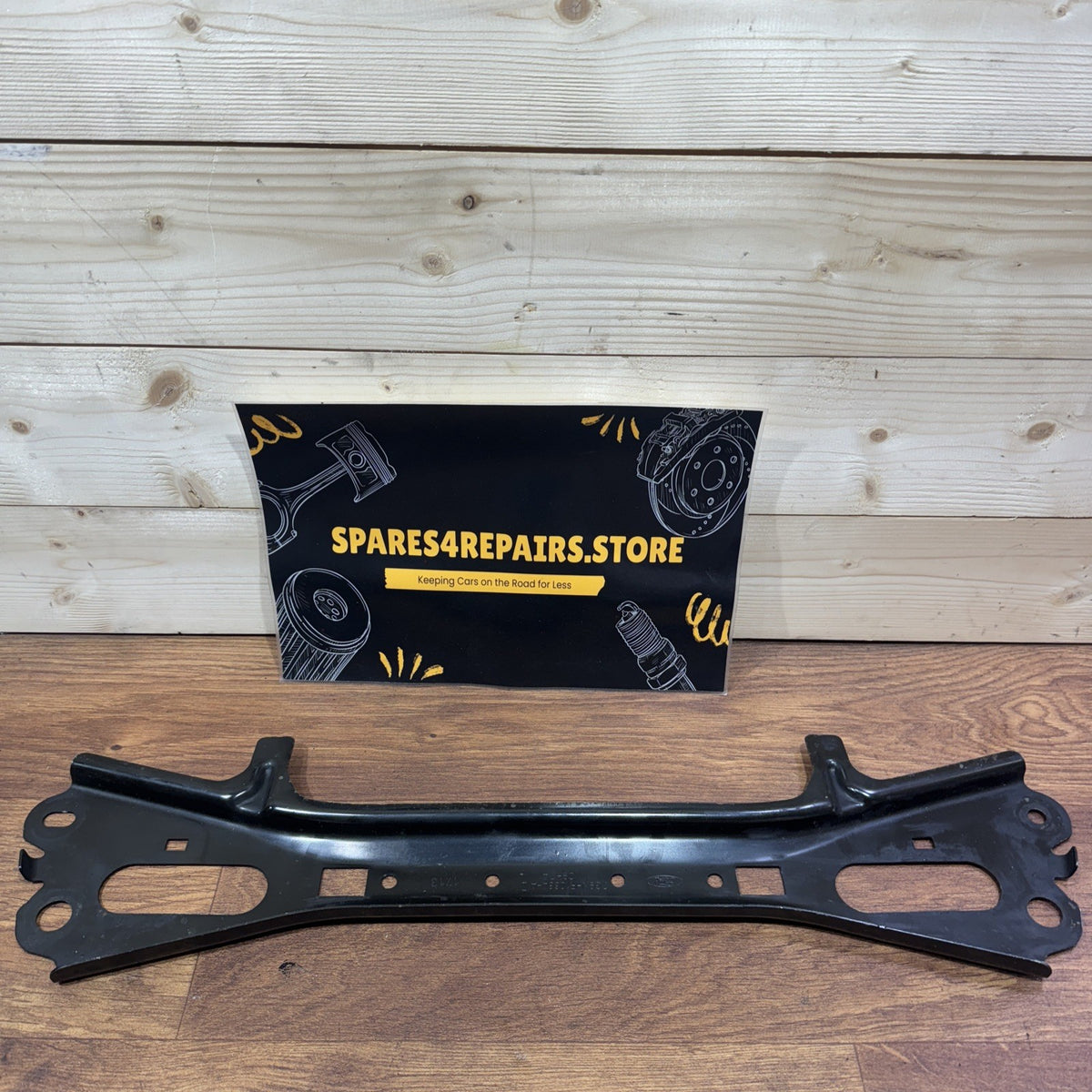

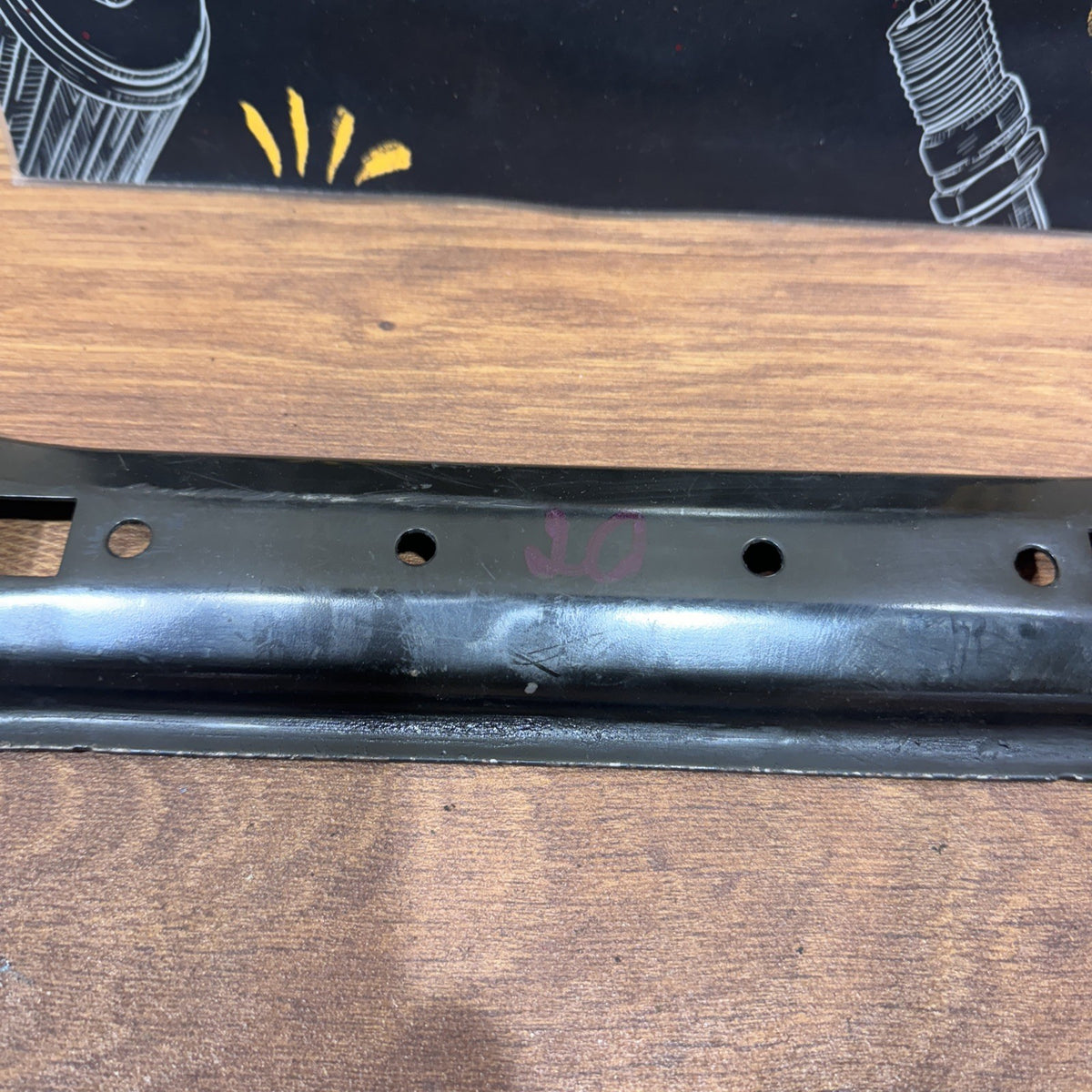

Genuine Ford S-Max Galaxy Front Crossmember Subframe Support Bar Brace – 7G9N-R10684-AD / 1480853 – 2010-2015


Genuine Ford used front crossmember / suspension subframe support bar, suitable for selected Ford S-Max and Ford Galaxy models.


This structural support brace is fitted underneath the vehicle and forms part of the front suspension subframe / crossmember mounting structure, helping provide additional support and rigidity to the front underbody assembly.


Part Number: 7G9N-R10684-AD

Ford FINIS / OE Number: 1480853

Part Type: Crossmember Support Bar / Subframe Brace / Reinforcement Bar

Position: Front / Underbody

Application: Front Suspension Subframe / Crossmember Support

Fuel Type: Petrol & Diesel applications

Donor Application: 2.0 TDCi Diesel

Manufacturer: Ford / FoMoCo

Condition: Used Genuine Ford Part


COMPATIBILITY


Ford OE fitment information confirms 7G9N-R10684-AD / 1480853 for the following vehicles:


Ford S-Max Mk1 / CA1

• 29/09/2009 – 08/04/2015

• 2010-2015 applications

• Pre-facelift late-production and facelift models depending on production date

• Petrol and diesel models

• 2.0 TDCi Diesel confirmed

• Multiple engine variants


Ford Galaxy Mk3 / CA1

• 29/09/2009 – 08/04/2015

• 2010-2015 applications

• Petrol and diesel models

• 2.0 TDCi Diesel confirmed

• Multiple engine variants


Ford OE data describes this support as applicable across the S-Max/Galaxy range rather than being restricted solely to the 2.0 diesel engine. (ford-esklep.pl)


ADDITIONAL COMPATIBILITY – FORD MONDEO MK4


The same genuine Ford 1480853 / 7G9N-R10684-AD support bar is also confirmed for:


Ford Mondeo Mk4 / CA2

• 19/02/2007 – 22/12/2014

• Saloon applications depending on specification

• Hatchback applications depending on specification

• Estate applications depending on specification

• Petrol and diesel engines


Ford parts suppliers specifically identify the same component for Mondeo Mk4, S-Max Mk1 and Galaxy Mk3. (fordoriginalparts.pl)


TECHNICAL INFORMATION


The 7G9N-R10684-AD is a structural support / reinforcement component associated with the vehicle’s front suspension subframe / crossmember assembly.


Its functions include:


• Supporting the front subframe / crossmember structure

• Providing additional structural reinforcement

• Helping maintain rigidity around the front suspension mounting area

• Supporting correct positioning of associated underbody components

• Reducing unwanted movement or flex within the mounting structure

• Providing additional connection/support between structural mounting points


The component is manufactured from metal and is positioned underneath the vehicle, where it is exposed to road dirt, water and road salt.


FRONT SUBFRAME / SUSPENSION SYSTEM INFORMATION


The front suspension subframe is an important structural assembly used to support and locate several major components of the vehicle.


Depending on vehicle specification, the surrounding assembly interfaces with components including:


• Front suspension arms

• Steering system

• Engine / drivetrain mounting structure

• Anti-roll bar and associated components

• Suspension mounting points

• Underbody structural supports


The 7G9N-R10684-AD / 1480853 brace acts as a supporting/reinforcing component within this area.


COMMON REASONS FOR REPLACEMENT


Replacement may be required due to:


• Accident or impact damage

• Bent or distorted support bar

• Excessive corrosion

• Damaged mounting points

• Previous underbody impact

• Front subframe repair

• Suspension overhaul

• Replacement of damaged structural components

• Restoration of missing underbody components


IMPORTANT INSPECTION INFORMATION


Because this component is mounted underneath the vehicle, used examples can naturally show signs of:


• Surface corrosion

• Road dirt

• Stone chips

• Scratches

• General weathering

• Marks around mounting points


Before installation, the bar and its mounting points should be inspected for excessive corrosion, cracking, distortion or previous impact damage.


Associated mounting bolts and surrounding subframe components should also be checked.


EARLY S-MAX / GALAXY INFORMATION


There is an important production-date difference.


Ford parts information states that S-Max / Galaxy vehicles produced before 29/09/2009 may require additional left and right supports when using this later configuration.


The associated support references given are:


Left Support: 1694049

Right Support: 1694048


Therefore, for straightforward replacement, 29/09/2009-08/04/2015 S-Max/Galaxy applications are the strongest direct fitment for 1480853 / 7G9N-R10684-AD. (ford-esklep.pl)


INSTALLATION


The support bar mounts underneath the vehicle around the front suspension subframe / crossmember area.


Installation requires the vehicle to be safely raised and supported.


During installation:


• Inspect all mounting points

• Inspect mounting bolts and hardware

• Check surrounding subframe condition

• Ensure the support bar sits correctly against its mounting locations

• Tighten all fasteners to the correct Ford specifications

• Check for corrosion or damage around adjoining structural components


Professional installation is recommended.


PROGRAMMING / CODING


Programming Required: No

Coding Required: No

Diagnostic Adaptation Required: No


This is a mechanical structural component.

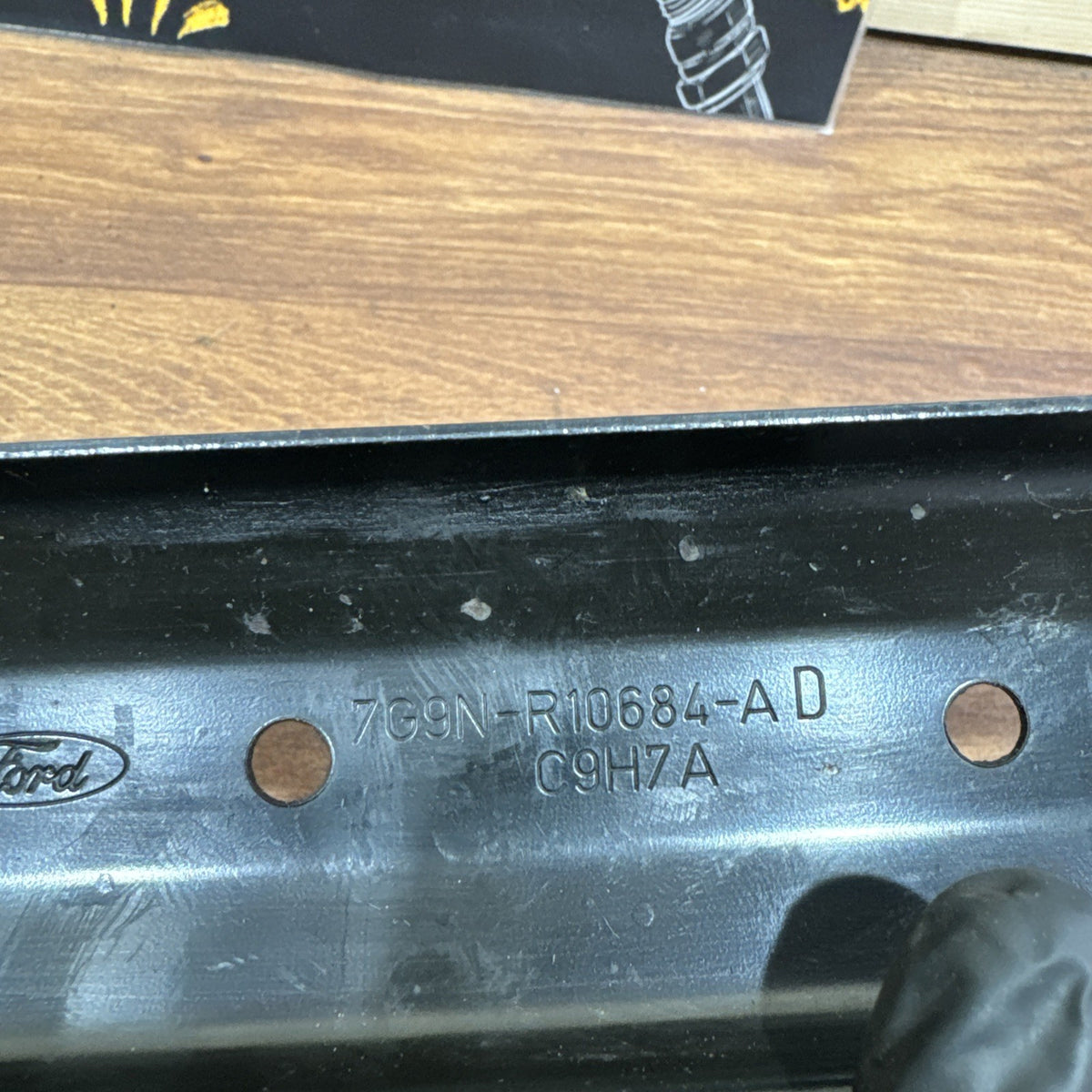

IMPORTANT PART NUMBER INFORMATION


Please match:


7G9N-R10684-AD


Ford FINIS / OE Number:


1480853


Both numbers are confirmed together in Ford OE parts information. (MGK Ford Parts)


IMPORTANT COMPATIBILITY NOTE


Before ordering, please compare:


• 7G9N-R10684-AD

• 1480853

• Vehicle model

• Vehicle production date

• Existing support bar shape

• Mounting-hole positions

• Listing photographs


For Ford S-Max / Galaxy, the particularly important production date is 29/09/2009 onwards.


Do not rely solely on “2010-2015 2.0 Diesel” when checking compatibility. Matching the OE/FINIS number and physical mounting arrangement is recommended.


CONDITION


Used Genuine Ford / FoMoCo Part.


As an underbody component, normal cosmetic marks, road dirt and surface corrosion may be present.


Please inspect all listing photographs carefully for the exact condition, mounting points, shape and components included in the sale.


Ideal genuine Ford replacement front crossmember / suspension subframe support brace for compatible Ford S-Max Mk1, Galaxy Mk3 and Mondeo Mk4 models.

Brand: Ford

Manufacturer Part Number: FORD S-MAX

Placement on Vehicle: Front
