FRONT SEAT CONTROL MODULE ECU 921646801 BMW 5 SERIES F10 F11 2013

#85

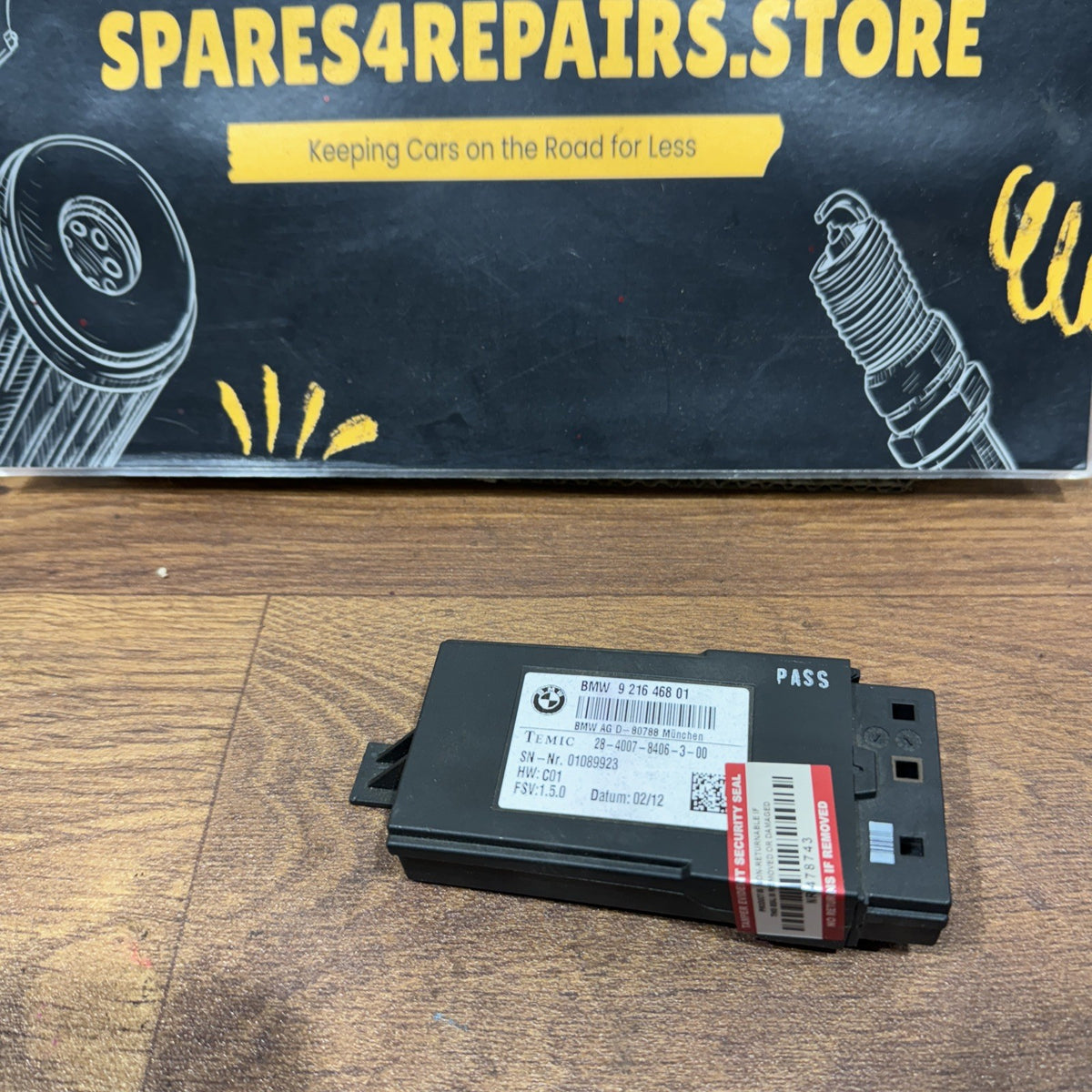

Genuine used BMW 5 Series F10 / F11 seat control module ECU, marked 9216468 / 9216468-01, removed from a 2013 BMW 5 Series.

This electronic module forms part of the vehicle’s seat electrical system and is used to control/coordinate applicable seat functions depending on the equipment fitted to the vehicle.

Module Number: 9216468

Alternative Marking: 9216468-01

Full BMW OE Number: 61359216468

BMW OE Format: 61 35 9 216 468

Later Replacement / Supersession: 61357490465

Part Type: Seat Control Module / Seat ECU / Seat Electronics Module

Application: Front Seat / Seat Electrical System – depending on vehicle specification

Donor Vehicle: BMW 5 Series

Donor Year: 2013

Chassis: F10 / F11 application

Manufacturer: BMW

Condition: Genuine used OEM part

Compatibility

Suitable for selected:

* BMW 5 Series F10 Saloon

* BMW 5 Series F11 Touring

* BMW 5 Series F07 Gran Turismo – selected applications

* Other BMW F-Series models using exactly the same 61359216468 / 9216468 module

The module is documented on BMW F10 applications and was also used across several other BMW F-Series platforms.

For this reason, compatibility should be determined primarily by the complete OE number and vehicle seat specification, rather than model name alone.

2013 BMW 5 Series Application

The 61359216468 / 9216468 seat module is documented for BMW F10 applications during this production period.

This makes it a valid reference for selected 2013 BMW 5 Series F10/F11 vehicles.

However, BMW offered numerous seat configurations, including:

* Standard electric seats

* Electric seat adjustment

* Seat memory

* Heated front seats

* Comfort seats

* Different driver/passenger configurations

* Different seat wiring/electronic specifications

Therefore, matching the module number and vehicle equipment is important.

OE Number Information

The shortened number printed prominently on the module is:

9216468

The complete BMW OE reference is:

61359216468

or:

61 35 9 216 468

BMW later replaced/superseded this reference with:

61357490465

The original 61359216468 module was used across multiple BMW models and configurations.

Technical Information

The module forms part of the vehicle’s electronic seat system.

Depending on the vehicle’s equipment specification, the seat electronics can interact with functions including:

* Electric seat adjustment

* Seat heating

* Seat memory

* Seat position functions

* Associated seat wiring

* Vehicle electrical system

* Other comfort-related seat functions where equipped

The exact functions controlled depend on the seat and vehicle specification.

For this reason, the presence of 9216468 does not automatically mean every vehicle has the same seat equipment.

Heated Seat System Information

9216468 / 61359216468 is also commonly identified as a seat heating control module on BMW F-Series vehicles.

In heated-seat applications, the module works as part of the electrical system responsible for managing the applicable seat-heating circuits and communicating with the vehicle’s electronics.

A heated-seat fault can therefore involve the module, but the module should not automatically be replaced without diagnosis.

Electric / Memory Seat Information

BMW catalogue information also associates 61359216468 with vehicles equipped with options such as:

S459A – Electric seat adjustment with memory

and

S494A – Driver/passenger seat heating

depending on model and configuration.

The module may therefore be found on vehicles with different combinations of seat equipment.

Always compare the complete vehicle specification before ordering.

Common Symptoms / Reasons for Replacement

Possible reasons for replacing a seat module include:

* Electric seat functions not operating

* Heated seat not operating correctly

* Intermittent seat electrical operation

* Seat functions completely inoperative

* Communication fault with seat electronics

* Module damaged by moisture

* Electrical connector damaged

* Internal module failure

* Diagnostic fault relating to seat electronics

* Replacement following seat change

* Original module missing

* Module damaged during interior repairs

Symptoms depend heavily on the equipment installed in the vehicle.

Important Diagnostic Information

Before replacing the seat module, check:

* Relevant fuses

* Power supply

* Ground/earth connections

* Seat wiring harness

* Electrical connectors

* Connector pins

* Seat heating elements

* Seat switches

* Electric seat motors

* Seat memory components where fitted

* Vehicle diagnostic fault codes

A failed seat motor, heating mat or wiring fault can produce symptoms that may initially appear to be a control-module problem.

A BMW-compatible diagnostic scan is recommended before replacement.

Moisture / Water Damage

Seat-mounted electronic modules can be vulnerable to moisture or liquid contamination.

Inspect the module and surrounding area for:

* Corrosion

* Water staining

* Oxidised terminals

* Green corrosion on connector pins

* Damaged wiring

* Evidence of previous liquid spills

If moisture caused the original module failure, the source should be corrected before installing another unit.

Connector Inspection

Before installation, compare:

* Number of connectors

* Connector shape

* Connector keying

* Pin arrangement

* Module casing

* Mounting points

* Complete OE number

Do not modify connectors or wiring to install an incompatible seat module.

Installation

Before fitting:

* Disconnect/isolate the vehicle electrical system according to the appropriate BMW workshop procedure

* Compare the replacement module with the original

* Confirm 9216468 / 61359216468

* Inspect all connectors

* Check pins for corrosion or damage

* Inspect the seat wiring loom

* Check module mounting points

After installation, verify all applicable seat functions.

Programming / Coding

Because this is an electronic control module used across vehicles with different equipment configurations, coding/configuration requirements can vary.

A replacement used module may require:

* Vehicle diagnostics

* Fault-code clearing

* Configuration/coding depending on application

* Initialisation of applicable seat functions

Do not assume that every used 9216468 module will be completely plug-and-play in every vehicle.

A BMW-compatible diagnostic system such as ISTA or suitable professional equipment may be required if faults remain after installation.

OE Supersession

Original module:

61359216468 / 9216468

Later BMW replacement reference:

61357490465

The later number is documented as the replacement for 61359216468.

However, when purchasing a used module, matching the number fitted to the original vehicle remains the safest approach.

Important Compatibility Note

Please compare before ordering:

* 9216468

* 9216468-01 where applicable

* 61359216468

* Module manufacturer markings

* Electrical connectors

* Connector keying

* Pin arrangement

* Seat position/application

* Electric seat specification

* Heated-seat specification

* Memory-seat specification

* Vehicle production date

* VIN/options specification

This module was used across multiple BMW F-Series vehicles, so the presence of an F10/F11 chassis alone does not guarantee compatibility.

Matching 61359216468 / 9216468 directly with the original module and checking the vehicle’s seat options is strongly recommended.

Condition

Genuine BMW used electronic seat control module.

Removed from a 2013 BMW 5 Series.

As a used electronic component, normal signs of previous installation may include:

* Surface marks

* Scratches

* Dust

* Minor cosmetic wear

* Installation/removal marks

Please inspect all listing photographs carefully, particularly the:

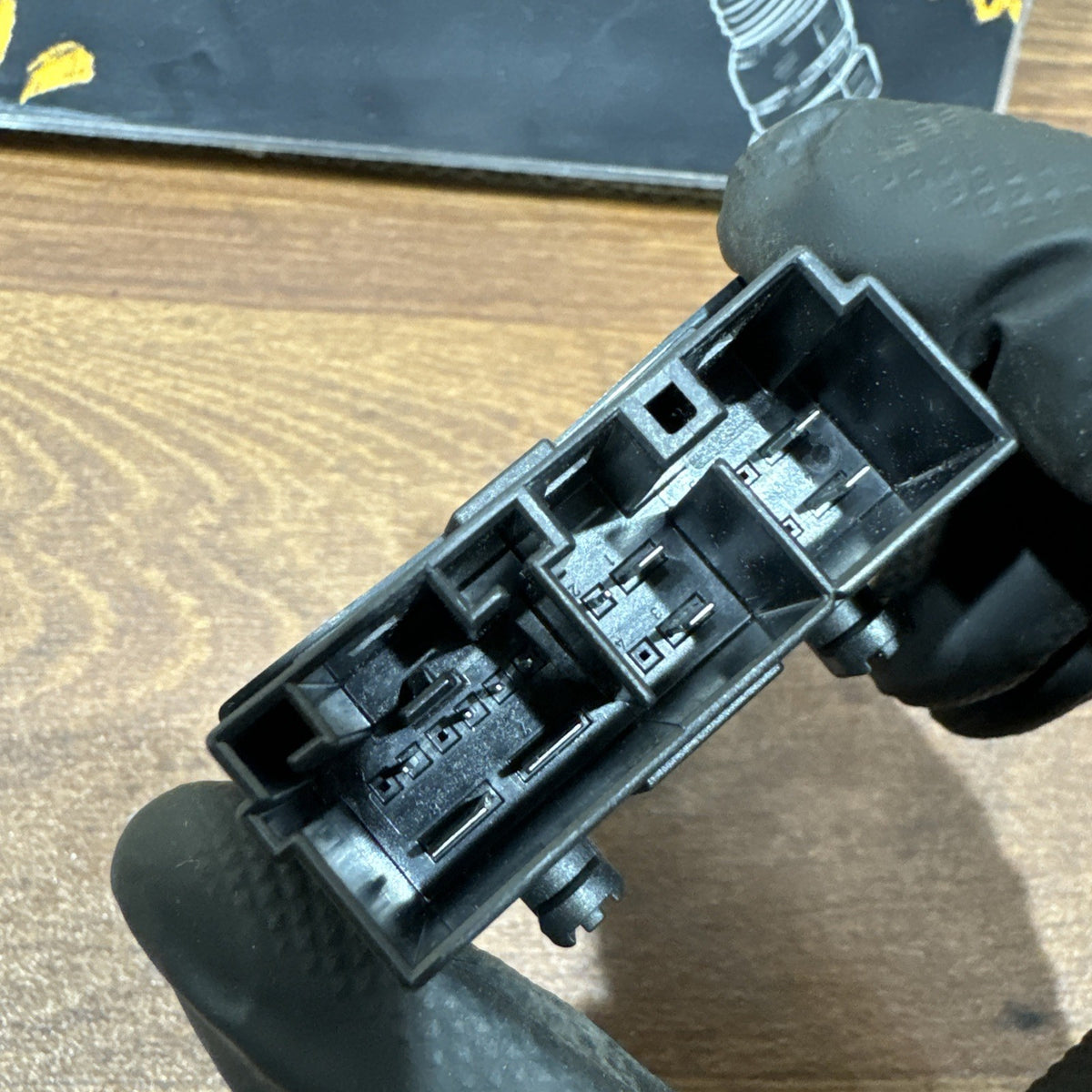

* Electrical connectors

* Connector pins

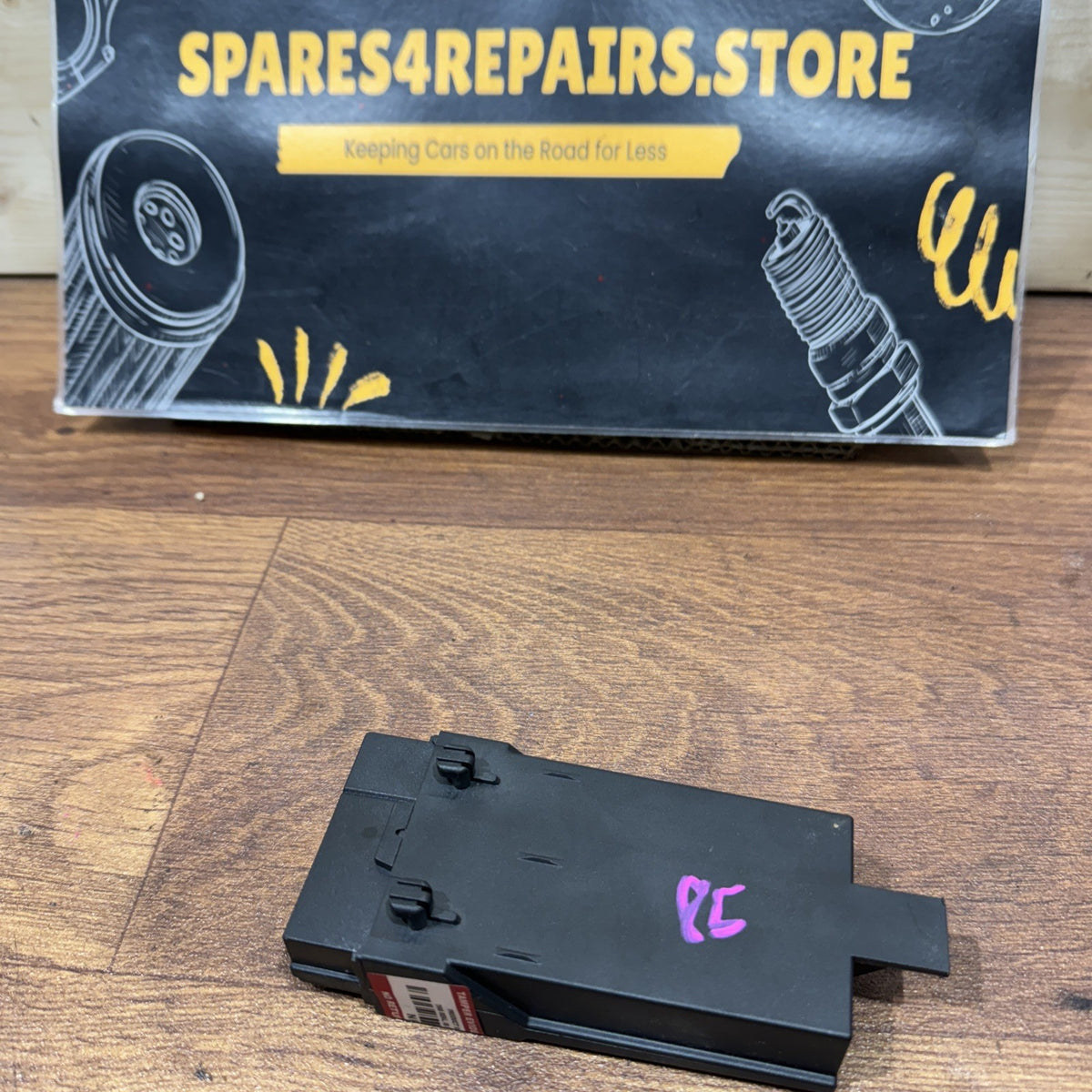

* Module casing

* Mounting points

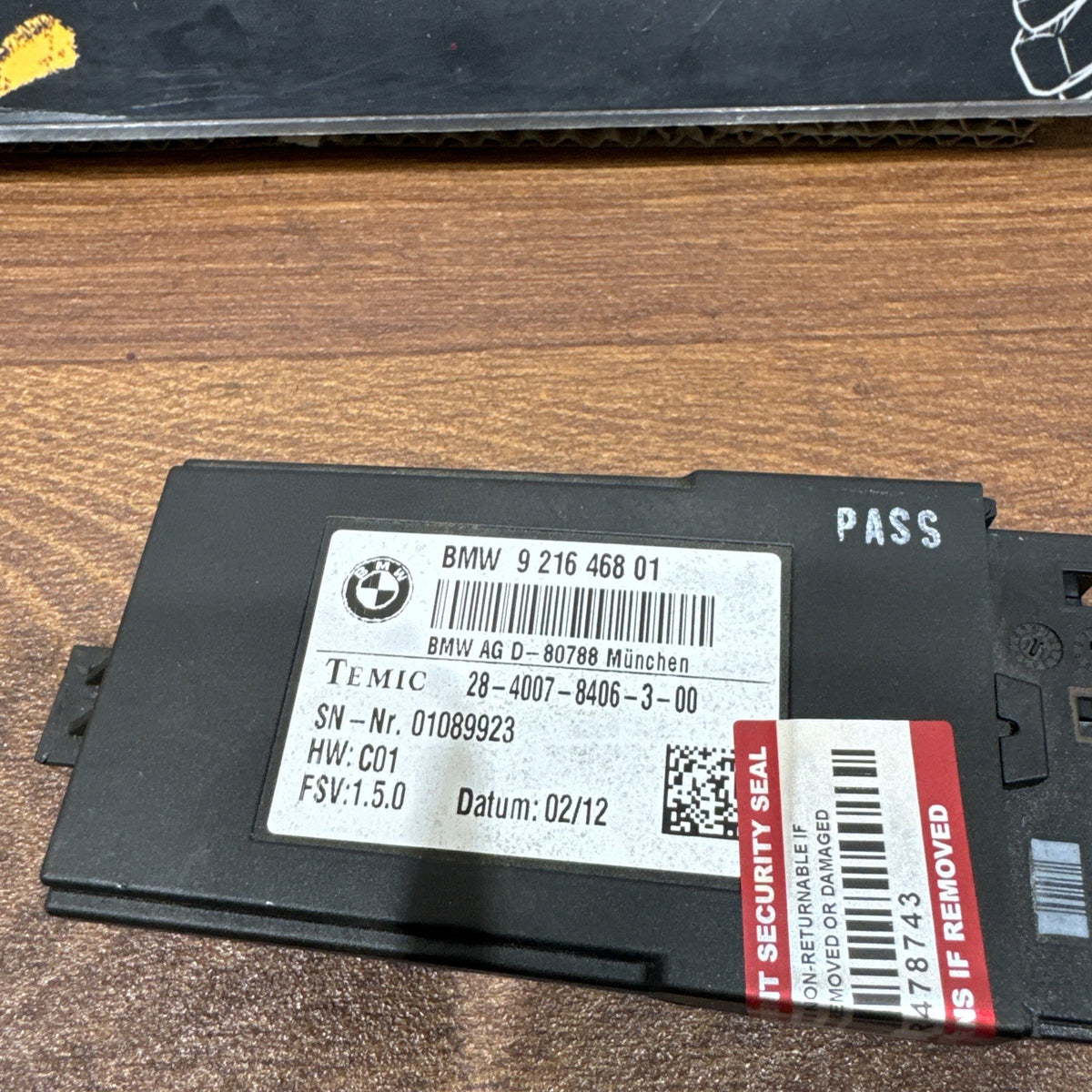

* BMW identification label

* Part numbers

Only the module and components clearly shown in the listing photographs are included.

Any wiring loom, brackets, seat switches or additional components are included only if clearly pictured.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a faulty, damaged or missing BMW 5 Series F10 / F11 seat control module, provided 9216468 / 61359216468 matches the original component and vehicle seat specification.
