Genuine Land Rover Discovery 4 10-16 Armrest Right Driver OS Seat

#73

GENUINE LAND ROVER DISCOVERY 4 L319 FRONT RIGHT O/S DRIVER SEAT ARMREST 2010-2016

Genuine used Land Rover front seat adjustable armrest, suitable for the right-hand front seat on compatible Land Rover Discovery 4 L319 models.

This is the individual armrest mounted directly to the front seat and not the centre-console armrest/lid.

Removed from a Land Rover Discovery 4 L319.

Part Type: Front Seat Armrest / Seat-Mounted Arm Rest

Position: Front Right Seat

Vehicle Side: Right / O/S

UK RHD Position: Driver Seat

Application: Front Seat

Vehicle: Land Rover Discovery 4 / LR4

Chassis: L319

Model Years: 2010–2016

Manufacturer: Land Rover / JLR

Condition: Genuine Used OEM Part

Colour: Please refer to photographs

OE Number: Please match the number/colour and specification to your original armrest

COMPATIBILITY

LAND ROVER DISCOVERY 4 / DISCOVERY IV / LR4 L319 – 2010–2016

The genuine Land Rover parts catalogue confirms separate RH Seat armrests throughout the Discovery 4 L319 production range.

Suitable for selected:

• Discovery 4 2.7 TDV6

• Discovery 4 3.0 TDV6

• Discovery 4 3.0 SDV6

• Discovery 4 3.0 petrol – selected markets

• Discovery 4 4.0 petrol – selected markets

• Discovery 4 5.0 V8 petrol – selected markets

• LR4 North American specification vehicles

Potential trim applications include selected:

• GS

• XS

• SE

• HSE

• HSE Luxury

• Landmark

• Other specifications equipped with the corresponding front-seat armrest

Engine size does not determine compatibility for this component.

The important factors are:

• Vehicle VIN

• Right-hand seat specification

• Armrest design

• Leather/upholstery type

• Interior colour

• Stitching specification

• Mounting arrangement

RIGHT / DRIVER SEAT INFORMATION

This item is for the physical:

FRONT RIGHT SEAT

For a UK right-hand-drive Discovery 4:

Front Right = Driver / O/S

For an LHD Discovery 4 / LR4:

Front Right = Passenger Side

For international buyers, Front Right / RH Seat is therefore the most accurate position description.

LAND ROVER OE NUMBER INFORMATION

Land Rover used several different genuine armrest numbers on the Discovery 4 RH front seat.

Documented RH-seat numbers include:

LR029233 → LR055831

Used for selected Almond / Leather Seat Fabric configurations.

LR008410 → LR055834

Used for selected Almond / Oxford Leather Windsor configurations.

LR015467

Used for selected Ebony Black interior / leather seat configurations with specific contrast stitching.

LR029235 → LR055832

Used for selected Ebony Black / Oxford Leather Windsor / Windsor Leather configurations.

LR029232

Used for selected Ivory / Ebony interior combinations depending on production specification.

LR040806 → LR055833

Used for selected Ivory / Oxford Leather Windsor specifications.

Additional later-production RH armrest numbers also exist depending on interior and seat specification.

This means colour and upholstery specification are essential when identifying the exact OE number.

UPHOLSTERY / COLOUR OPTIONS

Discovery 4 front seat armrests were produced in several interior finishes.

These include selected:

• Ebony Black

• Almond

• Ivory

• Arabica

• Tan

• Other model-year-specific interior combinations

Different versions can also have:

• Standard stitching

• Ivory contrast stitching

• Lunar contrast stitching

• Ebony contrast stitching

• Leather Seat Fabric

• Oxford Leather Windsor

• Windsor Leather

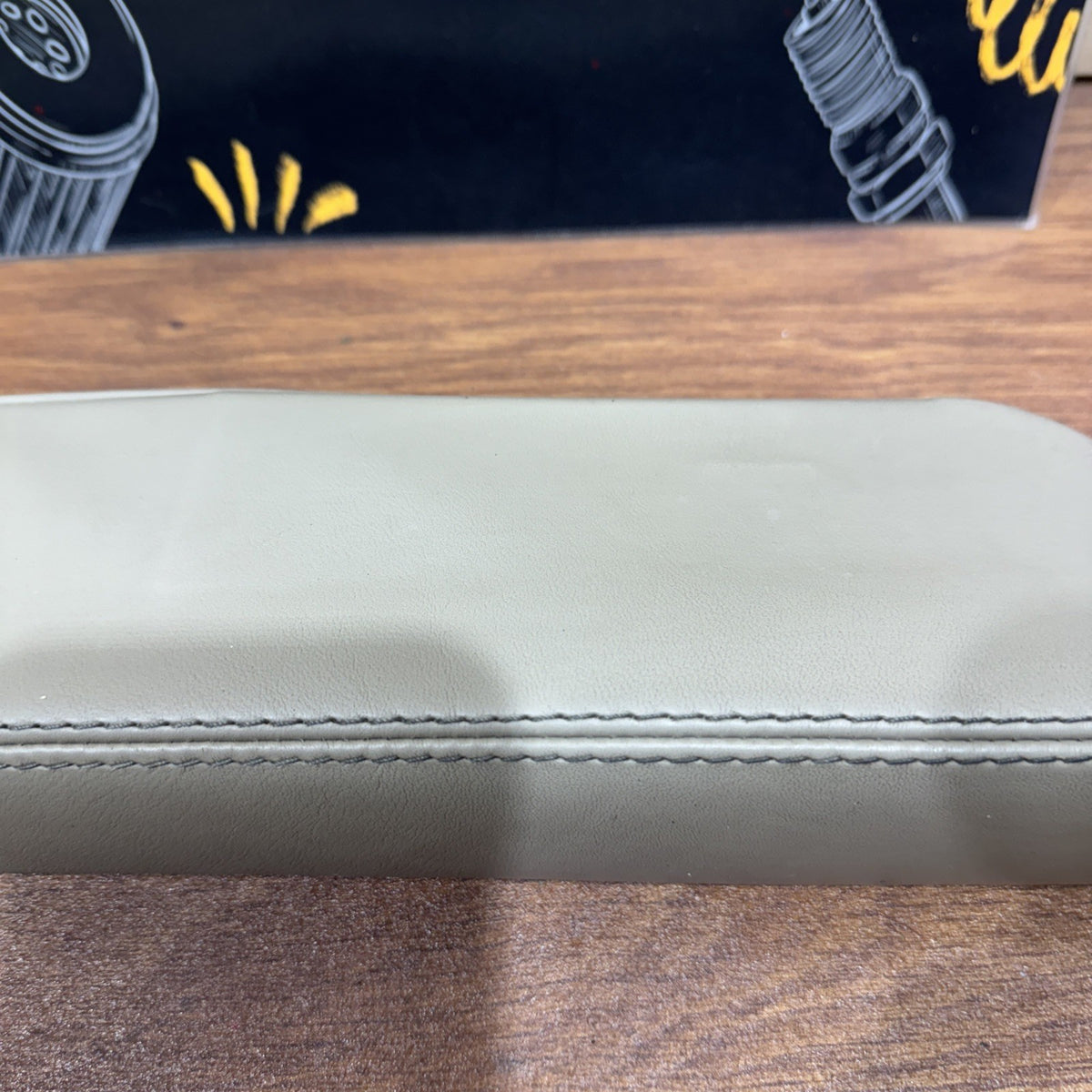

Please compare the colour, leather texture and stitching shown in the photographs with your original armrest.

TECHNICAL INFORMATION

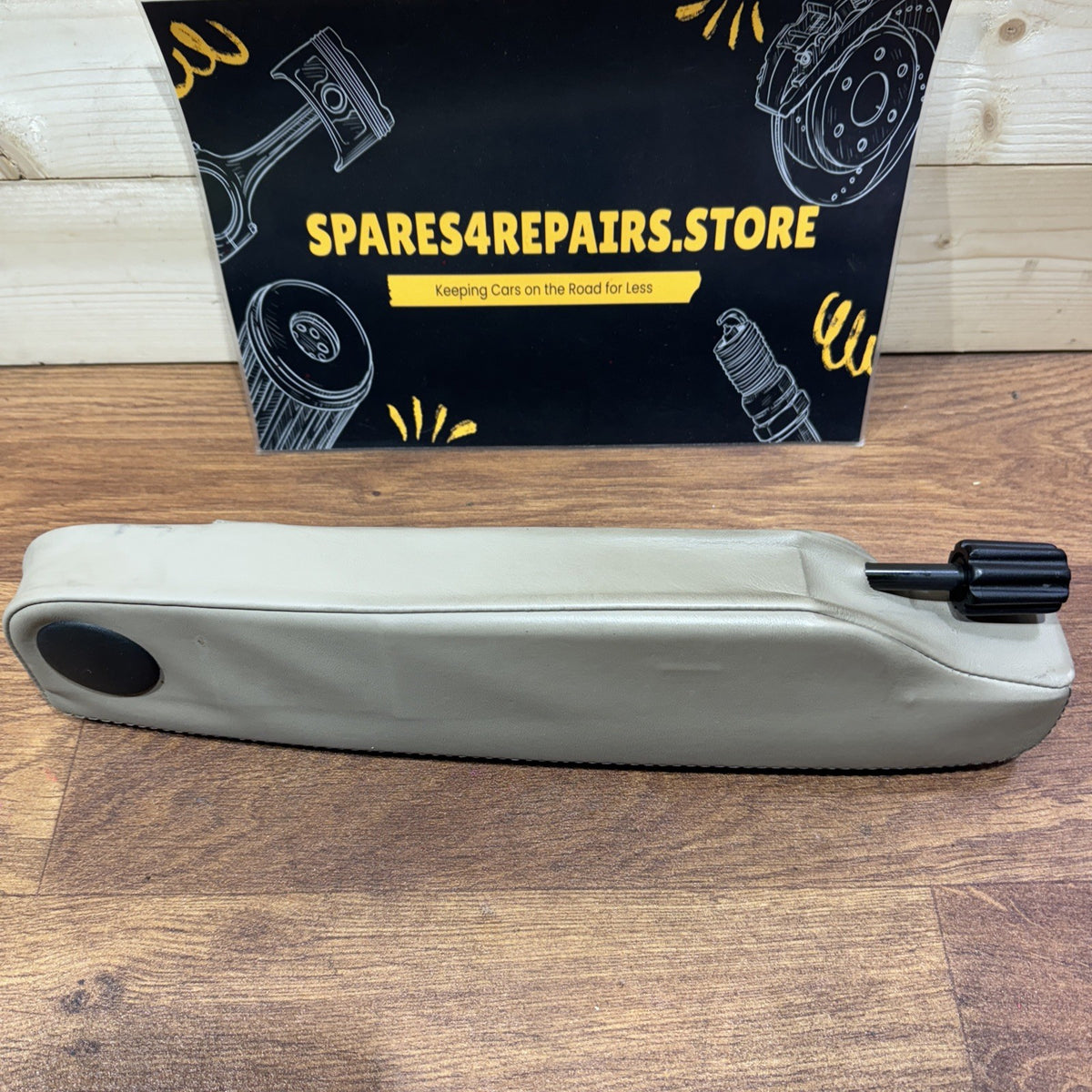

This is the padded armrest mounted directly to the front-seat structure.

Its purpose is to provide comfortable arm support for the front-seat occupant while driving or travelling.

The armrest attaches to the seat through a pivot/mounting mechanism which allows it to be moved between its operating and raised positions.

Depending on specification, the armrest is described by Land Rover as:

Front Seat Armrest – Fully Adjust

The complete installation can incorporate:

• Padded armrest assembly

• Upholstery covering

• Internal support structure

• Pivot mechanism

• Seat mounting point

• Retaining hardware

• Armrest finisher/trim

ADJUSTABLE ARMREST SYSTEM

On equipped Discovery 4 front seats, the armrest can be positioned to provide comfortable support for the occupant.

The seat-mounted design allows the armrest to move with the seat rather than remaining fixed to the centre console.

This is especially useful on electrically adjustable and memory-equipped front seats because the arm support remains correctly positioned relative to the seat.

COMMON REASONS FOR REPLACEMENT

• Original armrest leather worn

• Torn upholstery

• Cracked or damaged covering

• Excessive leather wear

• Broken internal mechanism

• Armrest no longer stays in position

• Armrest feels loose

• Damaged mounting point

• Broken pivot mechanism

• Missing armrest

• Accident damage

• Interior refurbishment

• Seat replacement requiring correct matching armrest

COMMON DRIVER-SEAT WEAR

The driver’s armrest can develop wear from frequent use.

Typical signs include:

• Leather creasing

• Surface wear

• Scratches

• Discolouration

• Worn stitching

• Loose pivot mechanism

• Damage around the mounting point

A genuine replacement can restore the original appearance and functionality without replacing the complete front seat.

INSTALLATION

The armrest mounts directly to the corresponding front-seat structure.

Installation may require removal of:

• Armrest side finisher

• Retaining bolt/fixing

• Seat trim

• Original armrest assembly

Before installation compare:

• RH seat position

• Mounting point

• Pivot design

• Armrest shape

• Upholstery material

• Colour

• Stitching

• Overall dimensions

Ensure the armrest is securely mounted and operates correctly after installation.

ARMREST FINISHER / TRIM

The small plastic finisher covering the armrest mounting area can be a separate Land Rover component.

For example, HJI500090PVJ is documented as an Ebony Black front-seat armrest finisher trim and is used on Discovery 3, Discovery 4 and Range Rover Sport applications.

Therefore, please check the photographs to confirm whether any separate mounting trim/finisher is included with this armrest.

PROGRAMMING / CODING

No programming or coding is required.

This is a mechanical/interior seat component and contains no vehicle-specific electronic programming.

DISCOVERY 3 / RANGE ROVER SPORT INFORMATION

Discovery 3 and Range Rover Sport also use similar seat-mounted armrest components, and some associated armrest trim pieces are shared across:

• Discovery 3 L319

• Discovery 4 L319

• Range Rover Sport L320

However, the complete upholstered armrest should not automatically be assumed interchangeable.

Colour, leather, stitching, mounting mechanism and OE number should be matched before claiming cross-model fitment.

For this item, Discovery 4 L319 2010–2016 remains the primary compatibility unless the exact OE number confirms additional applications.

IMPORTANT COMPATIBILITY NOTE

Land Rover used multiple RH front-seat armrest versions on the Discovery 4.

Differences are based on:

• Production VIN

• Model year

• RH/LH seat

• Leather specification

• Interior colour

• Contrast stitching

• Seat equipment

• Trim level

Therefore, please do not order solely because your vehicle is a 2010–2016 Discovery 4.

Before purchasing, compare:

• Front Right / RH position

• OE number where visible

• Armrest shape

• Mounting mechanism

• Leather type

• Colour

• Stitching

• Vehicle VIN where necessary

Matching the physical armrest, upholstery specification and colour against the original is the safest method of confirming compatibility.

CONDITION

Genuine used Land Rover OEM front seat armrest.

Position: Front Right / RH Seat

UK RHD: Driver / O/S

As this is a used interior component, normal signs of previous use, age, removal and storage may be present.

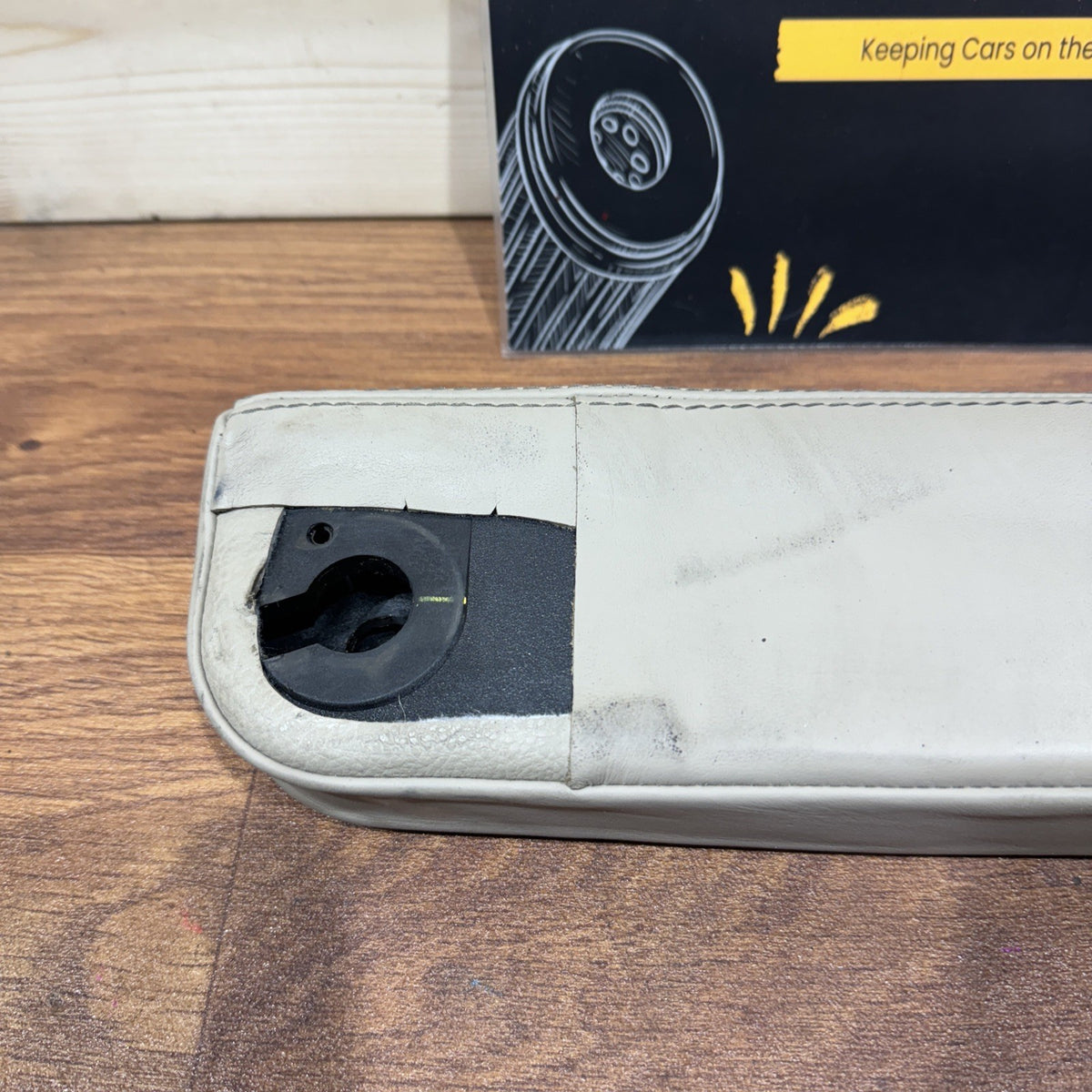

Please inspect all listing photographs carefully for:

• Leather condition

• Creasing

• Scratches

• Marks

• Stitching

• Colour

• Pivot/mounting mechanism

• Mounting points

• General cosmetic condition

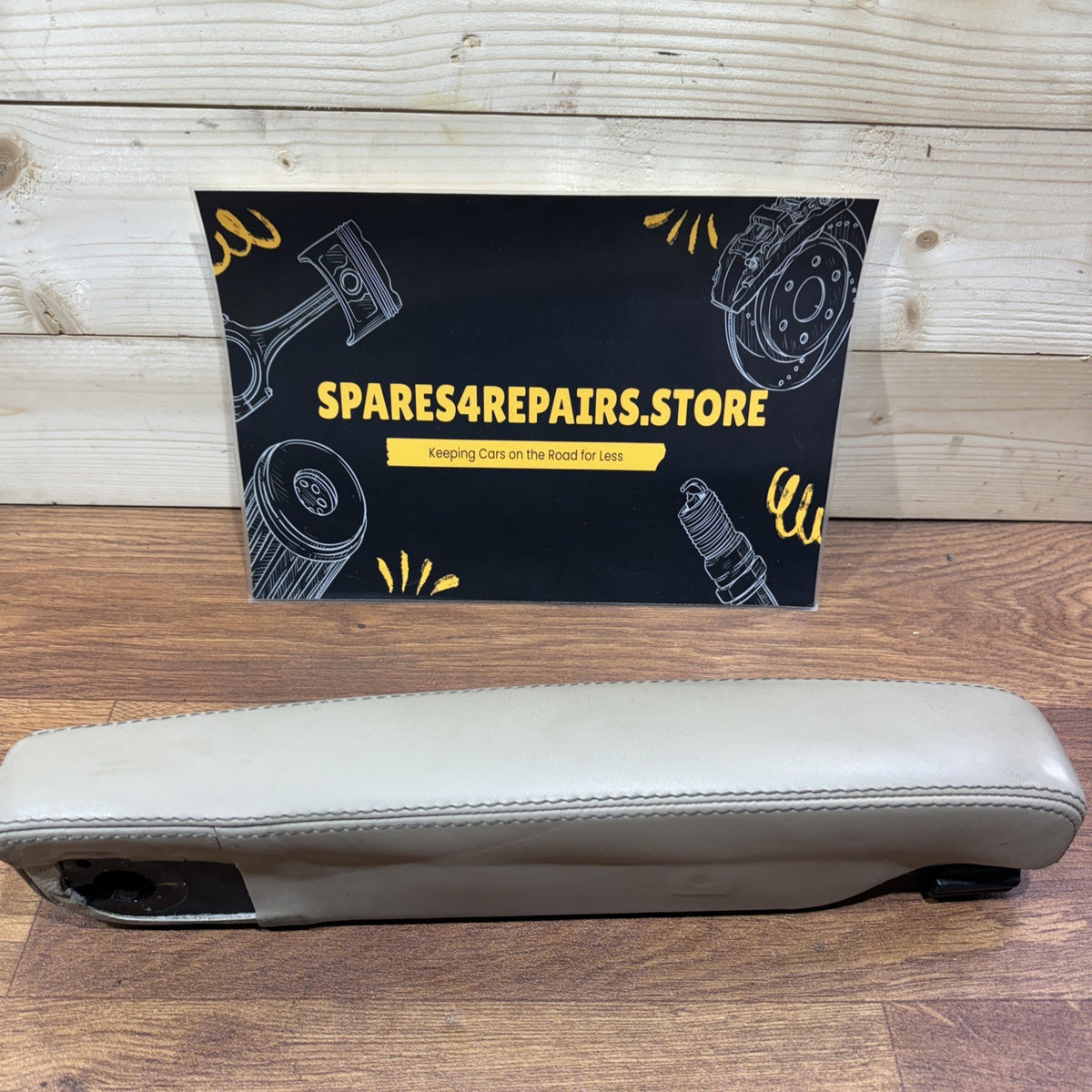

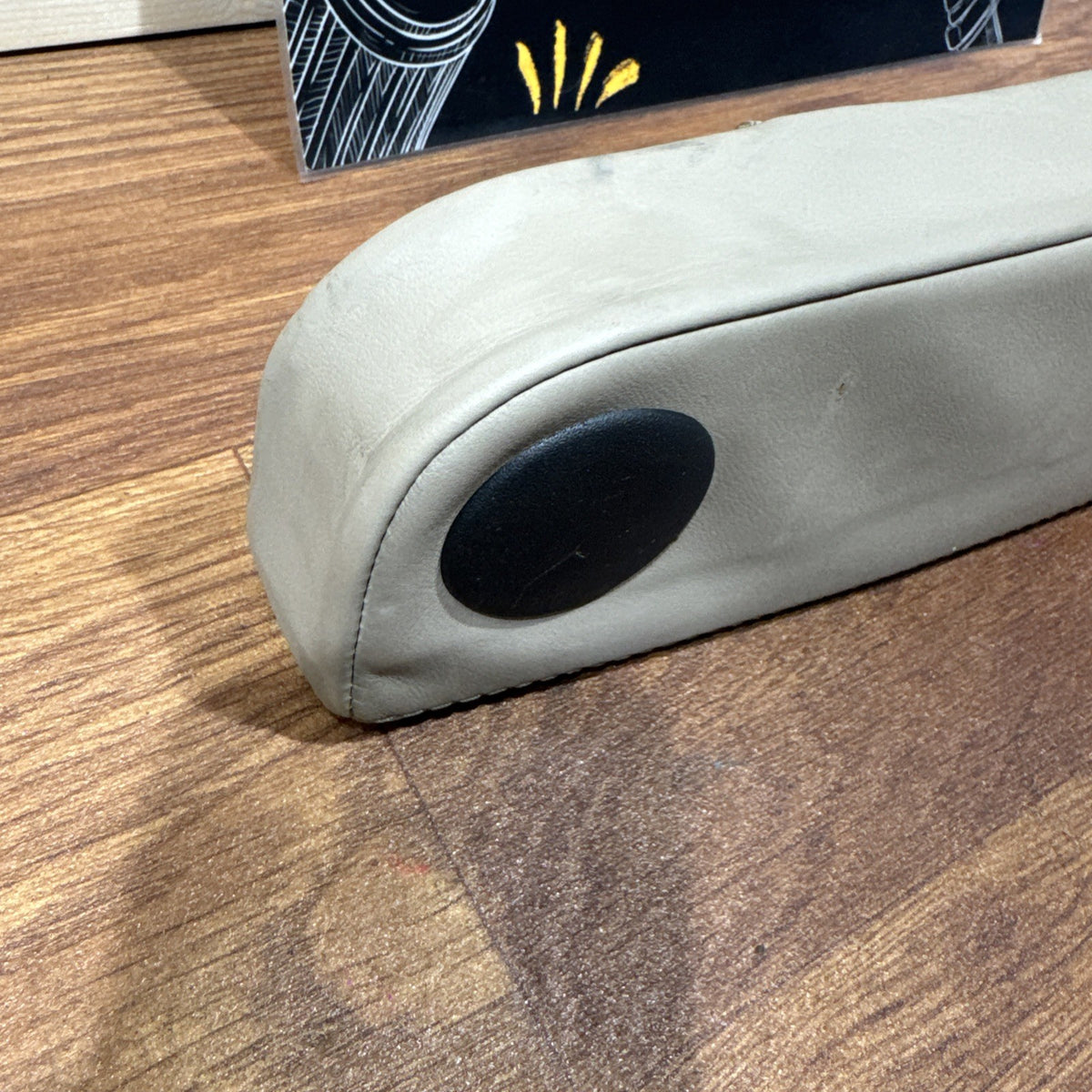

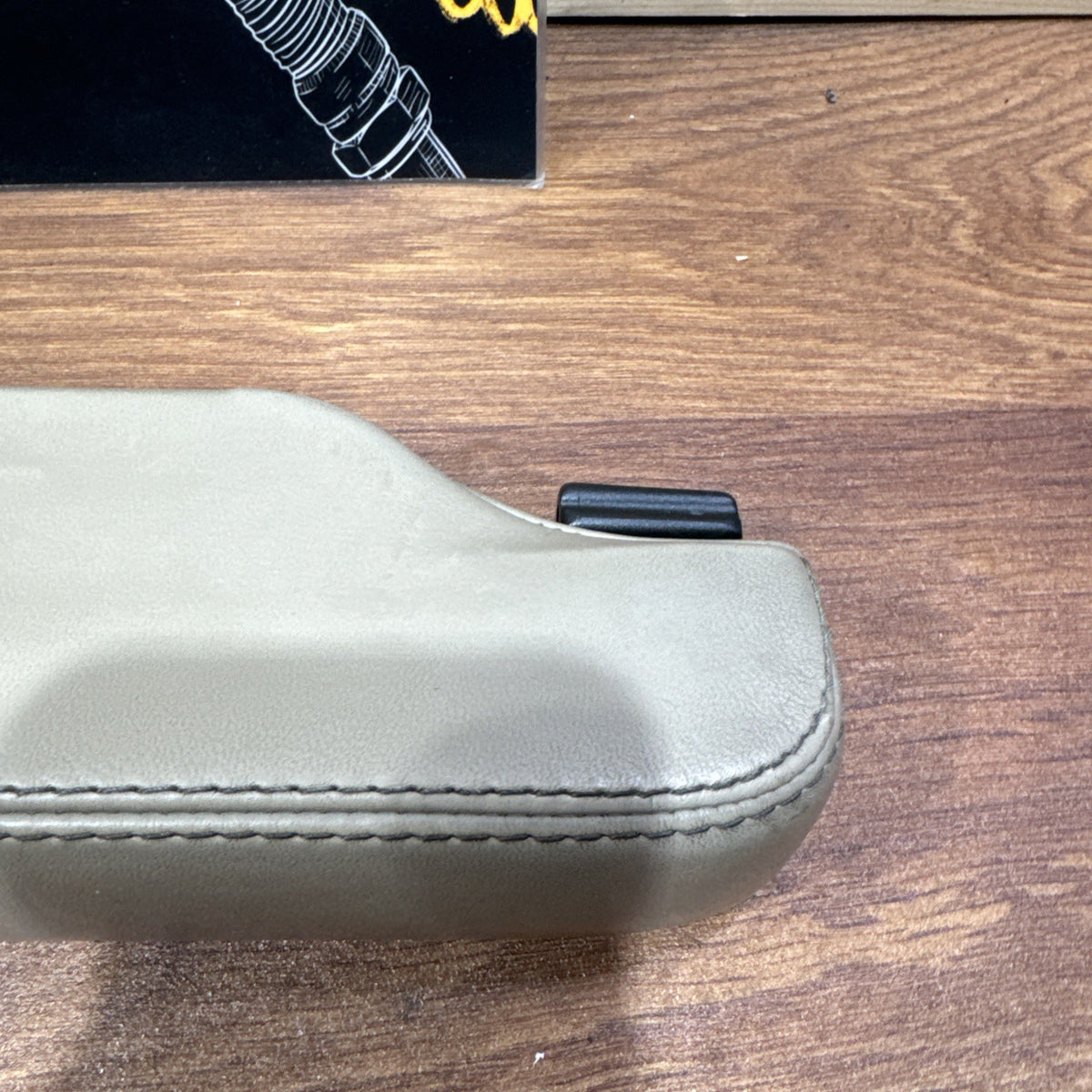

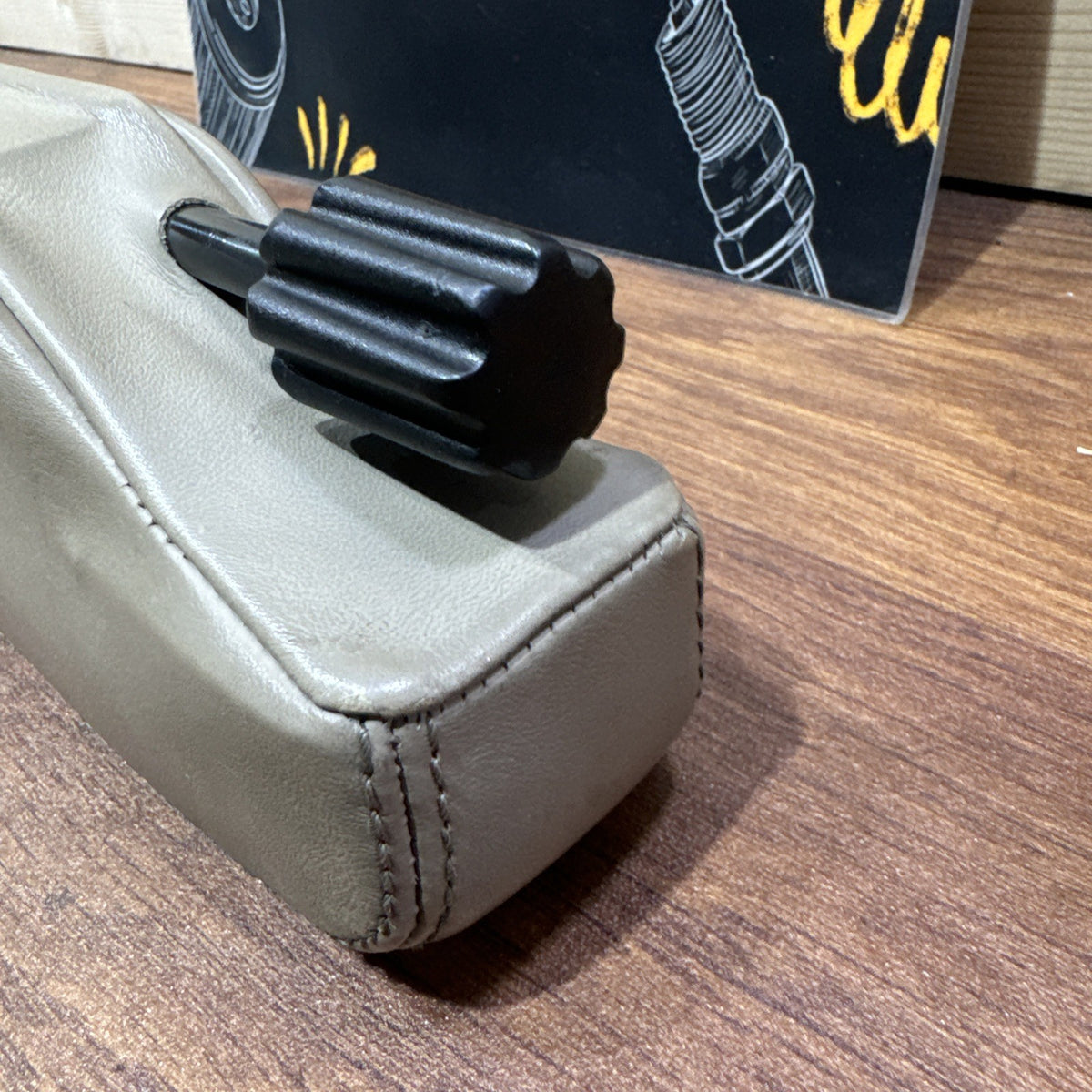

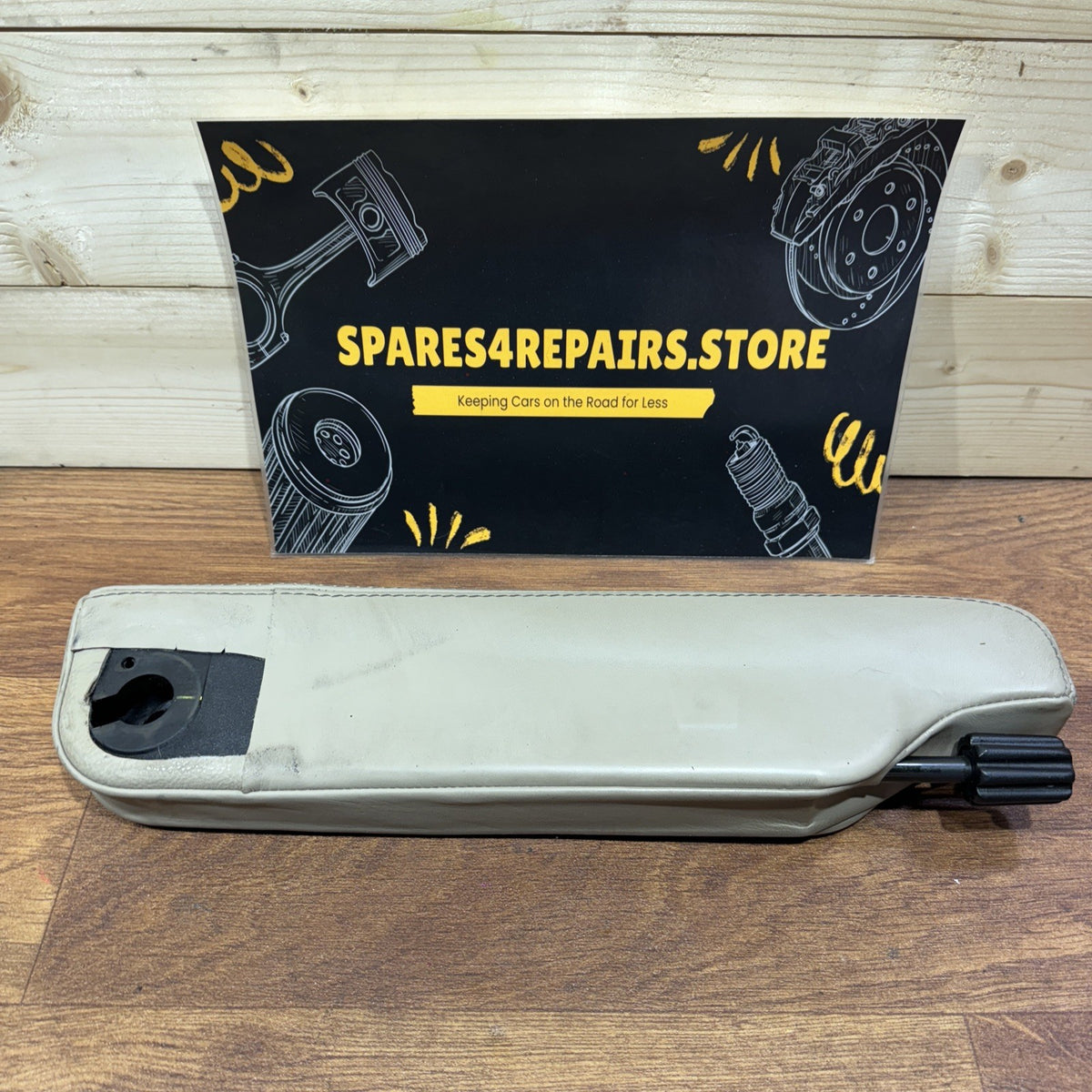

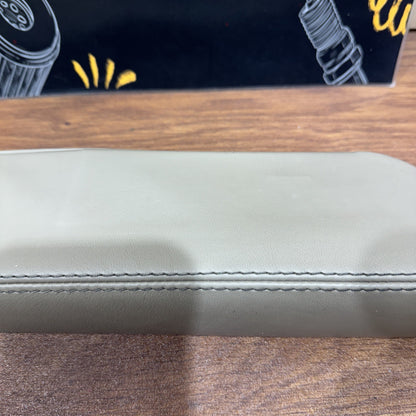

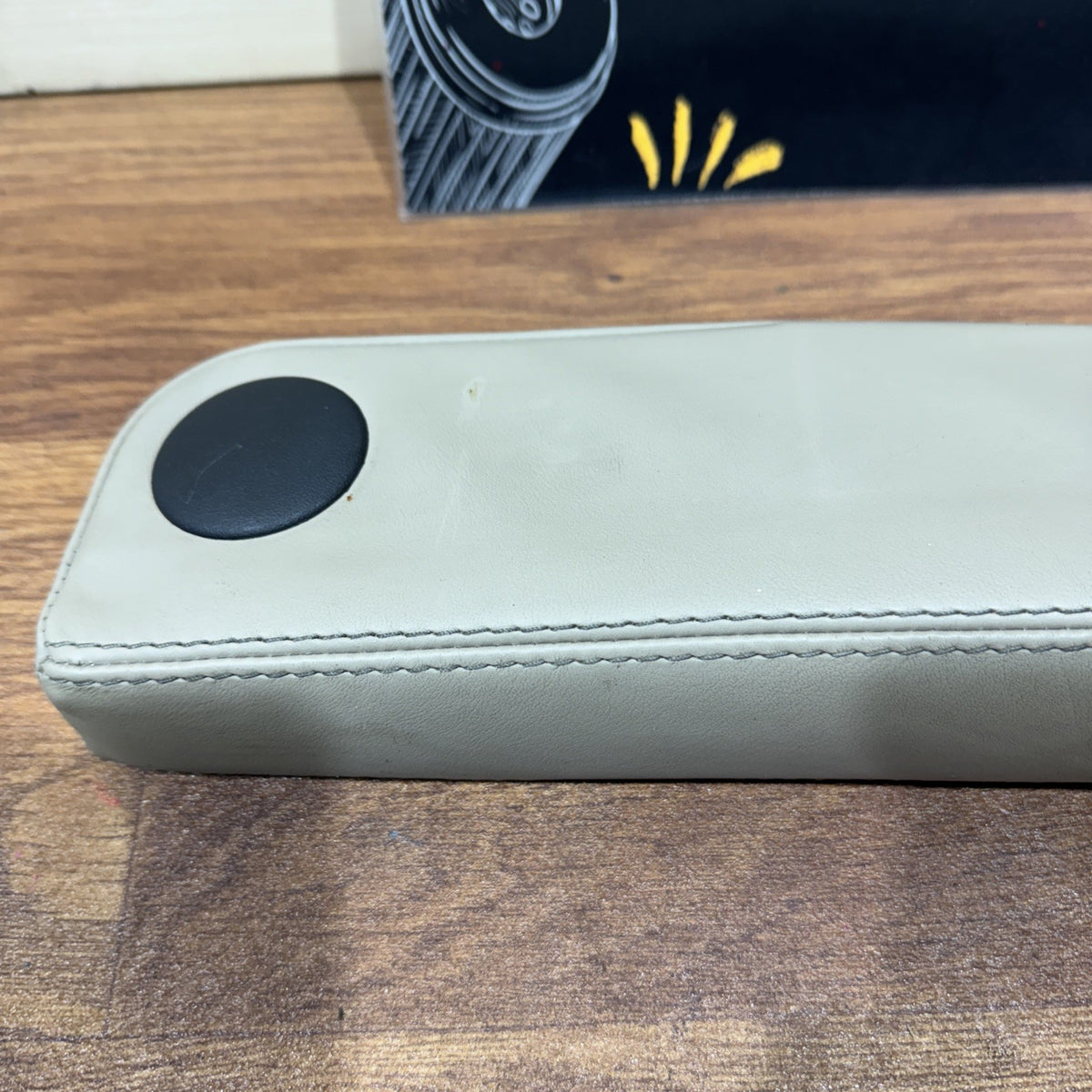

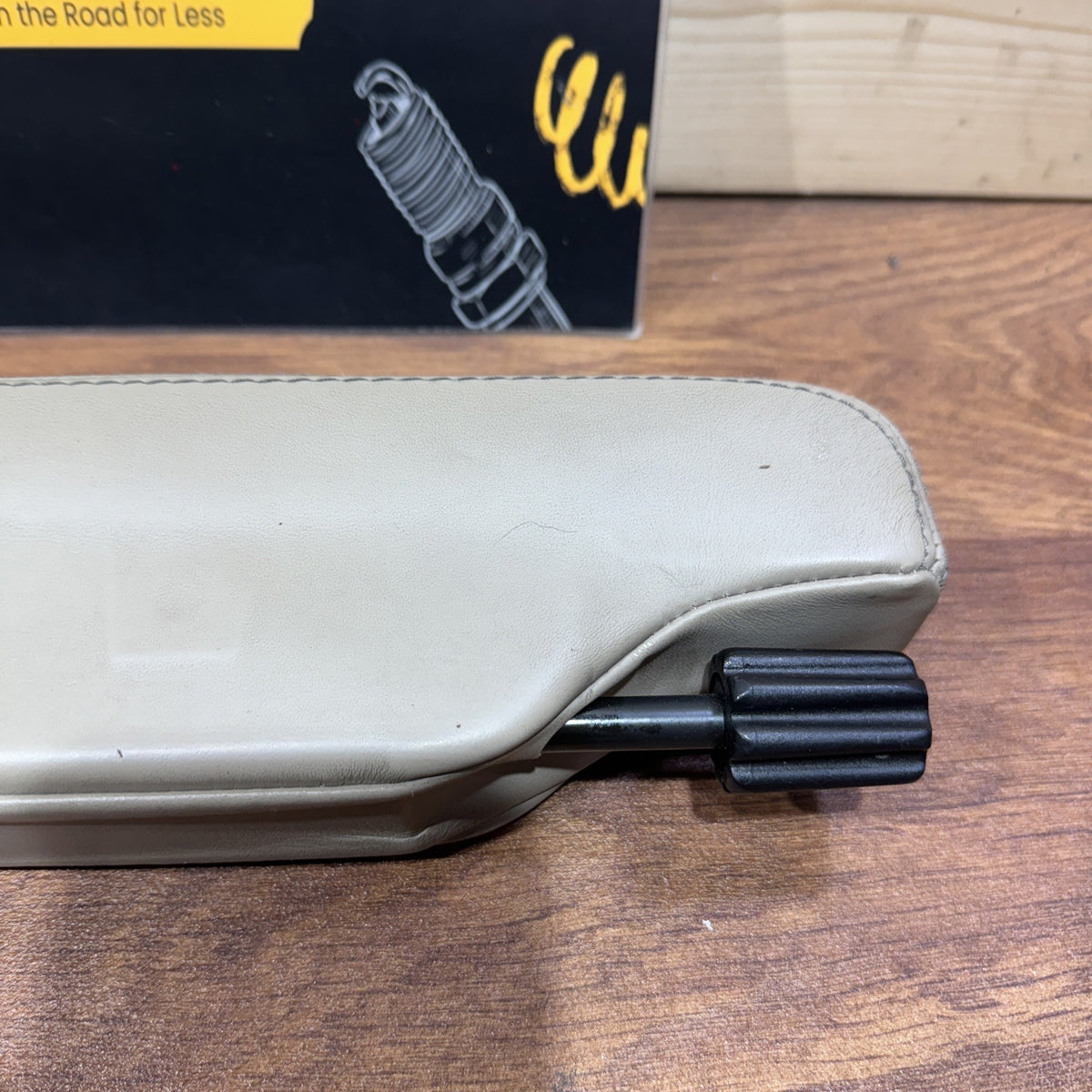

The photographs show the exact item supplied and should be considered part of the condition description.

Ideal genuine replacement for a worn, damaged, loose or missing front-right seat armrest on compatible Land Rover Discovery 4 / LR4 L319 2010–2016 vehicles where the seat specification, mounting arrangement, upholstery and colour match the original.
