Genuine Land Rover Discovery 4 2010 RH Lower Tailgate Cable Stay Reel BHF780040

#76

Genuine Land Rover Discovery 4 L319 RH Lower Tailgate Cable Stay Reel – BHF780040 – 2010

Genuine Land Rover/JLR used right-hand lower tailgate cable stay / support reel assembly, suitable for Land Rover Discovery 4 L319 models with the split upper and lower rear tailgate.

This assembly is fitted to the right-hand side of the lower tailgate and supports and controls the lower tailgate when it is opened. The cable/stay mechanism limits downward travel and helps hold the lower tailgate in its correct open position.

Part Number: BHF780040

Previous / Superseded Numbers: BHF780021 / BHF780022

Current OE Number: BHF780040

Part Type: Lower Tailgate Stay / Support Cable / Cable Reel Assembly

Position: Rear Lower Tailgate – Right Hand

Vehicle Side: RH / O/S – Driver Side on UK RHD vehicles

Application: Split Lower Tailgate Support System

Donor Application: 2010 Land Rover Discovery 4 L319

Manufacturer: Land Rover / JLR

Condition: Used Genuine Land Rover Part

COMPATIBILITY

Land Rover Discovery 4 – L319

Verified Land Rover parts-catalogue fitment:

• Discovery 4 L319 – 2010-2016

• From VIN AA000001

• Split upper/lower tailgate models

• Right-hand lower tailgate position

• UK RHD and LHD vehicles – component position remains RH

• Petrol and diesel models

• Not engine-specific

The Land Rover parts catalogue identifies BHF780040 specifically as:

Stay – RH – Lower Tailgate

for the Discovery 4 luggage-compartment door assembly.

Therefore, your 2010 Discovery 4 L319 is a directly supported application.

ADDITIONAL COMPATIBILITY

Land Rover Discovery 3 / LR3 – L319

BHF780040 is also fitted to later Discovery 3 vehicles.

Verified fitment includes:

• Discovery 3 / LR3

• From VIN 7A439052

• Right-hand lower tailgate

• Split-tailgate vehicles

Therefore, this part is not exclusive to the Discovery 4 and can also be useful to buyers searching for a late Discovery 3 replacement.

TAILGATE POSITION INFORMATION

This part fits the:

Rear

Lower Tailgate

Right-Hand Side

On a UK vehicle:

RH = Right Hand

O/S = Offside

Driver Side

The corresponding opposite-side component is:

BHF780050 – Left-Hand Lower Tailgate Stay

Therefore:

BHF780040 = RH / O/S

BHF780050 = LH / N/S

These should not be confused when ordering.

TECHNICAL INFORMATION

The Discovery 4 uses a distinctive split rear tailgate, consisting of an upper opening section and a lower fold-down tailgate.

The BHF780040 stay assembly forms part of the lower-tailgate support system.

Its functions include:

• Supporting the lower tailgate when open

• Controlling downward tailgate movement

• Limiting lower-tailgate travel

• Maintaining the correct opening position

• Supporting the weight/load acting through the lower tailgate

• Helping maintain correct tailgate alignment

• Reducing excessive load on associated hinges and mounting points

• Allowing controlled opening and closing of the lower section

The internal cable/reel arrangement allows the stay to operate compactly while providing the required support when the tailgate is lowered.

LOWER TAILGATE SYSTEM INFORMATION

The Discovery 4 lower tailgate system incorporates several separate components, including:

• RH Lower Tailgate Stay – BHF780040

• LH Lower Tailgate Stay – BHF780050

• Lower tailgate hinges

• Tailgate pivots

• Stay mounting plates

• Lower tailgate latch/locking system

• Release mechanism

• Wiring where applicable

• Lower tailgate structure

• Upper tailgate assembly

Land Rover’s parts catalogue lists BHF780040 and BHF780050 together within the Luggage Compartment Door / Door and Fixings assembly, confirming their respective RH and LH positions.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• Broken tailgate support cable

• Frayed cable

• Cable pulling out of the reel

• Damaged reel mechanism

• Lower tailgate dropping too far

• Tailgate not being supported correctly

• Uneven lower-tailgate support

• Excessive movement when opened

• Bent or damaged stay assembly

• Seized mechanism

• Corrosion

• Damaged mounting points

• Accident or impact damage

• Damage caused by excessive load on the open tailgate

If one side has failed, the opposite-side stay should also be inspected for wear.

IMPORTANT DIAGNOSTIC INFORMATION

Before replacing the stay assembly, inspect:

• RH BHF780040 stay/cable

• LH BHF780050 stay/cable

• Cable condition

• Reel operation

• Lower tailgate hinges

• Stay mounting points

• Tailgate alignment

• Tailgate latch operation

• Lower-tailgate structure

• Associated mounting hardware

If the lower tailgate sits unevenly when open, inspect both RH and LH stays rather than assuming only one component is responsible.

PART NUMBER INFORMATION

Current Land Rover OE number:

BHF780040

Land Rover lists the supersession sequence as:

BHF780021

↓

BHF780022

↓

BHF780040

Therefore BHF780040 is the later/current replacement number in this RH lower-tailgate stay family.

This supersession is documented by specialist Land Rover parts catalogues.

OPPOSITE-SIDE PART INFORMATION

The corresponding left-hand assembly is:

BHF780050

Land Rover lists its supersession sequence as:

BHF780030

↓

BHF780031

↓

BHF780032

↓

BHF780050

For buyers:

BHF780040 = RIGHT / RH / O/S

BHF780050 = LEFT / LH / N/S

MODEL / ENGINE INFORMATION

This component is a body/tailgate part and is not engine-specific.

It can therefore be fitted to compatible Discovery 4 vehicles regardless of engine where the corresponding split-tailgate system is installed.

This includes selected:

• 2.7 TDV6

• 3.0 TDV6

• 3.0 SDV6

• Petrol applications depending on market

The important compatibility factors are vehicle generation, VIN/production range, tailgate design and part number, rather than engine size.

2010 DISCOVERY 4 APPLICATION

For your donor vehicle:

Vehicle: Land Rover Discovery 4

Platform: L319

Year: 2010

Position: Rear Lower Tailgate

Side: Right / O/S

Part: Lower Tailgate Cable Stay / Reel Assembly

OE Number: BHF780040

Land Rover catalogue data lists Discovery 4 fitment from VIN AA000001, making the 2010 Discovery 4 a directly supported application.

INSTALLATION

Installation should be carried out according to the appropriate Land Rover workshop procedure.

During replacement:

• Support the lower tailgate securely before removing the stay

• Do not rely on the remaining cable to support the tailgate

• Compare the replacement with the original

• Confirm RH orientation

• Inspect mounting points

• Inspect the opposite LH stay

• Check the lower-tailgate hinges

• Install the stay securely

• Use the correct mounting hardware

• Tighten fasteners to Land Rover specifications

• Carefully test the opening movement

• Confirm the tailgate stops at the correct position

• Check that both sides support the tailgate evenly

The lower tailgate should be physically supported during removal and installation because removing a stay changes how the tailgate’s weight is supported.

PROGRAMMING / CODING

Programming Required: No

Coding Required: No

BHF780040 is a mechanical tailgate support component and does not require electronic programming or vehicle configuration after installation.

Once correctly installed, the mechanism operates mechanically with the lower tailgate.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

BHF780040

Also check:

• RH / Right-Hand position

• Lower tailgate application

• Vehicle model

• Vehicle year

• VIN / production date

• Original part number

• Cable/reel design

• Mounting points

• Bracket configuration

• Overall dimensions

• Listing photographs

Known superseded RH numbers:

BHF780021

BHF780022

Current/replacement number:

BHF780040

For Discovery 4:

Verified fitment: 2010-2016, from VIN AA000001

For the safest replacement, compare BHF780040 directly with the original RH lower-tailgate stay assembly.

CONDITION

Used Genuine Land Rover / JLR Part.

Normal cosmetic marks, scratches, surface dirt and signs of previous installation may be present.

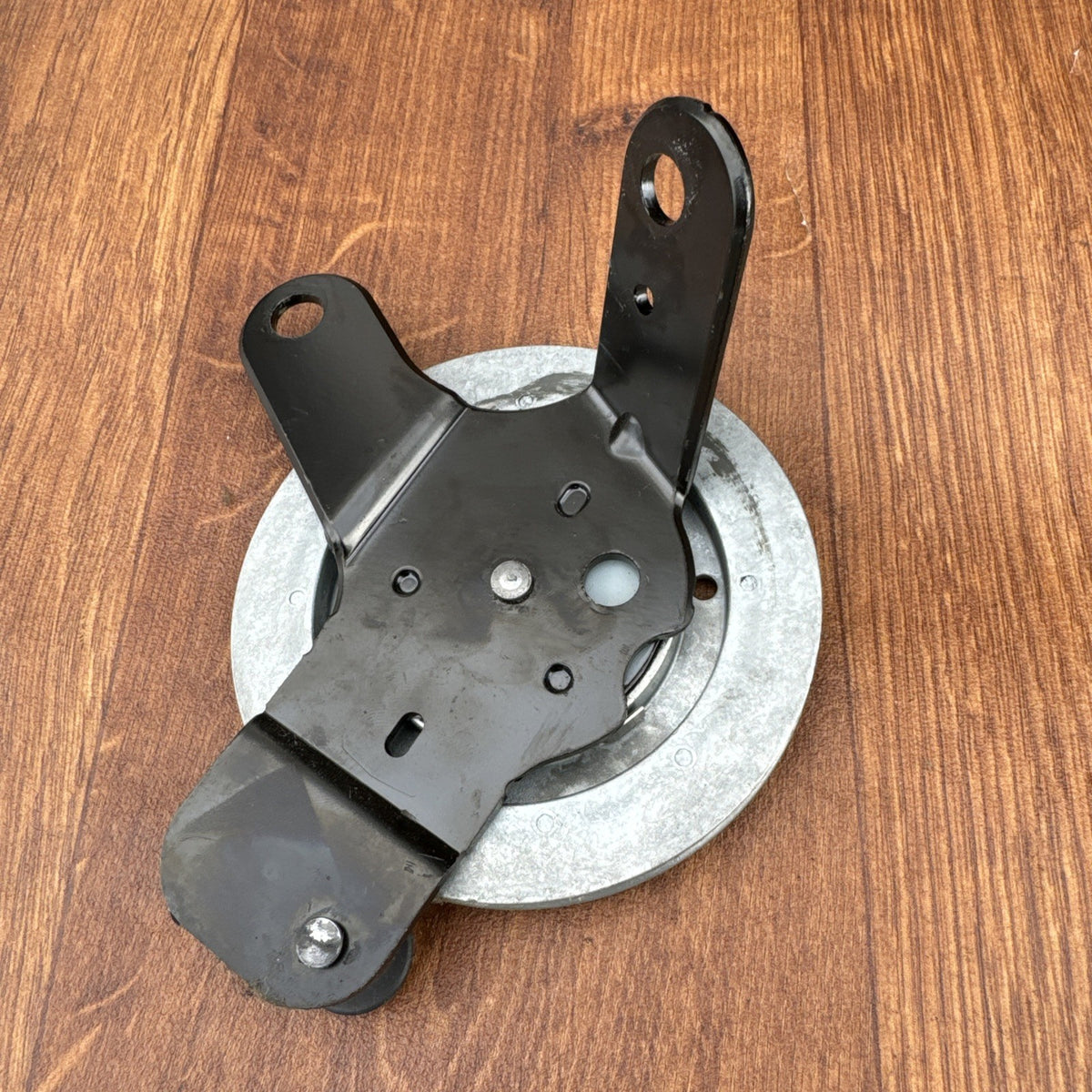

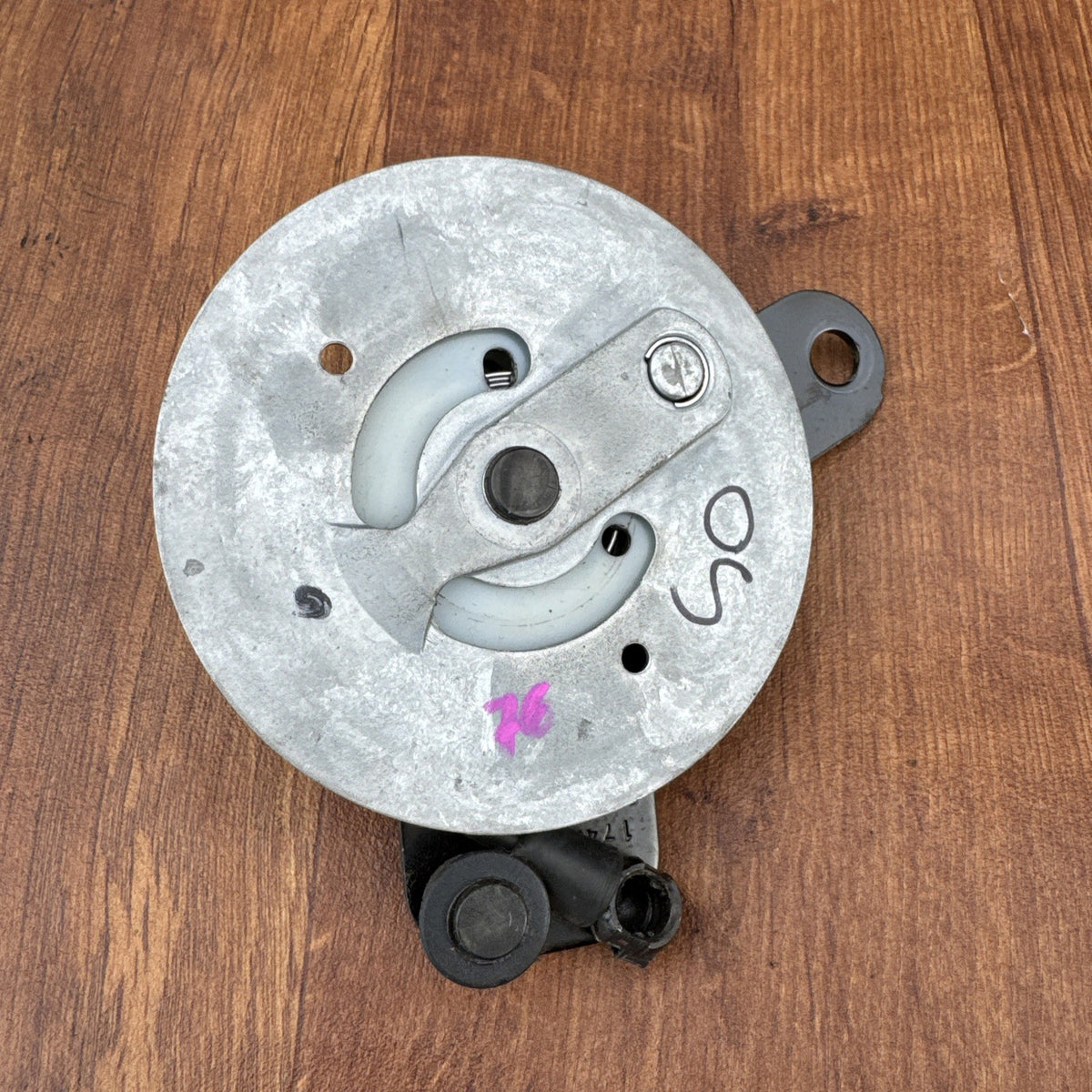

As this is a used mechanical tailgate component, please inspect the listing photographs carefully for the cable condition, reel mechanism, mounting points, brackets and overall condition.

Ideal genuine Land Rover replacement right-hand / O/S lower tailgate cable stay and support reel assembly for a compatible Discovery 4 L319 or late Discovery 3.
