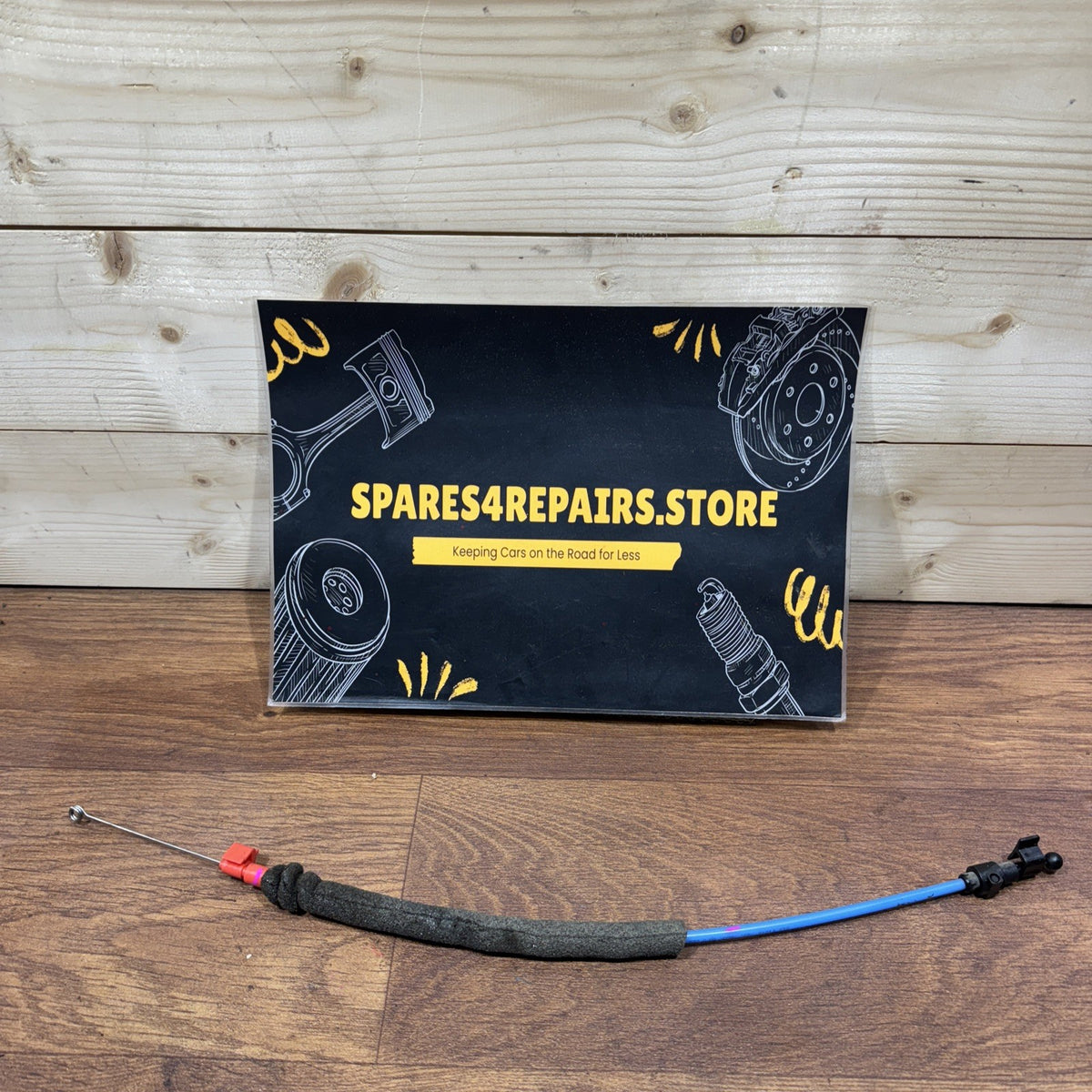

Genuine VW T5 Solid Core Heater Control Cable Replacement Part 7H2819837C OEM

#85

Genuine Volkswagen Transporter T5 / T5.1 heater temperature-control flap cable, part number 7H2819837C, for selected right-hand-drive (RHD) vehicles.

This mechanical heater-control cable connects the dashboard heater control mechanism to the temperature-control flap within the HVAC/heater system. Moving the temperature dial transfers movement through the cable to adjust the heater flap between cold and warm-air positions.

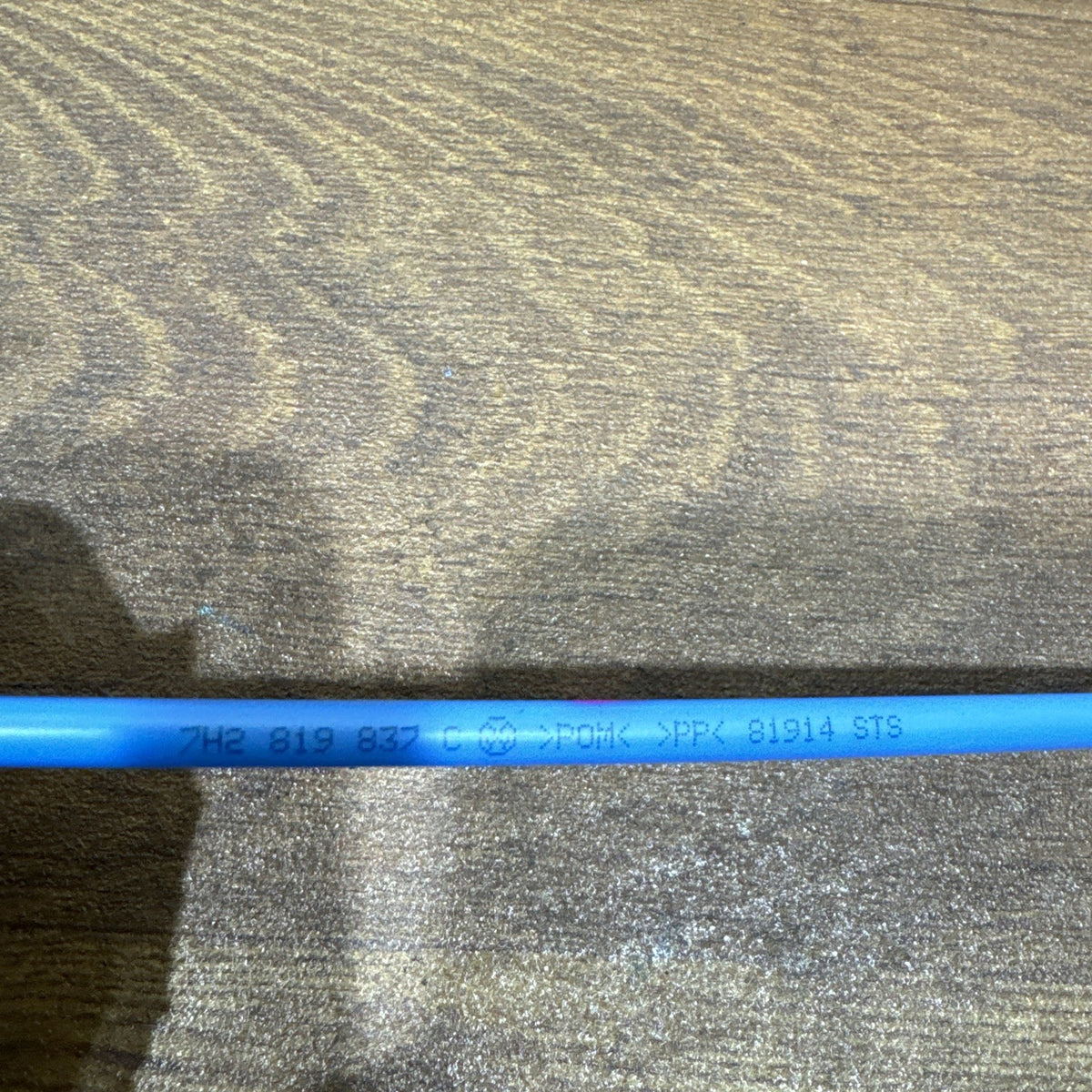

Part Number: 7H2819837C

VW OE Number: 7H2 819 837 C

Part Type: Heater Temperature Control Cable / Temperature Flap Cable / Bowden Cable

System: Heating / Ventilation / HVAC

Function: Hot & Cold Temperature Adjustment

Vehicle Configuration: Right-Hand Drive – RHD

UK Application: Yes – selected UK vehicles

Manufacturer: Volkswagen / VAG

Condition: Genuine OEM replacement part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Transporter T5.1 / T5 GP – 2010–2015

* Volkswagen Caravelle T5 / T5.1

* Volkswagen Multivan T5 / T5.1

* Volkswagen California T5 / T5.1

* Volkswagen Shuttle

* Transporter Panel Van

* Kombi

* Minibus / passenger versions

* Camper conversions retaining the corresponding factory heater controls

The 7H2819837C OE reference is documented throughout the Transporter T5/T5.1 generation.

Compatibility is determined mainly by the dashboard/heater-control and RHD HVAC configuration, rather than engine size.

Important – Temperature Control Cable

This cable controls the TEMPERATURE FLAP – HOT/COLD adjustment.

It should not be confused with:

7H2819833C – Footwell Air Distribution Flap Cable

The two cables perform different functions within the heater system.

7H2819837C

→ Controls temperature / hot-to-cold adjustment

7H2819833C

→ Controls footwell air-distribution flap

Matching the OE number is therefore important when diagnosing a heater-control problem.

Technical Information

The manually controlled Transporter heater system uses mechanical Bowden-type cables to transfer movement from the dashboard controls to flaps within the heater/HVAC housing.

When the temperature dial is rotated:

1. The dashboard control moves the inner cable.

2. The cable slides within its outer sheath.

3. Movement is transferred to the temperature-flap mechanism.

4. The flap changes position inside the heater housing.

5. Airflow through/across the heating section is adjusted.

6. Cabin outlet temperature changes accordingly.

Correct cable movement is therefore necessary for full adjustment between cold and warm settings.

Solid-Core Cable Information

This type of replacement is commonly described as a solid-core heater-control cable.

The solid inner cable transfers the mechanical movement required to operate the heater flap.

The cable must remain:

* Straight where required

* Correctly routed

* Securely retained

* Free from kinks

* Properly connected at both ends

A bent or incorrectly routed cable can dramatically increase resistance at the dashboard control.

Heater Temperature Control System

The cable works together with components including:

* Dashboard heater-control panel

* Temperature adjustment dial

* Control-cable mounting points

* Cable retaining clips

* Heater-box temperature flap

* Flap operating lever

* Heater matrix

* Blower motor

* Air-distribution system

A fault in any part of this mechanism can result in incorrect cabin temperature control.

Common Symptoms / Reasons for Replacement

Typical symptoms of a damaged temperature-control cable include:

* Temperature dial difficult to turn

* Heater control becoming stiff

* Temperature dial jammed

* Cable bent or kinked

* Cable snapped

* Cable stretched

* Broken cable end

* Damaged retaining clip

* Heater permanently blowing hot

* Heater permanently blowing cold

* Limited temperature adjustment

* Temperature dial moves but air temperature does not change

* Unable to reach full hot position

* Unable to reach full cold position

A cable problem can sometimes be mistaken for a fault with the complete heater-control panel.

Stiff Temperature Dial

If the heater temperature dial becomes unusually stiff, do not continue forcing it.

Possible causes include:

* Kinked control cable

* Bent inner cable

* Incorrect cable routing

* Cable sheath incorrectly secured

* Seized/stiff heater flap

* Damaged flap lever

* Incorrectly fitted cable

* Damaged dashboard control mechanism

Forcing a stiff control can potentially damage the heater-control panel or cable attachment points.

Important Diagnostic Information

Before replacing 7H2819837C, inspect the complete temperature-control mechanism.

Check:

* Temperature control dial

* Cable attachment at control panel

* Inner cable

* Outer sheath

* Retaining clips

* Cable routing

* Heater-box connection

* Temperature-flap lever

* Temperature flap itself

If possible, disconnect the cable and carefully check movement of the flap and dashboard control separately.

This can help identify whether the resistance is caused by the cable, control panel or heater flap.

Heater Permanently Hot or Cold

If the heater remains permanently hot or cold despite moving the dashboard temperature control, possible causes include:

* Disconnected cable

* Snapped cable

* Bent cable

* Cable end detached

* Broken retaining clip

* Temperature flap stuck

* Flap lever damaged

* Heater-control mechanism damaged

The cable should visibly transfer movement from the dashboard control to the heater flap.

Important Cable Routing Information

Correct routing is particularly important with mechanical heater cables.

The replacement should follow the original factory path.

Avoid:

* Tight bends

* Sharp turns

* Kinks

* Twisting

* Crushing the outer sheath

* Routing against sharp edges

Incorrect routing can make even a new cable feel excessively stiff.

Installation

Before installation:

* Compare 7H2819837C with the original

* Compare cable length

* Compare both end fittings

* Check retaining clips

* Check the heater flap moves freely

* Check the dashboard control mechanism

During installation:

* Route the cable through the original path

* Connect the heater-box end correctly

* Connect the dashboard-control end

* Fully secure the outer sheath

* Fit retaining clips correctly

* Avoid bending or kinking the cable

Do not fully reassemble the dashboard until correct heater operation has been confirmed.

Testing After Installation

After fitting:

1. Turn the temperature dial slowly towards cold.

2. Confirm smooth cable movement.

3. Turn the control towards hot.

4. Confirm full movement of the heater flap.

5. Check that the control reaches both end positions.

6. Run the heater/blower.

7. Confirm the outlet temperature changes correctly.

The control should move smoothly without excessive force.

Programming / Coding

No programming or coding is required.

This is a purely mechanical HVAC control component.

Once correctly installed and adjusted, it operates directly from the dashboard heater controls.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H2819837C

* 7H2 819 837 C

* RHD configuration

* Cable length

* Solid inner cable

* End fittings

* Retaining clips

* Dashboard heater-control type

* Heater/HVAC configuration

* Vehicle production date

Do not confuse this temperature cable with the 7H2819833C footwell flap cable or other heater-control cables fitted to the T5.

Compatibility is not determined by engine size.

Matching 7H2819837C directly against the original heater-control cable is strongly recommended.

Condition

Genuine Volkswagen OEM heater-control cable / replacement component.

Please inspect all listing photographs carefully for the exact condition and specification of the item supplied, particularly the:

* Inner cable

* Outer sheath

* Cable ends

* Retaining clips

* Attachment points

* OE part number

Only the cable and associated components clearly shown in the listing photographs are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a snapped, stretched, bent, kinked or seized Volkswagen Transporter T5 / T5.1 RHD heater temperature-control flap cable, provided 7H2819837C / 7H2 819 837 C matches the original component.
