LAND ROVER DISCOVERY 4 2010 Front Right Seat Control Motor H011764

#77

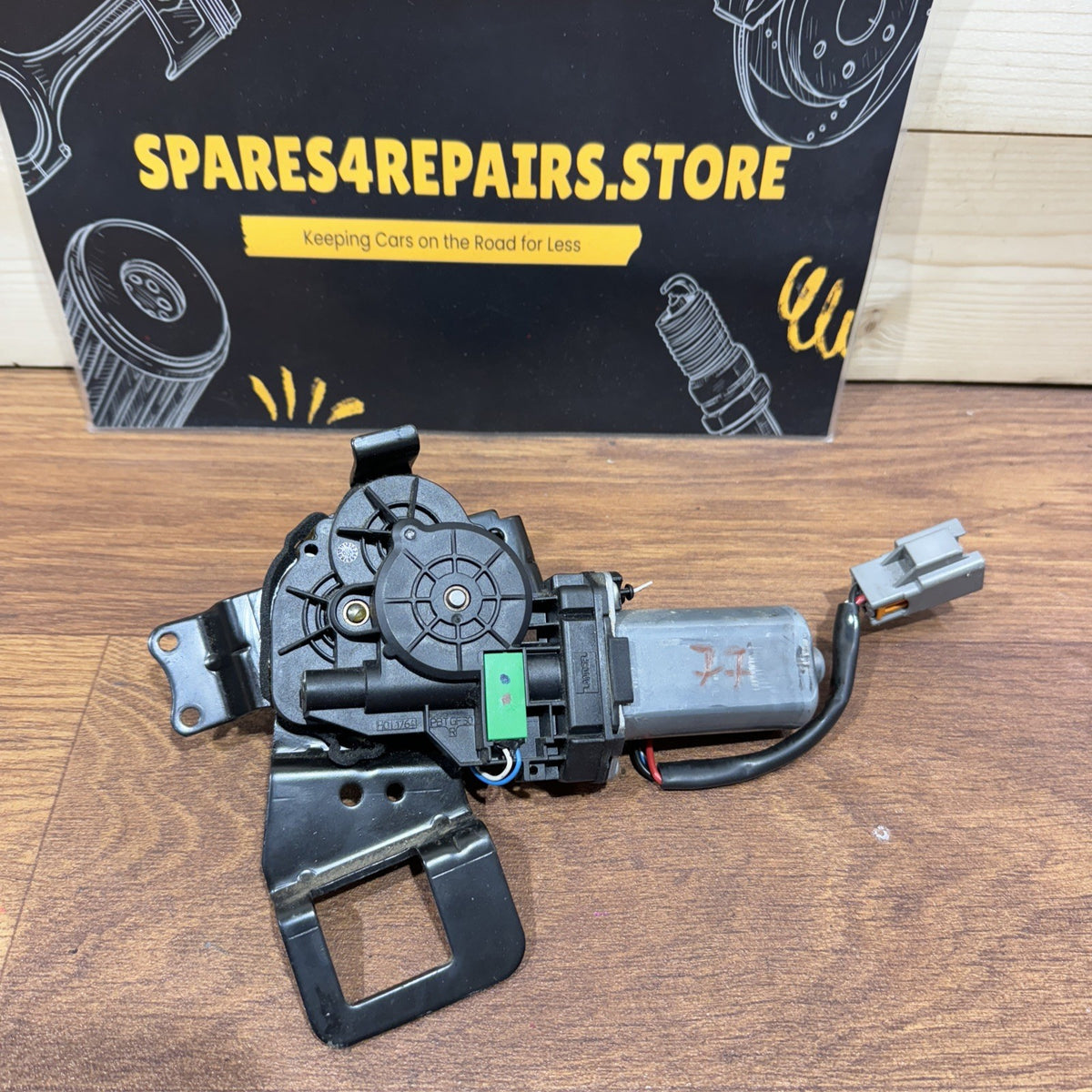

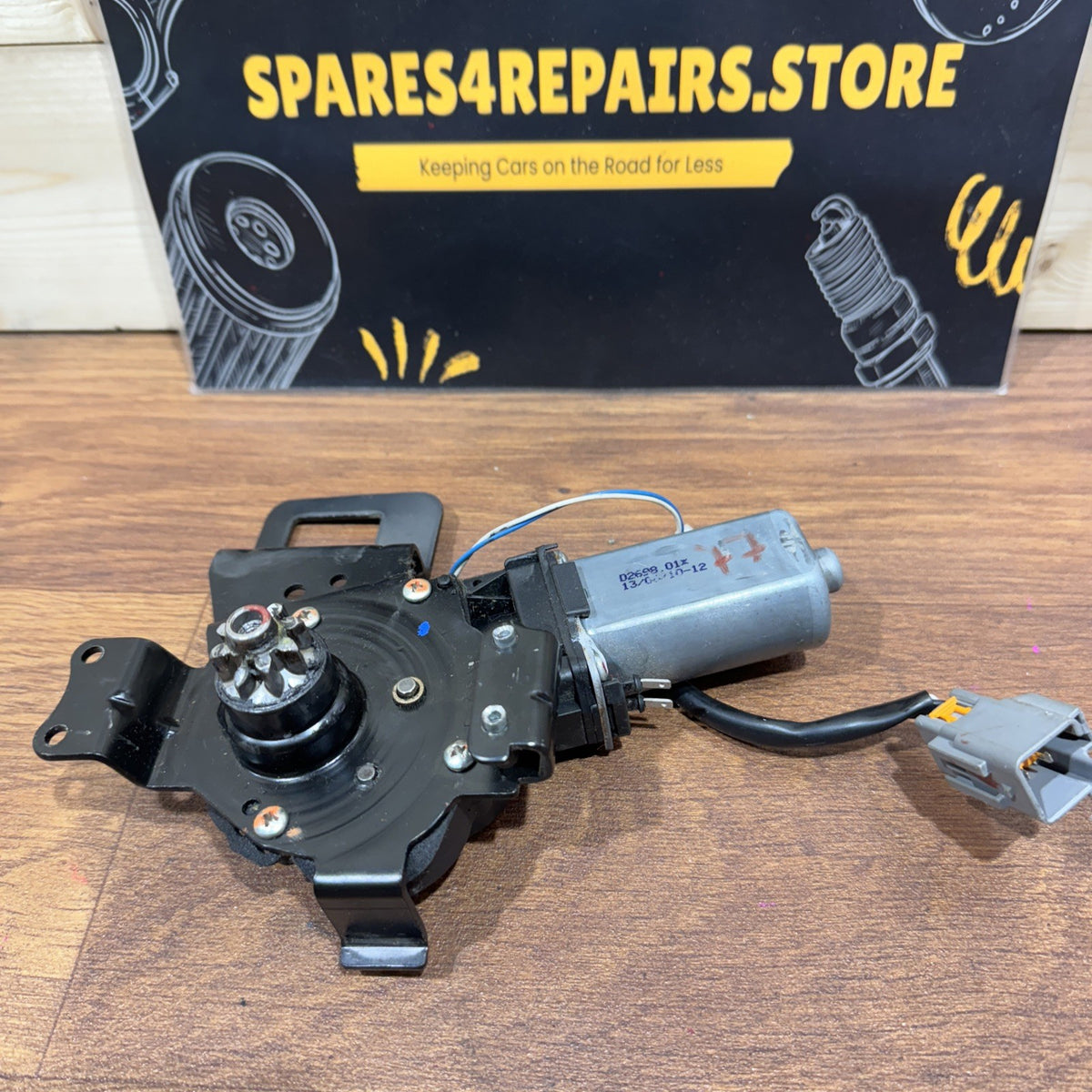

GENUINE LAND ROVER DISCOVERY 4 L319 FRONT RIGHT DRIVER SEAT ADJUSTMENT MOTOR H011764

Genuine used Land Rover electric front seat adjustment / control motor, removed from a 2010 Land Rover Discovery 4 L319 RHD.

This motor forms part of the electrically adjustable front seat mechanism and operates one of the powered seat adjustment functions.

Part Number: H011764

Associated Numbers: 320887 / 0269801 / 320889 – depending on motor version

Part Type: Electric Seat Adjustment Motor / Seat Control Motor

Position: Front Right Seat

Vehicle Side: O/S – Offside

UK RHD Position: Driver Side

System/Application: Electric Front Seat Adjustment System

Manufacturer: OEM

Condition: Genuine used part

DONOR VEHICLE

Land Rover Discovery 4

Chassis: L319

Year: 2010

Steering: RHD – Right-Hand Drive

Position Removed From: Front Right / Driver Seat

COMPATIBILITY

Suitable for applicable Land Rover Discovery 4 L319 vehicles equipped with the corresponding electric seat mechanism and matching H011764 motor.

The H011764 motor family is additionally documented on other Land Rover applications, including:

• Range Rover Sport L320

• Land Rover Discovery 3 / LR3 – certain seat applications

• Range Rover L322 – certain seat applications

H011764 with 320887 is specifically documented on RHD Range Rover Sport L320 applications, including 3.0 diesel vehicles.

Compatibility is determined primarily by the motor number, electrical connector, drive connection and seat mechanism, rather than vehicle engine size.

TECHNICAL INFORMATION

Electrically adjustable Land Rover front seats contain several motors, each responsible for operating part of the seat adjustment mechanism.

The motor converts electrical power into mechanical movement through the seat’s drive mechanism.

It operates together with components including:

• Seat adjustment switches

• Seat wiring harness

• Seat control module where fitted

• Seat drive cables / shafts

• Seat adjustment gearbox

• Seat frame and rail mechanisms

• Memory-seat system where equipped

IMPORTANT MOTOR FUNCTION INFORMATION

H011764 confirms the motor family but does not, by itself, reliably identify the exact adjustment direction across every Land Rover seat application.

For this reason, this listing does not incorrectly describe the motor specifically as a:

• Height motor

• Forward/backward motor

• Seat tilt motor

• Backrest motor

Please identify the replacement using the original motor number and physical drive arrangement.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

• One electric seat adjustment function stops working

• Seat moves in some directions but not others

• Motor does not operate when switch is pressed

• Intermittent seat movement

• Motor making abnormal noises

• Seat becomes stuck in one position

• Internal motor/gearbox failure

• Replacement required during electric seat repair

IMPORTANT DIAGNOSTIC INFORMATION

A seat that does not move does not automatically indicate a faulty motor.

Before replacing the motor, check:

• Seat fuse and power supply

• Seat wiring harness

• Electrical connectors

• Seat adjustment switch

• Seat control ECU/module

• Motor power supply

• Drive cables / shafts

• Seat gearbox

• Seat rails for mechanical obstruction

If the motor can be heard operating but the seat does not move, carefully inspect the associated drive cable and adjustment mechanism.

INSTALLATION

Installation requires access to the electric seat frame and adjustment mechanism.

Depending on the motor’s mounting position, removal or partial disassembly of the front seat may be required.

Disconnect the vehicle battery according to Land Rover workshop procedures before disconnecting the front seat.

The seat contains SRS / airbag and occupant-restraint electrical components, so correct safety procedures should always be followed.

Professional installation is recommended.

PROGRAMMING / CODING

The electric adjustment motor itself would normally not require programming or coding.

Vehicles equipped with memory seats may require the seat system to be checked or initialised after repairs, depending on the components that have been disconnected or replaced.

IMPORTANT COMPATIBILITY NOTE

Please match the number on your original motor:

H011764

Also compare any additional numbers present on the unit, including:

320887

0269801

320889

Most importantly, compare:

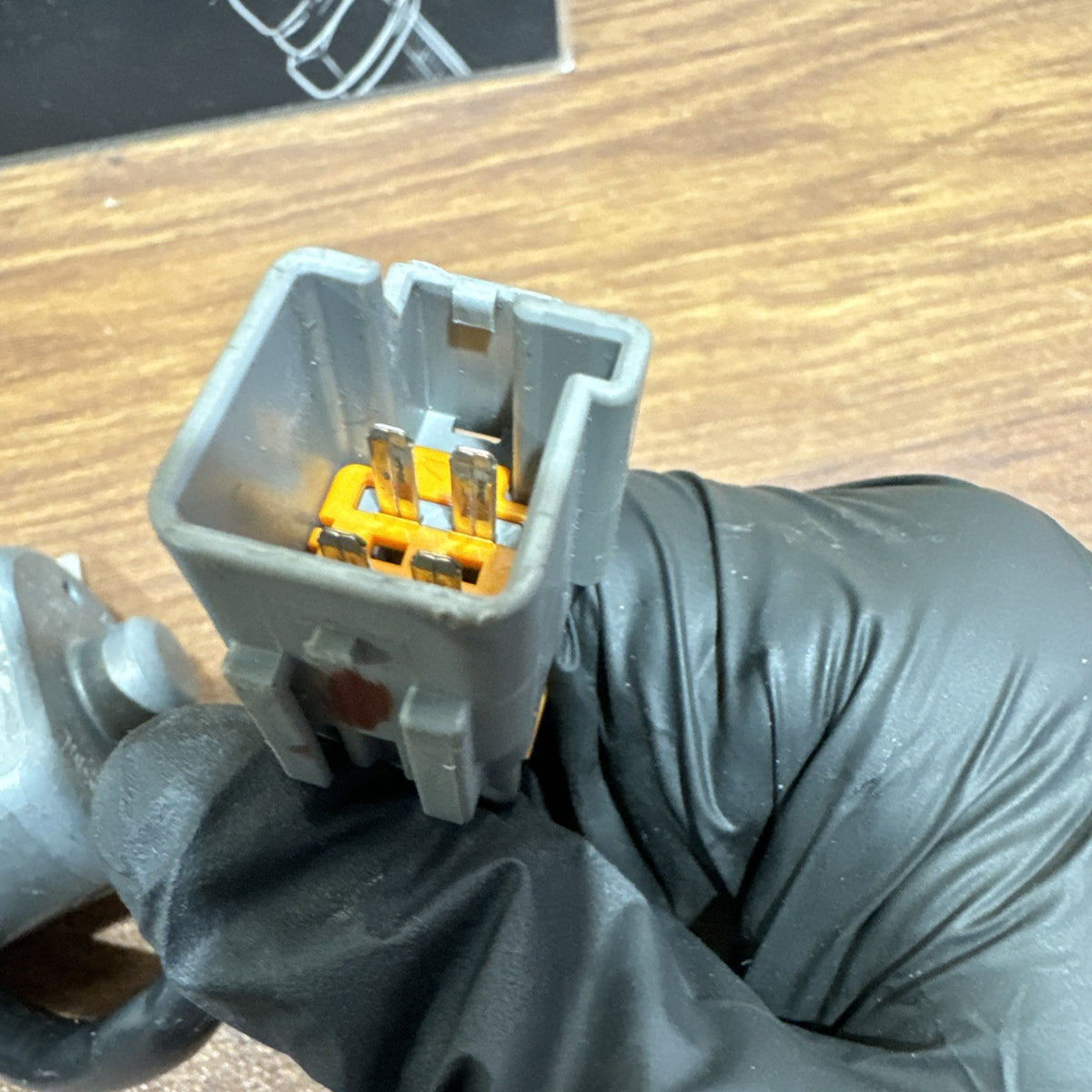

• Electrical connector

• Motor casing

• Mounting points

• Drive shaft / cable connection

• Gearbox arrangement

• Physical position within the seat

Several different electric motors can be installed within the same Discovery 4 front seat and may look very similar.

Do not purchase solely because your vehicle is a 2010 Discovery 4. Match H011764 and the physical motor configuration with your original part.

CONDITION

Genuine used Land Rover OEM seat adjustment motor.

Removed from a 2010 Land Rover Discovery 4 L319 RHD front right / driver’s seat.

May have normal cosmetic marks consistent with previous use, storage and removal.

Please inspect all listing photographs carefully and compare the H011764 number, connector, drive connection and mounting arrangement with your existing motor before ordering.

Ideal genuine replacement for a faulty or damaged Land Rover Discovery 4 L319 front right O/S driver’s electric seat adjustment motor.
