land rover discovery 4 2010 l319 3rd row left NS seat leather Upholstery

#20

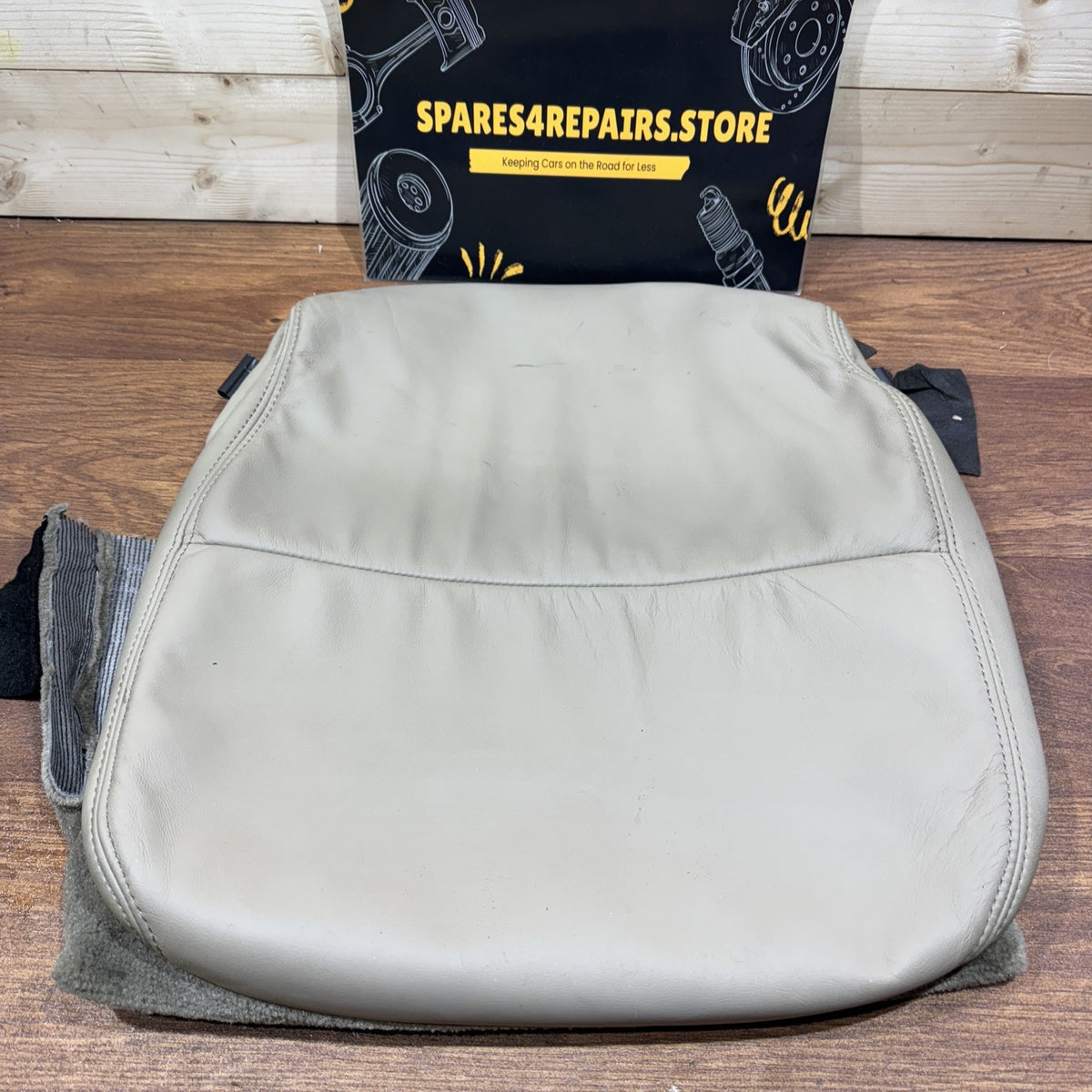

Genuine Land Rover Discovery 4 L319 3rd Row Left N/S Leather Seat – 2010

Genuine Land Rover/JLR used third-row left-hand leather passenger seat assembly, suitable for selected Land Rover Discovery 4 L319 7-seat models.

This is the folding third-row / rearmost left-hand seat, located in the rear luggage compartment area. On a UK right-hand-drive Discovery 4 this corresponds to the N/S / nearside / passenger-side third-row seat.

Part Type: Third Row Folding Rear Seat / Leather Seat Assembly

Position: Third Row / Row 3 / Rearmost Seat

Vehicle Side: Left / LH / N/S – Passenger Side on UK RHD vehicles

Upholstery: Leather

Seat Configuration: 7 Seat

Vehicle Platform: Discovery 4 L319

Donor Application: 2010 Land Rover Discovery 4 L319

Manufacturer: Land Rover / JLR

Condition: Used Genuine Land Rover Part

COMPATIBILITY

Land Rover Discovery 4 – L319

Verified JLR catalogue applications include:

• Discovery 4 L319 – 2010-2016

• 2010 model directly applicable

• From VIN AA000001 for the Discovery 4 range

• 7-seat configuration

• Third-row / Row 3 seating

• Left-hand third-row position

• UK RHD: N/S / passenger side

• Leather-equipped vehicles

• Petrol and diesel models where the corresponding 7-seat interior is fitted

The official JLR parts catalogue specifically lists separate:

LH – Left-Hand

and

RH – Right-Hand

third-row seat upholstery components for the Discovery 4 L319 7-seat configuration.

This confirms that the third-row seat and upholstery components are side-specific. (Jaguar Land Rover Classic Parts)

7-SEAT / THIRD-ROW INFORMATION

This seat is specifically intended for a:

7-SEAT DISCOVERY 4

The Discovery 4 seating arrangement consists of:

• Front driver and passenger seats

• Second-row seating

• Two individual folding third-row seats

The third-row seats fold into the rear load-floor area when not required, allowing the luggage compartment to provide a flatter loading surface.

This item is for the:

THIRD ROW

LEFT-HAND SEAT

N/S / PASSENGER SIDE

It should not be confused with a second-row seat or the opposite RH third-row seat.

TECHNICAL INFORMATION

The Discovery 4 third-row seating system was designed to provide additional passenger capacity while allowing the rear seats to fold away when extra luggage space is required.

The LH third-row seat assembly incorporates components associated with:

• Passenger seating support

• Folding seat operation

• Seat cushion

• Seat backrest

• Leather upholstery

• Seat frame

• Folding/pivot mechanism

• Seat mounting points

• Associated trim depending on specification

The seat is designed specifically around the Discovery 4’s rear floor and seven-seat interior configuration.

LEATHER UPHOLSTERY INFORMATION

The Discovery 4 was available with several different interior upholstery specifications.

JLR’s catalogue confirms third-row seats were available with combinations including:

• Ebony Black leather

• Almond leather

• Oxford/Windsor leather depending on specification

• Taurus leather depending on specification

• Other colour and trim combinations on later vehicles

Therefore, “leather” alone is not enough to guarantee an exact colour or trim match.

The buyer should compare the upholstery:

• Colour

• Leather grain

• Stitching colour

• Seat-panel design

• Production year

• Interior trim specification

with their original seat.

2010 LEATHER SEAT INFORMATION

For early Discovery 4 vehicles beginning from VIN AA000001, the JLR catalogue documents several different third-row leather specifications.

For example, the catalogue distinguishes:

Ebony Black / Ebony Black Interior – Leather Seat Fabric

and:

Almond – Leather Seat Fabric

as well as higher-specification leather options.

The individual OE numbers change according to:

• LH or RH position

• Leather type

• Interior colour

• Contrast stitching

• VIN range

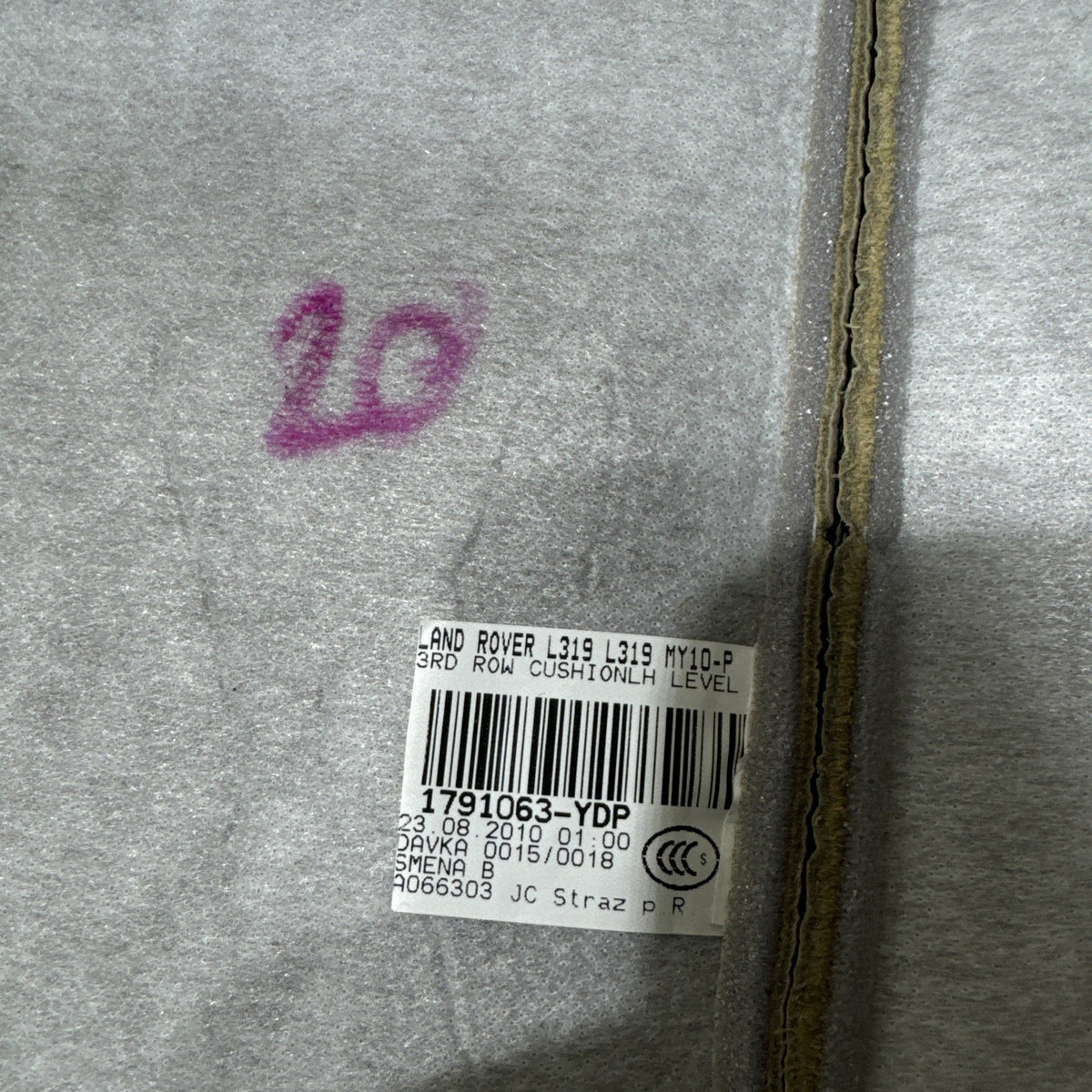

For this reason, an OE upholstery number should not be assigned to this complete used seat without checking the identification label and exact trim colour. (Jaguar Land Rover Classic Parts)

THIRD-ROW SEAT SYSTEM INFORMATION

The third-row seating system includes several separate components, such as:

• LH third-row folding seat

• RH third-row folding seat

• Seat cushion

• Seat backrest

• Leather seat covers

• LH and RH headrests

• Folding mechanisms

• Seat frame

• Mounting hardware

• Third-row seat belts

• Seat belt buckles

• Associated luggage-area trim

These components work together to provide the Discovery 4’s seven-seat configuration.

FOLDING SEAT OPERATION

The third-row seat is designed to fold into the rear load-floor area when not in use.

Correct operation requires the:

• Seat frame

• Hinges/pivots

• Folding mechanism

• Release mechanism

• Seat cushion

• Backrest

• Mounting points

to operate correctly.

When purchasing a used seat, the buyer should confirm whether the listing includes the complete folding mechanism and associated hardware, as shown in the listing photographs.

COMMON REASONS FOR REPLACEMENT

Replacement may be required due to:

• Damaged leather upholstery

• Torn leather

• Excessive leather wear

• Scratches or cuts

• Permanent staining

• Damaged stitching

• Damaged seat cushion

• Collapsed or damaged foam

• Damaged seat frame

• Folding mechanism failure

• Bent mounting components

• Broken trim

• Accident damage

• Water or moisture damage

• Interior restoration

• 7-seat interior repair or replacement

A complete used seat can also be useful where several individual seat components have become damaged.

IMPORTANT CONDITION CHECKS

Before installation, inspect:

• Leather condition

• Stitching

• Seat cushion

• Seat backrest

• Foam condition

• Seat frame

• Folding mechanism

• Hinges and pivots

• Release mechanism

• Mounting points

• Plastic trim

• Signs of corrosion

• Signs of water damage

• Evidence of accident damage

The folding mechanism should move correctly without excessive stiffness, play or damage.

LEFT / RIGHT IDENTIFICATION

This item is the:

LEFT-HAND THIRD-ROW SEAT

For a UK right-hand-drive Discovery 4:

LH = Left Hand

N/S = Nearside

Passenger Side

Therefore:

LH / N/S = Passenger-Side Third Row

The opposite seat is:

RH / O/S = Driver-Side Third Row

The official JLR catalogue lists separate LH and RH third-row seat covers and headrests, so buyers should select the correct side. (Jaguar Land Rover Classic Parts)

ENGINE COMPATIBILITY

The third-row seat is not engine-specific.

It may therefore be suitable for compatible Discovery 4 L319 7-seat vehicles equipped with engines such as:

• 2.7 TDV6

• 3.0 TDV6

• 3.0 SDV6

• Petrol engines offered in other markets

Engine size is useful for identifying the donor vehicle but should not be used as the primary compatibility check.

The important factors are:

• 7-seat configuration

• Vehicle generation

• Production year/VIN

• LH third-row position

• Upholstery type

• Interior colour

• Seat design

• Mounting arrangement

2010 DISCOVERY 4 APPLICATION

For your item:

Vehicle: Land Rover Discovery 4

Platform: L319

Year: 2010

Seat Configuration: 7 Seat

Position: Third Row / Row 3

Side: Left / LH / N/S

UK Position: Passenger Side

Upholstery: Leather

The official JLR catalogue confirms LH third-row leather seat components from the AA VIN range used for the 2010 Discovery 4. (Jaguar Land Rover Classic Parts)

PART NUMBER INFORMATION

Exact complete-seat OE number: Not confirmed from the information supplied.

This is important because Land Rover uses different numbers for individual third-row components according to:

• LH or RH side

• Seat cushion

• Seat backrest

• Headrest

• Leather type

• Upholstery colour

• Stitching specification

• VIN range

For example, JLR’s catalogue separately identifies LH seat cushion covers, LH backrest covers and LH headrests, with different numbers for Ebony, Almond and other leather specifications. (Jaguar Land Rover Classic Parts)

Therefore, the safest approach for this complete used seat is to advertise it by:

Discovery 4 L319 + 2010 + Third Row + LH/N/S + Leather

unless an identification label provides a confirmed complete-seat number.

INSTALLATION

Installation should be performed according to the appropriate Land Rover workshop procedure.

During installation:

• Confirm LH / N/S position

• Confirm 7-seat vehicle configuration

• Compare the replacement seat with the original

• Compare mounting points

• Check the seat frame

• Inspect folding mechanisms

• Inspect mounting hardware

• Position the seat correctly

• Secure all mounting points correctly

• Tighten fasteners to Land Rover specifications

• Check folding and unfolding operation

• Confirm the seat locks securely in its passenger position

• Check surrounding trim

• Confirm third-row seat belt routing and operation

Correct mounting is particularly important because the seat forms part of the vehicle’s passenger seating and restraint environment.

PROGRAMMING / CODING

Programming Required: No

Coding Required: No

The standard Discovery 4 third-row folding seat is mechanically operated and does not normally require electronic programming or coding after installation.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

• Land Rover Discovery 4 L319

• Vehicle year / VIN

• 7-seat configuration

• Third-row / Row 3 position

• Left / LH / N/S side

• Leather upholstery type

• Leather colour

• Stitching colour

• Seat-panel pattern

• Seat frame design

• Folding mechanism

• Mounting points

• Headrest specification if included

• Listing photographs

Do not rely solely on “Discovery 4 leather seat” when ordering.

Land Rover offered multiple leather colours and specifications, and JLR lists different LH third-row upholstery components according to VIN, colour and leather type.

For the safest replacement, compare the complete seat, upholstery pattern and mounting arrangement directly with the original.

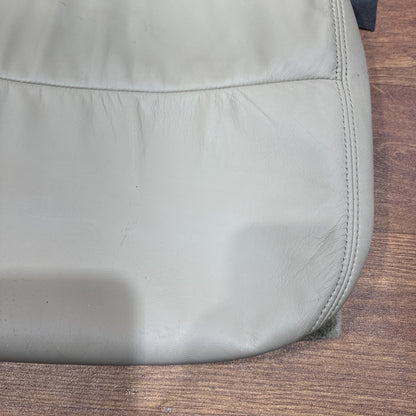

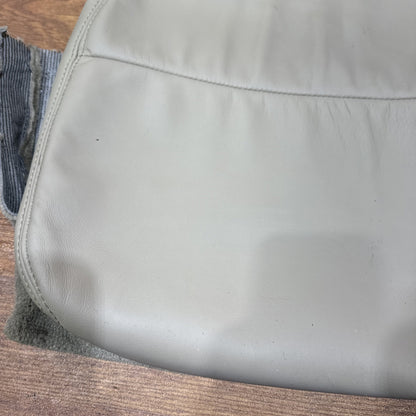

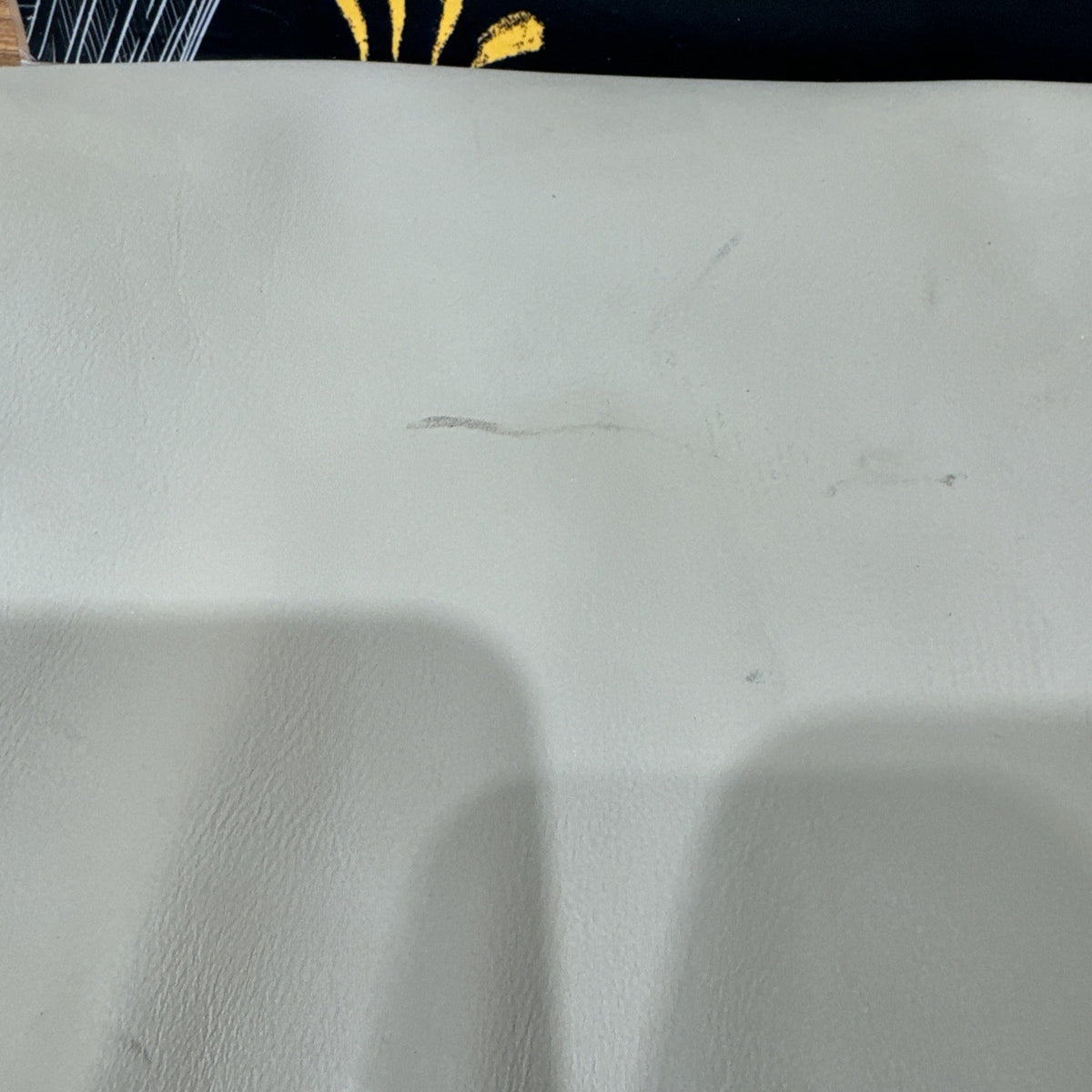

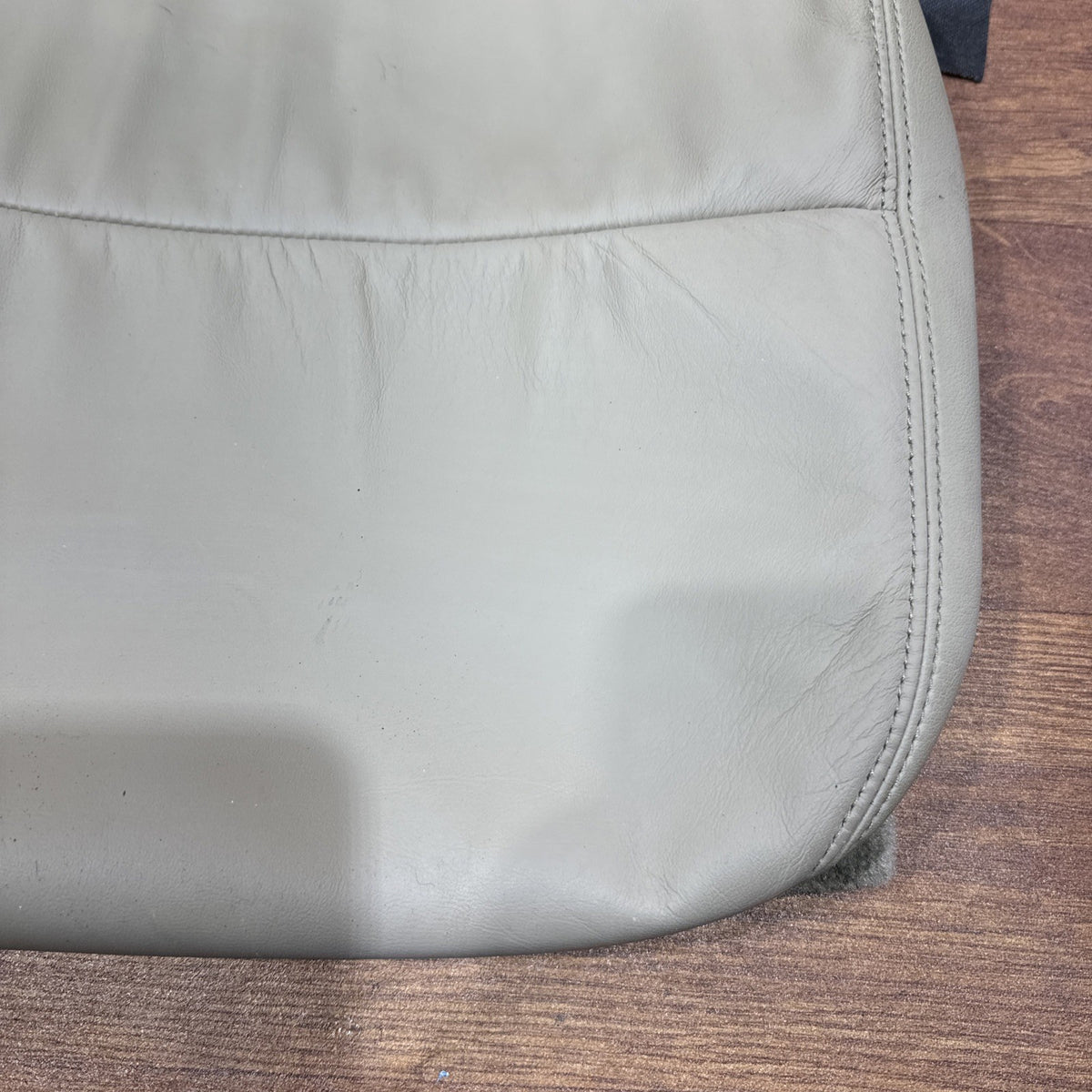

CONDITION

Used Genuine Land Rover / JLR Leather Seat.

As a used interior component, normal signs of previous use may be present, including:

• Light leather creasing

• Surface marks

• Small scratches

• General age-related wear

• Marks to plastic or metal components

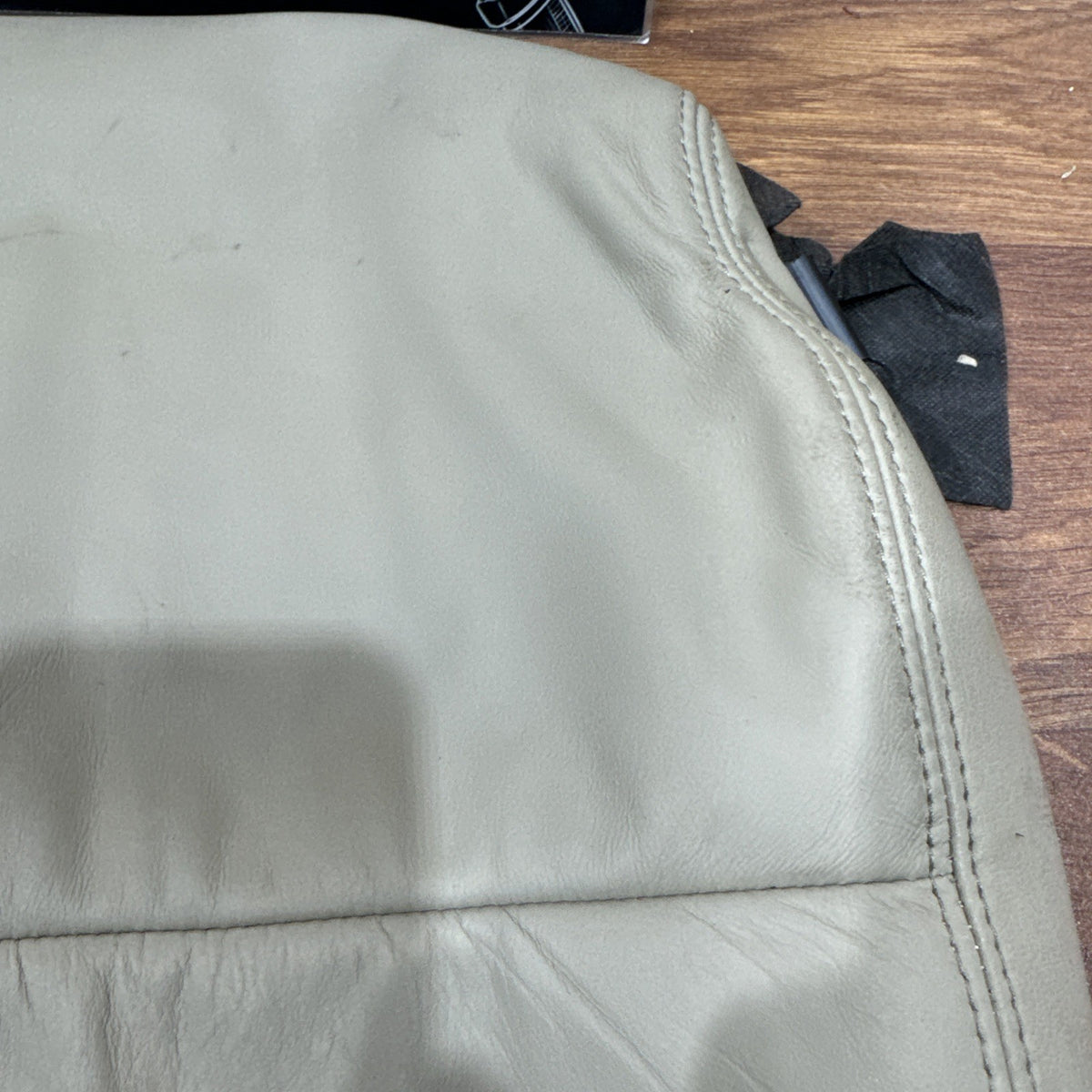

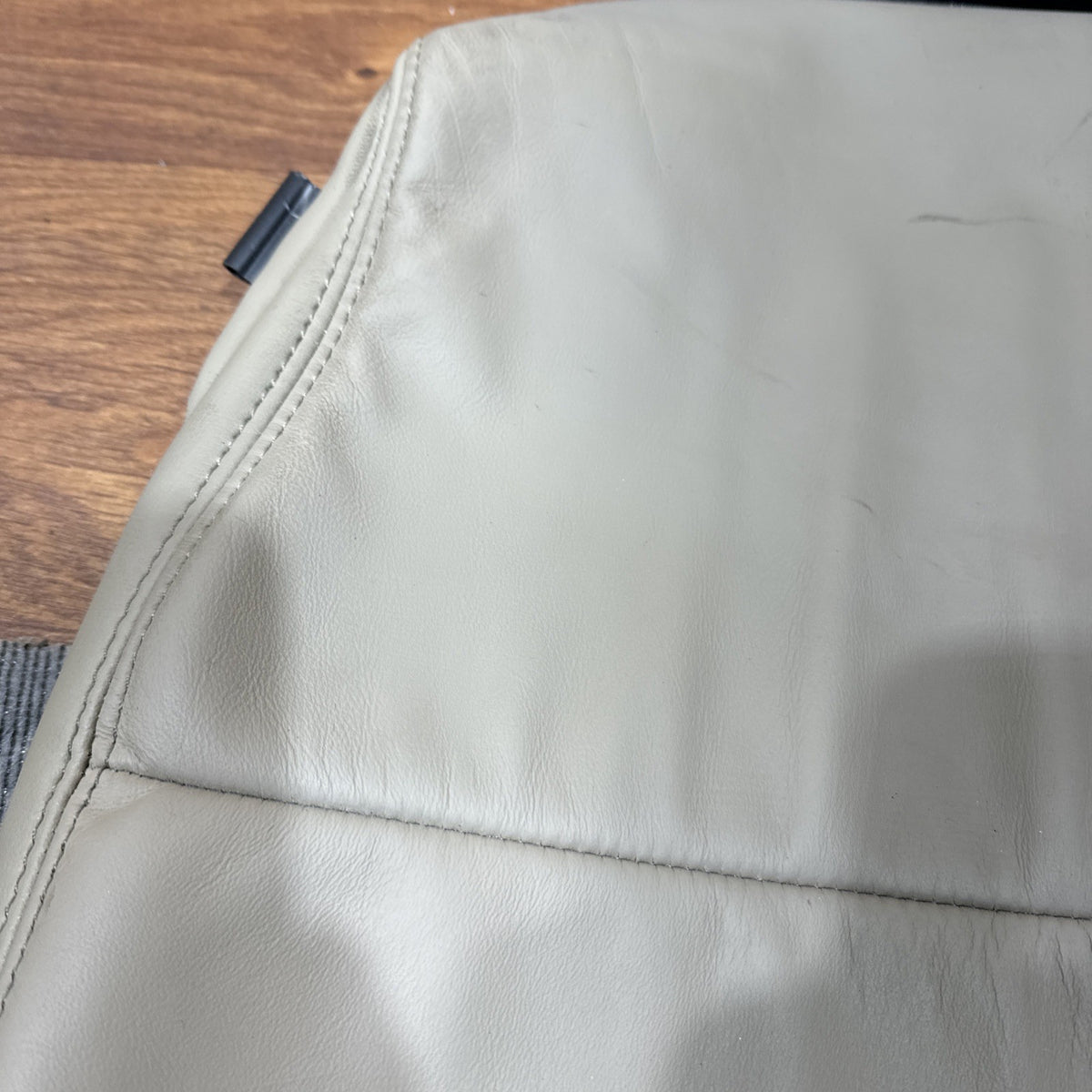

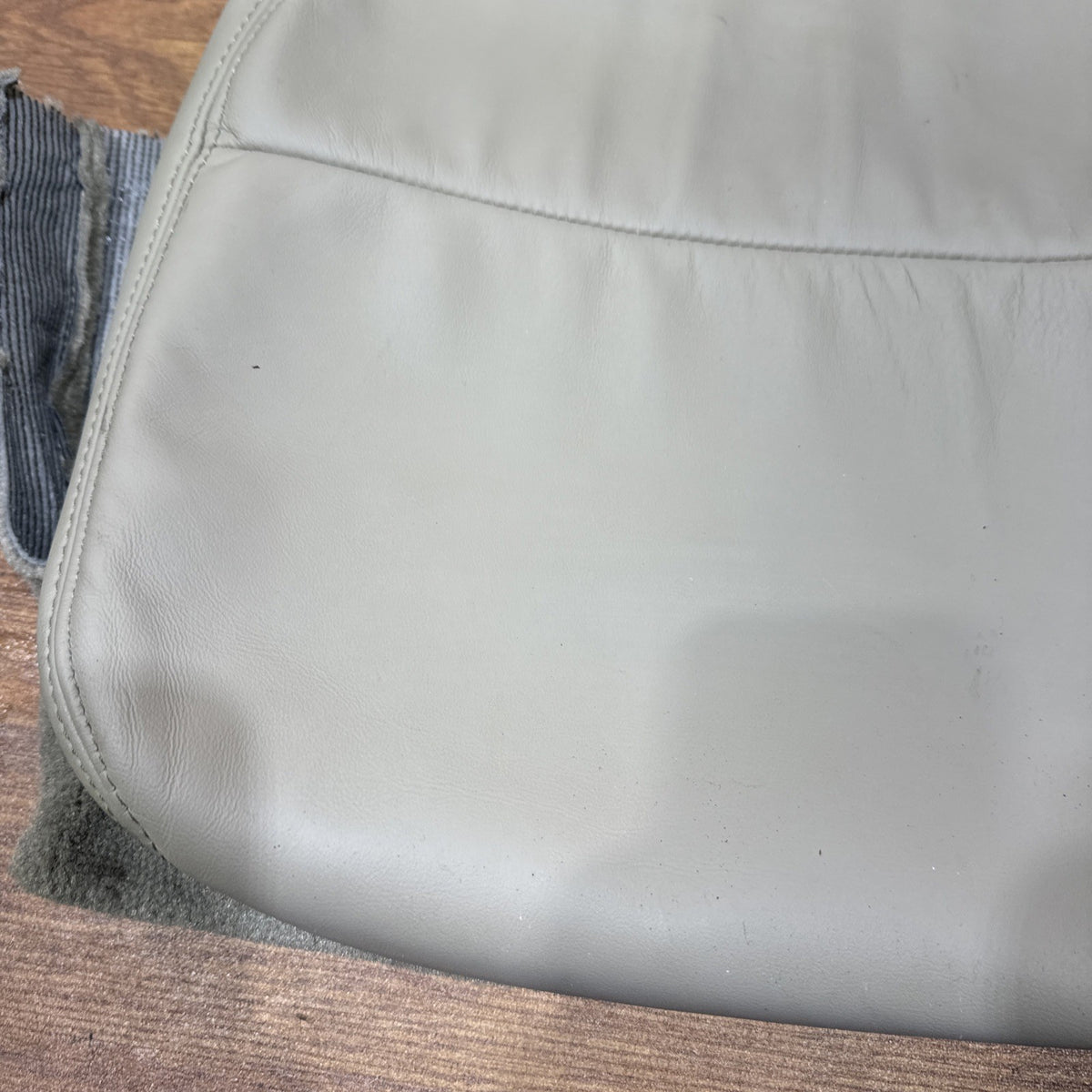

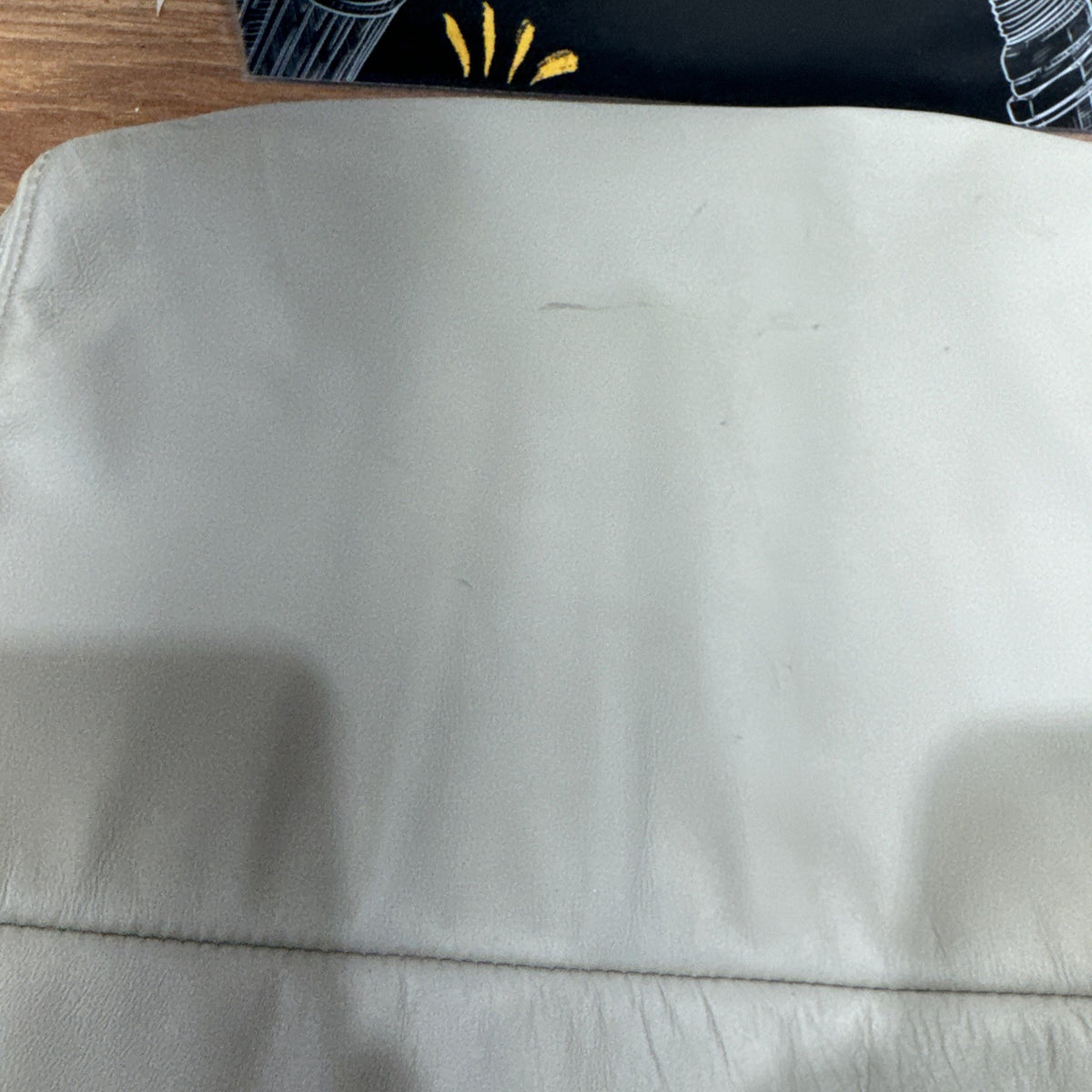

Please inspect all listing photographs carefully for the exact leather colour, stitching, upholstery condition, seat frame, folding mechanism, mounting points and overall condition.

Ideal genuine Land Rover replacement third-row left LH/N/S passenger-side leather folding seat for a compatible Discovery 4 L319 7-seat model.
