GENUINE LAND ROVER DISCOVERY 4 L319 2ND ROW RIGHT O/S HEATED SEAT ELEMENT MAT SET – AH22-601C30-BA / AH22-600D76-BA

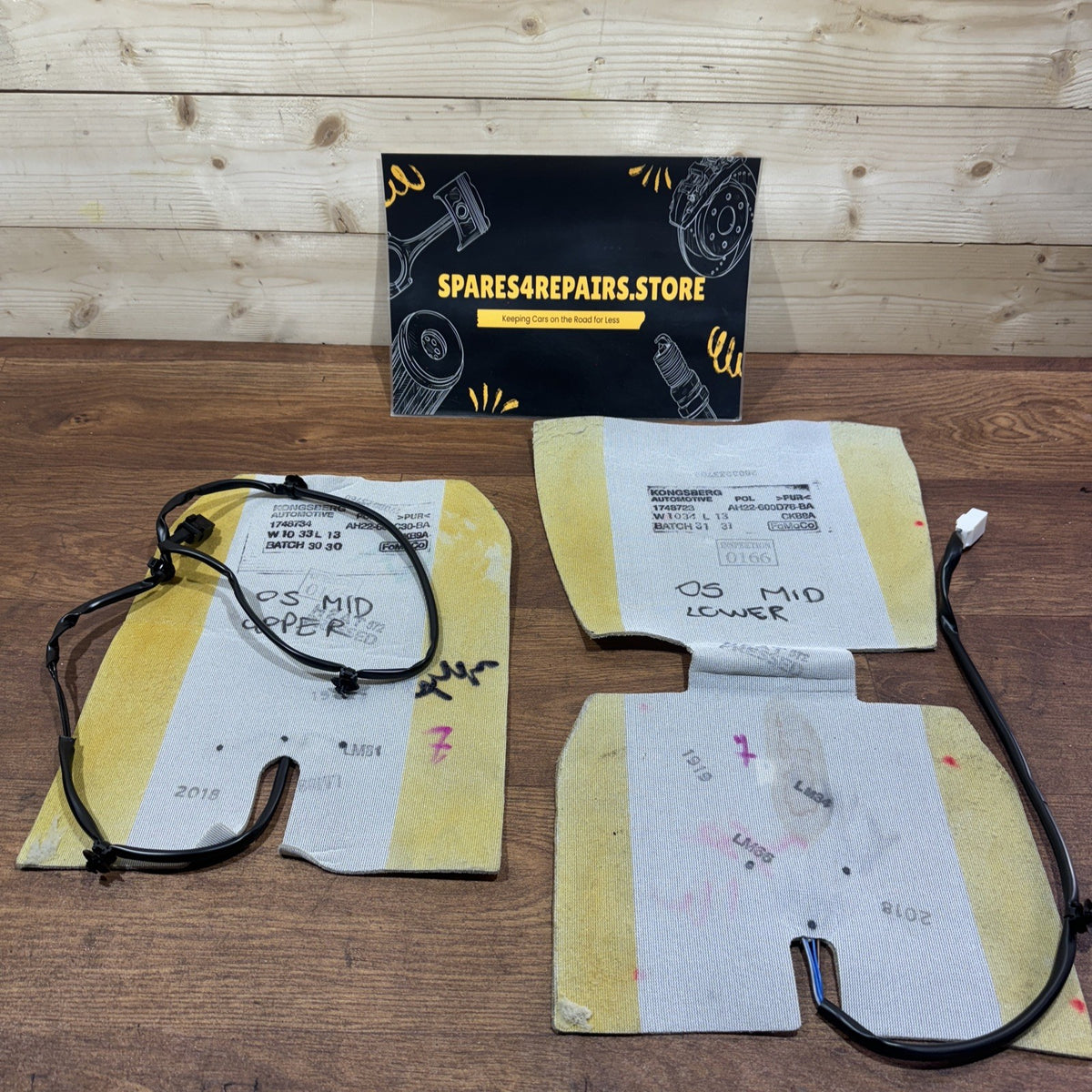

Genuine used Land Rover second / middle-row right-hand seat heating element set, removed from a 2010 Land Rover Discovery 4 L319.


This set consists of the heating elements fitted within the right-hand / O/S second-row seat upholstery, providing the electrical heating function for the rear passenger seat on vehicles equipped with heated second-row seating.

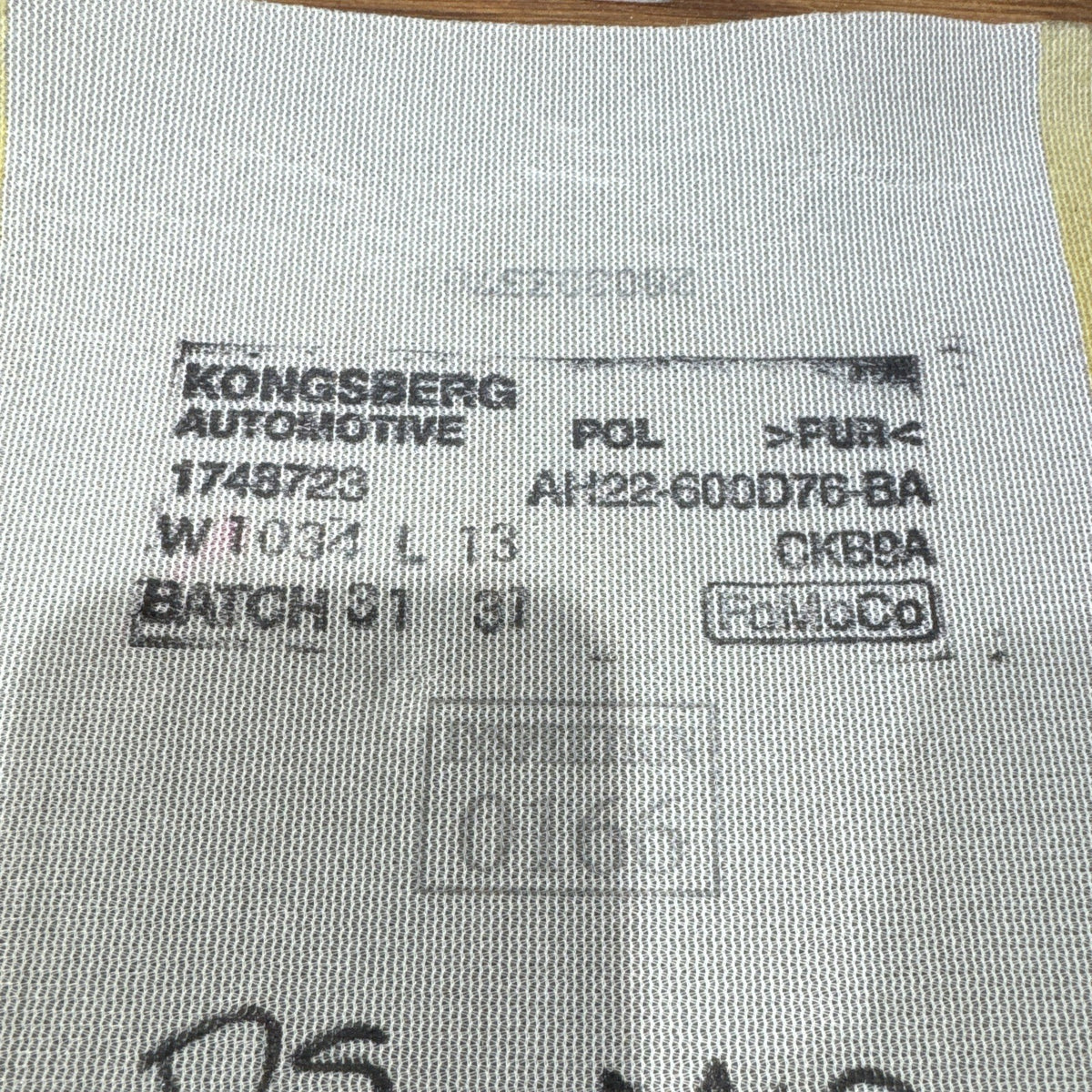

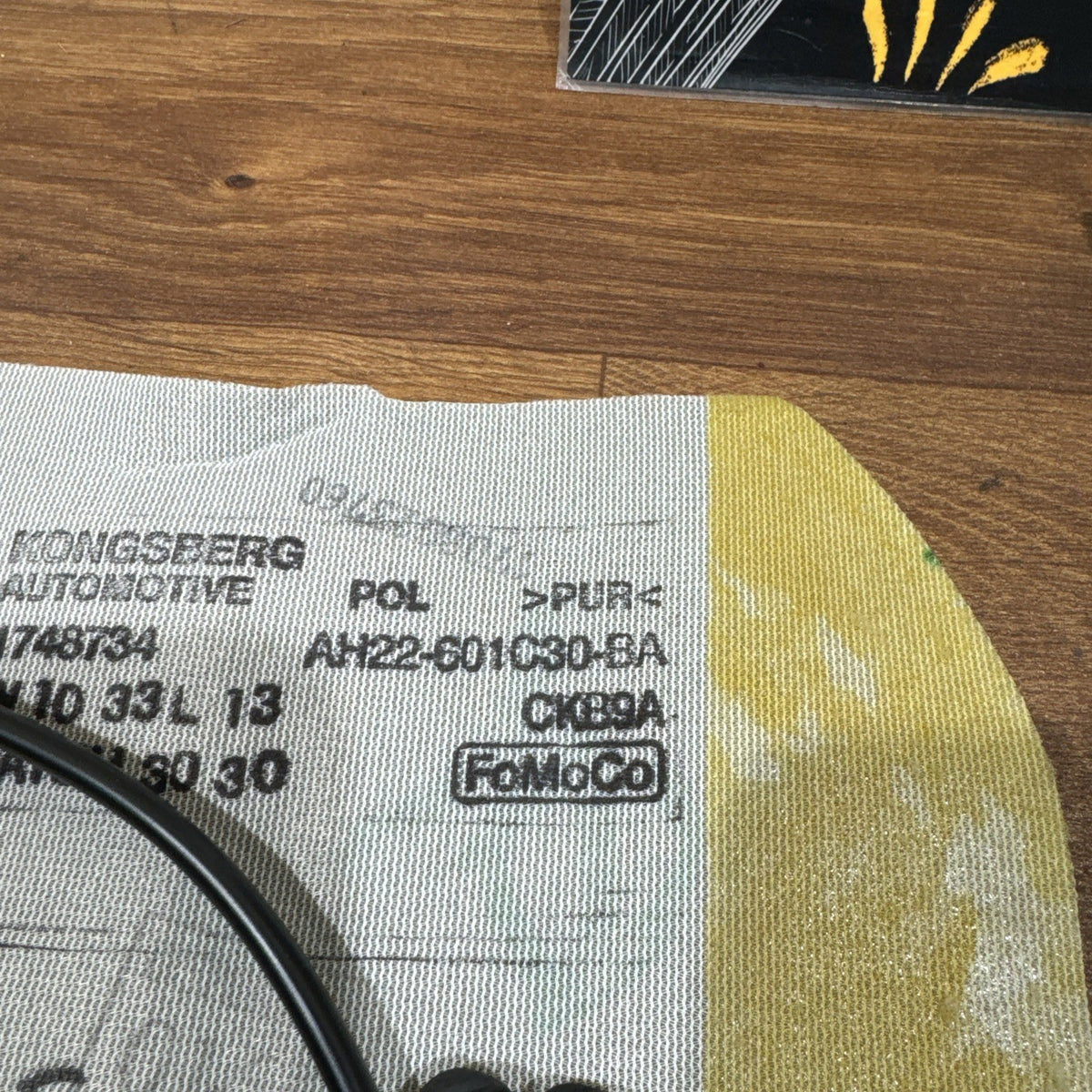

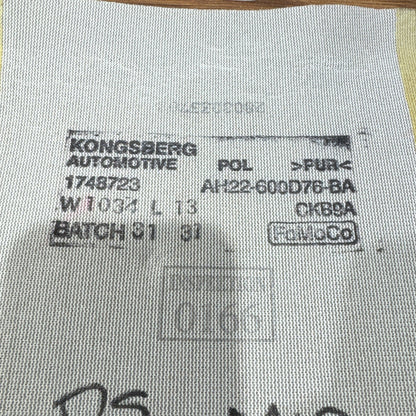

Engineering Numbers:

AH22-601C30-BA

AH22-600D76-BA


Part Type: Heated Seat Elements / Heating Mats

Position: 2nd / Middle Row

Vehicle Side: Right / O/S – UK Driver Side

System/Application: Rear Heated Seat System

Vehicle: Land Rover Discovery 4

Chassis: L319

Donor Year: 2010

Donor Engine: 3.0 TDV6 Diesel

Steering: RHD

Manufacturer: Genuine Land Rover OEM

Condition: Used


Compatibility


Confirmed donor application:


Land Rover Discovery 4 L319


* 2010

* 3.0 TDV6 Diesel

* 7-seat configuration

* Heated second-row seating

* Right-hand / O/S second-row seat


These elements may be suitable for additional Discovery 4 L319 model years using the same heated-seat configuration; however, AH22-601C30-BA and AH22-600D76-BA should be matched directly with the original components before purchase.


Land Rover used different seat specifications according to model year, trim level and equipment, so compatibility should not be determined by vehicle model alone.

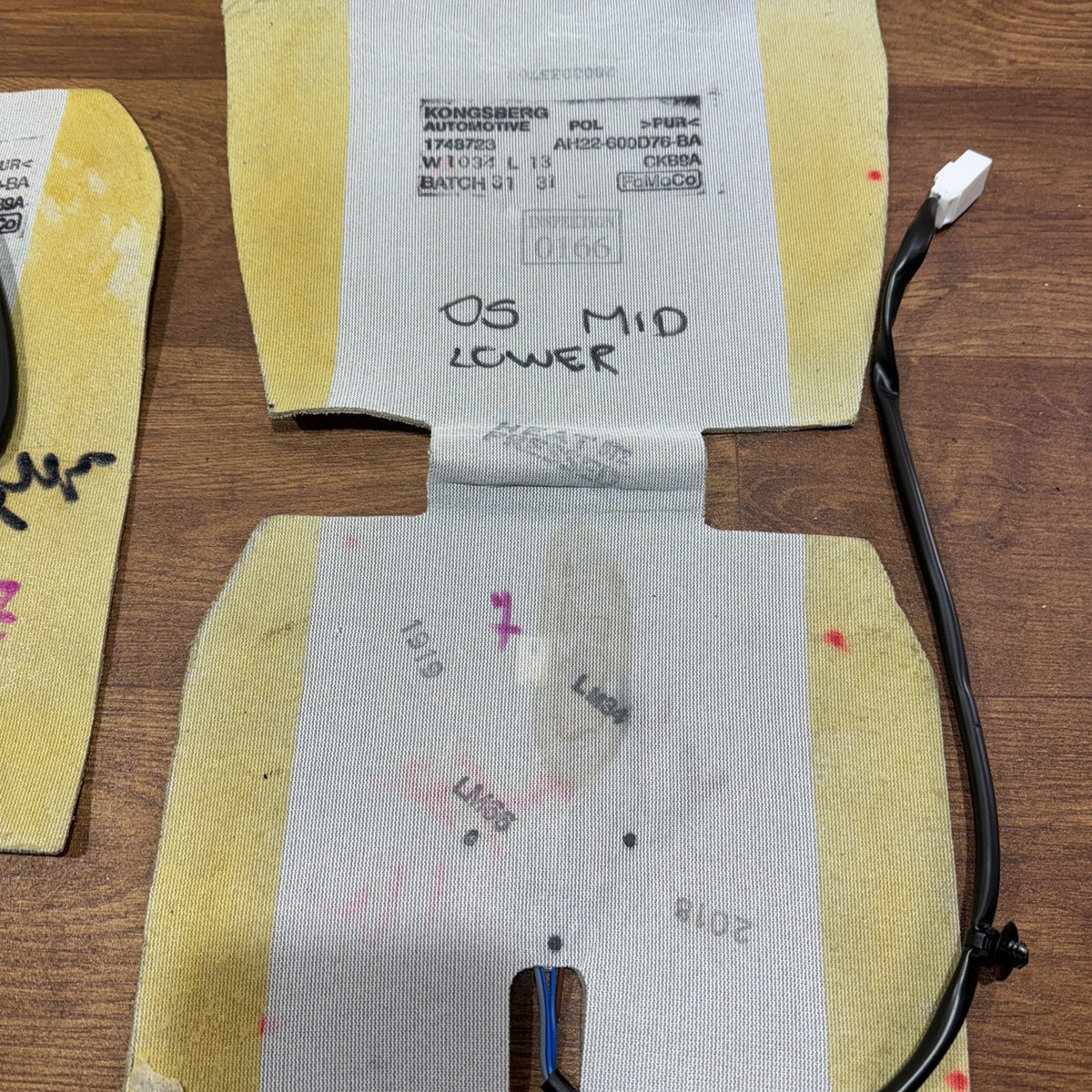

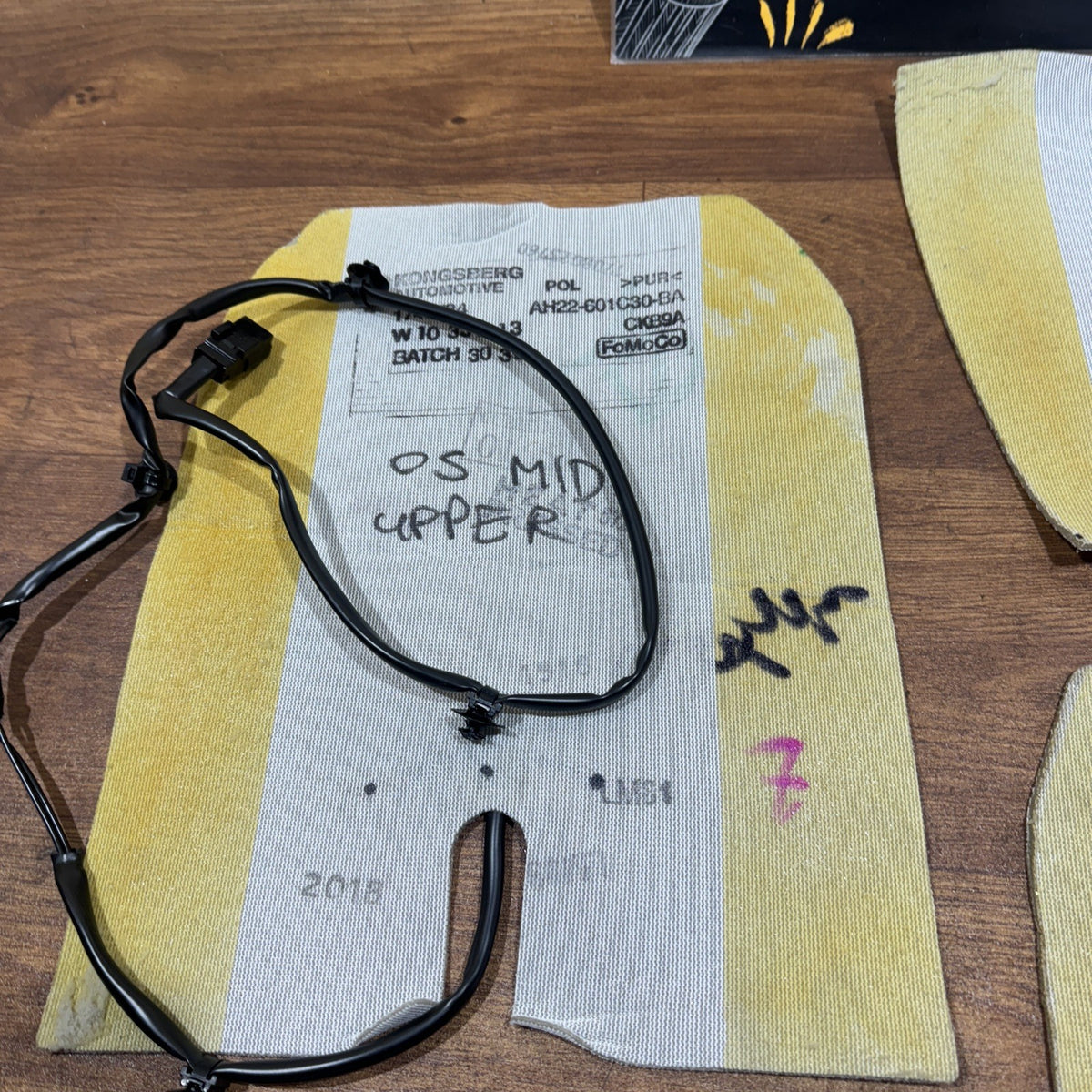

Heating Element Set


The supplied components are from the:


2nd Row → Right / O/S Seat → Heated Seat System


The two elements work as part of the seat heating arrangement and are installed underneath the seat upholstery.


Depending on the original seat construction, the heating system incorporates separate heating sections for the seat cushion and backrest.


Technical Information


Seat heating elements use electrical resistance to generate controlled heat underneath the seat upholstery.


The heating system operates together with other vehicle components, which can include:


* Heated-seat control switch

* Seat heating control module

* Seat wiring harness

* Electrical connectors

* Temperature sensing/control circuitry

* Vehicle power and earth circuits


These heating elements are therefore only one part of the complete heated-seat system.


Rear Heated Seat System Information


Discovery 4 vehicles were produced with different rear-seat specifications.


Not every Discovery 4 has heated second-row seats.


Before purchasing, check that the vehicle is equipped with the correct factory heated-seat system and compare:


* Engineering numbers

* Element dimensions

* Connector type

* Wiring arrangement

* Seat position

* Upholstery configuration

* Heating-element attachment points


Common Symptoms / Reasons for Replacement


Faulty seat heating elements can cause:


* Seat heater completely inoperative

* Cushion or backrest not heating

* Only part of the seat becoming warm

* Intermittent heating

* Heater switching off unexpectedly

* Open-circuit heating element

* Damaged element wiring

* Damaged electrical connector

* Heating element damaged during upholstery removal


Important Diagnostic Information


A non-working heated seat does not automatically mean the heating element has failed.


Before replacement, check:


* Seat heating fuse

* Power and earth supply

* Seat wiring harness

* Electrical connectors

* Heated-seat controls

* Relevant control module

* Continuity/resistance of the heating elements

* Wiring underneath and around the seat


Diagnostic fault codes should also be checked where applicable.


Installation


The heating elements are installed underneath the original seat upholstery.


Installation normally requires partial removal of the seat upholstery to correctly position and secure the elements.


Care must be taken not to:


* Fold or sharply crease the heating element

* Damage the internal heating tracks

* Trap wiring beneath the seat structure

* Damage electrical connectors

* Incorrectly route the wiring


Professional installation is recommended if you are unfamiliar with automotive seat upholstery.


Programming / Coding


The heating elements themselves do not normally require programming or coding.


If other heated-seat control components are replaced at the same time, their requirements should be checked separately.


Important Compatibility Note


Please match BOTH engineering numbers AH22-601C30-BA and AH22-600D76-BA with your original components wherever possible.


Also compare the electrical plugs, wiring, element shape and second-row right/O/S seat configuration shown in the listing photographs.


Discovery 4 seat heating components can differ according to production date, seat specification, upholstery and equipment level.


Do not purchase solely by vehicle year.


Condition


Genuine used Land Rover OEM parts.


Removed from a 2010 Land Rover Discovery 4 L319 second-row right/O/S seat.


As used components, normal signs of previous installation and removal may be present.


Please inspect all photographs carefully for the exact elements, connectors, wiring and overall condition supplied.


Genuine Land Rover Discovery 4 L319 replacement second-row right/O/S heated seat element set – AH22-601C30-BA & AH22-600D76-BA.

Brand: Land Rover
