Land Rover Discovery 4 2010 OSR Drivers Rear Right Door Speaker 5H22-70451-NB

#72

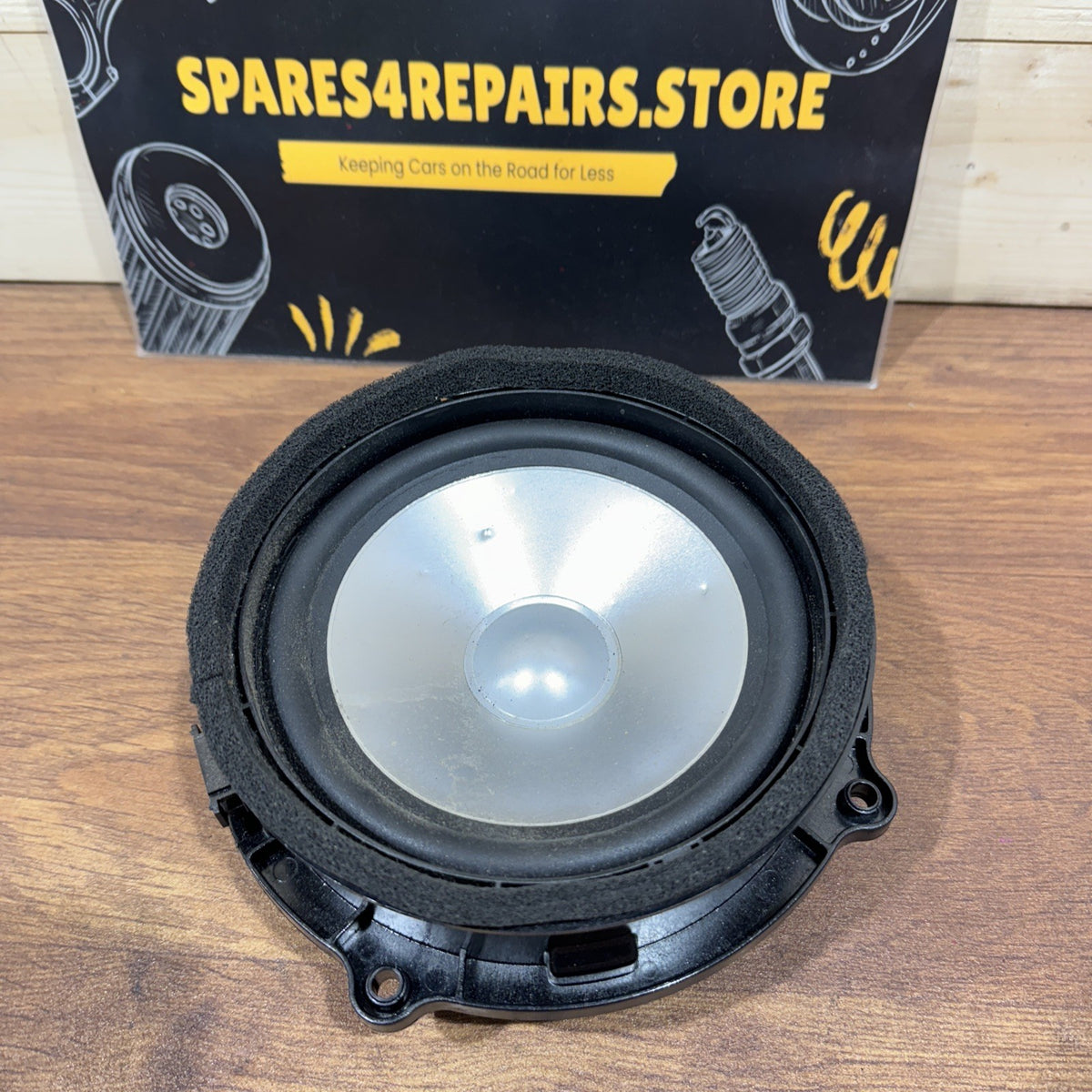

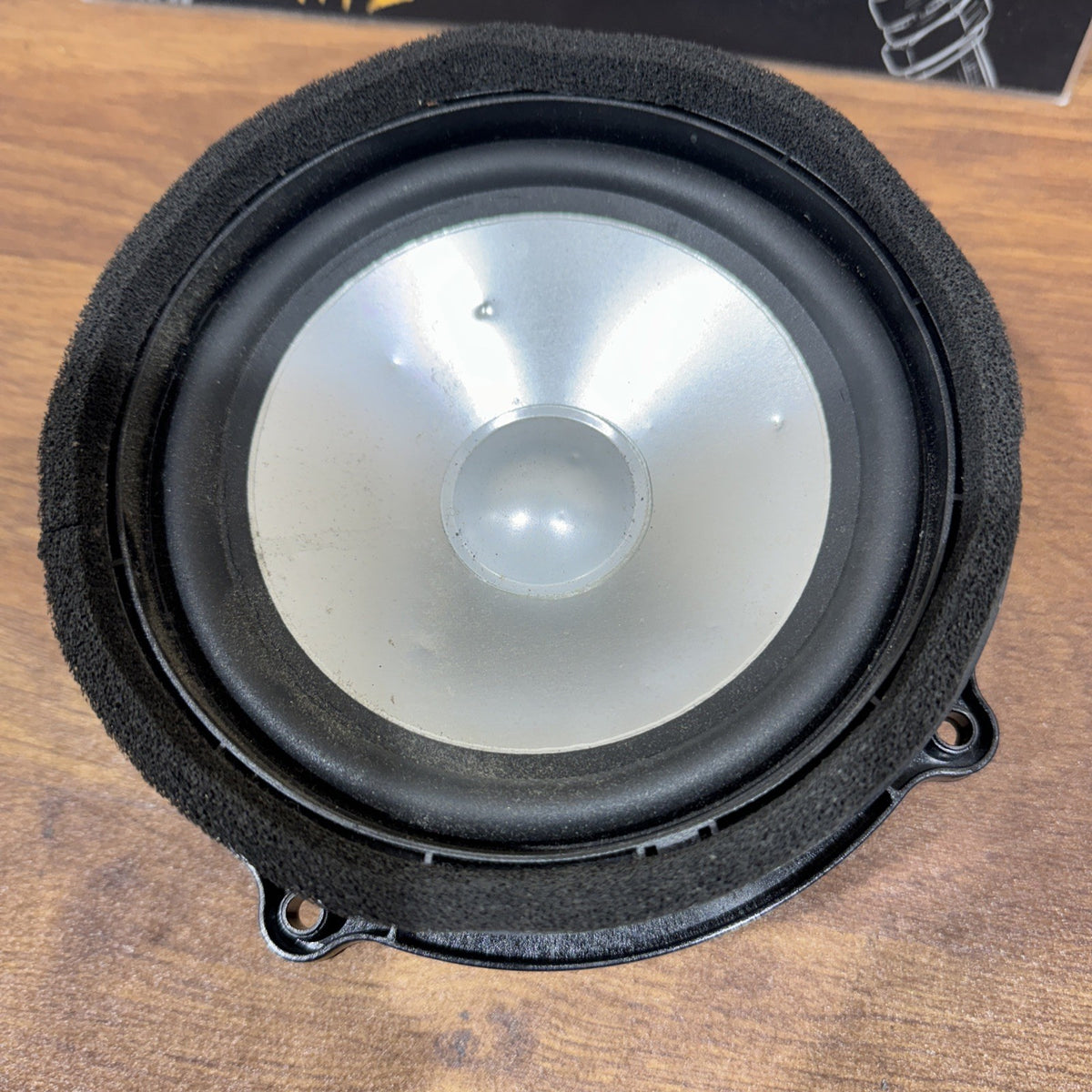

♻️ GENUINE LAND ROVER DISCOVERY 4 L319 REAR DOOR HARMAN KARDON BASS SPEAKER – 5H22-70451-NB / XQM500530

Genuine used Land Rover Discovery 4 L319 rear door Harman Kardon bass / woofer speaker, removed from the O/S rear / driver’s rear door of a 2010 Discovery 4.

This is an original factory door speaker designed to work with the vehicle’s compatible Harman Kardon audio system.

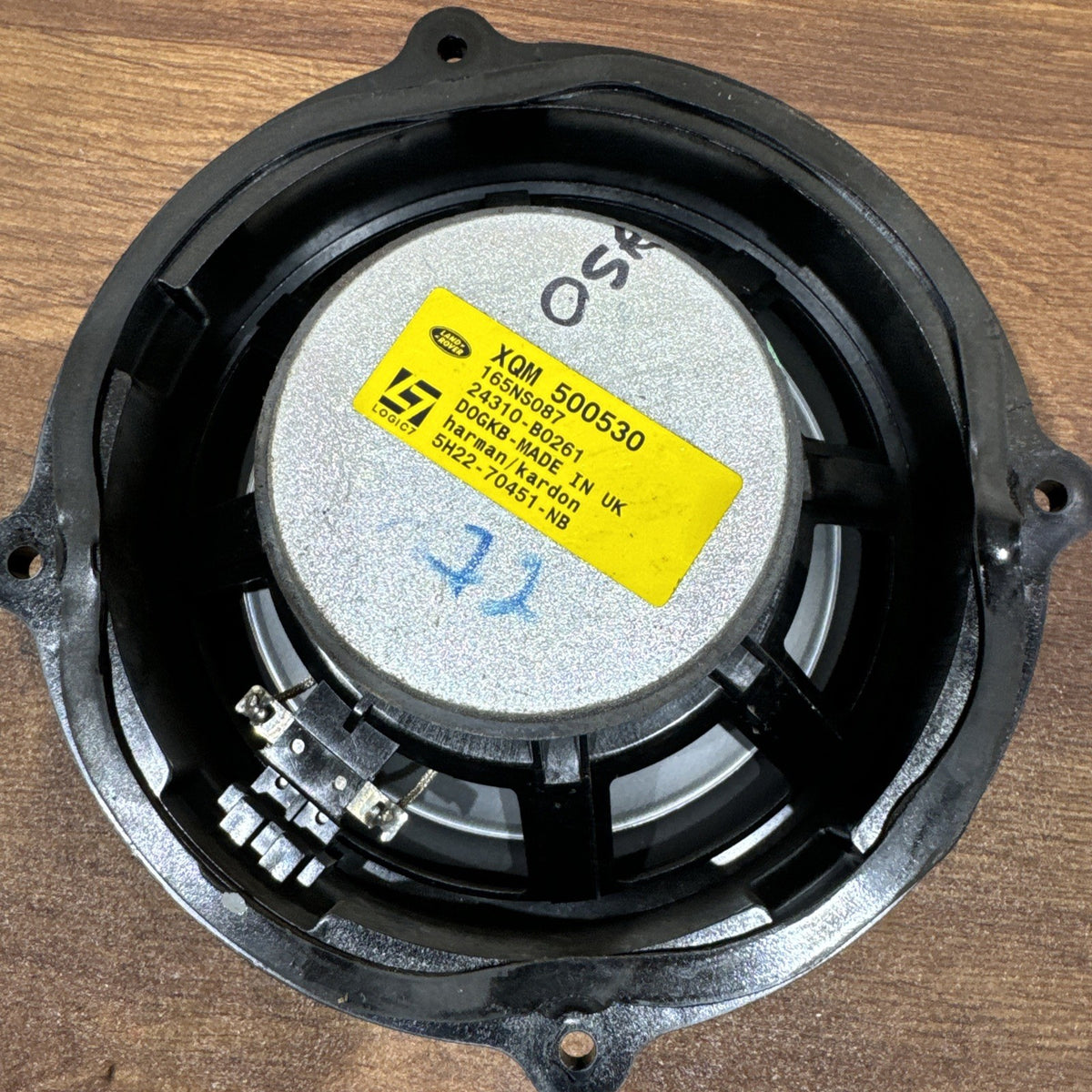

Engineering Part Number: 5H22-70451-NB

Alternative Format: 5H2270451NB

OE / Cross Reference: XQM500530

Related / Superseded References: XQM500310 / XQM500030

Part Type: Rear Door Bass Speaker / Woofer

Audio System: Harman Kardon

Donor Position: Rear Right / O/S

UK RHD Position: Driver Side Rear Door

Donor Vehicle: 2010 Land Rover Discovery 4 L319

Manufacturer: Harman Kardon / Land Rover OE

Condition: Genuine Used

Compatibility

Confirmed applications include:

• Land Rover Discovery 4 / LR4 L319

• 2009-on Discovery 4 applications using the matching Harman Kardon speaker system

• 2.7 TDV6 – 276DT

• 3.0 TDV6 / SDV6 – 306DT

• 5.0 V8 petrol applications where matching audio equipment is fitted

• Rear Left / N/S Door

• Rear Right / O/S Door

The exact 5H22-70451-NB / XQM500530 speaker is documented on Discovery 4 L319 applications with 2.7 TDV6, multiple 3.0 TDV6/SDV6 outputs and 5.0 V8 engines. (Allegro)

Important Position Information

Although this particular speaker was removed from the:

Rear Right / O/S / Driver-Side Rear Door

the 5H22-70451-NB / XQM500530 speaker itself is documented as suitable for either rear door.

Therefore, it may also replace the corresponding rear left / N/S speaker where the same part number and audio specification are fitted. (Global Parts)

Additional Compatible Applications

The same speaker is also documented on selected:

• Land Rover Discovery 3 / LR3 L319 – 2004–2009

• Range Rover Sport L320 – selected 2005–2011 applications

The Range Rover Sport application is particularly well documented with the same:

5H22-70451-NB / XQM500530

references. (eBay)

Please match the original speaker number and audio-system specification before purchasing for these additional models.

Technical Information

This is a factory bass / woofer-type door speaker used as part of the vehicle’s multi-speaker audio system.

It is designed to reproduce lower-frequency audio within the rear cabin and works together with the other speakers and factory amplifier/audio equipment.

The assembly incorporates:

• Speaker driver

• Factory speaker basket

• Vehicle-specific mounting arrangement

• Factory electrical connection

• Door-specific acoustic mounting design

Harman Kardon Audio System Information

This speaker is documented as a Harman Kardon component. (eBay UK)

Depending on vehicle specification, the complete Discovery 4 audio system can include:

• Front door speakers

• Rear door speakers

• Tweeters / higher-frequency speakers

• Centre speaker

• Subwoofer

• Factory audio amplifier

• Radio / multimedia head unit

Audio equipment varies according to the sound-system specification fitted to the vehicle.

Common Symptoms / Reasons for Replacement

• Rear speaker not producing sound

• Distorted audio

• Crackling or buzzing

• Bass response significantly reduced

• Speaker cone damaged

• Speaker rattling at higher volume

• Intermittent sound

• Internal voice-coil failure

• Electrical connector damaged

• Water / moisture damage

• Original speaker missing after door replacement

Important Diagnostic Information

Before replacing the speaker, check:

• Audio balance and fade settings

• Factory amplifier operation

• Door wiring loom

• Speaker electrical connector

• Head unit / multimedia operation

• Speaker wiring continuity

A rear speaker that produces no sound does not automatically mean the speaker itself has failed.

Wiring, connectors and amplifier channels can produce similar symptoms.

Installation

Designed to fit into the original rear-door speaker mounting location.

Installation normally requires removal of the rear interior door card.

During installation:

• Compare the replacement speaker with the original

• Check 5H22-70451-NB / XQM500530

• Inspect the electrical connector

• Secure all original mounting points

• Ensure the speaker sits correctly against the door

• Route wiring correctly

• Refit the door card carefully

Programming / Coding

No programming or coding is normally required when replacing the speaker with the correct like-for-like unit.

The speaker is a direct audio component and does not contain a separately programmable vehicle control module.

Important Compatibility Note

⚠️ Please match the speaker number and audio-system specification before purchasing.

Confirm:

• 5H22-70451-NB

• 5H2270451NB

• XQM500530 where applicable

• Speaker size and basket design

• Electrical connector

• Mounting points

• Harman Kardon audio specification

• Listing photographs

Discovery 4 vehicles were available with different audio configurations and other speakers from the same 5H22-70451 family exist. For example, 5H22-70451-HB / XQM500480 is documented as a different front-door bass speaker. (GlobalParts)

Do not purchase solely by vehicle model and year. Match the original speaker number wherever possible.

Condition

Genuine used Land Rover / Harman Kardon speaker.

May show normal signs of previous use, removal and storage, including light marks, dust or cosmetic wear.

Please inspect all listing photographs carefully for the condition of the speaker cone, basket, connector and mounting points.

♻️ Genuine 2010 Land Rover Discovery 4 L319 Harman Kardon rear door bass speaker 5H22-70451-NB / XQM500530 – suitable for rear right O/S and rear left N/S applications where the matching factory audio system is fitted.
