Land Rover Discovery 4 2010 Upper Tailgate Lock Actuator Solenoid

#20

Genuine Land Rover Discovery 4 L319 Upper Tailgate Lock Actuator Solenoid – 2010

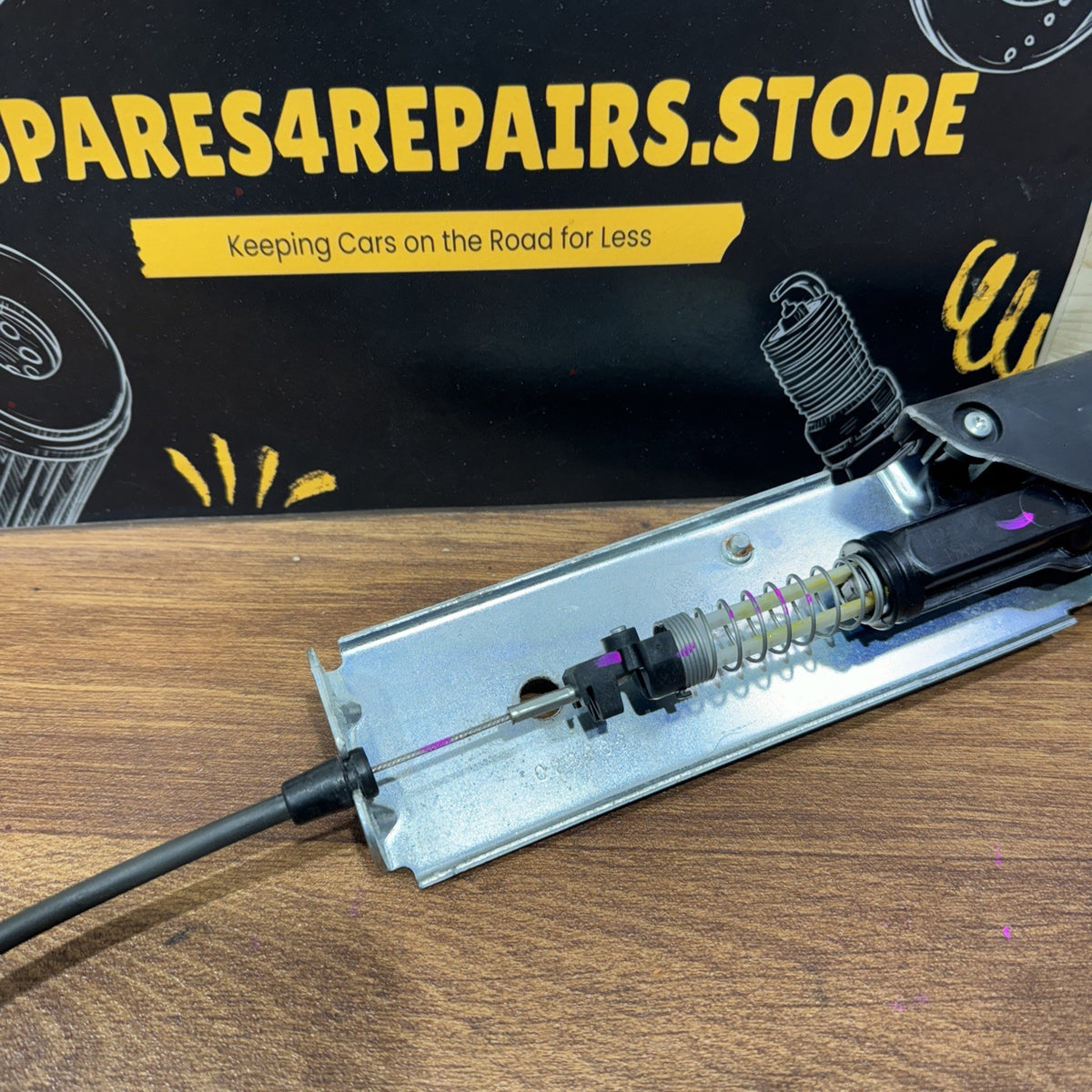

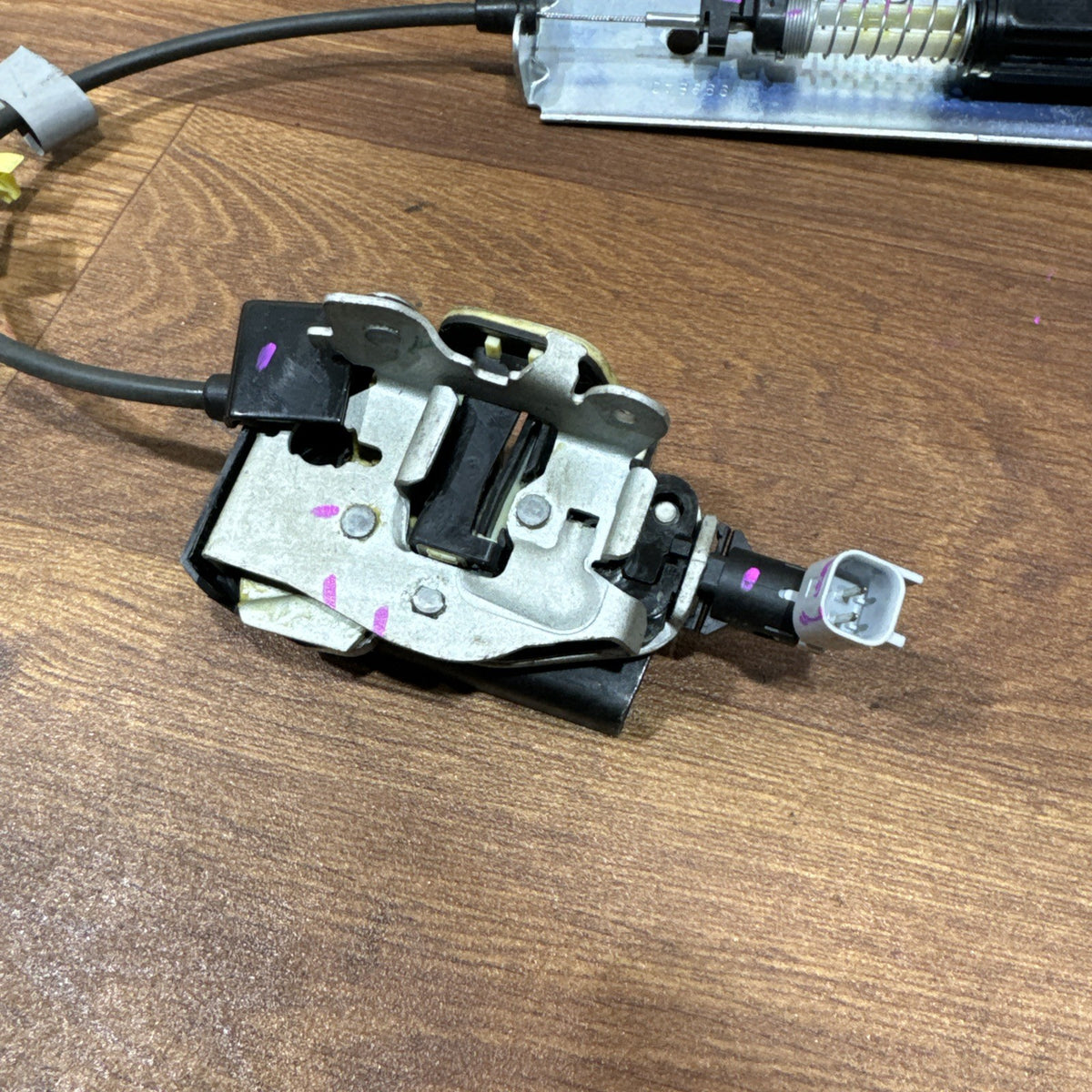

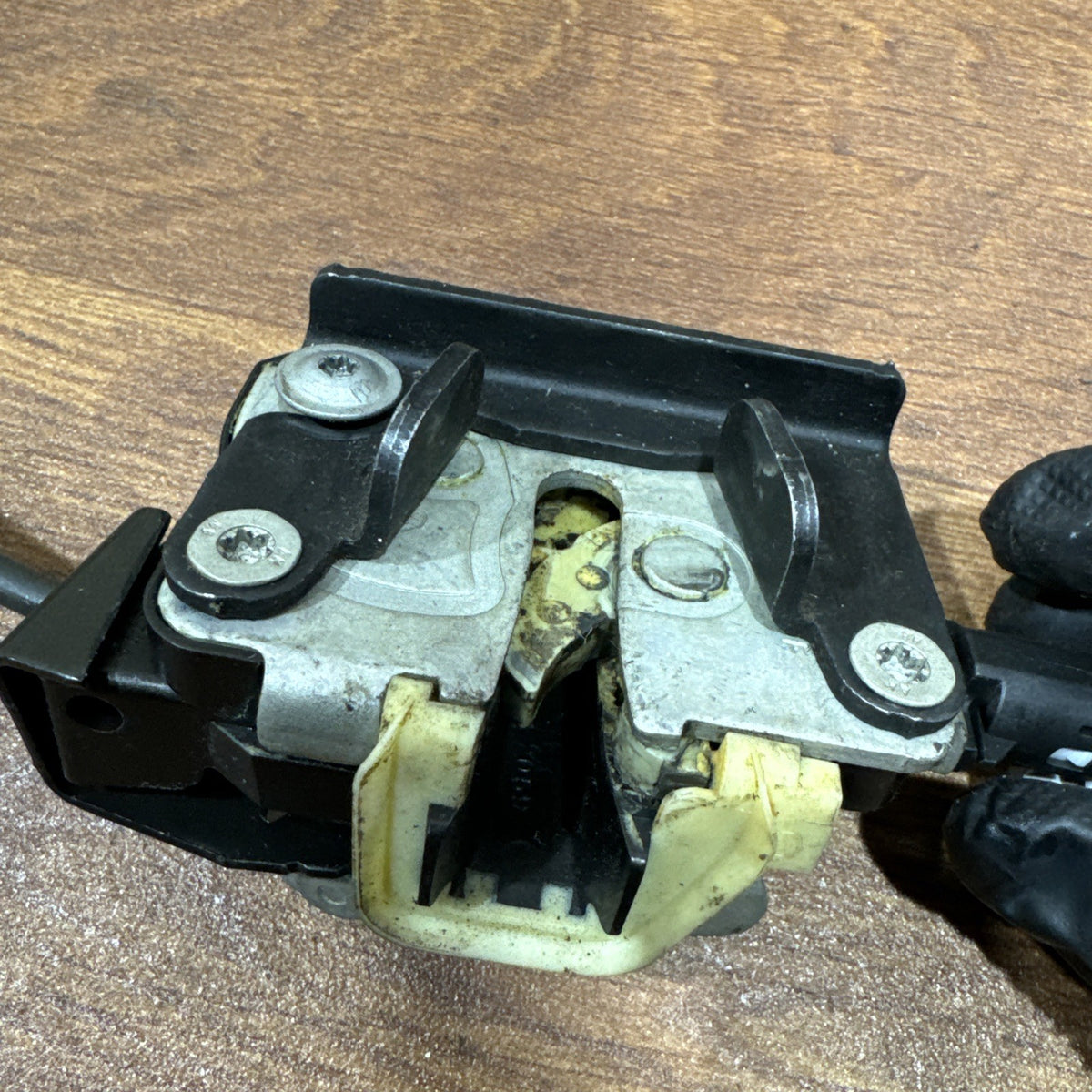

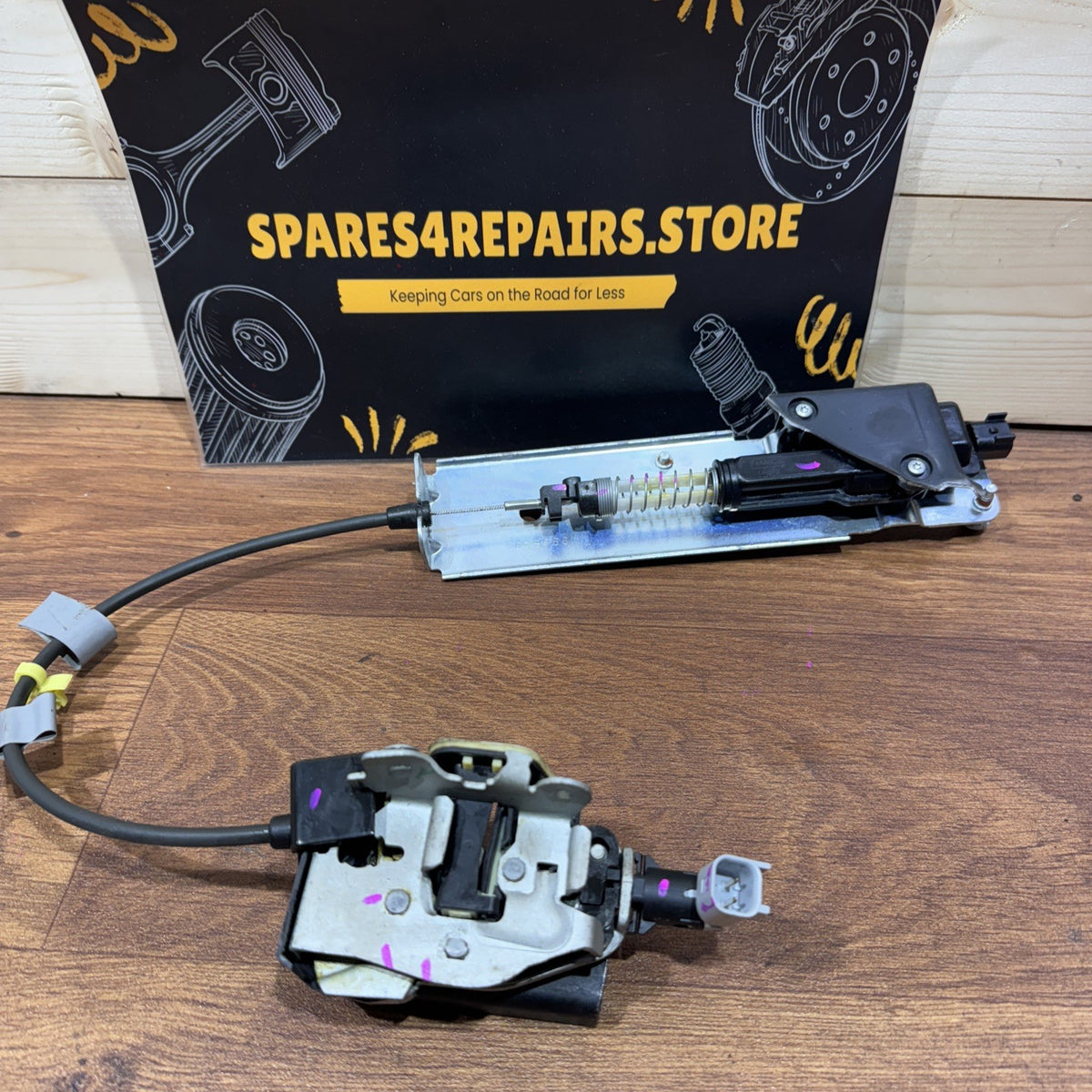

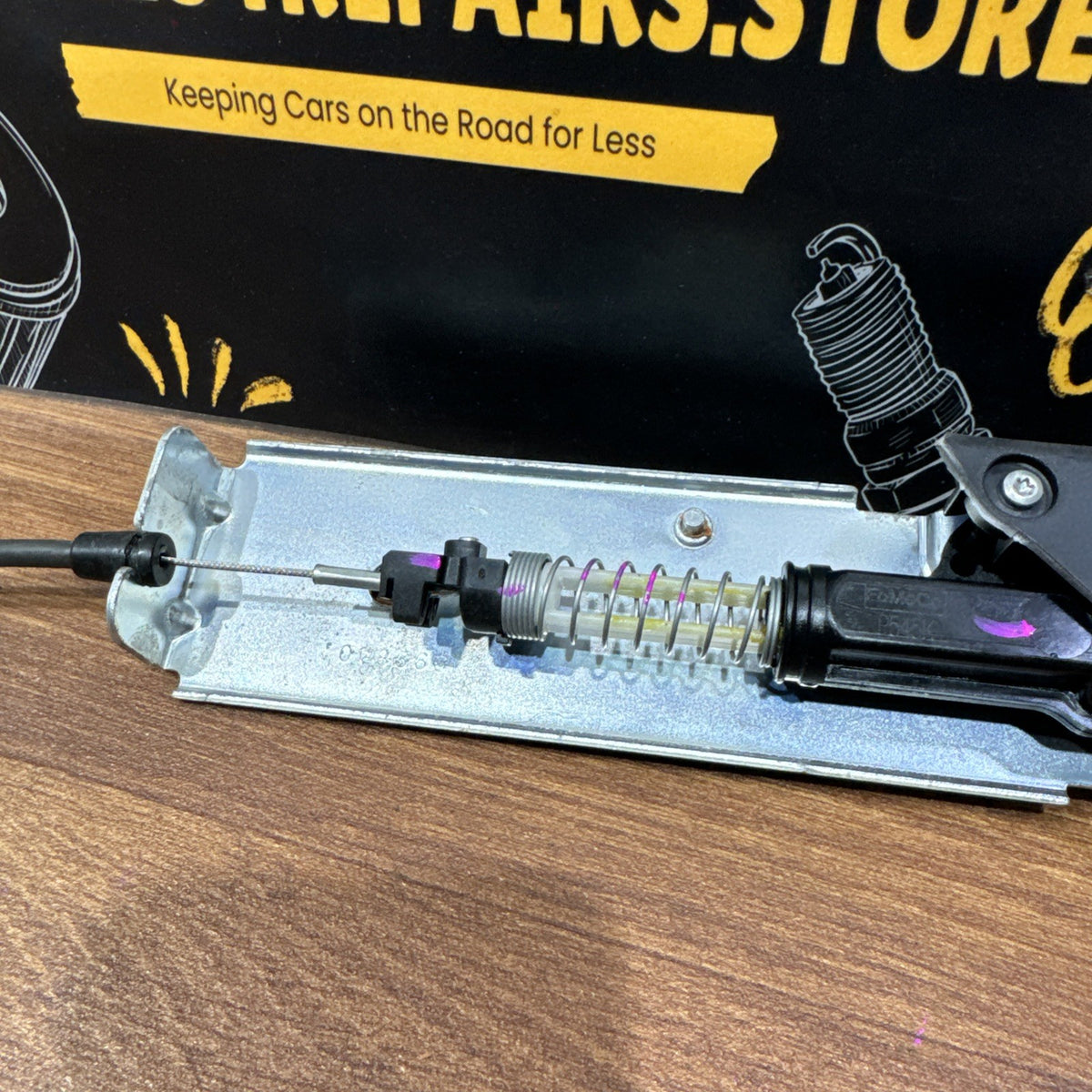

Genuine used Land Rover upper tailgate lock actuator / release solenoid removed from a 2010 Land Rover Discovery 4 L319. This electrically operated actuator forms part of the split-tailgate locking system and operates the release mechanism when the upper tailgate is opened.

Manufacturer: Land Rover

Part Type: Upper Tailgate Lock Actuator / Release Solenoid

Position: Rear – Upper Tailgate

Application: Tailgate Lock & Release System

Vehicle Platform: L319

Donor Vehicle: 2010 Land Rover Discovery 4

Condition: Used Genuine OEM Part

COMPATIBILITY

Suitable for selected Land Rover Discovery L319 vehicles equipped with the corresponding upper-tailgate release system.

Potential applications include:

• Land Rover Discovery 3 / LR3 L319 – 2004–2009

• Land Rover Discovery 4 / LR4 L319 – 2009–2016

• 5-door models with factory split upper/lower tailgate

• Petrol and diesel models where the same actuator arrangement is fitted

• UK RHD and LHD vehicles with the corresponding tailgate system

IMPORTANT: Different revisions of the actuator, cable and locking components may have been used during L319 production.

As no OE/engineering number has been supplied for this particular unit, please compare the photographs, electrical connector, mounting points and cable arrangement carefully with your original actuator before purchasing.

TECHNICAL INFORMATION

The upper tailgate actuator is an electrically operated component within the Discovery’s rear tailgate release system.

When the tailgate release is requested, the vehicle supplies an electrical signal to the actuator. The actuator then moves the mechanical release mechanism/cable, allowing the upper tailgate latch to disengage.

The system operates in conjunction with:

• Upper tailgate latch/lock

• Exterior tailgate release switch

• Central locking system

• Tailgate release cable/linkage

• Vehicle wiring harness

• Electrical connectors

• Lower split-tailgate mechanism

TAILGATE RELEASE SYSTEM INFORMATION

Discovery 3 and Discovery 4 L319 models can develop problems where the upper tailgate refuses to open even though the central locking appears to operate normally.

The actuator/solenoid is one possible failure point, but similar symptoms can also be caused by the release cable, latch, exterior switch, wiring or electrical connections.

COMMON SYMPTOMS OF A FAULTY ACTUATOR

• Upper tailgate will not open

• Release button operates but nothing happens

• No actuator movement when pressing the tailgate switch

• Intermittent tailgate opening

• Tailgate requires several attempts before releasing

• Weak or inconsistent actuator operation

• Actuator makes a noise but does not fully release the latch

• Tailgate remains locked while other doors unlock normally

• Complete failure of the electrical release mechanism

IMPORTANT DIAGNOSTIC INFORMATION

Before replacing the actuator, check the complete tailgate release system.

Inspect:

• Upper tailgate latch mechanism

• Actuator operation

• Release cable and linkage

• Exterior tailgate release switch

• Electrical connector and terminals

• Wiring continuity

• Central locking operation

• Mechanical movement of the latch

If the actuator can be heard operating but the tailgate remains locked, particular attention should be given to the release cable/linkage and latch mechanism.

If there is no sound or movement from the actuator, check the electrical supply, connector and release switch before concluding that the actuator itself has failed.

INSTALLATION

The actuator is installed inside the rear tailgate assembly and operates the upper-tailgate release mechanism.

Installation generally requires removal of the relevant interior tailgate trim to access the actuator, wiring and mechanical release connections.

Make sure the release cable/linkage is correctly located and adjusted before refitting the trim.

PROGRAMMING / CODING

Programming or coding is normally not required when replacing the existing actuator with a matching compatible unit.

Once correctly installed and connected, it should operate through the vehicle’s existing central locking/tailgate release system.

IMPORTANT COMPATIBILITY NOTE

Please compare your original actuator carefully before ordering.

Check:

• Part / engineering number where available

• Electrical connector

• Number and position of connector pins

• Actuator body shape

• Mounting points

• Cable attachment

• Release mechanism configuration

Vehicle model and year alone should not be used to guarantee compatibility.

CONDITION

Genuine used Land Rover OEM part.

Normal signs of previous use, storage and cosmetic wear may be present. Please inspect all listing photographs carefully for the exact condition and components included.

Ideal genuine replacement for a faulty or non-operational upper tailgate lock actuator / release solenoid on a compatible Land Rover Discovery 3 or Discovery 4 L319.
