LAND ROVER DISCOVERY 4 DRIVER FRONT SEAT WIRING LOOM HARNESS – AH22-14B719-CC

Low stock! Only 1 left
£29.95
£29.95
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

#77

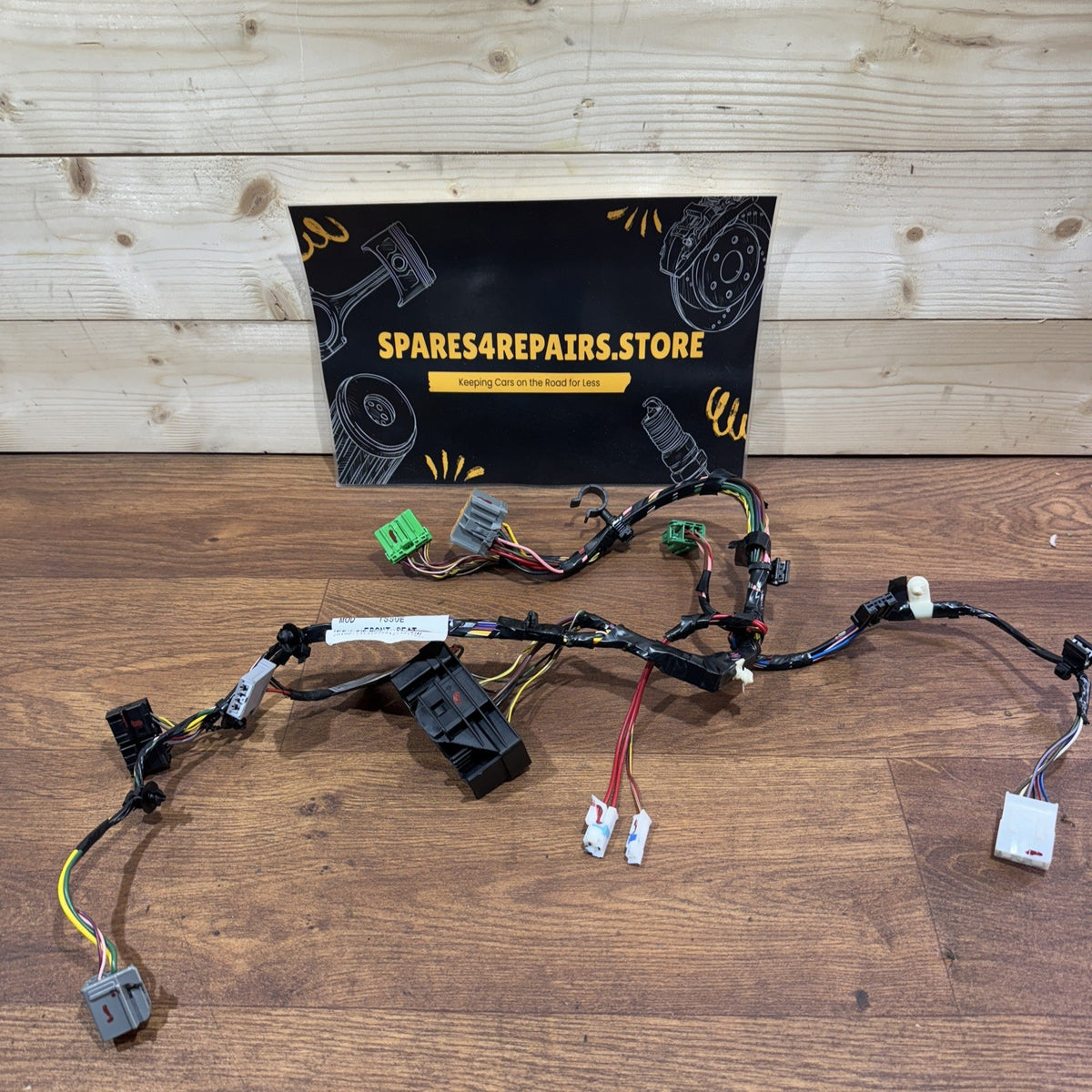

Genuine used Land Rover front seat electrical wiring harness for the Discovery 4 L319.


This loom is fitted within the electrically adjustable driver’s front seat and provides electrical connections between the seat’s motors, controls, modules and associated comfort/safety equipment, depending on vehicle specification.

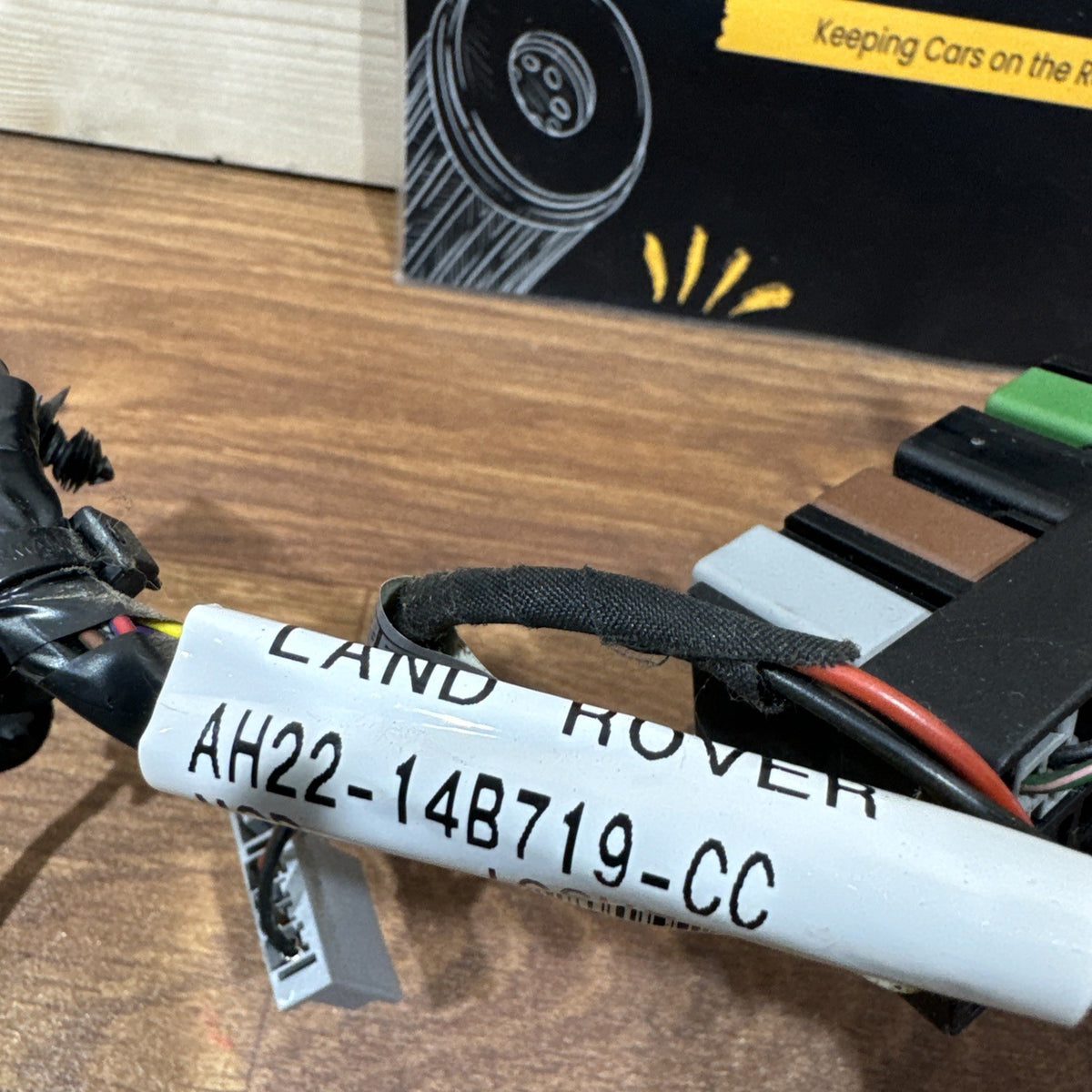

Part Number: AH22-14B719-CC

Engineering Number: AH2214B719CC

OE / Cross-Reference Number: LR015874

Part Type: Front Seat Wiring Loom / Harness

Position: Front Right – Driver Seat on UK RHD vehicles

Application: Electric / Memory Seat Electrical System

Manufacturer: Land Rover / JLR

Donor Vehicle Reference: 2010 Land Rover Discovery 4 L319

Condition: Genuine used part


COMPATIBILITY


Verified applications include:


• Land Rover Discovery 4 L319

• Discovery 4 3.0 TDV6 – 306DT

• Discovery 4 3.0 SDV6 – 306DT

• Discovery IV Van L319 – selected 3.0 diesel versions

• Electrically adjustable front driver seat applications

• Memory-seat specification – where matching loom is fitted


Available catalogue information links AH22-14B719-CC / LR015874 directly with Discovery 4 L319 driver’s-seat wiring harness applications. (Allegro⁠)


EQUIPMENT DEPENDENCY


Seat wiring looms are highly specification dependent.


Discovery 4 front seats can have different electrical equipment including:


• Electric fore/aft adjustment

• Seat height adjustment

• Backrest adjustment

• Lumbar adjustment

• Driver memory functions

• Seat heating

• Seat control modules

• SRS / seat airbag connections

• Seat belt / occupancy-related circuits


Not every AH22-series seat loom supports exactly the same equipment.


TECHNICAL INFORMATION


The seat wiring harness distributes electrical power and control signals between the vehicle wiring and electrical components installed within the driver’s seat.


Depending on vehicle specification, connections can include:


• Seat adjustment motors

• Seat adjustment switches

• Memory-seat electronics

• Seat control module

• Lumbar adjustment system

• Heating components

• SRS-related components

• Seat belt-related connections


The loom uses factory-style connectors and routing designed for the original Discovery 4 seat assembly.


SEAT ELECTRICAL SYSTEM INFORMATION


The Discovery 4 electrically adjustable seat system contains several separate motors and electrical components.


The wiring harness provides the electrical connection between these components and the vehicle’s electrical network.


Damage to the loom or individual connectors can therefore cause one or several seat functions to stop operating.


COMMON REASONS FOR REPLACEMENT


• Broken or damaged wiring

• Damaged electrical connectors

• Corroded connector terminals

• Intermittent electric seat operation

• One or more adjustment motors not operating

• Memory-seat functions not operating correctly

• Wiring damaged during seat removal

• Previous seat repair or replacement

• Damaged SRS-related seat wiring


IMPORTANT DIAGNOSTIC INFORMATION


Before replacing the loom, check:


• Seat fuses and power supply

• Electrical connectors underneath the seat

• Seat adjustment switches

• Individual adjustment motors

• Seat control module

• Wiring continuity

• Earth connections

• Stored diagnostic fault codes


A non-operating electric seat does not automatically mean the wiring loom itself is faulty.


INSTALLATION


The seat normally needs to be loosened or removed to access and correctly route the complete wiring harness.


Disconnect the vehicle battery and follow the appropriate Land Rover procedure before disconnecting any SRS-related seat connectors.


Route the replacement loom exactly as originally installed and ensure wiring cannot become trapped in the seat runners or adjustment mechanisms.


PROGRAMMING / CODING


The wiring harness itself does not normally require programming or coding.


However, diagnostic work may be necessary if SRS or seat-control fault codes are stored following a wiring or component fault.


IMPORTANT COMPATIBILITY NOTE


Please match the complete number:


AH22-14B719-CC


Cross-reference:


LR015874


before purchasing.


Do not assume that every Discovery 4 electric driver’s seat uses the same wiring loom. Connector quantity, electrical equipment, memory functions, heating and other seat options can change the harness specification.


Compare the complete part number and every electrical connector with your original loom before ordering.


CONDITION


Genuine used Land Rover wiring loom.


Normal signs of previous installation and use may be present. Please inspect the supplied photographs carefully for connector condition, wiring, clips and mounting points.


Ideal genuine replacement for a damaged Land Rover Discovery 4 L319 front driver electric/memory seat wiring loom – AH22-14B719-CC / LR015874.

Brand: Land Rover

Type: Loom

Placement on Vehicle: Front

Items Included: Wire Harness
