Land Rover Discovery 4 L319 Seatbelt 2nd Row Rear Right O/S 8H22-F611B68-ABW

#76

Genuine Land Rover Discovery 4 L319 Rear Right O/S Seat Belt – 8H22-F611B68-ABW – 2010

Genuine Land Rover/JLR used rear right-hand seat belt and inertia reel/retractor assembly, suitable for selected Land Rover Discovery 4 L319 models.

This is the factory safety restraint component fitted to the second-row right-hand rear seating position. On a UK right-hand-drive vehicle this corresponds to the O/S / driver’s-side rear passenger position.

Part Number: 8H22-F611B68-ABW

Alternative Number Format: 8H22F611B68ABW

Related / Cross-Reference Number: 6H22-F61295-BB / LR009286 appears in supplier cross-reference data – see compatibility note below

Part Type: Seat Belt / Safety Belt / Inertia Reel & Retractor Assembly

Position: Second Row – Rear Right

UK Vehicle Side: O/S – Offside / Driver Side Rear

Vehicle Platform: Discovery 4 L319

Manufacturer: Land Rover / JLR

Condition: Used Genuine Land Rover Safety Component

COMPATIBILITY

Land Rover Discovery 4 – L319

Directly documented applications include:

• Discovery 4 L319 – 2010

• Discovery 4 / LR4 second-row seating

• Rear Right-Hand Position

• O/S / Driver-Side Rear on UK RHD vehicles

• 5-door SUV applications

• Black interior/seat-belt applications where matching trim is fitted

The exact engineering number:

8H22-F611B68-ABW

is directly documented on a 2010 Land Rover Discovery 4 L319 as the Rear Right O/S Seat Belt.

A documented 2010 donor vehicle carrying this exact number has VIN identification beginning SALLAA…, further supporting genuine Discovery 4 L319 fitment.

MODEL-YEAR COMPATIBILITY

Used-parts data supports this style of Discovery 4 second-row O/S seat belt across approximately:

Land Rover Discovery 4 L319 – 2009-2016

Listings specifically identify:

8H22F611B68ABW – Discovery 4 L319 2nd Row Seat Belt Driver Right Side

However, Discovery 4 seat-belt assemblies can vary according to production date, seating configuration, trim specification and engineering revision.

For this reason, 2009-2016 should be treated as the broader vehicle application range rather than guaranteed fitment to every Discovery 4 produced during those years.

Matching the original engineering number remains the safest method.

POSITION INFORMATION

This assembly is for the:

Second Row

Rear Right

O/S – Offside

Driver-Side Rear Passenger Position on UK RHD Vehicles

It should not be confused with:

• Front driver seat belt

• Front passenger seat belt

• Rear left N/S seat belt

• Rear centre seat belt

• Third-row seat belt

• Seat belt buckle/stalk

The corresponding opposite-side rear belt is documented with a different engineering number, including:

8H22-F611B69-ABW – Rear Left / N/S

This supports 8H22-F611B68-ABW being the right-hand/O/S rear assembly.

TECHNICAL INFORMATION

The 8H22-F611B68-ABW is an original Land Rover three-point passenger restraint assembly designed specifically around the Discovery 4 body and second-row seating geometry.

The assembly incorporates the seat-belt webbing and inertia-reel mechanism required to:

• Restrain the rear passenger during sudden deceleration or collision

• Allow normal passenger movement during everyday driving

• Automatically retract excess belt webbing

• Maintain correct belt tension during normal use

• Lock the belt during rapid vehicle deceleration

• Lock the webbing when it is pulled suddenly

• Route correctly through the factory body mounting points

• Work with the corresponding factory seat-belt buckle

SEAT BELT / RESTRAINT SYSTEM INFORMATION

The Discovery 4 occupant restraint system uses several separate components, including:

• Seat belt and inertia reel/retractor

• Seat belt webbing

• Seat belt buckle/stalk

• Factory body mounting points

• Seat-belt guides and trim

• Front restraint/SRS components

• Airbag control system

• Occupant restraint electronics depending on seating position and specification

The correct seat belt must be installed in the correct seating position.

A left-hand assembly should not be substituted for the right-hand assembly simply because the components appear physically similar.

INERTIA REEL OPERATION

During normal driving, the inertia reel allows the belt to extend and retract as the passenger moves.

When the mechanism detects sufficiently rapid movement or vehicle deceleration, the reel locks and prevents additional webbing from extending.

This helps restrain the passenger during:

• Sudden braking

• Emergency manoeuvres

• Rapid deceleration

• Vehicle impact

Correct reel operation is therefore an important part of the vehicle’s passive safety system.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• Seat belt will not retract correctly

• Belt retracts very slowly

• Belt remains loose after use

• Inertia reel remains locked

• Belt will not pull out

• Belt intermittently jams

• Damaged or frayed webbing

• Cuts in the belt material

• Contamination of the webbing

• Damaged mounting point

• Damaged reel mechanism

• Excessive wear

• Previous accident damage

• Physical damage during interior repairs

IMPORTANT SAFETY / DIAGNOSTIC INFORMATION

A seat belt is a critical vehicle safety component.

Before fitting a used seat belt, carefully inspect:

• Entire length of belt webbing

• Retractor operation

• Locking mechanism

• Mounting points

• Mounting brackets

• Plastic guides

• Electrical connections if present

• Signs of previous accident loading

• Cuts, burns or fraying

• Water or chemical contamination

• Corrosion

• Deformation or physical damage

The belt should extend smoothly, retract correctly and lock when subjected to the appropriate sudden movement.

ACCIDENT / DEPLOYMENT INFORMATION

A seat belt that has been subjected to significant accident loading may have internal damage even when the webbing appears visually acceptable.

For this reason:

Do not install a seat belt known to have been involved in a serious collision without appropriate professional inspection.

Any restraint-system components identified by Land Rover as requiring replacement following an accident should be replaced according to the manufacturer’s repair procedure.

PART NUMBER INFORMATION

Primary engineering number:

8H22-F611B68-ABW

Alternative formatting:

8H22F611B68ABW

The exact number is directly documented as:

Land Rover Discovery 4 L319 – Rear Right O/S Seat Belt

and also as:

Discovery 4 L319 – 2nd Row Driver Right Side Seat Belt

RELATED LEFT-HAND SEAT BELT

The corresponding left-hand second-row belt is documented as:

8H22-F611B69-ABW

Position:

Rear Left / N/S / Passenger-Side Rear

This is important because:

8H22-F611B68-ABW = RIGHT / O/S

while:

8H22-F611B69-ABW = LEFT / N/S

The two assemblies should not be confused when ordering.

CROSS-REFERENCE INFORMATION

Some used-parts databases associate:

6H22-F61295-BB

LR009286

with the 8H22-F611B68-ABW listing.

However, these references are also documented elsewhere as front seat-belt references, so they should not be advertised as confirmed direct replacements for this rear-right assembly without checking JLR parts data/VIN.

For this item, the safest and most accurate identification remains:

8H22-F611B68-ABW

This avoids incorrectly expanding compatibility based on potentially broad supplier cross-reference data.

INSTALLATION

Installation should be carried out according to the appropriate Land Rover workshop procedure.

During installation:

• Confirm the belt is for the rear right/O/S position

• Compare the replacement assembly with the original

• Check mounting brackets

• Check mounting-hole positions

• Inspect the complete webbing

• Ensure the webbing is not twisted

• Install all mounting bolts correctly

• Tighten safety-restraint fasteners to the specified Land Rover torque

• Confirm smooth extension

• Confirm complete retraction

• Check inertia-reel locking operation

• Confirm correct engagement with the seat-belt buckle

• Refit surrounding interior trim correctly

Because this is a safety-critical component, professional installation is recommended.

PROGRAMMING / CODING

Programming Required: No

The rear seat belt/retractor assembly itself does not normally require electronic programming or coding after installation.

However, if any related SRS or restraint-system warning is present, the vehicle should be professionally diagnosed rather than assuming the seat belt assembly is responsible.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

8H22-F611B68-ABW

8H22F611B68ABW

Also confirm:

• Rear Right / O/S position

• Second-row seating position

• Vehicle model

• Vehicle production year

• Original seat-belt engineering number

• Belt/webbing colour

• Retractor design

• Mounting brackets

• Mounting-hole positions

• Buckle tongue design

• Electrical connector if applicable

• Listing photographs

Do not order solely by “Discovery 4 2009-2016”.

Several seat-belt assemblies and revisions were used depending on seating position, production date and vehicle specification.

For the safest replacement, match 8H22-F611B68-ABW directly with the original rear-right seat belt.

CONDITION

Used Genuine Land Rover / JLR Safety Component.

Normal cosmetic marks and signs of previous installation may be present.

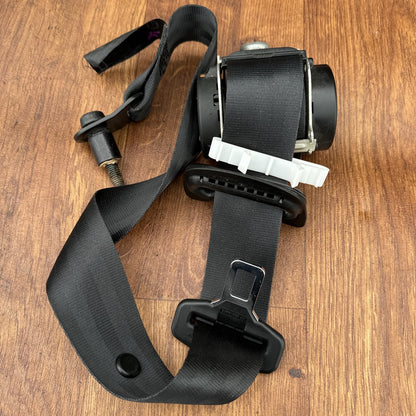

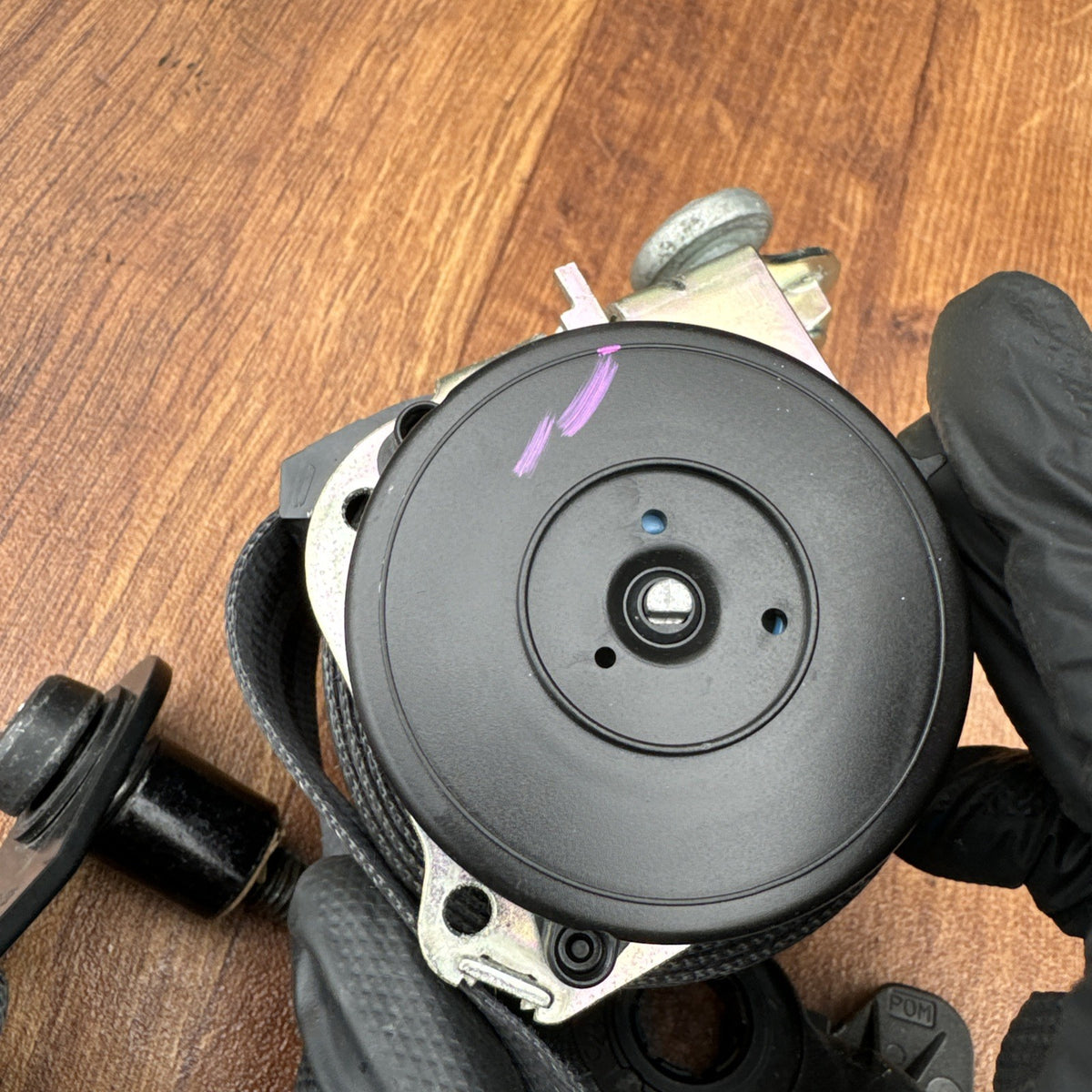

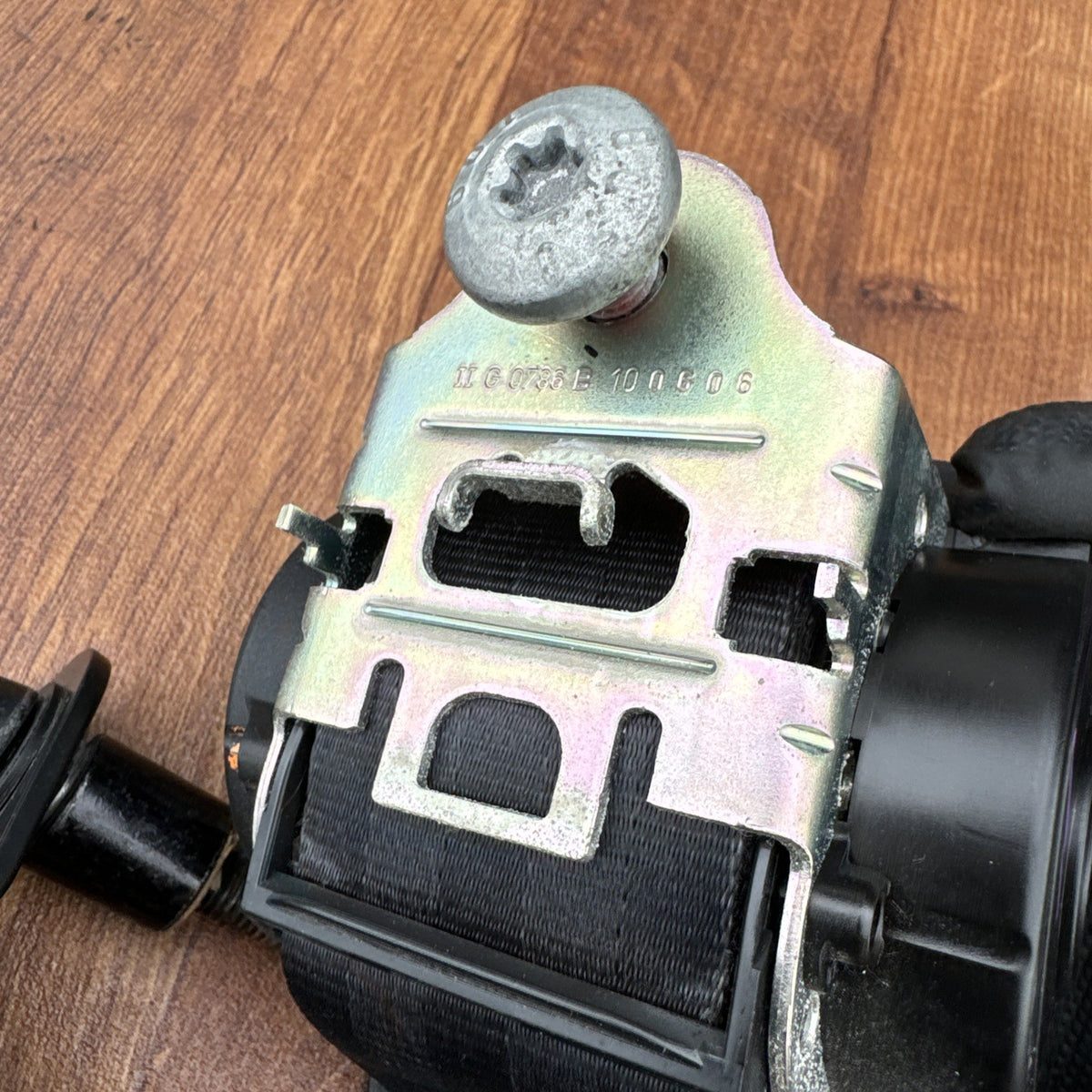

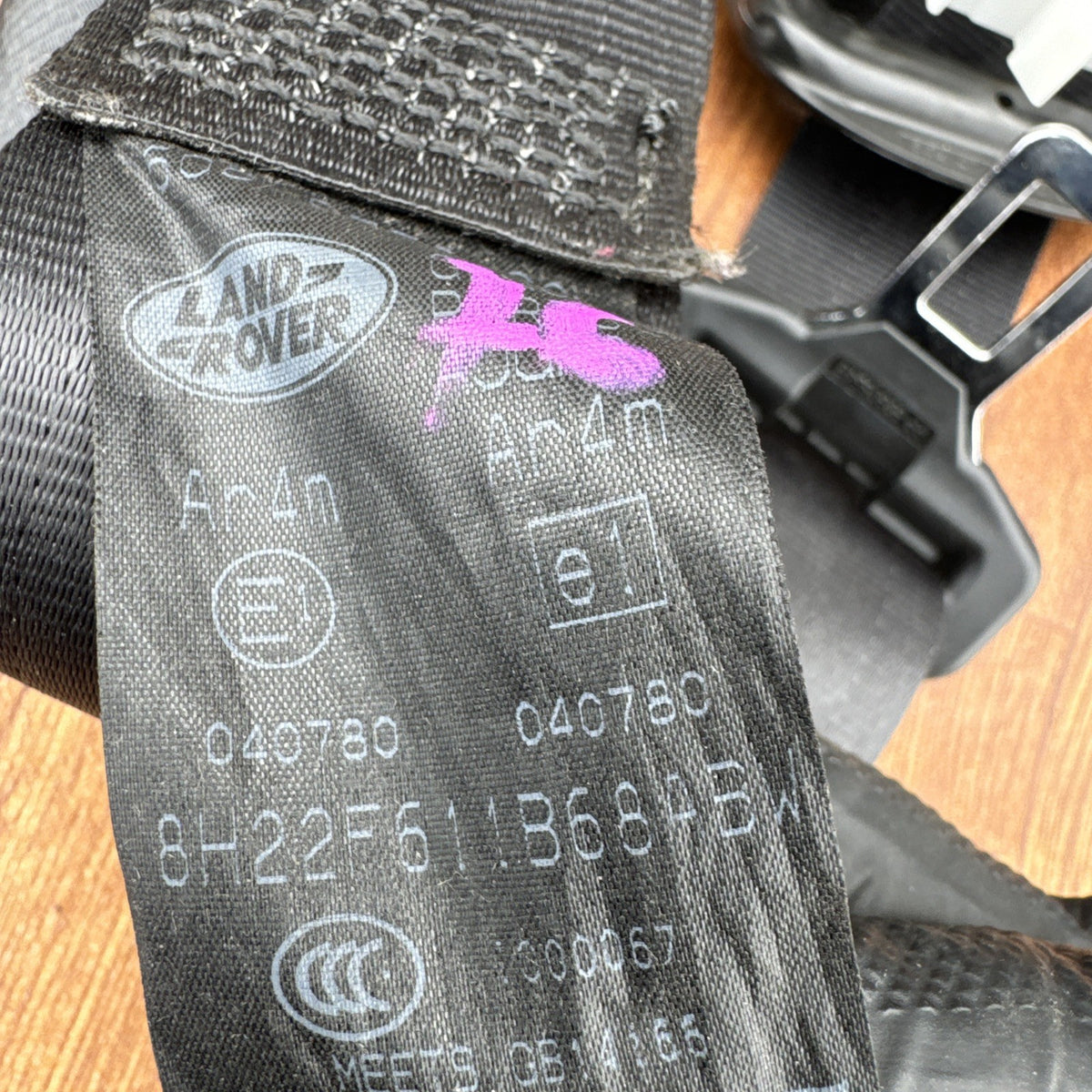

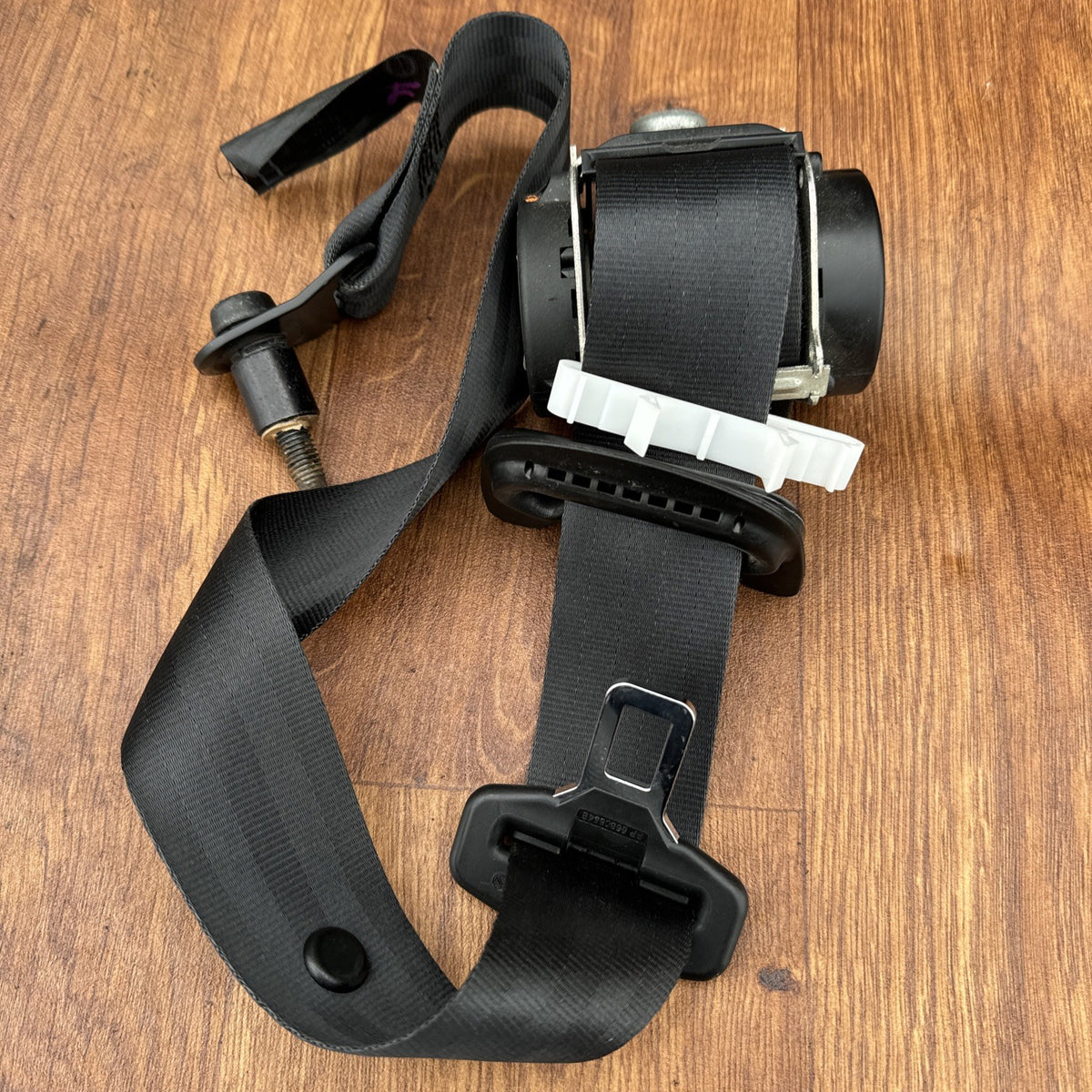

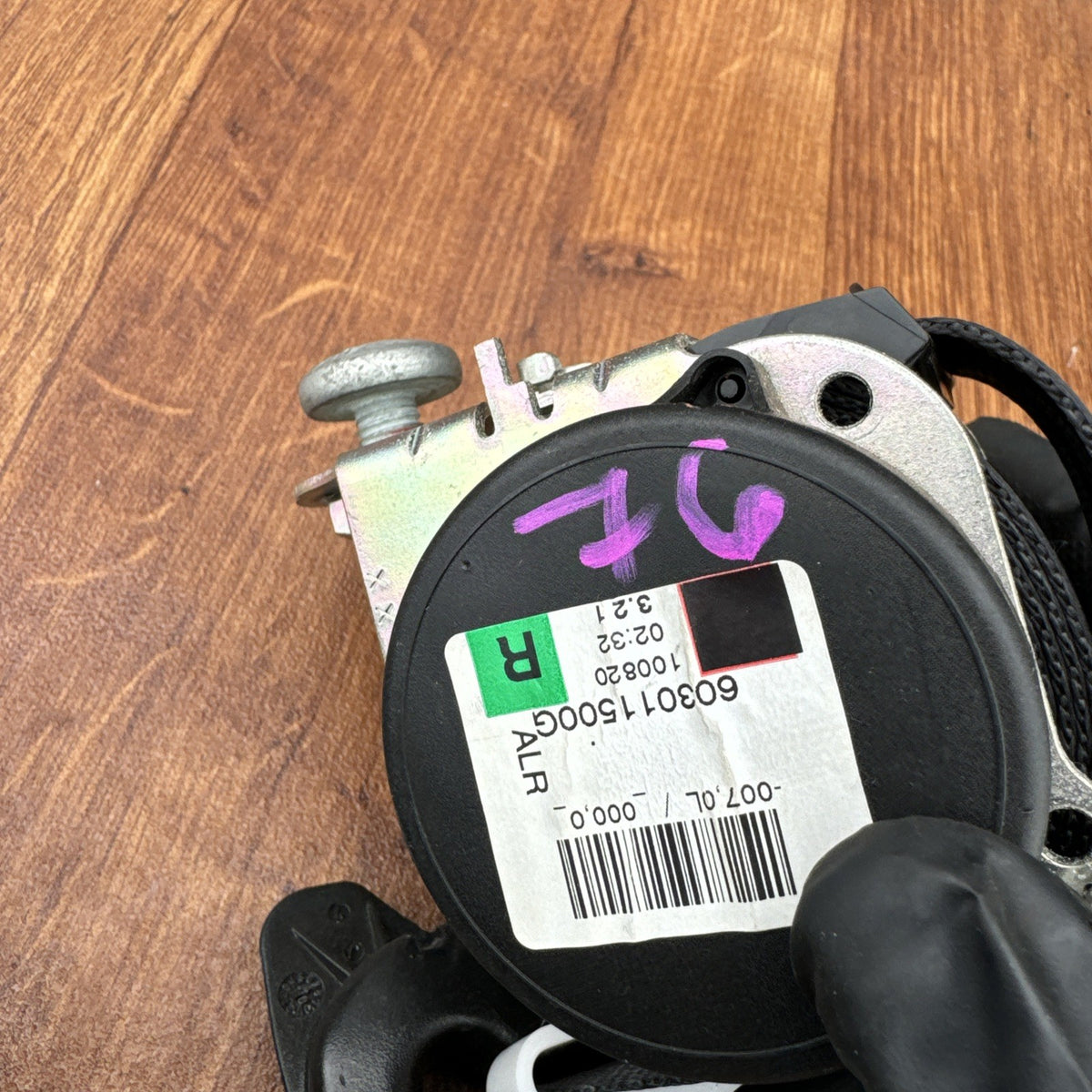

Please inspect all listing photographs carefully for the exact 8H22-F611B68-ABW identification, webbing condition, retractor, mounting brackets, buckle tongue and overall condition.

As this is a safety-critical restraint component, suitability and condition should be confirmed before installation.

Ideal genuine Land Rover replacement second-row rear right O/S seat belt and inertia reel assembly for a compatible Discovery 4 L319.
