LAND ROVER DISCOVERY 4 L319 WINDOW CONTROL SWITCH REAR RIGHT DRIVER SIDE 2010

Low stock! Only 1 left
£15.00
£15.00
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

#78

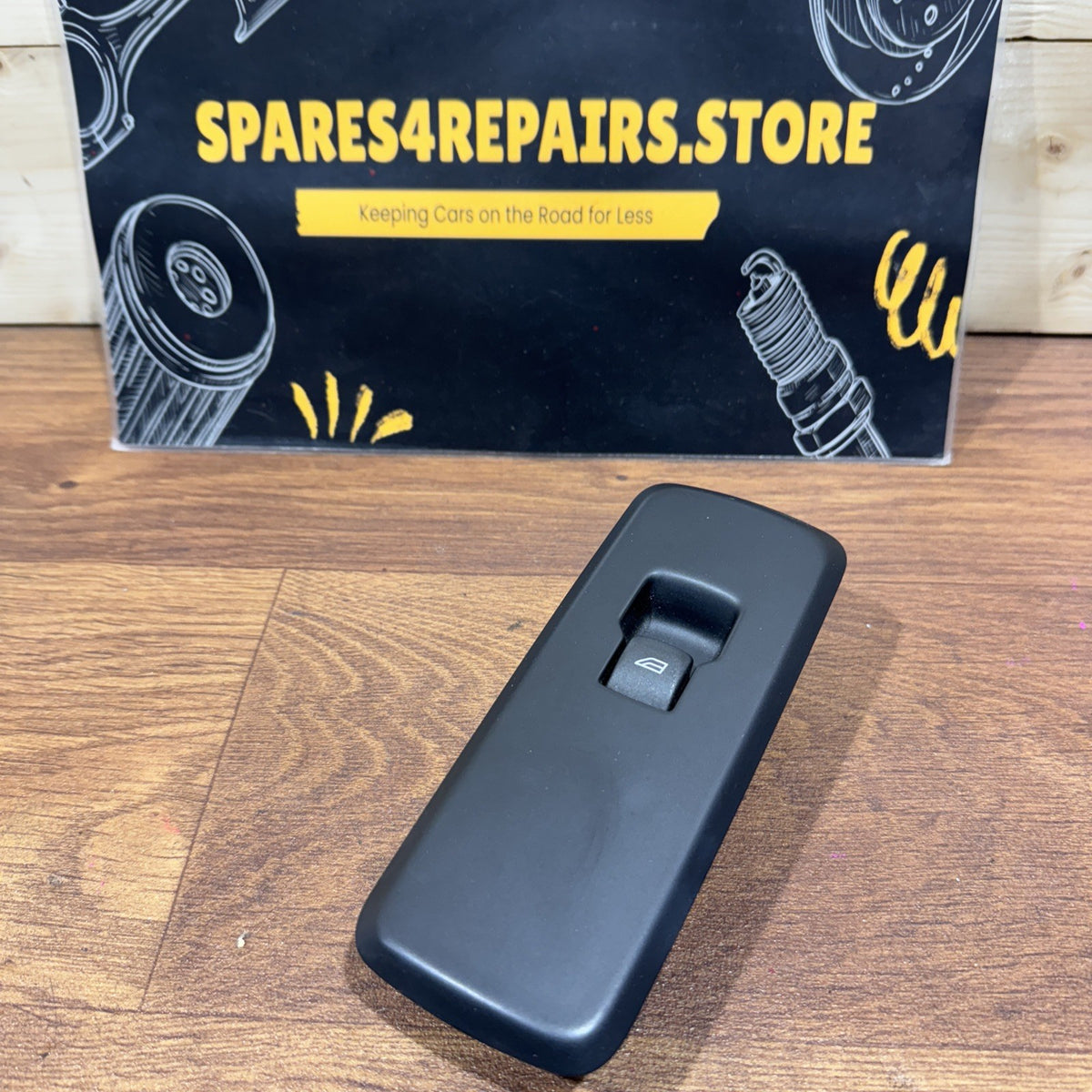

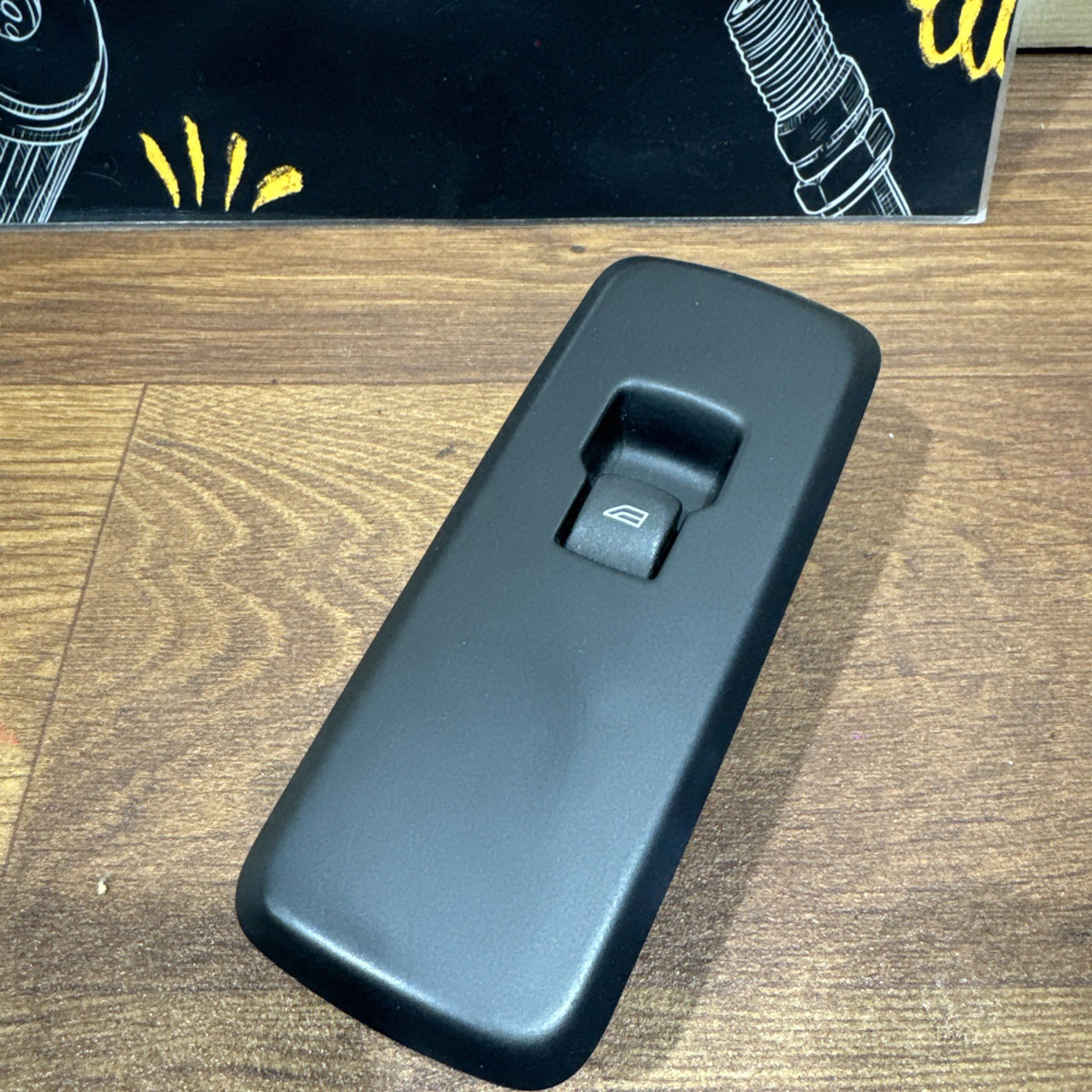

♻️ GENUINE LAND ROVER DISCOVERY 4 L319 REAR RIGHT O/S WINDOW CONTROL SWITCH – 2010


Genuine used Land Rover Discovery 4 L319 rear right electric window control switch, removed from a 2010 Discovery 4.


This is the single window switch fitted to the rear right / O/S door and is used by the rear passenger to raise and lower the electric window.


Part Type: Electric Window Control Switch

Position: Rear Right Door

Vehicle Side: O/S / Right

UK RHD Position: Rear Driver Side

Donor Vehicle: 2010 Land Rover Discovery 4 L319

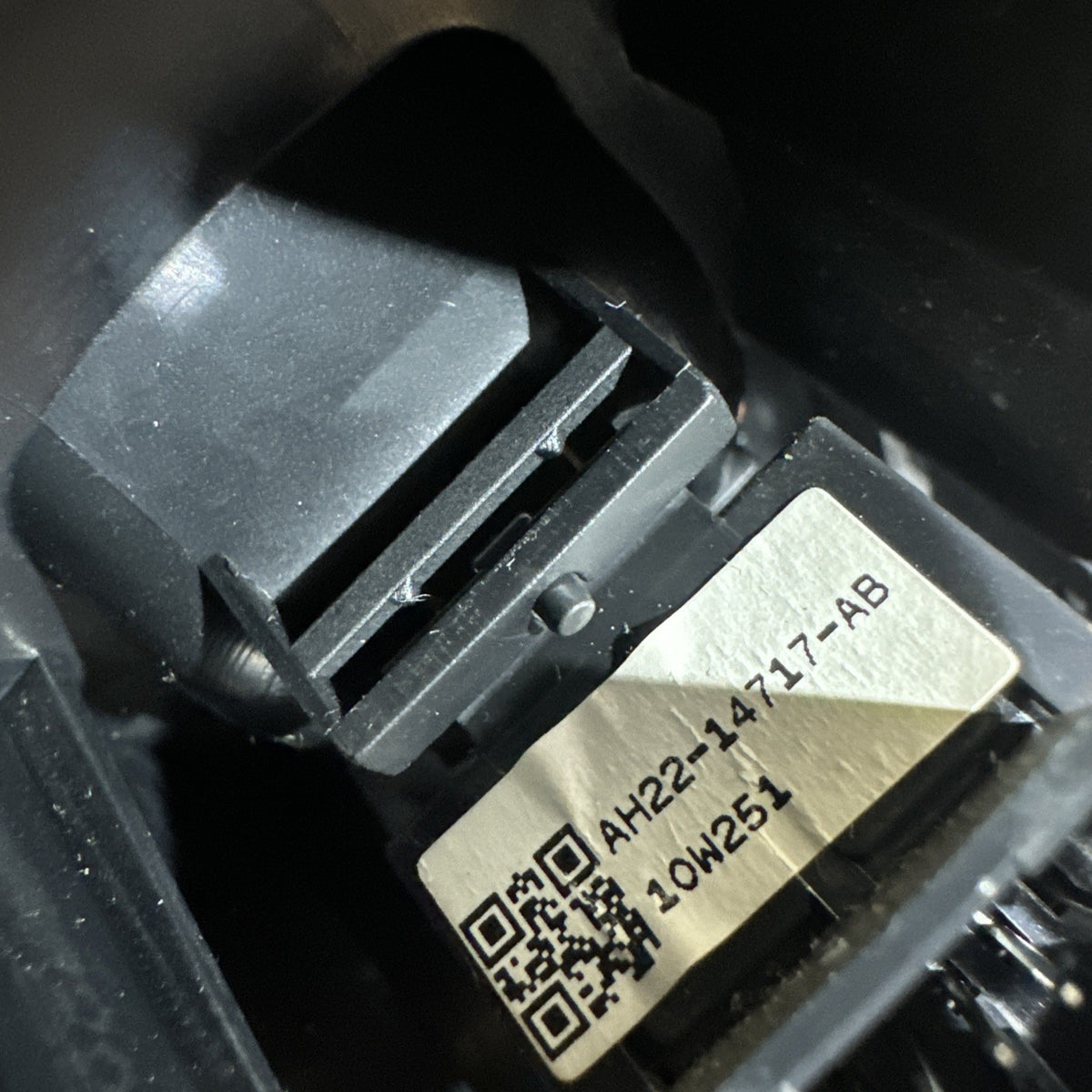

Known Engineering Reference: AH22-14717-AB

Known OE / Service Reference: LR086039

Connector: 5-pin type reported for AH22-14717-AB application

Manufacturer: Land Rover

Condition: Genuine Used


Compatibility


Suitable for applications including:


• Land Rover Discovery 4 L319 – 2010–2016

• Discovery 4 from VIN AA000001 where matching single-window switch is fitted

• Rear right / O/S door application

• Other door positions may use the same basic single-window switch depending on vehicle specification


Land Rover lists LR086039 as a single door-mounted window control switch for the Discovery 4 2010–2016, from VIN AA000001. (LRDirect)


A genuine used AH22-14717-AB has also been specifically identified as a Discovery 4 L319 right-rear window switch with a 5-pin connector. (B-Parts)


Additional Applications


The same or related single-window switch design is also documented on selected:


• Land Rover Freelander 2 / LR2

• Range Rover Sport L320


depending on year, connector and exact switch specification. (Genuine Direct)


Always match the number and connector before purchasing for another model.


Technical Information


The switch provides electrical control of the corresponding door’s window regulator/motor.


The Discovery 4 electric-window system provides one-touch operation on all four windows. A brief full press or pull allows the window to continue opening or closing automatically until stopped or until it reaches the end of its travel. (manualzz.com)


Electric Window System Information


This switch works as part of a system that includes:


• Door window control switch

• Door wiring loom

• Electrical connectors

• Window regulator

• Window motor

• Vehicle electrical/control system


A window that fails to operate is not necessarily caused by the switch.


The regulator, motor, wiring and electrical connections should also be checked before replacement.


Common Symptoms / Reasons for Replacement


• Window does not operate from rear door switch

• Intermittent window operation

• Switch only works in one direction

• Button sticking or physically damaged

• Switch illumination fault

• Electrical contacts worn

• Connector or switch housing damaged

• Original switch missing

• Replacement required following door-card repair


Important Diagnostic Information


Before replacing the switch, check:


• Window operation from the driver’s master controls

• Rear window isolator/child-control function

• Window motor and regulator

• Door wiring loom

• Electrical connector

• Fuse/electrical supply where applicable


If the window works correctly from the driver’s master switch but not from the rear-door switch, the rear switch or its local wiring/connection should be investigated.


Installation


Designed to fit into the original rear-door switch mounting position.


Depending on the trim arrangement, access to the rear of the switch/door trim may be required.


Care should be taken when releasing the plastic retaining clips and electrical connector.


Programming / Coding


No conventional ECU programming or coding is normally required for a like-for-like window switch replacement.


After electrical work or loss of battery supply, the electric-window one-touch function may require reinitialisation/reset if it no longer operates correctly.


Important Compatibility Note


⚠️ Please compare your original switch before ordering.


Check:


• Part / engineering number

• AH22-14717-AB where applicable

• Connector shape

• Number of electrical pins

• Switch button design

• Mounting arrangement

• Rear right / O/S application

• Listing photographs


Land Rover used different revisions and superseded part numbers during production.


Do not purchase solely by vehicle model and year. The original switch number and connector are the safest compatibility checks.


Condition


Genuine used Land Rover part.


May show normal signs of previous use, including light scratches, marks and cosmetic wear around the button or housing.


Please inspect all listing photographs carefully as they form part of the item description.


♻️ Genuine Land Rover Discovery 4 L319 rear right / O/S electric window control switch – ideal replacement for a faulty, intermittent or damaged original switch.

To Control: Window

Placement on Vehicle: Rear

Brand: Land Rover

Type: Push Pull Switch

Seller Warranty: 3 Months

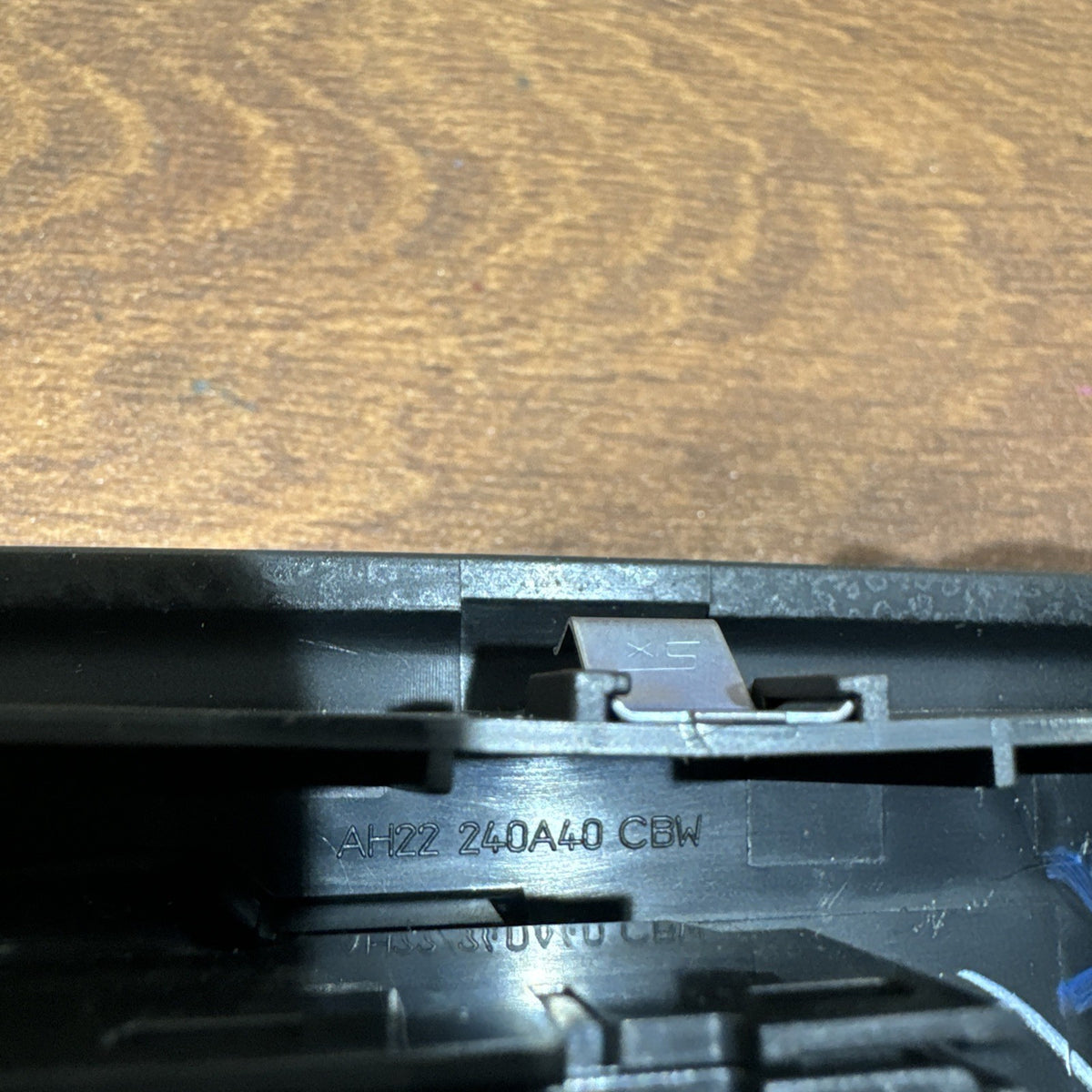

Manufacturer Part Number: AH22-240A40-CBW

Colour: Black
