LAND ROVER DISCOVERY L319 Rear Right Door Exterior Handle AH22-24994-DB 2010

#73

907 STORNOWAY GREY

Genuine Land Rover Discovery 4 L319 Rear Right Door Exterior Handle / Handle Mechanism – AH22-24994-DB

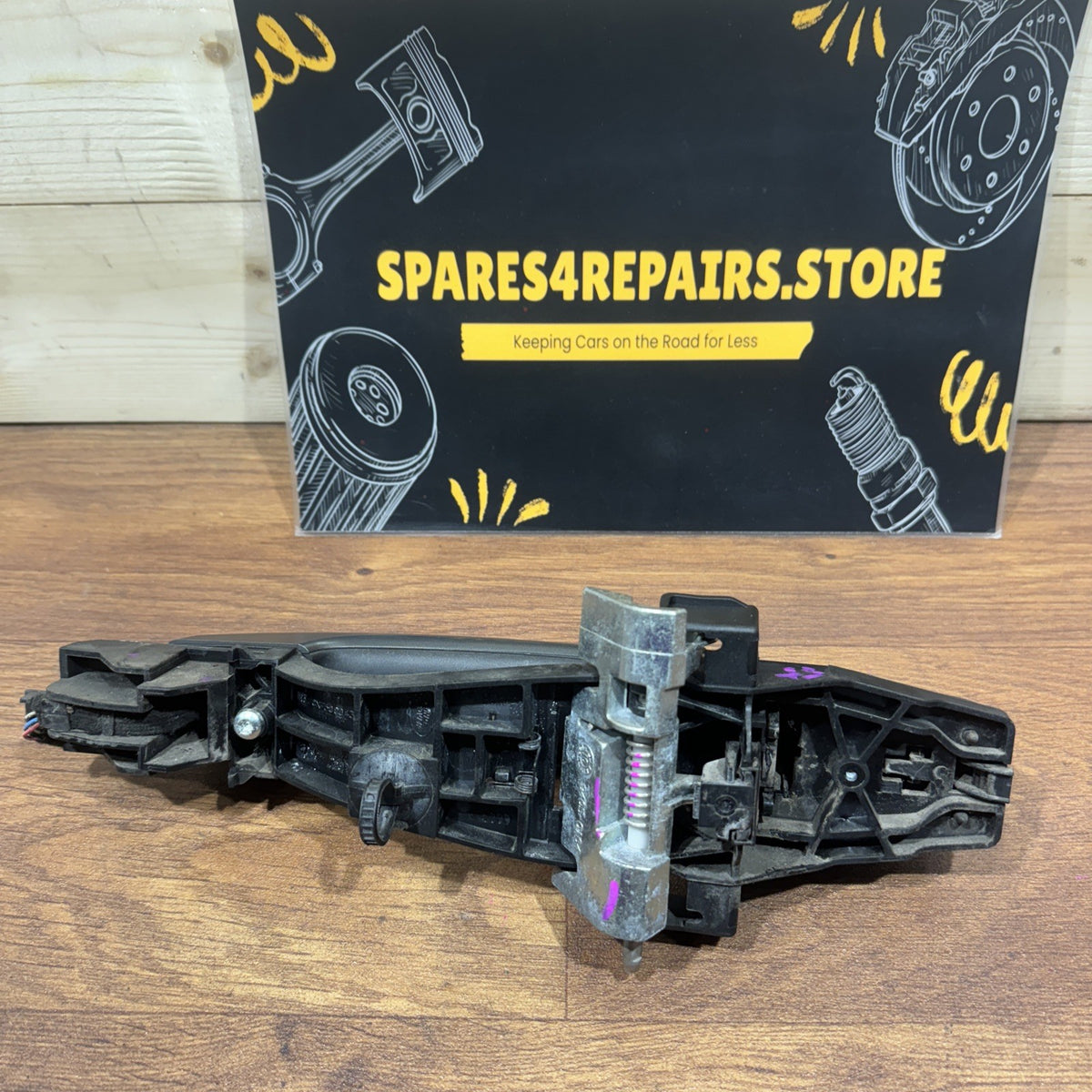

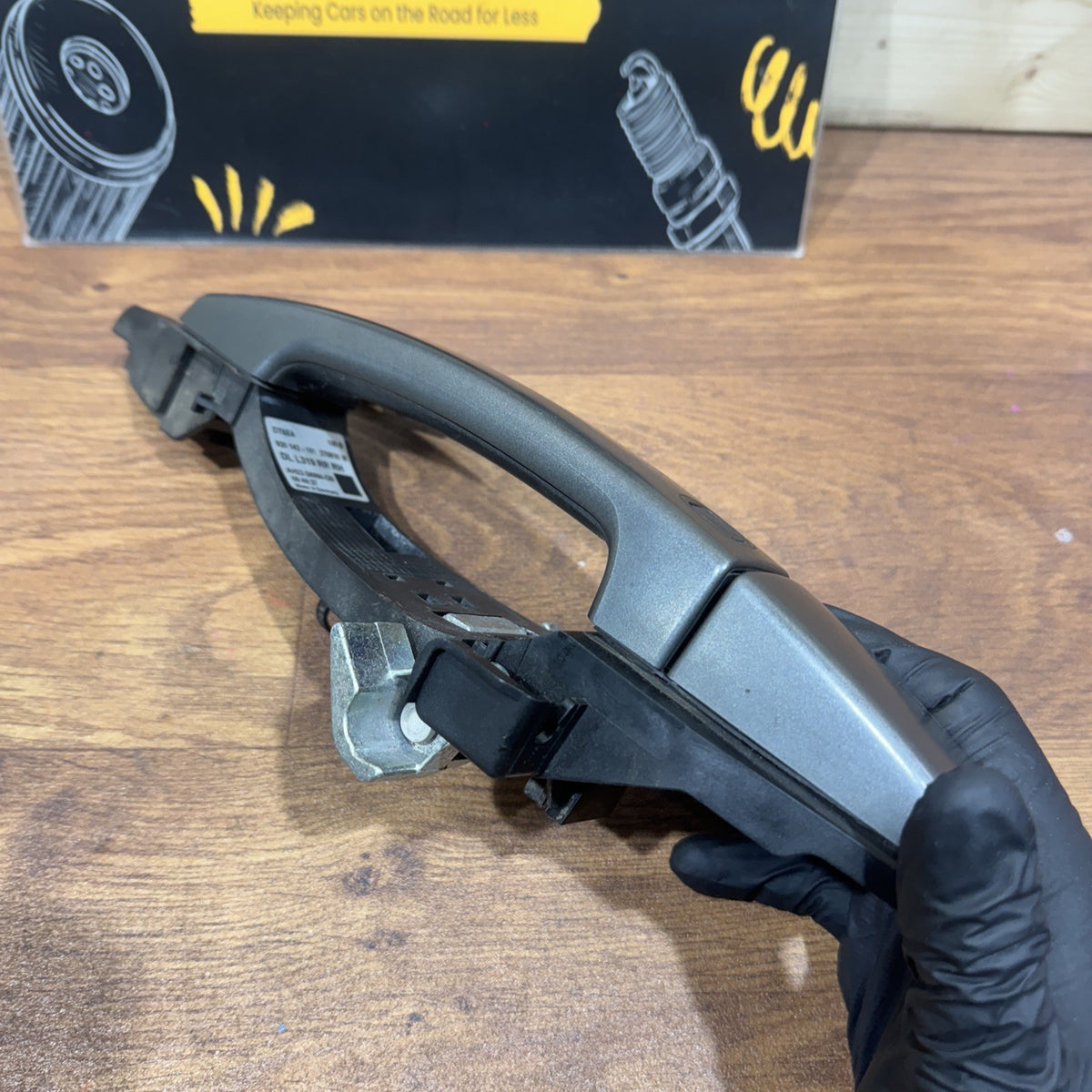

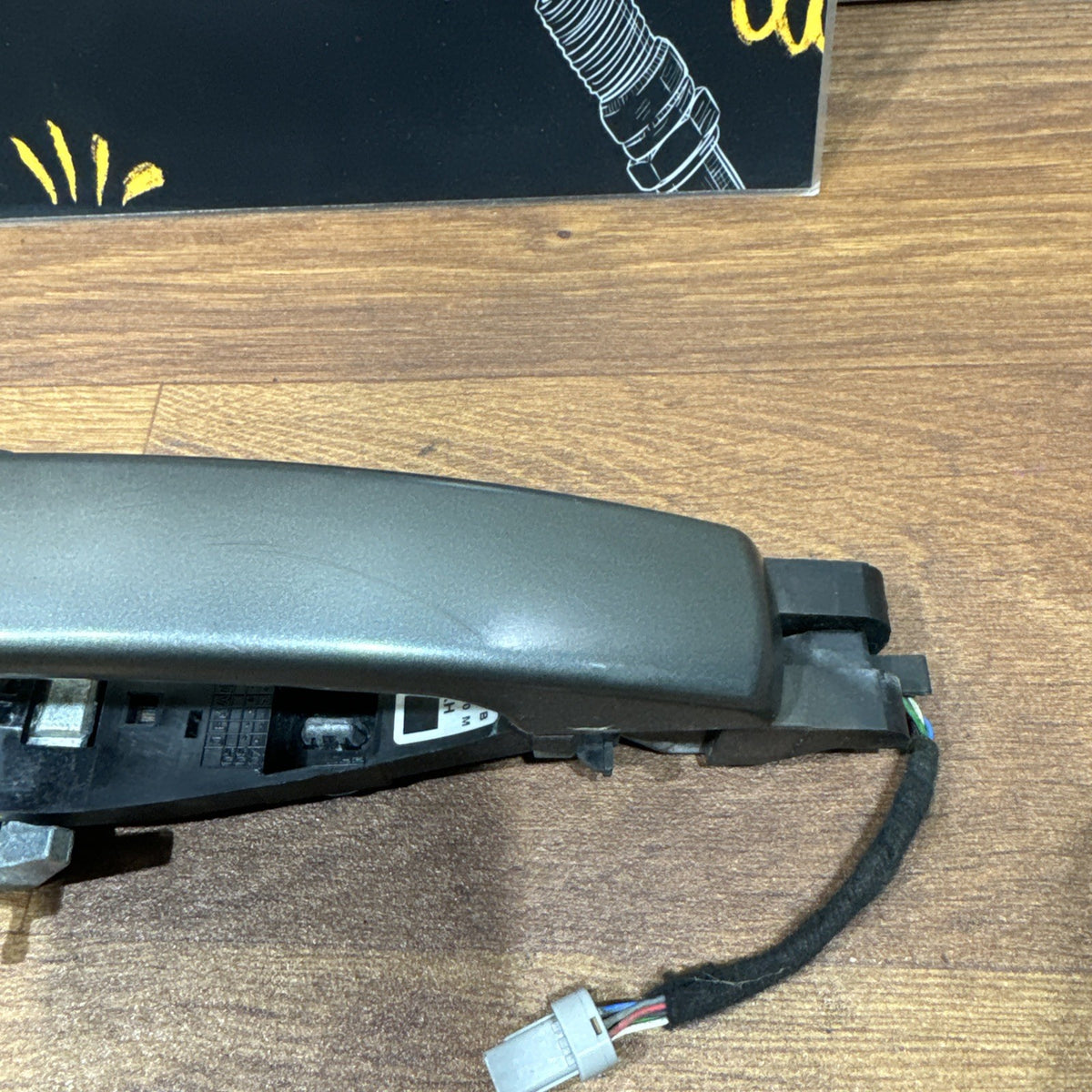

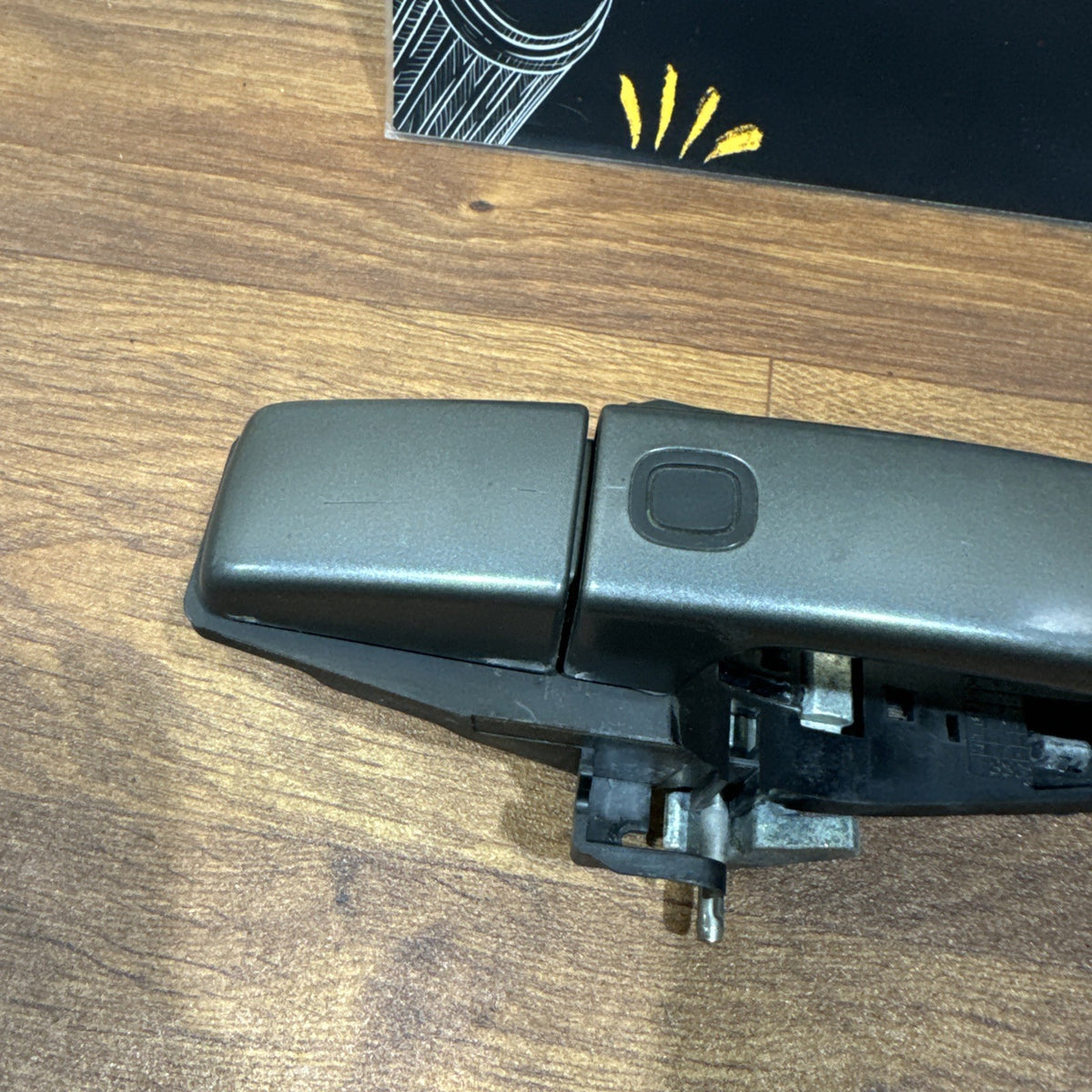

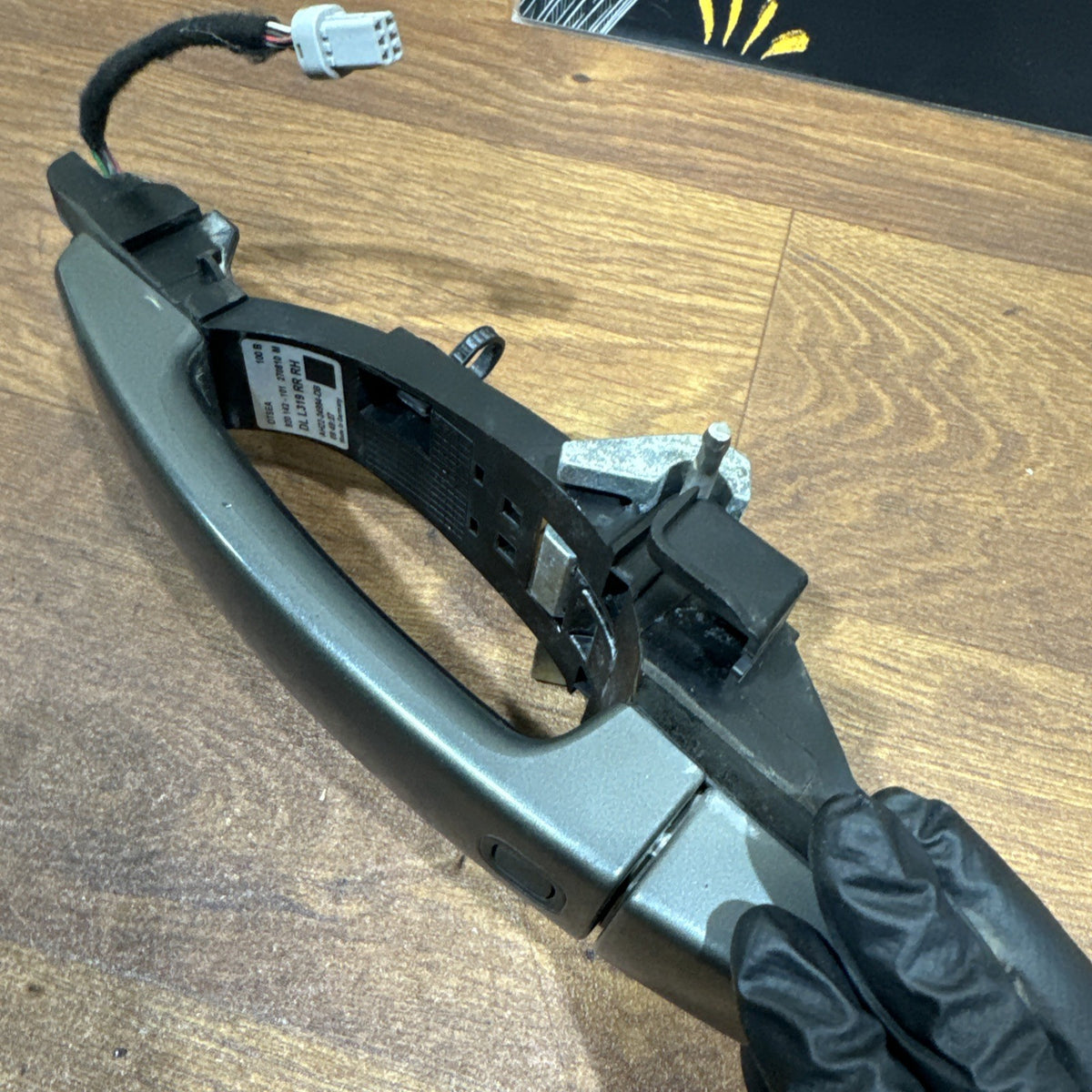

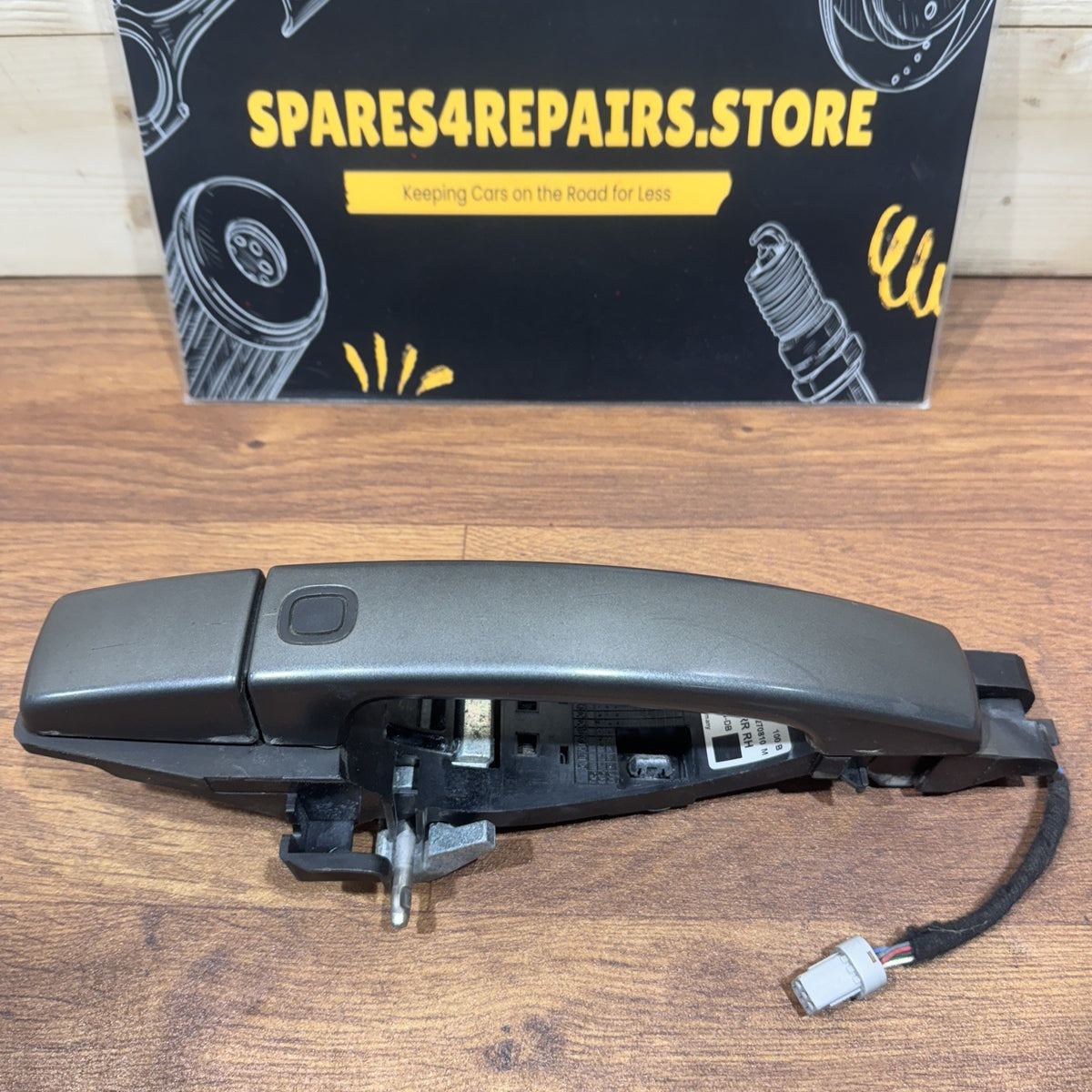

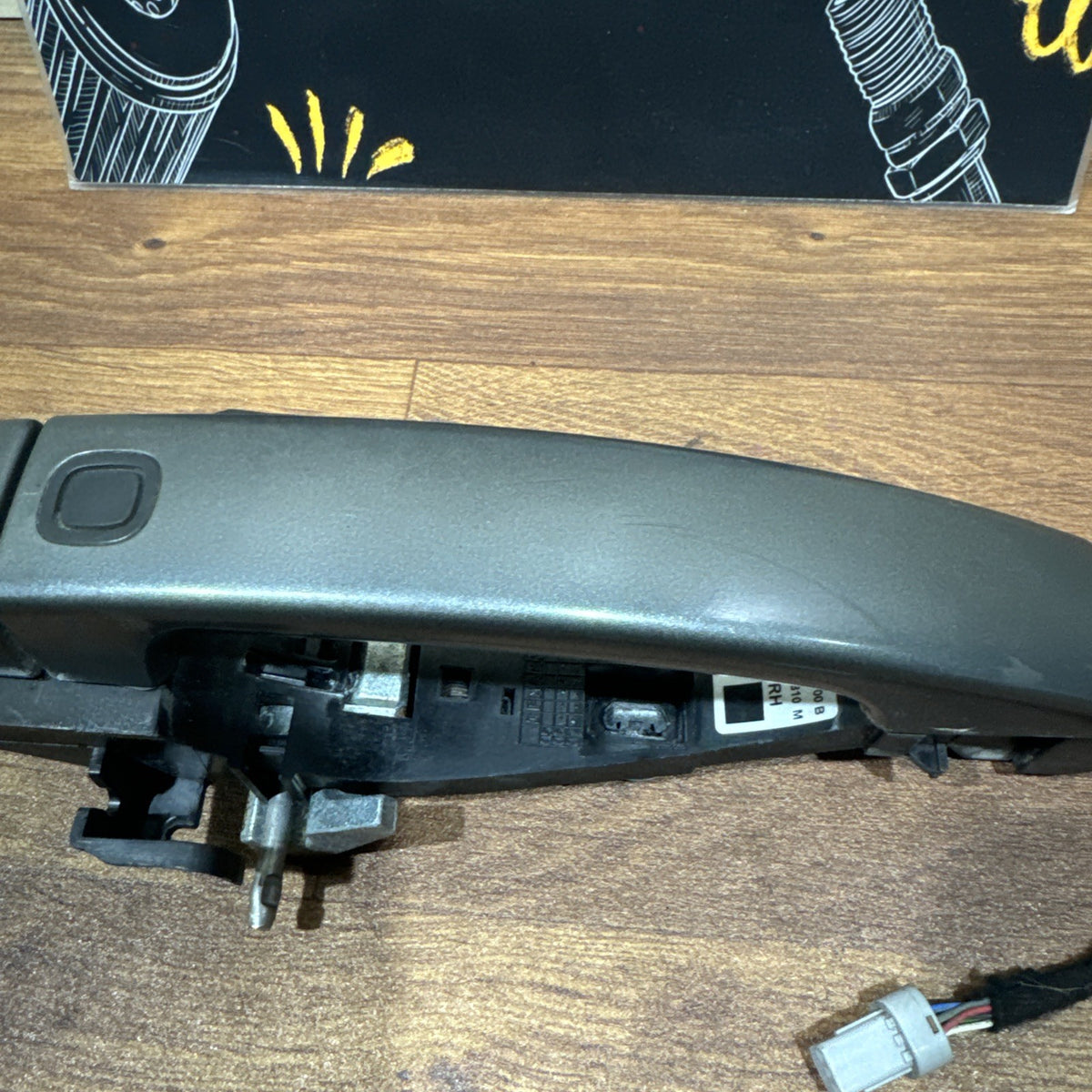

Genuine used Land Rover exterior door handle / handle mechanism, removed from a 2010 Land Rover Discovery 4 L319.

This unit is fitted to the rear right-hand door (O/S rear / driver-side rear on UK RHD vehicles) and forms part of the exterior door opening mechanism.

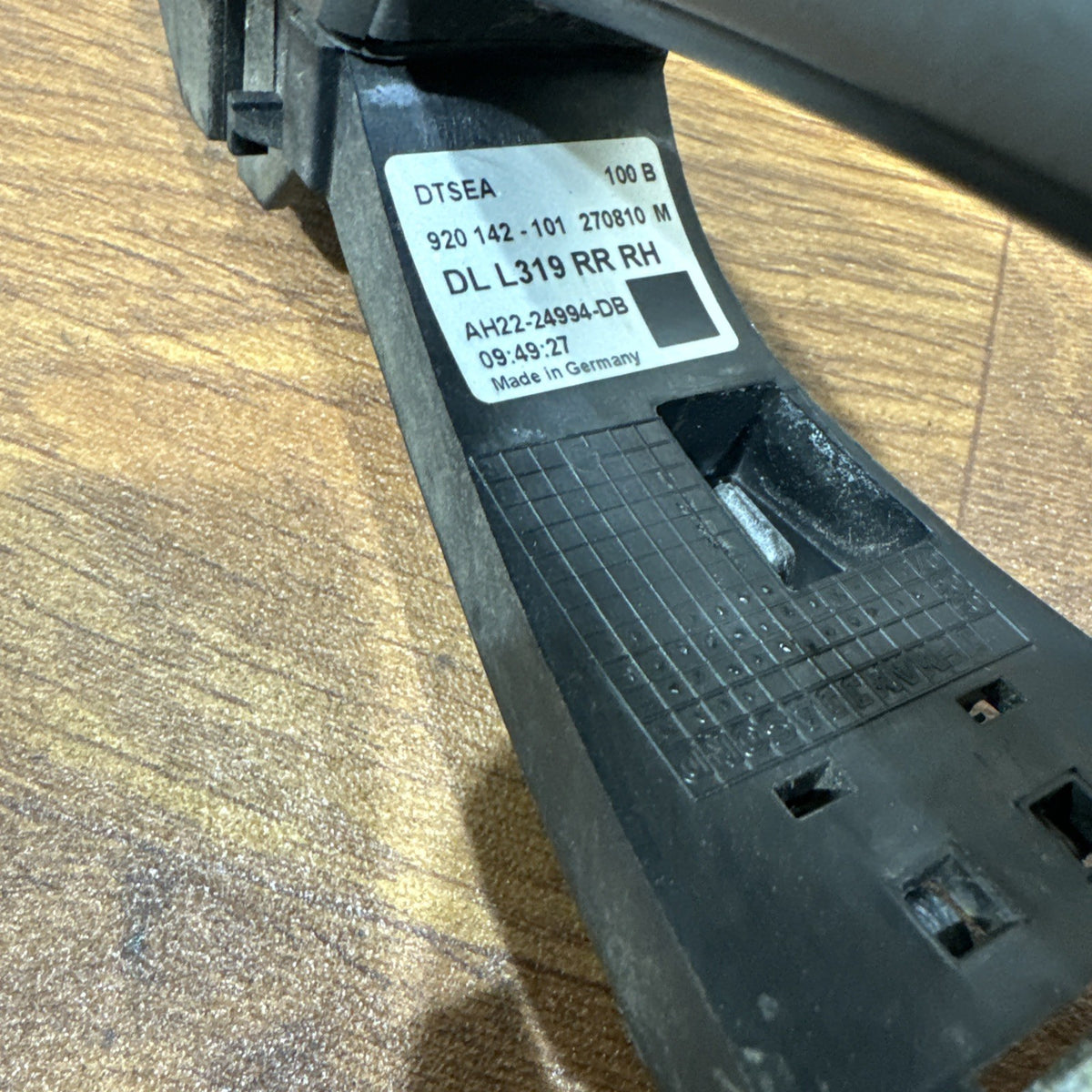

Part Number: AH22-24994-DB

OE / Engineering Number: AH22-24994-DB / AH2224994DB

Part Type: Exterior Door Handle / Handle Mechanism

Position: Rear Right

UK Vehicle Side: O/S Rear – Driver Side Rear

Vehicle Platform: L319

Manufacturer: Land Rover

Donor Vehicle: Land Rover Discovery 4 – 2010

Condition: Genuine used part

Compatibility

Suitable for applications within the:

Land Rover Discovery 4 / Discovery IV (L319)

• Discovery 4 L319 – 2009 onwards

• 5-door SUV / 4x4 models

• Right-hand rear door application

• RHD and LHD vehicles where the same rear-right handle specification is fitted

The AH22-24994-DB engineering number is documented on Discovery IV L319 rear-right door handle assemblies across multiple production years.

Suitable across Discovery 4 engine variants where the same door/handle specification is fitted, including vehicles equipped with:

• 2.7 TDV6 diesel

• 3.0 TDV6 diesel

• 3.0 SDV6 diesel

Door handles are primarily determined by door position, handle specification, locking/access equipment and engineering number rather than engine type.

Technical Information

This component is mounted to the exterior of the right rear passenger door.

Its purpose is to transfer movement from the exterior handle into the internal door-opening/latch mechanism, allowing the rear door to be opened from outside the vehicle.

The handle assembly interfaces with the associated:

• Rear door latch

• Handle carrier / bracket

• Mechanical linkage

• Door locking system

• Central locking system

• Keyless/passive-entry equipment where fitted

Door Locking / Access System Information

Discovery 4 vehicles were produced with different door-access specifications depending on model year and equipment.

Before purchasing, check whether your vehicle has:

• Standard central locking

• Passive/keyless entry

• Corresponding electrical connections where applicable

• Matching handle/carrier design

A visually similar Discovery 4 handle may not necessarily have the same equipment specification.

Common Reasons for Replacement

Replacement may be required if:

• Exterior handle is damaged or broken

• Handle pulls but door does not open

• Internal handle linkage has failed

• Handle carrier or mounting points are damaged

• Handle becomes loose

• Door has suffered accident damage

• Existing handle mechanism is seized or excessively worn

Important Diagnostic Information

If the exterior handle operates but the door still does not open, inspect the door latch, linkage/cables and locking mechanism before replacing the handle.

Central-locking problems may originate from the door latch/actuator rather than the exterior handle itself.

Installation

Direct replacement for vehicles equipped with the corresponding rear-right door arrangement.

Removal of the inner door trim and/or access to the internal door mechanism may be required during installation.

Check all mounting points, linkages and electrical connectors where applicable before final assembly.

Programming / Coding

A conventional mechanical exterior handle normally requires no programming or coding.

If the supplied assembly incorporates equipment associated with passive/keyless entry, the vehicle specification and associated components should be checked before installation.

Important Compatibility Note

Please match the part number AH22-24994-DB with your existing part before purchasing.

Land Rover used several revisions and equipment-dependent versions of the Discovery 4 exterior door handle. Similar-looking handles can have different engineering suffixes or passive-entry specifications.

For the safest fitment confirmation, compare:

AH22-24994-DB / AH2224994DB, mounting arrangement, electrical connections if present, and the physical design of your original handle.

Condition

Genuine used Land Rover part.

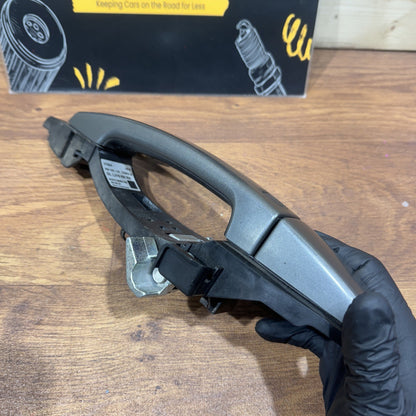

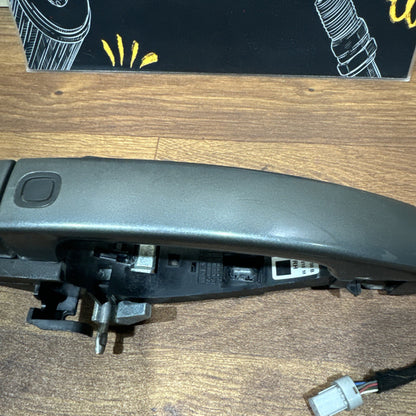

As a used exterior component, it may have normal age-related cosmetic marks, scratches or signs of previous use. Please check the supplied photographs carefully for the exact cosmetic condition, colour and items included.

Ideal genuine replacement for a damaged or faulty Land Rover Discovery 4 L319 rear right O/S exterior door handle.
