MERCEDES CLS 2014 RIGHT SEAT ADJUSTMENT MOTOR DRIVER FRONT 0130002625

#73

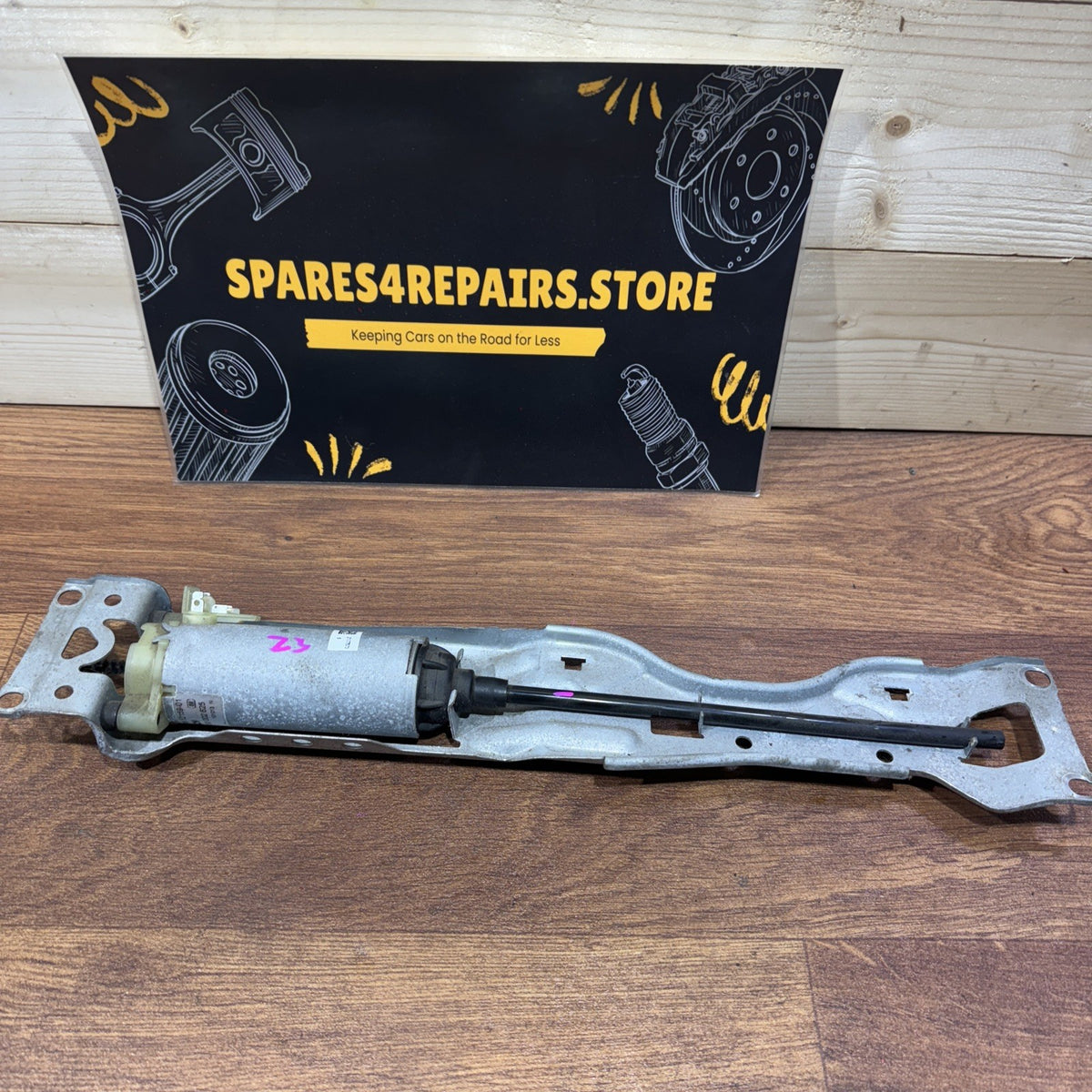

Genuine Mercedes-Benz CLS C218 W218 Front Right Driver Electric Seat Adjustment Motor 0130002625

Genuine used Mercedes-Benz electric front seat adjustment motor / actuator, removed from a 2014 Mercedes-Benz CLS C218/W218 front right seat.

This motor forms part of the electrically adjustable seat mechanism and provides the drive required to operate one of the seat’s adjustment functions.

On a UK right-hand-drive vehicle, the front right seat is the driver’s / O/S seat.

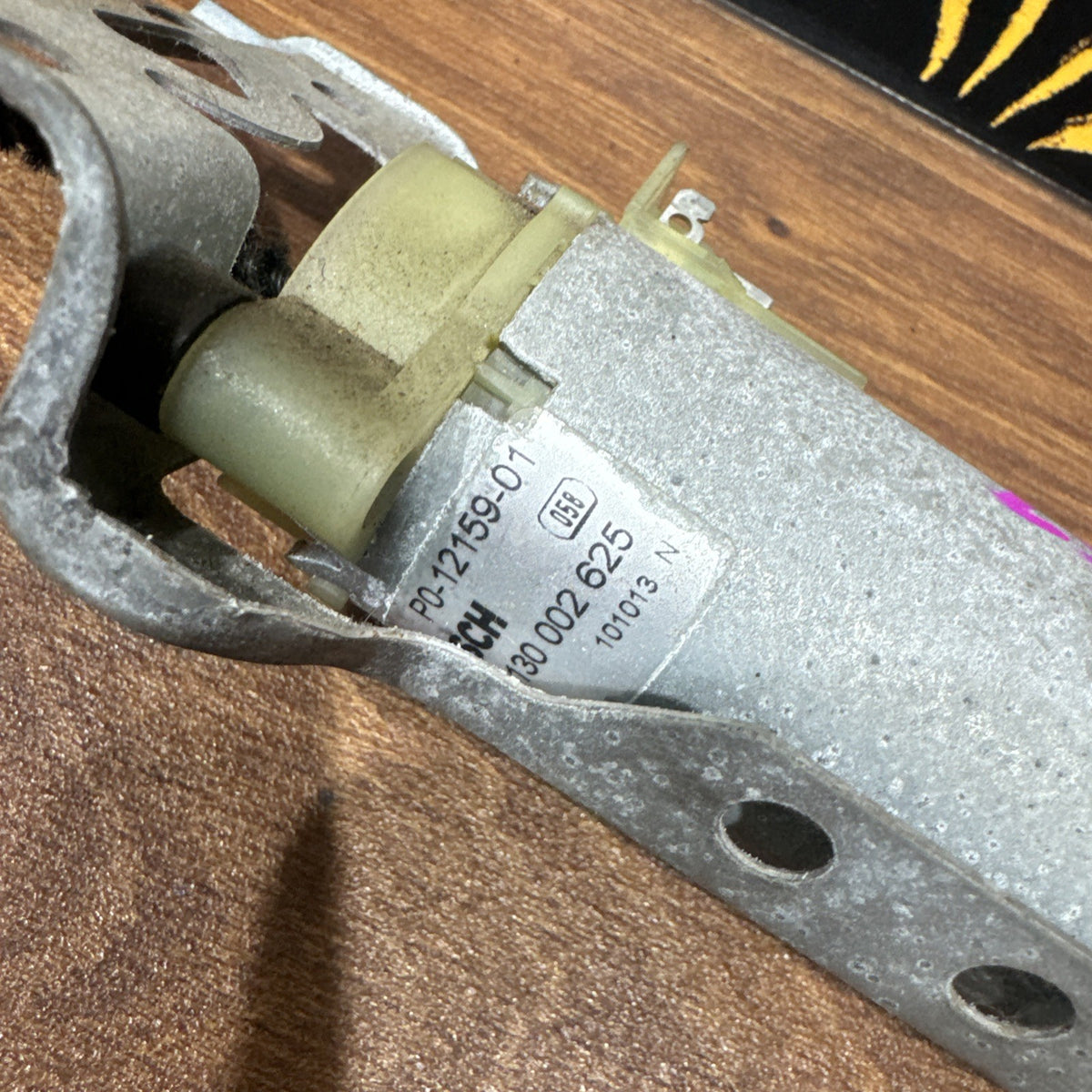

Part Number: 0130002625

Bosch Number: 0 130 002 625

Alternative Reference: P0-12159-01

Alternative Reference: P01215901

Part Type: Electric Seat Adjustment Motor / Actuator / Seat Drive Motor

Application: Front Electric Seat Adjustment

Position: Front Right Seat

UK RHD Position: Driver / O/S

Vehicle Platform: C218 / X218

Donor Vehicle: Mercedes-Benz CLS

Donor Year: 2014

Manufacturer: Bosch / Mercedes-Benz Application

Condition: Genuine Used OEM Part

COMPATIBILITY

The 0130002625 / 0 130 002 625 electric seat motor has significantly wider Mercedes-Benz application than the 2014 CLS donor vehicle.

MERCEDES-BENZ CLS C218 / W218 – 2011–2018

Potential applications with the corresponding electric seat mechanism include:

• CLS 220 BlueTEC / CLS 220 d

• CLS 250 CDI

• CLS 250 BlueTEC / CLS 250 d

• CLS 250 d 4MATIC

• CLS 300

• CLS 350

• CLS 350 CDI

• CLS 350 BlueTEC / CLS 350 d

• CLS 350 4MATIC

• CLS 400

• CLS 400 4MATIC

• CLS 500 / CLS 550

• CLS 500 / CLS 550 4MATIC

• CLS 63 AMG

• CLS 63 AMG 4MATIC

• CLS 63 AMG S / S-Model

MERCEDES-BENZ CLS SHOOTING BRAKE X218 – 2012–2018

Potential applications include selected:

• CLS 220 d Shooting Brake

• CLS 250 CDI / d Shooting Brake

• CLS 250 d 4MATIC Shooting Brake

• CLS 350 CDI / d Shooting Brake

• CLS 350 d 4MATIC Shooting Brake

• CLS 400 Shooting Brake

• CLS 400 4MATIC Shooting Brake

• CLS 500 Shooting Brake

• CLS 500 4MATIC Shooting Brake

• CLS 63 AMG Shooting Brake

• CLS 63 AMG S Shooting Brake

ADDITIONAL MERCEDES-BENZ APPLICATIONS

The same 0130002625 / 0 130 002 625 motor is documented in other Mercedes electrically adjustable front-seat assemblies.

Potential cross-model applications include selected:

Mercedes-Benz C-Class W204 / S204

• C180

• C200

• C220 CDI

• C250 / C250 CDI

• C300

• C320 CDI

• C350

• C63 AMG

Mercedes-Benz E-Class W211 / S211

• E200

• E220 CDI

• E230

• E240

• E270 CDI

• E280 / E280 CDI

• E300

• E320 / E320 CDI

• E350

• E500

• E55 AMG

• E63 AMG

Mercedes-Benz E-Class W212 / S212

• E200

• E220 CDI / BlueTEC

• E250 CDI / BlueTEC

• E300

• E300 BlueTEC / Hybrid

• E350 / E350 CDI / BlueTEC

• E400

• E500 / E550

• E63 AMG

Mercedes-Benz R-Class W251

• Selected electrically adjustable front-seat applications

Mercedes-Benz M-Class / ML

• Selected applications using the corresponding seat mechanism

Mercedes-Benz GL-Class

• Selected applications using the corresponding seat mechanism

IMPORTANT: Cross-model compatibility is based on use of the 0130002625 motor family. It does not mean every electric seat in the models above uses this exact motor.

The number on the original motor and the mechanical drive arrangement must be checked.

LEFT / RIGHT SEAT COMPATIBILITY

The motor itself is not necessarily unique to the driver’s side.

0130002625 is documented in different Mercedes front-seat assemblies, including right-front applications.

Therefore, for maximum compatibility the most important identification is:

0130002625 / 0 130 002 625

rather than simply Driver or Passenger.

For this specific donor:

Front Right = Driver / O/S on UK RHD vehicle

For European/LHD vehicles:

Front Right = Passenger Side

This makes “Front Right Seat” the best international position description.

TECHNICAL INFORMATION

This is a compact 12V electric seat drive motor/actuator used within the powered front-seat adjustment mechanism.

When the occupant operates the electric seat adjustment switch, the seat electronics supply power to the appropriate motor.

The motor converts electrical energy into rotational movement which is transferred through the associated:

• Drive cable

• Gearbox

• Spindle

• Seat rail

• Adjustment mechanism

This allows the corresponding section of the seat to move.

Depending on the exact seat configuration and mounting position, Mercedes seats can use separate motors for:

• Forward / backward adjustment

• Seat height adjustment

• Seat base inclination

• Backrest adjustment

• Headrest adjustment

• Additional comfort functions

IMPORTANT: Please identify the motor by part number and physical drive connection, rather than assuming its exact adjustment function solely from the donor seat position.

ELECTRIC SEAT SYSTEM INFORMATION

Mercedes CLS C218/X218 electric front seats can incorporate several electrically controlled functions depending on equipment level.

These may include:

• Electric fore/aft adjustment

• Electric seat height

• Electric seat inclination

• Electric backrest adjustment

• Electric headrest adjustment

• Lumbar support

• Memory seat functions

• Heated seats

• Ventilated seats

• Multicontour seat functions

The seat assembly can therefore contain several different motors with different numbers and mechanical functions.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

• Seat does not move in one direction

• Seat movement completely stopped

• Adjustment works intermittently

• Seat moves slowly

• Motor makes abnormal noise

• Motor runs but seat does not move

• Motor seized

• Internal motor failure

• Damaged electrical connector

• Drive mechanism damaged

• Seat stuck in one position

• Motor damaged during seat repair

• Replacement required during seat-frame overhaul

IMPORTANT DIAGNOSTIC INFORMATION

Before replacing the motor, check the complete adjustment mechanism.

Inspect:

• Seat adjustment switch

• Seat control module

• Electrical supply

• Fuses

• Wiring harness

• Motor connector

• Seat rails

• Drive cables

• Gear mechanism

• Adjustment spindle

• Mechanical obstructions

If the motor can be heard operating but the seat does not move, the problem may be with the drive cable, gearbox, spindle or seat mechanism rather than the motor itself.

VEHICLE NETWORK / DIAGNOSTICS

On vehicles equipped with electronically controlled or memory seats, Mercedes STAR/Xentry or suitable diagnostic equipment can assist with diagnosis.

Depending on specification, diagnostics may allow:

• Reading seat-related fault codes

• Checking seat control-module communication

• Checking adjustment commands

• Testing individual seat functions

• Monitoring electrical faults

• Diagnosing memory-seat problems

INSTALLATION

The motor should be installed in the same position and orientation as the original unit.

Before installation compare:

• Motor part number

• Motor casing

• Electrical connector

• Drive output

• Gear/shaft connection

• Mounting points

• Drive cable arrangement

After installation, operate the seat through its full relevant adjustment range and ensure that the mechanism moves smoothly without binding.

PROGRAMMING / CODING

The electric motor itself does not normally require programming or coding.

It is an electromechanical actuator controlled by the existing seat electronics.

If a seat control module or other electronic component is replaced at the same time, additional diagnostic procedures may be necessary.

IMPORTANT COMPATIBILITY NOTE

Mercedes-Benz used multiple electric motors within the same front-seat assembly.

Please do not purchase solely because your vehicle is a CLS C218/W218.

The primary numbers to compare are:

0130002625

0 130 002 625

P0-12159-01

P01215901

Also compare:

• Motor dimensions

• Electrical connector

• Connector pin arrangement

• Drive shaft/cable connection

• Mounting points

• Position within the seat

• Seat adjustment function

Matching 0130002625 / 0 130 002 625 and the physical motor design to your original part is the safest compatibility check.

CONDITION

Genuine used Mercedes-Benz/Bosch OEM seat motor.

Removed from a 2014 Mercedes-Benz CLS C218/W218 – Front Right O/S Driver Seat (UK RHD).

The item may show normal signs of previous installation, use, storage and removal.

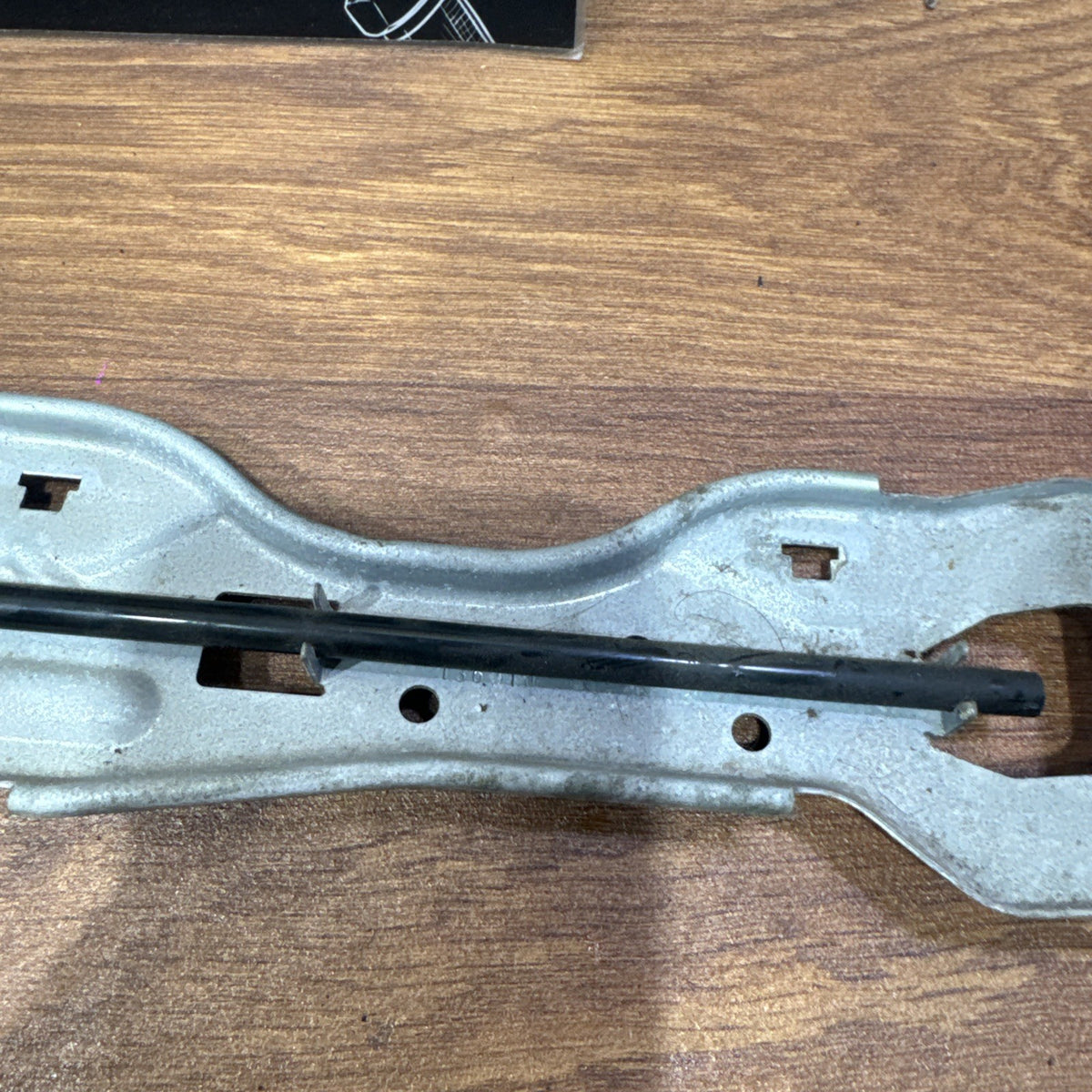

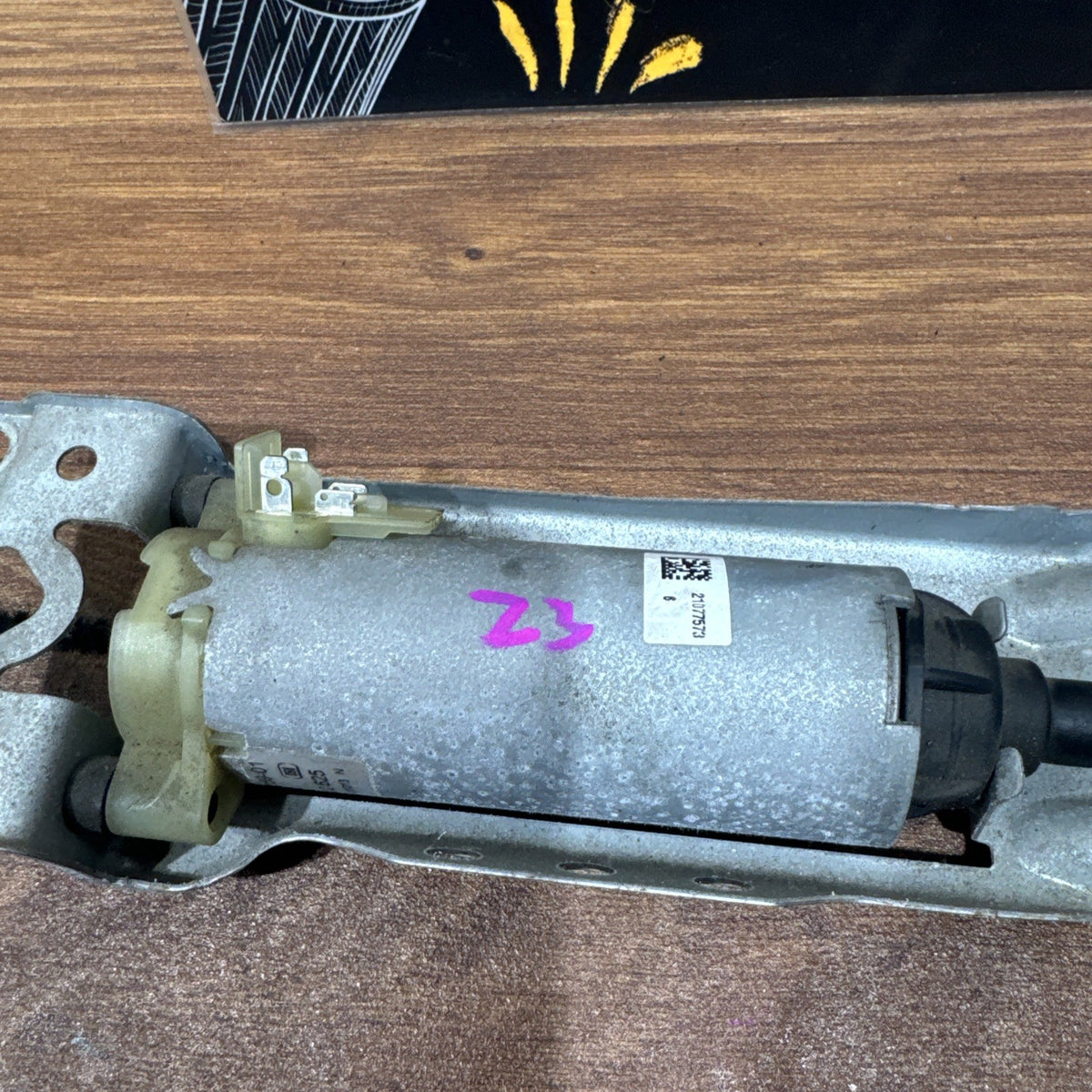

Please inspect all listing photographs carefully to compare the part number, electrical connector, drive connection and mounting arrangement with your original motor.

Ideal genuine replacement for a faulty or seized electric front-seat adjustment motor on compatible Mercedes CLS C218/X218, C-Class W204, E-Class W211/W212 and other Mercedes electric seat applications where 0130002625 / 0 130 002 625 and the physical configuration match the original unit.
