Original Fan Grille Air Jet VW T5 Transporter 03-09 inside Right 7H0815706E

Low stock! Only 1 left
£30.00
£30.00
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

#30


Genuine used Volkswagen Transporter T5 centre right dashboard air vent / fresh air grille, removed from a 2003–2009 generation vehicle. This is the original VW dashboard ventilation outlet used to direct airflow from the heater and ventilation system into the cabin.

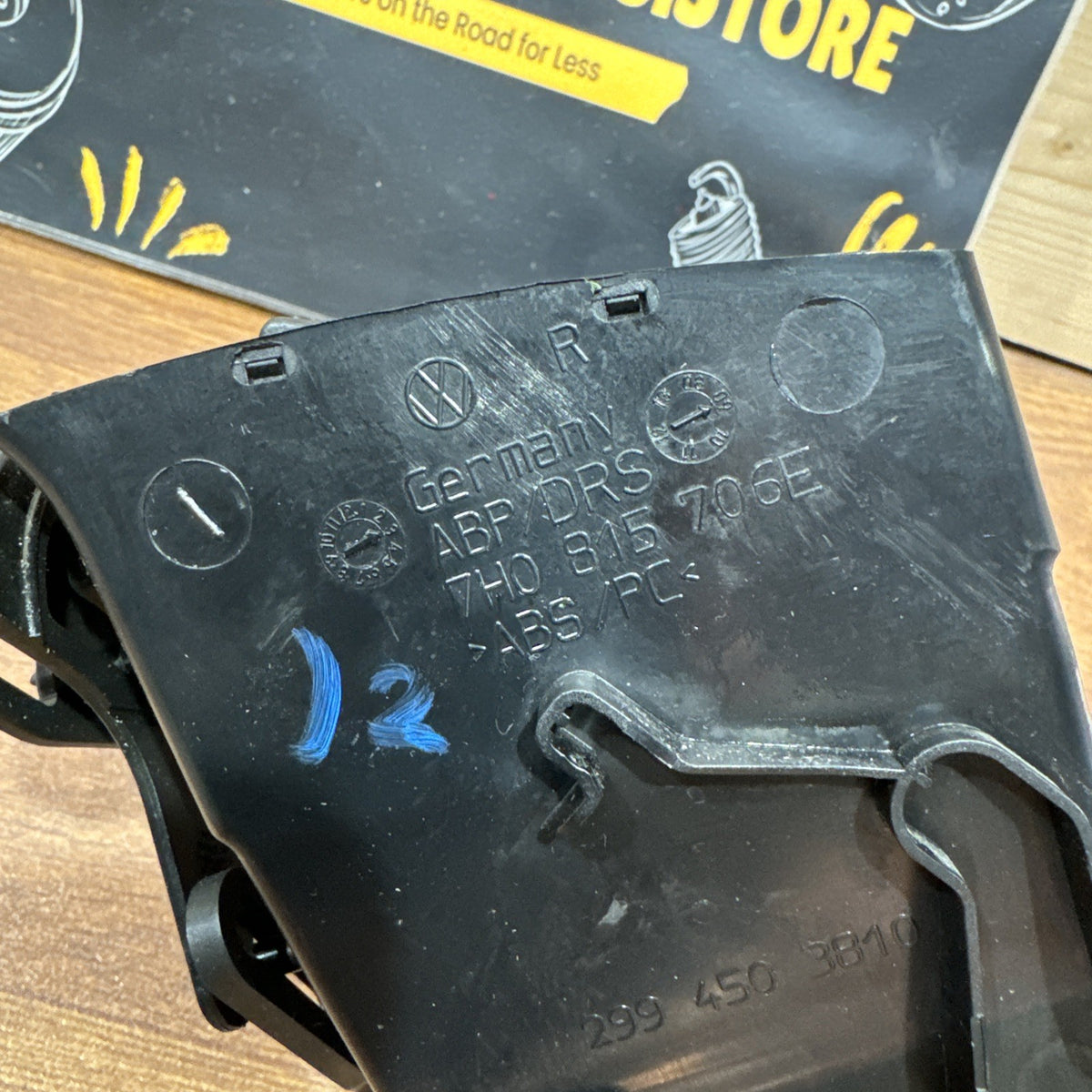

Part Number: 7H0815706E

VW OE Number: 7H0 815 706 E

Part Type: Dashboard Fresh Air Vent / Air Jet / Ventilation Grille

Position: Centre Right Dashboard

UK Vehicle Side: Right side of the centre dashboard area

Manufacturer: Volkswagen

Condition: Genuine used part


Compatibility


Suitable for selected:


* Volkswagen Transporter T5 – 2003–2009

* VW Caravelle T5 – selected models

* VW Multivan T5 – selected models

* Transporter panel van, Kombi and passenger variants where the same dashboard specification is fitted


VW parts catalogues identify 7H0815706E as the centre-right fresh-air vent, with application linked to the standard dashboard (PR code 4N2). (OEM Wolf)


Compatibility can vary depending on dashboard specification, trim level and production date, so the OE number should always be checked before purchase.


Technical Information


The dashboard air vent forms part of the vehicle’s cabin heating and ventilation distribution system.


Air supplied by the heater/blower assembly passes through internal dashboard ducting before exiting through this vent. The adjustable grille allows the driver or passenger to:


* Direct airflow vertically and horizontally

* Control airflow towards the occupant

* Reduce or redirect airflow from the centre dashboard outlet

* Maintain the original appearance of the dashboard


The 7H0815706E unit is specifically identified as a genuine VW front/centre-right dashboard ventilation outlet. (eBay UK)


Heating & Ventilation System Information


This part is a mechanical airflow outlet and contains no electronic control module or actuator.


If there is little or no airflow from the vent even when the grille is open, the fault may be elsewhere in the HVAC system, including:


* Blocked or disconnected dashboard ducting

* Heater blower motor fault

* Blower resistor/control issue

* Heater flap or actuator problem

* Cabin/pollen filter restriction where applicable


Replacing the grille alone will not correct an underlying airflow-system fault.


Common Reasons for Replacement


Typical reasons for replacing this part include:


* Broken or missing vent fins

* Vent will no longer stay in the selected position

* Damaged airflow adjustment mechanism

* Cracked outer surround

* Previous dashboard removal damage

* Scratched or heavily worn trim

* Missing original vent after dashboard repair or conversion


Important Diagnostic Information


Before replacing the vent because of poor airflow, check that air is reaching the dashboard duct behind the vent.


If airflow reaches the duct correctly but cannot be directed because the internal fins or adjustment mechanism are damaged, replacement of the vent assembly is appropriate.


Installation


Designed to fit into the original dashboard opening.


Installation normally involves carefully releasing the existing vent from the dashboard and fitting the replacement into the factory mounting position.


Use suitable trim-removal tools where possible to reduce the risk of marking the surrounding dashboard plastics.


Programming / Coding


No programming or coding is normally required.


This is a mechanical dashboard ventilation component.


Important Compatibility Note


Please compare before ordering:


* Part number – 7H0815706E

* Shape of the vent and outer surround

* Mounting clips/tabs

* Dashboard specification

* Position – centre right

* Colour/finish

* Vehicle production year


VW used several visually similar dashboard vents during T5 production, so matching the OE number is strongly recommended.


Condition


Genuine Volkswagen used part.


As a used interior component, it may show normal cosmetic signs of previous use such as light marks, scratches or surface wear. Please inspect the listing photographs carefully for the exact condition and included components.


Any identifying colour/security markings applied to the part must remain intact in the event of a return.


Ideal genuine replacement for a broken, damaged, missing or incorrectly operating VW Transporter T5 centre-right dashboard air vent.

Brand: Volkswagen

Mounting Position: Not applicable

Product Type: Others

Manufacturer Part Number: Does Not Apply

MPN: 7H0815706E

Tipo de marca: Other

Measuring Unit: not applicable

Placement on Vehicle: Right
