Pipes For 038145209Q Brake Vacuum Pump For VW Transporter T5 1.9 AXC 2003-2009

#123

Genuine used Volkswagen Transporter T5 1.9 TDI vacuum pump pipe / hose set, removed from an AXC 1.9 TDI engine and used with the 038145209Q brake vacuum pump system.

These pipes form part of the engine vacuum system, distributing vacuum generated by the mechanical pump to the brake servo and associated vacuum-operated engine components.

Vacuum Pump Reference: 038145209Q

Main Brake Servo Vacuum Pipe Reference: 7H1611931M – where fitted/included

Part Type: Vacuum Pipes / Vacuum Hoses / Brake Servo Vacuum Pipework

Engine: 1.9 TDI PD

Engine Code: AXC

Engine Output: 63 kW / 85 PS

Application: Vacuum Pump / Brake Servo / Engine Vacuum System

Manufacturer: Volkswagen

Condition: Genuine used parts

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5 – selected models

* Transporter panel van

* Kombi / passenger variants

* Chassis cab / flatbed variants

Confirmed Engine Application:

* 1.9 TDI AXC – 63 kW / 85 PS

Designed for the vacuum system associated with the mechanical 038145209Q vacuum pump or compatible original pump revision.

Some individual hoses may also be shared with other T5 1.9 TDI configurations, but buyers should compare the pipe layout and connections before ordering.

Technical Information

The AXC diesel engine uses a mechanically driven vacuum pump because a diesel engine does not naturally produce sufficient intake-manifold vacuum for all vacuum-operated systems.

The pump generates negative pressure which is distributed through these pipes and hoses.

Depending on the particular pipe included, the vacuum system can supply:

* Brake servo / brake booster

* Vacuum reservoir

* Turbocharger control system

* EGR control system

* Vacuum control solenoids

* Associated engine-management actuators

Brake Servo Vacuum Pipe

The main brake-servo vacuum line is particularly important because it transfers vacuum from the engine vacuum system to the brake booster.

For the T5 1.9 TDI AXC, VW catalogue information identifies:

7H1611931M – Vacuum Pipe With Non-Return Valve

The integrated non-return/check valve helps retain vacuum within the brake-servo system when vacuum generation changes or the engine is switched off.

Correct operation of this pipe and valve is important for consistent brake assistance.

Vacuum System Information

Vacuum generated by the pump is distributed through a network of rigid pipes, flexible hoses, connectors and control valves.

A leak anywhere in this network can reduce available vacuum.

Even a small split in an ageing hose can potentially affect operation of vacuum-controlled components.

Older T5 vacuum pipes should therefore be inspected carefully around:

* Rubber connections

* Plastic junctions

* Non-return valves

* Pump connections

* Brake-servo connection

* Vacuum solenoid connections

Common Symptoms / Reasons for Replacement

Damaged or leaking vacuum pipes can cause:

* Hard brake pedal

* Reduced brake assistance

* Intermittent brake-servo assistance

* Hissing from the engine bay

* Loss of vacuum

* Turbocharger control problems

* Poor boost response

* Reduced engine performance

* Limp-home mode

* EGR control problems

* Vacuum-related fault codes

* Oil contamination or deterioration of rubber connections

A pipe may look intact externally but still leak around a connector or hardened rubber joint.

Important Diagnostic Information

If the vehicle has a hard brake pedal or low vacuum, do not automatically replace the 038145209Q vacuum pump.

First inspect the complete vacuum system.

Check:

* Main brake-servo vacuum pipe

* Non-return/check valve

* Flexible vacuum hoses

* Plastic vacuum pipes

* Vacuum reservoir

* Brake servo

* Turbo control hoses

* EGR vacuum circuit

* Vacuum solenoid valves

* Connections directly at the vacuum pump

A leaking hose or faulty non-return valve can produce symptoms very similar to a weak vacuum pump.

Vacuum Testing

The system can be tested using a suitable vacuum gauge or hand-operated vacuum tester.

Testing individual sections can help determine whether vacuum is being lost through:

* A damaged pipe

* Split hose

* Loose connector

* Non-return valve

* Brake servo

* Vacuum-operated actuator

If the 038145209Q pump produces correct vacuum directly at its outlet, but vacuum pressure drops elsewhere in the system, the pipework and connected components should be investigated.

Installation

Before fitting:

* Compare all connections with the original pipes

* Check plastic sections for cracks

* Inspect rubber ends for splitting

* Check non-return valves

* Ensure connectors are clean

* Check retaining clips where fitted

During installation, route the pipes in their original positions.

Avoid:

* Kinking flexible hoses

* Routing pipes against hot exhaust components

* Allowing hoses to contact moving components

* Forcing brittle plastic connectors

After installation, start the engine and confirm correct vacuum and brake-servo operation.

Programming / Coding

No programming or coding is required.

These are mechanical/pneumatic vacuum-system components.

Important Compatibility Note

Please compare before ordering:

* Engine code – AXC

* Vacuum pump – 038145209Q or compatible OE revision

* Main pipe number – 7H1611931M, if applicable

* Number of pipe connections

* Pipe routing and shape

* Non-return valve configuration

* Brake-servo connection

* Vacuum-pump connection

* Additional branch connections

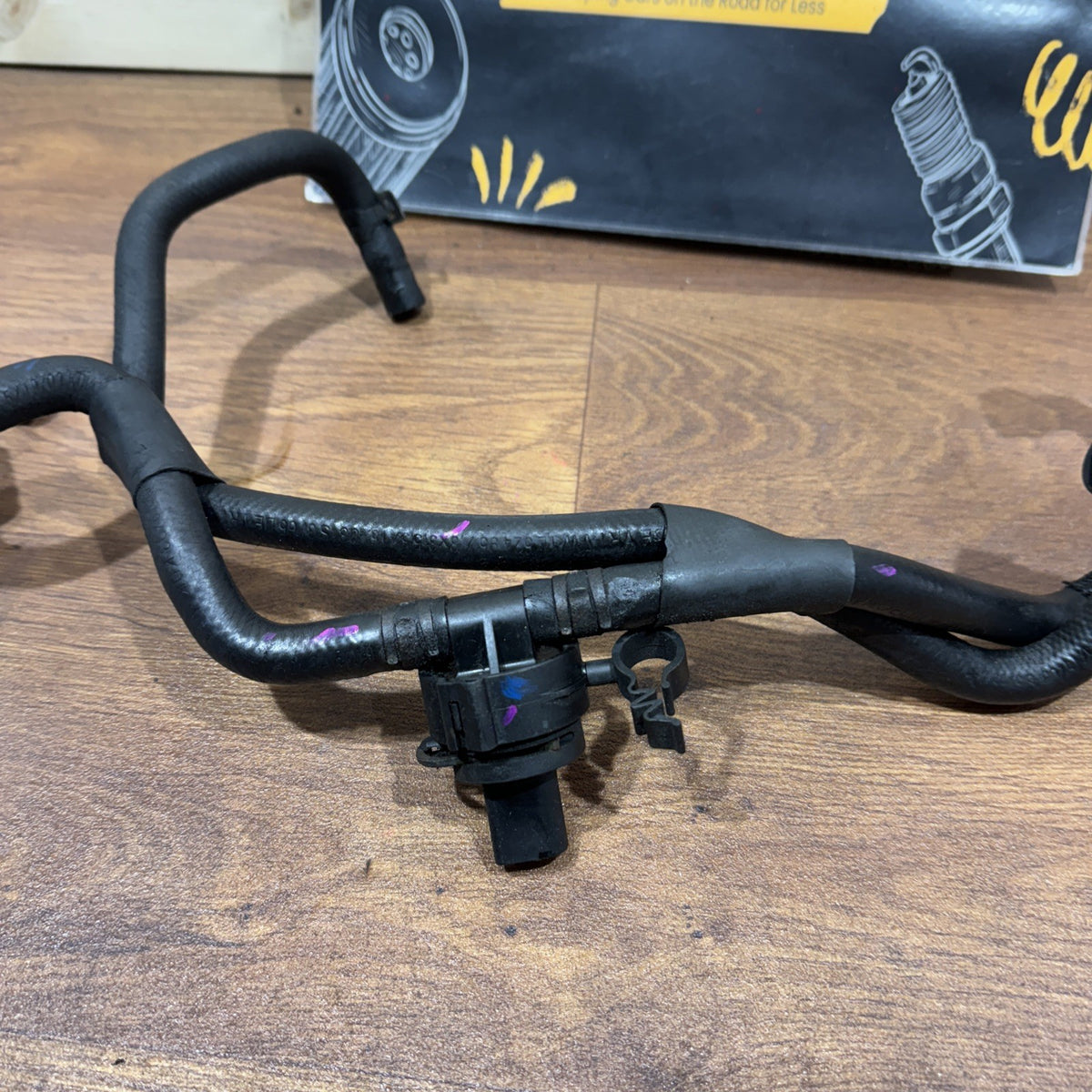

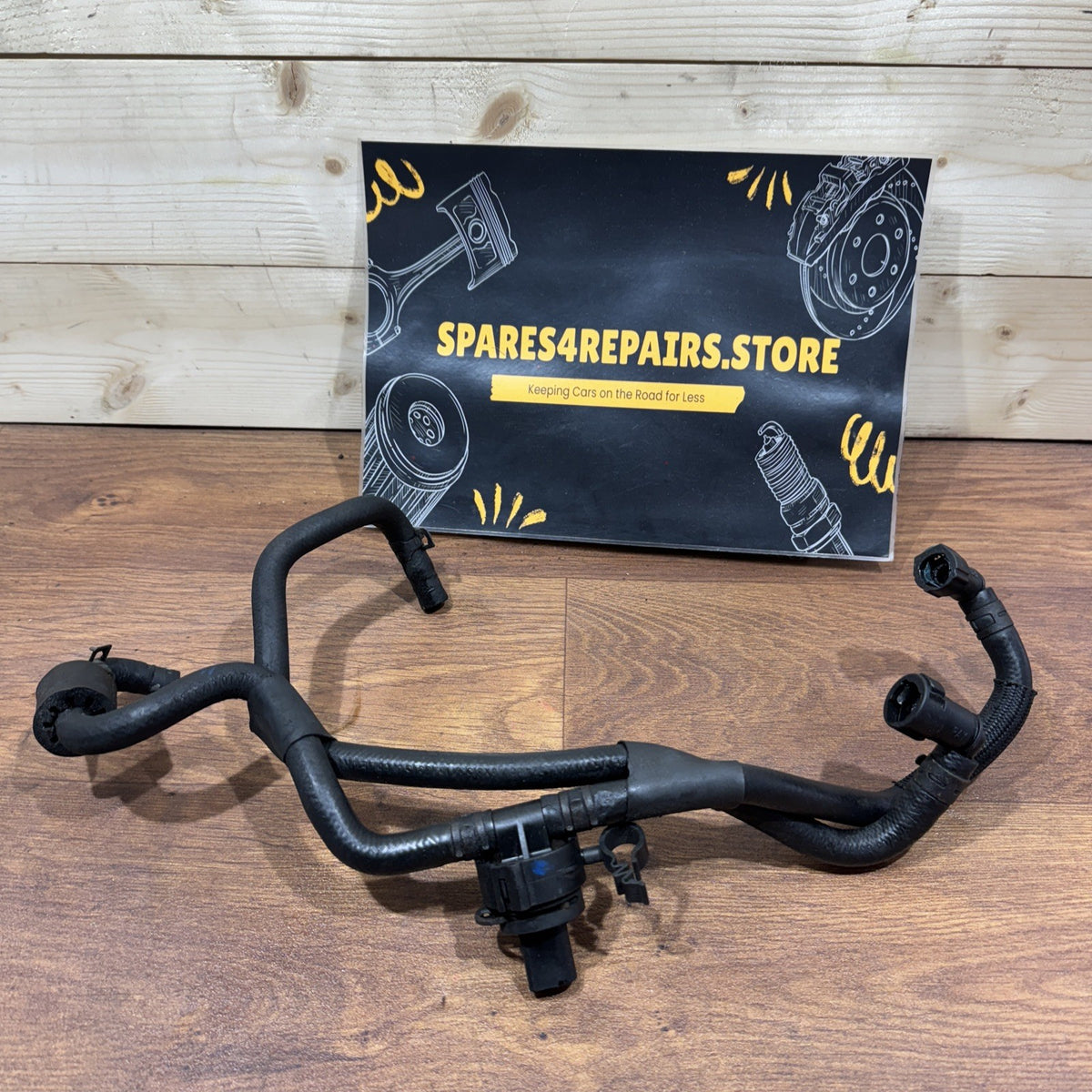

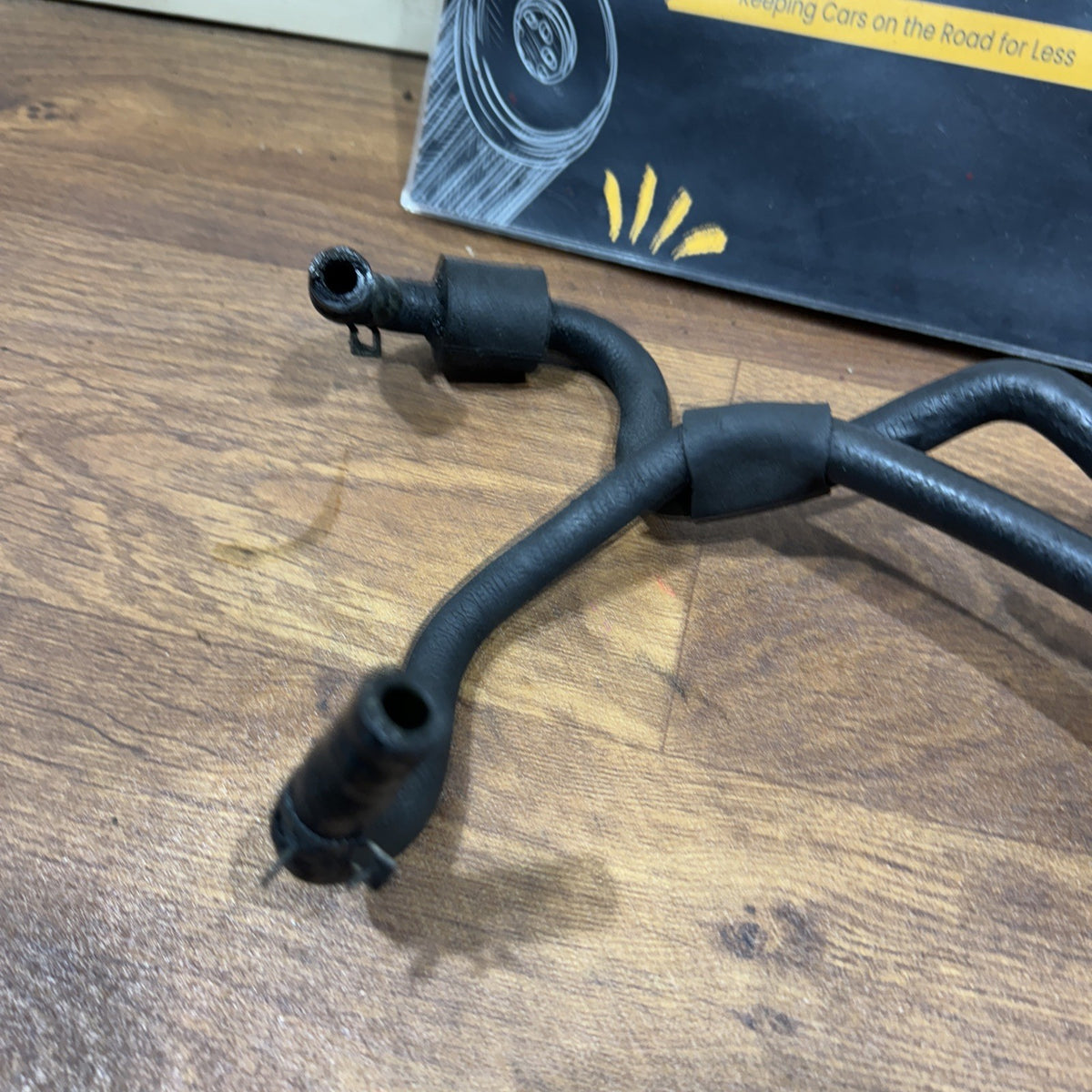

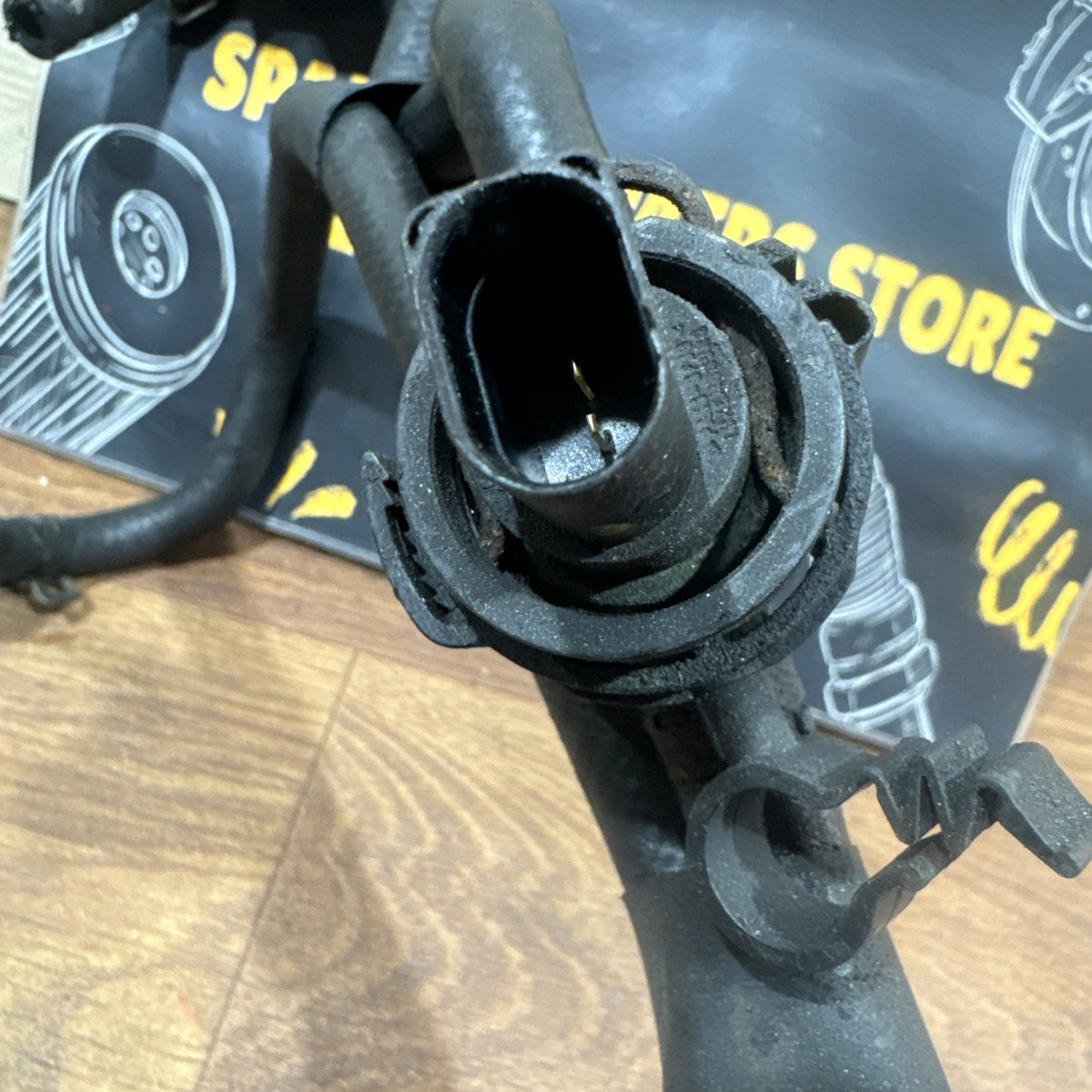

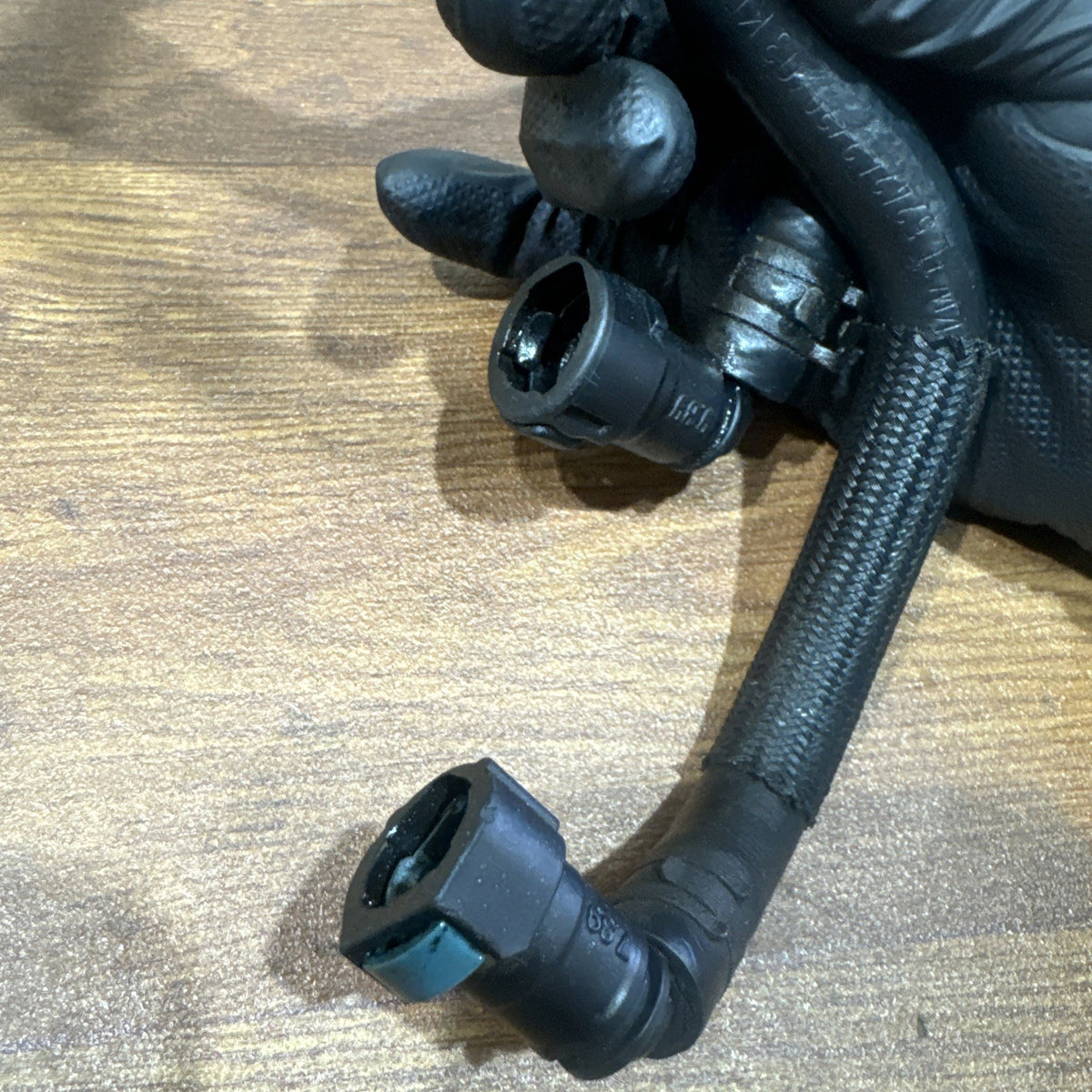

Please use the listing photographs to compare the exact pipes supplied with the pipes currently fitted to your vehicle.

VW used different vacuum-system configurations according to engine code, production date and vehicle specification.

Condition

Genuine Volkswagen used vacuum pipes / hoses.

As used engine-bay components, they may show normal signs of previous use including:

* Surface marks

* Dirt

* Oil residue

* Discolouration

* General age-related cosmetic wear

Please inspect the listing photographs carefully for the exact number of pipes, connectors, valves and hoses included in the sale.

Any identifying colour/security markings applied to the parts must remain intact in the event of a return.

Ideal genuine replacement for split, leaking, damaged or missing VW Transporter T5 1.9 TDI AXC vacuum pump pipework, particularly when used with the 038145209Q vacuum pump system.
