Range Rover Land Rover L494 2016 CPLA-16A938-AA Bonnet Lock Cable

#85

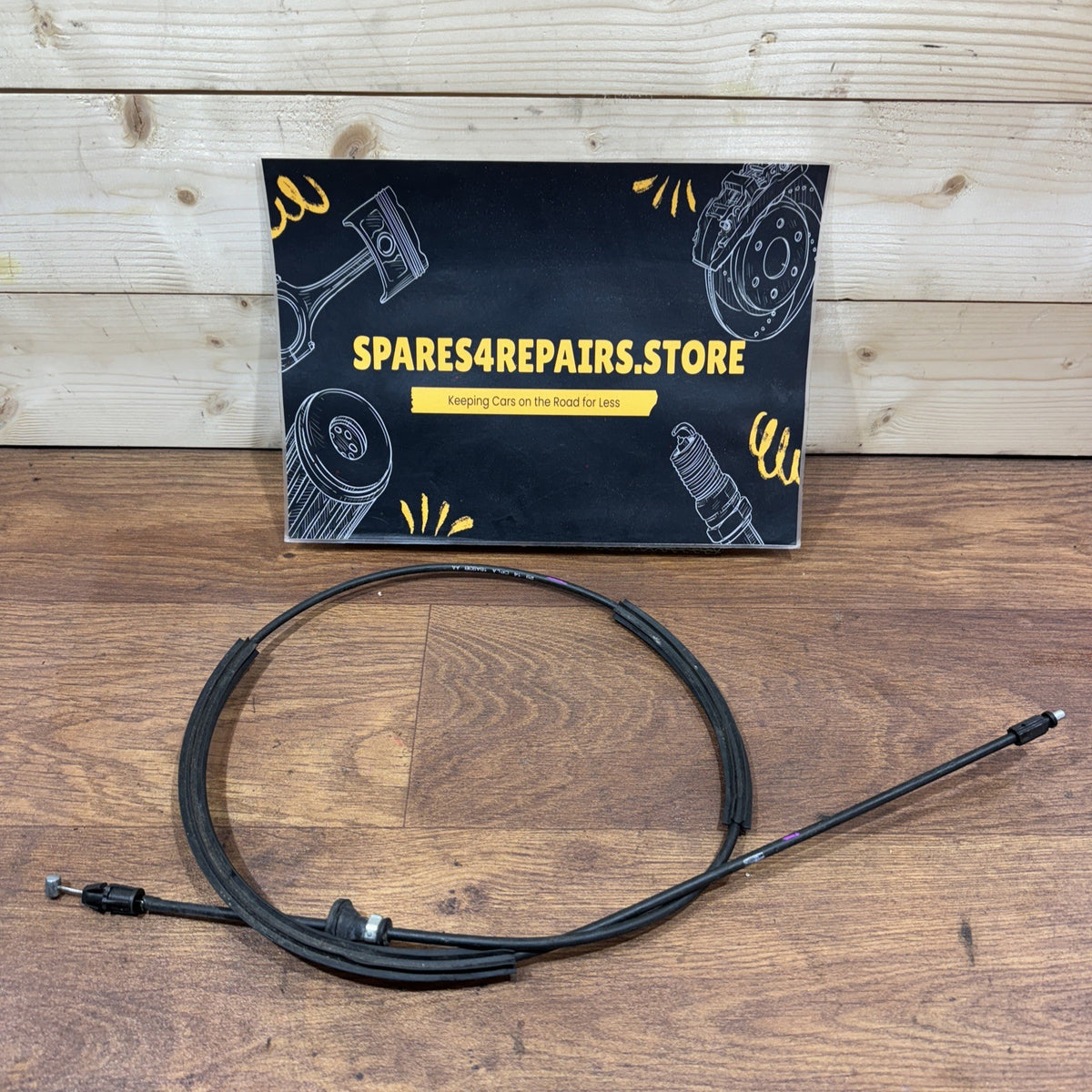

Genuine used Land Rover Range Rover Sport L494 bonnet lock / release cable, engineering reference CPLA-16A938-AA, removed from a 2016 Range Rover Sport L494.

This mechanical cable forms part of the bonnet opening and locking system, transferring movement through the bonnet release mechanism to allow the bonnet locks/latches to release when the interior bonnet handle is operated.

Engineering Number: CPLA-16A938-AA

Alternative Format: CPLA16A938AA

Part Type: Bonnet Release Cable / Bonnet Lock Cable / Hood Release Cable

Application: Front Bonnet Release & Locking System

Position: Front of Vehicle / Bonnet Lock System

Donor Vehicle: Range Rover Sport L494

Donor Year: 2016

Manufacturer: Land Rover / Jaguar Land Rover (JLR)

Condition: Genuine used OEM part

Compatibility

Suitable for selected:

* Range Rover Sport L494

* 2014-onwards L494 applications using the corresponding cable

* Petrol models where matching

* Diesel models where matching

* UK RHD vehicles where the corresponding release system is fitted

Donor reference: 2016 Range Rover Sport L494.

This component is not engine-specific, but the bonnet release cable specification can vary according to vehicle production date and revision.

For this reason, the engineering number on the original cable should be checked before ordering.

Engineering Number Information

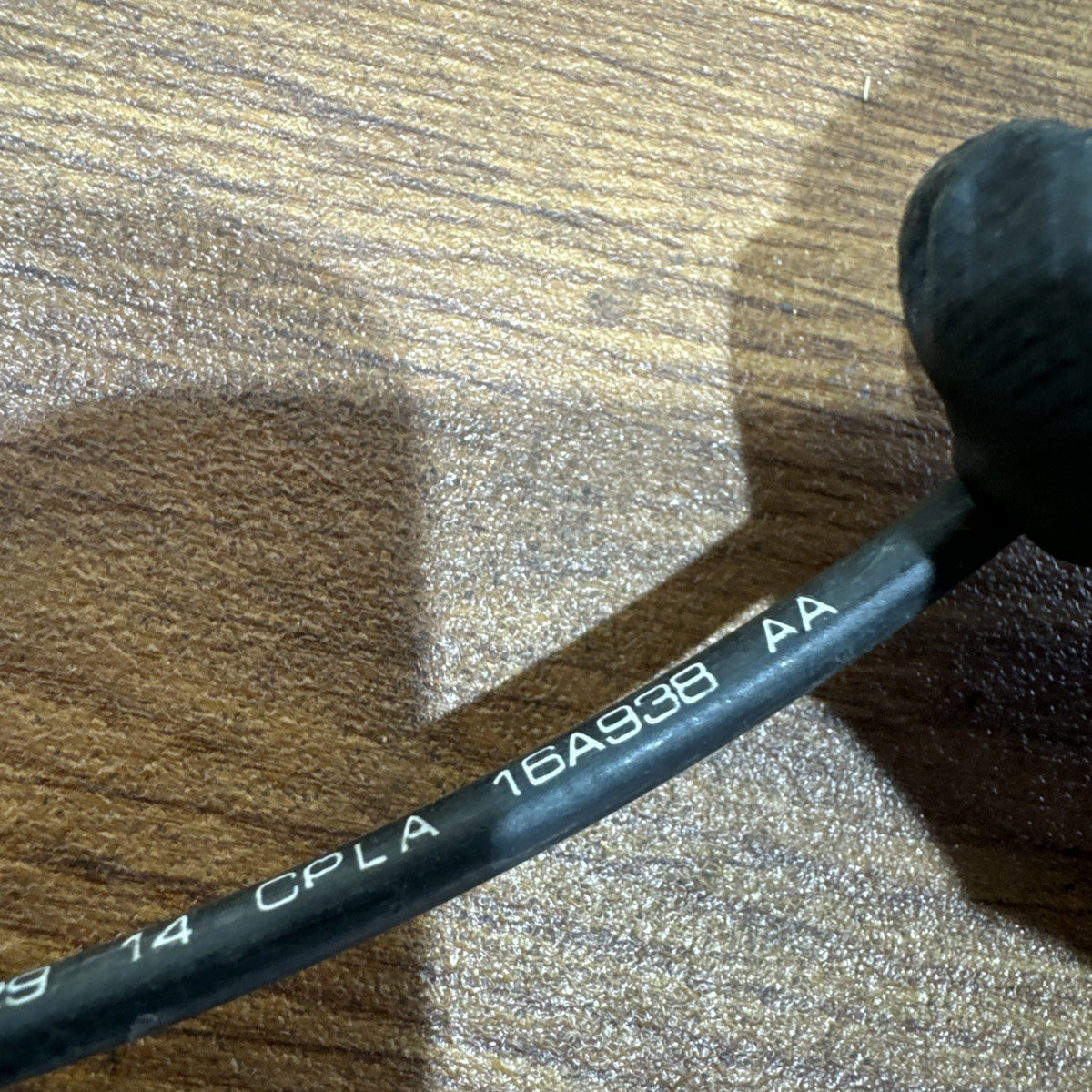

The number marked on this component is:

CPLA-16A938-AA

It may also be written without separators as:

CPLA16A938AA

The CPLA number is a JLR engineering/manufacturing reference rather than necessarily the later retail/service number used in every Land Rover parts catalogue.

Later revisions from the same engineering family include:

CPLA-16A938-AB

and

CPLA-16A938-AC

The later CPLA-16A938-AC version is documented under Land Rover service reference:

LR121384

However, different suffixes should not automatically be assumed interchangeable.

For a used replacement, matching CPLA-16A938-AA directly with the original component is the safest option.

Technical Information

The bonnet release system uses a mechanical cable/linkage arrangement to transfer movement from the bonnet release control to the bonnet locking mechanism.

When the release handle is operated, the inner cable moves within its outer sheath and actuates the bonnet release mechanism.

Correct cable travel is important because insufficient movement can prevent one or both bonnet catches from releasing correctly.

The system must also allow the locks to return fully to their normal position when the bonnet is closed.

Bonnet Locking System Information

The Range Rover bonnet locking arrangement consists of several interacting components, which can include:

* Interior bonnet release handle

* Bonnet release cable

* Cable mounting clips

* Cable junction/linkage

* Left bonnet latch

* Right bonnet latch

* Bonnet strikers

* Associated brackets and fixings

A fault with one component can affect the operation of the entire system.

Therefore, a bonnet that will not open does not automatically mean that the cable itself has failed.

Common Symptoms / Reasons for Replacement

Typical symptoms of a worn or damaged bonnet release cable include:

* Bonnet release handle feels loose

* Excessive movement at the release handle

* Bonnet does not release

* One bonnet lock releases but the other remains locked

* Release handle feels unusually stiff

* Cable movement feels rough

* Bonnet requires several pulls to release

* Cable outer sheath damaged

* Cable stretched

* Cable end damaged

* Retaining clip broken

* Cable seized or partially seized

* Cable damaged during front-end repairs

A completely broken cable can leave the bonnet locked shut.

Important Diagnostic Information

Before replacing the cable, inspect the complete bonnet release system.

Check:

* Interior release handle

* Cable attachment to the handle

* Cable outer sheath

* Cable retaining clips

* Cable routing

* Cable ends

* Bonnet locks/latches

* Lock return springs

* Bonnet strikers

* Lock alignment

* Previous front-end accident damage

A seized bonnet latch can place excessive load on the release cable and may eventually cause cable or handle failure.

If the original cable has failed because the bonnet lock is stiff or seized, replacing only the cable may result in the replacement becoming damaged again.

Bonnet Latch Inspection

Both bonnet locking points should operate freely.

Inspect for:

* Corrosion

* Dirt contamination

* Seized mechanisms

* Damaged springs

* Bent brackets

* Incorrect striker alignment

* Previous accident damage

* Excessive resistance

Clean and service the latch mechanisms as appropriate before fitting the replacement cable.

Cable Inspection

Before installation, inspect the used replacement cable for:

* Fraying

* Kinks

* Crushed outer sheath

* Damaged cable ends

* Broken mounting clips

* Excessive corrosion

* Restricted movement

* Previous repairs

The inner cable should move correctly without excessive resistance.

Installation

Before fitting:

* Compare CPLA-16A938-AA with the original

* Compare overall cable length

* Compare cable ends

* Compare outer sheath

* Compare mounting clips

* Compare cable routing

* Check bonnet latch arrangement

* Inspect the release handle

Route the cable through the original factory locations.

Avoid:

* Sharp bends

* Kinking the cable

* Trapping it beneath trim

* Incorrect routing

* Excessive tension

All factory retaining points should be used where applicable.

Testing After Installation

Before fully closing the bonnet for the first time, carefully verify that the release mechanism operates correctly.

Check:

* Release handle movement

* Cable movement

* Left latch operation

* Right latch operation

* Latch return action

* Cable tension

* Striker alignment

Ensure the complete release mechanism functions correctly before allowing the bonnet to fully latch.

This is particularly important because an incorrectly installed cable can make the bonnet difficult to reopen.

Programming / Coding

No programming or coding is required.

This is a mechanical bonnet release component.

No diagnostic programming, immobiliser matching or electronic adaptation is normally required when replacing the correct cable.

Important Compatibility Note

Please compare before ordering:

* CPLA-16A938-AA

* Engineering-number suffix

* Original cable

* Overall cable length

* Cable ends

* Outer sheath

* Mounting clips

* Release-handle connection

* Bonnet latch connections

* Cable routing

* Vehicle production date

* VIN where necessary

Later references including CPLA-16A938-AB and CPLA-16A938-AC exist within this component family.

Do not assume AA, AB and AC versions are universally interchangeable without confirming the application.

For a 2016 Range Rover Sport L494, matching CPLA-16A938-AA directly against the original cable is strongly recommended.

Condition

Genuine used Land Rover bonnet lock / release cable.

Removed from a 2016 Range Rover Sport L494.

As a used mechanical component, normal signs of previous installation may include:

* Surface marks

* Dirt

* Light scratches

* General cosmetic wear

* Installation/removal marks

Please inspect all listing photographs carefully, particularly the:

* Cable ends

* Outer sheath

* Retaining clips

* Mounting points

* Release connections

* Engineering number

Only the cable and associated components clearly shown in the listing photographs are included.

Bonnet locks, interior release handle, brackets and additional hardware are included only where clearly pictured.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a stretched, seized, broken or damaged Range Rover Sport L494 bonnet lock / release cable, provided CPLA-16A938-AA / CPLA16A938AA matches the original component and vehicle specification.
