Renault Megane III 2009-2016 Front Windscreen Wiper Arm Blade 288810006R

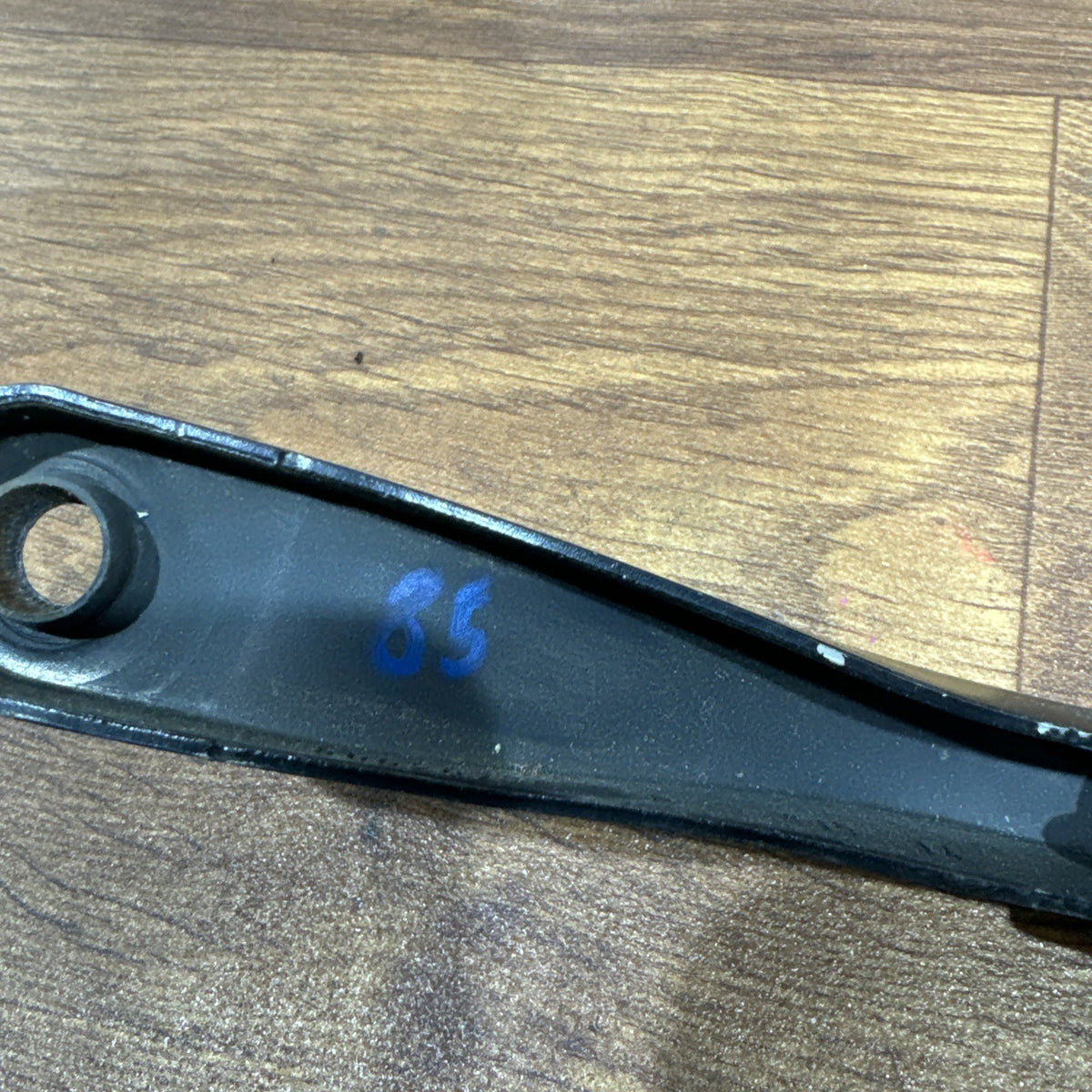

#85

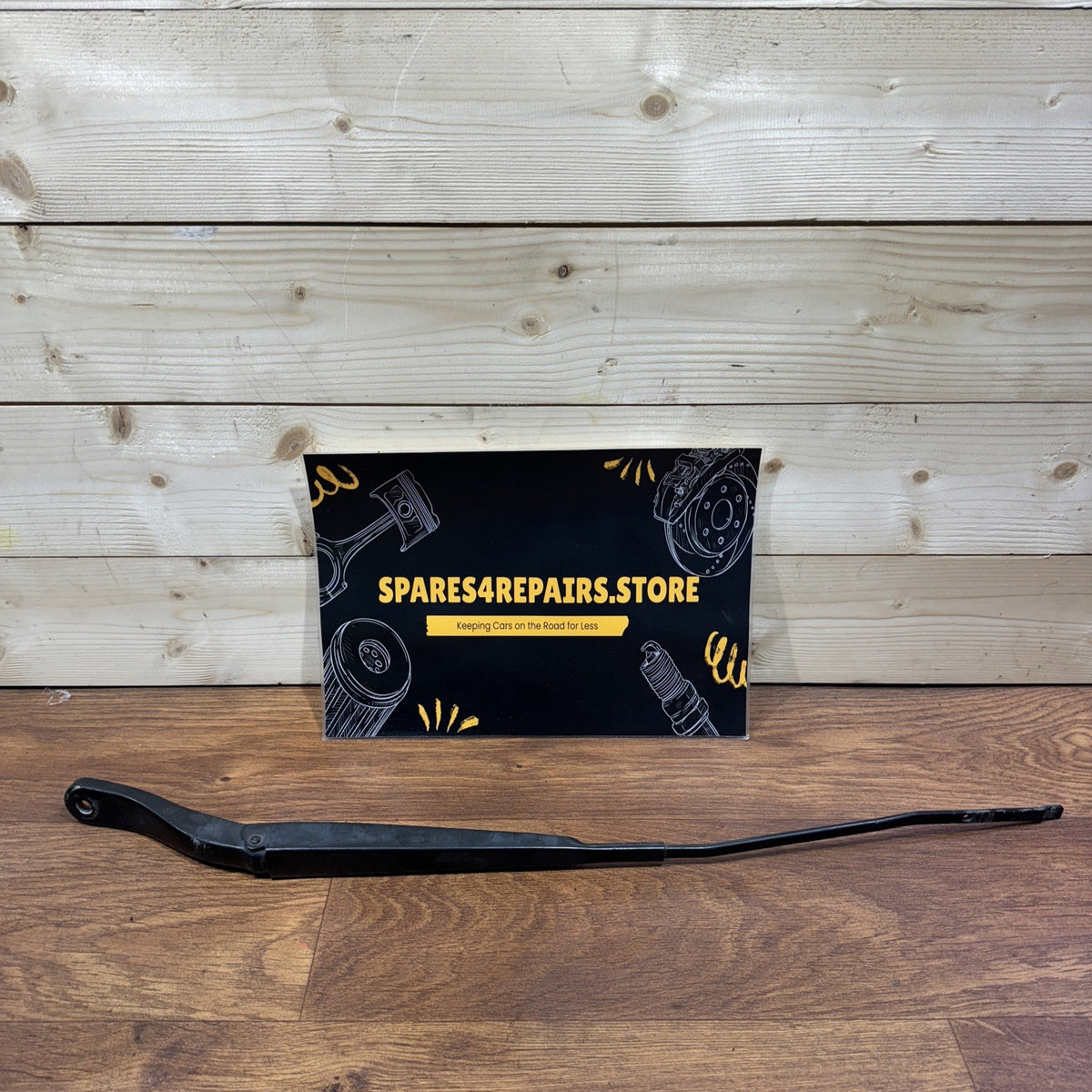

Genuine used Renault Megane III Mk3 front windscreen wiper arm, fitted to the front right / driver’s side on UK right-hand-drive vehicles.

This is the metal wiper arm assembly that connects the windscreen wiper mechanism to the wiper blade and transfers movement from the wiper linkage to clear the driver’s side of the windscreen.

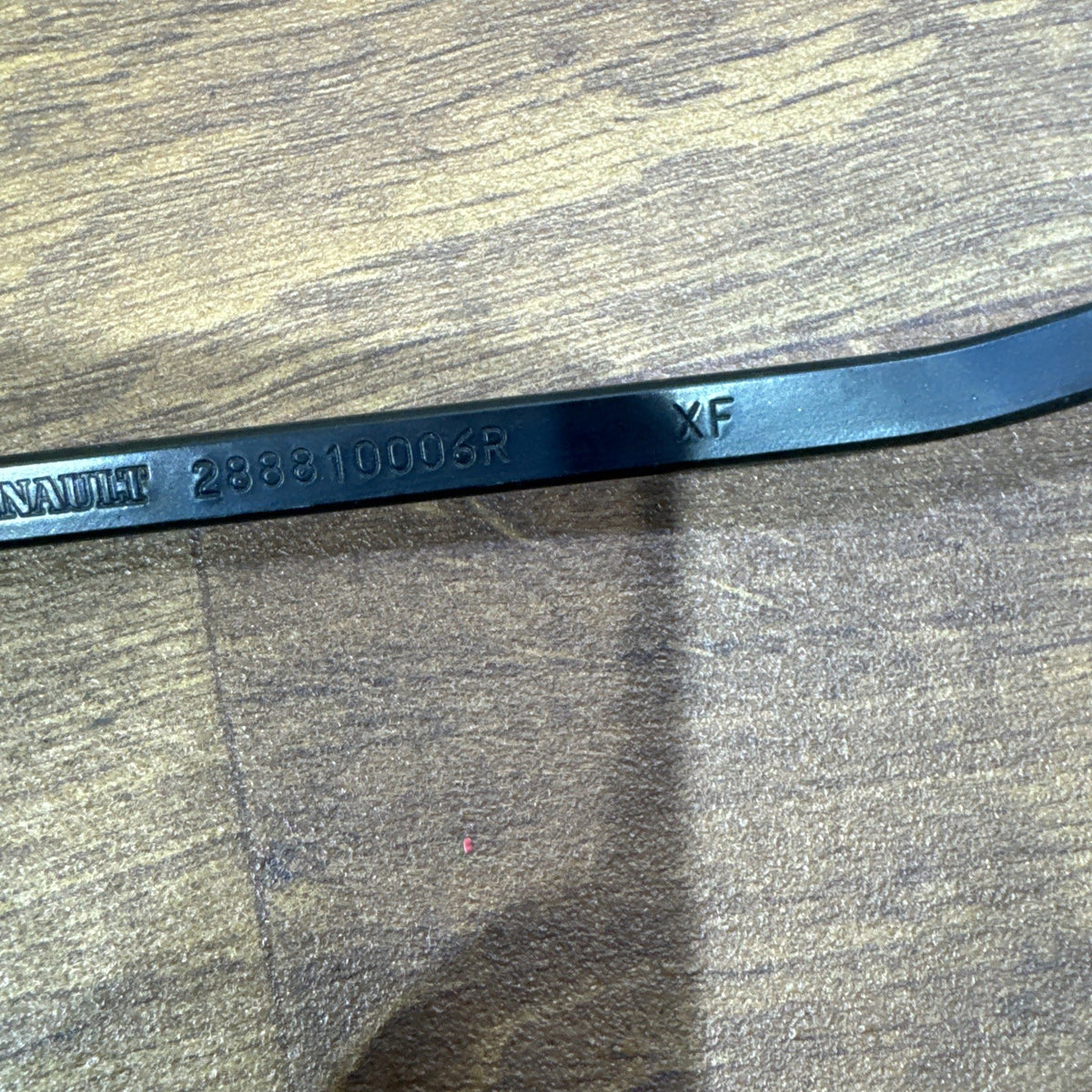

Part Number: 288810006R

Renault OE Number: 288810006R

Part Type: Front Windscreen Wiper Arm

Position: Front Right

UK Vehicle Side: O/S/F – Offside Front / Driver Side

Vehicle Type: Right-Hand Drive applications

Manufacturer: Renault

Condition: Genuine Used Part

Compatibility – Expanded & Checked

Renault Megane III / Megane Mk3 (X95)

Confirmed applications include:

* 2008

* 2009

* 2010

* 2011

* 2012

* 2013

* 2014

The 288810006R arm is documented on several Megane III configurations, including both hatchback and estate/Caravan vehicles.

Known donor applications include:

* Megane III 5-door Hatchback

* Megane III Estate / Sport Tourer

* 1.5 dCi diesel

* 1.6 petrol

* 1.6 dCi diesel

* Manual transmission vehicles

* Right-hand-drive vehicles

Because the wiper arm is a body/windscreen component rather than an engine-specific component, engine capacity generally does not determine compatibility.

2015–2016 Compatibility

Some used-parts catalogues group 288810006R under the overall Megane III 2008–2016 model range.

However, more specific fitment listings for this exact arm commonly identify earlier Mk3 applications, including 2008–2014.

For this reason, 2015–2016 vehicles should be checked against the original OE number before ordering rather than assuming compatibility solely from model and year.

Important UK Side Information

For a UK right-hand-drive Renault Megane III:

RIGHT = O/S/F = Driver Side

Part 288810006R is documented as the front right-hand wiper arm on RHD vehicles.

Please do not purchase based only on the visual appearance, as the opposite-side arm may look similar but can have different geometry and sweep positioning.

Technical Information

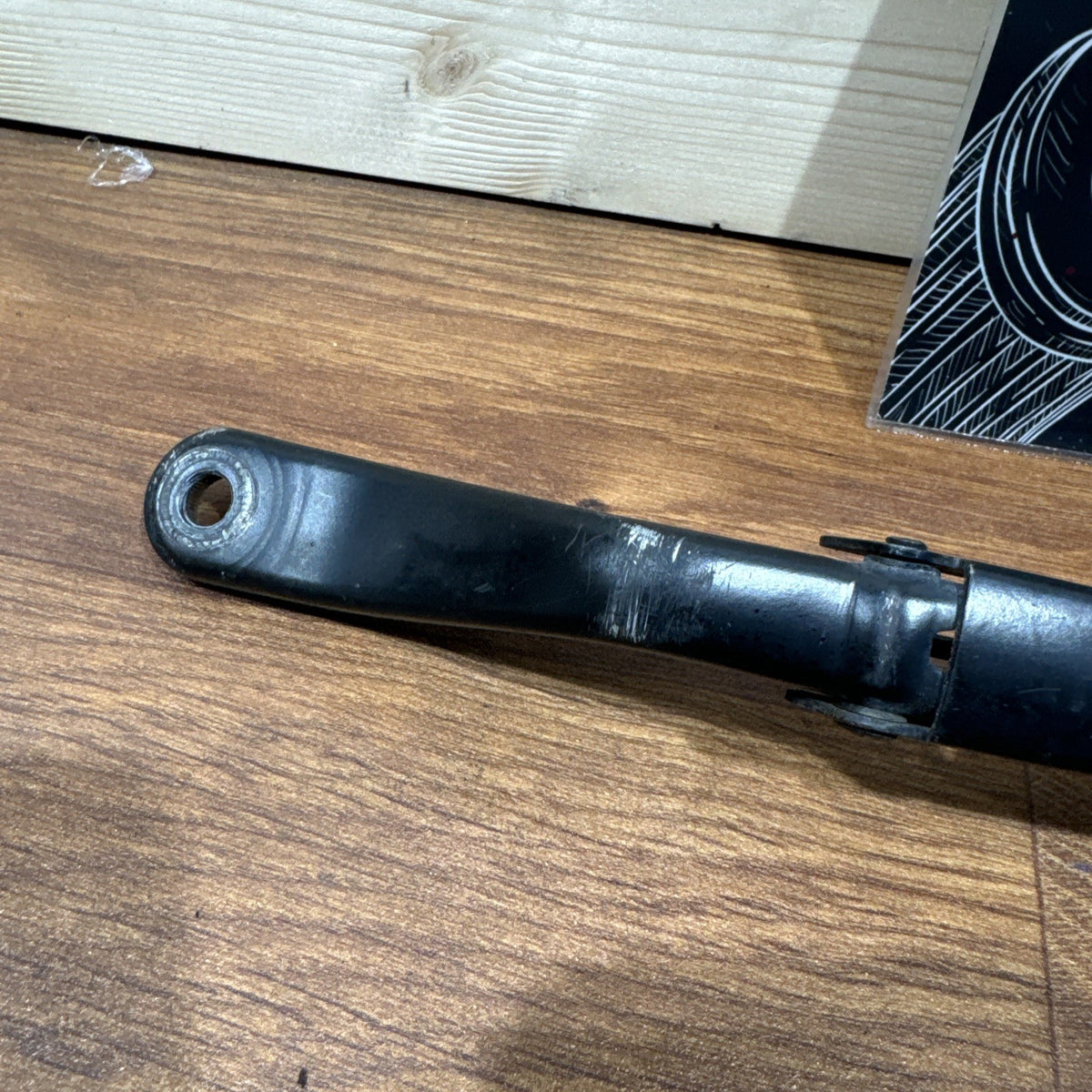

The front wiper arm mounts onto the splined spindle of the windscreen wiper linkage.

Its purpose is to:

* Transfer movement from the wiper motor/linkage to the blade

* Hold the wiper blade against the windscreen

* Maintain the correct blade pressure

* Keep the blade at the correct angle

* Produce the correct wiping sweep across the driver’s field of vision

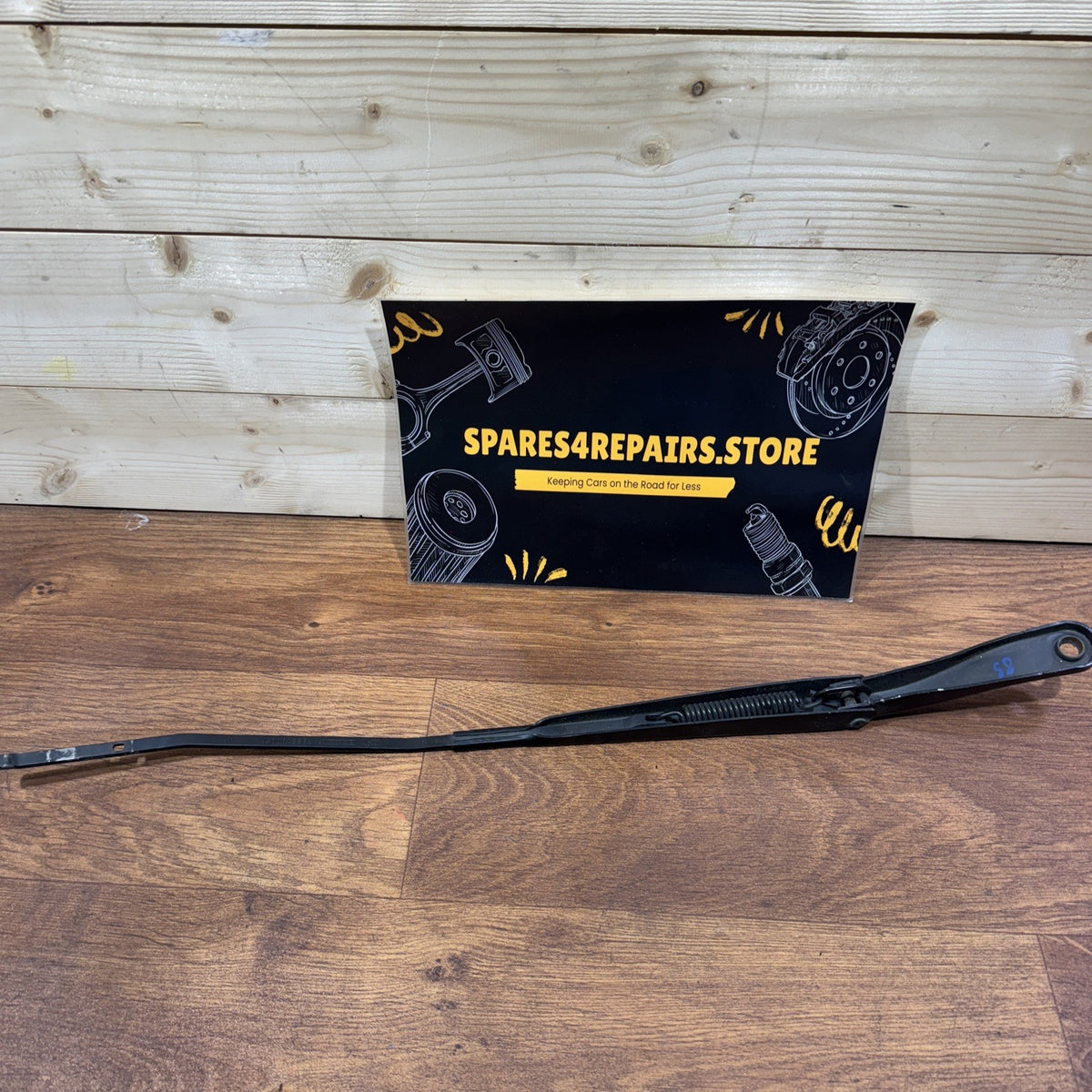

A spring mechanism inside the arm maintains pressure between the blade and windscreen.

Windscreen Wiper System Information

The complete front wiper system consists of:

* Wiper motor

* Wiper linkage

* Wiper spindle

* Driver-side wiper arm

* Passenger-side wiper arm

* Wiper blades

* Electrical wiring

* Wiper control electronics

* Steering-column wiper controls

A poor wiping pattern is therefore not always caused by the arm itself.

Common Symptoms / Reasons for Replacement

Replacement may be required if:

* Wiper arm is bent

* Arm has become heavily corroded

* Splined mounting point is worn

* Wiper arm slips on the spindle

* Blade does not sit correctly against the windscreen

* Wiper does not park in the correct position

* Arm has been damaged during removal

* Spring tension has weakened

* Wiper judders or lifts away from the glass

* Existing arm has cosmetic damage

Important Diagnostic Information

If the wiper arm does not move correctly, check the splined spindle and wiper linkage before replacing the arm.

If both front wipers have stopped moving, the problem may instead be related to:

* Wiper motor

* Linkage

* Fuse

* Wiring

* Electrical supply

* Wiper controls

If only one arm slips while the spindle continues moving, inspect the splines in both the arm and spindle.

Installation

The arm mounts directly onto the wiper spindle.

Before removing the original arm, note its resting position on the windscreen. The replacement should be installed at the correct parking angle to prevent the blade from:

* Striking the windscreen edge

* Contacting another wiper

* Parking too high

* Parking too low

* Producing an incorrect wiping sweep

After installation, operate the wipers and confirm correct movement and parking position.

Programming / Coding

No programming or coding is required.

This is a mechanical wiper-arm component.

Wiper Blade Information

A wiper blade may sometimes be supplied attached to a used arm.

Unless specifically stated otherwise, the used blade should be considered a free/used accessory rather than a guaranteed service item. For optimum wiping performance, fitting a new blade may be advisable.

Important Compatibility Note

Before ordering, please compare:

* 288810006R with your original part

* Front RIGHT / DRIVER SIDE position

* Wiper arm shape and length

* Spindle mounting

* Spline arrangement

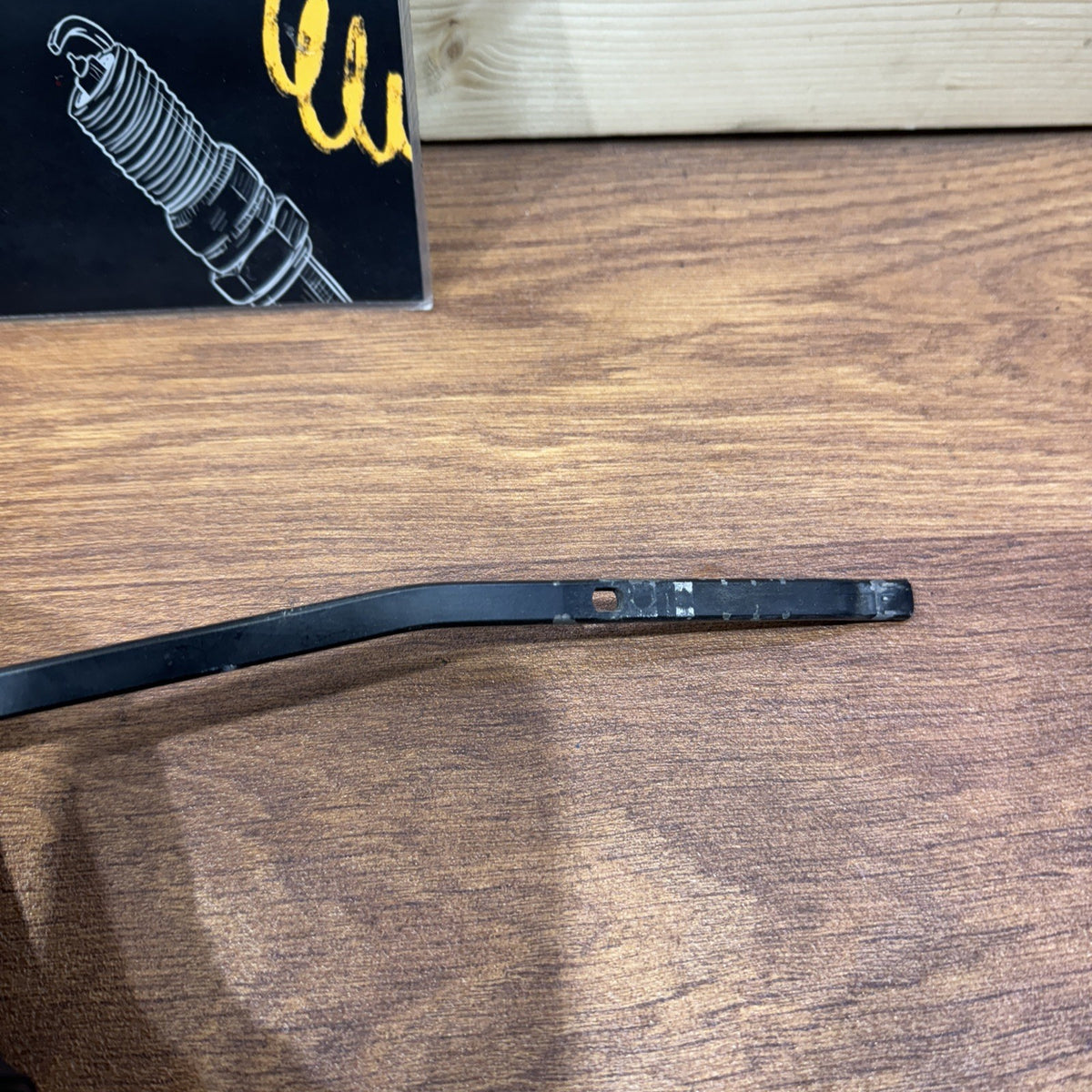

* Blade attachment

* Vehicle body style

* Right-hand-drive configuration

For 2015–2016 Megane III vehicles in particular, please confirm OE number 288810006R on the original arm or verify fitment before purchase.

Condition

Genuine used Renault part.

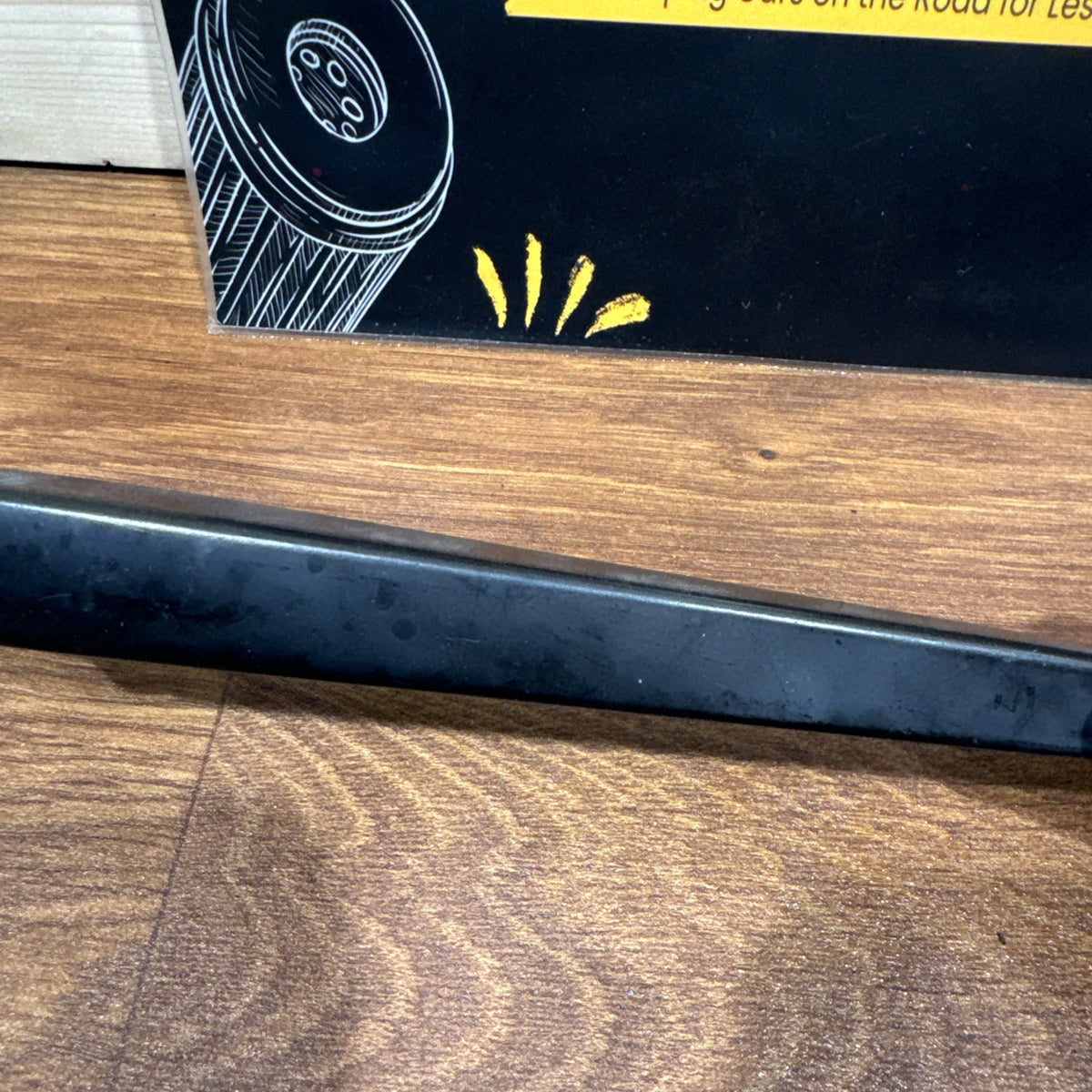

As a used exterior component, the arm may have normal cosmetic marks, scratches, weathering or signs of previous use.

Please inspect the listing photographs carefully for the exact condition and to confirm whether a wiper blade is included.

An ideal genuine replacement for a damaged, bent, corroded or worn Renault Megane III Mk3 front right / O/S/F driver’s windscreen wiper arm.
