Renault Megane MK3 1.5 DCI Speedometer Dash Clocks Speedo A2C87610400

#20

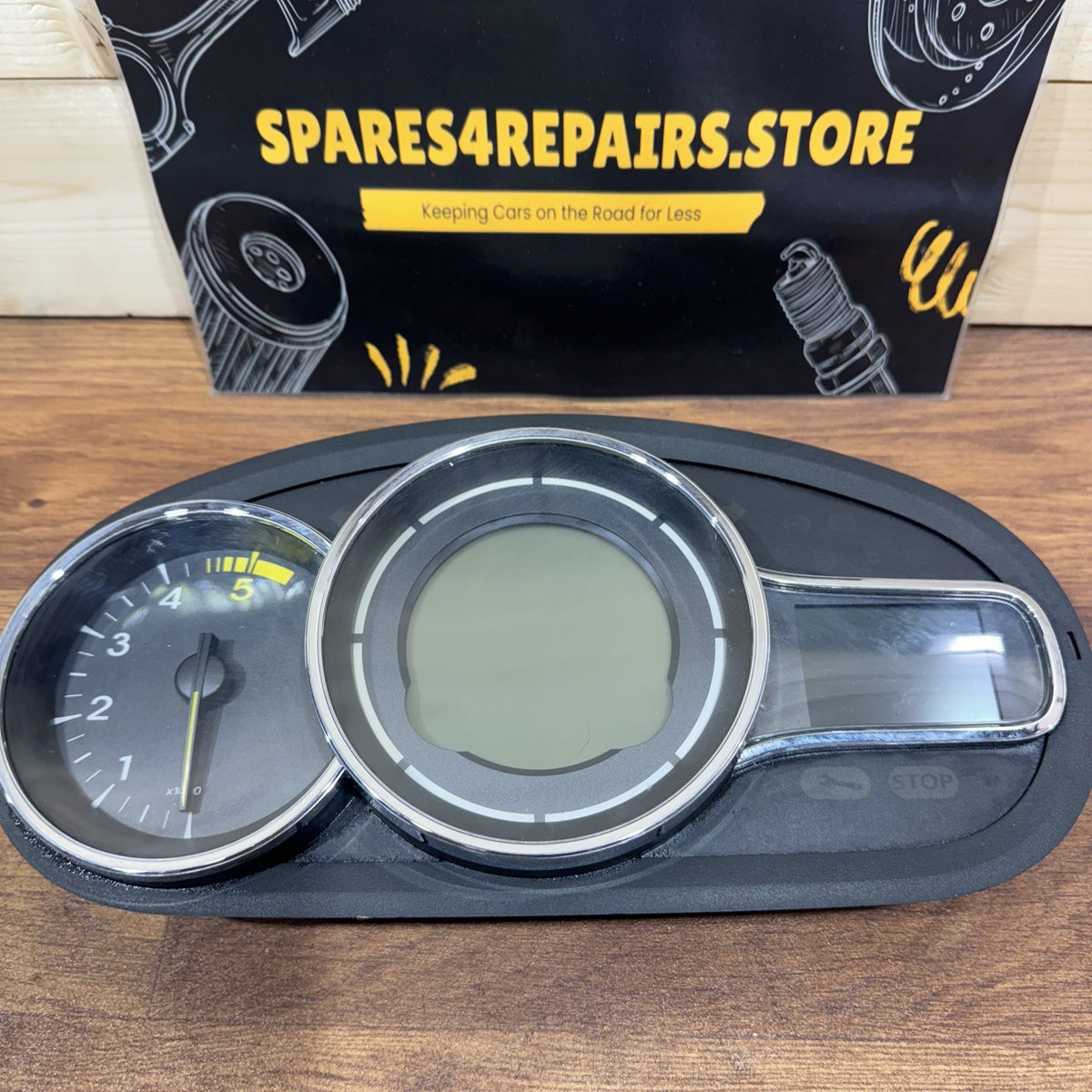

Genuine Renault Megane MK3 1.5 dCi Speedometer Dash Clocks Instrument Cluster – A2C87610400 / 248103988R

Genuine Renault used speedometer / instrument cluster / dash clocks, suitable for selected Renault Megane MK3 / Megane III 1.5 dCi models.

The instrument cluster is mounted directly in the driver’s field of view and provides essential vehicle information including road speed, engine RPM, warning indicators, mileage and vehicle status information.

Part Number: A2C87610400

Renault OE Number: 248103988R

Additional / Related OE Number: 248103468R

Additional Reference: A2C31196200

Additional Reference: A2C53258734

Part Type: Speedometer / Instrument Cluster / Dash Clocks

Manufacturer: Renault / Continental VDO

Position: Dashboard / Driver Instrument Panel

Fuel Type: Diesel

Engine Application: 1.5 dCi

Condition: Used Genuine/OEM Part

COMPATIBILITY

Verified applications for A2C87610400 / 248103988R include the Renault Megane III / MK3.

Renault Megane MK3 / Megane III Hatchback – BZ0/1

• Selected 1.5 dCi models

• K9K diesel engine applications

• Confirmed with K9K-636 / K9K-A6

• Confirmed 110 hp / 81 kW application

Renault Megane MK3 / Megane III Grandtour / Estate – KZ0/1

• Selected 1.5 dCi models

• Approximately 2009-2015 depending on specification

• Confirmed with K9K-636 engine

• Confirmed 110 hp / 81 kW application

• Manual gearbox applications confirmed

Direct used-part records confirm A2C87610400 / 248103988R on both the Megane III Hatchback and Grandtour/Estate, including K9K-636 1.5 dCi 110 applications. (Autoparts24)

ENGINE COMPATIBILITY

Strongly verified application:

1.5 dCi – K9K-636 – 81 kW / 110 hp

Additional records show the A2C87610400 identification on other K9K-powered Megane III vehicles, but the cluster specification can differ according to the exact vehicle equipment and production date. (Autoparts24)

IMPORTANT: Do not assume that every Renault Megane MK3 1.5 dCi uses the same instrument cluster.

Different versions were fitted according to:

• Production date

• Engine code

• Power output

• Gearbox type

• Vehicle equipment

• Instrument display specification

• Electrical configuration

BODY STYLE COMPATIBILITY

Confirmed applications include:

• Megane III Hatchback – BZ0/1

• Megane III Grandtour / Estate – KZ0/1

Because Renault used several cluster variants throughout the Megane III production period, buyers should match the part numbers and connector configuration rather than relying solely on body style.

TECHNICAL INFORMATION

The instrument cluster is the primary information display between the vehicle’s electronic systems and the driver.

Depending on vehicle specification, information displayed can include:

• Vehicle speed / speedometer

• Engine RPM / rev counter

• Fuel level

• Engine temperature information

• Vehicle mileage / odometer

• Trip information

• Service information

• Warning lights

• Indicator status

• Engine management warnings

• ABS / ESP warnings

• Airbag / SRS warning

• Battery / charging warning

• Oil pressure warning

• Diesel-related warning indicators

• Other vehicle-status information

INSTRUMENT CLUSTER SYSTEM INFORMATION

The cluster communicates electronically with other vehicle control modules and receives information from various systems throughout the vehicle.

A failure within the instrument cluster can therefore cause more than simply a non-working speedometer.

Depending on the fault, individual gauges, displays or warning indicators may stop operating correctly.

CONNECTOR INFORMATION

A used-part example carrying 248103988R / A2C87610400 / A2C31196200 / A2C53258734 is documented as having a 24-pin connection. (B-Parts)

Connector configuration should always be compared with the original unit before purchasing.

PART NUMBER INFORMATION

Primary identification:

A2C87610400

Common Renault OE reference:

248103988R

Additional numbers documented on compatible/reference units include:

248103468R

A2C31196200

A2C53258734

For example, a 2014 Megane III Grandtour K9K-636 cluster is documented with 248103468R, 248103988R and A2C87610400 together. (Autoparts24)

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

Replacement may be required due to:

• Speedometer not working

• Rev counter / RPM gauge failure

• Instrument display failure

• Intermittent display operation

• Dashboard completely blank

• Warning lights operating incorrectly

• Fuel gauge malfunction

• Display pixels / illumination problems

• Cluster switching on and off intermittently

• Internal electronic failure

• Physical damage to the cluster

• Replacement following dashboard or electrical repair

IMPORTANT DIAGNOSTIC INFORMATION

A faulty dashboard display does not automatically mean the instrument cluster itself has failed.

Before replacement, check:

• Instrument cluster fuses

• Battery voltage / charging system

• Electrical connector

• Wiring harness

• Ground connections

• CAN/network communication

• Relevant diagnostic fault codes

• Other vehicle control modules where applicable

Professional diagnostic testing is recommended before replacing electronic components.

PROGRAMMING / CODING

Programming / configuration may be required.

A used instrument cluster should not be assumed to be plug-and-play.

Depending on the vehicle and replacement unit, specialist diagnostic equipment may be required for configuration or synchronisation.

The instrument cluster may also contain or display vehicle-specific mileage information.

Buyers should confirm the required programming procedure with a Renault specialist or automotive electronics specialist before installation.

MILEAGE INFORMATION

Please refer to the listing photographs / item information for the mileage displayed or stored by this particular cluster.

A used replacement instrument cluster may retain information from its original donor vehicle.

The buyer is responsible for ensuring any replacement, programming or mileage-related work complies with applicable legal requirements.

INSTALLATION

Installation requires removal of the relevant dashboard/instrument trim and disconnection of the cluster electrical connector.

Care should be taken to avoid damaging:

• Dashboard trim

• Electrical connectors

• Wiring

• Cluster housing and display

Professional installation is recommended where programming or electronic configuration is required.

IMPORTANT COMPATIBILITY NOTE

Before ordering, please compare:

A2C87610400

248103988R

Also check any additional numbers present on your original cluster, including:

248103468R

A2C31196200

A2C53258734

Please also compare:

• Engine code

• Engine power output

• Vehicle production date

• Hatchback / Estate body configuration

• Manual / automatic gearbox specification

• Electrical connector and pin configuration

• Instrument display/layout

• Listing photographs

Matching only “Renault Megane MK3 1.5 dCi” is not sufficient to guarantee compatibility.

For the safest replacement, match the A2C87610400 / 248103988R identification and physical/electrical configuration with the original unit.

CONDITION

Used Genuine Renault / OEM Part.

Normal cosmetic marks and signs of previous installation may be present.

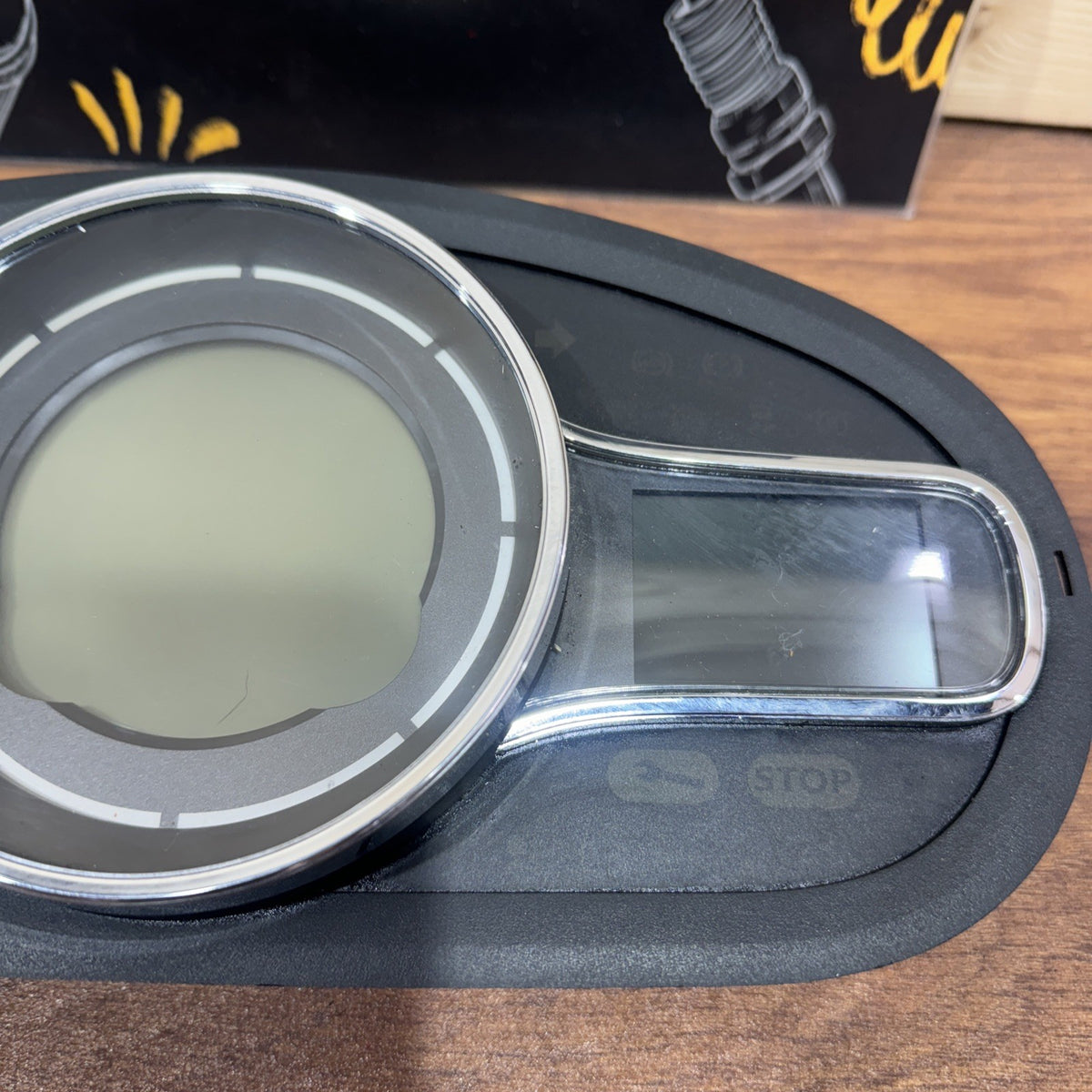

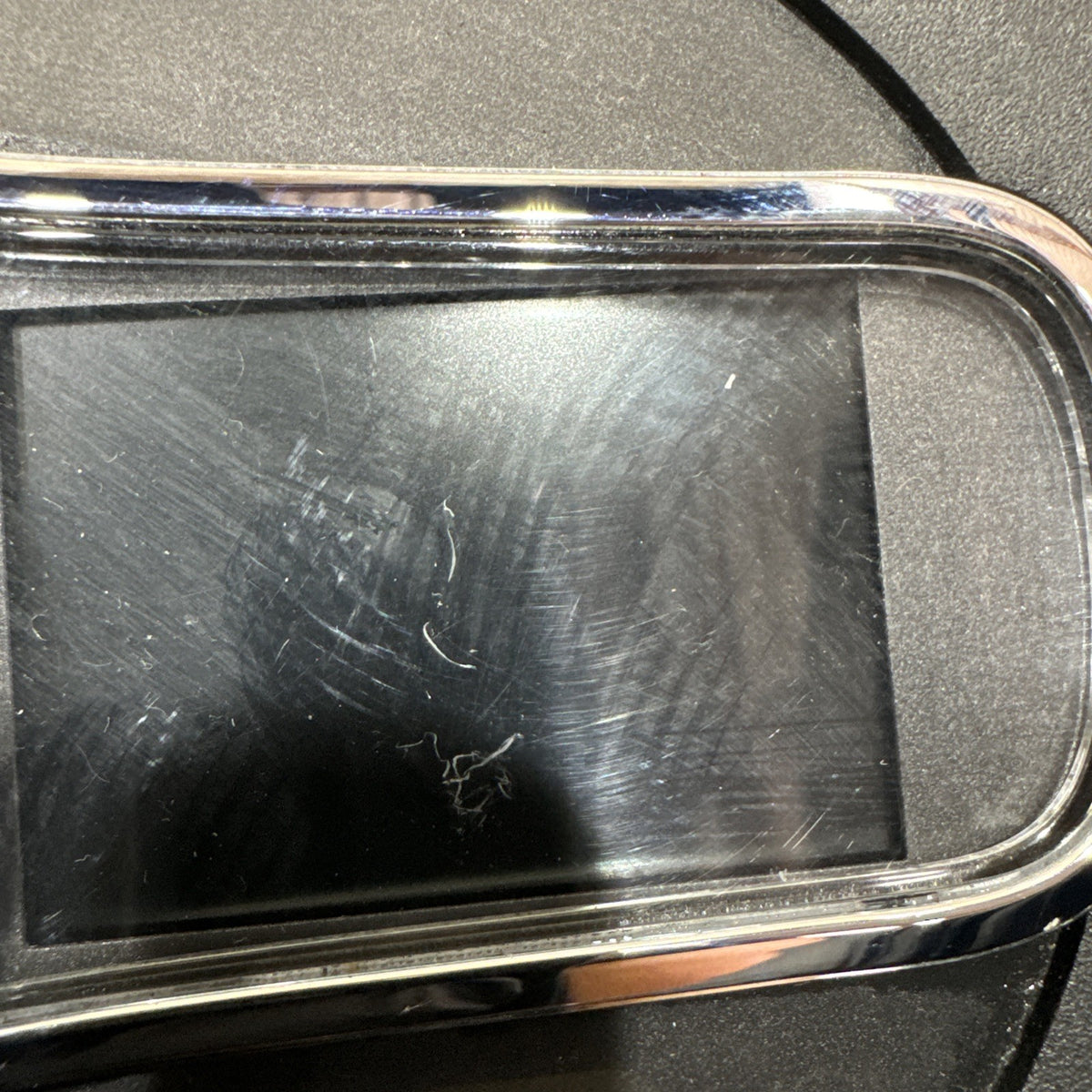

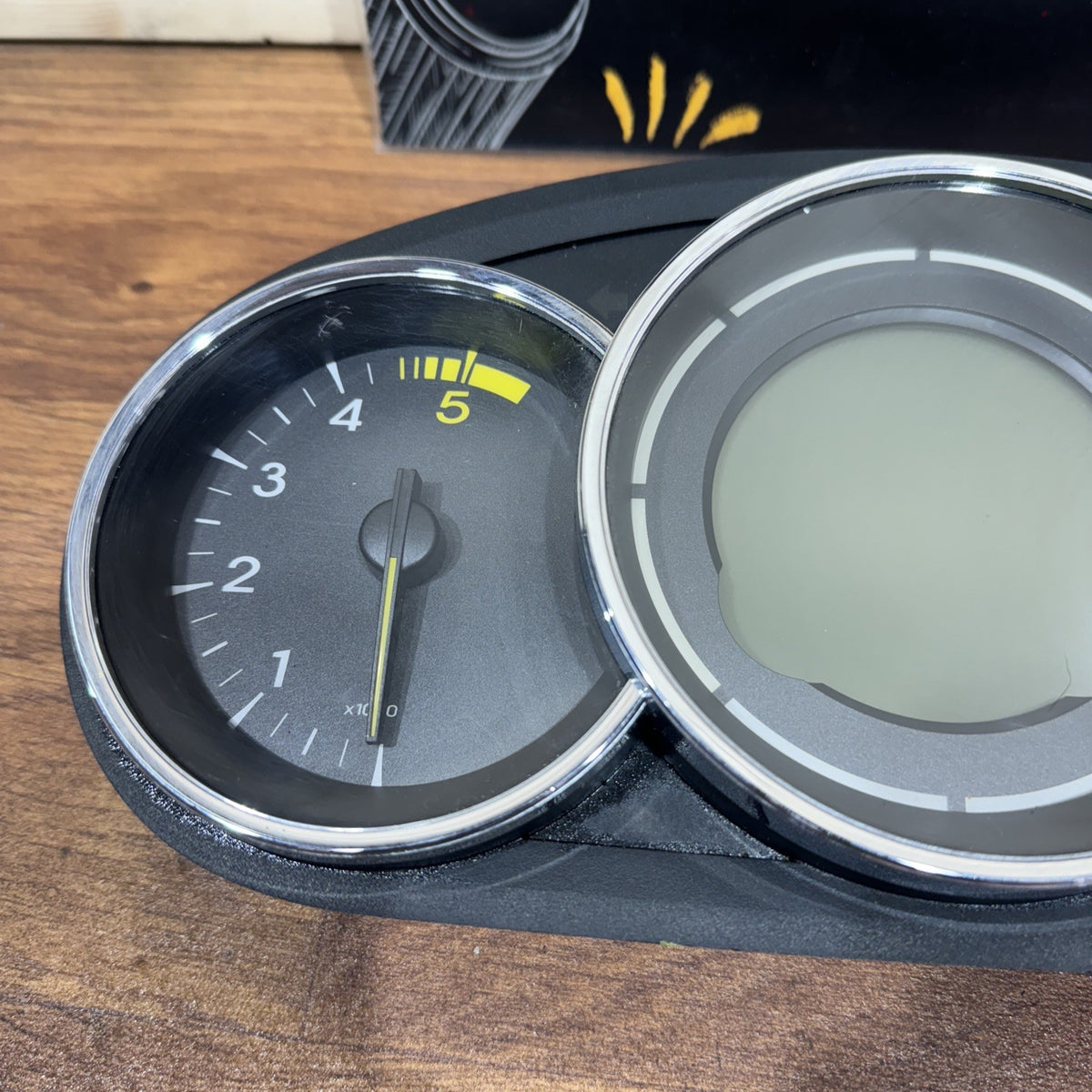

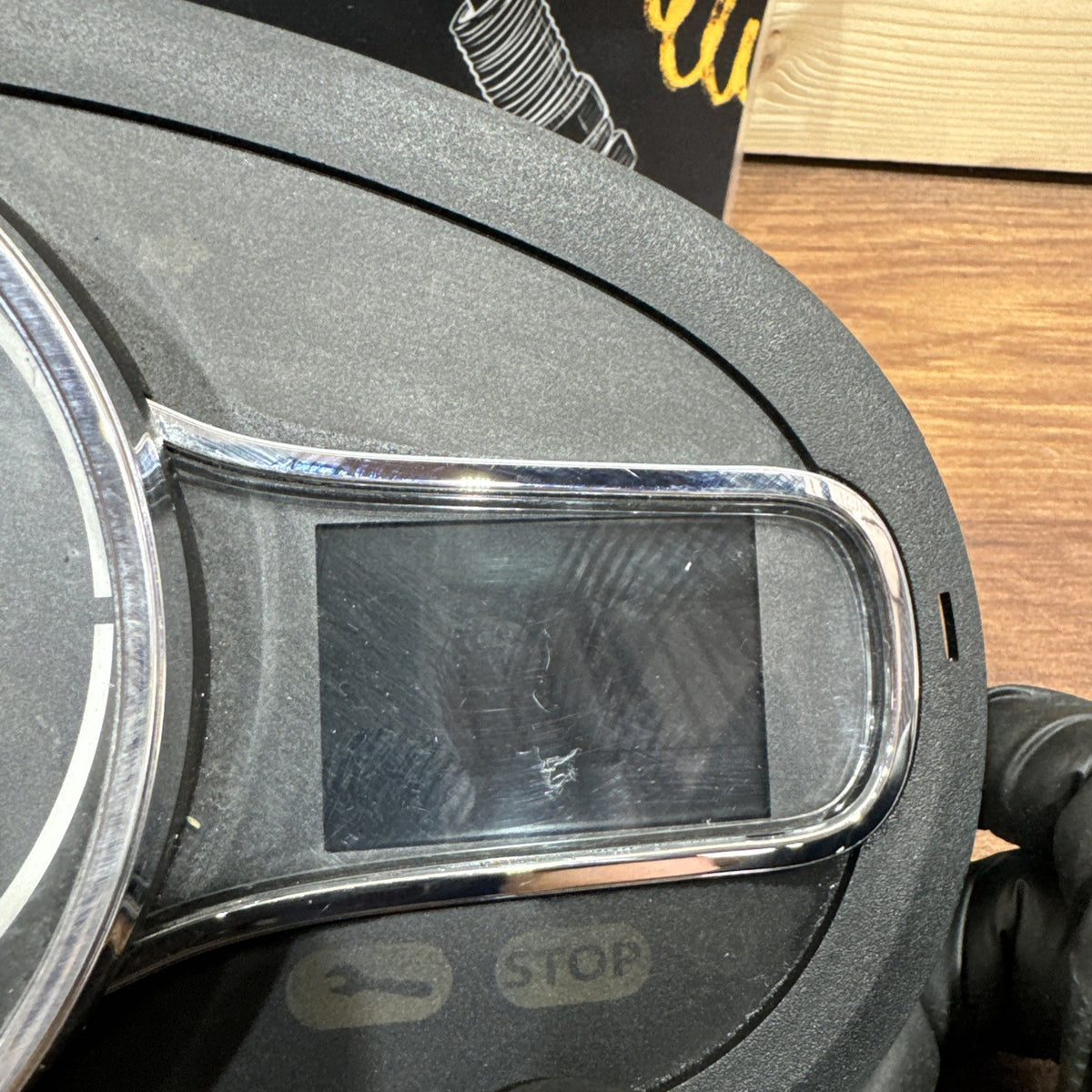

Please inspect all listing photographs carefully for the exact condition, display, connector, identification numbers and components included in the sale.

Ideal genuine/OEM replacement speedometer / instrument cluster / dash clocks for a compatible Renault Megane MK3 / Megane III 1.5 dCi.
