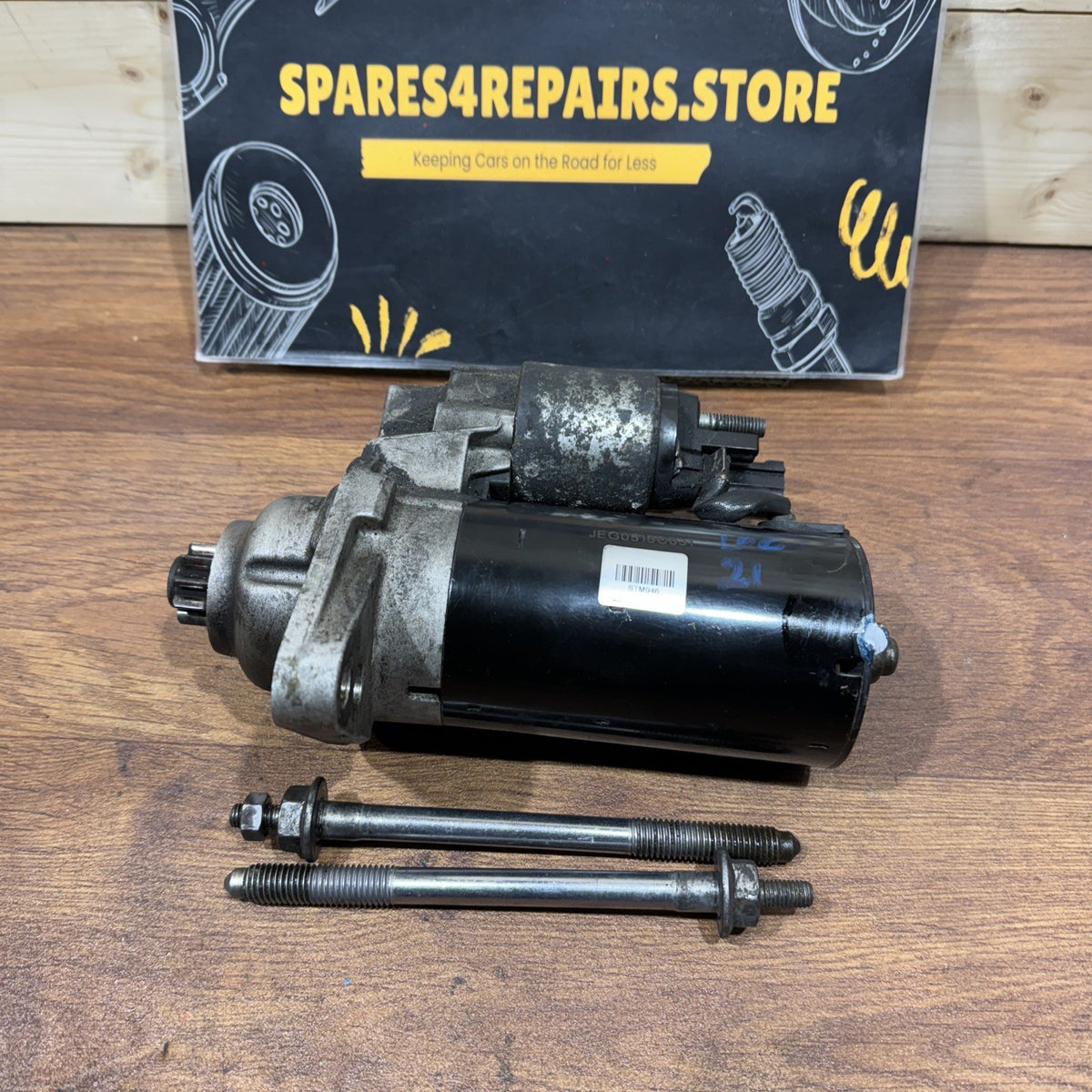

Starter Motor For VW Transporter T5 Multivan 1.9 Tdi Diesel 2003-2009 STM946

#loc21

Starter motor for Volkswagen Transporter T5 / Multivan T5 1.9 TDI diesel, aftermarket reference STM946.

Designed to provide the high-torque cranking power required to turn the diesel engine during starting. Suitable for selected T5 1.9 TDI applications, subject to matching the original starter motor specification.

Part Number: STM946

Part Type: Starter Motor / Engine Starting Motor

Voltage: 12V

Rated Output: 2.0 kW

Fuel Type: Diesel

Engine Size: 1.9 TDI – 1896cc

Application: Selected VW Transporter T5 / Multivan T5

Years: Approximately 2003–2009

Condition: Replacement starter motor – please refer to listing photographs/condition details

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Multivan T5 – 2003–2009

* Volkswagen Caravelle T5 – selected 1.9 TDI applications

* Transporter Panel Van

* Kombi

* Shuttle / passenger variants

* Chassis Cab / Platform versions

Selected 1.9 TDI engines within this vehicle range include:

* AXC – 63 kW / 85 PS

* AXB – 77 kW / 105 PS

* BRR – 62 kW / 84 PS

* BRS – 75 kW / 102 PS

Different starter motors were fitted depending on engine, gearbox, production date and original electrical specification.

Always compare the original starter motor before ordering.

Technical Information

The starter motor is a high-current electric motor responsible for cranking the engine during starting.

When the ignition key is turned to the start position:

1. The starter solenoid receives an electrical signal.

2. The solenoid engages the starter pinion with the flywheel ring gear.

3. Battery power is supplied to the starter motor.

4. The starter rotates the engine.

5. The engine management system begins fuel injection and combustion.

6. Once the engine starts, the starter disengages.

Diesel engines require substantial cranking torque due to their higher compression ratios, which is why correct starter output and battery condition are particularly important.

Starter Motor Specification

For STM946, catalogue information identifies:

* 12V electrical system

* 2.0 kW rated output

* Bosch 0001123-series starter family reference

Depending on the exact STM946 catalogue/manufacturer version, further details such as OE cross-reference and pinion configuration should be checked directly against the starter supplied.

Common Symptoms of a Faulty Starter Motor

Typical symptoms include:

* Engine does not crank

* Starter clicks but engine does not turn

* Slow engine cranking

* Intermittent starting

* Starter operates only after several attempts

* Grinding noise during starting

* Starter motor spinning without engaging the engine

* Unusual mechanical noise

* Burning smell from starter area

* Excessive current draw

* Starter remaining engaged after the engine starts

Intermittent starting problems can often become progressively worse as the starter motor, solenoid or internal contacts wear.

Important Diagnostic Information

A vehicle that does not crank does not automatically have a faulty starter motor.

Before replacement, check:

* Battery voltage

* Battery condition

* Battery terminals

* Positive starter cable

* Engine/gearbox earth strap

* Starter electrical connections

* Starter solenoid trigger supply

* Ignition/start signal

* Relevant fuses and relays

* Immobiliser/engine management faults where applicable

A weak battery or poor engine earth can produce symptoms very similar to a failing starter motor.

Slow Cranking

If the engine turns over slowly, check the battery and electrical connections before replacing the starter.

Possible causes include:

* Weak battery

* Poor battery terminals

* Corroded positive cable

* Poor engine earth

* Excessive starter current draw

* Internal starter wear

* Mechanical engine resistance

Voltage-drop testing across the positive and earth circuits can help identify high-resistance connections.

Starter Solenoid Information

The starter solenoid performs two important functions:

* Engages the starter pinion with the flywheel

* Switches the high-current electrical supply to the starter motor

A worn solenoid may produce a noticeable click without the starter motor successfully cranking the engine.

Intermittent operation can also result from worn internal electrical contacts.

Flywheel / Ring Gear Inspection

If the original starter has been making grinding or engagement noises, inspect the flywheel ring gear where possible.

Damaged teeth can cause:

* Grinding during starting

* Intermittent failure to engage

* Starter pinion damage

* Abnormal starting noise

Installing another starter motor will not correct a damaged flywheel ring gear.

Battery & Charging System

The starter motor depends on a healthy battery and charging system.

Before condemning the starter, check:

* Battery state of charge

* Battery condition

* Alternator charging voltage

* Battery cable condition

* Engine/gearbox earth connections

Repeated attempts to start the vehicle with a severely discharged battery can also place additional stress on the starter motor.

Installation

Before installation:

* Disconnect the battery

* Compare the replacement starter with the original

* Compare mounting points

* Compare pinion/gear configuration

* Compare electrical terminals

* Check OE/reference numbers

* Inspect battery cables

* Inspect engine/gearbox earth connections

During installation:

* Ensure mounting surfaces are clean

* Secure the starter correctly

* Tighten electrical terminals appropriately

* Route cables in their original positions

* Ensure cables cannot contact hot or moving components

After installation:

* Reconnect the battery correctly

* Check starter operation

* Listen for abnormal engagement noises

* Confirm normal engine cranking speed

* Check charging-system operation

Programming / Coding

No programming or coding is normally required for the starter motor itself.

It is an electrical/mechanical starting component.

Once the correct starter has been installed and connected correctly, it should operate without electronic coding.

Important Compatibility Note

Volkswagen used more than one starter-motor specification within the Transporter T5 1.9 TDI range.

Before ordering, compare:

* STM946 reference

* Original VW OE number

* Bosch/manufacturer number

* 12V specification

* Rated power/output

* Pinion tooth count

* Pinion dimensions

* Mounting points

* Electrical terminal arrangement

* Engine code

* Gearbox type

* Vehicle production date

Do not purchase solely because the vehicle is a:

VW Transporter T5 1.9 TDI 2003–2009.

Matching the original starter’s OE/manufacturer number and physical configuration is strongly recommended.

Condition

Replacement starter motor.

Please inspect all listing photographs carefully for the exact condition and specification of the item supplied.

Check particularly:

* Starter casing

* Mounting points

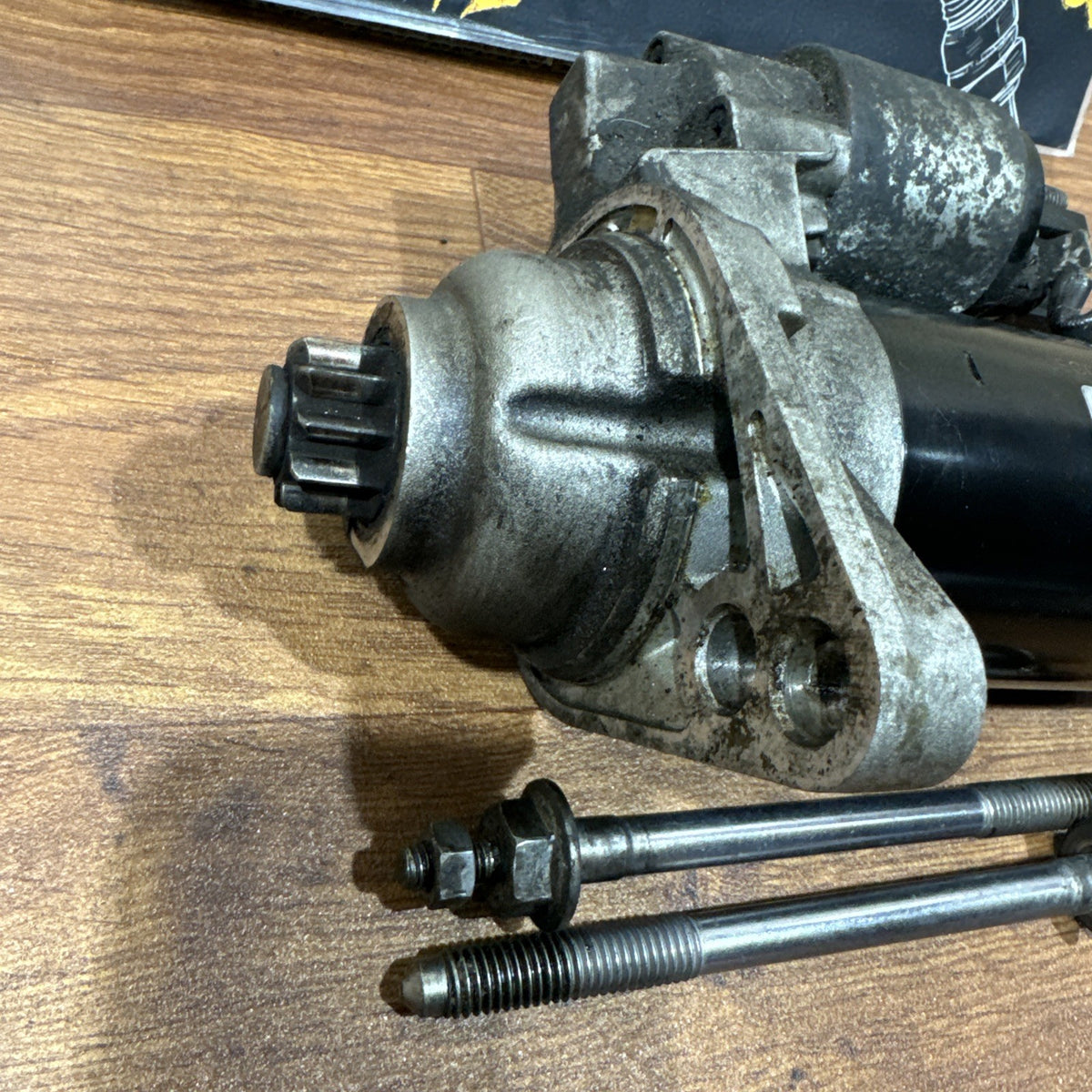

* Pinion gear

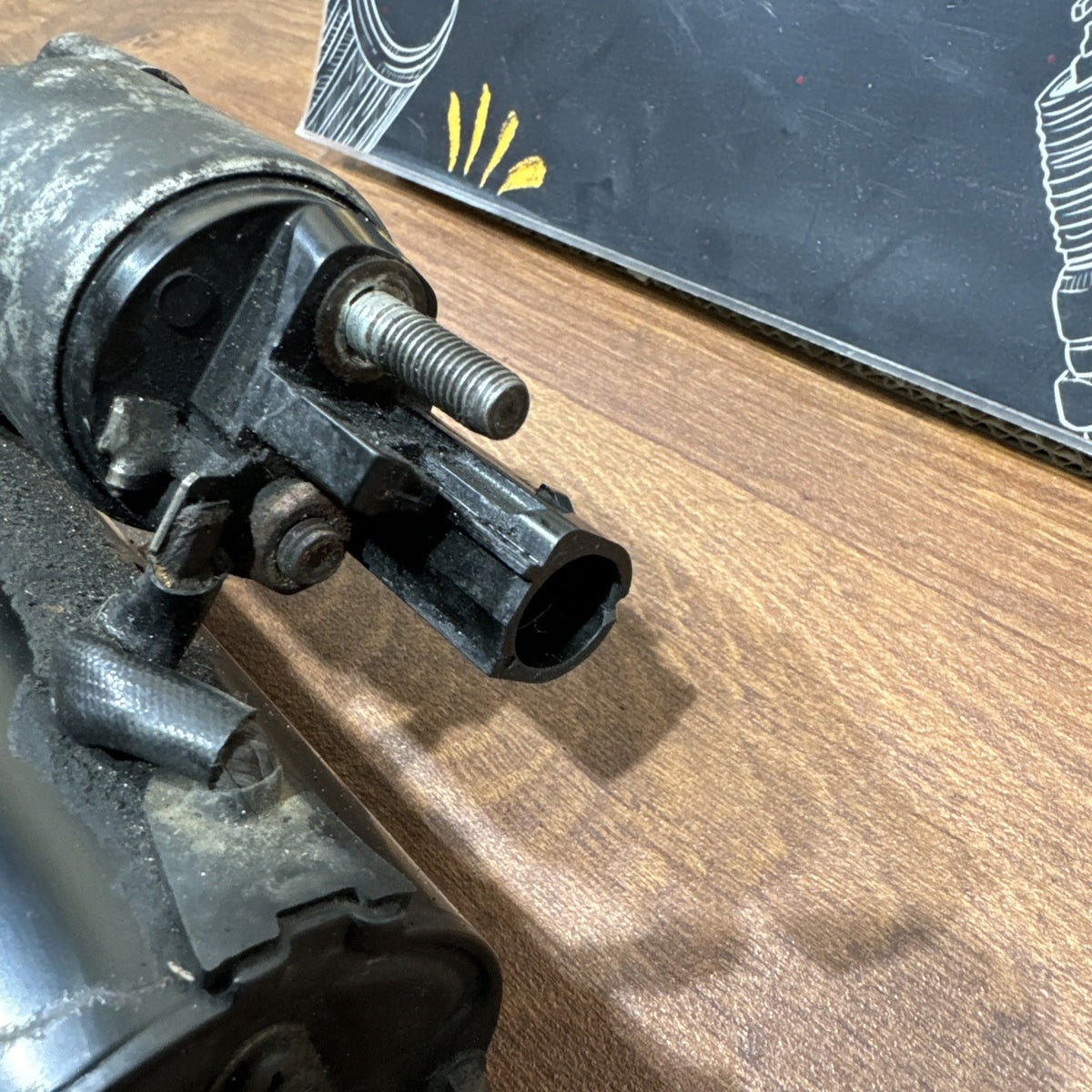

* Electrical terminals

* Solenoid

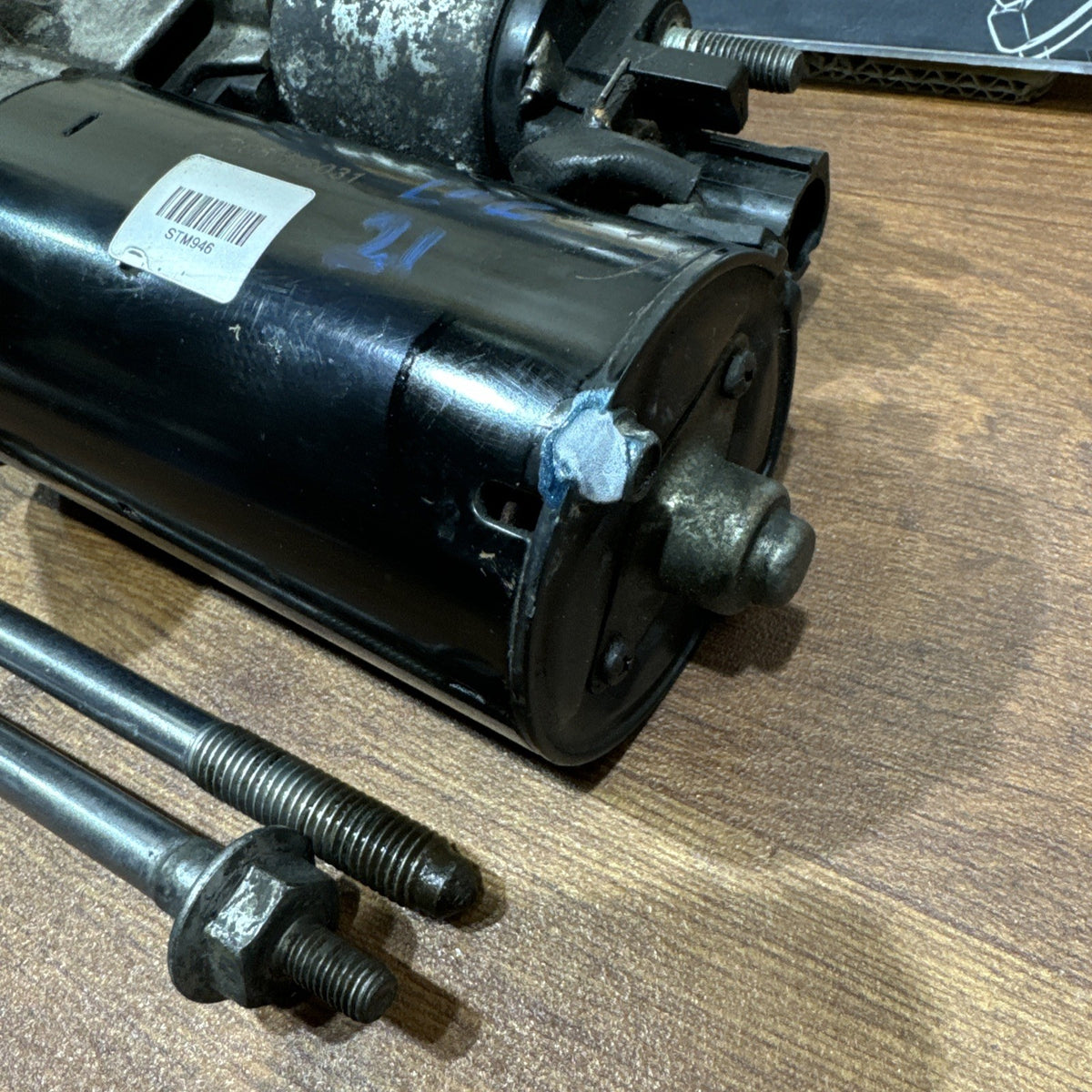

* Manufacturer/part-number label

Only the starter motor and accessories clearly shown in the listing photographs are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal replacement for a worn, slow, intermittent or failed VW Transporter T5 / Multivan 1.9 TDI starter motor, provided STM946 and the original starter specification match.
