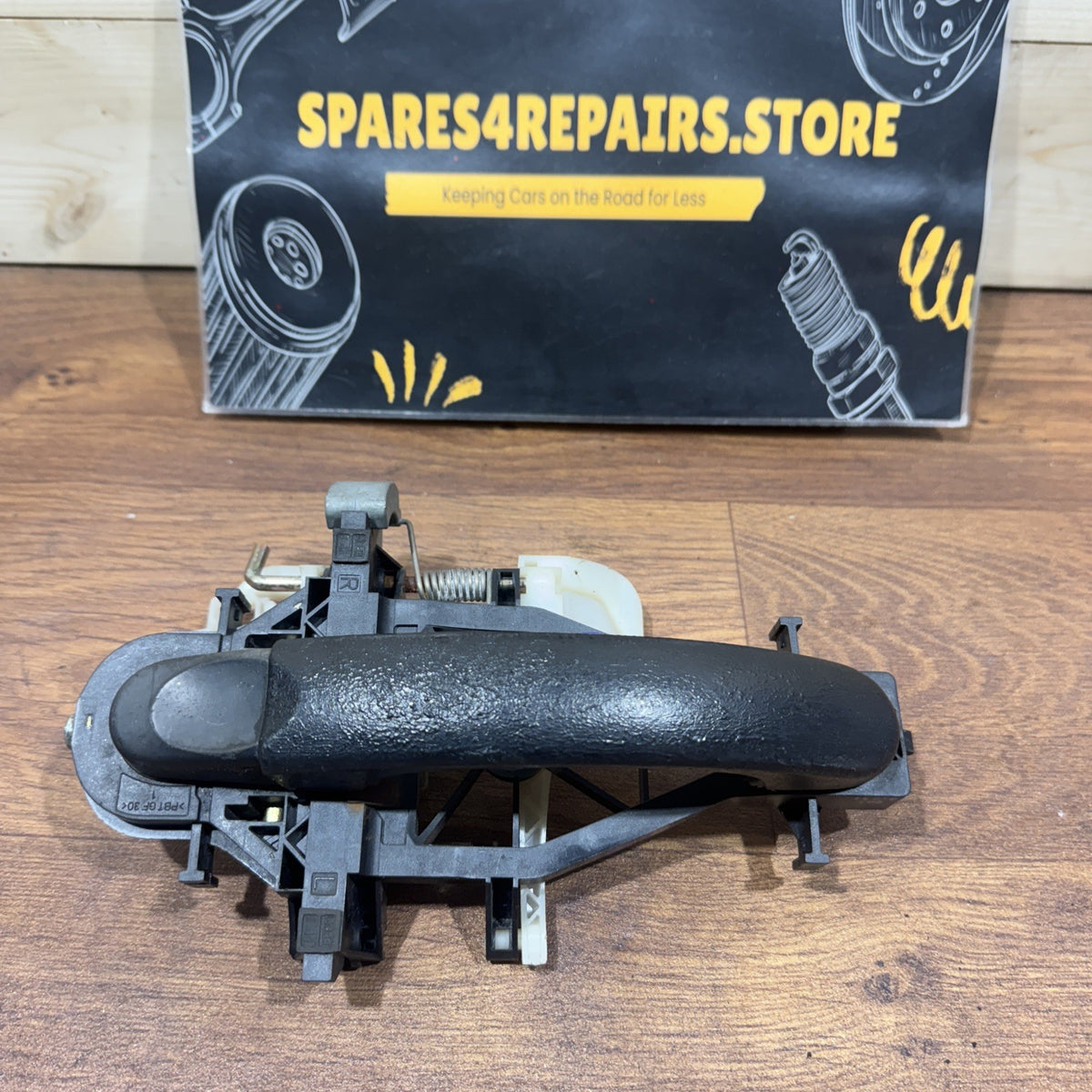

Volkswagen Transporter - Caravelle T5 2008 sliding door exterior handle Right OS

#127

Genuine used Volkswagen Transporter / Caravelle T5 Right Sliding Door Exterior Handle, part number 7H0843352D, suitable for selected T5 models equipped with a right-hand / offside sliding side door.

This is the external operating handle fitted to the right sliding door, allowing the door latch mechanism to be released from outside the vehicle.

Part Details

Part Number: 7H0843352D

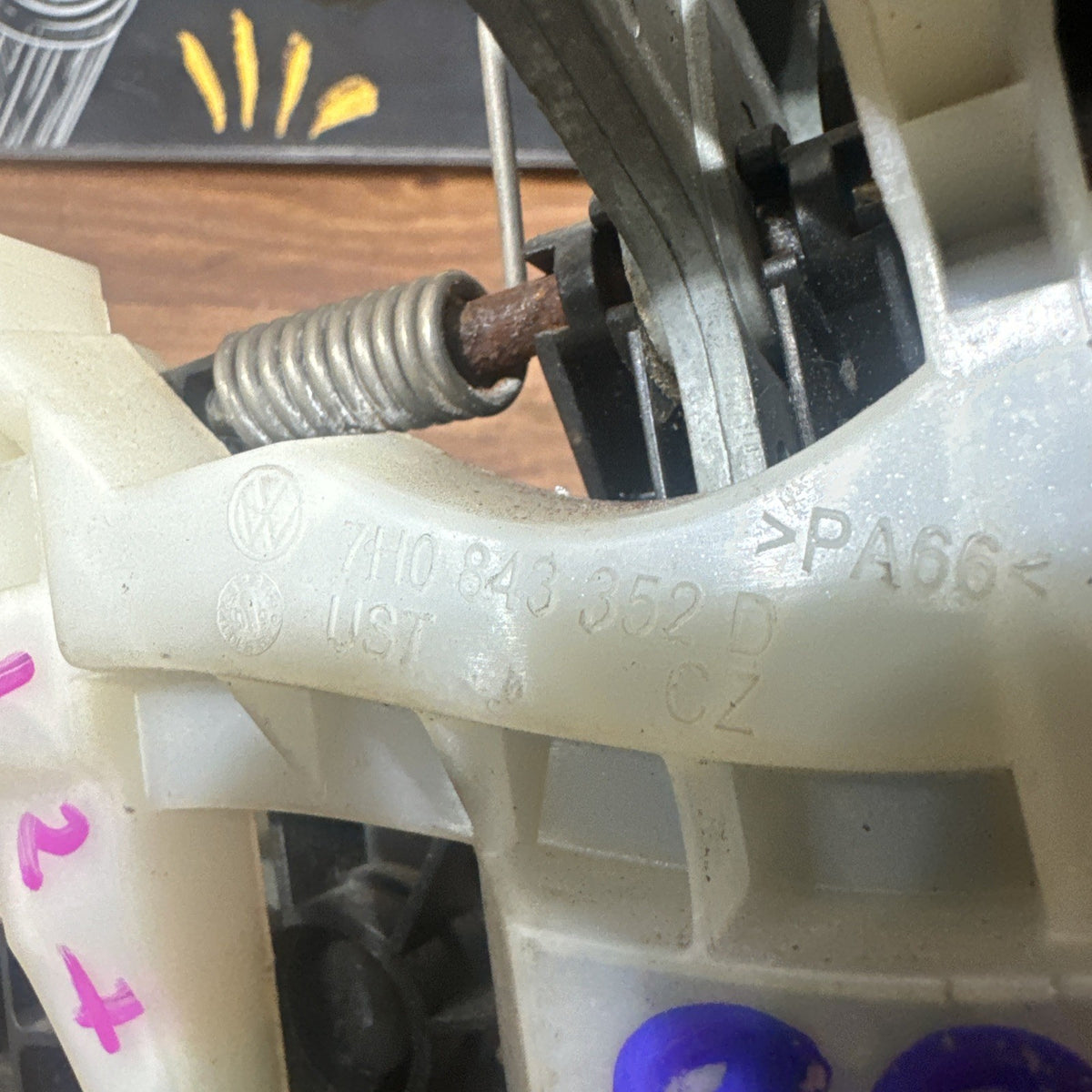

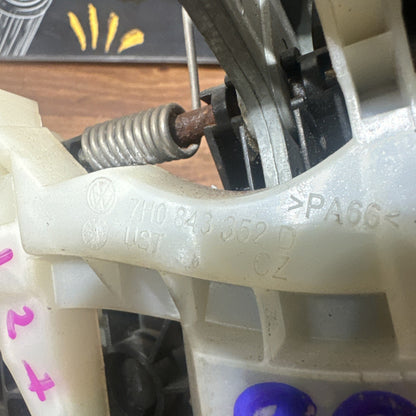

VW OE Number: 7H0 843 352 D

Part Type: Sliding Door Exterior Handle / Outside Door Handle

Position: Right Sliding Side Door

Vehicle Side: Right / RH

UK Vehicle Side: Offside / O/S / Driver Side

Donor Vehicle Reference: Volkswagen Transporter / Caravelle T5 2008

System: Sliding Door / Body Locking System

Manufacturer: Volkswagen / Genuine VAG

Condition: Used Genuine Part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – approximately 2003–2009

* Volkswagen Caravelle T5

* Volkswagen Multivan T5

* Volkswagen California T5 where applicable

* Transporter Panel Van

* Transporter Kombi

* Transporter Shuttle

* Selected camper/conversion models

Application: Vehicles equipped with the compatible RIGHT-HAND sliding door.

This is particularly important because many UK Transporters have only a left/passenger-side sliding door, while twin-slider vehicles can have sliding doors on both sides.

UK / RHD Side Information

For UK right-hand-drive vehicles:

Right / RH = Driver Side = Offside / O/S

Left / LH = Passenger Side = Nearside / N/S

This 7H0843352D handle is intended for the:

RIGHT / O/S SLIDING SIDE DOOR

It should not be confused with the corresponding left-hand / N/S sliding-door handle.

Technical Information

The exterior sliding-door handle provides the external mechanical input required to release the sliding-door latch system.

When the handle is operated, movement is transferred through the associated door mechanism to release the latch, allowing the sliding door to open.

The handle assembly operates together with components such as:

* Sliding-door lock mechanism

* Exterior handle mechanism

* Internal release mechanism

* Connecting cables/rods where applicable

* Front and rear sliding-door latches

* Door catches / striker plates

* Sliding-door rollers and guides

* Central locking components where fitted

Correct operation depends on the complete door mechanism being correctly adjusted and free from damage.

Sliding Door System Information

The T5 sliding-door system uses several mechanical components to guide, secure and release the door.

Depending on vehicle specification, the system can include:

* Exterior door handle

* Interior door handle

* Sliding-door lock

* Remote latch mechanisms

* Door contact plate

* Electrical contact unit

* Central locking actuator

* Upper roller/guide

* Centre roller

* Lower roller/guide

* Door striker/catch plates

A problem opening the door from outside does not automatically mean the exterior handle itself is faulty.

The associated cable, linkage or latch mechanism should also be inspected.

Common Reasons for Replacement

Replacement may be required because of:

* Broken exterior handle

* Cracked handle

* Handle pulling out without releasing the door

* Damaged internal operating mechanism

* Broken mounting points

* Excessive handle movement

* Accident/body damage

* Previous forced entry

* Missing original handle

* Cosmetic damage

* Damage during previous door repairs

Common Symptoms / Problems

A faulty handle or associated mechanism may cause:

* Sliding door will not open from outside

* Handle feels loose

* Excessive handle travel

* Handle sticks in the open position

* Door opens internally but not externally

* Handle operates without releasing the latch

* Handle does not return correctly

* Rattling from the exterior handle area

If the handle moves normally but the door does not release, inspect the internal linkage and locking mechanism before replacing parts.

Important Diagnostic Information

Before replacing the exterior handle, check:

* Handle operating mechanism

* Internal linkage

* Connecting cable/rod where applicable

* Sliding-door lock

* Front/rear latch mechanisms

* Central locking operation

* Door alignment

* Striker/catch adjustment

* Handle mounting points

A poorly aligned sliding door can place additional load on the locking mechanism and make the handle difficult to operate.

Central Locking Information

The exterior handle itself primarily provides a mechanical door-release function.

On vehicles equipped with central locking, locking/unlocking functions are handled by the associated lock/actuator system.

Therefore, if the door will not lock or unlock electrically but the exterior handle operates correctly, diagnosis should include the:

* Lock actuator

* Sliding-door electrical contacts

* Wiring

* Contact plates

* Central locking system

Installation

This is primarily a mechanical body/door component.

During installation:

* Check the handle mounting points

* Connect the operating linkage correctly

* Ensure the mechanism moves freely

* Check that the handle returns correctly

* Test the door before completing reassembly

* Confirm correct locking and unlocking

* Check sliding-door alignment

Do not force the handle if the door latch is seized or incorrectly adjusted, as this can damage the replacement handle.

Programming / Coding

No programming or coding is required for the exterior handle itself.

Important Compatibility Note

Volkswagen used different exterior handles and sliding-door arrangements depending on vehicle specification.

Before ordering, please compare:

OE Number: 7H0843352D / 7H0 843 352 D

Position: Right Sliding Door

UK Side: O/S / Driver Side

Vehicle Year: 2008 reference

Handle shape

Mounting points

Operating mechanism / linkage connection

Locking configuration

Original component

Do not purchase solely because the vehicle is a Transporter T5. Confirm that the vehicle has the corresponding right-hand sliding door and uses the same handle configuration.

Condition

Used genuine Volkswagen part.

As a used exterior body component, the handle may show normal cosmetic marks, scratches, surface wear, weathering or other signs of previous installation and use.

Please inspect the supplied photographs carefully for the exact colour/finish, handle condition, mounting points and operating mechanism included.

An ideal genuine replacement for a broken, damaged, loose or non-operational Volkswagen Transporter / Caravelle T5 right O/S sliding-door exterior handle.
