VOLKSWAGEN Transporter T30 2008 FRONT WIPER MOTOR & LINKAGE 7E2955113PA5

Loc21

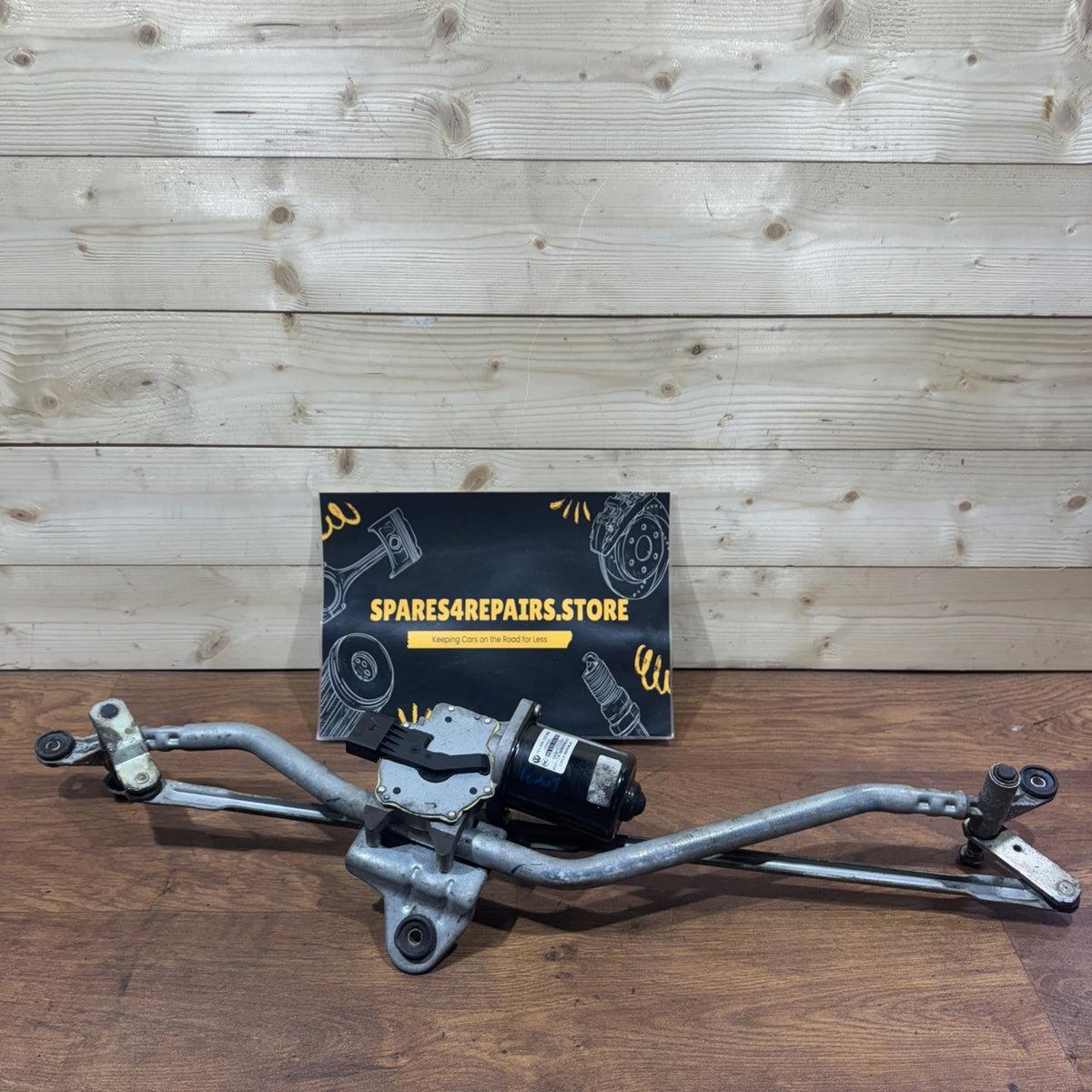

Genuine used Volkswagen Transporter T5 T30 front windscreen wiper motor and linkage mechanism, part number 7E2955113 / 7E2955113PA5. This complete assembly is fitted beneath the windscreen/scuttle area and converts the electric motor’s rotary movement into the synchronized sweeping movement of the front windscreen wiper arms.

Part Number: 7E2955113

Additional Reference: 7E2955113PA5

VW OE Number: 7E2 955 113

Part Type: Front Wiper Motor & Linkage / Wiper Transmission / Wiper Mechanism

Position: Front Windscreen

Operating Voltage: 12V

Vehicle Configuration: UK RHD – confirm against original unit

Donor Vehicle Reference: Volkswagen Transporter T30 – 2008

Manufacturer: Volkswagen / OEM Supplier

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5 – selected versions

* Volkswagen Multivan T5 – selected versions

* Transporter T26 / T28 / T30 / T32 variants where the same wiper system is fitted

* Panel van

* Kombi

* Shuttle / passenger variants

* UK right-hand-drive vehicles with the matching motor/linkage configuration

Known donor application:

* Volkswagen Transporter T30 – 2008

The 7E2955113 reference is documented on complete front motor/linkage assemblies for Transporter T5 vehicles from 2003–2009.

Fitment is primarily determined by the OE number, RHD/LHD configuration and linkage design, rather than T26/T28/T30/T32 weight designation or engine size.

Technical Information

The front windscreen wiper system uses a 12V electric motor connected to a mechanical linkage/transmission.

When the wiper switch is operated, the motor drives the linkage, which transfers movement to the left and right wiper spindles.

The assembly provides:

* Synchronized movement of both front wiper arms

* Normal continuous wiping

* High-speed wiping where controlled by the vehicle system

* Intermittent wiping

* Windscreen clearing during washer operation

* Correct wiper parking after switching off

Correct operation is essential for maintaining visibility in rain, spray, snow and other adverse conditions.

Wiper Linkage System Information

The linkage contains mechanical pivot points and joints that transfer movement from the motor to the wiper-arm spindles.

Over time, these components can suffer from:

* Corrosion

* Water ingress

* Dried or deteriorated lubrication

* Worn joints

* Seized spindle shafts

* Excessive mechanical resistance

A partially seized linkage places additional load on the electric motor and can eventually cause motor failure.

For this reason, the linkage should always be checked if a wiper motor has failed.

Wiper Motor Information

The electric motor contains an internal drive mechanism and parking system.

The parking function allows the wipers to return to their normal resting position at the bottom of the windscreen when switched off.

A motor fault may therefore cause the wipers to:

* Stop completely

* Work intermittently

* Move slowly

* Stop in the middle of the windscreen

* Fail to return to the park position

* Operate inconsistently

Common Symptoms / Reasons for Replacement

Typical symptoms of a faulty motor or linkage include:

* Front wipers not operating

* Wipers moving very slowly

* Intermittent wiper operation

* Wipers stopping during operation

* Wipers failing to park correctly

* One wiper moving incorrectly

* Excessive play in the wiper mechanism

* Knocking or clicking from beneath the scuttle

* Grinding noise from the motor

* Linkage becoming seized

* Wiper arms moving out of synchronization

* Motor overheating due to excessive linkage resistance

Important Diagnostic Information

Before replacing the complete assembly, check:

* Wiper fuse

* Wiper switch/stalk

* Electrical connector

* Motor power supply

* Earth connection

* Wiring

* Linkage movement

* Wiper spindles

* Wiper-arm attachment

* Scuttle area for water ingress

If electrical power reaches the motor but it does not operate, the motor itself may be faulty.

However, if the motor can be heard operating but the wiper arms do not move correctly, the linkage or its joints may be damaged.

Seized Linkage Diagnosis

A common mechanical issue on older wiper systems is increased resistance at the linkage pivots or wiper spindles.

Symptoms can include:

* Wipers becoming progressively slower

* Motor sounding strained

* Wipers stopping part-way across the screen

* Motor becoming hot

* Fuse failure

* Complete motor failure

A replacement motor should not be fitted to a seized linkage, as the excessive load can damage the replacement motor.

Since this listing is for the motor and linkage assembly together, inspect the complete mechanism for smooth movement before installation.

Installation

The assembly is fitted underneath the front windscreen scuttle panel.

Installation normally involves removal of:

* Front wiper arms

* Windscreen scuttle/cowl trim

* Relevant covers

* Electrical connector

* Motor/linkage mounting bolts

The replacement assembly can then be positioned and secured in the original mounting locations.

Wiper Arm Positioning

Correct wiper-arm positioning is important after installation.

Before installing the wiper arms:

1. Connect the wiper motor electrically.

2. Allow the motor to complete a cycle.

3. Switch the wipers off.

4. Allow the motor to reach its natural park position.

5. Install the wiper arms in their correct resting positions.

Incorrect positioning can cause the blades to:

* Hit the windscreen surround

* Travel too far across the glass

* Park too high

* Contact each other

Programming / Coding

Programming or coding is normally not required when fitting the correct matching wiper motor/linkage assembly.

Once correctly installed and connected, the system should operate through the vehicle’s existing wiper controls.

Important RHD / LHD Compatibility Information

Right-hand-drive and left-hand-drive wiper systems must not be assumed to be identical.

For UK vehicles, confirm that the replacement is the correct RHD specification.

Please compare:

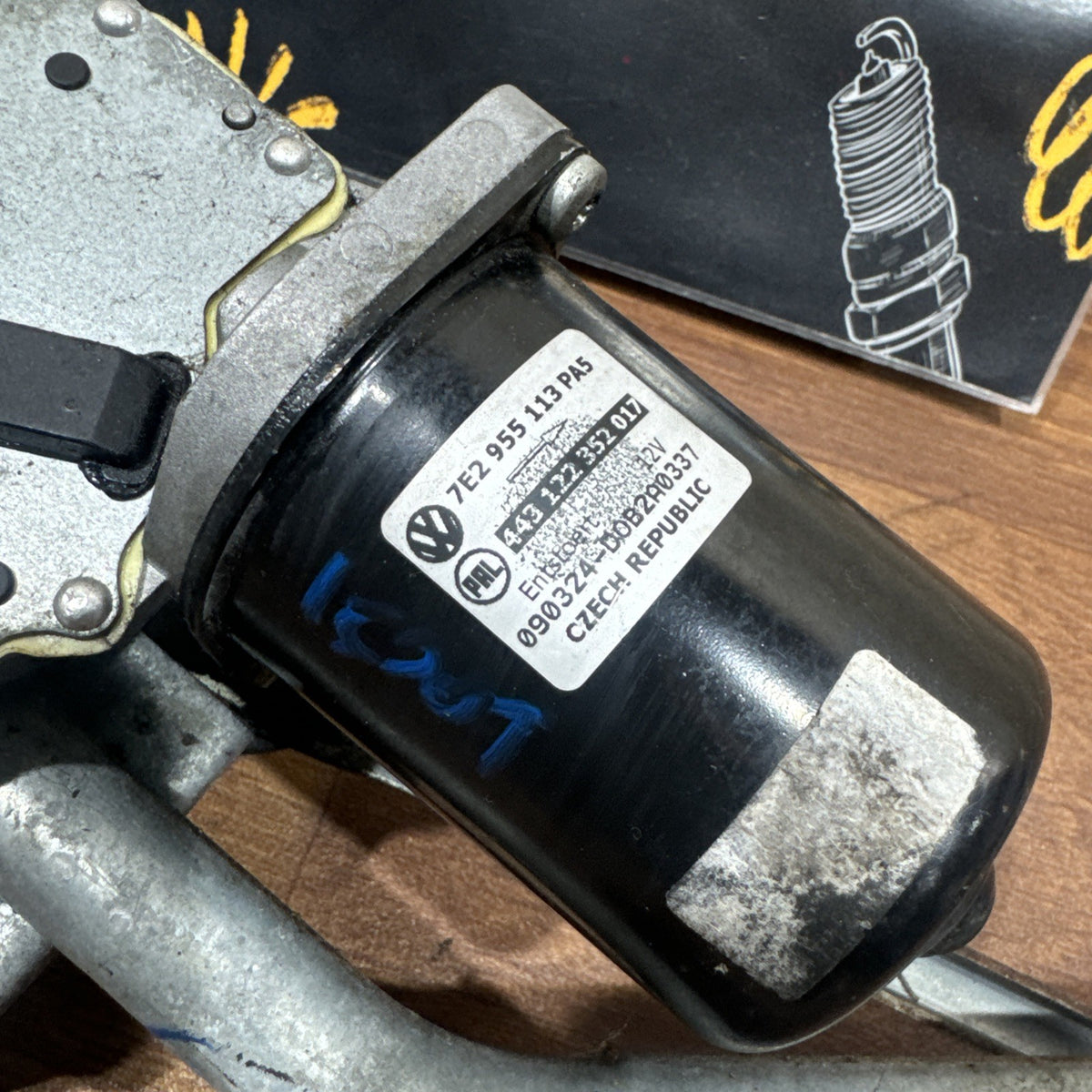

* 7E2955113 / 7E2 955 113

* Additional reference 7E2955113PA5

* Any suffix letter on the motor

* RHD/LHD specification

* Electrical connector

* Connector pin arrangement

* Motor housing

* Linkage shape

* Wiper spindle positions

* Mounting points

Different revisions exist, including 7E2955113A, 7E2955113B and later variants, so matching the complete markings on the original unit is strongly recommended.

Important Compatibility Note

This part is known from a 2008 Volkswagen Transporter T30.

The T30 designation relates primarily to the vehicle’s weight/load classification and does not by itself determine wiper-motor compatibility.

The same basic wiper system may therefore be found on selected T26, T28, T30 and T32 models.

For the safest compatibility check, compare the OE number, linkage layout and electrical connection with the original assembly.

Condition

Genuine Volkswagen used wiper motor and linkage assembly.

As a used mechanical/electrical component, normal signs of previous use may include:

* Surface marks

* Scratches

* Dirt

* Oxidation

* Light surface corrosion

* General signs of removal

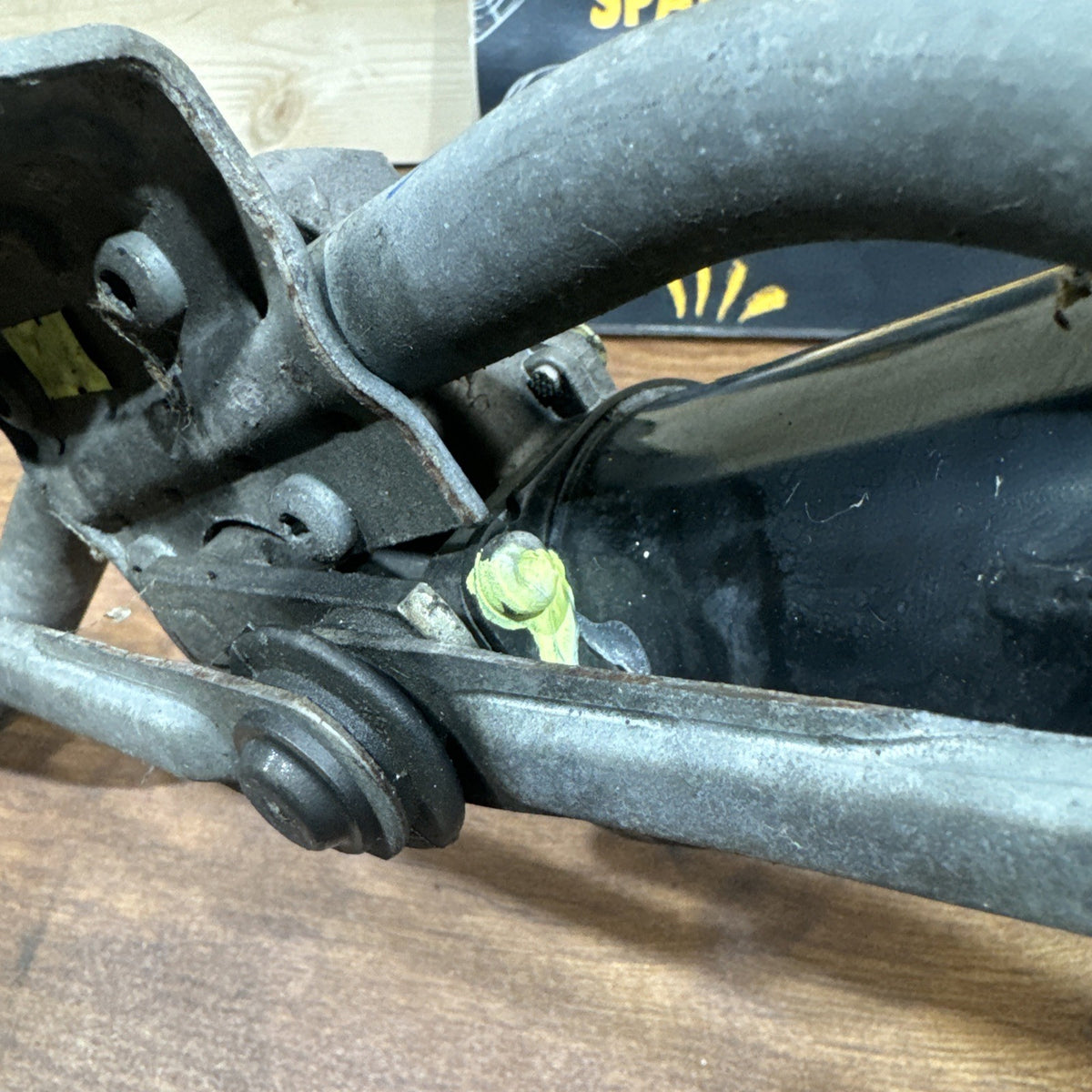

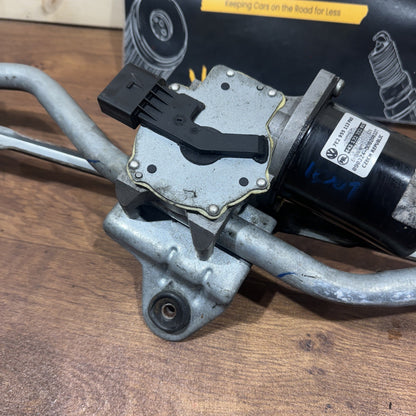

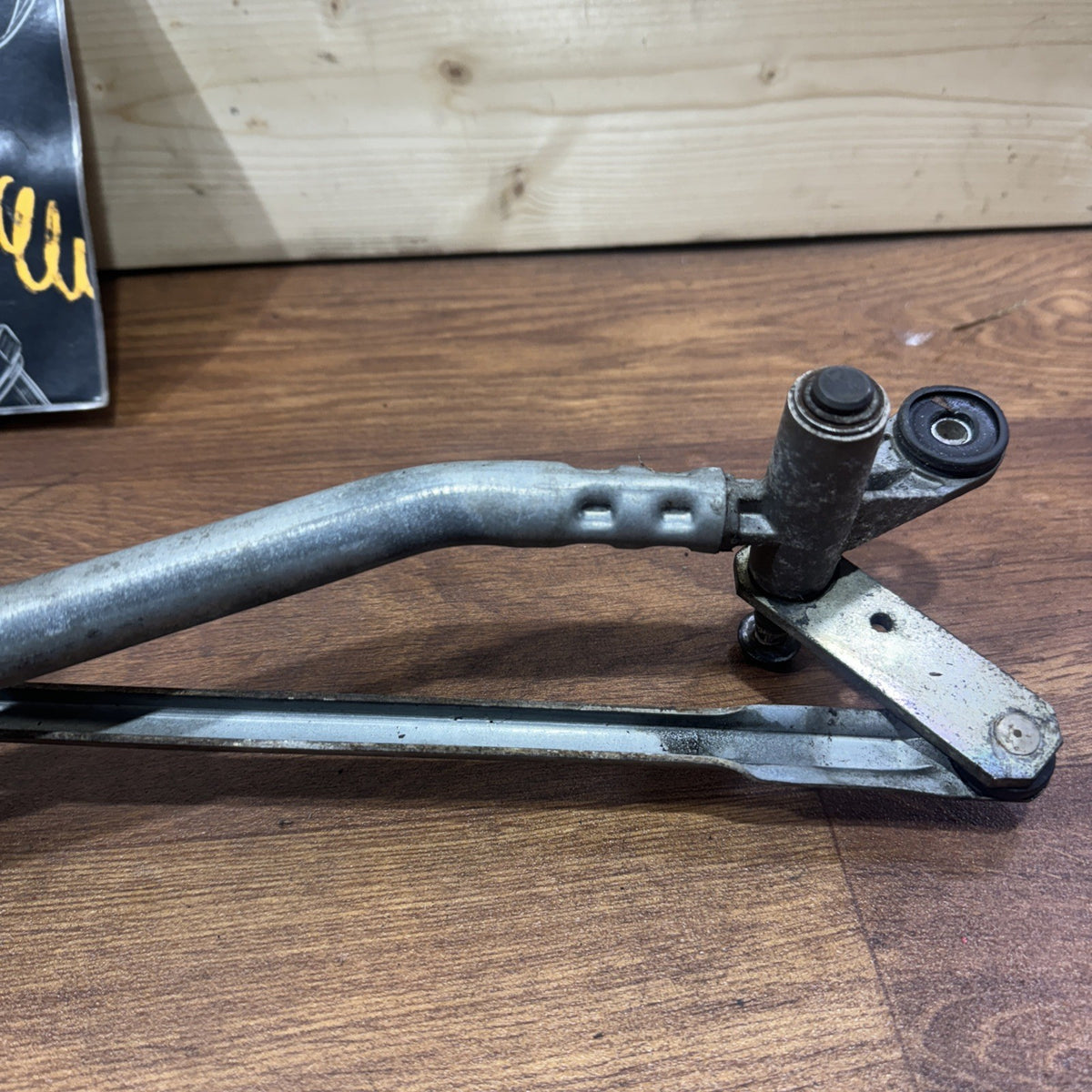

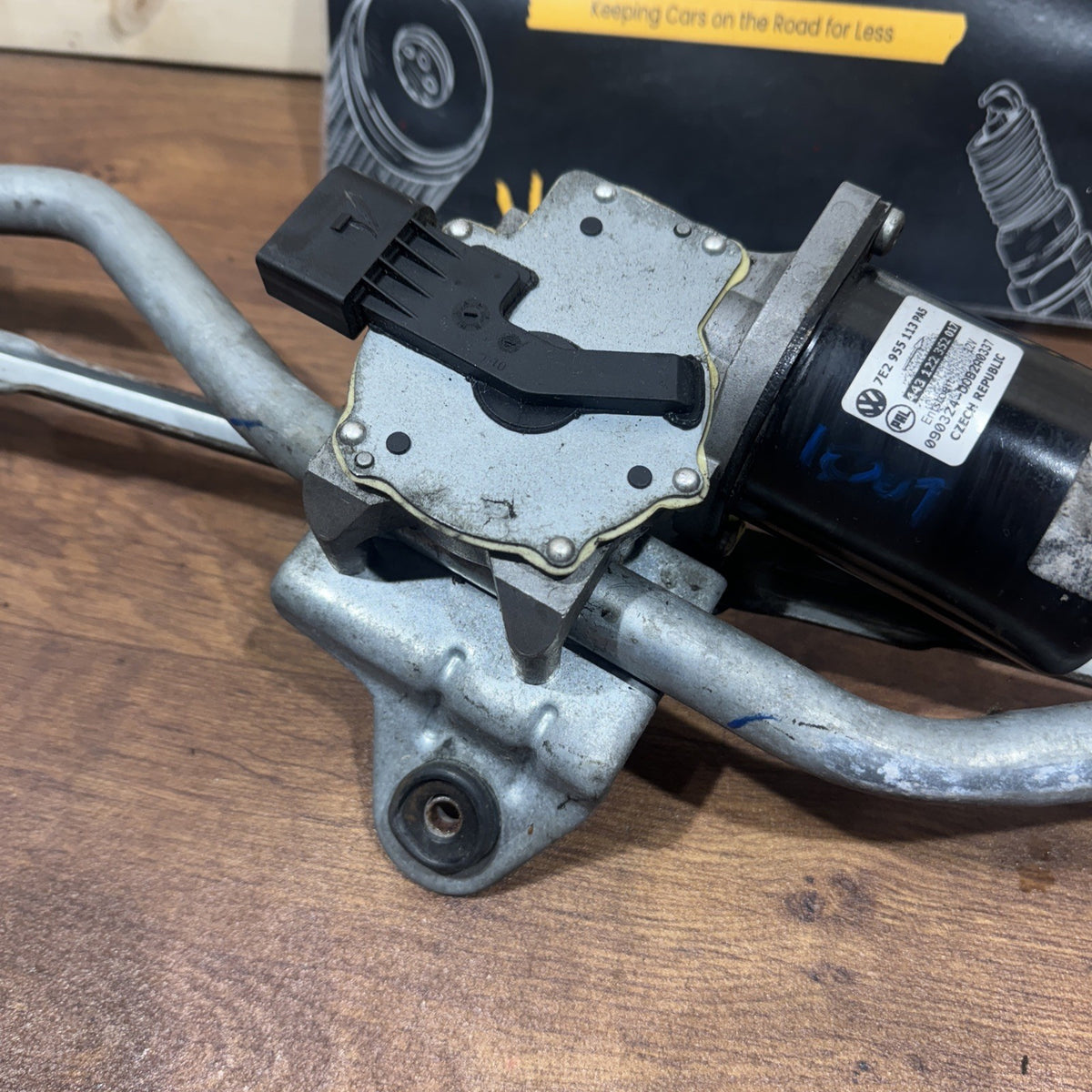

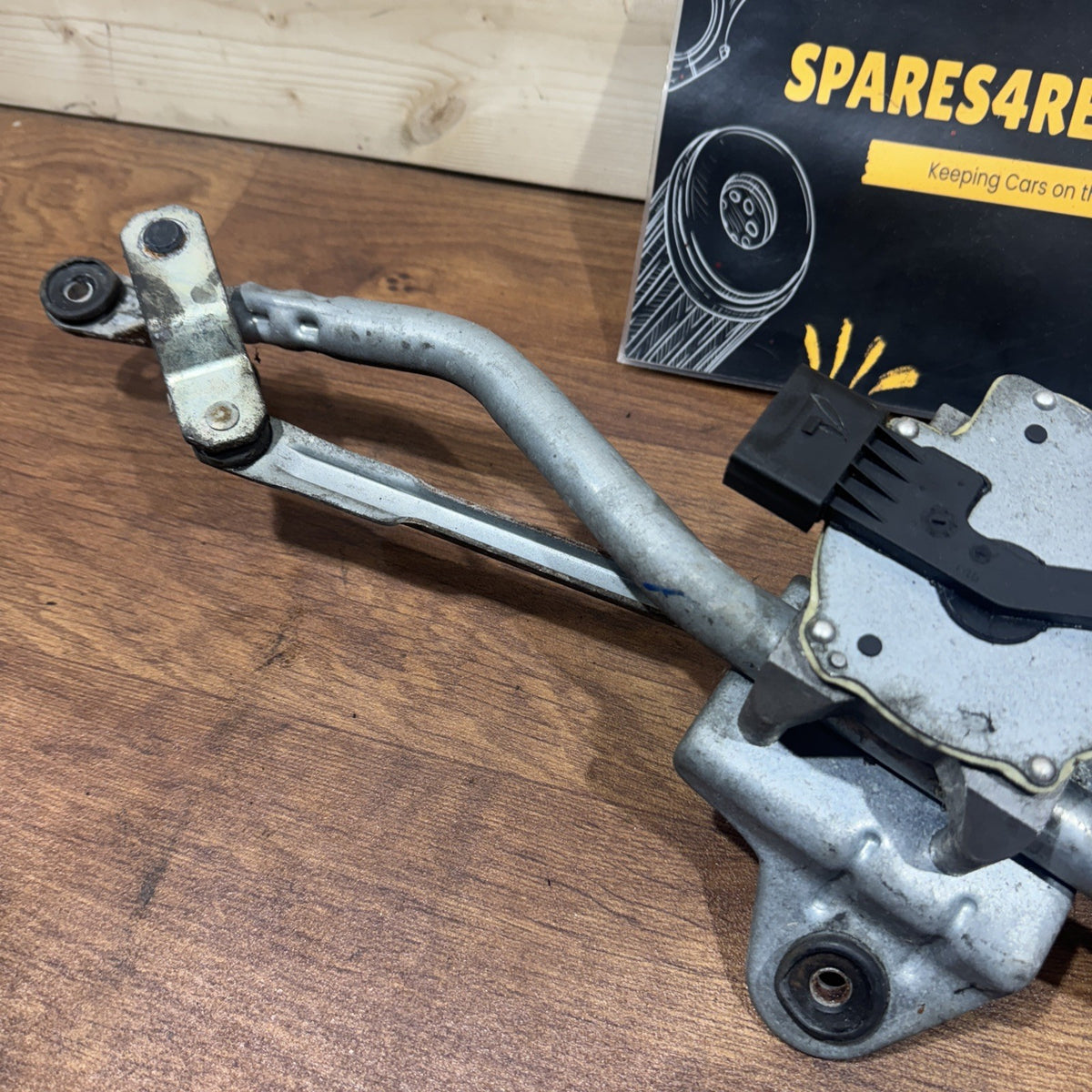

Please inspect all listing photographs carefully for the exact condition of the motor, linkage arms, joints, wiper spindles, electrical connector and mounting points.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a seized, slow, damaged or non-operating Volkswagen Transporter T5 front wiper motor and linkage assembly, provided 7E2955113 / 7E2955113PA5 and the RHD configuration match the original unit.
