Volkswagen Transporter T5.1 2.0 TDI CAAA Oil Pressure Sensor Switch 036919081C

#123

Genuine used Volkswagen Transporter T5.1 2.0 TDI engine oil pressure sensor / warning switch, part number 036919081C. This switch forms part of the engine lubrication monitoring system and provides an electrical signal used to monitor whether sufficient engine oil pressure is present.

Part Number: 036919081C

VW OE Number: 036 919 081 C

Part Type: Engine Oil Pressure Switch / Oil Pressure Sensor / Oil Warning Switch

Engine: 2.0 TDI Common Rail

Known Engine Code: CAAA

CAAA Output: 62 kW / 84 PS

Thread Size: M10 × 1

Electrical Connection: 1 Pin

Typical Switching Range: 0.3–0.6 bar

Colour Coding: Commonly Green

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5.1 – 2009/2010–2015

* Volkswagen Caravelle T5.1 – selected versions

* Volkswagen Multivan T5.1 – selected versions

* Volkswagen California T5.1 – selected versions

* Panel van

* Kombi

* Shuttle / passenger variants

* Chassis cab / flatbed variants where the same switch is specified

Confirmed application:

* 2.0 TDI CAAA – 62 kW / 84 PS

The 036919081C reference is also used across numerous other Volkswagen Group engines and vehicles, so this component is not exclusive to the CAAA engine.

Fitment should primarily be established by matching the OE number with the original switch.

Technical Information

The oil pressure switch is installed in the engine lubrication system and responds to engine oil pressure.

When the engine starts, the oil pump circulates engine oil through lubrication passages to critical components such as:

* Crankshaft bearings

* Connecting rod bearings

* Camshaft components

* Cylinder head

* Turbocharger lubrication circuit

* Other internal moving components

The pressure switch provides the vehicle’s monitoring system with information about whether oil pressure has reached the required switching threshold.

Oil Pressure Monitoring System

This component should not be confused with an electronic sensor designed to provide a continuously variable oil-pressure measurement.

036919081C is primarily a pressure switch.

Its electrical state changes when oil pressure passes its calibrated switching threshold.

After the engine starts and sufficient oil pressure is generated, the switch changes state and the vehicle’s monitoring system uses this signal as part of the oil-pressure warning function.

Typical Specifications

Replacement catalogues for 036919081C commonly specify:

* Thread: M10 × 1.0

* Pins: 1

* Switching pressure: approximately 0.3–0.6 bar

* Operating principle: Hydraulic pressure switch

* Colour identification: Green

These specifications should still be compared with the original component before installation.

Common Symptoms / Reasons for Replacement

A faulty oil pressure switch can cause:

* Oil pressure warning light remaining illuminated

* Oil warning appearing intermittently

* Warning light flickering at idle

* Warning despite apparently normal engine operation

* Oil leaking through or around the switch

* Damaged electrical terminal

* Broken connector housing

* Incorrect oil-pressure warning signal

* Oil warning buzzer/message where applicable

Oil can sometimes leak internally through an ageing pressure switch and appear around the electrical connection.

Important Diagnostic Information

An illuminated oil-pressure warning must never automatically be assumed to be caused by the switch.

Low engine oil pressure can indicate a genuine lubrication-system problem.

Possible causes include:

* Low engine oil level

* Incorrect engine oil

* Blocked oil pickup

* Oil pump wear or failure

* Internal engine wear

* Blocked oil passages

* Excessive bearing clearances

* Wiring fault

* Poor electrical connection

* Faulty pressure switch

If an oil-pressure warning appears, the engine should not continue to be operated until the cause has been properly investigated.

Mechanical Oil Pressure Testing

Where a genuine low-pressure condition is suspected, actual engine oil pressure should be checked using a suitable mechanical oil-pressure gauge.

This allows the technician to distinguish between:

A faulty electrical pressure switch

and

A genuine low engine oil-pressure problem.

Replacing the sensor without verifying actual pressure can potentially hide a serious lubrication-system fault.

Turbocharger Lubrication Information

The T5.1 CAAA is turbocharged and relies on correct engine oil supply for turbocharger lubrication.

Insufficient oil pressure or restricted oil supply can damage:

* Turbocharger bearings

* Camshaft components

* Crankshaft bearings

* Other internal engine components

For this reason, persistent oil-pressure warnings should be investigated promptly.

Installation

Before installation:

* Allow the engine to cool

* Confirm the correct OE number

* Disconnect the electrical connector

* Clean the surrounding area

* Prevent dirt entering the oil passage

During fitting:

* Use the correct tool

* Avoid damaging the electrical connector

* Ensure the sealing arrangement is correct

* Do not overtighten the switch

* Reconnect the electrical plug securely

After installation:

* Start the engine

* Confirm the oil warning extinguishes normally

* Inspect for oil leakage

* Recheck the oil level

* Scan for relevant faults if required

Programming / Coding

No programming or coding is normally required.

This is a conventional engine oil-pressure switch.

Once the correct switch is installed and connected, it operates as part of the existing engine monitoring circuit.

Important Compatibility Note

Please compare before ordering:

* OE number – 036919081C

* Thread size

* Electrical connector

* Number of pins

* Pressure specification

* Colour coding

* Engine code

* Original sensor markings

Although 036919081C is confirmed for selected Transporter T5.1 2.0 TDI CAAA applications, VW used different oil-pressure switches across its engine range.

Do not purchase solely because the vehicle is a Transporter T5.1 2.0 TDI.

Matching 036919081C directly against the original switch is strongly recommended.

Condition

Genuine Volkswagen used engine electrical component.

As a used engine-mounted part, normal signs of previous use may include:

* Oil residue

* Surface marks

* Dirt

* Light oxidation

* Cosmetic wear

* Signs of previous removal

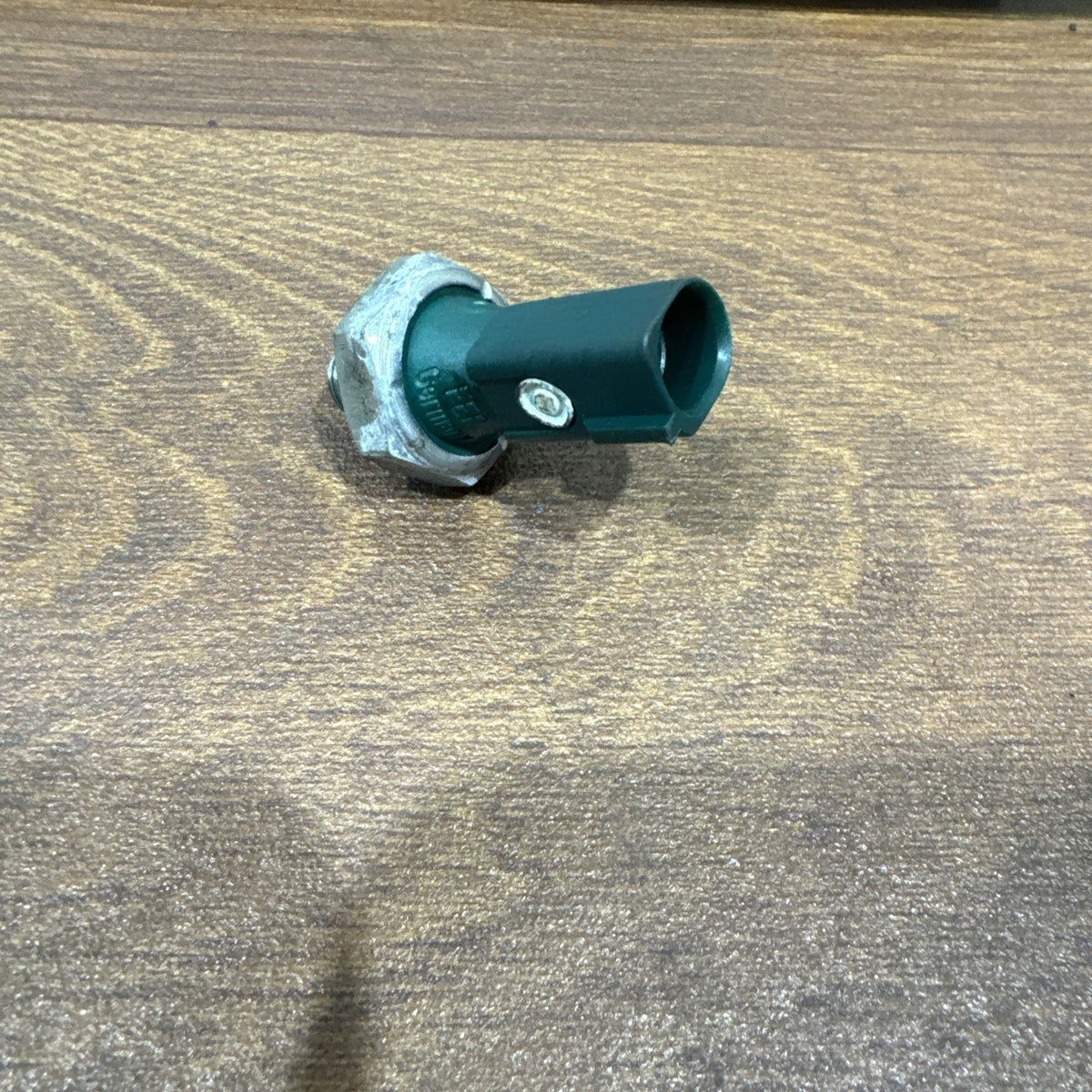

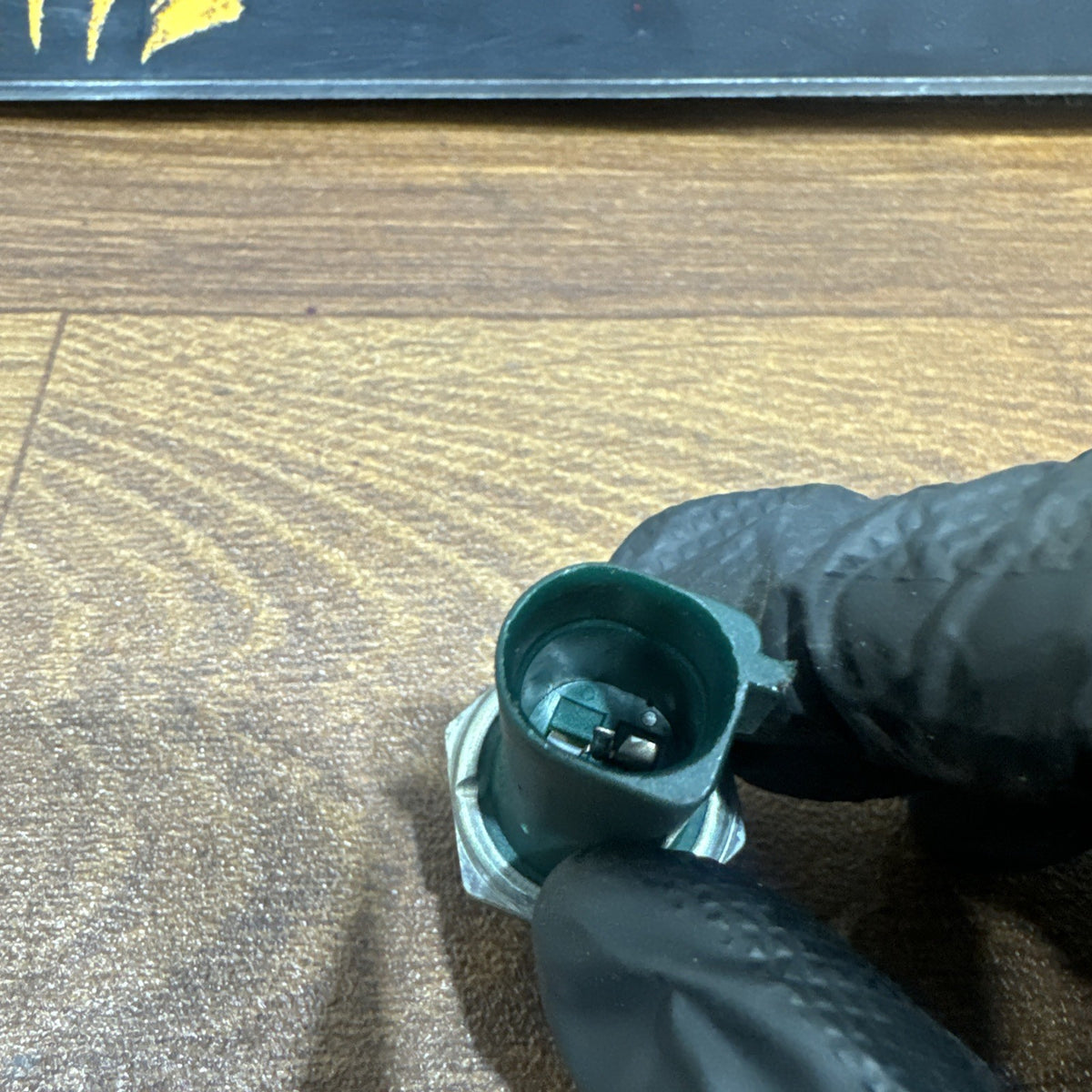

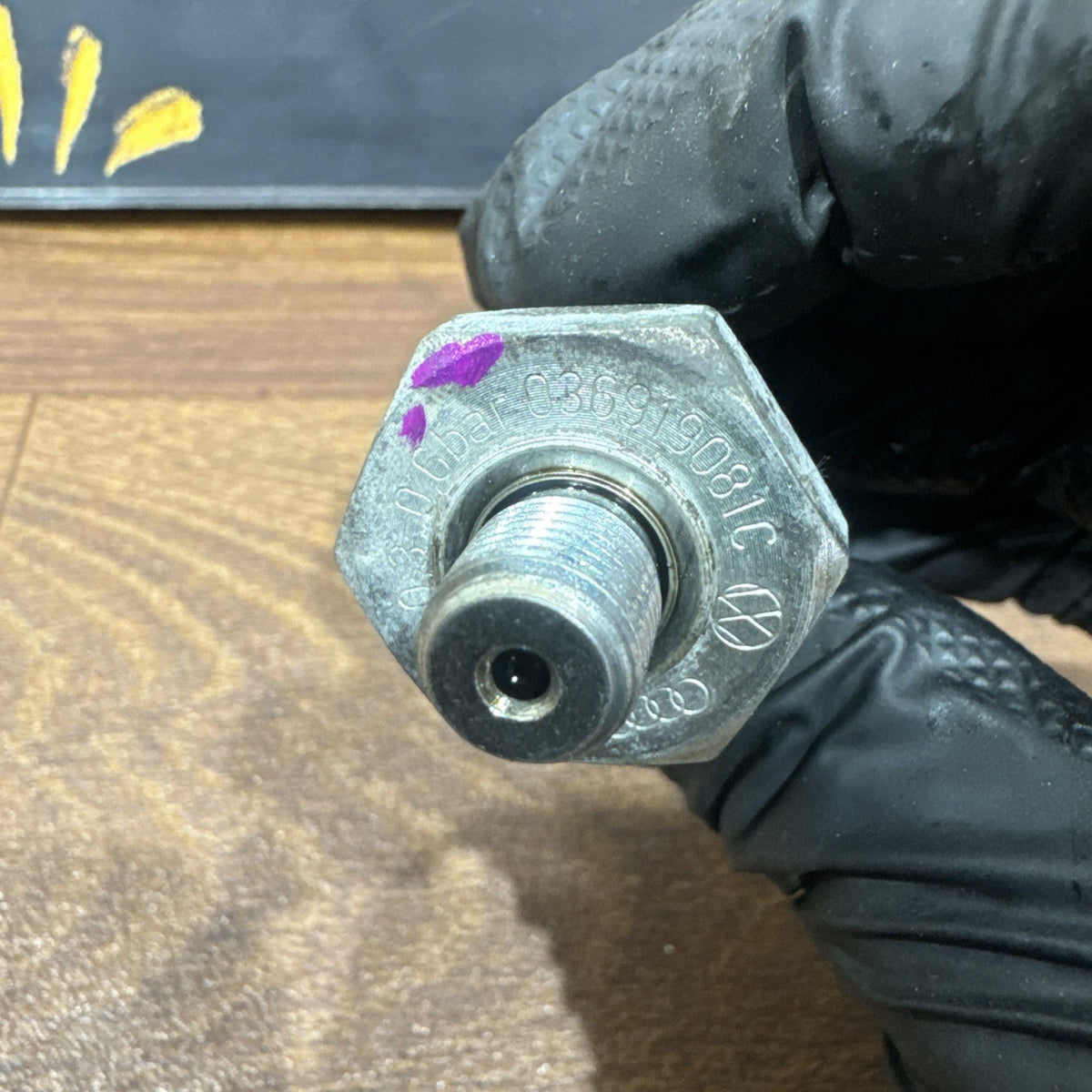

Please inspect all listing photographs carefully for the exact condition of the thread, electrical terminal, connector housing and switch body.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a leaking, damaged or faulty Volkswagen Transporter T5.1 2.0 TDI CAAA oil pressure switch, provided 036919081C matches the original component.
