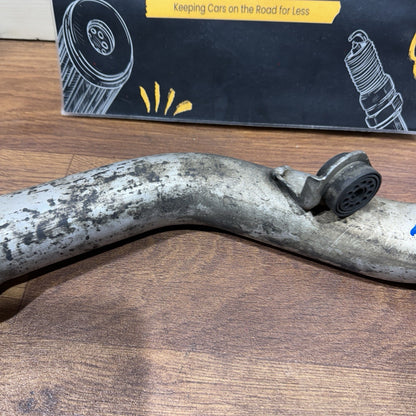

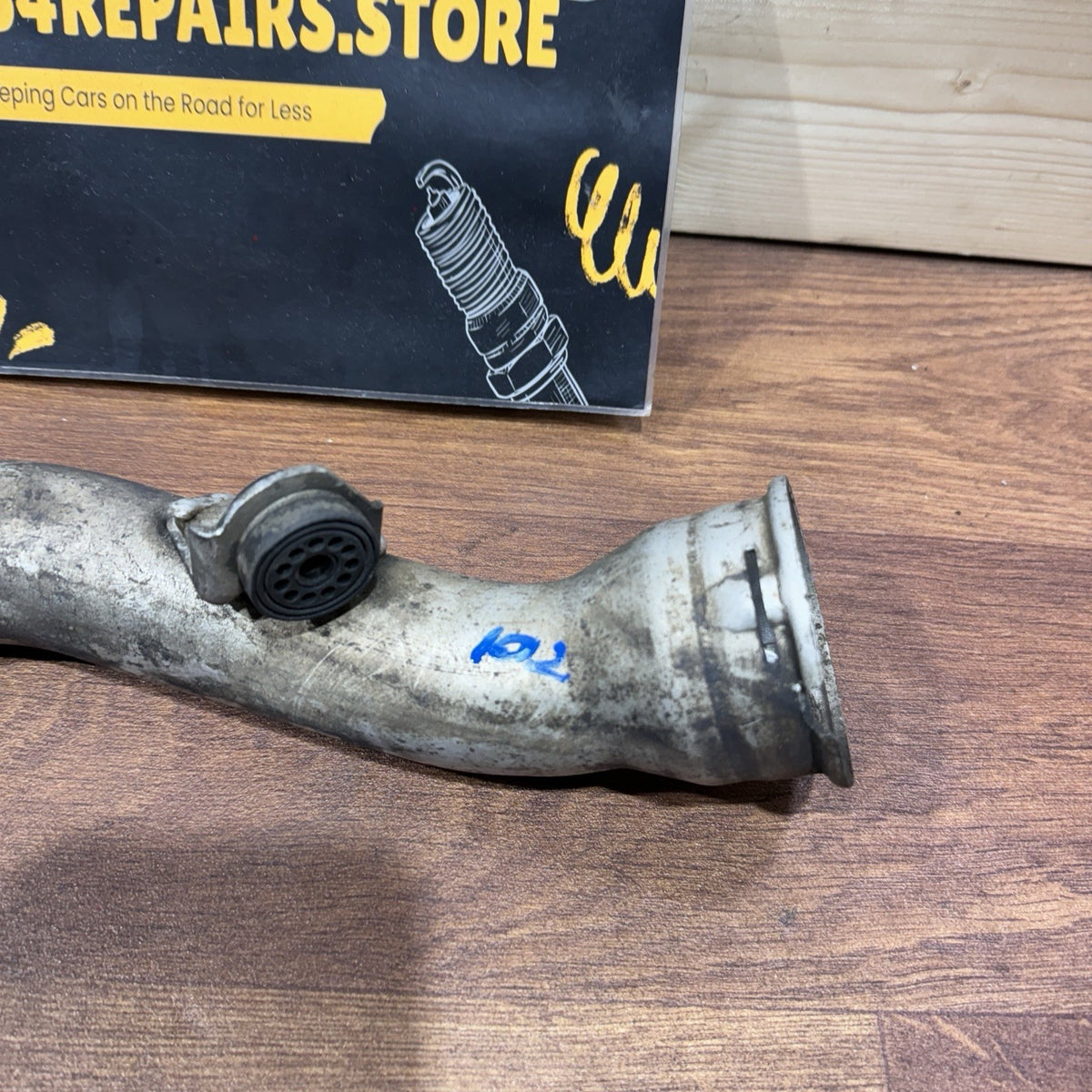

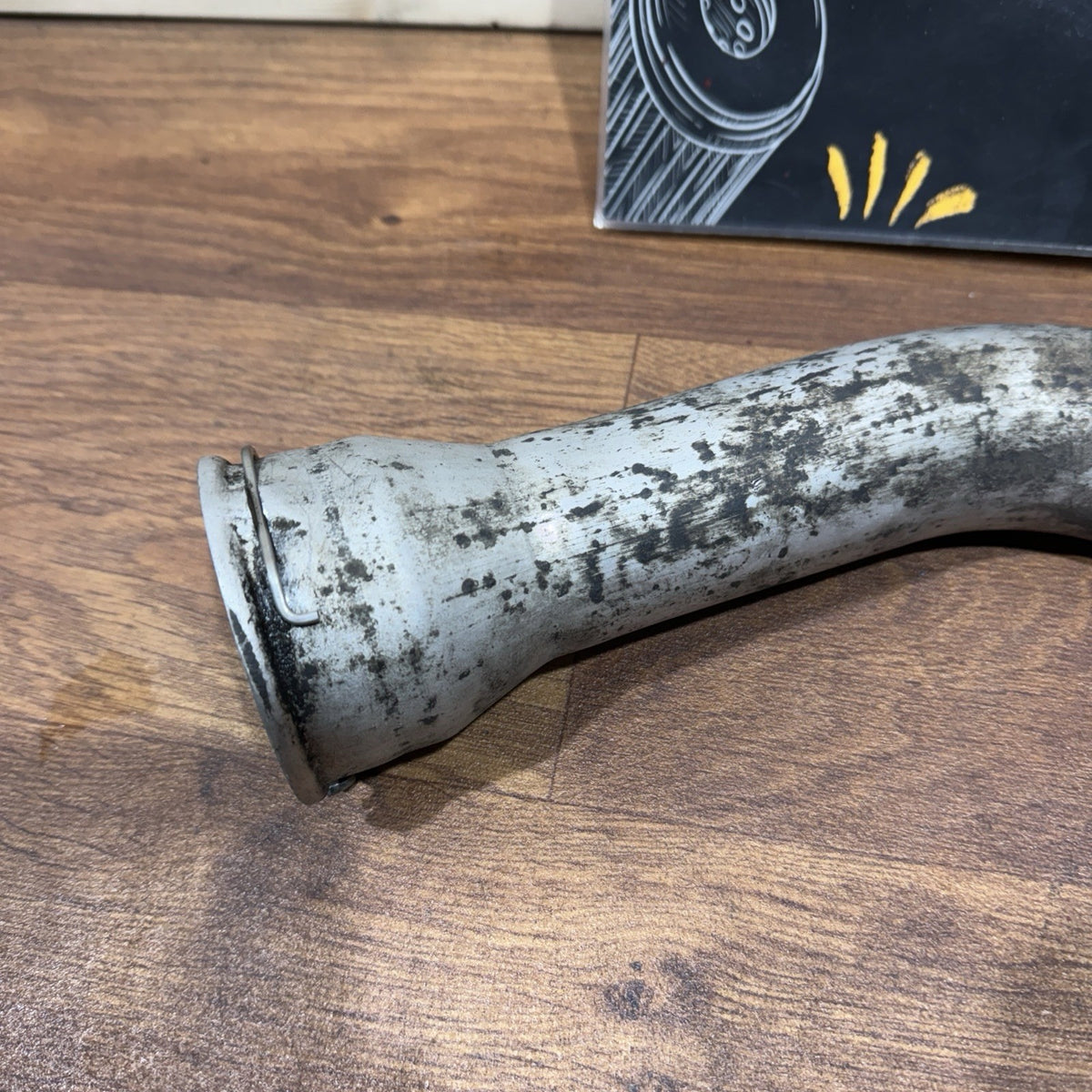

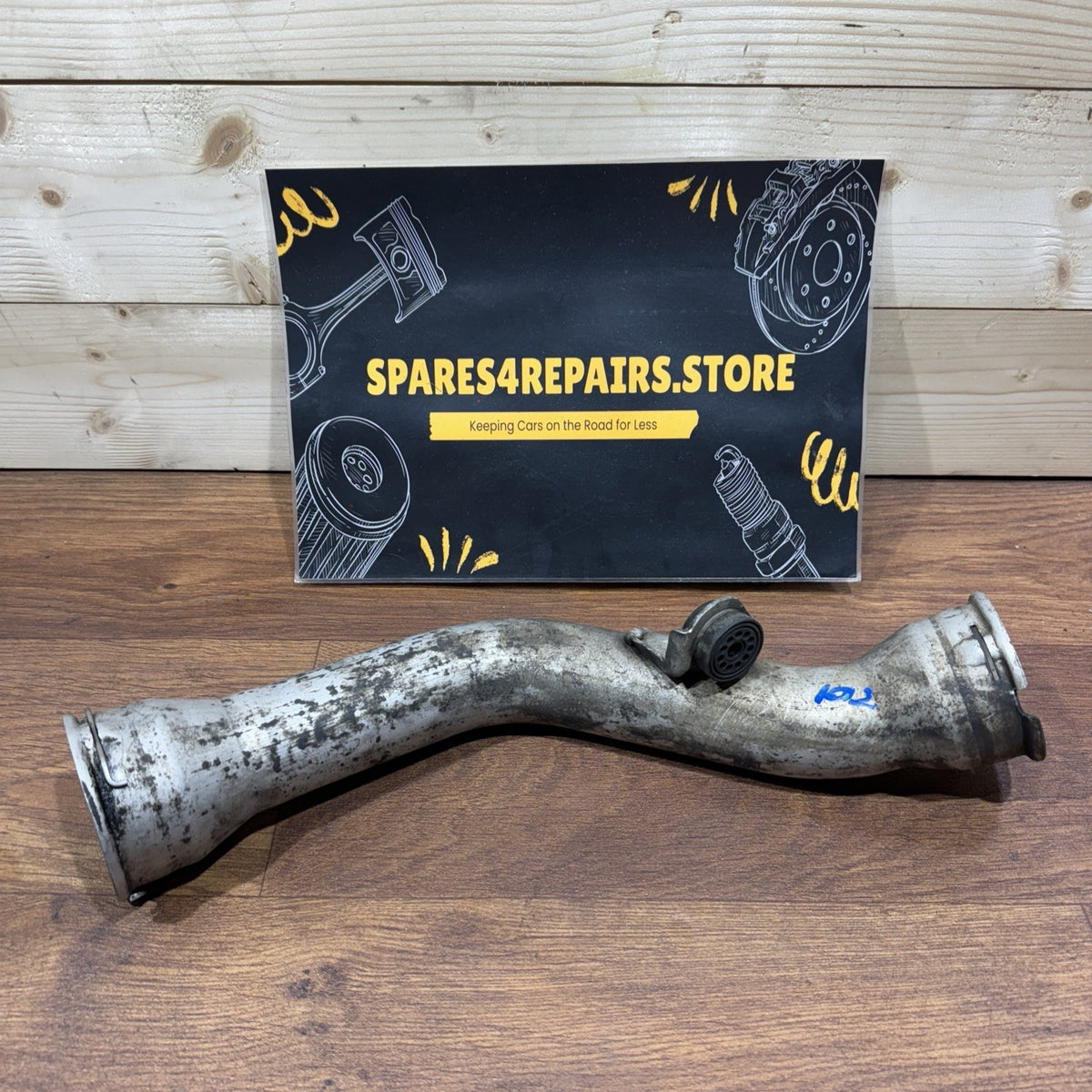

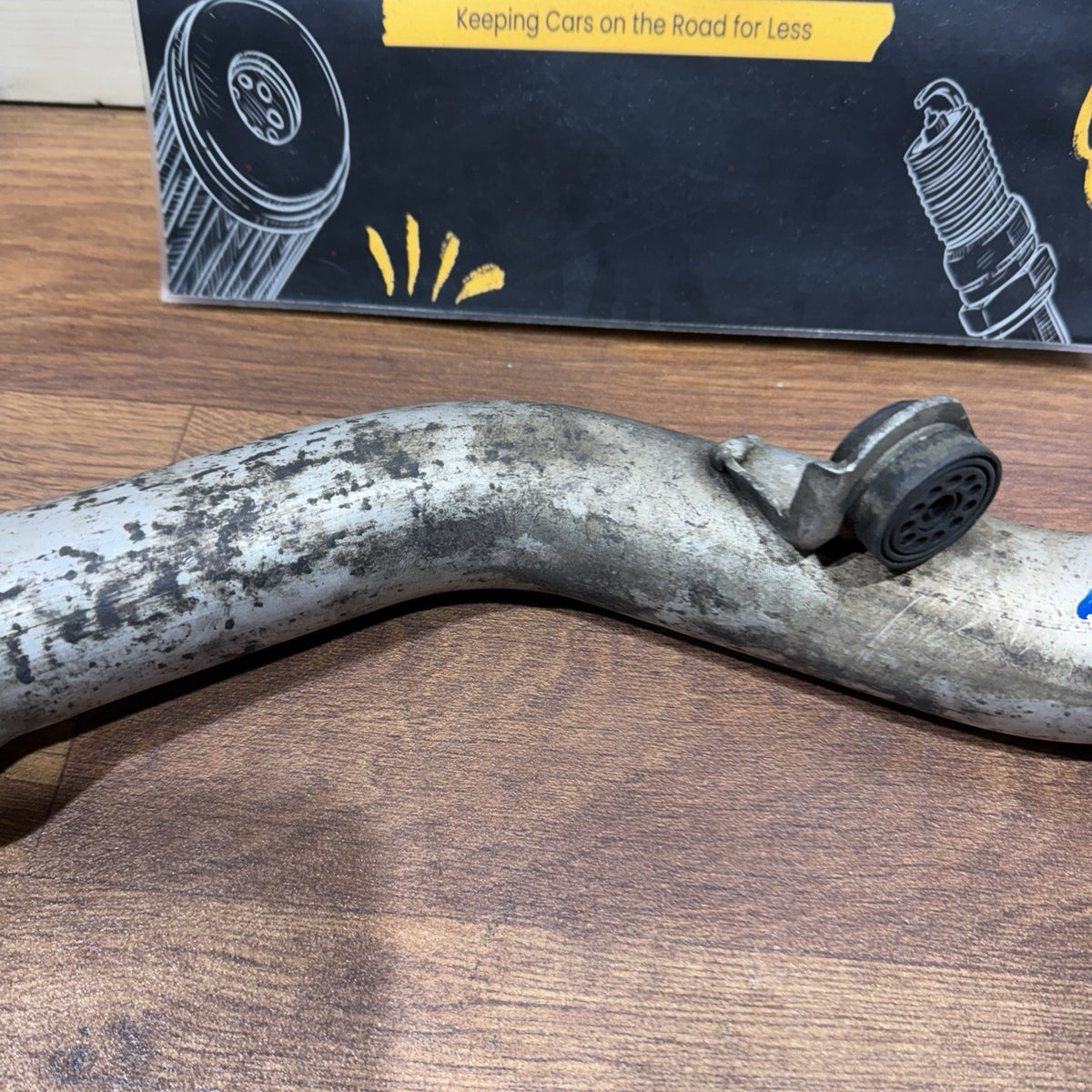

Volkswagen Transporter T5 1.9 Aluminium Intercooler Pipe 7H0145762

#102

♻ GENUINE VW TRANSPORTER T5 1.9 TDI ALUMINIUM TURBO INTERCOOLER CHARGE AIR PIPE 7H0145762 ♻

Genuine used Volkswagen Transporter T5 aluminium turbo intercooler pressure pipe / charge-air pipe, fitted to selected 1.9 TDI diesel engines.

This rigid aluminium pipe forms part of the pressurised turbocharger and intercooler system. It carries compressed charge air between sections of the boost system and must remain correctly sealed to maintain the turbo pressure required for proper engine performance.

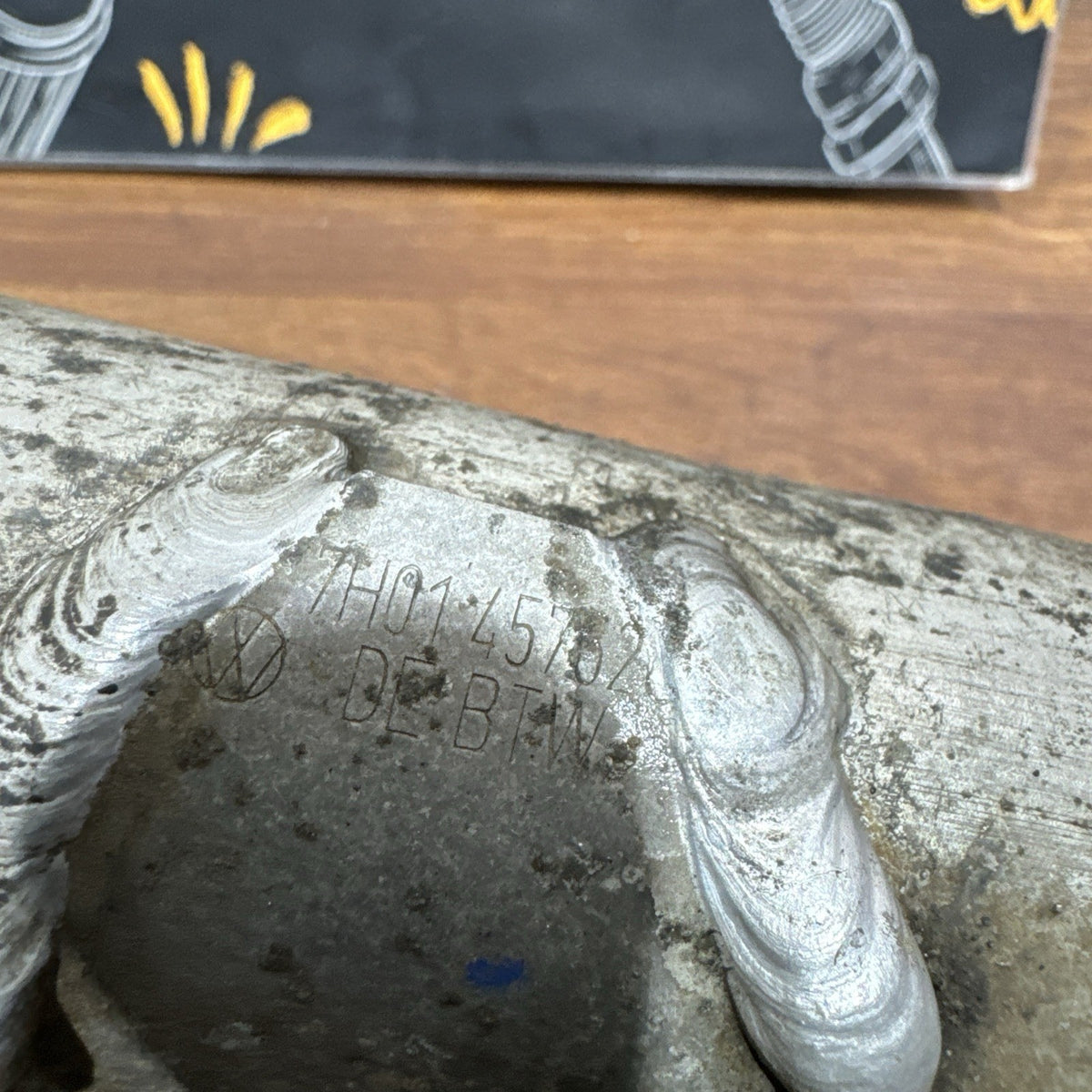

Part Number: 7H0145762

VW OE Base Number: 7H0 145 762

Common 1.9 TDI Revision: 7H0145762C

Part Type: Aluminium Intercooler Pipe / Turbo Boost Pipe / Charge Air Pressure Pipe

Material: Aluminium with associated connection sections

System: Turbocharger / Intercooler / Charge-Air System

Fuel Type: Diesel

Engine: 1.9 TDI

Vehicle: Volkswagen Transporter T5 7H

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

The 7H0145762 pressure-pipe family is confirmed for Volkswagen Transporter / Caravelle / Multivan T5 applications.

For the 1.9 TDI, the strongest documented version is:

7H0145762C

with confirmed applications including:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5 – selected applications

* Volkswagen Multivan T5 – selected applications

* Transporter Panel Van

* Transporter Kombi

* Transporter Shuttle

* Selected chassis/platform variants

1.9 TDI Engine Compatibility

Documented engine applications for 7H0145762C include:

* AXB – 1.9 TDI, 77 kW / 105 PS

* AXC – 1.9 TDI, 63 kW / 86 PS

* BRR – 1.9 TDI, 62 kW / 84 PS

* BRS – 1.9 TDI, 75 kW / 102 PS

Specialist VAG parts data specifically identifies 7H0145762C for BRR, BRS, AXB and AXC, making these the safest engine codes to advertise for the 1.9 TDI version.

OE Revision Information

Volkswagen used several revisions within the:

7H0 145 762

pressure-pipe family.

Documented versions include:

* 7H0145762

* 7H0145762A

* 7H0145762B

* 7H0145762C

* 7H0145762E

The suffix is important because the broader 7H0145762 family was also used with other T5 diesel configurations.

For example, used-parts records show base number 7H0145762 on both 1.9 TDI and 2.5 TDI T5 vehicles, while 7H0145762C is specifically documented on 1.9 TDI AXB/AXC/BRR/BRS applications.

Therefore, buyers should compare the complete number stamped on their original pipe wherever possible.

Technical Information

This aluminium pipe forms part of the engine’s charge-air pressure circuit.

Its functions include:

* Carrying compressed air from the turbo system

* Connecting sections of the intercooler pipework

* Maintaining turbo boost pressure

* Providing a rigid passage for pressurised intake air

* Supporting correct engine power and torque

* Helping maintain the ECU’s requested charge pressure

* Reducing unwanted movement compared with a fully flexible hose

* Connecting to flexible boost hoses at each end of the system

Unlike a conventional rubber boost hose, this component has a substantial rigid aluminium section designed to withstand pressure, heat and vibration within the engine bay.

Turbo / Intercooler System Information

The pipe works together with:

* Turbocharger

* Intercooler

* Flexible charge-air hoses

* Boost pressure pipes

* Intake manifold

* EGR system

* MAP / boost-pressure sensor

* MAF sensor

* Turbo actuator

* Boost-control system

* Engine ECU

The turbocharger compresses incoming air before it passes through the charge-air system.

The intercooler then reduces the temperature of the compressed air before it reaches the engine, increasing air density and supporting efficient combustion.

All connections must remain properly sealed.

Common Reasons for Replacement

Replacement may be required if the original pipe has:

* Cracked

* Split at a connection

* Been physically damaged

* Become distorted

* Developed a boost leak

* Damaged mounting points

* Damaged hose connections

* Worn sealing surfaces

* Suffered accident or engine-bay impact damage

* Been damaged during previous engine repairs

The aluminium centre section itself is normally durable, so particular attention should also be paid to the connections, seals and adjoining flexible hoses.

Common Symptoms of a Boost Leak

A leaking intercooler/charge-air pipe can cause:

* Loss of engine power

* Poor acceleration

* Turbo lag

* Limp-home mode

* Hissing or whooshing under acceleration

* Black exhaust smoke

* Engine management light

* Underboost fault codes

* Increased fuel consumption

* Oil staining around boost-pipe connections

A small amount of oil mist inside the intercooler pipework is common on a turbo-diesel engine.

Heavy oily residue around the outside of a connection can indicate escaping boost pressure carrying oil mist through a leaking joint.

Important Diagnostic Information

A boost-pressure problem does not automatically mean the turbocharger has failed.

Before replacing the turbo, inspect the complete charge-air system including:

* Aluminium pressure pipe

* Flexible intercooler hoses

* Intercooler

* O-rings / seals

* Retaining clips

* Turbo outlet connection

* Intake manifold connections

* MAP sensor

* MAF sensor

* EGR valve/system

* Turbo actuator

* Vacuum hoses

* Boost-control solenoid

A cracked pipe, split hose, worn O-ring or partially disconnected joint can produce symptoms very similar to turbocharger failure.

Pressure or smoke testing the charge-air system can help identify smaller leaks.

Installation

Typical installation involves:

1. Allowing the engine to cool.

2. Removing covers or surrounding components where required.

3. Releasing the charge-air hose retaining clips.

4. Disconnecting the hoses from the aluminium pipe.

5. Removing the pipe mounting points.

6. Removing the original pressure pipe.

7. Comparing the replacement with the original.

8. Inspecting all O-rings and seals.

9. Installing the replacement pipe.

10. Reconnecting the charge-air hoses securely.

11. Ensuring all clips are fully engaged.

12. Checking the system for boost leaks.

Damaged, flattened or hardened sealing rings should be replaced during installation.

Programming / Coding

No programming or coding is required.

This is a mechanical charge-air component.

If boost-pressure or underboost diagnostic trouble codes were previously stored, they may need to be cleared after the fault has been repaired.

Important Compatibility Note

Before ordering, please compare:

* OE base number 7H0145762

* Full suffix where visible

* Particularly 7H0145762C for many 1.9 TDI applications

* Vehicle production year

* Engine code – AXB / AXC / BRR / BRS

* Pipe length

* Aluminium pipe shape and bends

* Connection diameters

* Hose connection arrangement

* Retaining clips

* Mounting brackets

* Original part against the listing photographs

* VIN where possible

Do not purchase solely because your vehicle is a VW Transporter T5 diesel.

The 7H0145762 family was used in several configurations, including documented 1.9 TDI and 2.5 TDI vehicles. Exact suffix and physical configuration therefore matter.

For the 7H0145762C version, the safest advertised compatibility is:

VW Transporter / Caravelle / Multivan T5 1.9 TDI 2003–2009 – AXB, AXC, BRR and BRS engines.

Condition

Genuine used Volkswagen part.

As a used turbo/intercooler component, normal signs of previous use may include:

* Oil mist or residue internally

* Surface oxidation on aluminium

* Scratches

* Marks

* Dirt or staining

* Wear around hose connections

* Marks around mounting points

* General age-related wear

Please inspect all listing photographs carefully, paying particular attention to the aluminium pipe body, hose connections, mounting brackets and sealing surfaces.

An ideal genuine replacement for a cracked, leaking, damaged or faulty VW Transporter T5 1.9 TDI aluminium turbo intercooler / charge-air pressure pipe 7H0145762.
