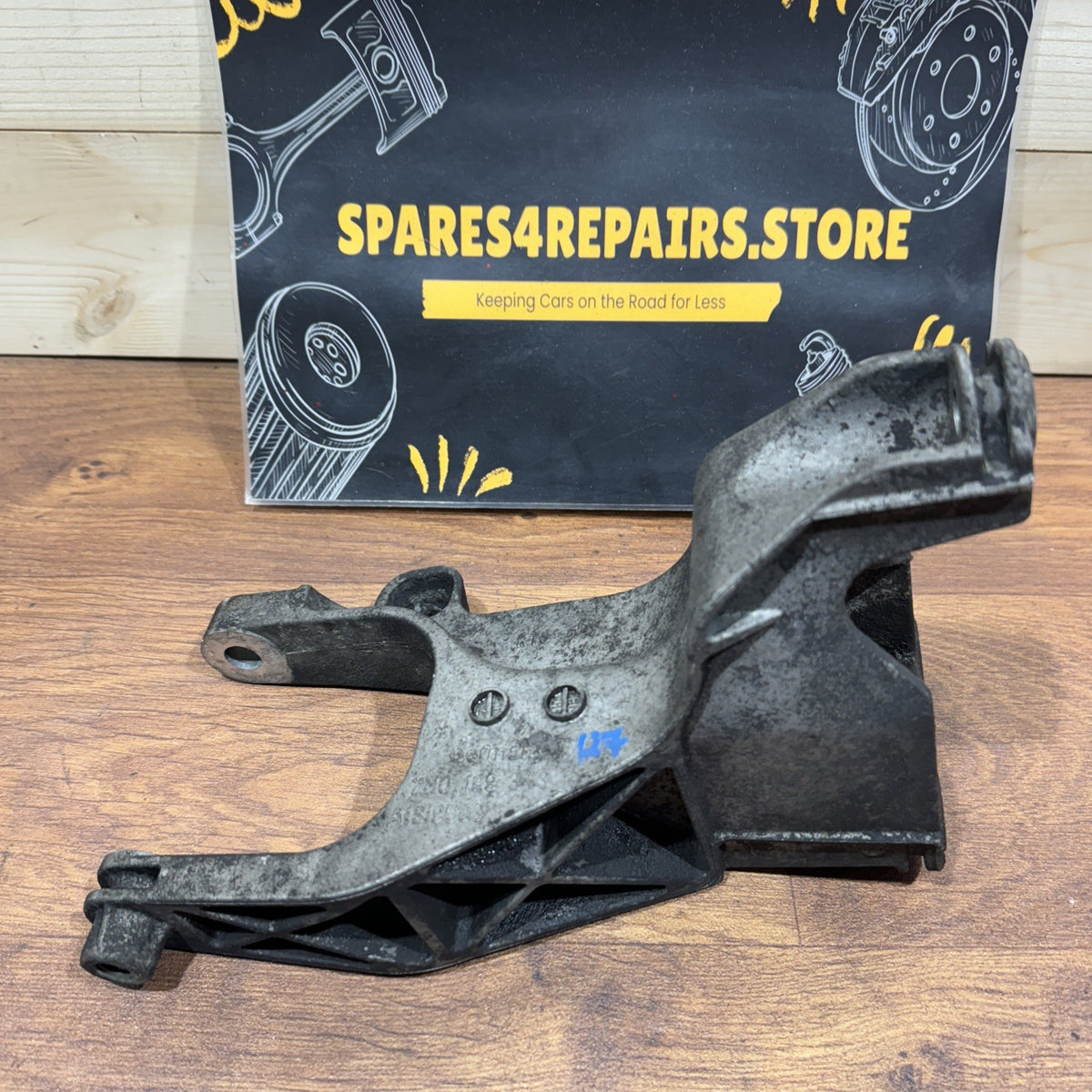

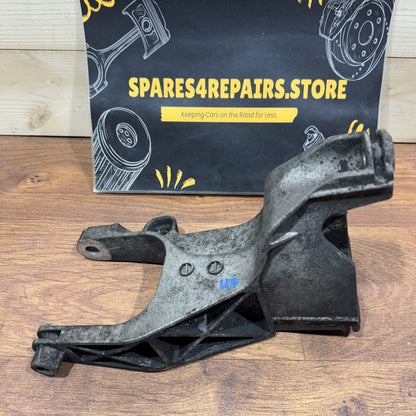

Volkswagen Transporter T5 1.9 Front Engine Mount 7 H0199343

#127

Genuine used Volkswagen Transporter T5 1.9 TDI front engine / gearbox mounting, part number 7H0199343. This mounting forms part of the drivetrain support system and helps secure the engine and transmission assembly while controlling movement and reducing vibration transferred into the vehicle body.

Part Number: 7H0199343

VW OE Number: 7H0 199 343

Part Type: Engine Mount / Gearbox Mount / Drivetrain Support Mounting

Position: Front Drivetrain Mounting

Application: 1.9 TDI – selected versions

Manufacturer: Volkswagen

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5 – selected versions

* Volkswagen Multivan T5 – selected versions

* Transporter panel van, Kombi and chassis variants where 7H0199343 is originally fitted

* Selected 1.9 TDI engine applications

Potential T5 1.9 TDI engine codes within this generation include AXB, AXC, BRR and BRS, but fitment should not be assumed from engine capacity or engine code alone.

VW used different engine and transmission mounting combinations according to engine, gearbox, drivetrain, vehicle weight class and production date.

Technical Information

The engine and gearbox assembly is supported at several points within the vehicle.

This mounting helps:

* Support the drivetrain in its correct position

* Restrict excessive engine movement

* Absorb vibration from the diesel engine

* Reduce vibration transmitted into the body

* Control drivetrain movement during acceleration

* Control movement during gear changes and deceleration

* Maintain correct drivetrain alignment

The rubber section of the mounting is designed to provide controlled movement rather than holding the drivetrain completely rigid.

Engine Mounting System Information

Engine mounts operate together as a system.

A worn mount elsewhere on the drivetrain can place additional stress on the remaining mountings. For this reason, if one mount has failed, the other engine and gearbox mounts should also be inspected.

Excessive drivetrain movement can additionally place stress on components such as:

* Exhaust system and flexi section

* Intercooler/boost hoses

* Coolant hoses

* Driveshafts and CV joints

* Gear-selection components

* Electrical wiring and connectors

Common Symptoms / Reasons for Replacement

A worn or damaged drivetrain mount may cause:

* Excessive engine movement

* Increased vibration at idle

* Vibration through the body or cab

* Knocking when accelerating

* Clunking when releasing the accelerator

* Movement when selecting or changing gear

* Increased vibration when starting or stopping the engine

* Visible cracking or separation of the rubber

* Excessive drivetrain movement under load

* Mounting damage following engine or gearbox removal

Important Diagnostic Information

Vibration or knocking does not automatically mean this particular mounting has failed.

Before replacement, inspect:

* Other engine mounts

* Gearbox mounting

* Lower torque/reaction mounting

* Mounting brackets

* Mounting bolts

* Exhaust system

* Driveshafts and CV joints

* Dual-mass flywheel where fitted

A worn dual-mass flywheel (DMF) can sometimes produce vibration or knocking that may initially be mistaken for an engine-mount problem.

The drivetrain should ideally be inspected while controlled load is applied to identify excessive movement.

Installation

The engine/gearbox assembly must be correctly supported before removing a drivetrain mounting.

Installation should be carried out using suitable engine-support equipment.

During installation:

* Support the drivetrain securely

* Do not allow the engine or gearbox to hang from the remaining mounts

* Inspect the mounting bracket for cracks or distortion

* Check mounting threads and bolts

* Position the drivetrain correctly before final tightening

* Tighten fasteners to the correct VW specification

Where VW specifies stretch or single-use mounting bolts, these should be replaced rather than reused.

Programming / Coding

No programming or coding is required.

This is a mechanical drivetrain component.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H0199343

* Engine code

* Gearbox type/code

* Mounting shape

* Bolt-hole positions

* Bracket arrangement

* Vehicle production date

* Original mount identification

Do not purchase solely because the vehicle is a VW Transporter T5 1.9 TDI. Several mounting arrangements were used during T5 production.

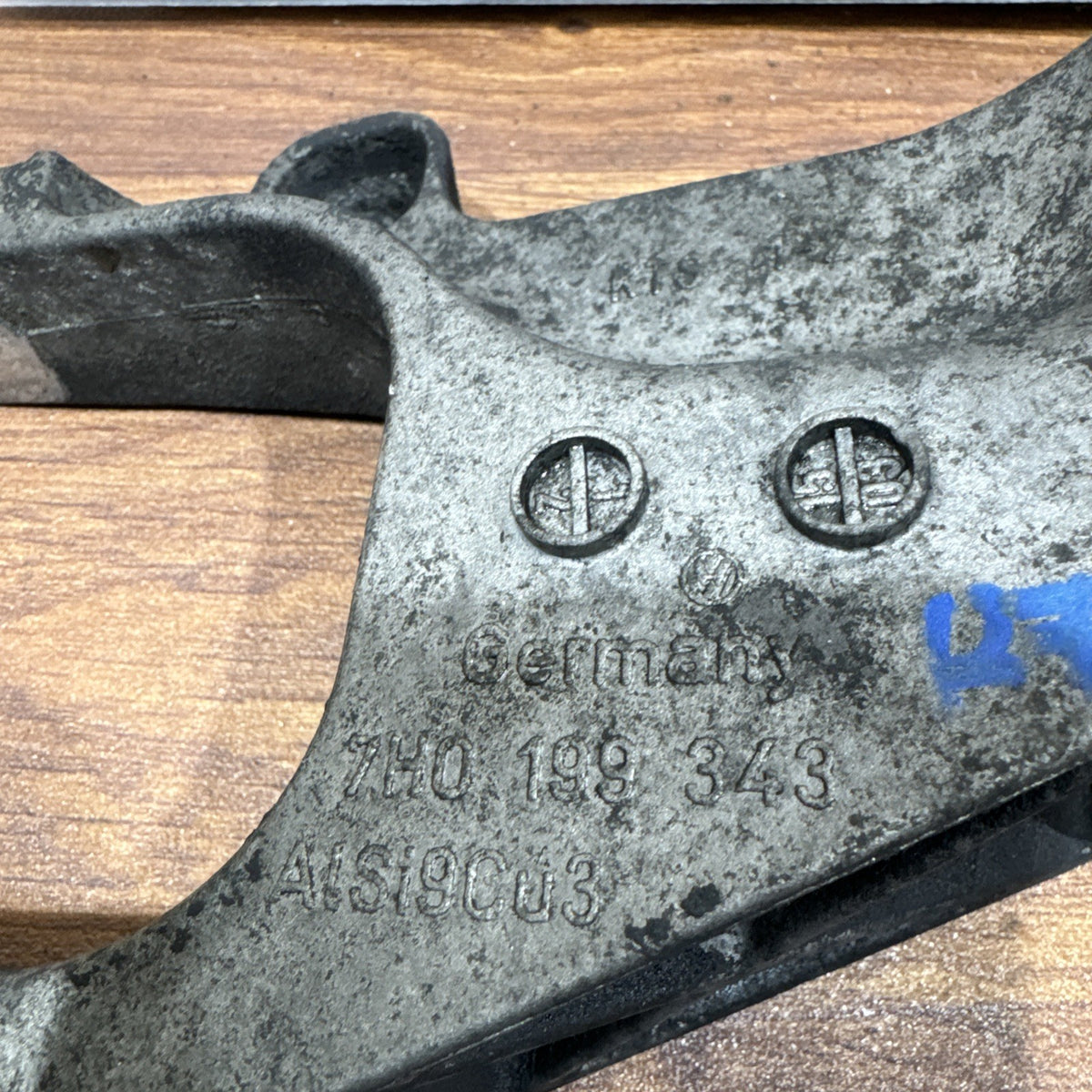

For the safest compatibility check, match 7H0199343 directly against the number/reference from the original mounting or confirm fitment using the vehicle VIN.

Condition

Genuine Volkswagen used drivetrain component.

As a used engine mounting, the item may show normal signs of previous use, including surface marks, dirt, oxidation or cosmetic wear.

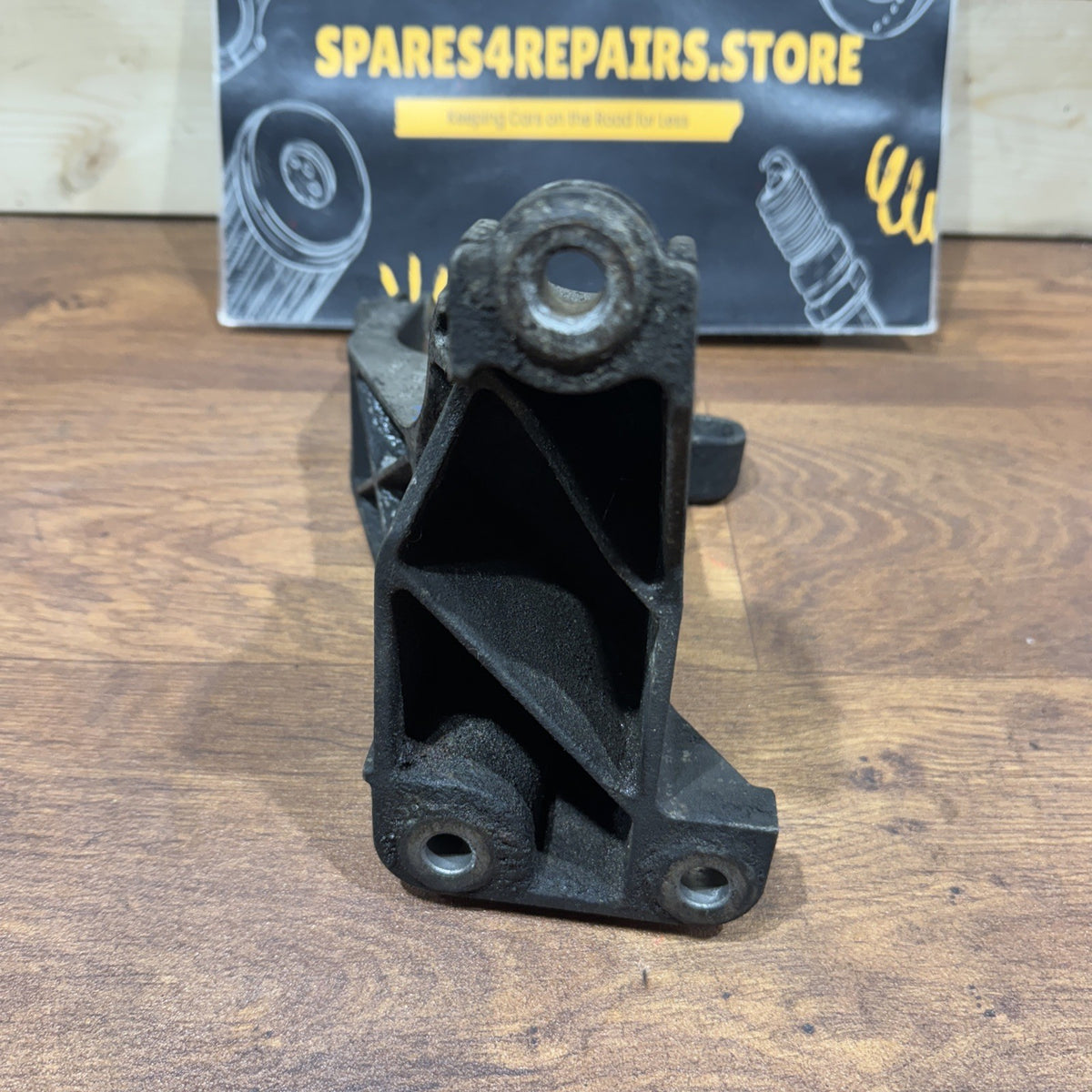

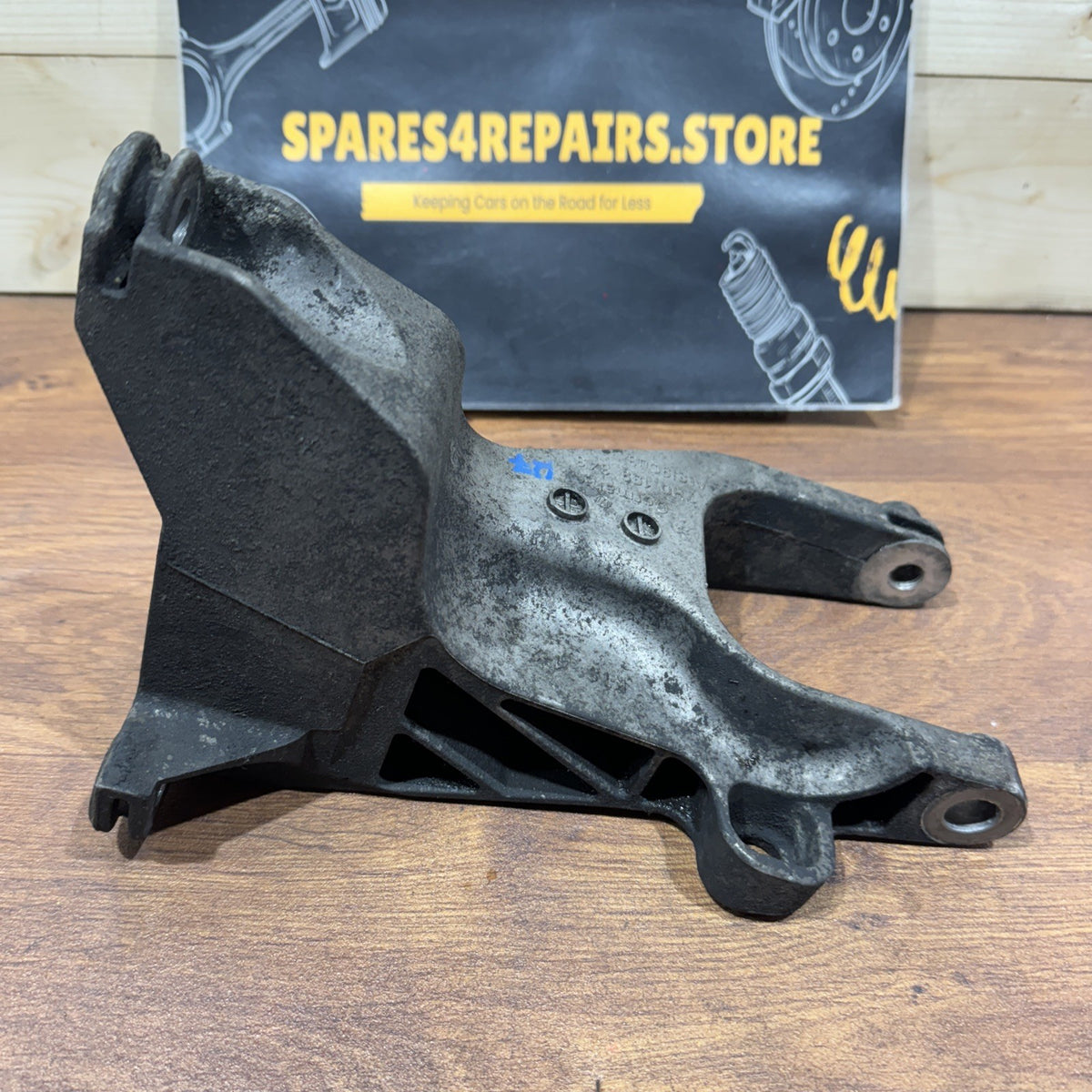

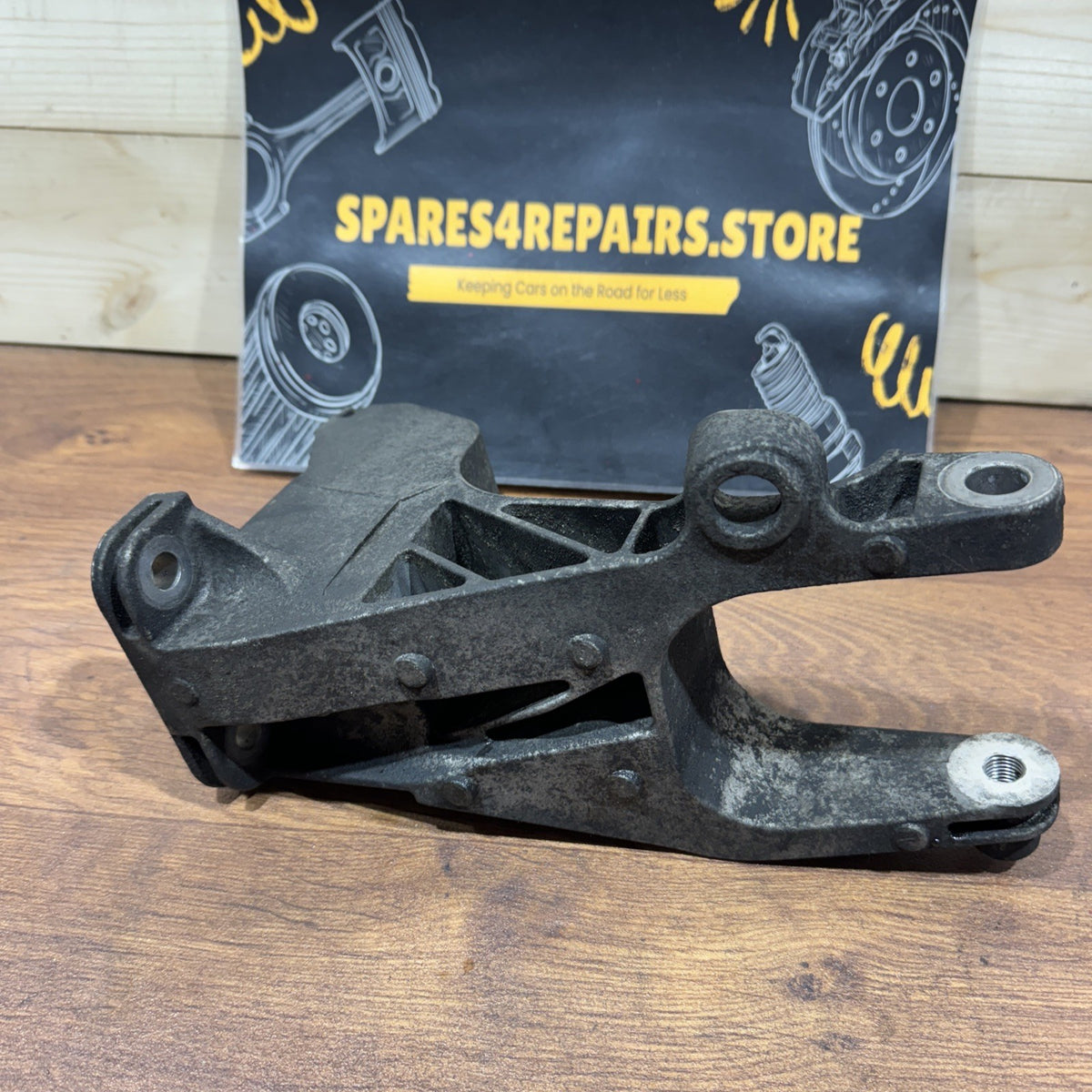

Please inspect the listing photographs carefully, particularly the rubber section, mounting points and brackets, to confirm the condition before purchase.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a worn, damaged or failed Volkswagen Transporter T5 1.9 TDI drivetrain mounting, provided 7H0199343 matches the original part.
