VOLKSWAGEN TRANSPORTER T5.1 FUSE RELAY BOX 7H0937617 10-15 H4

#102

Genuine used Volkswagen Transporter T5.1 Fuse & Relay Box / Fuse Carrier, part number 7H0937617, with H4 identification, suitable for selected facelift T5.1 vehicles.

This unit forms part of the vehicle’s electrical power-distribution system, providing the mounting and electrical connection point for associated fuses and relays.

Part Details

Part Number: 7H0937617

VW OE Number: 7H0 937 617

Identification / Marking: H4

Part Type: Fuse Box / Relay Box / Fuse & Relay Carrier

System: Vehicle Electrical / Power Distribution

Application: Interior / vehicle electrical fuse and relay system

Manufacturer: Volkswagen / Genuine VAG

Condition: Used Genuine Part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5.1 – 2010–2015

* Volkswagen Caravelle T5.1

* Volkswagen Multivan T5.1

* Volkswagen California T5.1

* Transporter Panel Van

* Transporter Kombi

* Transporter Shuttle

* Selected camper/conversion applications

* Selected chassis/platform variants

Compatibility depends heavily on the vehicle’s production date, engine, electrical equipment and factory specification.

Engine Compatibility

The fuse/relay carrier can be found across various T5.1 configurations, including selected 2.0 TDI applications.

Potential engine variants within the T5.1 range include:

* CAAA

* CAAB

* CAAC

* CCHA

* CFCA

However, engine code alone should not be used to determine compatibility.

Volkswagen used different electrical configurations according to vehicle equipment and production specification.

Technical Information

The fuse and relay carrier is part of the Transporter’s central electrical distribution system.

Electrical circuits within the vehicle require protection against excessive current. Fuses are designed to interrupt a circuit if electrical current exceeds the specified safe level.

Relays allow relatively low-current control circuits to switch higher-current electrical loads.

Depending on vehicle specification, fuse and relay circuits can be associated with systems such as:

* Engine management

* Exterior lighting

* Interior electrical equipment

* Heater and ventilation

* Cooling system

* Windscreen wipers

* Auxiliary electrical equipment

* Ignition-switched circuits

* Power supply circuits

* Various vehicle control modules

The 7H0937617 carrier provides the physical and electrical mounting structure for the appropriate fuse and relay configuration.

Fuse & Relay System Information

The carrier works alongside components including:

* Blade fuses

* High-current fuses where applicable

* Electrical relays

* Wiring harnesses

* Electrical terminals

* Power supply cables

* Earth connections

* Body Control Module / Central Electronics

* Associated electrical control modules

Important: The fuse/relay carrier should not automatically be described as the BCM.

The Body Control Module / Central Electronics module is a separate electronic component on applicable T5.1 vehicles.

Common Reasons for Replacement

Replacement may be required because of:

* Melted fuse terminals

* Heat-damaged plastic

* Burnt electrical contacts

* Corroded terminals

* Water or moisture damage

* Broken fuse mounting positions

* Damaged relay sockets

* Broken housing

* Damaged electrical connectors

* Previous incorrect electrical repairs

* Accident damage

* Missing original fuse carrier

Possible Symptoms of a Damaged Fuse / Relay Carrier

Depending on the affected circuit, symptoms may include:

* Intermittent electrical faults

* Individual electrical systems not operating

* Repeated loss of power to a circuit

* Fuse becoming unusually hot

* Melted fuse positions

* Relay connection problems

* Intermittent starting or ignition-related issues

* Lighting or accessory faults

* Visible burning or heat damage

* Poor electrical contact

Symptoms depend entirely on which circuit or terminal is affected.

Important Diagnostic Information

Before replacing the fuse/relay carrier, determine why the original unit became damaged.

Check:

* Correct fuse ratings

* Relays

* Electrical terminals

* Wiring harness

* Main power connections

* Earth connections

* Signs of overheating

* Signs of water ingress

* Corroded terminals

* Loose electrical connections

* Short circuits

* Excessive current draw

If a fuse position has melted or overheated, simply replacing the carrier without correcting the underlying electrical fault may result in the replacement unit being damaged again.

Fuse Information

Always install the correct fuse amperage specified by Volkswagen for the individual circuit.

Never replace a fuse with a higher-rated fuse simply because the original fuse repeatedly blows.

A repeatedly blown fuse normally indicates an underlying electrical problem that should be diagnosed.

Installation

This component is connected to multiple vehicle electrical circuits.

Disconnect the vehicle battery before removal or installation where appropriate.

Before transferring components, photograph or record the original:

* Fuse locations

* Fuse ratings

* Relay positions

* Electrical connector positions

* Wiring arrangement

Ensure all terminals are fully seated and connectors are securely locked during installation.

Programming / Coding

The fuse/relay carrier itself generally does not require programming or coding.

However, if electronic control modules are removed or replaced as part of the repair, those modules may have separate coding or adaptation requirements.

H4 Identification

This unit carries the additional marking:

H4

Where this marking appears on your original component, it is useful to match it with the replacement.

The H4 marking should be considered alongside the primary Volkswagen OE number rather than being used as the sole compatibility reference.

Important Compatibility Note

Volkswagen Transporter T5.1 vehicles can have significantly different fuse and relay layouts depending on factory equipment.

Before ordering, please compare:

OE Number: 7H0937617 / 7H0 937 617

Identification: H4

Fuse layout

Relay layout

Connector configuration

Number of terminals

Housing design

Mounting points

Vehicle production date

Original component

Matching the physical connector and terminal arrangement is particularly important.

Condition

Used genuine Volkswagen part.

As a used electrical component, the unit may show normal cosmetic marks, scratches, dust and signs of previous installation.

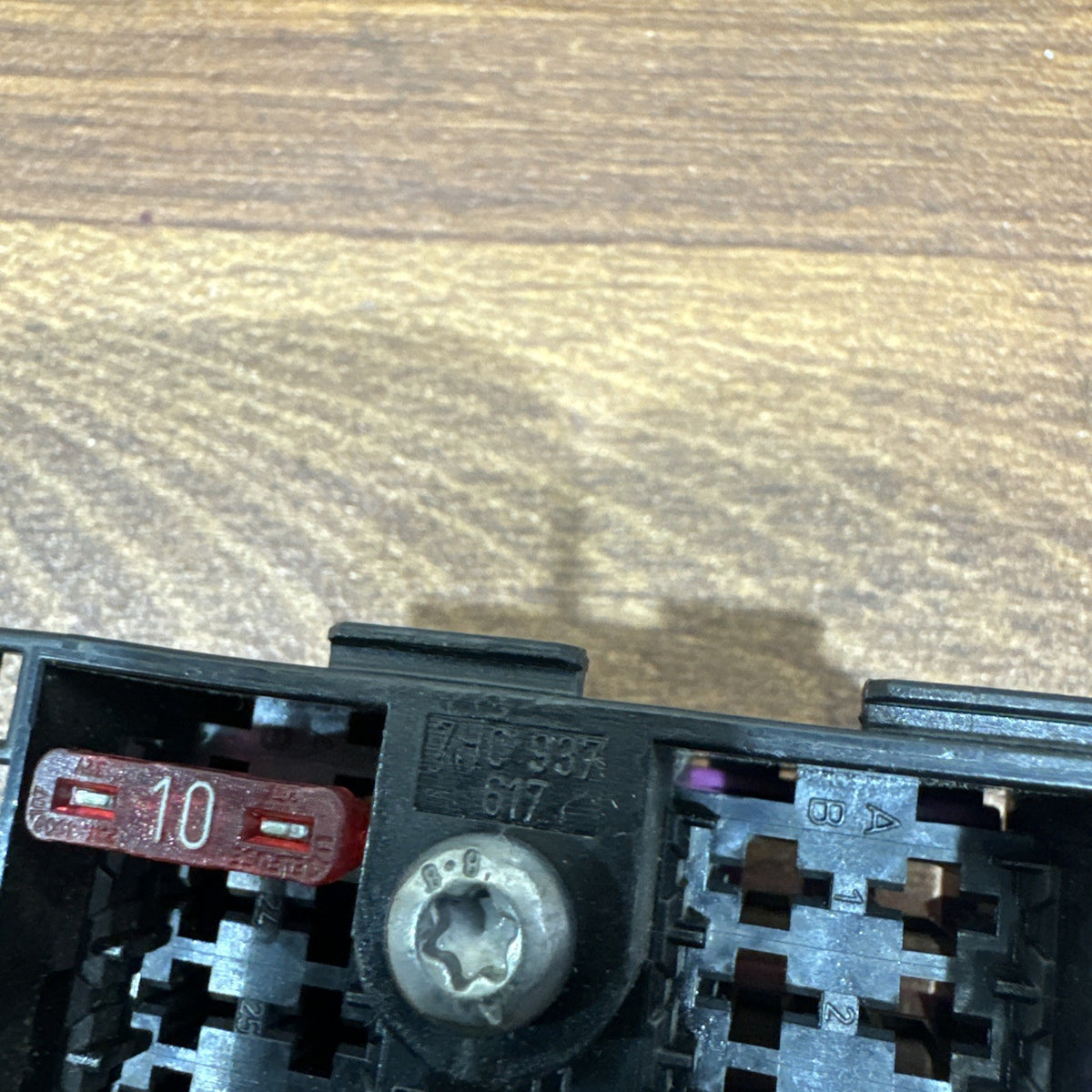

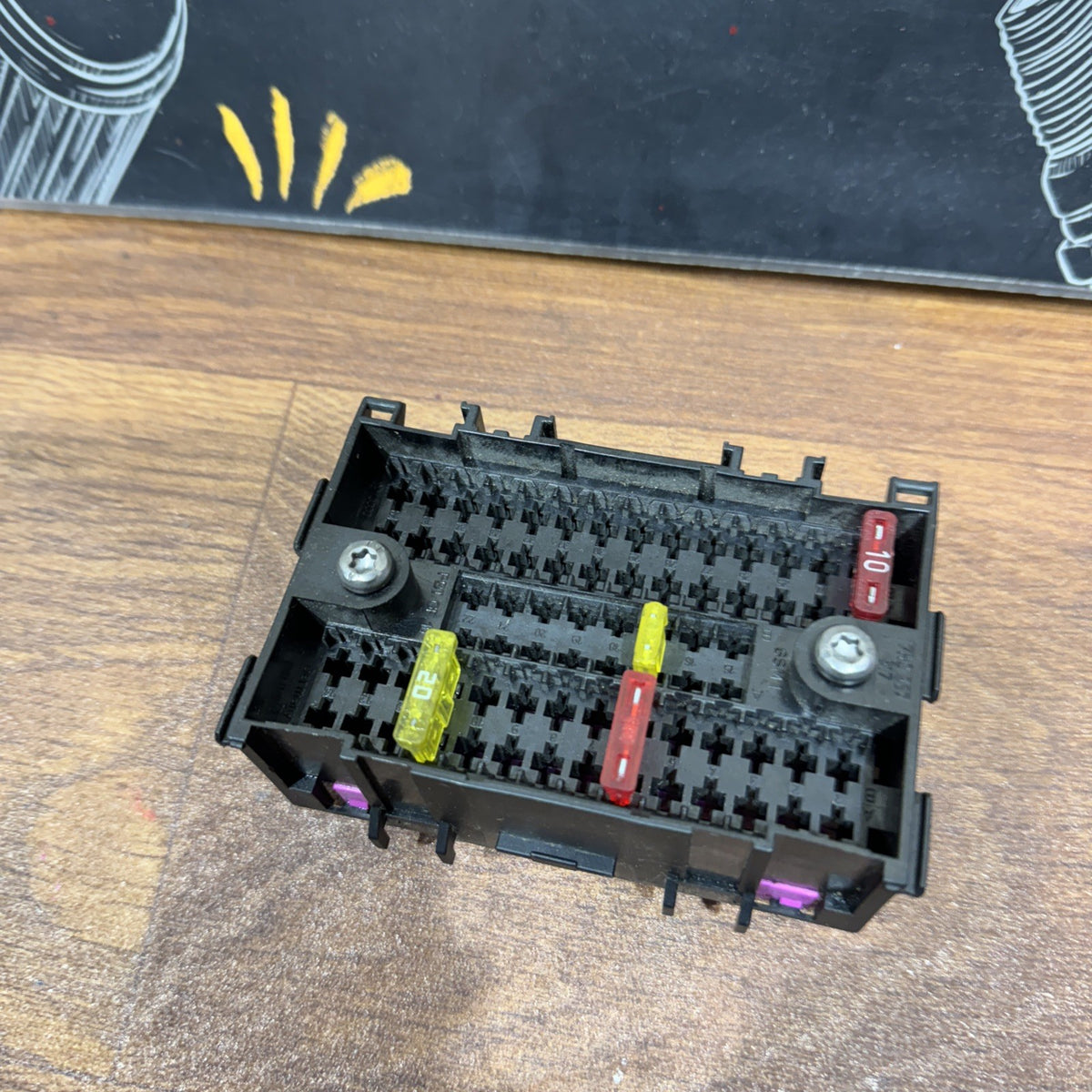

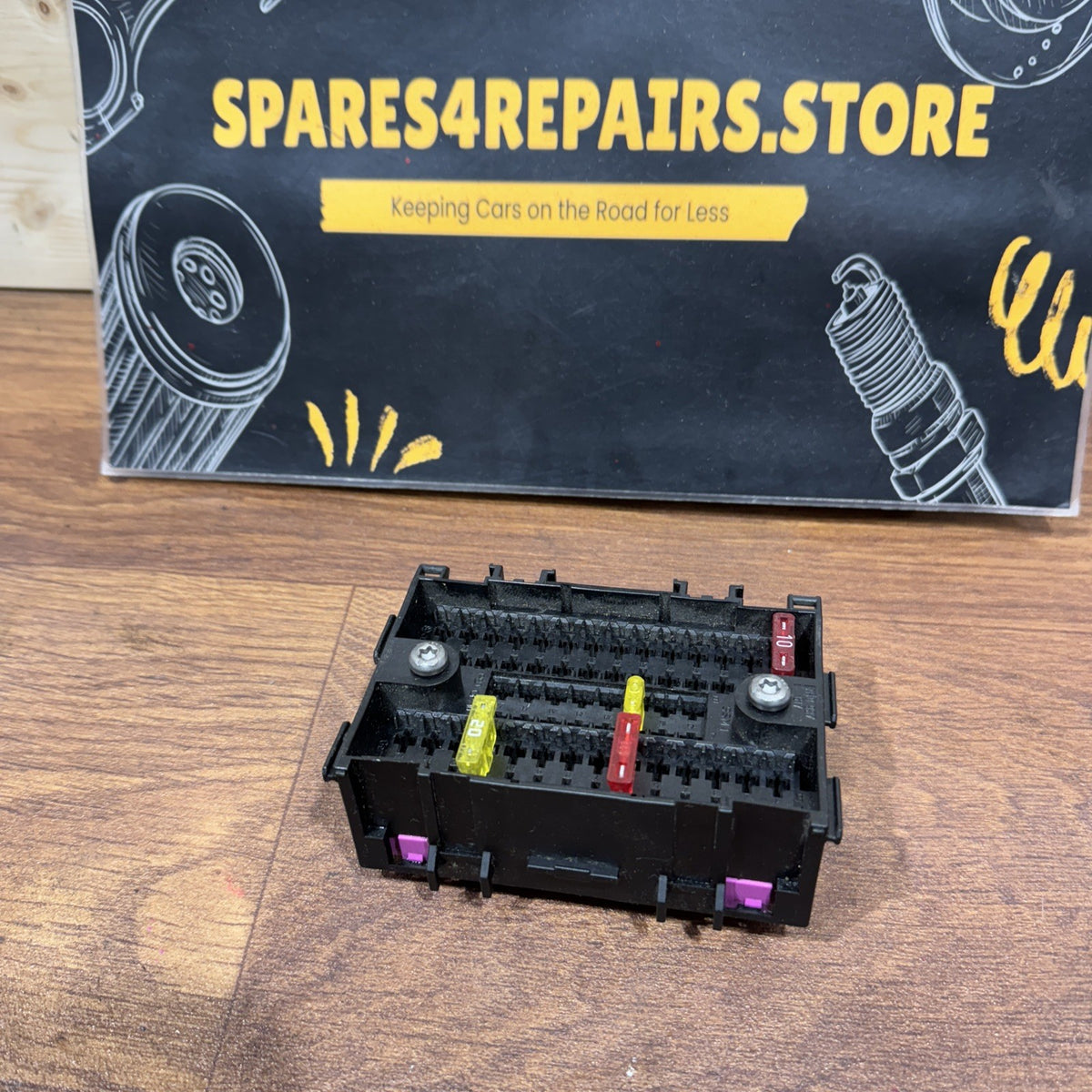

Please inspect the supplied photographs carefully for the exact fuses/relays included, connector configuration, terminals, mounting points and overall condition.

Unless specifically shown and stated as included, individual fuses and relays should not be assumed to form part of the sale.

An ideal genuine replacement for a damaged, melted, corroded or faulty Volkswagen Transporter T5.1 fuse and relay carrier / fuse box.
