VOLKSWAGEN TRANSPORTER T5 2003-2009 BOOST CONTROL SOLENOID 1K0906627A

#85

Genuine / OE Volkswagen Transporter T5 Turbo Boost Control Solenoid / N75 Vacuum Pressure Converter, part number 1K0906627A, suitable for selected T5 TDI diesel engines.

This electrically controlled vacuum solenoid forms part of the turbocharger boost-control system. It regulates the vacuum supplied to the turbo actuator, allowing the engine ECU to control turbocharger operation and requested boost pressure.

Part Details

Part Number: 1K0906627A

VW OE Number: 1K0 906 627 A

Related OE Number: 1J0906627B / 1J0 906 627 B

Part Type: Turbo Boost Control Solenoid / Pressure Converter

Common Name: N75 Valve

Alternative Names: Turbo Solenoid / Boost Pressure Control Valve / Vacuum Solenoid / Pressure Converter

System: Turbocharger / Vacuum / Boost Control

Operation: Electrically Controlled Vacuum Solenoid

Manufacturer: Volkswagen / VAG OE specification

Condition: Used Genuine Part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5

* Volkswagen Multivan T5

* Volkswagen California T5

* Transporter Panel Van

* Transporter Kombi

* Transporter Shuttle

* Transporter Chassis Cab / Flatbed

* Selected camper and conversion models

Engine Compatibility

Documented T5 diesel applications include:

1.9 TDI

* AXB

* AXC

* BRR

* BRS

2.5 TDI

* AXD

* AXE

* BLJ

* BNZ

* BPC

Exact compatibility should still be confirmed using the OE number and the original valve fitted to the vehicle.

Technical Information

The N75 boost-control solenoid allows the engine management system to regulate turbocharger operation.

The engine ECU determines the required boost pressure according to factors such as:

* Engine speed

* Accelerator demand

* Engine load

* Requested torque

* Actual boost pressure

* Intake conditions

It then controls the N75 solenoid electrically.

The N75 regulates vacuum supplied to the turbocharger actuator, allowing the turbocharger’s boost-control mechanism to respond to ECU commands.

This enables the engine management system to maintain the required boost pressure across different operating conditions.

Turbocharger Boost Control System

The N75 operates as part of a larger turbocharging system that can include:

* Turbocharger

* Turbo actuator

* N75 boost-control solenoid

* Vacuum pump

* Vacuum hoses

* MAP / boost-pressure sensor

* Intake pipework

* Intercooler

* Charge-air hoses

* Engine ECU

* Associated sensors

A boost-control fault therefore does not automatically mean the N75 valve itself has failed.

Common Symptoms of a Faulty N75 Valve

A faulty or sticking boost-control solenoid can potentially cause:

* Loss of engine power

* Poor acceleration

* Intermittent turbo boost

* Underboost

* Overboost

* Limp mode

* Turbo not producing expected boost

* Boost pressure fluctuating

* Hesitation under acceleration

* Surging

* Engine management light

* Boost-related fault codes

* Unusual buzzing or “mooing” noise

Some N75 valves can also become noisy as they age.

Underboost / Overboost Information

Because the N75 controls vacuum to the turbo actuator, incorrect operation can result in either too little or too much boost depending on the nature of the fault.

However, similar symptoms can also be caused by:

* Split vacuum hoses

* Vacuum leaks

* Faulty turbo actuator

* Sticking variable turbo vanes

* Charge-air leaks

* Split intercooler hoses

* Damaged intercooler

* Faulty MAP sensor

* Vacuum pump problems

* Turbocharger wear

Correct diagnosis is recommended before replacing components.

Important Diagnostic Information

Before replacing the N75 valve, check:

* Vacuum hoses

* Vacuum supply

* Electrical connector

* Wiring

* Turbo actuator operation

* Turbo actuator vacuum diaphragm

* Turbocharger mechanism

* Boost hoses

* Intercooler

* MAP / boost-pressure sensor

* Intake system

* Stored ECU fault codes

A handheld vacuum tester can be useful when diagnosing the vacuum circuit and turbo actuator.

If the turbo actuator does not hold vacuum, replacing the N75 alone may not correct the fault.

Vacuum Hose Information

The N75 uses multiple vacuum connections.

When replacing the valve, it is important that each hose is connected to the correct port.

Incorrectly connecting the vacuum hoses can cause:

* No turbo boost

* Incorrect boost control

* Overboost

* Underboost

* Limp mode

* Engine fault codes

It is recommended to photograph or mark the original hose positions before removal.

Electrical Information

The N75 is controlled electrically by the engine ECU.

Before condemning the valve, inspect the electrical connector for:

* Damaged pins

* Corrosion

* Broken wiring

* Loose terminals

* Damaged insulation

Electrical and vacuum faults can produce similar symptoms.

Installation

Installation is generally straightforward, but correct vacuum-hose routing is essential.

During installation:

* Compare the replacement with the original valve

* Check all vacuum hoses for cracking

* Replace damaged vacuum hoses where necessary

* Connect each hose to the correct port

* Ensure the electrical connector locks securely

* Secure the valve correctly in its mounting position

* Clear relevant fault codes where necessary

* Test turbocharger operation after installation

Programming / Coding

No programming or coding is normally required.

The N75 is an electrically controlled engine-management component and does not contain vehicle-specific immobiliser coding.

Existing boost-related fault codes may need to be cleared after repair.

OE / Part Number Information

Main VW OE Number:

1K0906627A

1K0 906 627 A

A commonly cross-referenced earlier number is:

1J0906627B / 1J0 906 627 B

Because VAG used several visually similar vacuum-control solenoids, the suffix and physical configuration should always be checked rather than assuming all versions are interchangeable.

Important Compatibility Note

Volkswagen T5 models can contain multiple vacuum-control solenoids that look very similar.

Before ordering, please compare:

OE Number: 1K0906627A / 1K0 906 627 A

Electrical connector

Vacuum port arrangement

Number of vacuum connections

Valve body design

Mounting arrangement

Engine code

Original component

Matching the exact OE number is strongly recommended.

Condition

Used genuine Volkswagen / OE component.

As a used engine-bay electrical/vacuum component, the valve may show normal marks, scratches, dust and other signs of previous installation.

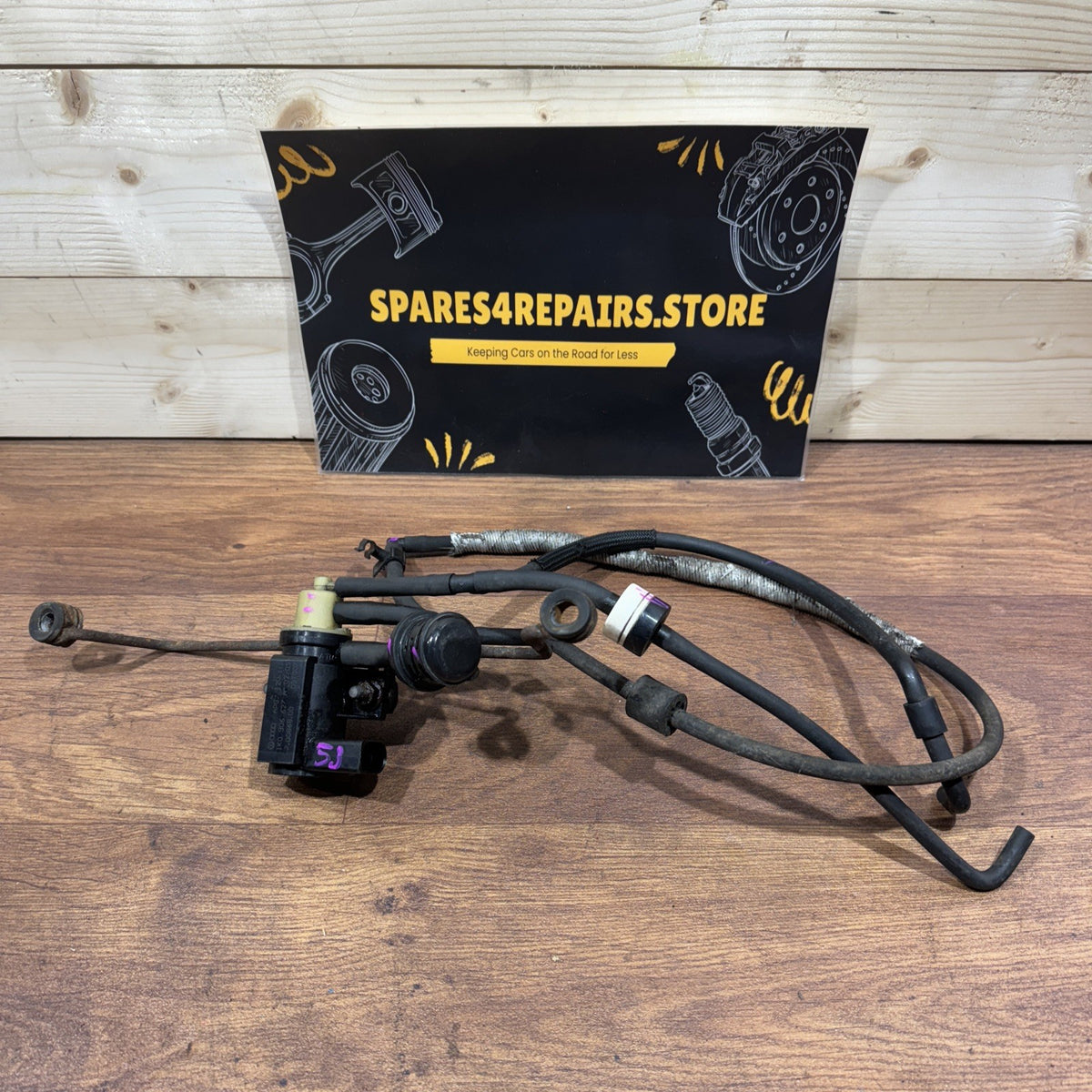

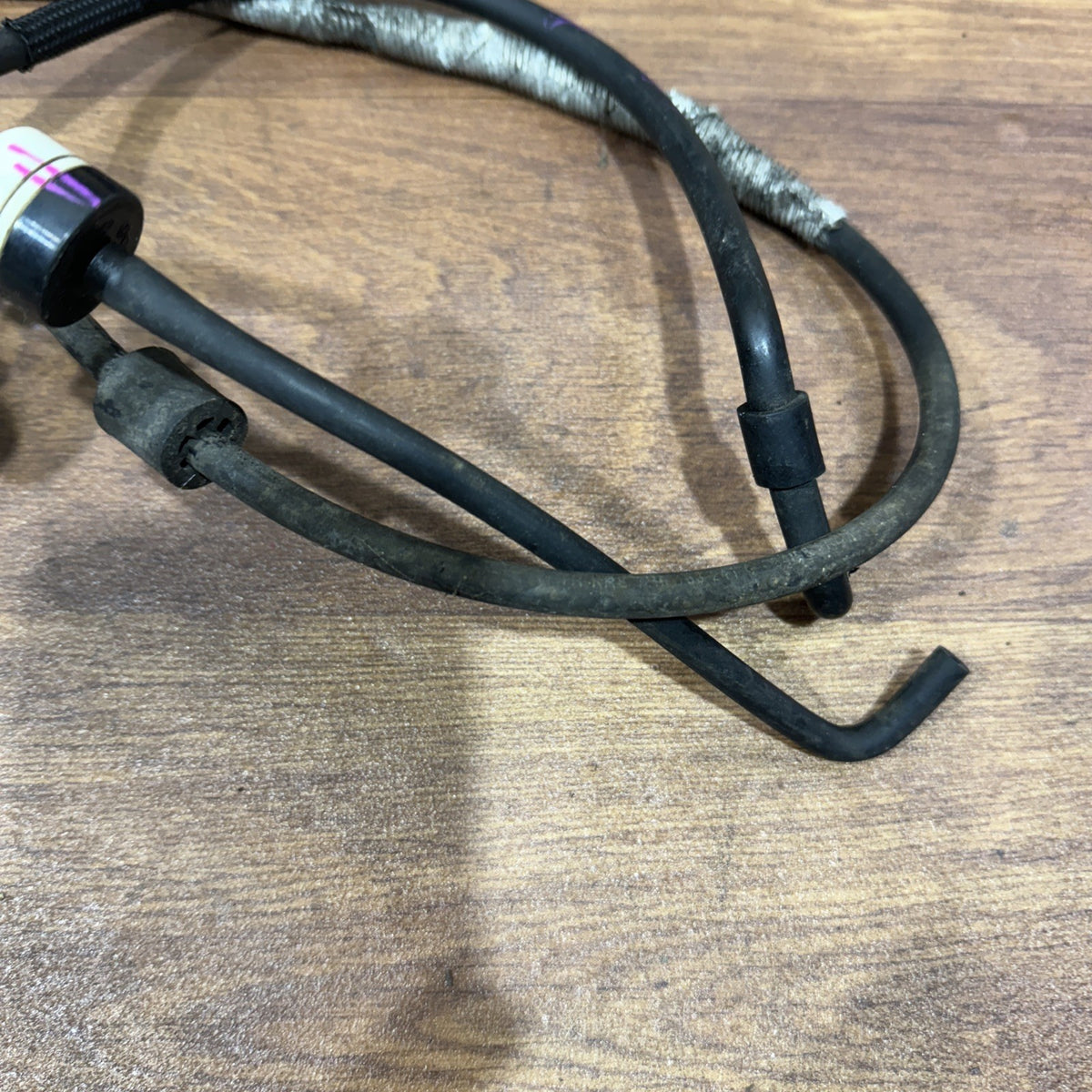

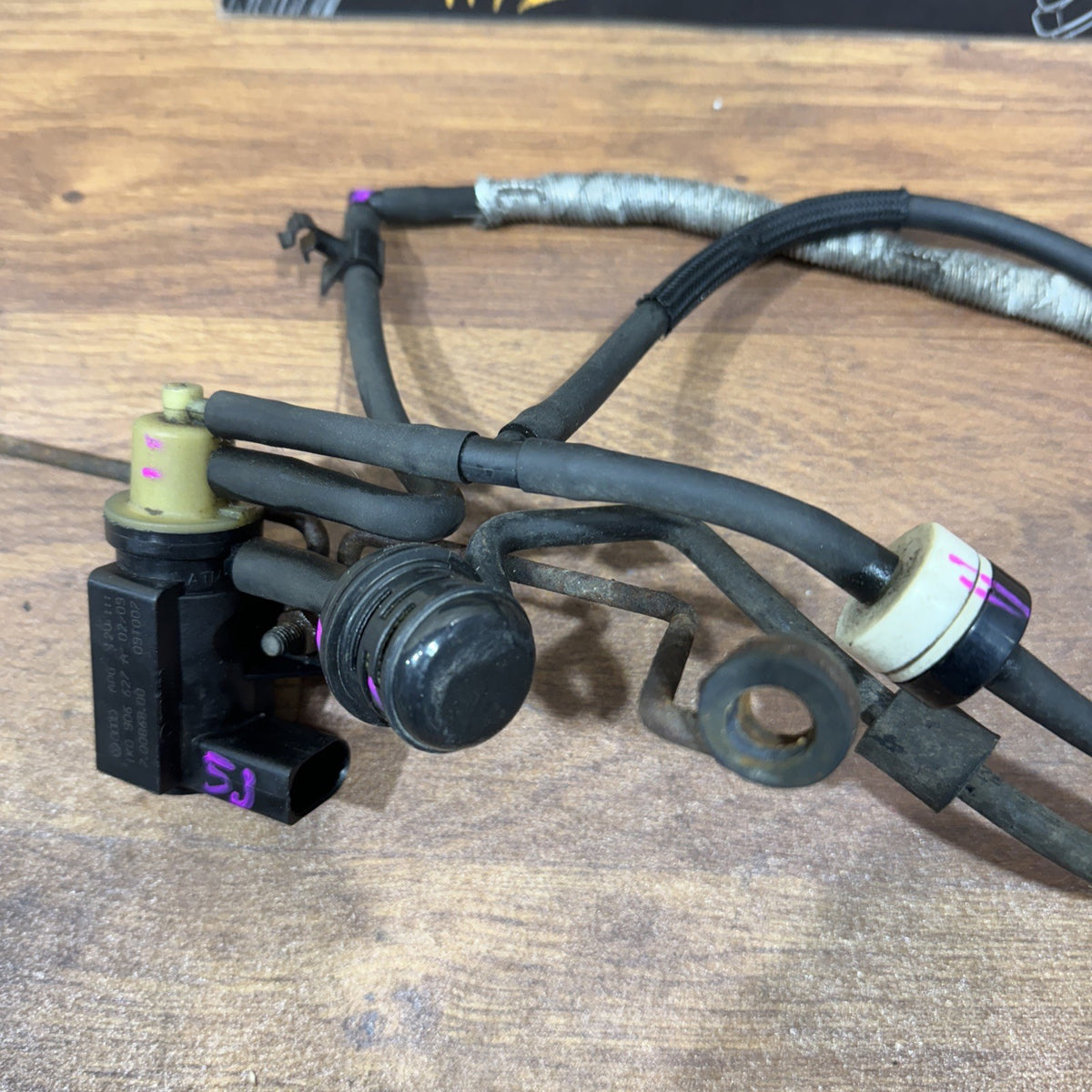

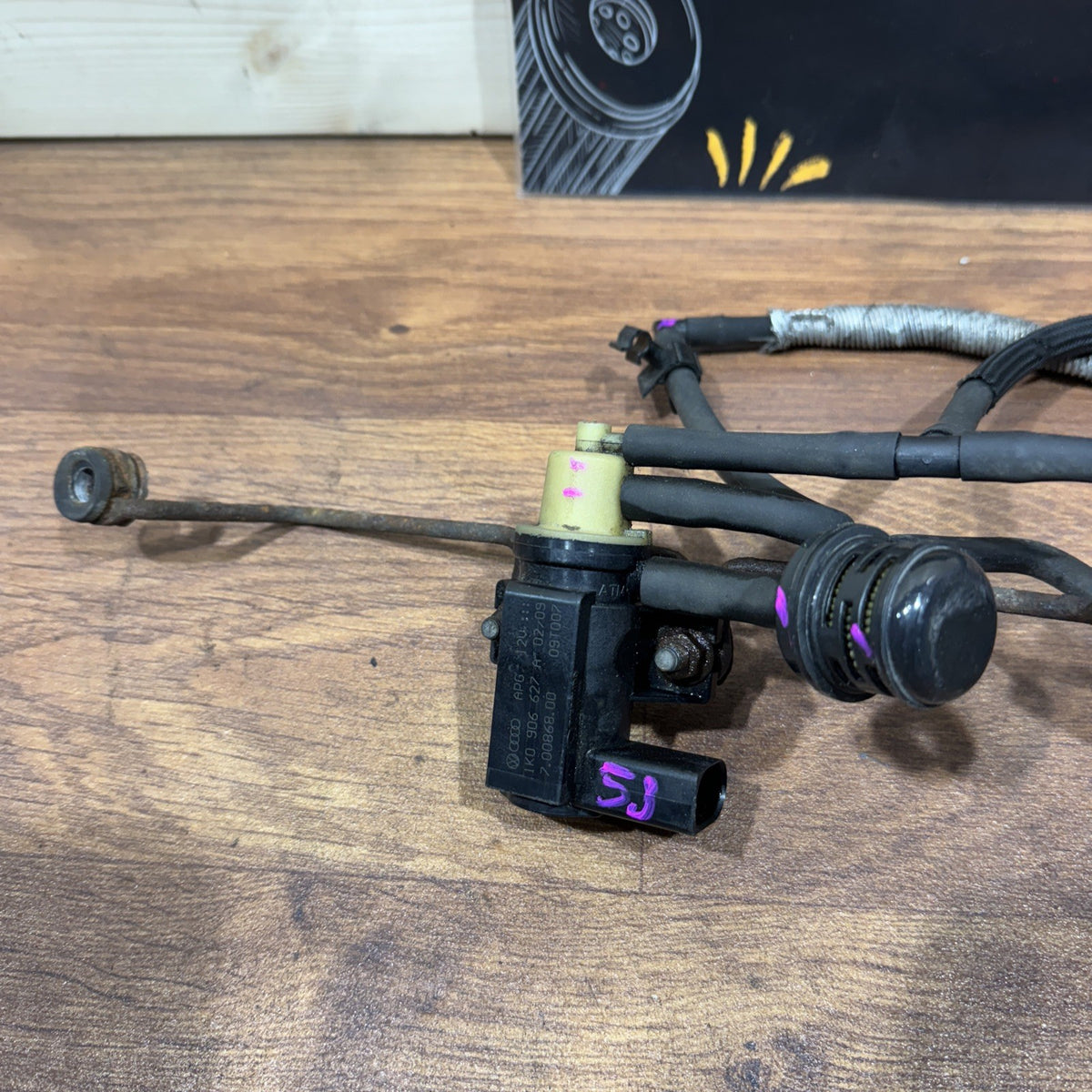

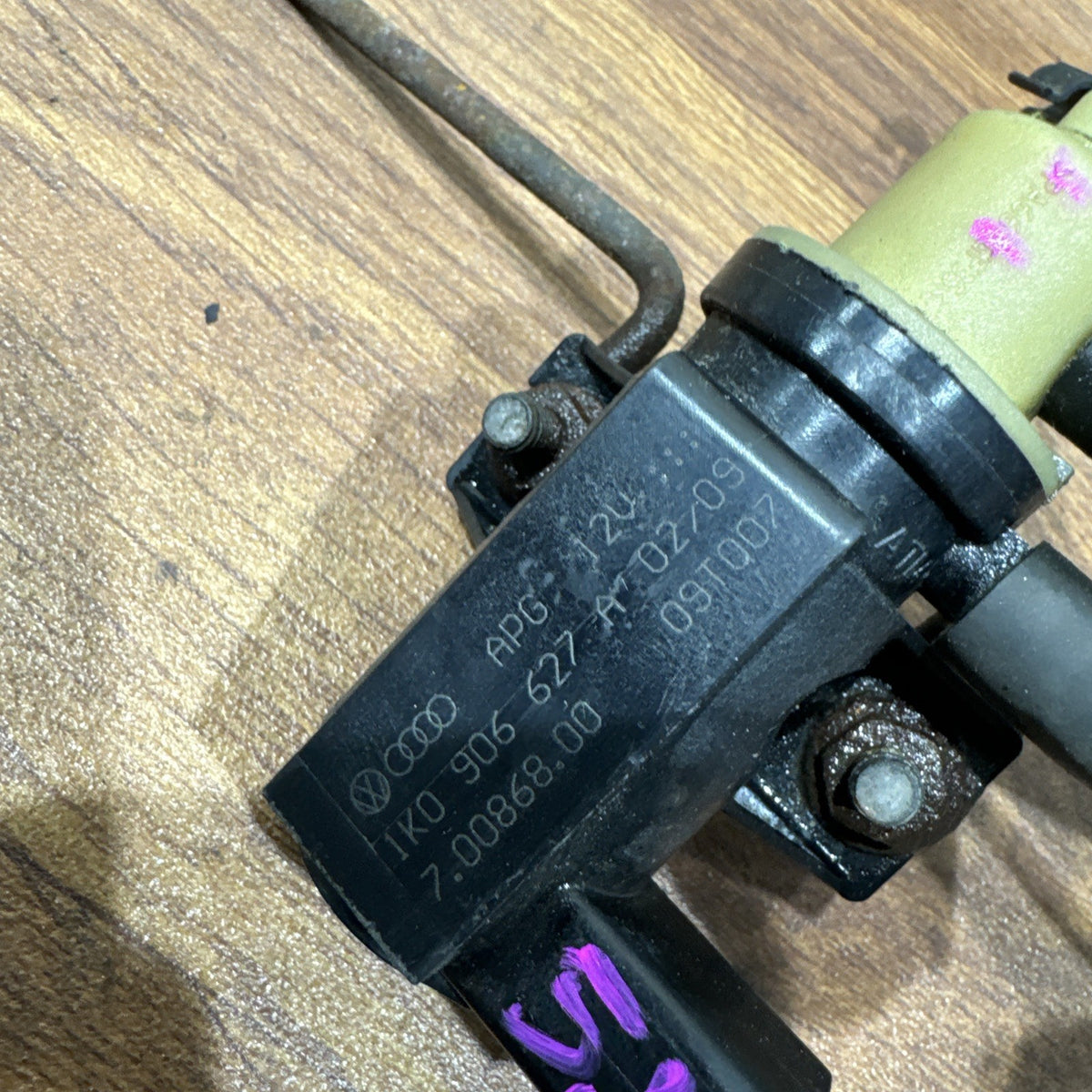

Please inspect the supplied photographs carefully for the exact:

* Part number

* Electrical connector

* Vacuum ports

* Mounting points

* Overall condition

An ideal genuine replacement for a faulty, sticking or non-operational Volkswagen Transporter T5 1.9 TDI / 2.5 TDI N75 turbo boost-control solenoid requiring OE number 1K0906627A.
