Volkswagen Transporter T5 Air Filter Intake Manifold Hose Tube Pipe 7H0129615D

#102

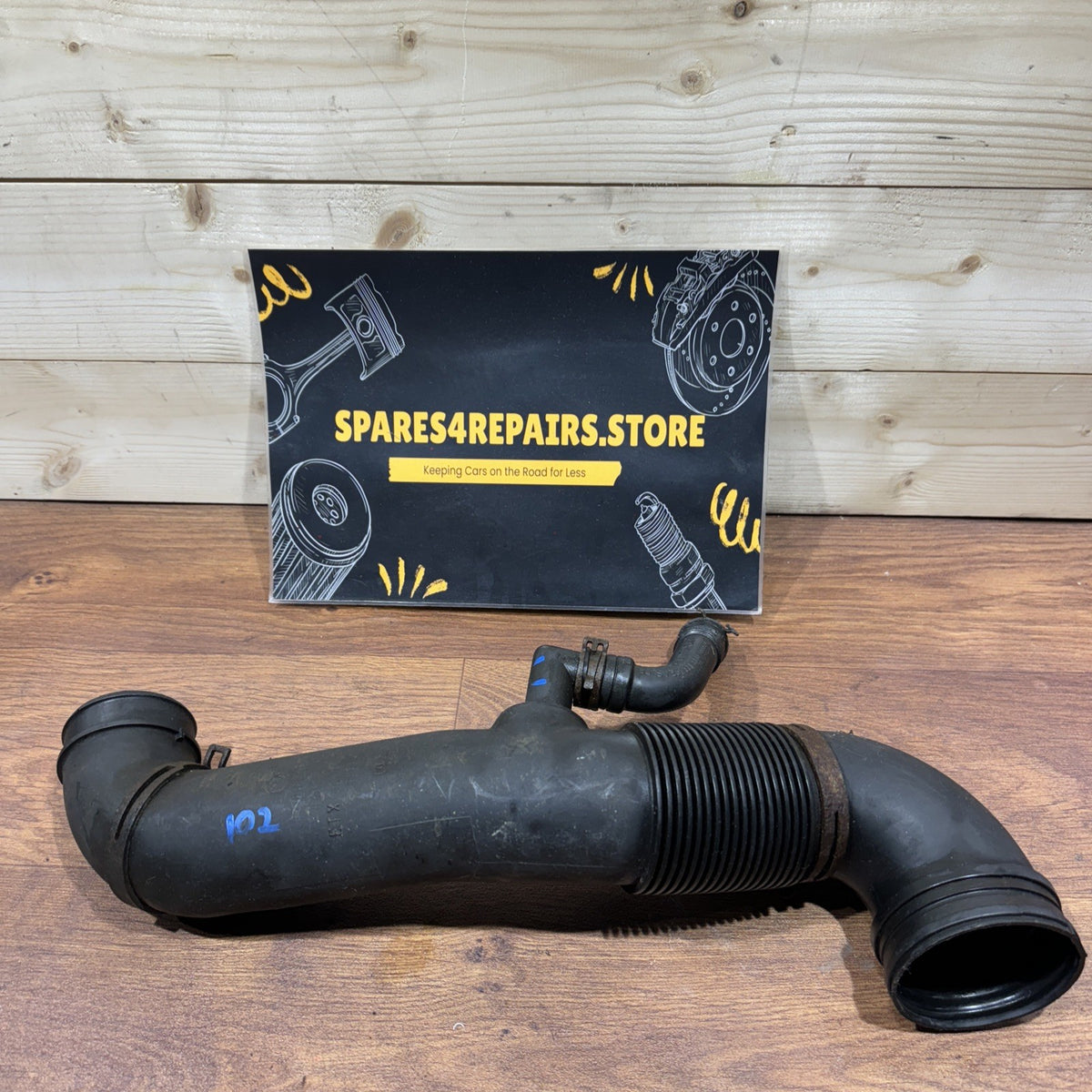

Genuine used Volkswagen Transporter T5 Air Filter Intake Hose / Intake Manifold Pipe, part number 7H0129615D.

This pipe forms part of the engine’s fresh-air intake system and connects with the air-filter assembly, providing the correct factory route for incoming air on compatible 1.9 TDI engines.

Part Details

Part Number: 7H0129615D

VW OE Number: 7H0 129 615 D

Part Type: Air Filter Intake Pipe / Air Supply Hose / Intake Tube

Position: Engine Bay

System: Engine Air Intake System

Engine Type: 1.9 TDI 4-Cylinder Diesel

Material: Moulded Plastic

Manufacturer: Volkswagen / Genuine VW

Condition: Used Genuine Part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5

* Volkswagen T5 Camper

* Transporter Panel Van

* Transporter Kombi

* Transporter Shuttle

* Transporter Pickup / Double Cab

* Selected T5 chassis variants

Confirmed Engine Compatibility

Volkswagen catalogue information confirms applications with the following 1.9 TDI engine codes:

AXB – 1.9 TDI

AXC – 1.9 TDI

BRR – 1.9 TDI

BRS – 1.9 TDI

This part is specifically associated with 4-cylinder 1.9-litre diesel T5 applications.

Model-Year Information

Volkswagen catalogue records show 7H0129615D across T5 applications from approximately 2003 through 2010, depending on model/body configuration and engine code.

For eBay compatibility, 2003–2009 T5 1.9 TDI is the safest primary vehicle range.

Technical Information

This intake pipe forms part of the air-filter and engine air-supply system.

Its purpose is to provide a controlled passage for incoming air through the factory intake arrangement.

The intake system is designed to:

* Supply sufficient air to the engine

* Maintain the correct factory airflow path

* Connect the air-filter assembly to associated intake components

* Reduce unwanted engine-bay air ingestion

* Help maintain correct intake-system sealing

* Reduce excessive induction noise

* Protect the downstream intake system from contamination

The genuine pipe is moulded specifically around the T5 engine-bay layout to provide the required clearance from surrounding components.

Air Intake System Information

This component operates alongside parts such as the:

* Fresh-air intake duct

* Air-filter housing

* Air-filter element

* MAF / Mass Air Flow sensor

* Turbocharger intake pipework

* Connecting intake hoses

* Clamps and retaining clips

* Airbox mounting components

On the 1.9 TDI, the intake system ultimately supplies filtered air to the turbocharger before it is compressed and delivered through the charge-air system to the engine.

For this reason, the 7H0129615D should not be confused with an intercooler/boost hose. It is associated with the air-filter/fresh-air side of the intake system.

Common Reasons for Replacement

Replacement may be required because of:

* Cracked plastic

* Split intake pipe

* Broken mounting points

* Damaged connecting ends

* Heat-related deterioration

* Missing original pipe

* Accident damage

* Damage during engine repairs

* Loose intake connections

* Previous incorrect repair

* Excessive vibration or rattling

Possible Symptoms of a Damaged Intake Pipe

Depending on the location and severity of the damage, symptoms can include:

* Increased induction noise

* Whistling or unusual intake sounds

* Loose intake pipework

* Engine-bay rattling

* Poor connection with the airbox

* Visible cracks or splits

* Dirt entering the intake system

* Incorrect airflow through the intended intake route

A damaged intake pipe does not automatically mean it is responsible for an engine-running problem, so the complete intake system should be inspected where necessary.

Important Diagnostic Information

If the original intake pipe is cracked or damaged, also inspect:

* Air-filter housing

* Air-filter element

* MAF sensor

* Turbocharger intake connection

* Associated intake hoses

* Hose clamps

* Retaining clips

* Rubber mounting points

* Electrical connection to the MAF sensor

Any evidence of dirt passing beyond the air filter should be investigated before the vehicle is returned to service.

Installation

This is a mechanical intake-system component.

During installation:

* Ensure both ends are correctly seated

* Check all clips and retaining points

* Inspect connecting hoses for splits

* Ensure there are no unwanted gaps in the intake system

* Make sure the pipe does not contact hot or moving components

* Check that the air-filter housing is securely mounted

Programming / Coding

No programming or coding required.

Important Compatibility Note

Volkswagen used different air-intake pipes depending on engine type and production specification.

Please compare your original component before ordering.

Check:

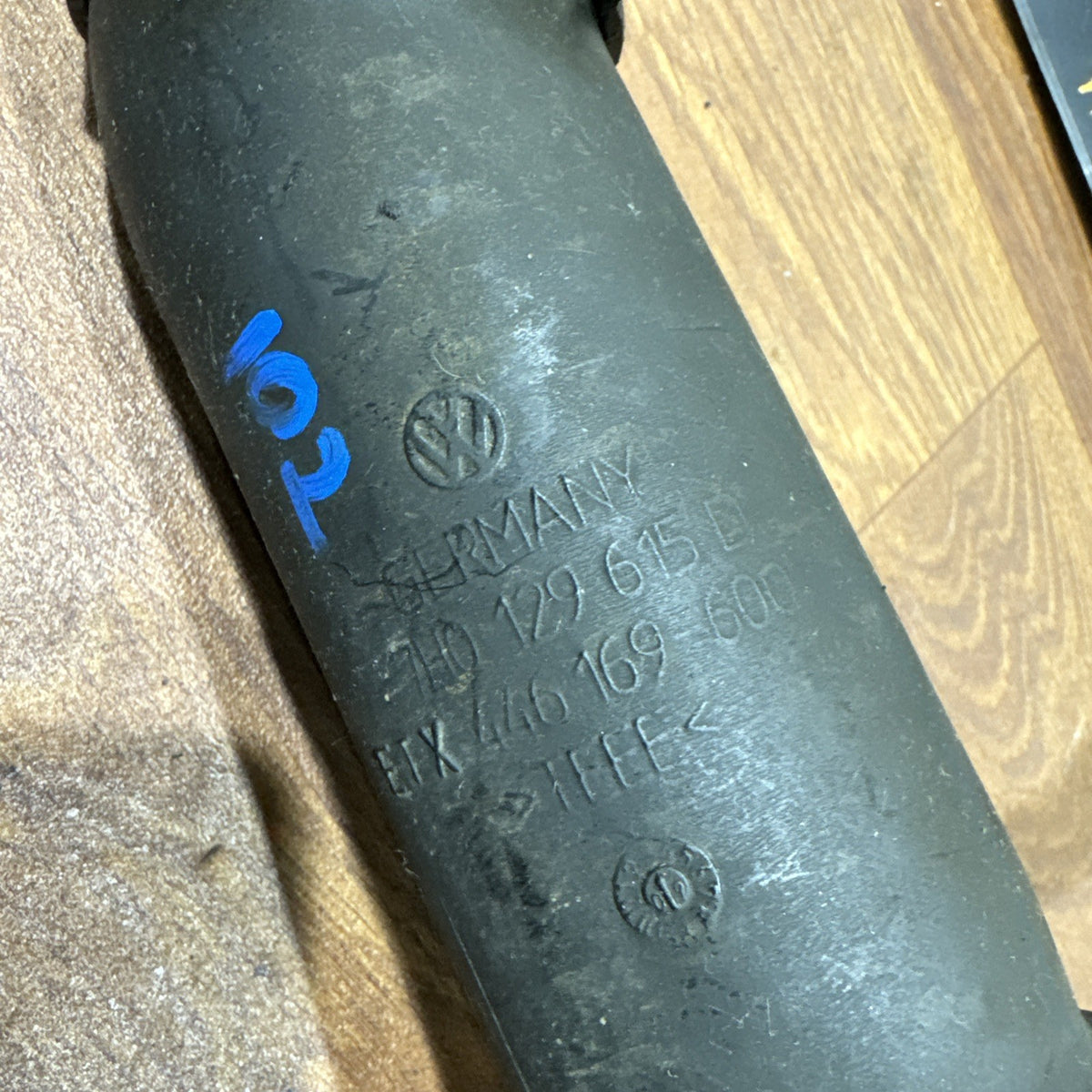

OE Number: 7H0129615D / 7H0 129 615 D

Engine: 1.9 TDI

Engine Code: AXB / AXC / BRR / BRS as applicable

Pipe shape

Connection diameters

Mounting points

Airbox connection

Original part number

Do not purchase solely because the vehicle is a Transporter T5, as 2.5 TDI and other engine configurations can use different intake components.

Condition

Used genuine Volkswagen part.

As a used engine-bay component, the item may show normal cosmetic marks, scratches, dust, staining or other signs of previous installation and storage.

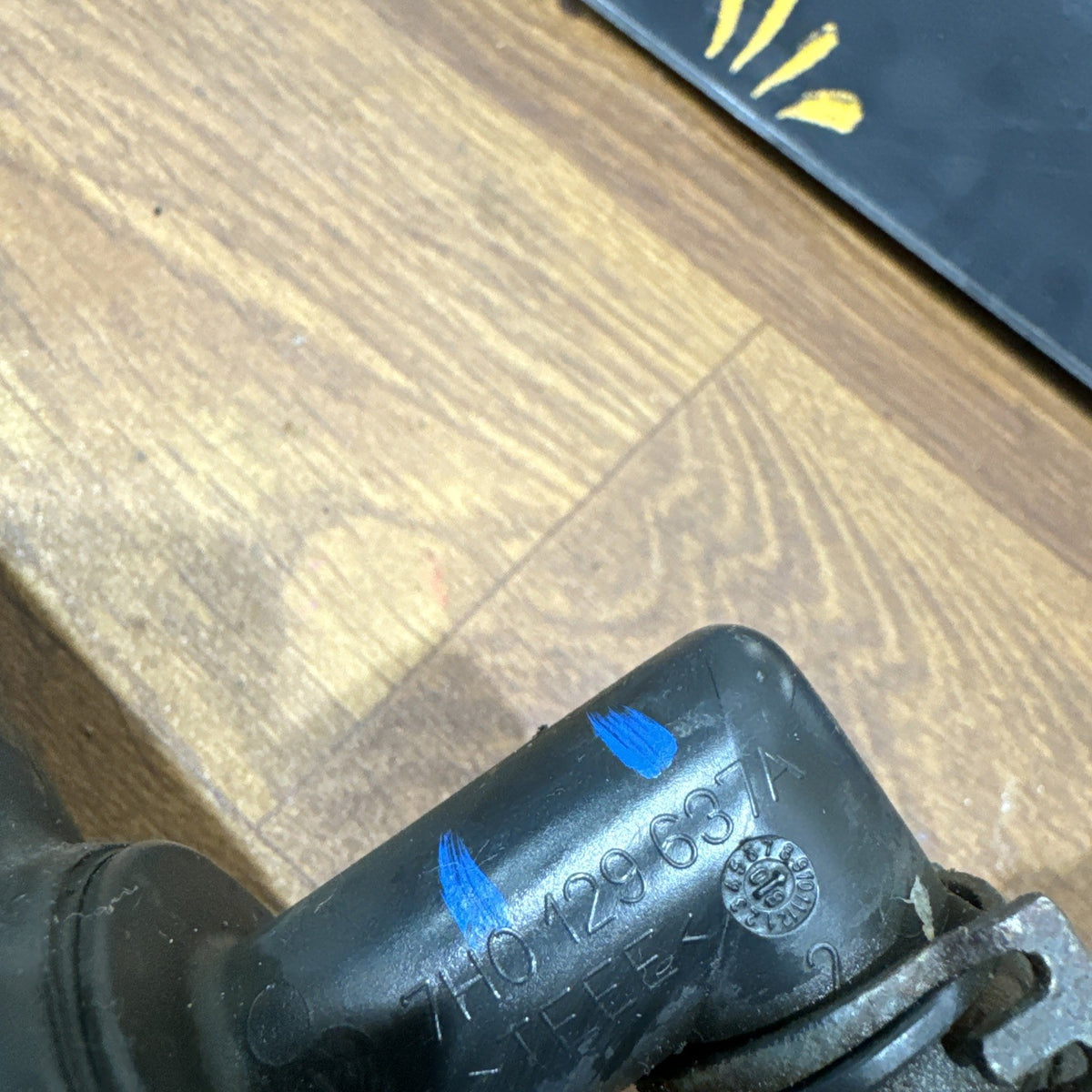

Please inspect the supplied photographs carefully for the exact condition, mounting points and connections.

An ideal genuine replacement for a cracked, broken, damaged or missing Volkswagen Transporter T5 1.9 TDI air-filter intake pipe.
