VOLKSWAGEN TRANSPORTER T5 Clutch Master Cylinder 2.0 TDI 7H0721261C 2011

#lp24

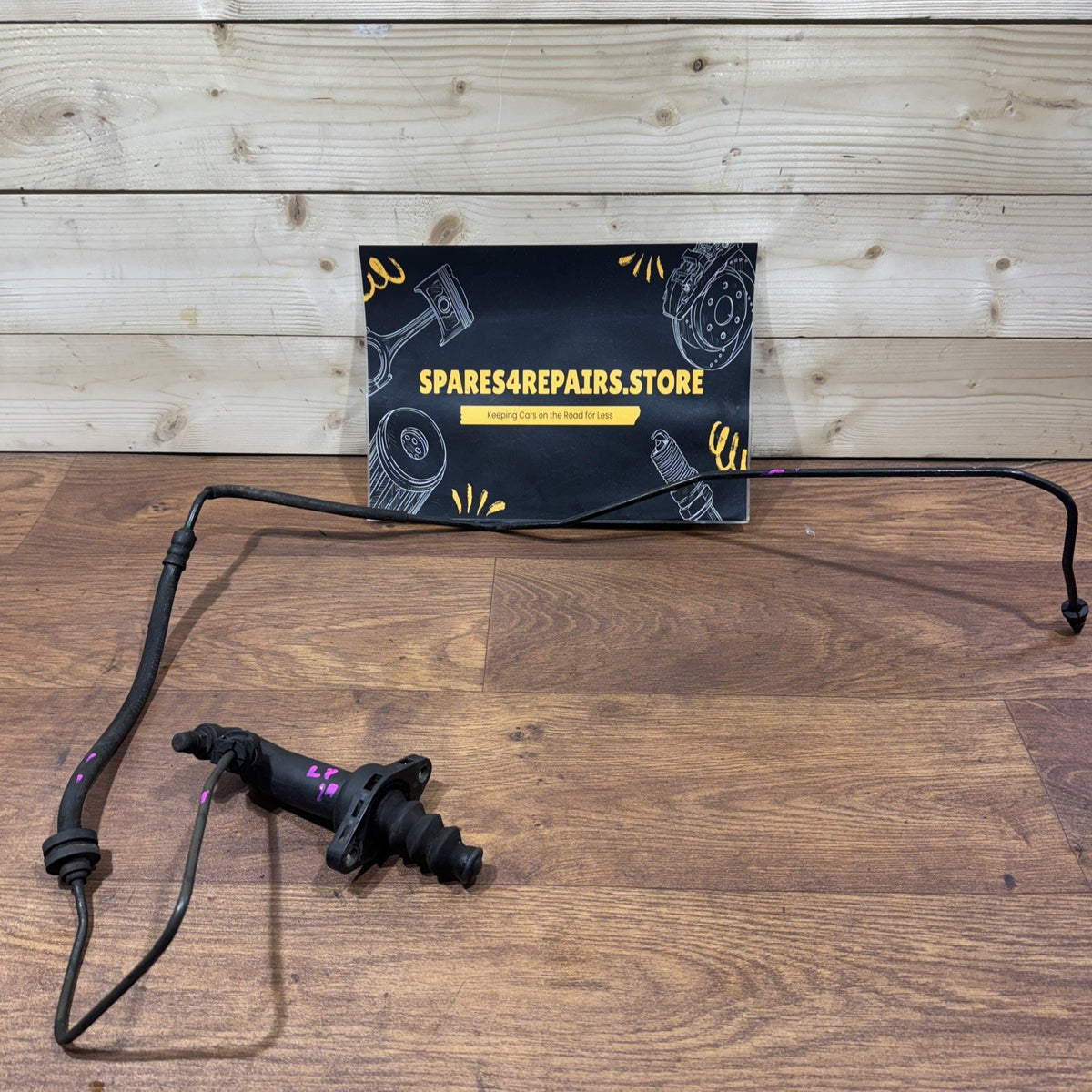

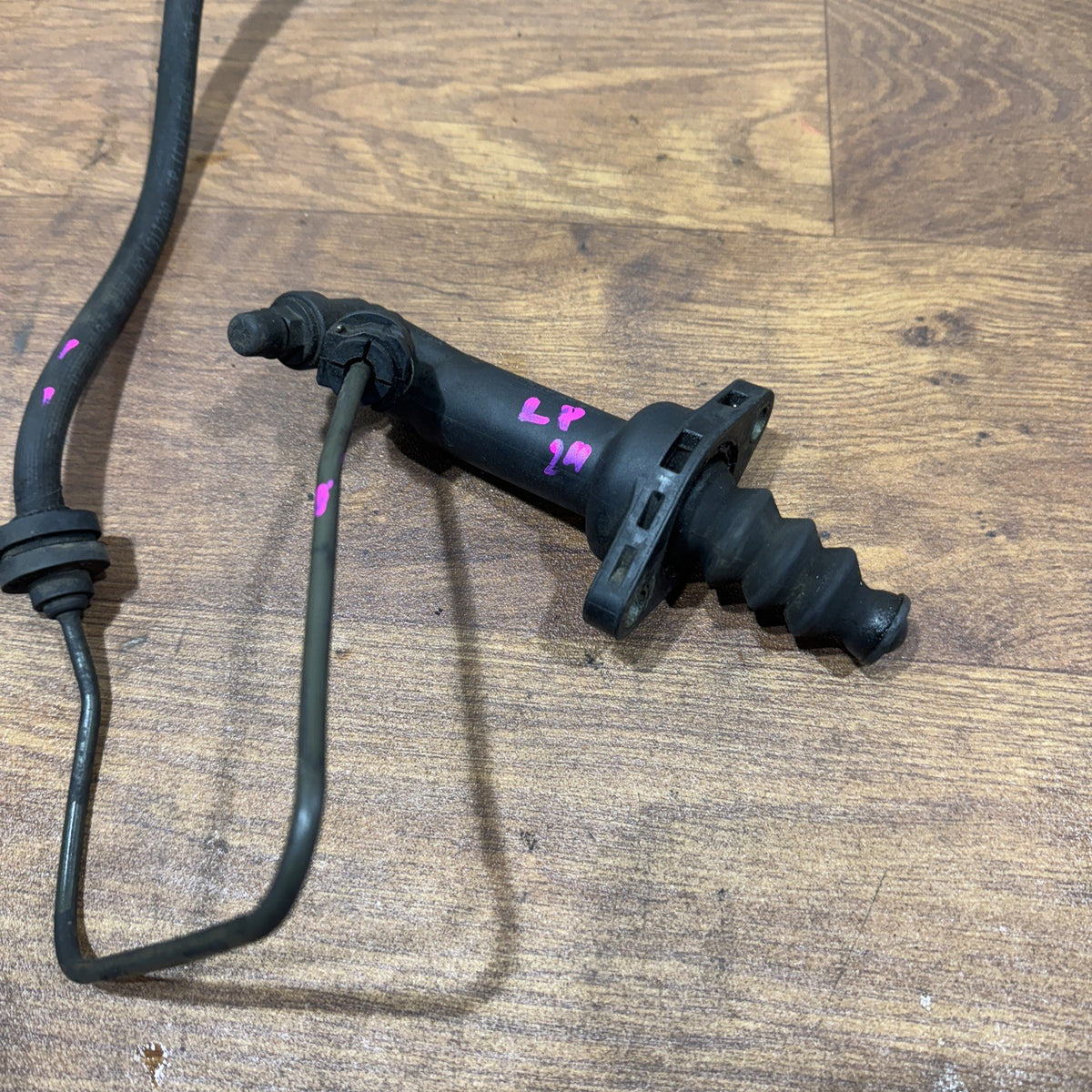

Genuine used Volkswagen Transporter T5.1 2.0 TDI clutch slave cylinder / clutch operating cylinder with hydraulic pipe, part number 7H0721261C, removed from a 2011 vehicle.

This hydraulic cylinder forms part of the manual transmission clutch operating system. Hydraulic pressure generated when the clutch pedal is pressed is transferred through the clutch line to the slave cylinder, which operates the clutch release mechanism.

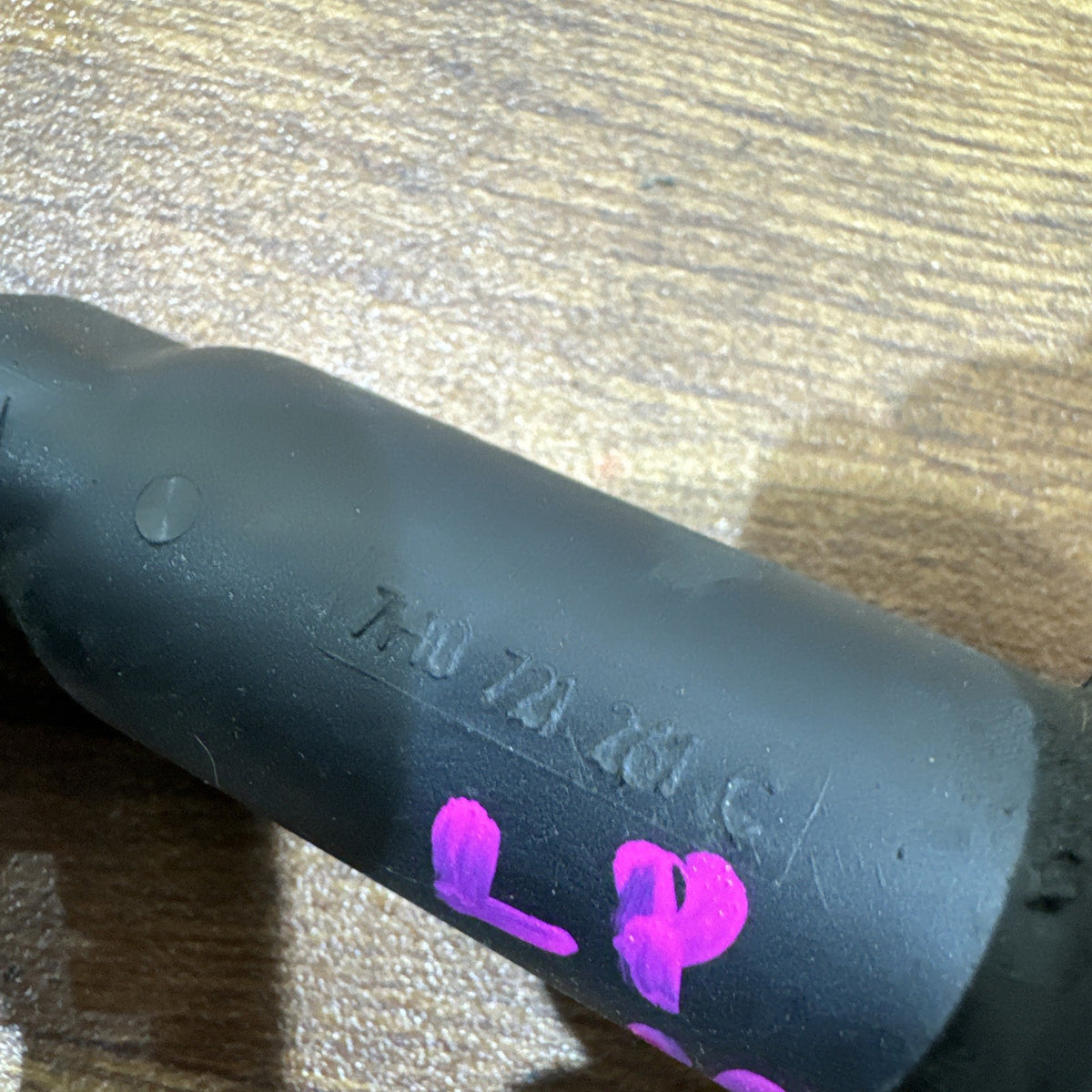

Part Number: 7H0721261C

VW OE Number: 7H0 721 261 C

Alternative / Later OE Family: 7E0 721 261 / 7E0721261

Part Type: Clutch Slave Cylinder / Clutch Operating Cylinder

Included: Hydraulic Pipe / Line as shown

Transmission: Manual – check gearbox specification

Engine: 2.0 TDI

Donor Vehicle: Volkswagen Transporter T5.1 – 2011

Fuel Type: Diesel

Manufacturer: Volkswagen / OEM Supplier

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 / T5.1

* Volkswagen Caravelle T5 / T5.1

* Volkswagen Multivan T5 / T5.1

* Volkswagen California T5 / T5.1

* Panel Van

* Kombi

* Shuttle / passenger variants

* Platform / chassis cab versions where the matching manual gearbox is fitted

For the T5/T5.1, the 7H0721261C / related 7E0721261 family is documented on selected manual-transmission applications including:

1.9 TDI

* AXC

* AXB

* BRR

* BRS

2.0 TDI

* CAAA

* CAAB

* CAAD and selected related applications

This component is particularly associated with 5-speed manual transmission applications.

Exact compatibility depends on the gearbox, engine and hydraulic connection arrangement, so the OE number and physical configuration must be checked before ordering.

Important – Slave Cylinder, Not Master Cylinder

Although this part is sometimes advertised online as a clutch master cylinder, OE and manufacturer catalogue information identifies 7H0721261C as the clutch slave / operating cylinder.

The two components perform different functions.

Clutch Master Cylinder:

Operated directly by the clutch pedal and generates hydraulic pressure.

Clutch Slave Cylinder:

Receives hydraulic pressure from the master cylinder and converts it into movement at the clutch release mechanism.

Therefore, the more technically accurate description for 7H0721261C is:

Clutch Slave Cylinder / Clutch Operating Cylinder

Technical Information

The Transporter’s manual clutch uses a hydraulic operating system.

When the driver presses the clutch pedal:

1. The clutch master cylinder generates hydraulic pressure.

2. Brake/clutch fluid travels through the hydraulic pipework.

3. Pressure reaches the clutch slave cylinder.

4. The slave cylinder piston moves.

5. This movement operates the clutch release mechanism.

6. The clutch disengages from the engine.

7. The driver can change gear.

When the pedal is released, hydraulic pressure reduces and the clutch returns to its engaged position.

Hydraulic Pipe Included

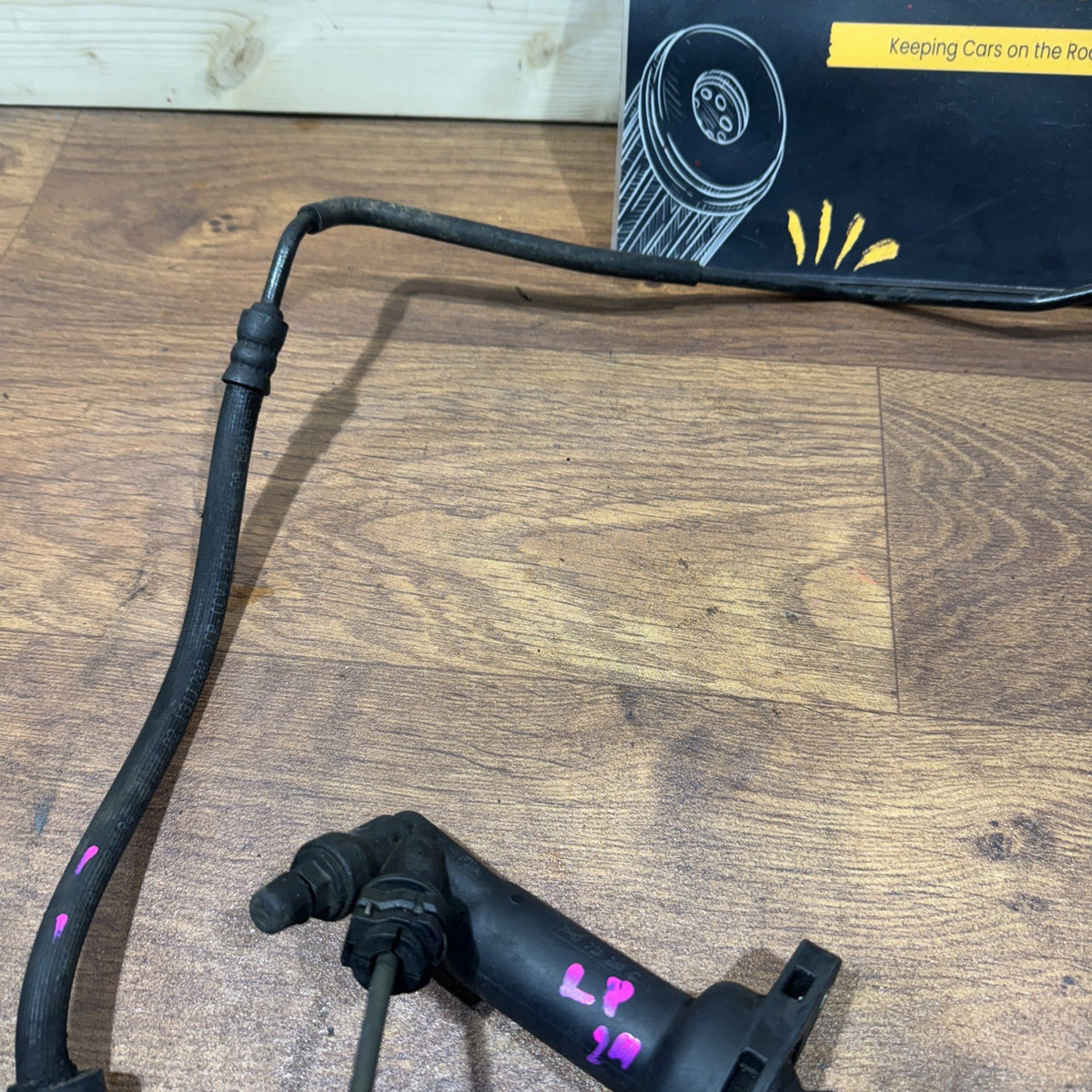

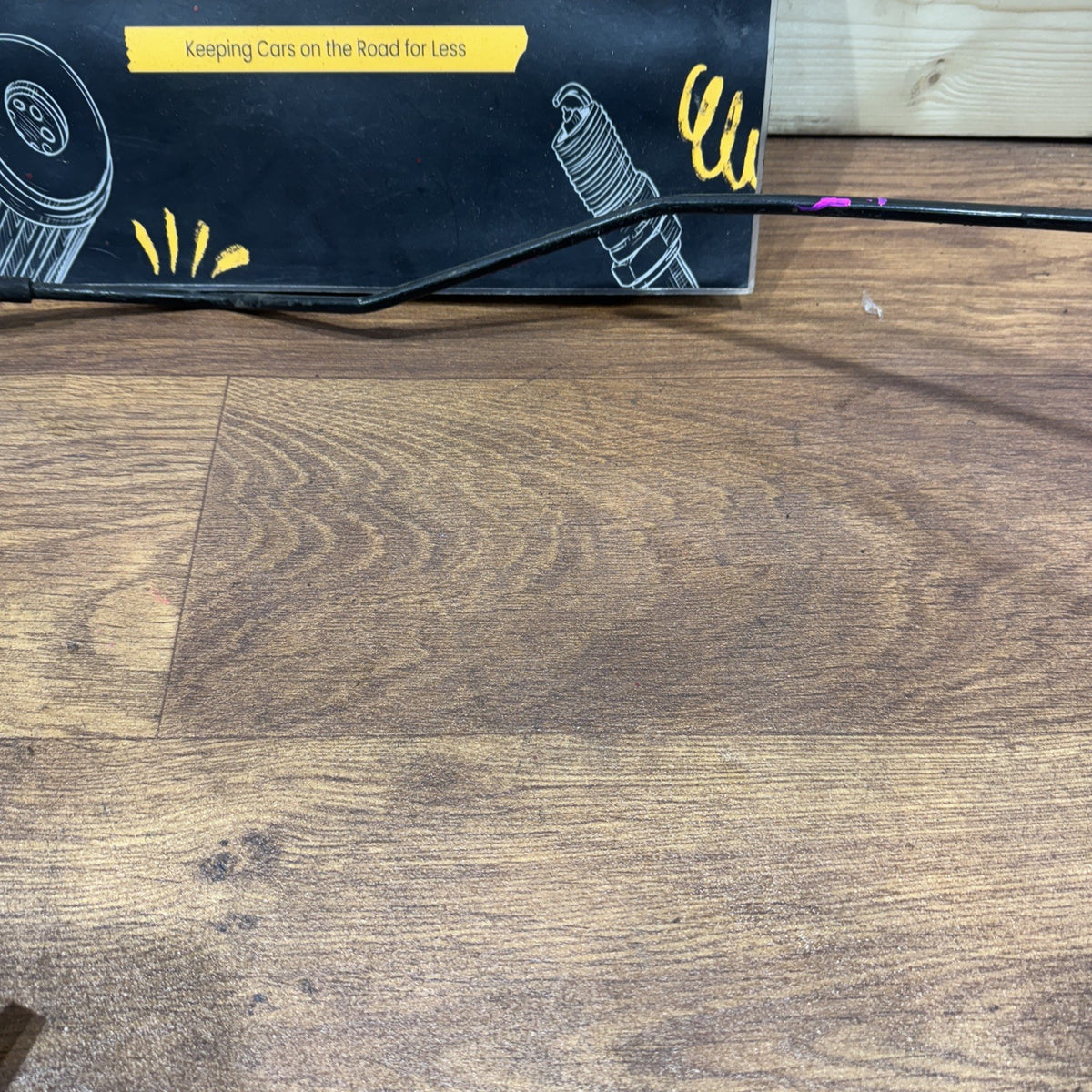

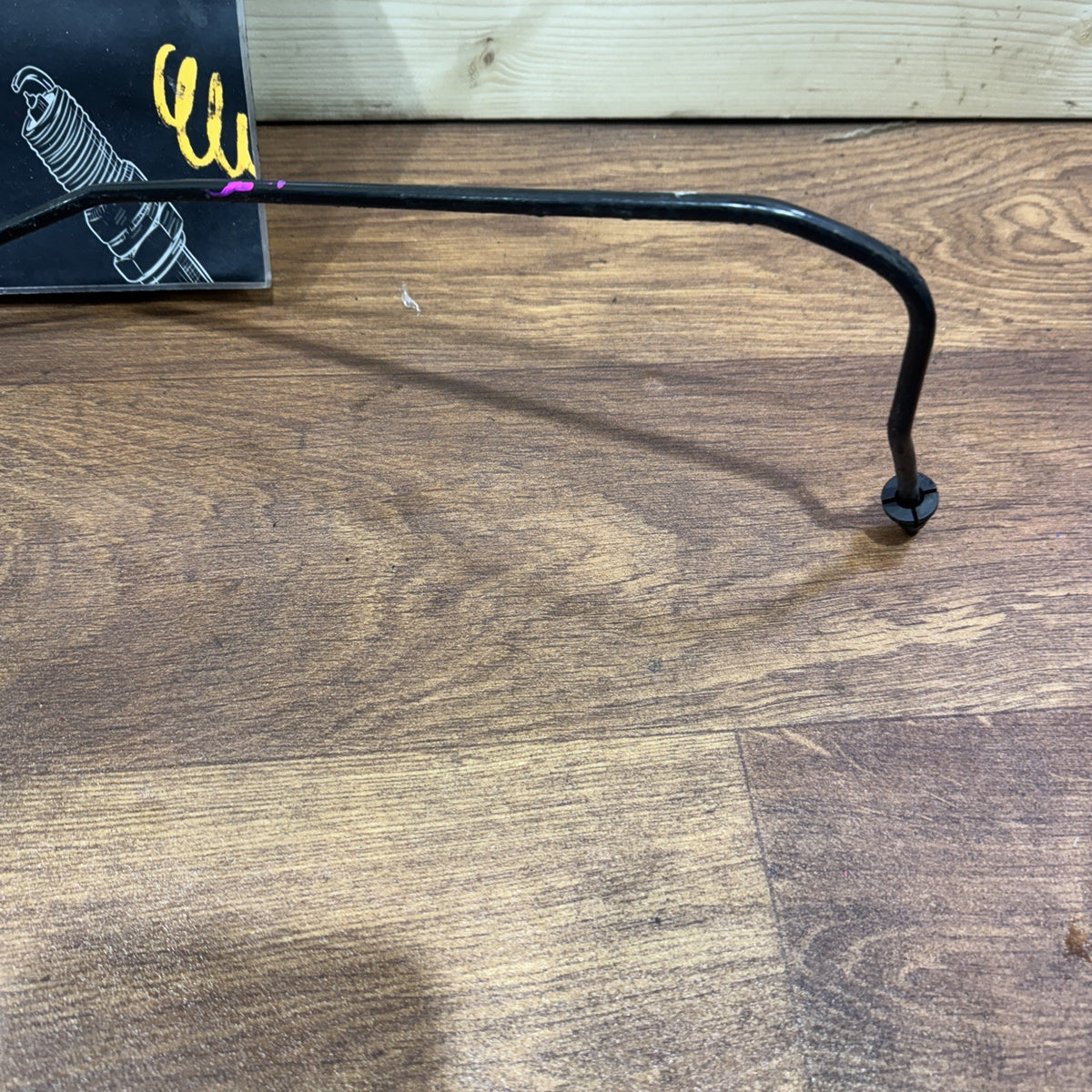

This listing includes the associated hydraulic pipe/line shown in the photographs.

Buying the cylinder together with its original pipe can be useful where the existing line has:

* Damaged connectors

* Cracked plastic sections

* Fluid leakage

* Damaged retaining points

* Corroded fittings

* Previous repair damage

Please use the listing photographs to establish exactly which section of hydraulic pipe and which connectors are supplied.

Common Symptoms of a Faulty Clutch Slave Cylinder

A failing slave cylinder can cause:

* Difficulty selecting gears

* Clutch pedal becoming soft or spongy

* Clutch pedal remaining near the floor

* Clutch pedal failing to return normally

* Clutch not disengaging completely

* Gear crunching during selection

* Hydraulic fluid leakage

* Fluid level dropping

* Air repeatedly entering the clutch hydraulic system

* Inconsistent clutch operation

* Vehicle creeping with the clutch pedal fully depressed

A hydraulic leak may initially be small and become progressively worse.

Hydraulic Fluid Leakage

Inspect the slave cylinder and hydraulic pipework for:

* Wetness around the cylinder

* Fluid around hydraulic connections

* Damaged seals

* Cracked pipework

* Damaged connectors

* Fluid collecting around the gearbox area

Loss of hydraulic fluid can eventually prevent the clutch from disengaging.

Important Diagnostic Information

A clutch engagement problem does not automatically mean the slave cylinder is faulty.

Before replacement, check:

* Clutch master cylinder

* Hydraulic pipework

* Fluid level

* Hydraulic connections

* Clutch slave cylinder

* Clutch pressure plate

* Clutch friction disc

* Release mechanism

* Gearbox selector system

* Dual-mass flywheel where fitted

A soft pedal combined with fluid loss is more suggestive of a hydraulic problem.

Master Cylinder vs Slave Cylinder Diagnosis

If the clutch pedal slowly sinks or fails to generate consistent hydraulic pressure without obvious external leakage, the master cylinder should also be investigated.

If hydraulic pressure is reaching the slave cylinder but clutch release movement is insufficient, the slave cylinder or mechanical clutch components may be responsible.

Correct diagnosis before replacing parts can prevent unnecessary clutch or gearbox removal.

Clutch Hydraulic System Bleeding

After opening the clutch hydraulic system, proper bleeding is required.

Air trapped in the hydraulic circuit can cause:

* Soft clutch pedal

* Excessive pedal travel

* Poor clutch disengagement

* Difficulty selecting gears

The correct fluid specification and VW bleeding procedure should be followed.

After installation, check carefully for leakage from all disturbed connections.

Installation

Before installation:

* Compare OE numbers

* Compare hydraulic connections

* Check the supplied pipe

* Inspect connector locking mechanisms

* Inspect the cylinder body

* Check mounting-hole positions

* Confirm gearbox compatibility

During installation:

* Keep hydraulic connections clean

* Prevent contamination entering the system

* Do not damage hydraulic seals

* Secure the cylinder correctly

* Route the hydraulic pipe in its original position

* Avoid kinking or twisting the pipe

* Secure all retaining clips

After installation:

* Refill/check hydraulic fluid as required

* Bleed the clutch hydraulic circuit

* Check clutch pedal operation

* Inspect for leaks

* Confirm correct gear selection

Programming / Coding

No programming or coding is required.

This is a hydraulic/mechanical clutch component.

Once correctly installed and the hydraulic system has been properly bled, no electronic adaptation should normally be necessary.

Important Gearbox Compatibility

The same engine can be fitted with different gearbox configurations.

Therefore, compatibility should not be determined solely by the vehicle being a 2.0 TDI.

Check:

* Gearbox type

* Number of gears

* Gearbox code

* Slave-cylinder mounting arrangement

* Hydraulic pipe connection

* Cylinder dimensions

* OE number

This is particularly important when comparing 5-speed and 6-speed manual drivetrain configurations.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H0721261C

* Alternative/later 7E0721261 references where applicable

* Engine code

* Gearbox code

* 5-speed / 6-speed transmission

* Cylinder mounting points

* Hydraulic connection

* Pipe shape and length

* Connector design

* Vehicle production date

Do not purchase solely because your vehicle is a Transporter T5.1 2.0 TDI.

Matching 7H0721261C, the gearbox specification and hydraulic connections against the original component is strongly recommended.

Condition

Genuine Volkswagen/OEM used clutch hydraulic component supplied with hydraulic pipe as shown.

As a used mechanical/hydraulic part, normal signs of previous use may include:

* Surface marks

* Dirt

* Hydraulic fluid residue

* Light oxidation

* General workshop/removal marks

Please inspect all listing photographs carefully for the exact condition of the cylinder, hydraulic connection, mounting points, pipe, clips and connectors.

Only the components clearly shown in the listing photographs are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a leaking, damaged or faulty Volkswagen Transporter T5.1 clutch slave cylinder and hydraulic pipe assembly, provided 7H0721261C and the gearbox/hydraulic configuration match the original unit.
