Volkswagen Transporter T5 Drivers manual window winder

Low stock! Only 1 left
£23.00
£23.00
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

#12

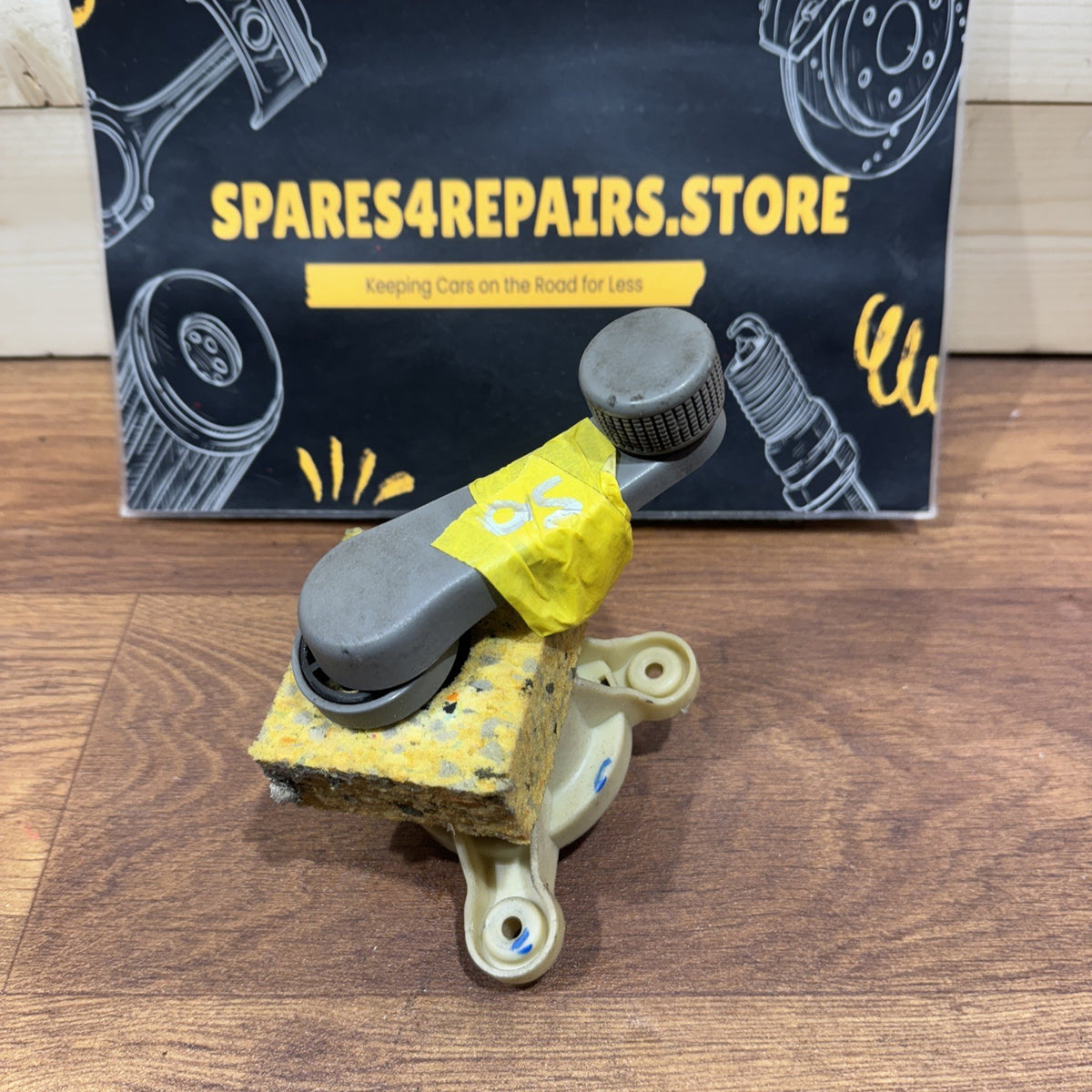

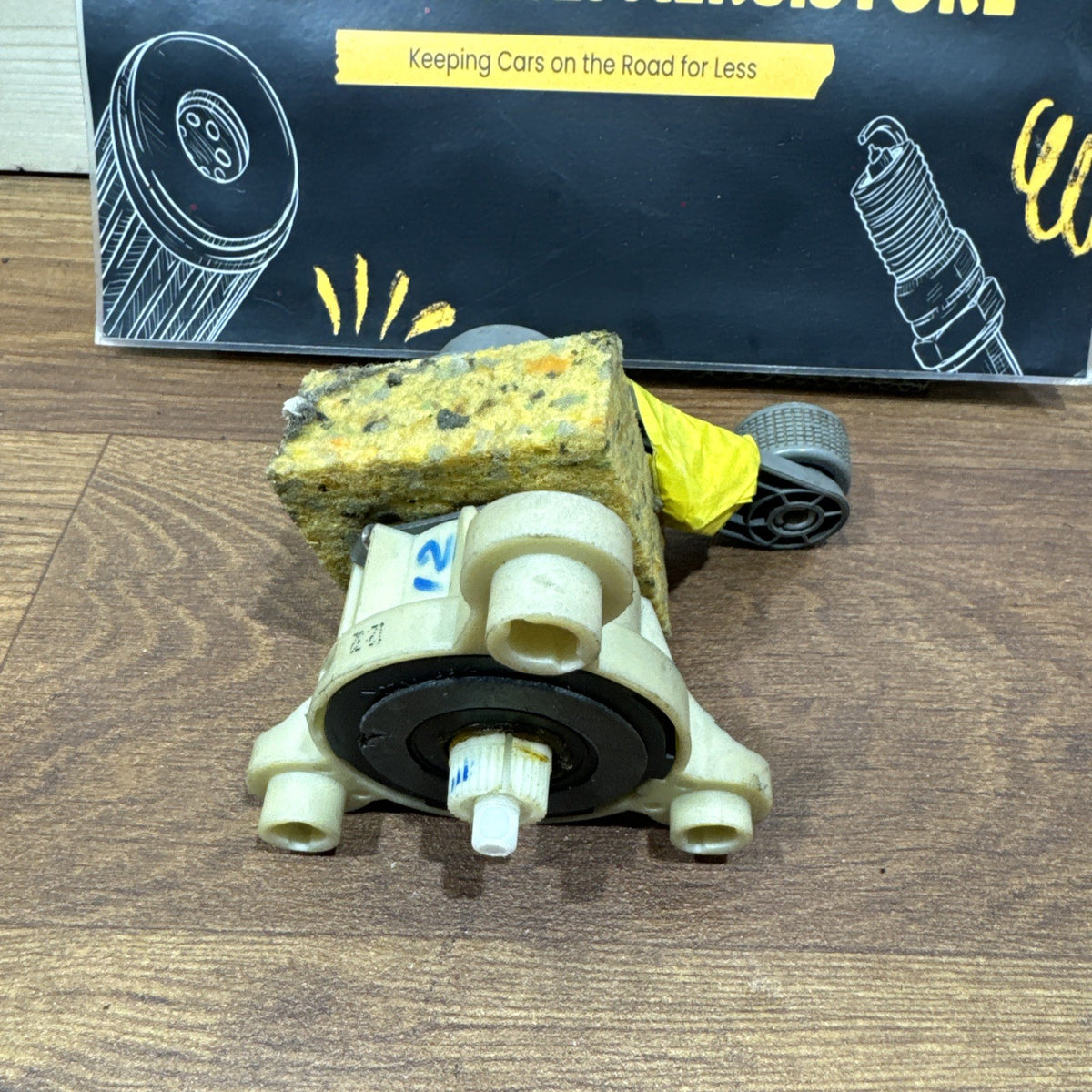

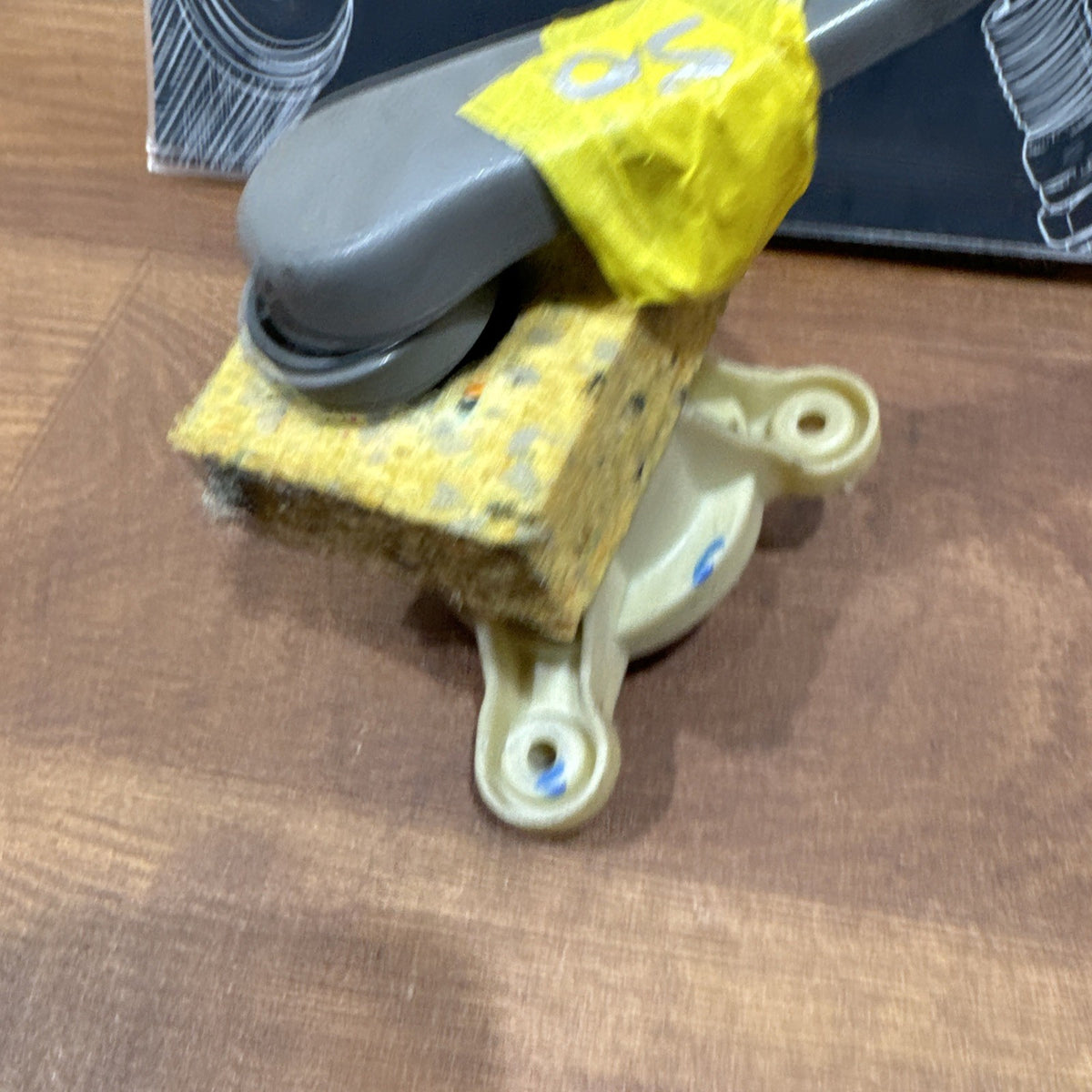

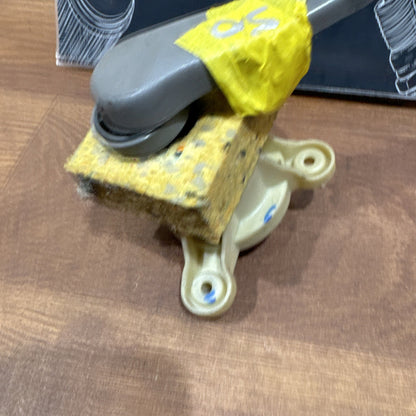

Genuine used Volkswagen Transporter T5 Driver Side Manual Window Winder / Window Regulator Mechanism, suitable for selected T5 models fitted with manually operated front windows.


Part Type: Manual Window Regulator / Window Winder Mechanism

Position: Front Right / O/S Driver Side – UK RHD

Application: Volkswagen Transporter T5


Compatibility


Commonly associated with:


* Volkswagen Transporter T5

* Approx. 2003–2009

* Front right / driver-side door

* Vehicles fitted with manual wind-up windows

* Transporter panel van and selected commercial variants


Fitment can vary depending on door type and production year, so the regulator shape and mounting arrangement should be compared with the original part.


Technical Information


This mechanism raises and lowers the driver-side door glass using the manual window crank handle.


Its main functions are to:


* Transfer rotation from the window handle to the regulator mechanism

* Raise and lower the door glass

* Support and guide the glass through its normal travel

* Hold the window securely at the selected position


Unlike an electric regulator, this version does not use a window motor or electrical control module.


Window Mechanism / Door System


The manual window assembly normally works together with:


* Window crank handle

* Regulator gear mechanism

* Cable or mechanical lifting system

* Window glass carrier

* Door glass runners and guides

* Internal door mounting points


Wear in any of these components can cause stiff, uneven or incomplete window movement.


Common Symptoms of a Faulty Window Winder


* Window handle turns but glass does not move

* Window drops inside the door

* Window becomes difficult to raise

* Grinding or clicking when winding

* Glass moves unevenly

* Regulator becomes stiff or jammed

* Window will not stay in position

* Broken cable or internal regulator mechanism


Important Diagnostic Information


Before replacing the regulator, it is worth checking:


* Window crank handle and splines

* Door glass runners

* Glass carrier / clips

* Regulator mounting points

* Internal cables or gears

* Door frame for distortion

* Whether the glass is binding in the channels


If the handle turns freely without moving the glass, the regulator mechanism or its internal drive may be damaged.


Installation Information


During installation:


* Support the window glass before removing the old regulator

* Check the glass runners for damage or excessive resistance

* Transfer any required clips or mounting hardware

* Ensure the regulator is correctly aligned before tightening

* Test the full window travel before refitting the door card


Correct alignment is important to prevent the glass from binding or placing excessive load on the mechanism.


Important Compatibility Note


Please compare:


* Front right / driver-side position

* Manual rather than electric window system

* Regulator shape

* Mounting points

* Window crank drive location

* Glass carrier arrangement

* Vehicle year and door specification


with your original part before purchasing.


Condition: Genuine used Volkswagen part. May show normal cosmetic marks, grease residue and signs of previous use. Please check photos for exact condition.


Ideal replacement for a worn, broken or jammed Volkswagen Transporter T5 driver-side manual window winder mechanism.

Brand: Volkswagen

Type: Door
