Volkswagen Transporter T5 Electric Fan ECU Controller 7H0919506F

#85

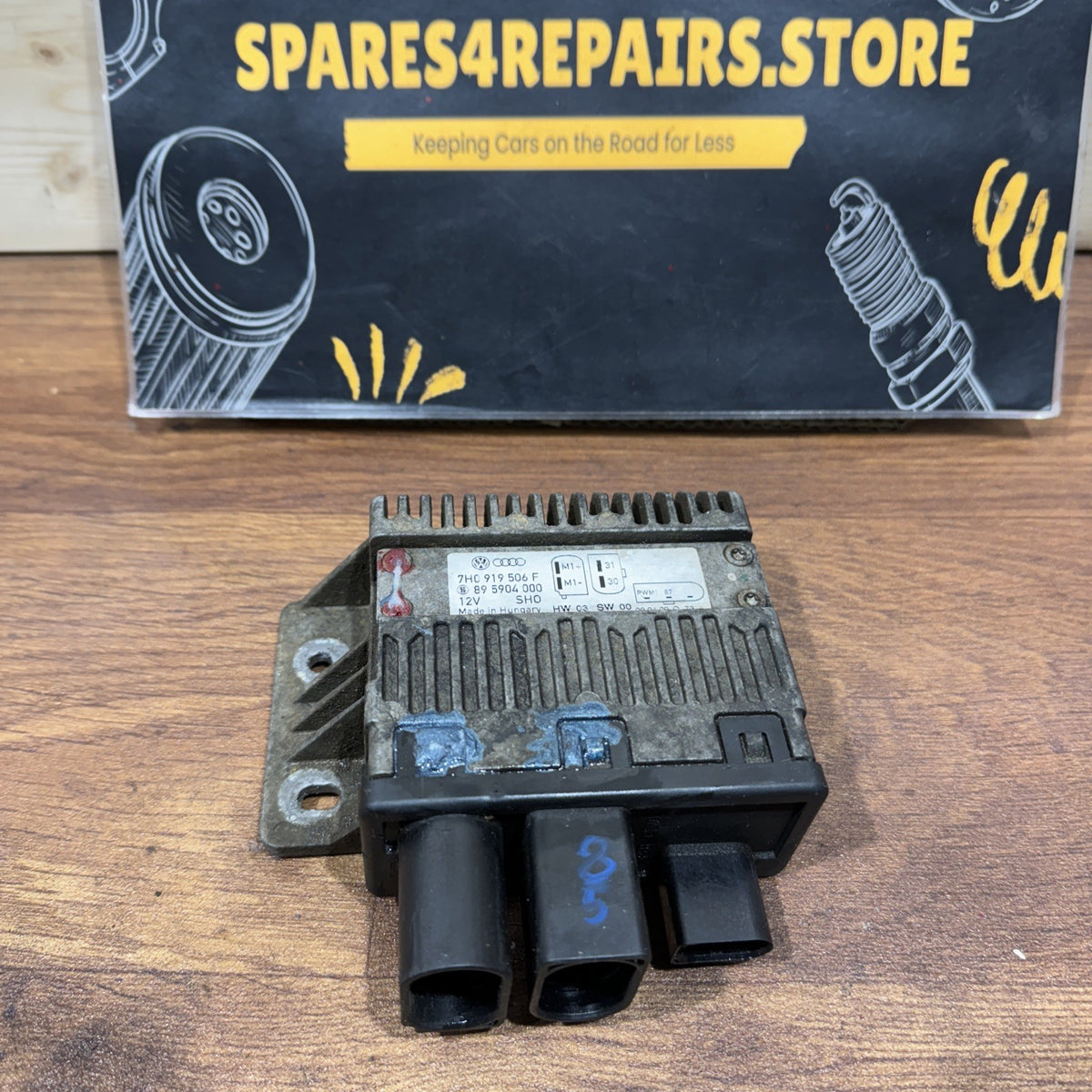

Genuine used Volkswagen Transporter T5 radiator cooling fan control module / electric fan ECU relay, part number 7H0919506F.

This electronic control unit forms part of the engine cooling and radiator fan system. It controls operation of the electric radiator cooling fan according to vehicle operating conditions and cooling demand.

Part Number: 7H0919506F

VW OE Number: 7H0 919 506 F

Part Type: Radiator Fan Control Module / Cooling Fan Controller / Fan Relay

System: Engine Cooling / Electric Radiator Fan System

Application: Selected Volkswagen Transporter T5 / Caravelle T5

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5

* Volkswagen Caravelle T5

* Volkswagen Multivan T5

* Volkswagen California / Camper T5

* Transporter Panel Van

* Kombi

* Shuttle / passenger versions

* Platform / chassis cab variants

Genuine VW catalogue information documents 7H0919506F on Transporter/Caravelle T5 applications including:

* 2006

* 2007

* 2008

* 2009

* Selected 2010 production

It is found on selected diesel-powered T5 configurations, including vehicles from the:

* 1.9 TDI family

* 2.5 TDI family

However, compatibility depends on the vehicle’s engine, cooling-fan configuration, air-conditioning/heating equipment and production specification.

For this reason, the 7H0919506F number should be matched directly against the original controller.

Technical Information

The radiator cooling fan is required to control engine and cooling-system temperature when natural airflow through the radiator is insufficient.

This is particularly important during:

* Stationary idling

* Slow-moving traffic

* High ambient temperatures

* Heavy engine load

* Towing

* Extended engine operation

* Air-conditioning operation where fitted

The 7H0919506F controller manages electrical operation of the radiator fan according to the vehicle’s cooling requirements.

Cooling Fan Control System

The complete cooling-fan system works in conjunction with components including:

* Radiator cooling fan

* Fan motor

* Fan control module

* Engine ECU

* Coolant temperature sensing

* Electrical power supply

* Fuses

* Wiring harness

* Air-conditioning system where fitted

Depending on vehicle specification, cooling-fan demand can be influenced by both engine temperature and air-conditioning requirements.

Air-Conditioning / Heating Specification

An important feature of 7H0919506F is that VW catalogue data associates it with different T5 heating and air-conditioning PR-code configurations.

This means two Transporters of the same year and engine size may not necessarily use the same fan-control arrangement.

Therefore, compatibility should not be determined from:

“VW Transporter T5”

alone.

The controller number and electrical configuration should always be checked.

Common Symptoms of a Faulty Fan Control Module

Possible symptoms include:

* Radiator fan not operating

* Fan operating continuously

* Fan running when engine is cold

* Fan operating at incorrect speed

* Intermittent fan operation

* Engine temperature increasing in traffic

* Cooling fan failing to activate when required

* Air-conditioning performance becoming poor when stationary

* Fan operating only occasionally

* Cooling-system related fault codes

* Electrical faults associated with the fan circuit

A failed controller can potentially leave the fan permanently inactive or cause abnormal fan operation.

Fan Running Continuously

A radiator fan that runs continuously does not automatically mean the fan motor itself is faulty.

Possible causes include:

* Faulty fan controller

* Temperature sensor fault

* Wiring problem

* Incorrect control signal

* Air-conditioning system demand

* Incorrect replacement controller

* Electrical short circuit

Correct diagnosis is recommended before replacing components.

Fan Not Operating

If the cooling fan does not operate, check:

* Fan motor

* 7H0919506F controller

* Main power supply

* Earth connections

* Fuses

* Wiring harness

* Electrical connectors

* Coolant temperature information

* Engine ECU commands

* Air-conditioning pressure/input where applicable

A seized or failed fan motor can also place excessive electrical load on the control electronics.

Important Diagnostic Information

Before replacing the controller, a suitable diagnostic scan and electrical test are recommended.

Check for:

* Stored engine fault codes

* Cooling-fan related fault codes

* Correct power supply

* Good earth

* Connector corrosion

* Burnt terminals

* Damaged wiring

* Water ingress

* Fan motor condition

Where diagnostic equipment allows, an output/actuator test of the radiator fan system can be particularly useful.

This can help determine whether the control system is capable of commanding the fan correctly.

Connector Inspection

High-current cooling-fan circuits can generate significant heat if electrical resistance develops at a poor connection.

Inspect the connectors carefully for:

* Burnt pins

* Melted plastic

* Corrosion

* Green oxidation

* Loose terminals

* Water ingress

* Damaged locking tabs

A damaged connector should be repaired before installing another controller.

Radiator Fan Motor Inspection

The radiator fan motor should also be checked before fitting a replacement control module.

A fan motor that is:

* Seized

* Mechanically stiff

* Drawing excessive current

* Internally shorted

may contribute to control-system failure.

Replacing only the controller without correcting the underlying fan-motor problem could result in further failure.

Installation

Before installation:

* Disconnect the vehicle battery as appropriate

* Compare both controller part numbers

* Compare electrical connectors

* Inspect wiring

* Inspect terminals

* Check the radiator fan motor

* Check mounting points

During installation:

* Ensure connectors are fully seated

* Secure locking tabs

* Keep wiring correctly routed

* Ensure the controller is properly mounted

* Protect connections from moisture and physical damage

After installation:

* Reconnect the electrical system correctly

* Clear relevant stored fault codes where appropriate

* Run the engine

* Check fan operation

* Carry out an output test where diagnostic equipment permits

* Verify correct cooling-system operation

Programming / Coding

This fan controller should primarily be matched by the exact OE number and vehicle specification.

Unlike major immobiliser-linked control units, this type of cooling-fan controller is generally treated as a replacement control component rather than an immobiliser-coded ECU.

However, the vehicle should still be scanned after installation and correct fan operation verified.

The important issue is fitting the correct controller version for the vehicle’s fan, engine and heating/A/C configuration.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H0919506F

* Complete suffix letter F

* Electrical connector

* Number and arrangement of terminals

* Controller casing

* Mounting points

* Radiator fan configuration

* Engine type

* Heating / air-conditioning specification

* Vehicle PR codes

* Vehicle production date

Do not purchase solely because your vehicle is a Volkswagen Transporter T5.

VW used different radiator-fan control arrangements according to vehicle specification.

Matching 7H0919506F directly with the original controller is strongly recommended.

Condition

Genuine Volkswagen used electronic cooling-system component.

As a used engine-bay electrical component, normal signs of previous use may include:

* Surface marks

* Dirt

* Dust

* Light oxidation

* Cosmetic scratches

* General removal/storage marks

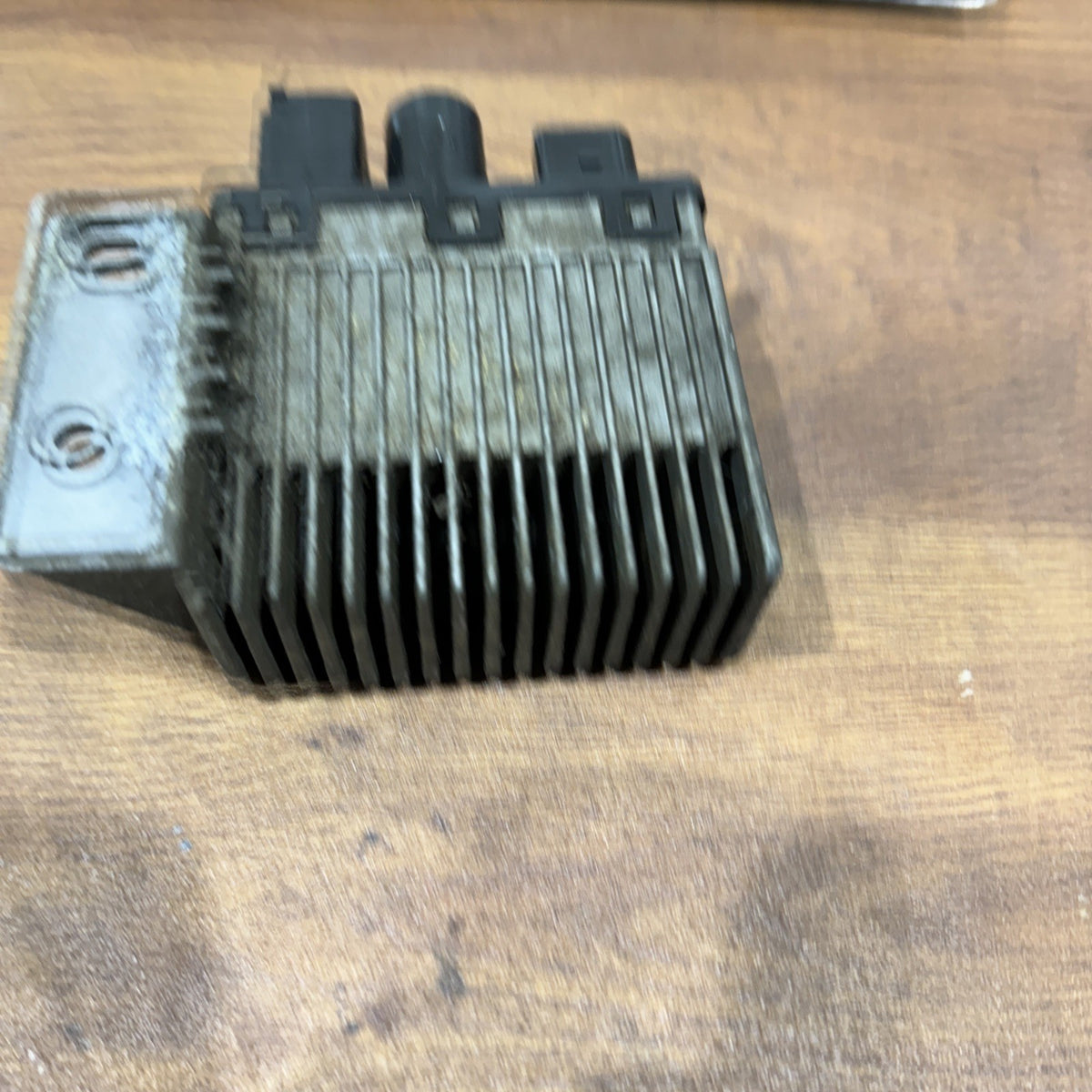

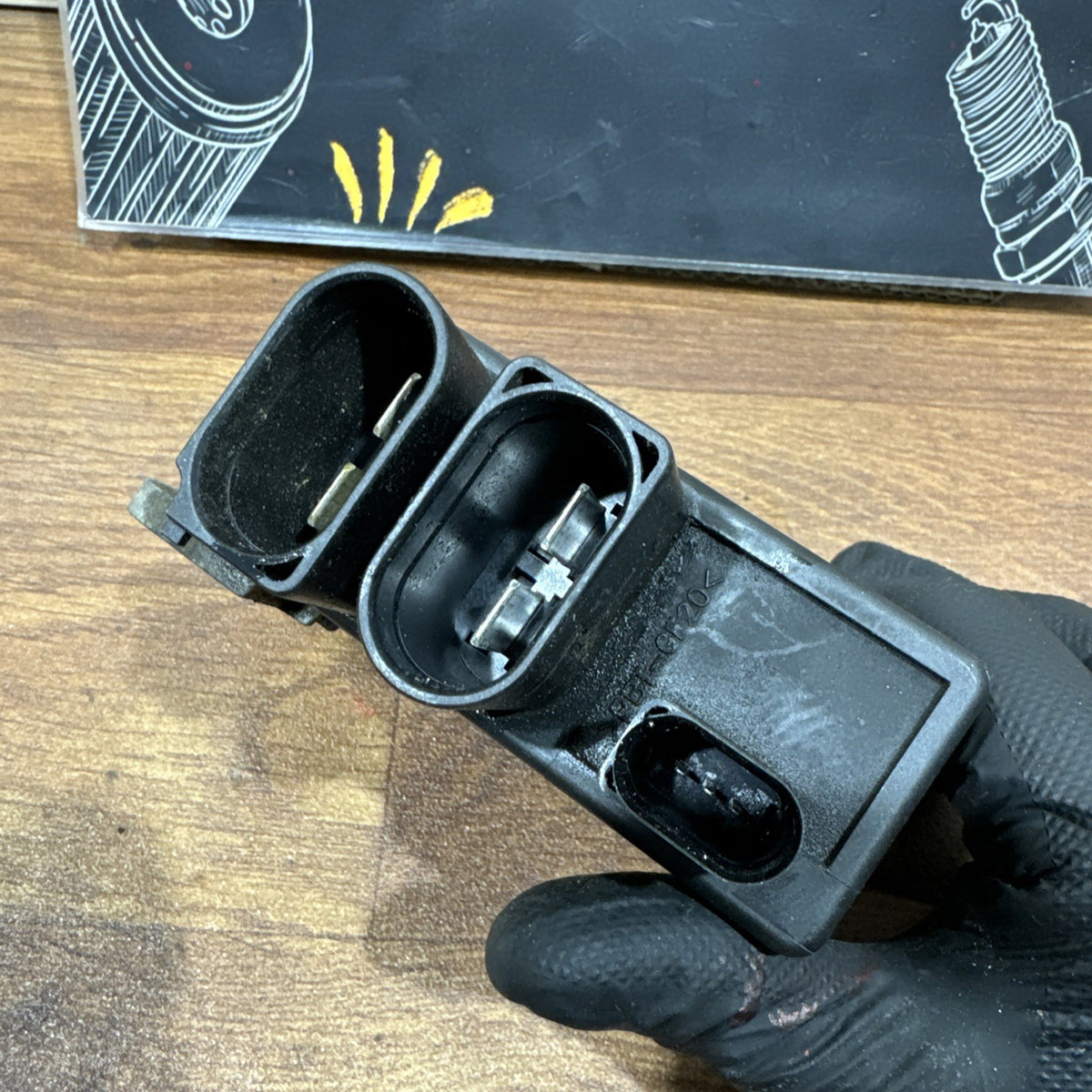

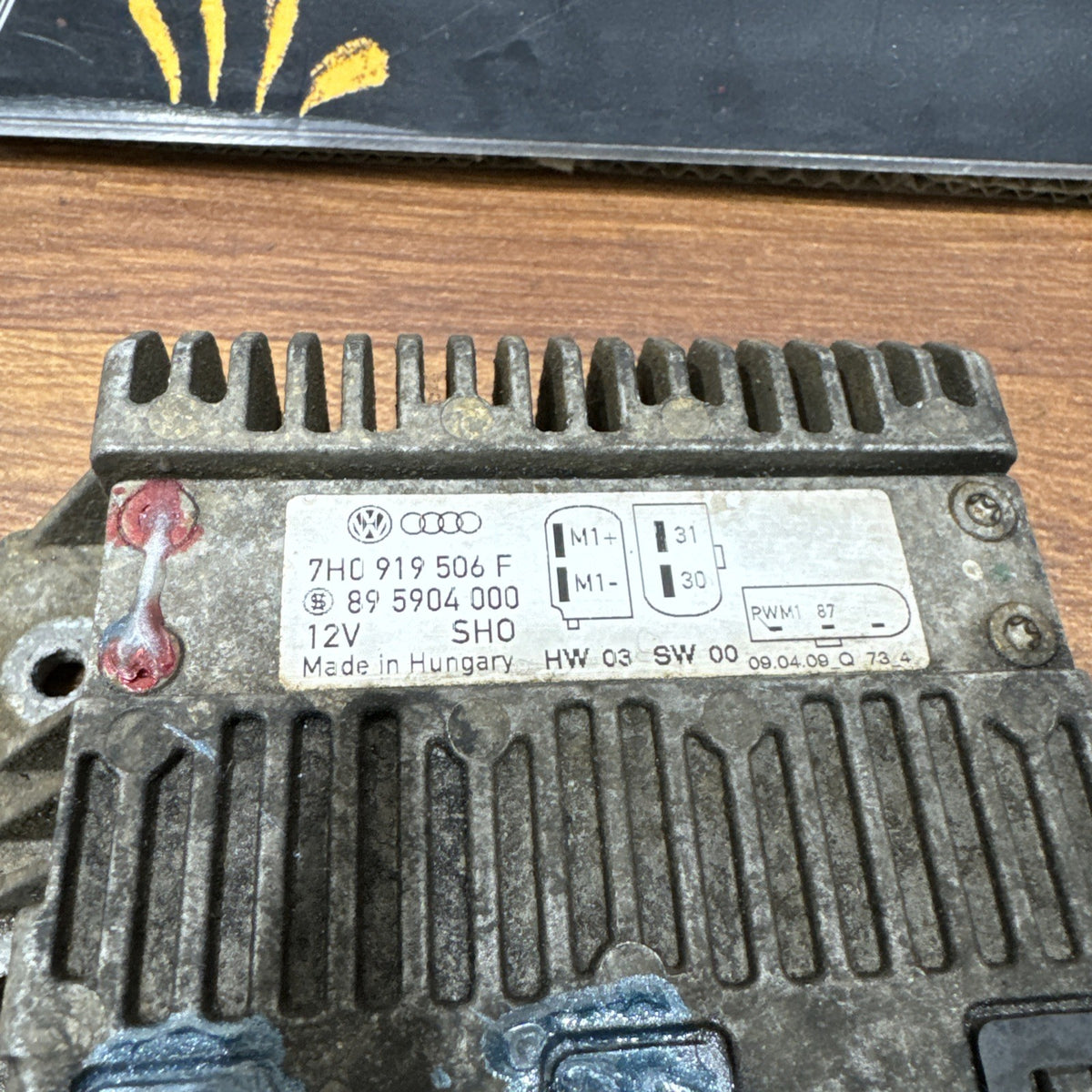

Please inspect all listing photographs carefully, particularly the electrical connectors, pins, casing, mounting points and part-number label.

Only the controller and any associated brackets/wiring clearly shown in the photographs are included.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a faulty, damaged or non-operational Volkswagen Transporter T5 radiator cooling fan control module / ECU relay, provided 7H0919506F matches the original unit and vehicle specification.
