Volkswagon Transporter T5 Seat Belt 7H0857805H RAA Passenger Side Left NS

#127

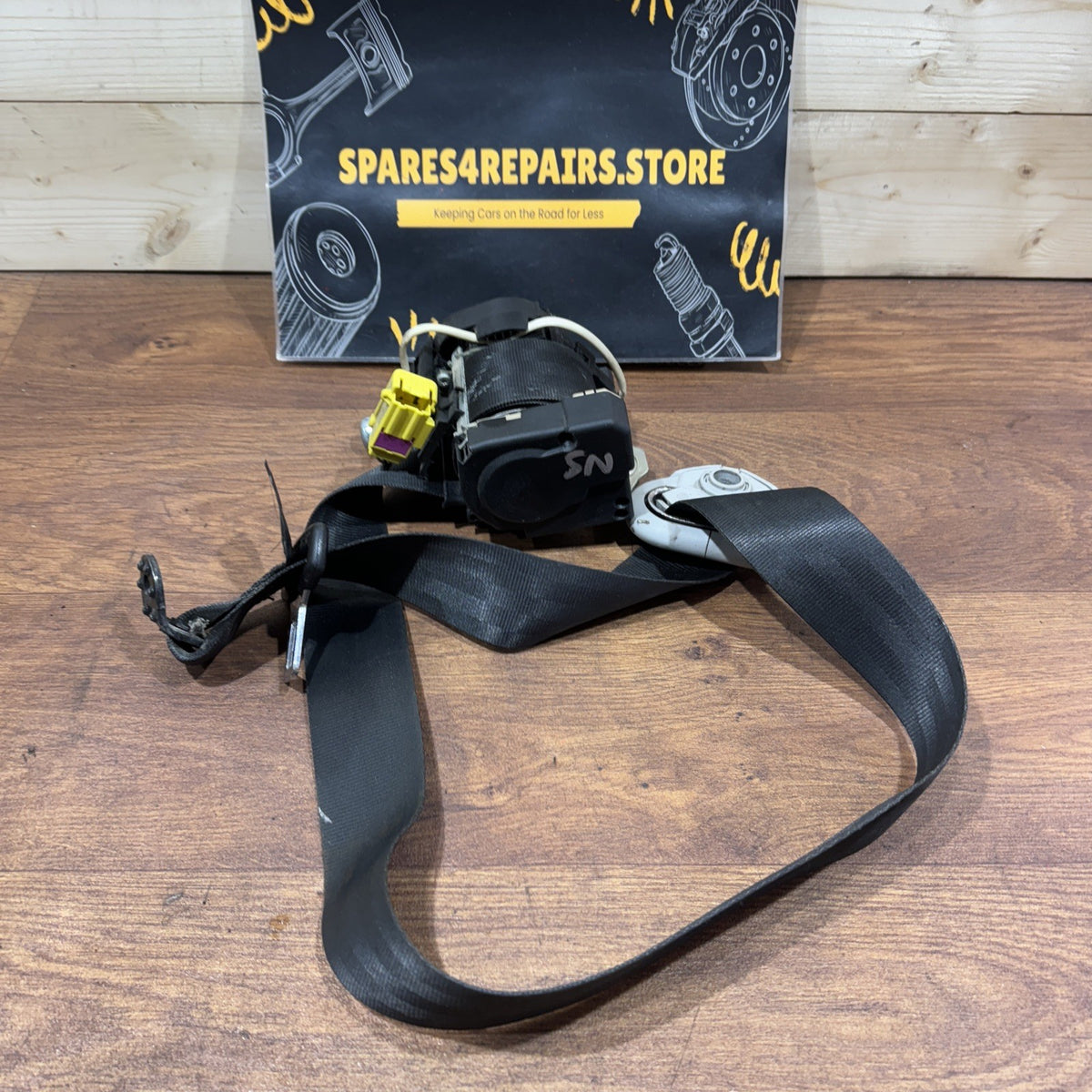

Genuine used Volkswagen Transporter T5 front passenger seat belt / safety belt retractor assembly, part number 7H0857805H RAA. This is the front left-hand / N/S passenger-side seat belt for UK right-hand-drive vehicles, designed to provide the original three-point occupant restraint for the front passenger seat.

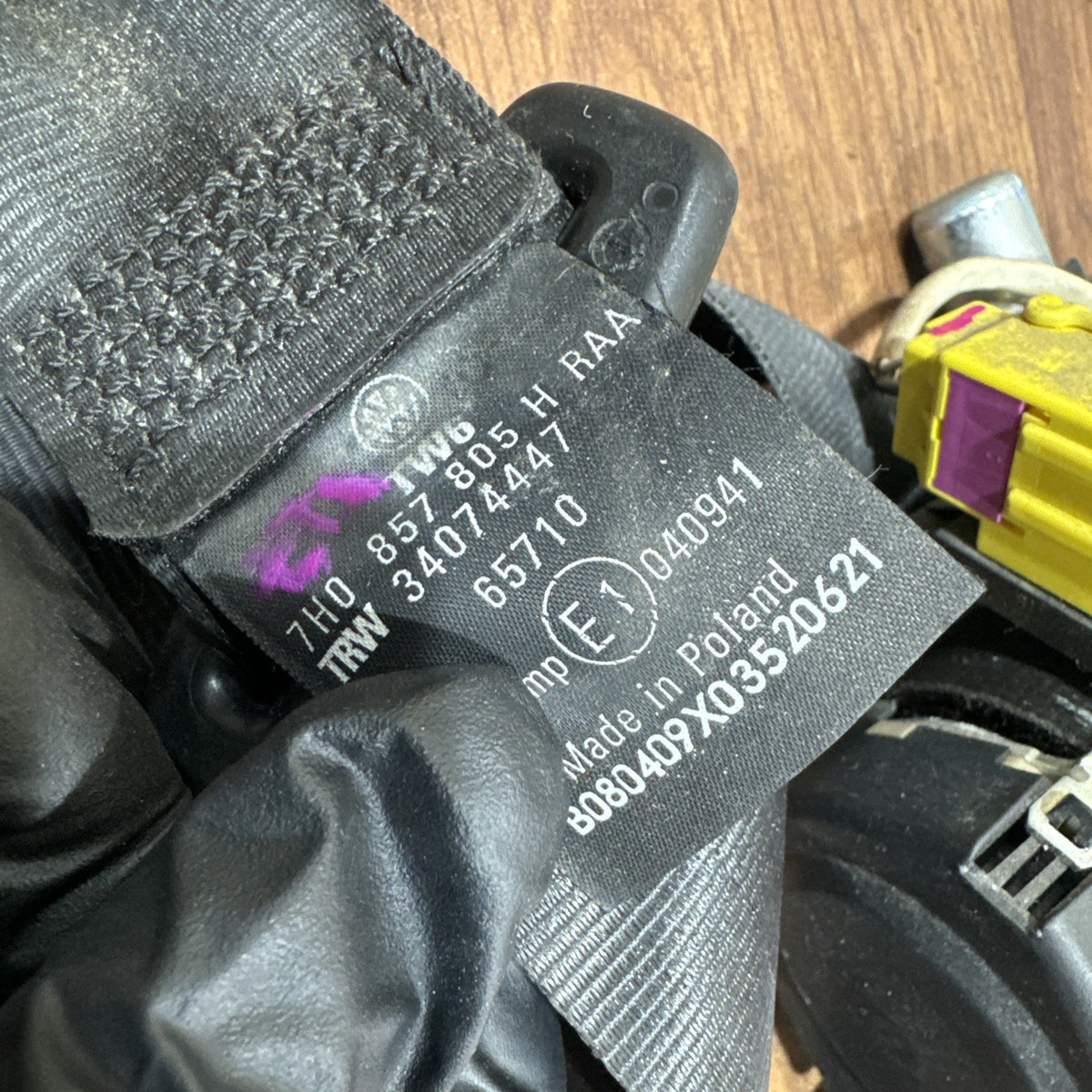

Part Number: 7H0857805H RAA

VW OE Number: 7H0 857 805 H RAA

Base OE Number: 7H0857805H

Part Type: Front Seat Belt / Safety Belt / Retractor Assembly

Position: Front Left

UK Vehicle Side: Passenger Side / N/S / Nearside

Belt Type: Three-Point Inertia-Reel Seat Belt

Manufacturer: Volkswagen

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5 – selected versions

* Volkswagen Multivan T5 – selected versions

* Volkswagen California T5 – where the same front restraint specification is fitted

* Panel van

* Kombi

* Shuttle / passenger variants

Intended for the front-left passenger seating position on UK RHD vehicles where 7H0857805H RAA is the original specification.

Seat belt fitment can vary according to production date, cab configuration, restraint-system specification and interior trim, so the complete OE number should be matched before ordering.

Technical Information

The front passenger seat belt forms part of the vehicle’s Supplementary Restraint System and provides the primary restraint for the passenger during sudden deceleration or a collision.

The inertia-reel mechanism allows normal occupant movement during everyday driving while automatically locking the belt when rapid belt movement or vehicle deceleration is detected.

The assembly is designed to:

* Restrain the front passenger during a collision

* Lock during sudden deceleration

* Retract the webbing when released

* Maintain correct belt tension during normal use

* Allow normal passenger movement while driving

* Work together with the vehicle’s other occupant-safety systems

Seat Belt & Restraint System Information

The seat belt is one of the vehicle’s most important safety components.

During normal driving, the reel allows the belt webbing to extend and retract freely. Under rapid movement or deceleration, the internal locking mechanism prevents further extension.

The belt must therefore:

* Pull out smoothly

* Retract correctly

* Lock when rapidly extended

* Engage securely with the correct buckle

* Release correctly when the buckle button is pressed

Poor retraction does not always mean the retractor itself has failed. Twisted webbing, contamination or incorrect routing through the upper guide can also restrict movement.

Common Symptoms / Reasons for Replacement

Typical reasons for replacing a front seat belt include:

* Belt will not retract

* Very slow or weak retraction

* Belt remains locked

* Belt will not pull out correctly

* Webbing is frayed or damaged

* Cuts or excessive wear to the belt

* Damaged retractor mechanism

* Broken mounting point

* Damaged plastic trim or guide

* Belt damaged during seat/interior removal

* Missing original seat belt

* Previous restraint-system damage

Important Diagnostic Information

Before replacing the belt because of poor retraction, check:

* Webbing is not twisted

* Upper belt guide is correctly positioned

* Belt is correctly routed

* No trim is trapping the webbing

* Retractor is mounted at the correct angle

* Webbing is free from heavy contamination

* Mounting points are correctly aligned

Many inertia-reel mechanisms are sensitive to installation angle. A removed seat belt may appear permanently locked when held in the wrong orientation but operate normally when positioned at its correct installed angle.

Safety Inspection

Before installation, the complete assembly should be inspected carefully.

Do not use a seat belt showing:

* Torn or cut webbing

* Heavy fraying

* Heat damage

* Chemical contamination

* Severely damaged mounting points

* Unreliable locking

* Damaged retractor mechanism

* Evidence that makes its safe operation questionable

Seat belts are safety-critical components. Any belt known to have been subjected to significant accident loading should be assessed in accordance with Volkswagen repair guidance and replaced where required.

Installation

Installation should use the vehicle’s original mounting positions.

During fitting:

* Position the retractor correctly

* Ensure the webbing is not twisted

* Route the belt through the correct guides

* Check all mounting points

* Use correct fasteners

* Tighten mounting bolts to VW specification

* Check the buckle engagement

* Fully test extension and retraction

After installation, pull the belt sharply to confirm that the inertia-reel locking mechanism activates.

Programming / Coding

No programming or coding is normally required for the mechanical seat belt retractor assembly.

If the supplied configuration includes any electrical restraint-system connection, the vehicle should be diagnosed appropriately after installation.

An illuminated airbag/SRS warning light should always be investigated rather than simply cleared.

Important Compatibility Note

Please compare before ordering:

* Complete number – 7H0857805H RAA

* Base number – 7H0857805H

* Front-left position

* UK passenger / N/S application

* Electrical connector, if present

* Mounting points

* Retractor design

* Belt webbing/trim specification

* Buckle tongue design

* Vehicle production date

The suffix letters are important. Volkswagen used multiple front seat belt versions throughout T5 production, so 7H0857805H RAA should be matched with the original belt wherever possible.

Do not purchase solely because the vehicle is a Transporter T5.

Condition

Genuine Volkswagen used safety component.

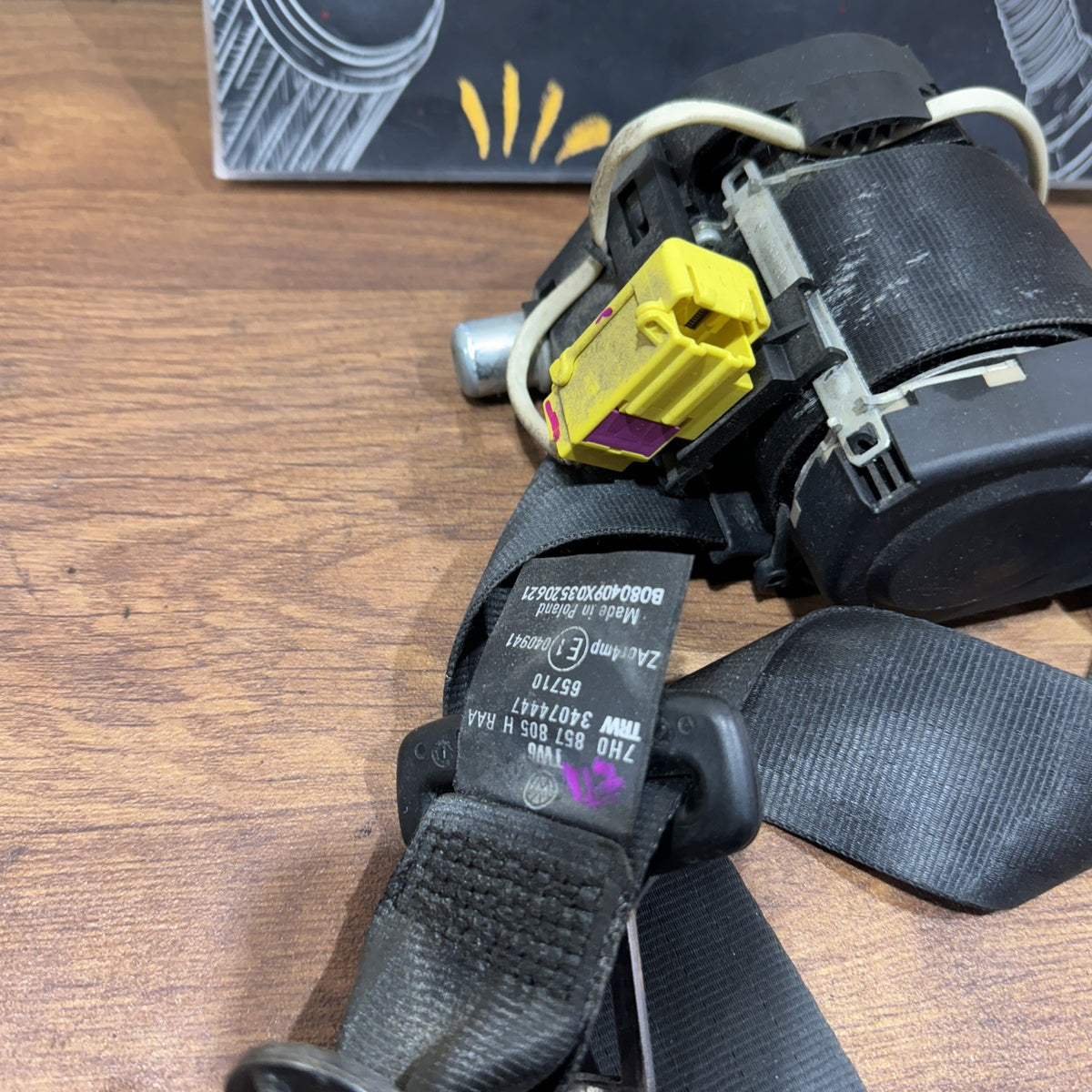

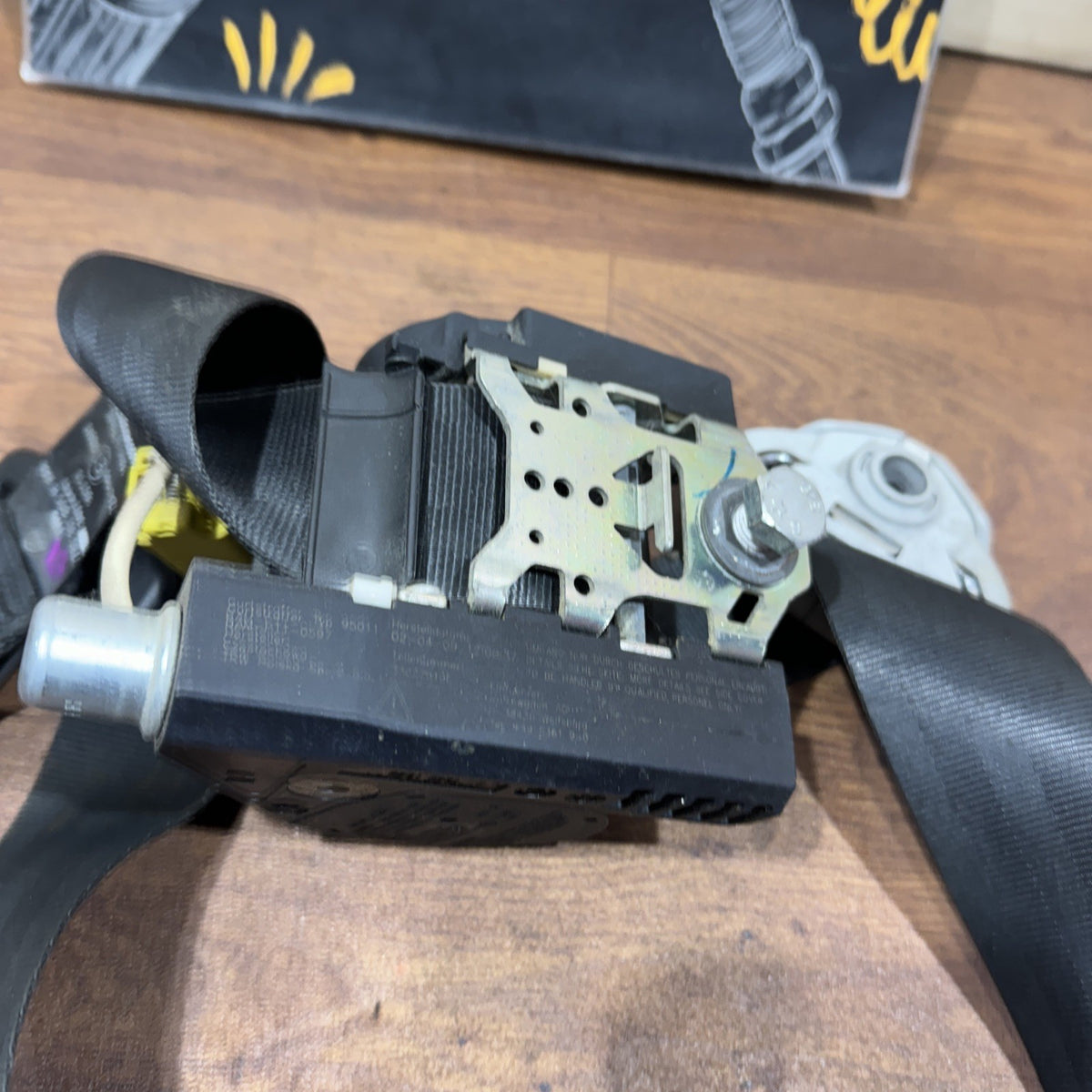

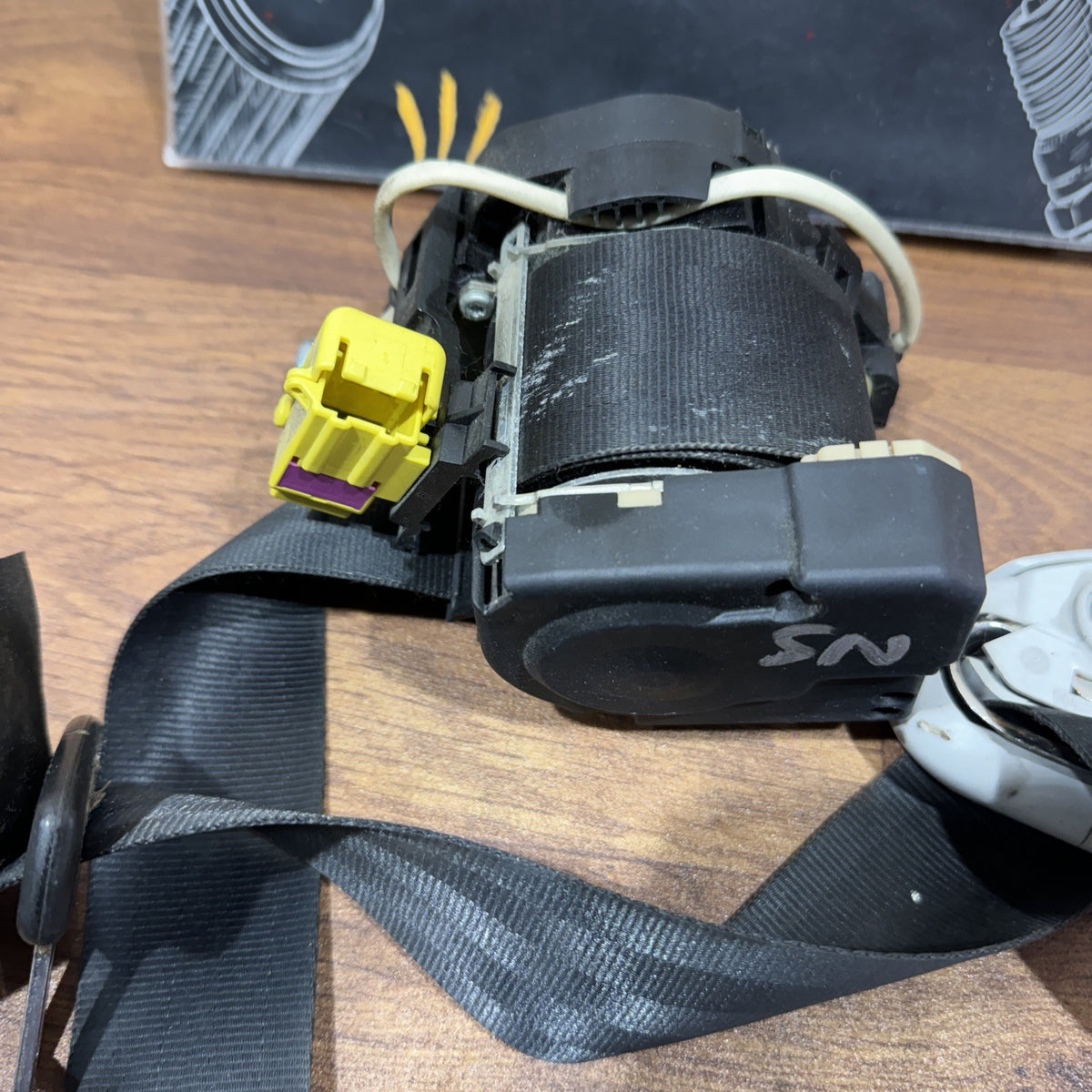

As a used seat belt, it may show normal cosmetic signs of previous use. Please inspect the listing photographs carefully for the exact condition of the webbing, retractor, mounting points, belt tongue and plastic components.

The belt should be checked for smooth extension, correct retraction and positive locking before installation/use.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a damaged, worn, missing or faulty Volkswagen Transporter T5 front-left / passenger-side seat belt, provided 7H0857805H RAA matches the original unit.
