VW CARAVELLE/T5 Right sliding door catch retaining plate 7H0843640D

#85

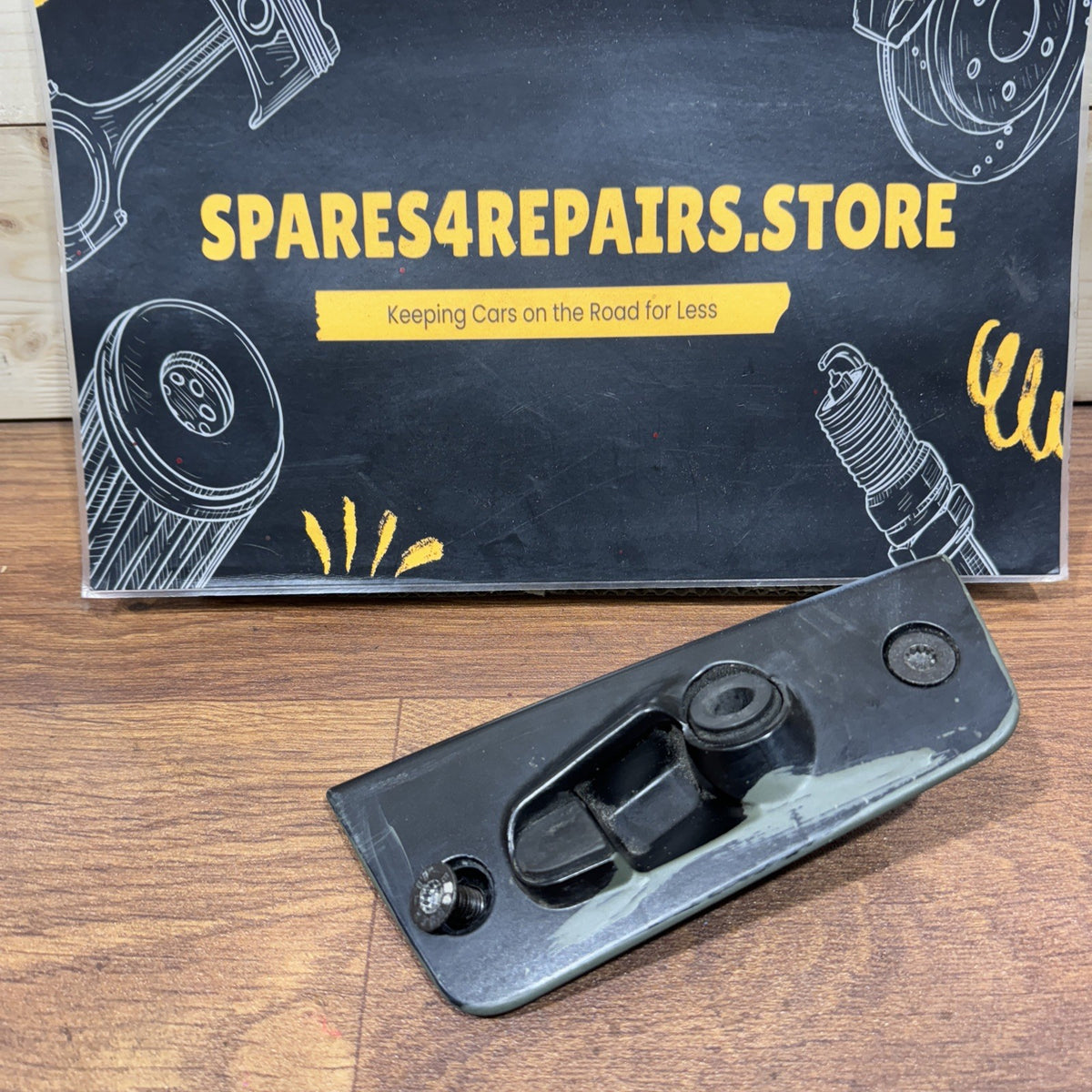

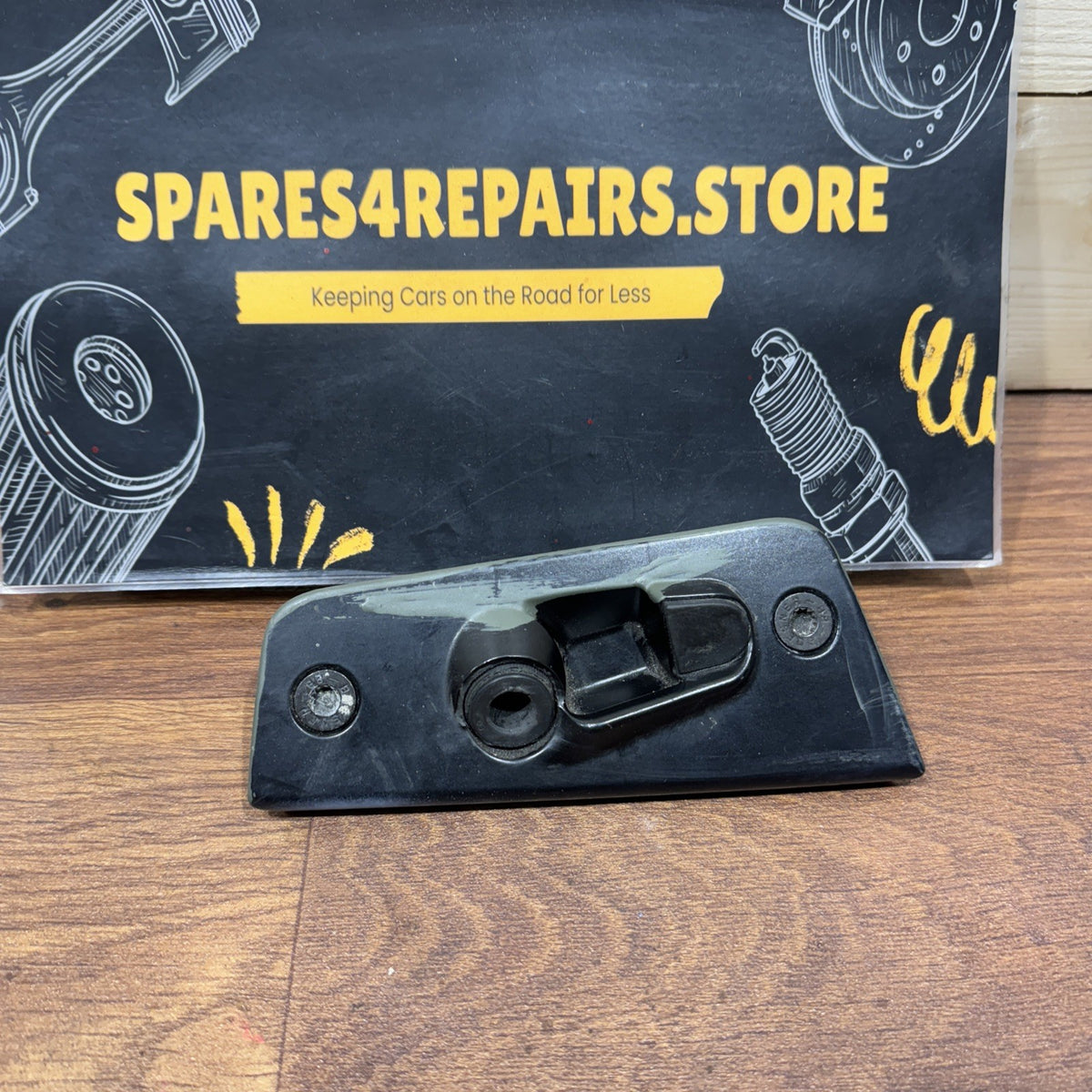

Genuine used Volkswagen Transporter T5 / Caravelle right-hand sliding door lower catch / retaining plate, part number 7H0843640D.

This factory metal catch plate forms part of the sliding-door guide and retention system. It is fitted in the lower position for the right-hand sliding door and helps correctly locate and stabilise the door when operating and closing.

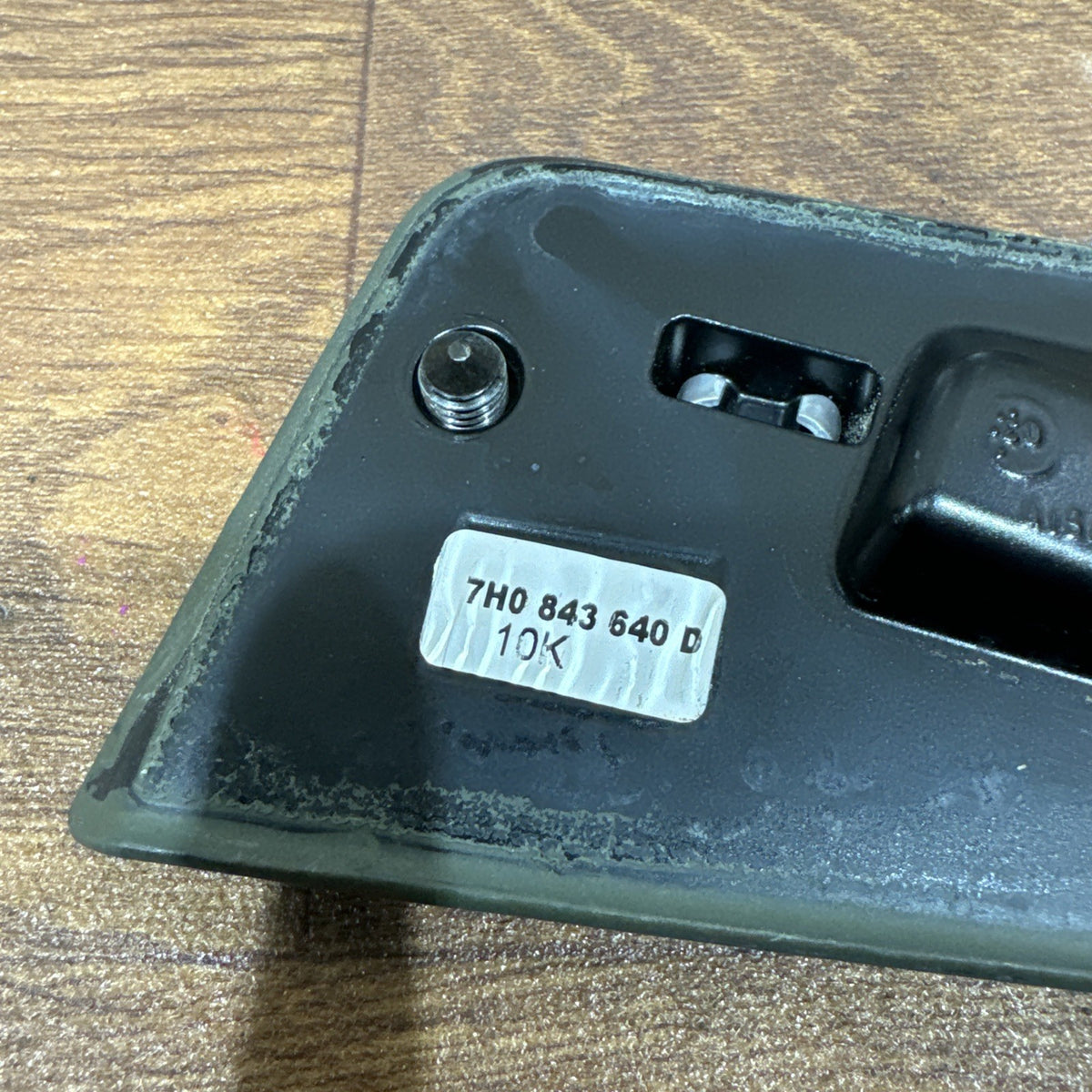

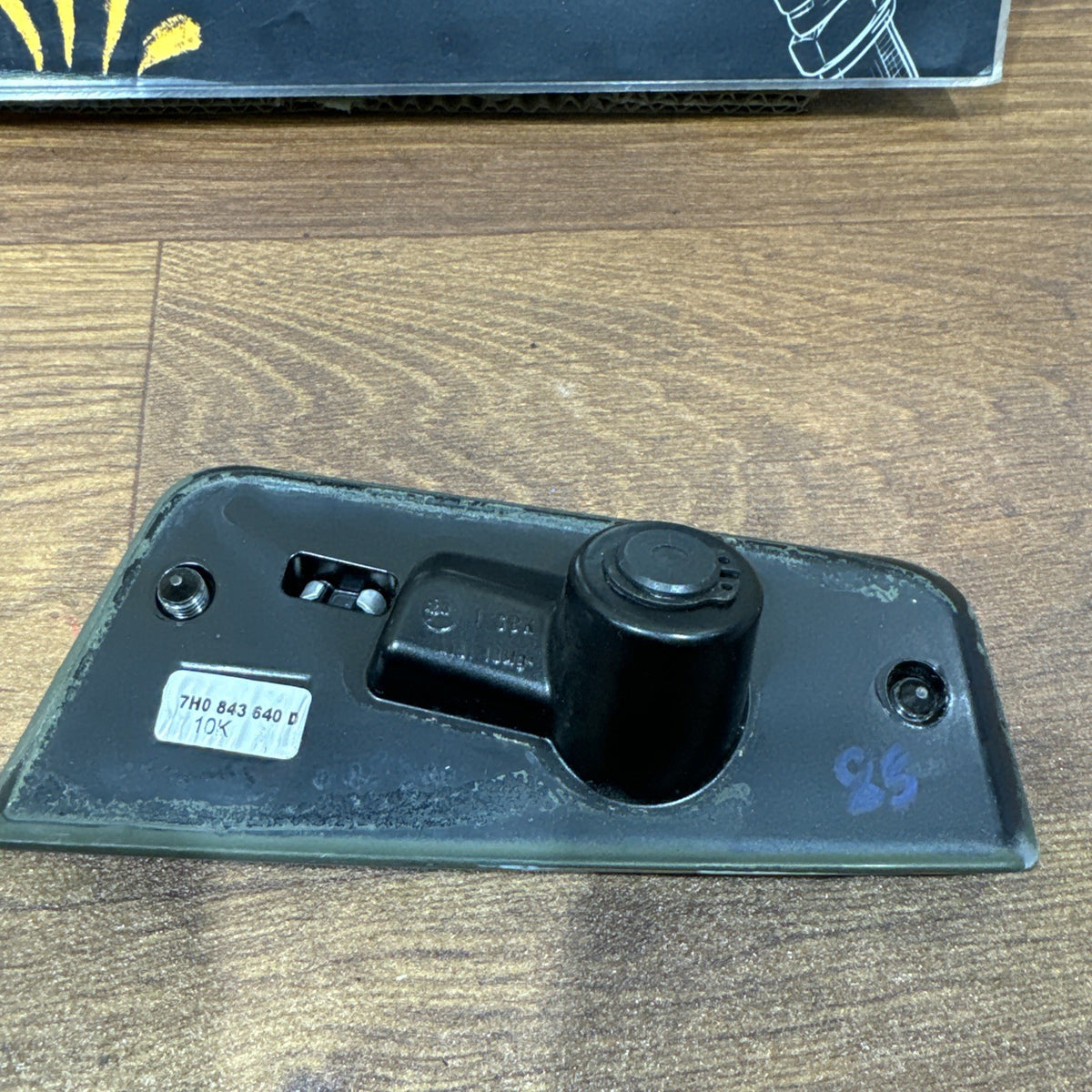

Part Number: 7H0843640D

VW OE Number: 7H0 843 640 D

Part Type: Sliding Door Catch Plate / Retaining Plate / Striker Guide Plate

Position: Lower

Door Position: Right-Hand Sliding Door

Manufacturer: Volkswagen / VAG

Material: Metal

Condition: Genuine used part

Compatibility

Suitable for selected:

* Volkswagen Transporter T5

* Volkswagen Caravelle T5

* Volkswagen Multivan T5

* Volkswagen California T5

* Transporter Panel Van

* Kombi

* Shuttle / passenger versions

* Vehicles equipped with the corresponding right-hand sliding door

The original 7H0843640D reference is documented on early Transporter T5 sliding-door assemblies.

Later revisions of the same right-hand lower catch-plate family include:

* 7H0843640E

* 7H0843640F

* 7E0843640A

* 7E0843640B

These later references are associated with T5 and subsequent Transporter generations, but buyers should still compare the physical component and OE number before ordering.

Important Position Information

This part is specifically the:

RIGHT-HAND SLIDING DOOR – LOWER CATCH / RETAINING PLATE

It should not be confused with the upper right-hand sliding-door catch.

Related T5 references include:

Right Sliding Door – Upper:

7H0843638C / 7H0843638D / 7H0843638E

Right Sliding Door – Lower:

7H0843640D and related later revisions

Left Sliding Door – Lower:

7H0843639-series

This distinction is important because the upper and lower plates have different shapes and mounting positions.

Technical Information

The catch plate forms part of the mechanical sliding-door positioning system.

As the sliding door reaches its closing position, the catch/retaining system helps:

* Guide the door into the correct position

* Stabilise the lower section of the door

* Maintain correct door alignment

* Reduce unwanted lateral movement

* Reduce vibration and rattling

* Support smooth and repeatable closing

* Maintain correct alignment with surrounding bodywork

Correct adjustment of the sliding-door components is important because the T5 side door is relatively large and heavy.

Sliding Door System Information

The Transporter T5 sliding-door system uses several mechanical components working together, including:

* Upper guide/catch

* Lower catch/retaining plate

* Sliding-door rollers

* Roller brackets

* Centre guide/roller

* Door lock mechanism

* Striker/catch components

* Door stops

* Sliding-door tracks

Wear or incorrect adjustment of one component can affect the operation of the complete door.

Common Symptoms / Reasons for Replacement

Typical reasons for replacing this catch plate include:

* Excessive wear

* Bent retaining plate

* Accident damage

* Damaged contact surface

* Broken or damaged mounting point

* Sliding door rattling

* Door sitting incorrectly when closed

* Excessive movement in the lower part of the door

* Difficulty closing the sliding door

* Door requiring excessive force to latch

* Missing catch plate

* Corrosion

* Previous incorrect adjustment

Visible wear on the contact area can indicate that the door has been running against the plate incorrectly.

Important Diagnostic Information

If the sliding door is difficult to close or incorrectly aligned, do not automatically assume the catch plate is the only faulty component.

Also inspect:

* Upper sliding-door catch

* Lower roller

* Centre roller

* Upper roller/guide

* Door tracks

* Main sliding-door lock

* Door striker

* Door stops

* Mounting brackets

* Door alignment

A worn roller or incorrectly adjusted door can place abnormal load on the catch plate and cause premature wear.

Door Alignment Information

Incorrect sliding-door alignment can cause:

* Uneven panel gaps

* Door sitting too far in or out

* Rattling while driving

* Excessive wind noise

* Water ingress

* Difficulty locking

* Premature roller wear

* Catch plate wear

If the old catch plate shows severe or uneven wear, the sliding-door alignment should be checked before fitting the replacement.

Installation

Installation is mechanical and requires no electronic equipment.

Before fitting:

* Compare the replacement plate with the original

* Check the OE number

* Inspect mounting holes

* Inspect mounting bolts

* Check surrounding body mounting points

* Inspect sliding-door rollers and guides

During installation, position the catch plate correctly and secure it using the appropriate factory mounting hardware.

Adjustment

The catch plate’s position can affect how the sliding door locates when closing.

If adjustment is required:

* Note the position of the original component before removal

* Install the replacement initially in the same position

* Close the door carefully

* Check panel alignment

* Check engagement with the catch

* Check for excessive movement

* Confirm smooth opening and closing

Do not repeatedly slam the door if it is incorrectly aligned.

Correct the alignment before normal use.

Programming / Coding

No programming or coding is required.

This is a purely mechanical sliding-door component.

Supersession / Replacement Information

The original:

7H0843640D

belongs to a later-developed OE family that includes references such as:

7H0843640E

7H0843640F

7E0843640A

7E0843640B

The later 7E0843640B is sold by genuine VW parts specialists as the lower right sliding-door catch plate and cross-referenced to the earlier 7H0843640D.

However, for a used replacement, matching the original number and physical design remains the safest approach.

Important Compatibility Note

Please compare before ordering:

* OE number – 7H0843640D

* Right-hand sliding-door configuration

* Lower mounting position

* Plate shape

* Catch/contact design

* Mounting-hole positions

* Door configuration

* Vehicle production date

* Original component

Do not confuse this part with the upper right sliding-door catch plate.

Matching 7H0843640D directly against the original component is strongly recommended.

Condition

Genuine Volkswagen used sliding-door component.

As a used mechanical/body part, normal signs of previous use may include:

* Surface marks

* Contact/wear marks

* Scratches

* Dirt

* Oxidation

* Light surface corrosion

* General signs of previous installation

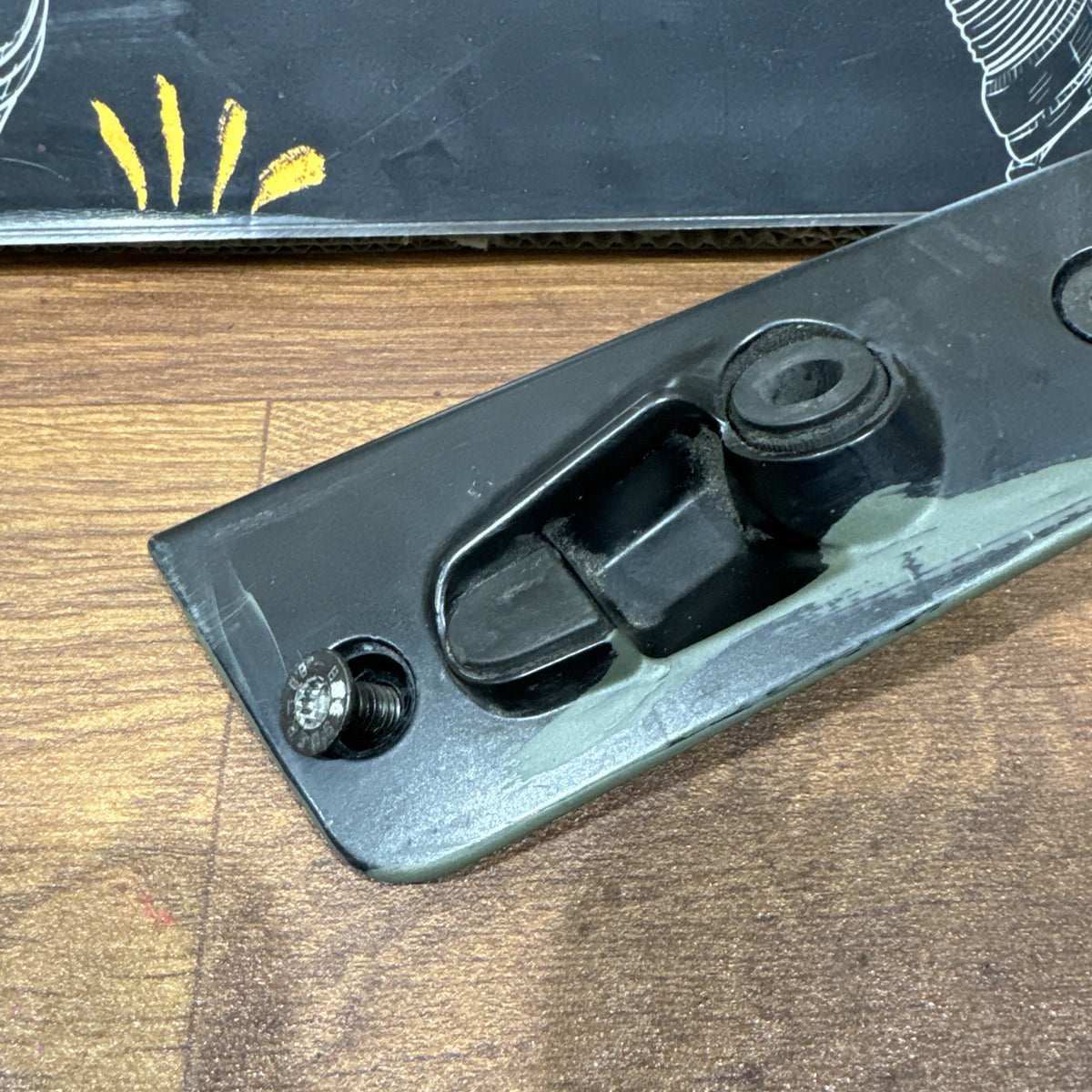

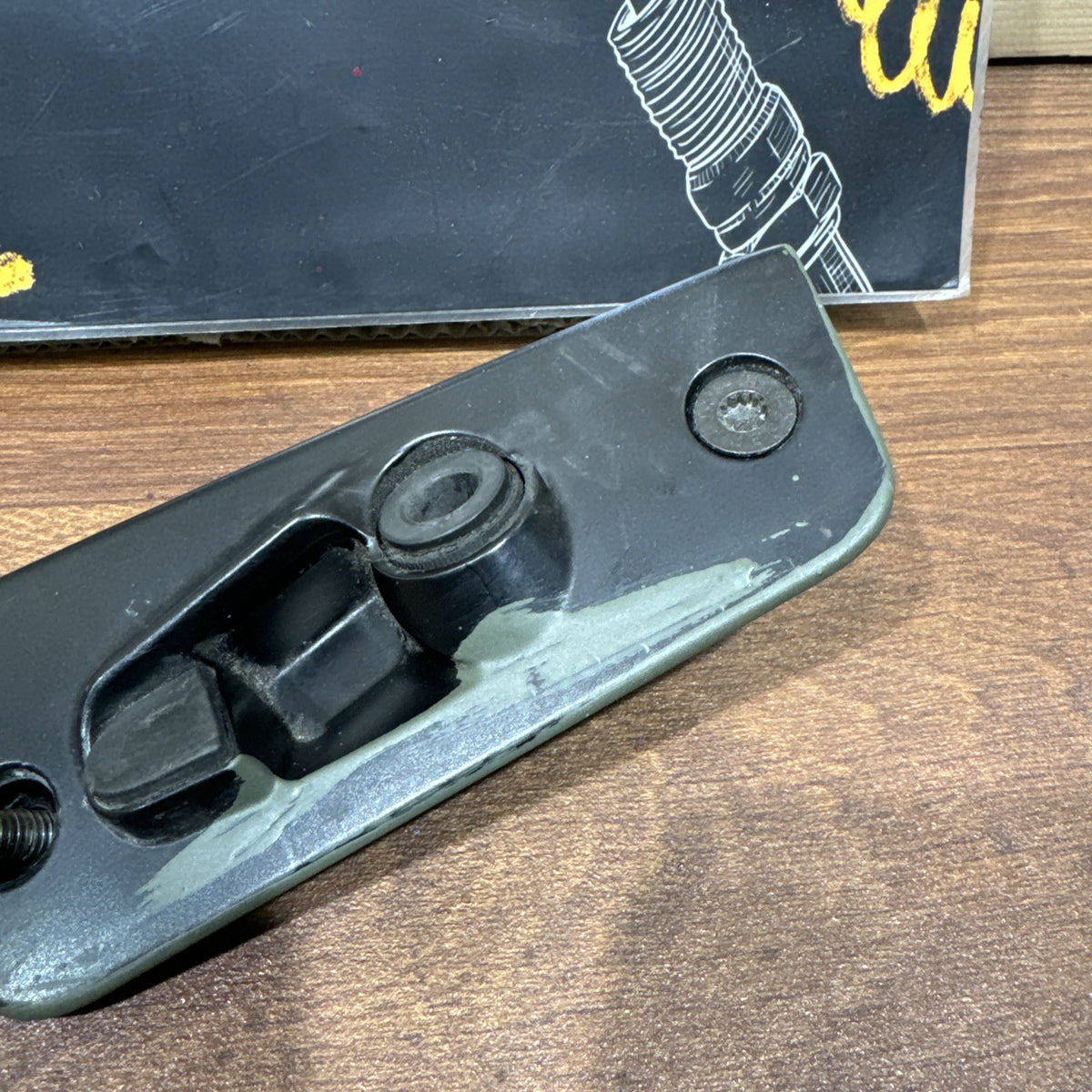

Please inspect all listing photographs carefully, particularly the contact surface, mounting holes, edges and overall shape.

Mounting bolts or additional hardware are included only where clearly shown in the listing photographs.

Any identifying colour/security markings applied to the part must remain intact in the event of a return.

Ideal genuine replacement for a worn, bent, damaged or missing Volkswagen Transporter T5 / Caravelle right-hand sliding-door lower catch retaining plate, provided 7H0843640D or a confirmed compatible revision matches the original component.
