VW T5 TRANSPORTER 2005 1.9 TDI DIESEL HEAT DISSIPATOR 7H0203551C

#loc25

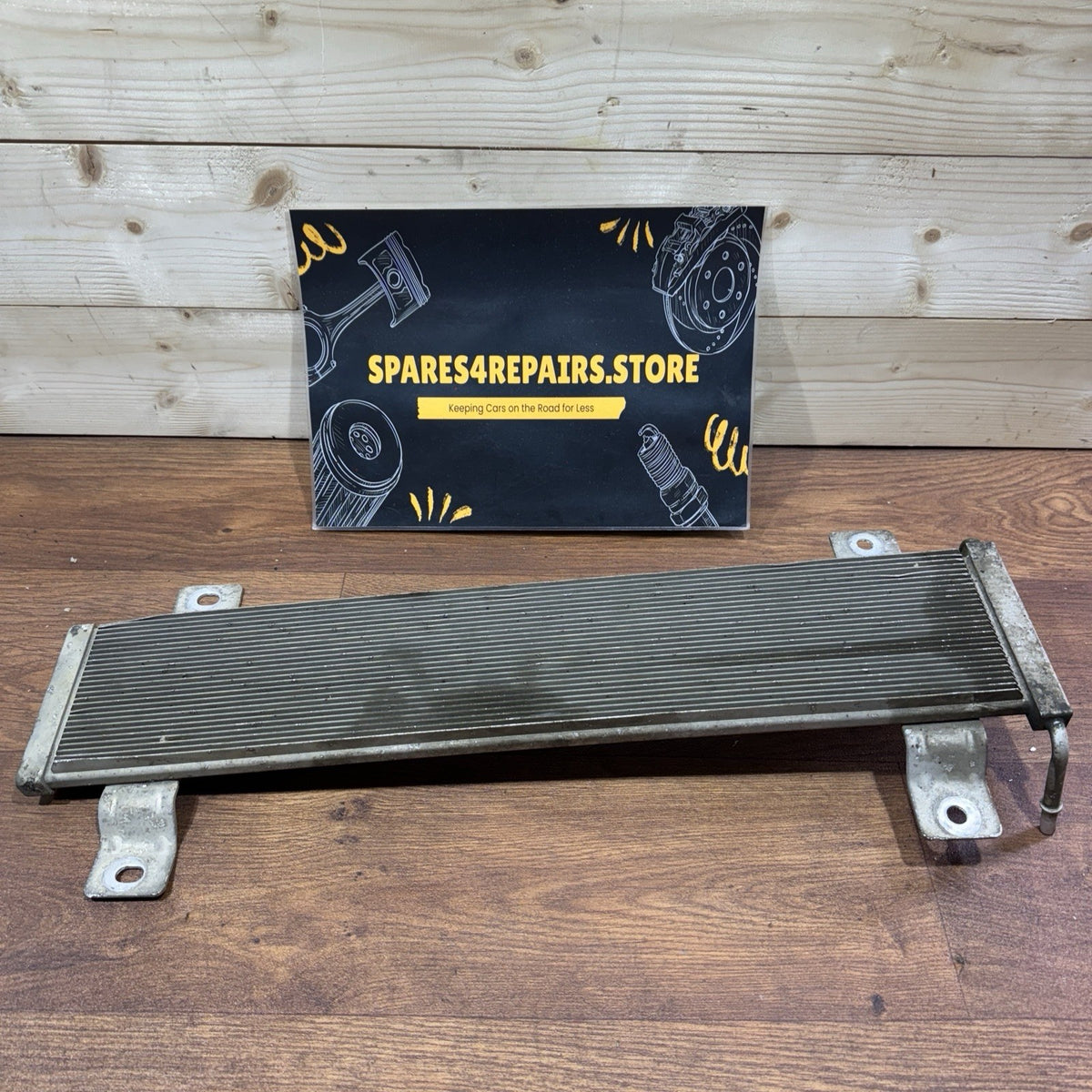

♻ GENUINE VW TRANSPORTER T5 DIESEL FUEL COOLER / HEAT DISSIPATOR 7H0203551C ♻

Genuine used Volkswagen Transporter T5 diesel fuel cooler / heat dissipator, removed from a 2005 vehicle. This component forms part of the diesel fuel return circuit and is designed to reduce the temperature of returning fuel before it reaches the fuel tank.

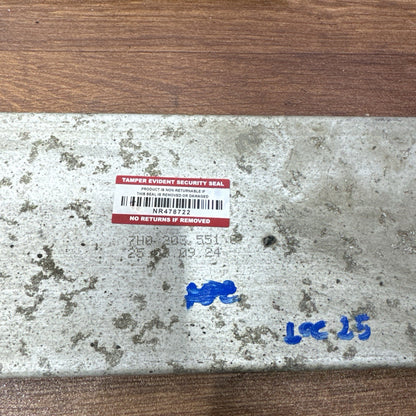

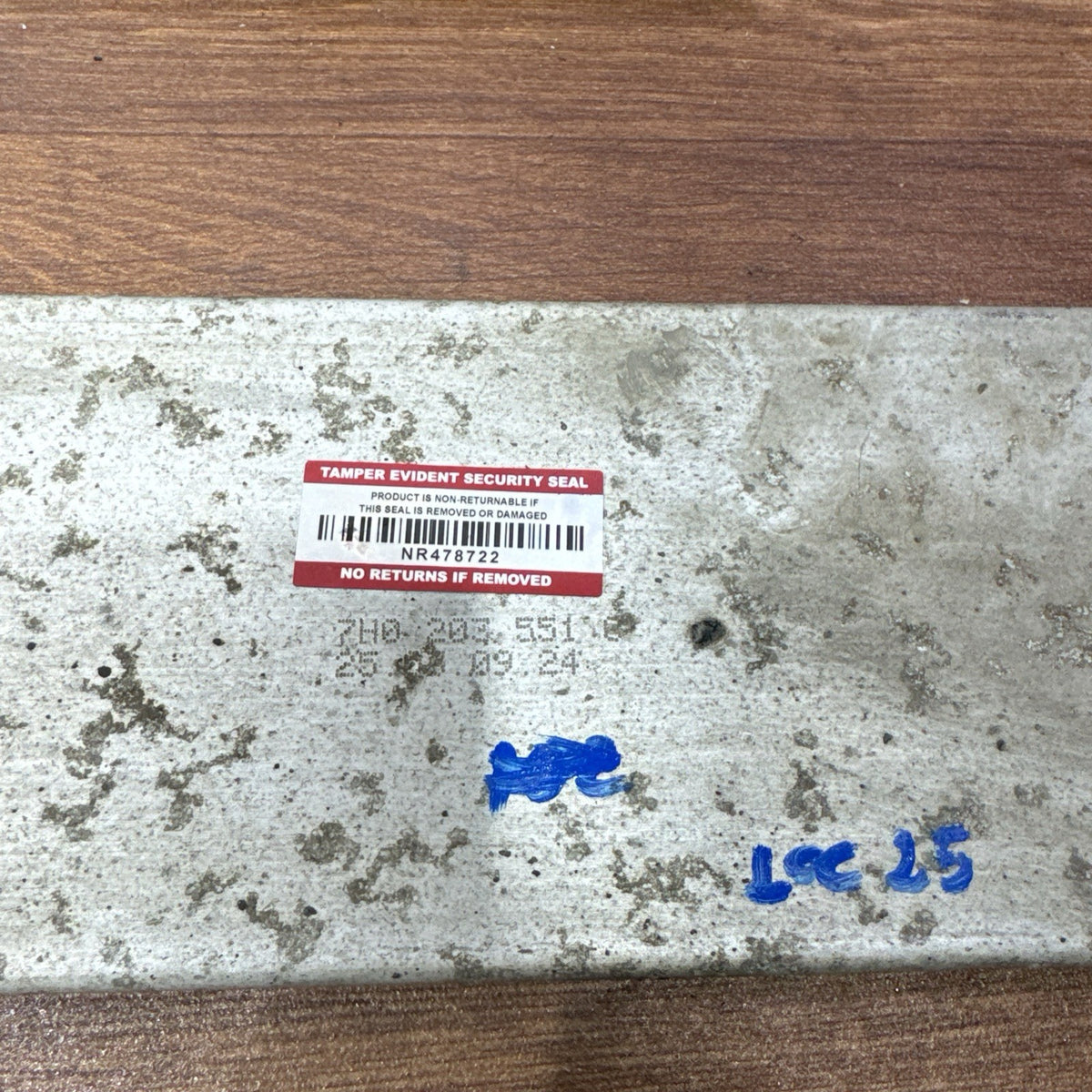

Part Number: 7H0203551C

VW OE Number: 7H0 203 551 C

Part Type: Diesel Fuel Cooler / Heat Dissipator / Fuel Return Cooler

System: Diesel Fuel System

Position: Underbody / Fuel Line Area

Donor Vehicle: Volkswagen Transporter T5

Donor Year: 2005

Manufacturer: Volkswagen / VAG

Condition: Genuine used part

Compatibility

There is an important fitment point with this part.

Volkswagen’s own 2005 catalogue lists 7H0203551C as a heat dissipator in the fuel-line system. On the specific 2005 catalogue application, it is tied to PR code T86 – 2.5-litre 5-cylinder diesel engine, rather than being shown as a universal 1.9 TDI part.

Documented Transporter applications for the 7H0203551C family include selected:

* Volkswagen Transporter T5 – 2003–2009

* Volkswagen Caravelle T5 – selected applications

* Volkswagen Multivan T5 – selected applications

* Volkswagen California T5 – selected applications

* Transporter Panel Van / Furgon

* Transporter Kombi

* Transporter Chassis Cab / Dropside

Genuine-parts catalogues continue to show 7H0203551C across T5/Caravelle parts catalogues from the early T5 period through 2009–2010.

Engine Compatibility

Verified VW catalogue evidence confirms 7H0203551C in the T5 diesel fuel-line system and specifically shows it for the 2.5 TDI 5-cylinder T86 engine configuration on the 2005 catalogue page.

Relevant early T5 diesel engine families in the same fuel-line catalogue include:

* AXB – 1.9 TDI

* AXC – 1.9 TDI

* AXD – 2.5 TDI

* AXE – 2.5 TDI

* BLJ – 2.5 TDI

However, the exact heat-dissipator line item has configuration restrictions. A specialist VAG dismantler also lists 7H0203551C against T5 diesel applications including AXB, AXC, BRR, BRS, AXD, AXE and BLJ, but this should be treated as broader used-parts interchange data rather than proof that every one of those engines left the factory with the same cooler.

Important Compatibility Correction

I would not advertise this as definitely “1.9 TDI” based only on the donor description.

A current eBay listing uses exactly the title “2005 1.9 TDI Diesel Heat Dissipator 7H0203551C,” but Volkswagen’s catalogue evidence for 2005 specifically ties the 7H0203551C heat dissipator to the T86 2.5-litre 5-cylinder diesel configuration.

The safest listing wording is therefore:

VW Transporter T5 Diesel Fuel Cooler / Heat Dissipator 7H0203551C – selected diesel applications; verify OE number, engine code and VIN.

Technical Information

The heat dissipator is fitted in the diesel fuel circuit and functions as a fuel cooler.

Its main functions include:

* Cooling hot returning diesel fuel

* Reducing fuel temperature before it returns to the tank

* Helping protect the fuel tank and fuel-system components from excessive heat

* Supporting stable fuel-system operating temperatures

* Dissipating heat into the surrounding airflow

* Maintaining the factory diesel return-line arrangement

Volkswagen parts data places 7H0203551C within the fuel tank / fuel line system, and genuine-parts suppliers also classify it under fuel/exhaust cooling.

Diesel Fuel System Information

The fuel cooler works together with components including:

* Fuel tank

* Fuel return lines

* Fuel feed lines

* Fuel filter

* Tandem / fuel pump depending on engine

* Fuel temperature sensor

* Quick-release fuel connections

* Retaining clips and brackets

Hot diesel returning from the engine passes through the cooler before returning toward the tank.

Common Symptoms / Reasons for Replacement

Replacement may be required if:

* Cooler is leaking diesel

* Pipe connections are damaged

* Cooler body is heavily corroded

* Unit has suffered underbody impact

* Mounting brackets are bent

* Fuel lines are damaged around the cooler

* Existing unit is missing

* Corrosion has weakened the metal body

Important Diagnostic Information

Before replacing the cooler, also inspect:

* Fuel feed and return hoses

* Quick-release connectors

* Fuel-line clips

* Mounting brackets

* Fuel filter

* Fuel temperature sensor

* Nearby underbody pipes

A diesel leak near the cooler does not necessarily mean the cooler itself is cracked; a hose, connector or seal may be the actual source.

Installation

Typical installation may involve:

1. Safely raising and supporting the vehicle.

2. Cleaning the area around the fuel connections.

3. Clamping or controlling fuel loss as appropriate.

4. Disconnecting the fuel lines carefully.

5. Removing the cooler mounting bolts or brackets.

6. Installing the replacement unit.

7. Reconnecting all fuel lines securely.

8. Checking clips and retaining brackets.

9. Priming the fuel system where necessary.

10. Checking thoroughly for diesel leaks.

Because this is part of the fuel system, installation should be carried out carefully and any leaks corrected before the vehicle is driven.

Programming / Coding

No programming or coding is required.

This is a purely mechanical fuel-system cooling component.

Supersession / Related Part Information

Volkswagen genuine-parts sources show related heat-dissipator revisions including:

* 7H0203551

* 7H0203551A

* 7H0203551B

* 7H0203551C

* 7H0203551D

These should not automatically be treated as interchangeable, because different suffixes can correspond to different fuel-system or auxiliary-heater configurations.

For example, VW’s 2005 catalogue lists 7H0203551B separately for PR code 9M5 auxiliary heater, while 7H0203551C is shown for the T86 2.5 diesel configuration.

Important Compatibility Note

Before ordering, please compare:

* OE number 7H0203551C

* Engine code

* Fuel-line layout

* Number and position of connections

* Cooler dimensions and shape

* Mounting points

* PR codes

* Your original part against the listing photographs

* Vehicle VIN where possible

Do not rely only on:

“VW T5 2005 1.9 TDI”

because Volkswagen’s OE data shows configuration-specific use of this heat dissipator.

The safest primary fitment is:

Volkswagen Transporter / Caravelle T5 – selected diesel applications using OE 7H0203551C; confirm by original part number, engine code and VIN.

Condition

Genuine used Volkswagen part.

As a used underbody fuel-system component, it may show normal signs of previous use including:

* Surface corrosion

* Road dirt

* Scratches

* Fuel residue

* Marks around mounting points

* General age-related wear

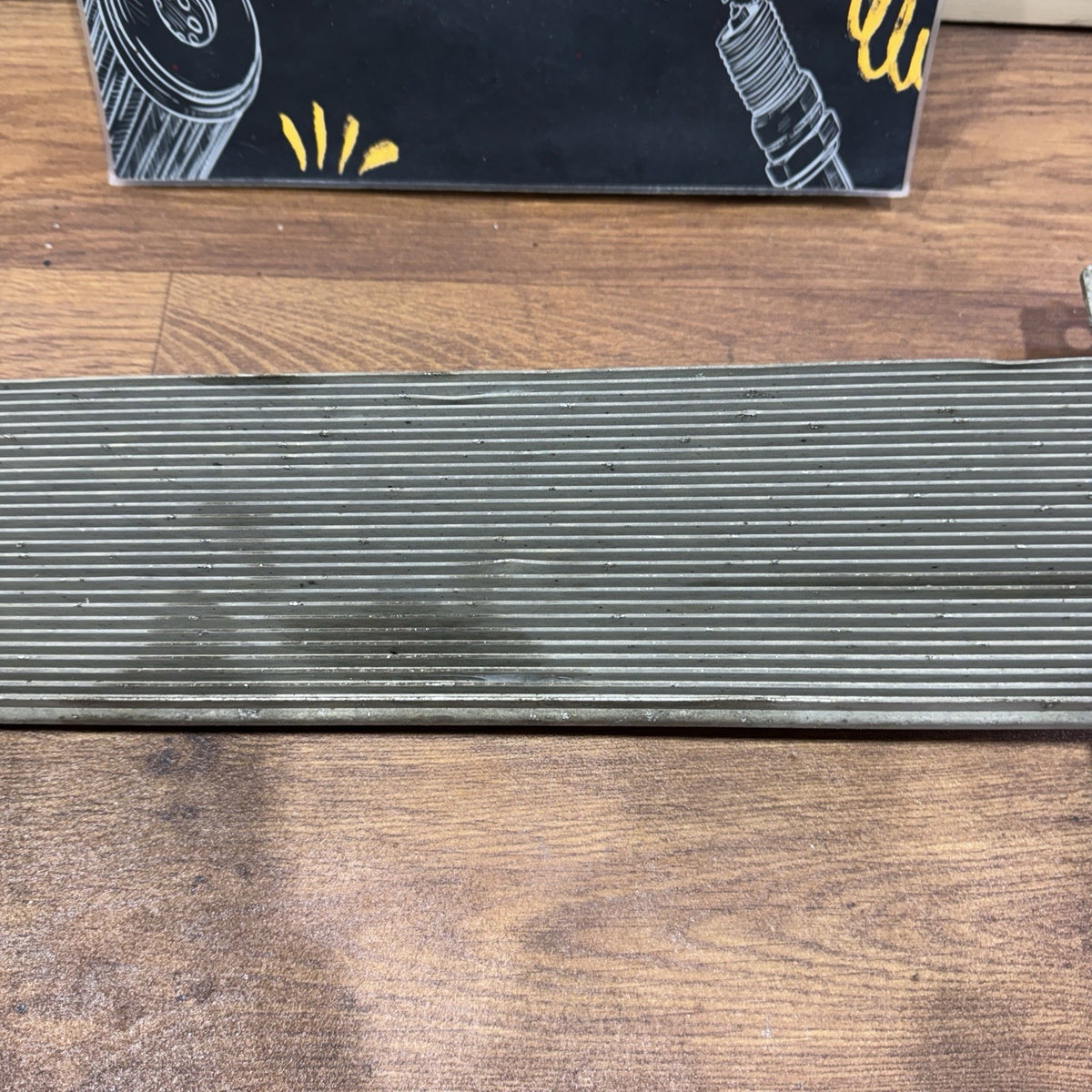

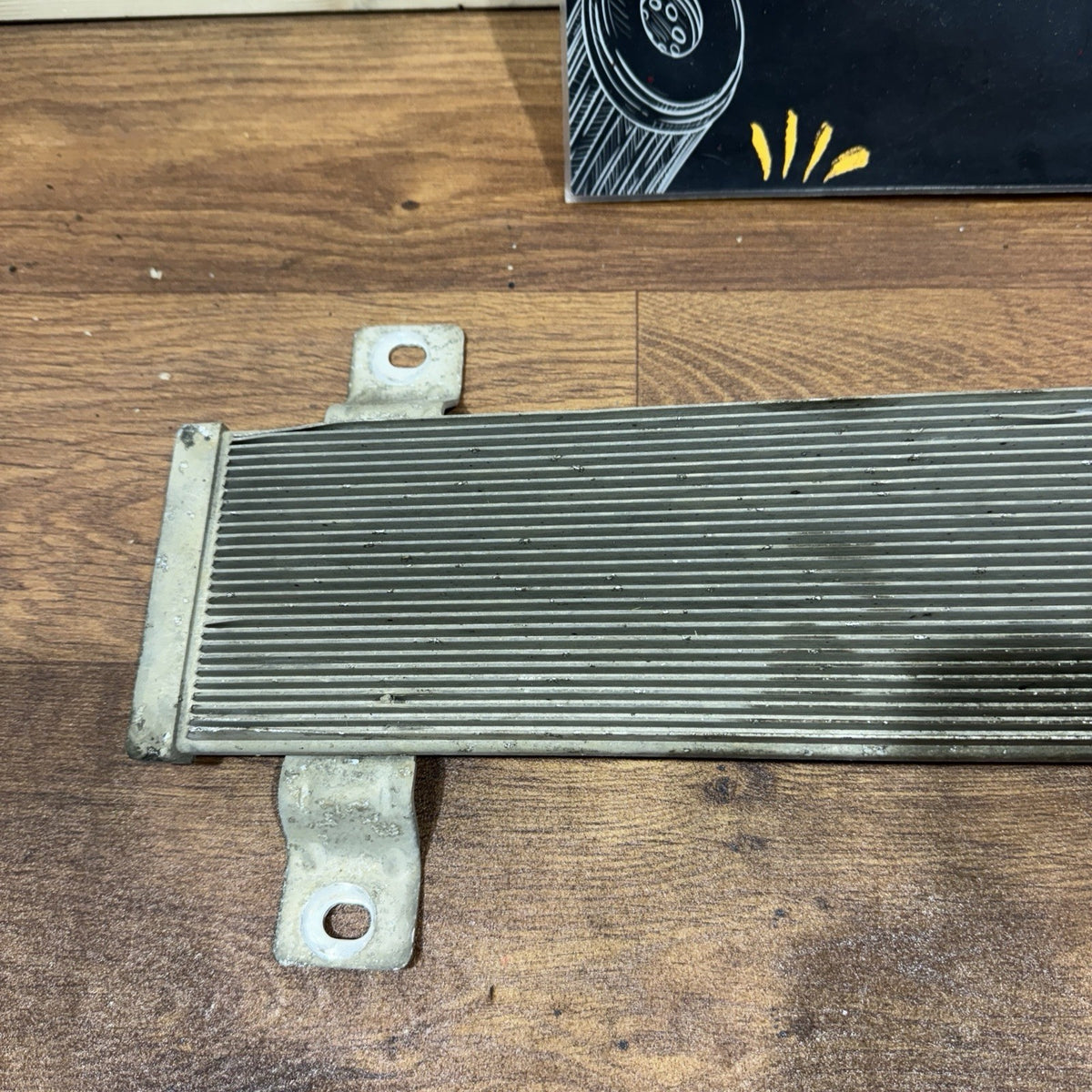

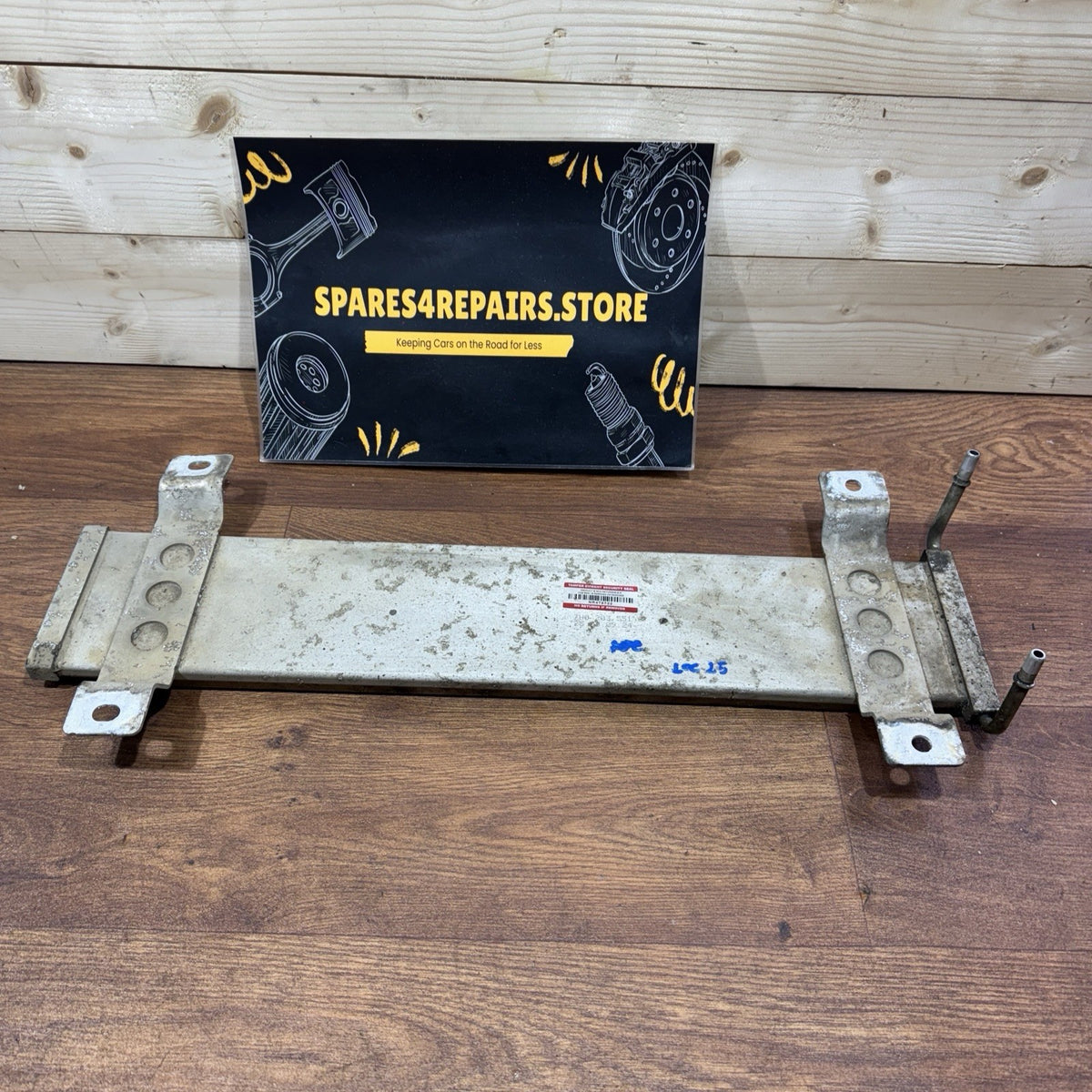

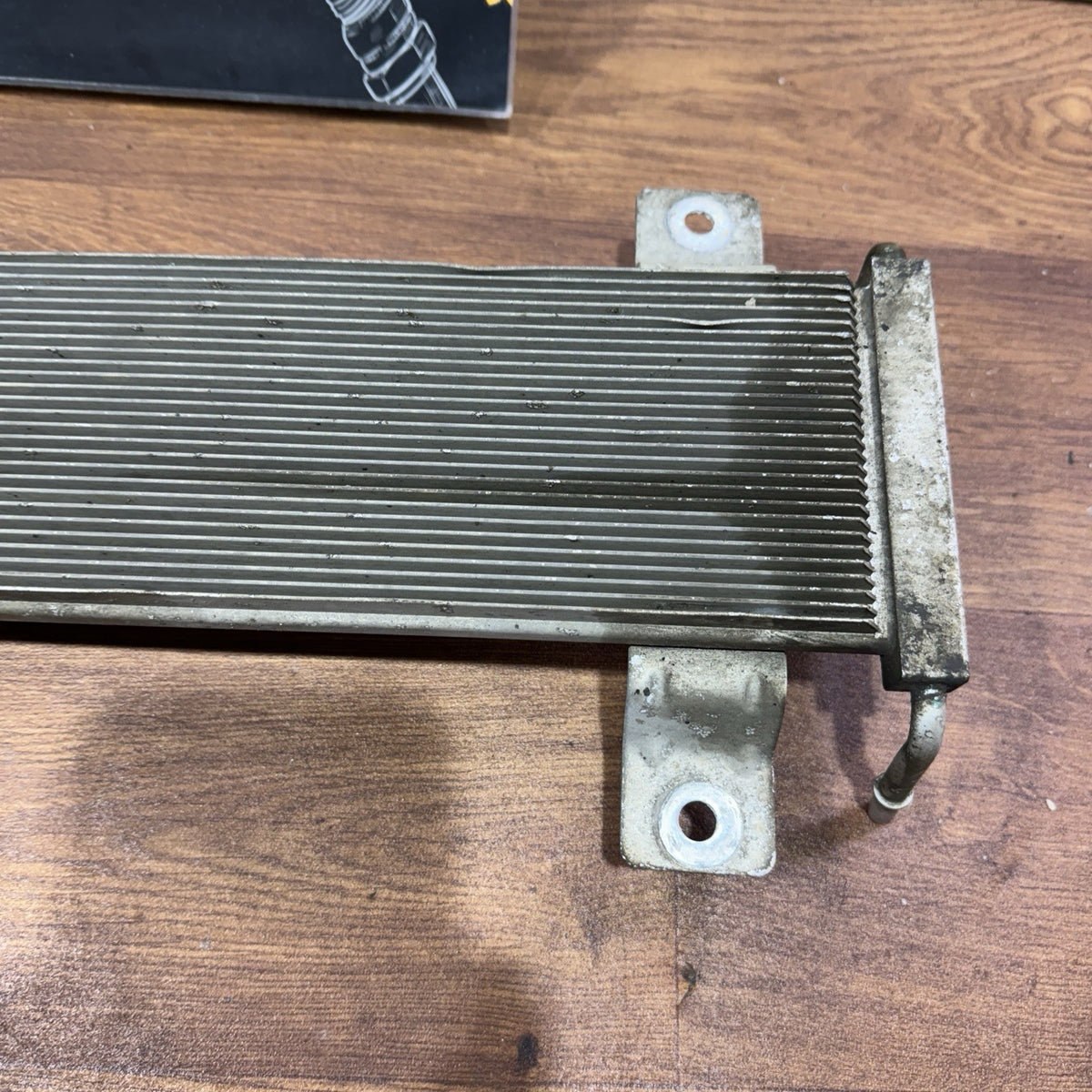

Please inspect all listing photographs carefully for the exact condition, pipe connections, corrosion level and mounting points.

An ideal genuine replacement for a leaking, corroded, damaged or missing VW Transporter T5 diesel fuel cooler / heat dissipator 7H0203551C.

Important: I would change your title so it does not state 1.9 TDI as definite fitment. VW’s 2005 catalogue explicitly shows 7H0203551C for the T86 2.5-litre 5-cylinder diesel configuration, even though some dismantlers also list it on 1.9 TDI vehicles.
