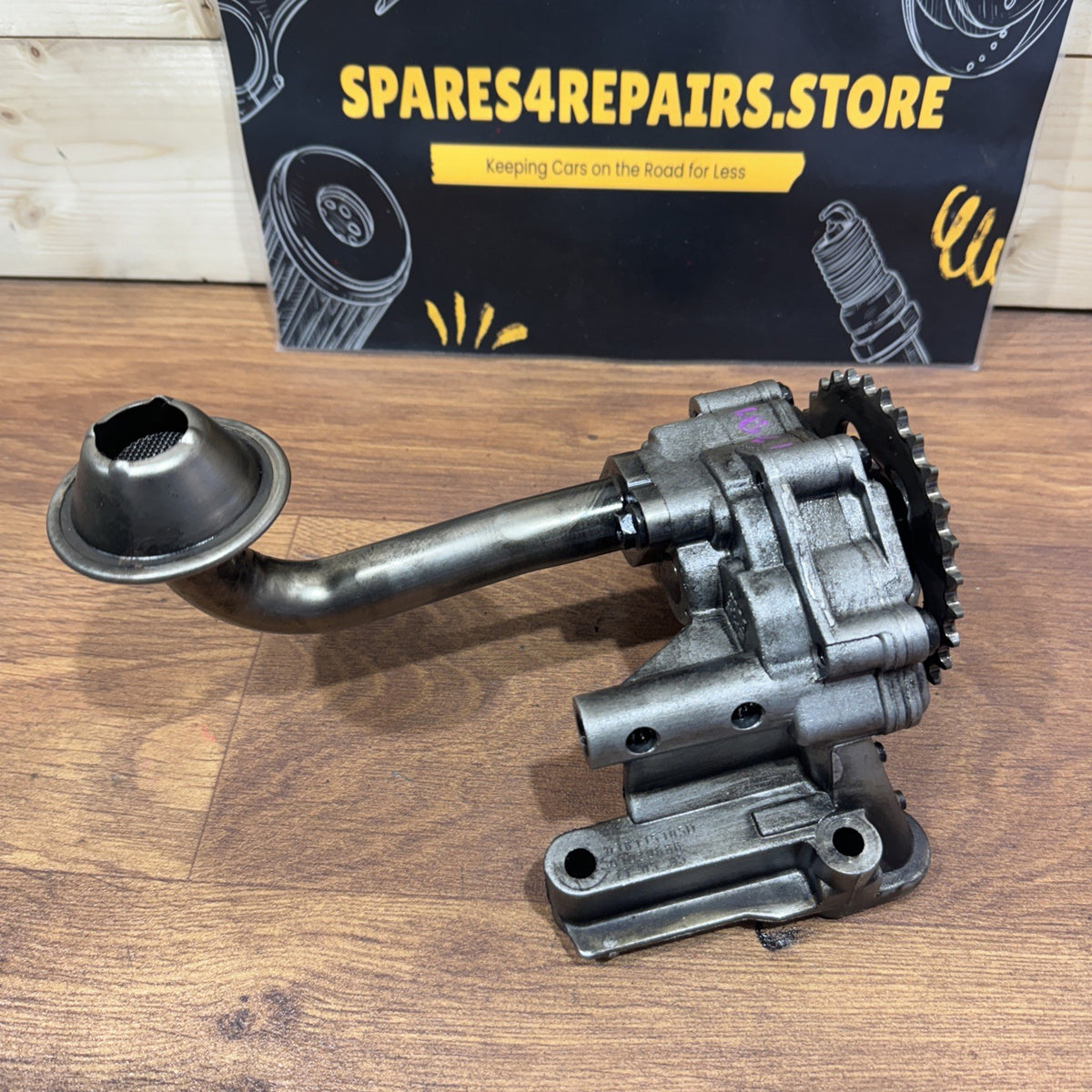

Genuine VW Transporter T5 1.9 TDI Engine Oil Pump – 038115105D – 2003-2009

Genuine Volkswagen used engine oil pump, suitable for selected VW Transporter T5 / Caravelle / Multivan 1.9 TDI diesel engines.

This oil pump is a critical part of the engine lubrication system, responsible for circulating engine oil under pressure to the crankshaft bearings, camshaft, turbocharger and other internal engine components.

Removed from a 2007 VW Transporter T5 1.9 TDI.

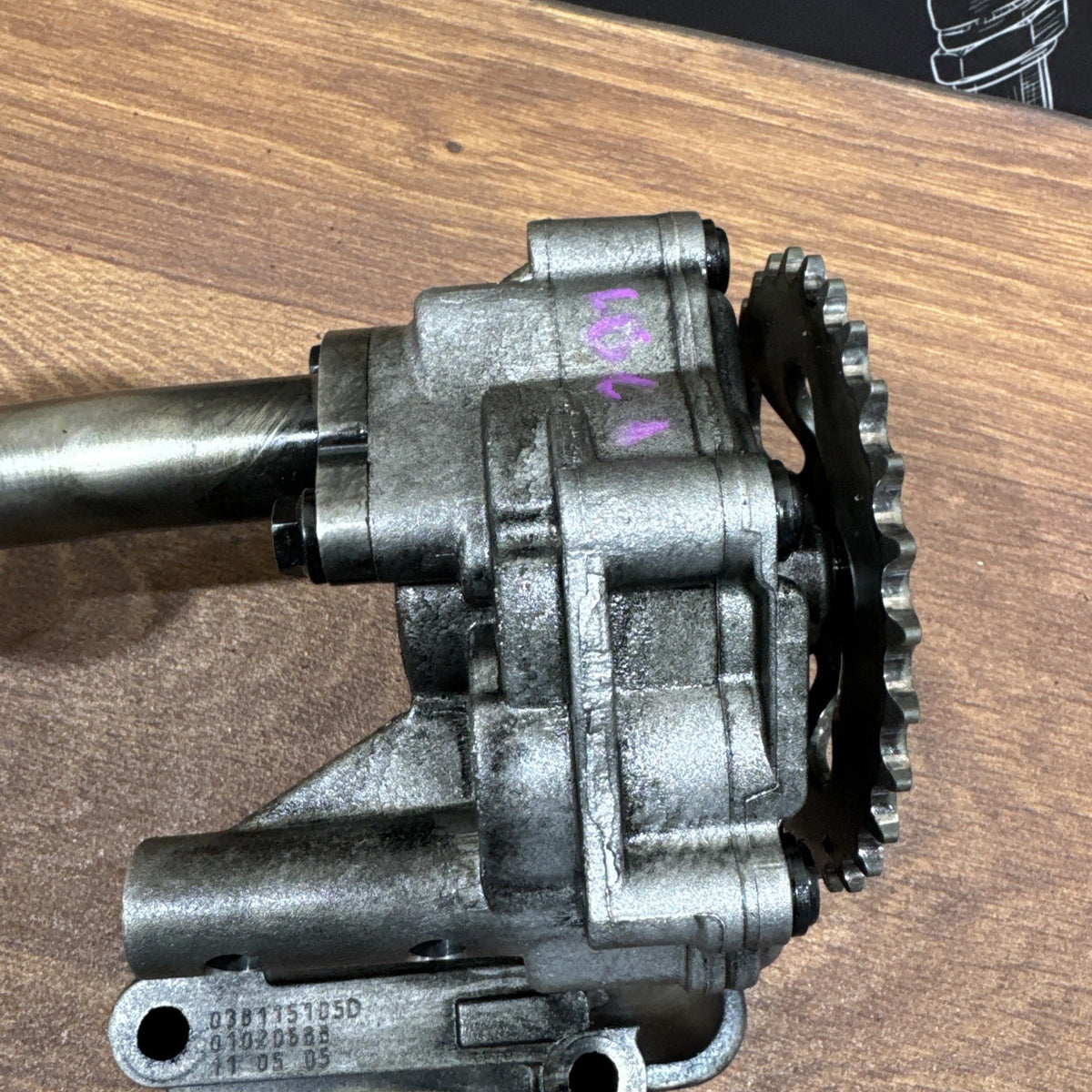

Part Number: 038115105D

VW OE Number: 038 115 105 D

Related / Earlier OE Number: 038115105B

Part Type: Engine Oil Pump

Application: Engine Lubrication System

Engine: 1.9 TDI Diesel

Donor Vehicle: VW Transporter T5 – 2007

Manufacturer: Volkswagen / VAG

Condition: Used Genuine VW Part

COMPATIBILITY

VW Transporter T5 – 1.9 TDI

Verified applications for 038115105D include:

• AXB – 1.9 TDI – 105 PS / 77 kW

• AXC – 1.9 TDI – 85 PS / 63 kW

• BRR – 1.9 TDI – 84 PS / 62 kW

• BRS – 1.9 TDI – 102 PS / 75 kW

These engine-code applications are confirmed for the T5 platform. (Mecatechnic)

VW Transporter T5 Van / Panel Van

• 1.9 TDI AXB

• 1.9 TDI AXC

• 1.9 TDI BRR

• 1.9 TDI BRS

VW Transporter T5 Kombi / Bus

• Selected 1.9 TDI applications

• Approximately 2003-2009

VW Caravelle T5

• Selected 1.9 TDI applications with matching engine code

VW Multivan T5

• Selected 1.9 TDI applications with matching engine code

VW Transporter T5 Platform / Chassis Cab

• Selected 1.9 TDI applications

• AXB / AXC / BRR / BRS depending on production date

Fitment data gives the broader T5 1.9 TDI application as approximately 04/2003-11/2009. (Plenty Parts)

ADDITIONAL VAG COMPATIBILITY

The 038115105D oil pump design is not exclusive to the Transporter T5.

The same OE reference is also associated with selected VW Group 1.9 TDI engines used in vehicles such as:

• VW Golf Mk4

• VW Bora

• VW Passat B5 / B5.5

• VW Polo 9N

• VW Sharan

• Audi A3 8L

• Audi A4 B6

• Audi A6 C5

• SEAT Ibiza / Leon / Toledo / Alhambra

Applications include selected ASZ, ARL, AVF, AWX, BLT, BTB and other TDI engine codes. (JGP Automotive)

IMPORTANT: For this listing we recommend compatibility primarily for the VW Transporter T5 1.9 TDI AXB / AXC / BRR / BRS applications. Other VW Group fitment should be confirmed by OE number and engine code before ordering.

TECHNICAL INFORMATION

The engine oil pump draws lubricating oil from the engine sump and circulates it throughout the engine under pressure.

Correct oil pressure is essential for lubrication of components including:

• Crankshaft main bearings

• Connecting rod / big-end bearings

• Camshaft and cylinder-head components

• Turbocharger bearings

• Hydraulic components

• Other internal engine lubrication points

The pump must provide sufficient oil circulation throughout the engine’s operating range.

Insufficient oil pressure can rapidly cause severe internal engine and turbocharger damage.

1.9 TDI LUBRICATION SYSTEM INFORMATION

The AXB, AXC, BRR and BRS 1.9 TDI engines depend on a correctly functioning oil pump and drive system to maintain adequate lubrication.

The pump operates mechanically as part of the lower engine lubrication system.

The associated system can include:

• Oil pump

• Oil pump drive chain

• Chain tensioner

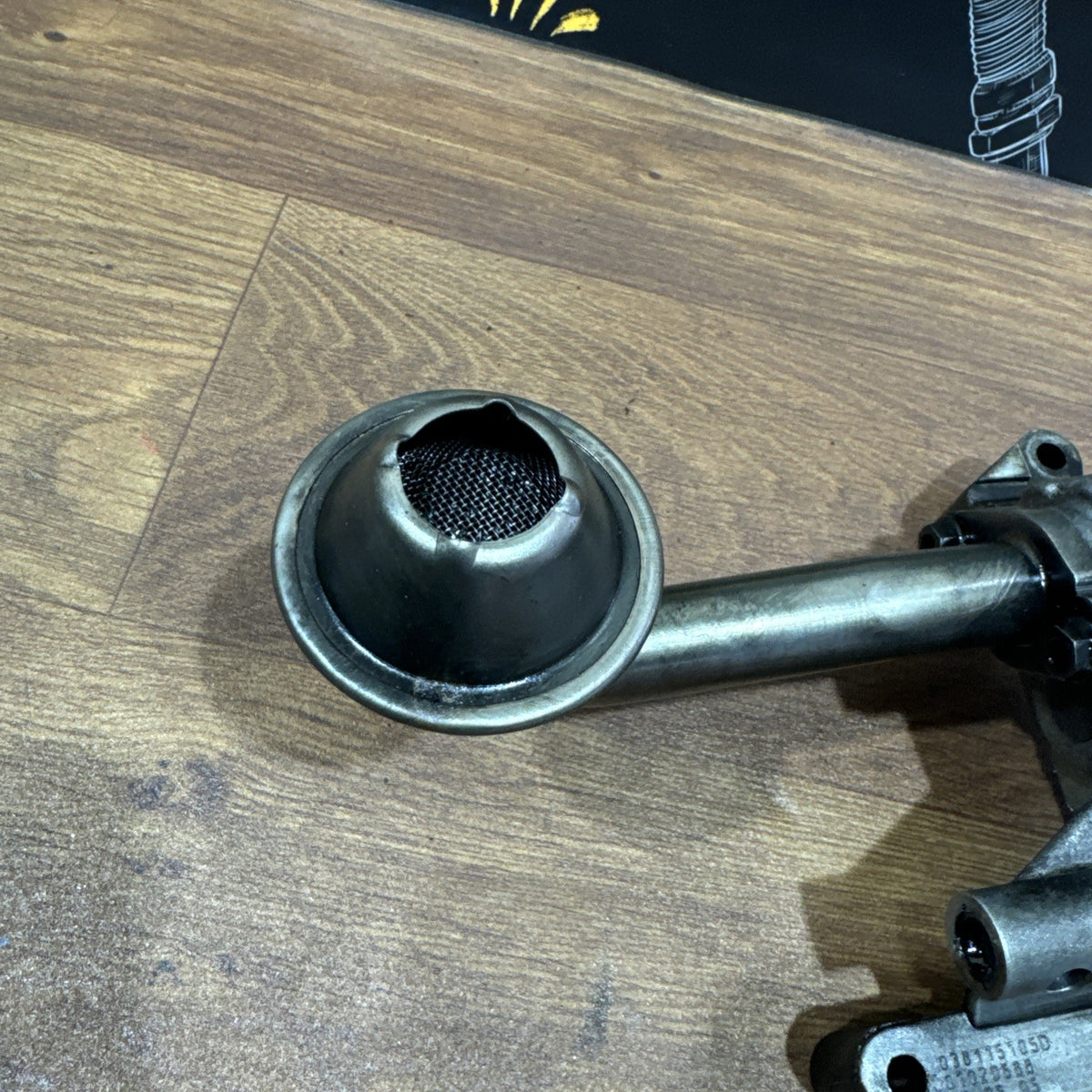

• Oil pickup / strainer

• Oil sump

• Oil pressure switch

• Oil filter and housing

• Internal engine oil galleries

The pump should therefore not automatically be assumed faulty simply because the vehicle has an oil-pressure warning.

COMMON SYMPTOMS / REASONS FOR REPLACEMENT

A worn or faulty oil pump may contribute to:

• Low engine oil pressure

• Oil pressure warning light

• Oil pressure warning when engine is hot

• Excessive engine mechanical noise

• Hydraulic component noise

• Insufficient lubrication

• Turbocharger lubrication problems

• Internal pump wear or damage

• Damage following engine failure

• Replacement during complete engine rebuild

IMPORTANT DIAGNOSTIC INFORMATION

Low oil pressure should be properly diagnosed before replacing the oil pump.

Possible causes should also be checked, including:

• Incorrect or insufficient engine oil

• Blocked oil pickup / strainer

• Damaged oil pump drive chain

• Worn or damaged chain tensioner

• Faulty oil pressure switch

• Blocked oil filter

• Excessive internal engine bearing clearance

• Contamination or sludge within the lubrication system

• Worn internal engine components

Where low oil pressure is suspected, a mechanical oil-pressure test is recommended before dismantling the engine.

OIL PUMP DRIVE INFORMATION

On these T5 1.9 TDI applications, the oil pump works with a chain-drive system.

Replacement kits for 038115105D are available together with the associated oil pump chain and tensioner, with fitment specifically documented for AXB, AXC, BRR and BRS T5 engines. (Heritage Parts Centre)

When replacing the pump, the condition of the drive chain and tensioner should also be inspected.

INSTALLATION

Installation requires access to the lower section of the engine and removal of associated components.

During installation it is advisable to:

• Inspect the oil pickup / strainer

• Inspect the oil pump drive chain

• Inspect the chain tensioner

• Clean the sump and surrounding components

• Check for metal contamination or sludge

• Use the correct seals / sealant where required

• Refill with the correct specification engine oil

• Install a suitable new oil filter

• Verify correct oil pressure after installation

The replacement pump should be correctly primed/lubricated before initial engine start-up according to the appropriate repair procedure.

Professional installation is strongly recommended.

PROGRAMMING / CODING

Programming Required: No

Coding Required: No

Diagnostic Adaptation Required: No

This is a mechanical engine lubrication component.

IMPORTANT COMPATIBILITY NOTE

Please match:

038115105D / 038 115 105 D

Related reference:

038115105B

For VW Transporter T5 applications, verified engine codes include:

AXB – 1.9 TDI 105 PS

AXC – 1.9 TDI 85 PS

BRR – 1.9 TDI 84 PS

BRS – 1.9 TDI 102 PS

Please check the engine code and OE number before ordering.

Do not rely solely on “VW Transporter T5 1.9 TDI”, as components can differ according to engine code and production date.

CONDITION

Used Genuine Volkswagen Part.

As this is a used internal engine component, normal signs of previous installation, oil residue and cosmetic marks may be present.

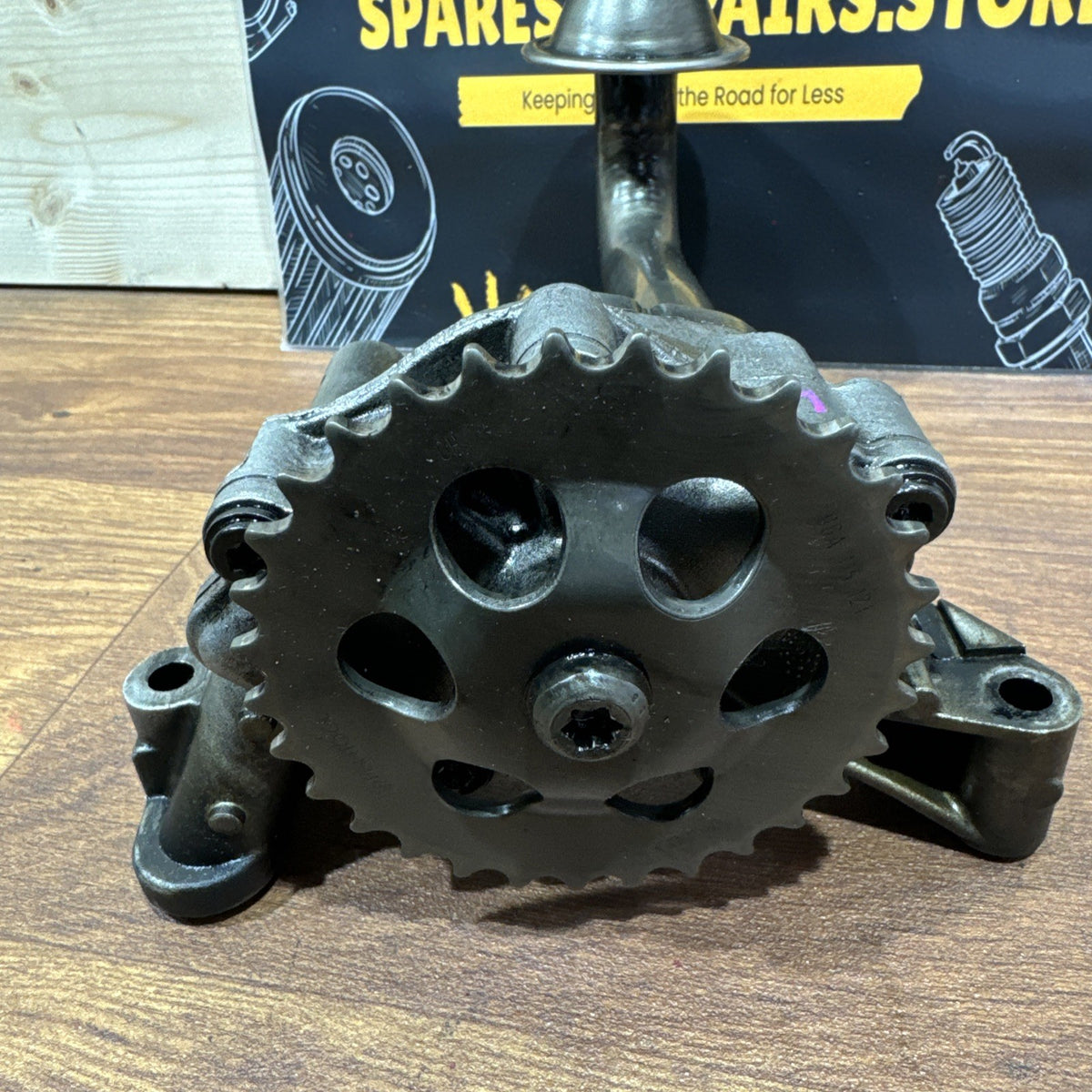

Please inspect all listing photographs carefully for the exact condition, mounting points and components included in the sale.

Used oil pumps should be inspected by a competent mechanic before installation.

Ideal genuine VW replacement engine oil pump for compatible VW Transporter T5 / Caravelle / Multivan 1.9 TDI AXB, AXC, BRR and BRS engines.
